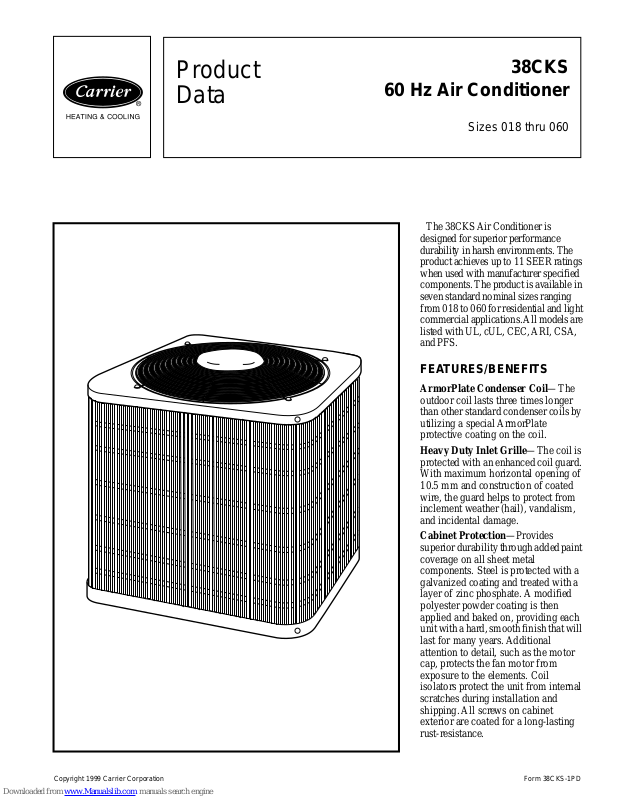

Page 1

Product Data

38CKS

60 Hz Air Conditioner

Sizes 018 thru 060

The 38CKS Air Conditioner is designed for superior performance durability in harsh environments. The product achieves up to 11 SEER ratings when used with manufacturer speciﬁed components. The product is av ailable in seven standard nominal sizes ranging from 018 to 060 for residential and light commercial applications. All models are listed with UL, cUL, CEC, ARI, CSA, and PFS.

FEATURES/BENEFITS

ArmorPlate Condenser Coil —The

outdoor coil lasts three times longer than other standard condenser coils by utilizing a special ArmorPlate protective coating on the coil.

Heavy Duty Inlet Grille —The coil is

protected with an enhanced coil guard. With maximum horizontal opening of

10.5 mm and construction of coated wire, the guard helps to protect from inclement weather (hail), vandalism, and incidental damage.

Cabinet Protection —Provides

superior durability through added paint coverage on all sheet metal components. Steel is protected with a galvanized coating and treated with a layer of zinc phosphate. A modiﬁed polyester powder coating is then applied and baked on, providing each unit with a hard, smooth ﬁnish that will last for many years. Additional attention to detail, such as the motor cap, protects the fan motor from exposure to the elements. Coil isolators protect the unit from internal scratches during installation and shipping. All screws on cabinet exterior are coated for a long-lasting rust-resistance.

Page 2

Model

Money Saving Operation —

Investment protection through long lasting components in harsh conditions. Unit meets ARI rated efﬁciencies as shipped.

Electrical Range —All model sizes

are offered in single phase 208-230 volt.

Unit Design —Copper tube, wavy

aluminum ﬁn coil is designed for optimum heat transfer. Vertical air discharge carries sound and hot condenser air up and away from adjacent patio areas and foliage. Heat pump style drain pan allows for easy removal of water, dirt, and debris.

Totally Enclosed Fan Motor —

Provides greater reliability under adverse conditions and dependable performance for many years. The permanent split-capacitor type motor was designed for optimum efﬁciency. Then, under extreme conditions, the motor was tested and qualiﬁed to help ensure the greatest reliability.

External Service Valves —Both brass

service valves are front seating, with provision for ﬁeld sweat connections. Valves are externally located for quick and easy refrigerant tube connections. Each valve provides service ports for ease in checking operating refrigerant pressures.

CERTIFICATION APPLIES ONLY

WHEN THE COMPLETE SYSTEM

IS LISTED WITH ARI.

Easy Serviceability —Single access

panel provides simple access to electrical control box. Top of unit allows access to fan motor and internal components.

Compressor Protection — Each

compressor is protected with internal temperature and current sensitive overloads.

Limited W arranty —Standard 1 year

warranty on parts, with an additional 4 year warranty on compressor and outdoor coil.

REGISTERED QUALITY SYSTEM

number nomenclature

38CKS 018 3 0 1

Electric Air Conditioner Packaging

Nominal Capacity

018 — 18,000 Btuh 042 — 42,000 Btuh 024 — 24,000 Btuh 048 — 48,000 Btuh 030 — 30,000 Btuh 060 — 60,000 Btuh 036 — 36,000 Btuh

The data in this publication is displayed for all series; however, every series may not be available from manufacturer.

Series

Electrical

3 — 208-230-1

Page 3

Physical data

UNIT SIZE 018-30 024-30 030-30 036-30 042-30 048-30 060-30 OPERA TING WT (Lb) COMPRESSOR

Manufacturer & Type

REFRIGERANT

Control Charge (Lb) @ 15 Ft

COND FAN

Air Discharge Air Qty (CFM) Motor HP Motor RPM

COND COIL

Face Area (Sq Ft) Fins per In. Rows Circuits

VALVE CONNECTION (In. ID)

Vapor Liquid

REFRIG TUBES* (In. OD)

Vapor (0–50 Ft Tube Length) Vapor (Max Diameter for

Long-Line Applications) Liquid (0–50 Ft Tube Length) Liquid (For Long-Line

Applications)

* For tubing sets between 50 and 175 ft, consult Residential Split Systems Long-Line Application Guideline.

NOTE: See unit Installation Instructions for proper installation.

115 117 133 138 142 198 218

Bristol Recip Bristol Recip Bristol Recip Bristol Recip Copeland Recip Millennium

R22

3.30 3.65 4.25 4.60 5.13 6.38 8.46

AccuRater

Propeller Type, Direct Drive

1500 1700 2000 2500 3400 3400 3400

1/8 1/12 1/10 1/5 1/4 1/4 1/4

1500 1125 1125

Copper Tube, Aluminum Plate Fin

6.8 9.1 9.9 12.4 14.8 18.5 16.1 20 20 20 20 20 20 20

111 1 112 122 2 334

5/8 5/8 3/4 3/4 7/8 7/8 7/8

5/8 5/8 3/4 3/4 7/8 7/8 1-1/8 3/4 3/4 7/8 7/8 1-1/8 1-1/8 1-1/8

(Bypass T ype)

Vertical

1125

Sweat

3/8

3/8 3/8

Scroll

1125 1125 1125

Millennium

Scroll

UNIT SIZE

018-30 024-30 030-30 036-30 042-30 048-30 060-30

METERING DEVICE

UNIT SIZE AND SERIES

018-30 024-30 030-30 036-30 042-30 048-30 060-30

* Piston listed is for any approved non-capillary tube coil combination.

Piston is shipped with outdoor unit and must be installed in an approved indoor coil.

PISTON

IDENTIFICATION NO.

SOUND POWER

SOUND

LEVEL (dBA)

80 57.5 64.0 69.5 72.0 71.5 68.0 60.0 80 55.5 63.0 68.0 71.0 70.5 67.5 58.5 80 54.0 68.5 72.5 73.0 70.5 67.0 61.5 82 56.5 70.0 73.5 75.5 74.5 71.0 65.0 82 59.0 66.5 68.5 75.5 71.5 73.0 65.5 82 58.5 72.5 74.0 77.0 72.5 70.0 65.0 82 57.5 68.0 69.0 72.5 70.5 71.0 70.0

125 250 500 1000 2000 4000 8000

OCTAVE BAND CENTER FREQUENCY (Hz)

Page 4

Accessories

PART NO. DESCRIPTION

KAATD0101TDR

P251-0083 (RCD)

KSALA0201R22

32LT660004 (RCD)*

N/A N/A

HC34GE232

HC40GE232(RCD)

KAAFT0101AAA

KAAWS0201AAA

KSACY0101AAA

Standard KSAHS0901AAA KSAHS1101AAA KSAHS1301AAA KSAHS1601AAA

KAACS0201PTC KAACH1001AAA KAACH1201AAA

N/A

KSASH2001BRL KSASH1201COP

KSASH2001CYL

KAATX0201RPB

KAATX0301RPB

KAATX0401RPB

KAATX0501RPB

KAATX0601RPB

KAATX0701RPB

KSATX0601HSO

KSATX0701HSO

KAALP0101LPS

KSAHI0101HPS P502-8083S (RCD) P502-8163S (RCD)

KAALS0101LLS†

* Fan motor with ball bearings required.

† Start assist capacitor and relay required when using liquid solenoid valve or hard shutoff TXV (e xcept 048 and 060 siz es). Do not use hard shutoff

TXV with liquid solenoid valve.

N/A — Not Applicable

Time-Delay Relay — All Sizes Low-Ambient Controller — Sizes 030–060 Low Ambient Kit — All Sizes MotorMaster® Control — Sizes 024–060 230v MotorMaster® Control — Sizes 018 Ball Bearing Fan Motor — Sizes 018 Ball Bearing Fan Motor — Sizes 024, 030 Ball Bearing Fan Motor — Sizes 036–060 Evaporator Freeze Thermostat — All Sizes Winter Start Control — All Sizes Cycle Protector — Sizes 018–042 Cycle Protector — Sizes 048, 060 Start Assist — Capacitor and Relay — Sizes 018–030 Start Assist — Capacitor and Relay — Size 036 Start Assist — Capacitor and Relay — Size 042 Start Assist — Capacitor and Relay — Sizes 048, 060 Start Assist — PTC — All Sizes Crankcase Heater — Sizes 018–042 Crankcase Heater — Sizes 048, 060 Sound Hood — Size 018–030 Sound Hood — Size 036 Sound Hood — Size 042 Sound Hood — Sizes 048, 060 Thermostatic Expansion Valve (RPB) — Size 018 Thermostatic Expansion Valve (RPB) — Size 024 Thermostatic Expansion Valve (RPB) — Size 030 Thermostatic Expansion Valve (RPB) — Sizes 036, 042 Thermostatic Expansion Valve (RPB) — Size 048 Thermostatic Expansion Valve (RPB) — Size 060 Thermostatic Expansion Valve (Hard Shutoff) — Sizes 018–042 Thermostatic Expansion Valve (Hard Shutoff) — Sizes 048, 060 Low-Pressure Switch — All Sizes High-Pressure Switch — All Sizes Filter Drier — Sizes 018–036 Filter Drier — Sizes 042–060 Liquid-Line Solenoid Valve — All Sizes

Page 5

THERMOSTAT PKG. DESCRIPTION

TSTATCCPRH01-B TSTATCCNAC01-B TSTATCCPAC01-B

TSTATCCBAC01

TSTATXXSEN01-B

TSTATXXNBP01 TSTATXXPBP01 TSTATXXBBP01 TSTATXXCNV10

Thermidistat Control, Programmable/Non-Programmable Thermostat with Humidity Control Thermostat, Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool Builder’s Thermostat, Manual Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool Outdoor Air Temperature Sensor Backplate for Non-Programmable Thermostat Backplate for Programmable Thermostat Backplate for Builder’s Thermostat Thermostat Conversion Kit (4 to 5 wire) — 10 Pack

Accessory usage guideline

REQUIRED FOR

LOW-AMBIENT

ACCESSORY

Crankcase Heater

Evaporator Freeze Thermostat

Winter Start Control

Accumulator

Compressor Start Assist

Capacitor and Relay

Low Ambient Controller,

MotorMaster® Control,

or Low-Ambient Pressure Switch

Wind Bafﬂe

Coastal Filter

Unit Risers

Liquid-Line Solenoid Valve

Ball Bearing Fan Motor

* For tubing line sets between 50 and 175 ft, refer to Residential Split Systems Long-Line Application Guideline. † Only when low-pressure switch is used. ‡ Required for Low-Ambient Controller (full modulation feature) and MotorMaster® Control only.

Hard Shutoff TXV

APPLICATIONS

(Below 55°F)

Yes Yes No Yes No No

Yes† No No

No No No

Yes Yes No

Yes No No

See Low-Ambient

Instructions No No

No No No

Recommended No Recommended

Yes‡ No No

REQUIRED FOR

LONG-LINE

APPLICATIONS*

(Over 50 Ft)

See

Long-Line

Application Guideline No

REQUIRED FOR

SEA COAST APPLICATIONS (Within 2 Miles)

Accessory description and usage (Listed alphabetically)

1. Ball Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.

SUGGESTED USE: Required on all units where Low-Ambient Controller (full modulation feature) or MotorMaster® Control has been added.

2. Compressor Start Assist — Capacitor and Relay

Start capacitor and start relay gives “hard” boost to compressor motor at each start-up.

SUGGESTED USE: Installations where interconnecting tube length exceeds 50 ft.

3. Compressor Start Assist — PTC

Solid-state electrical device which gives a “soft” boost to the compressor at each start-up.

SUGGESTED USE: Installations with marginal power supply.

4. Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes chance of refrigerant slugging. May or may not include a thermostat control.

SUGGESTED USE: When interconnecting tube length exceeds 50 ft.

5. Cycle Protector

Solid-state timing device which prevents compressor rapid recycling. Control pro vides an approximate 5-minute delay after po wer to the compressor has been interrupted for any reason, including normal room thermostat cycling.

SUGGESTED USE: Installations in areas where power interruptions are frequent.

Installations where outdoor design temperature exceeds 105°F (40.6°C). Replacement installations with hard shutoff expansion valve on indoor coil. Installations where Liquid-Line Solenoid Valve has been added.

Replacement installations with rapid pressure balance (RPB) expansion valve on indoor coil.

When unit will be operated below 55°F (12.8°C) outdoor air temperature. (Use with low-ambient controller.) All commercial installations.

Where user is likely to “play” with the room thermostat. All commercial installations. Installations where interconnecting tube length exceeds 50 ft. High-rise applications.

Page 6

Accessory description and usage (continued)

6. Evaporator Freeze Thermostat

An SPST temperature actuated switch which stops unit operation when evaporator reaches freeze-up conditions.

SUGGESTED USE: All units where Winter Start Control has been added.

7. Filter Drier

A device for removing contaminants from refrigerant circulating in an air conditioner: 1-direction ﬂow.

SUGGESTED USE: All split-system air conditioners.

8. High-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 400 ± 10 psig and resets at 298 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airﬂow. To prevent rapid compressor recycling, Cycle Protector can be used with this switch.

SUGGESTED USE: Installations exposed to very “dirty” outdoor air.

Installations where condenser inlet air temperature exceeds 125°F (51.7°C).

9. Liquid-Line Solenoid Valve (LSV)

An electrically operated shutoff valve to be installed at the outdoor or indoor unit (depending on tubing conﬁguration) which stops and starts refrigerant liquid ﬂow in response to compressor operation. Maintains a column of refrigerant liquid ready for action at next compressor operation cycle.

NOTE: Compressor Start Assist—Capacitor and Relay must also be used. Do not use with hard shutoff TXV.

SUGGESTED USE: For improved system performance in air conditioners for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

In certain long-line applications. Refer to Long-Line Application Guideline.

10. Low-Ambient Controller

Head pressure controller is a cycle control device activated by a temperature sensor mounted on a header tube of the outdoor coil. It is designed to cycle the outdoor fan motor in order to maintain condensing temperature within normal operating limits (approximately 100°F high and 60°F low). The control will maintain working head pressure at low-ambient temperatures down to 0°F when properly installed.

SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F (12.8°C).

11. Low-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on low side of refrigerant circuit. Cycles compressor off if refrigerant pressure drops to about 27 psig. Prevents indoor coil freeze-up due to loss of indoor airﬂow. Provides additional protection against compressor damage due to loss of refrigerant charge. To prevent rapid compressor recycling, Cycle Protector can be used with this switch.

SUGGESTED USE: Where indoor coil is exposed to “dirty” air.

All commercial installations.

12. MotorMaster® Control

A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F, it maintains condensing temperature at 100°F ± 10°F.

SUGGESTED USE: Cooling operation at outdoor temperatures below 55°F.

All commercial installations.

13. Outdoor Air Temperature Sensor

A device that allows the temperature at a remote location (outdoors) to be displayed at the thermostat.

SUGGESTED USE: All corporate programmable thermostats.

14. Sound Hood

Wraparound sound attenuation cover for the compressor. Reduces unit sound level by about 2 dBA.

SUGGESTED USE: Unit installed closer than 15 ft to quiet areas — bedrooms, etc.

Unit installed between 2 houses less than 10 ft apart.

15. Thermostatic Expansion Valve (TXV)

A modulating ﬂow-control valve which meters refrigerant liquid ﬂow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available. Do not use hard shutoff TXV with Liquid-Line Solenoid Valve.

SUGGESTED USE: For improved system performance in cooling mode for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

Required for use on all zoning systems.

16. Time-Delay Relay

An SPST delay relay which brieﬂy continues operation of the indoor blower motor to provide additional cooling after the compressor cycles off.

SUGGESTED USE: For improved efﬁciency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

17. Winter Start Control

An SPST delay relay which bypasses the low-pressure switch for approximately 3 minutes to permit start-up for cooling operation under low-load conditions.

SUGGESTED USE: All air conditioners where Low-Ambient Controller has been added.

Page 7

Electrical data

60°C

UNIT

SIZE-SERIES V/PH

018-30 024-30 60.0 11.6 1.0 15.5 14 14 030-30 73.0 14.8 0.8 19.3 14 14 036-30 82.0 16.0 1.4 21.4 12 12 042-30 102.0 19.7 1.4 26.0 10 10 048-30 140.0 24.4 1.4 31.9 8 10 060-30 165.0 28.9 1.4 37.5 8 8

208-230-1 253 197

OPER VOL TS* COMPRESSOR

Max Min LRA RLA

48.0 9.0 0.8 12.1 14 14

FAN FLA MCA

MIN

WIRE

SIZE†

75°C

MIN WIRE SIZE†

60°C MAX

LENGTH

(Ft)‡

65 61 15 49 47 20 40 38 25 58 55 30 75 70 40 95 55 50 80 75 60

75°C MAX

LENGTH

(Ft)‡

MAX FUSE** OR CKT BKR AMPS

* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.

† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).

The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 A WG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).

‡ Length shown is as measured 1 way along wire path between the unit and service panel for a voltage drop not to exceed 2%.

** Time-delay fuse.

FLA — Full Load Amps LRA — Locked Rotor Amps MCA — Minimum Circuit Amps RLA — Rated Load Amps NOTES: 1. Control circuit is 24v on all units and requires external power source.

2. Copper wire must be used from service disconnect to unit.

3. All motors/compressors contain internal overload protection.

Page 8

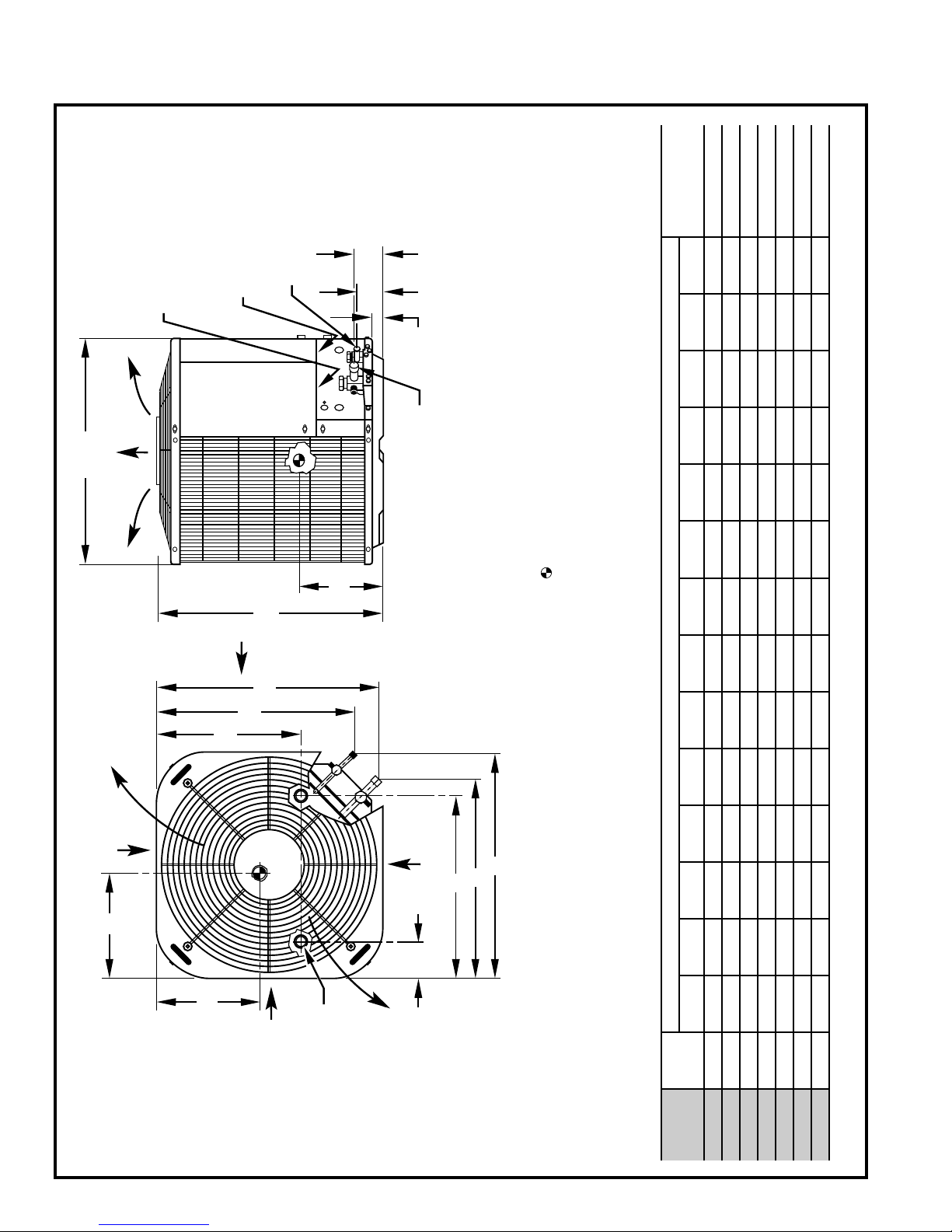

Dimensions—38CKS

A SQ

AIR DISCHARGE

-IN. DIA

-IN. DIA KNOCKOUT

-IN. DIA HOLE WITH

FIELD POWER SUPPLY CONN

AND 1

-IN. DIA LIQUID

HOLE

LINE CONN

FIELD CONTROL SUPPLY

CONN

KNOCKOUT

A99065

DIMENSIONSABCDEFGHJKLMNP

MOUNTING PAD

/8″

/4″

D DIA VAPOR LINE CONN

AIR DISCHARGE

AIR IN

NOTES:

1. ALLOW 30" CLEARANCE TO SERVICE SIDE OF UNIT, 48" ABOVE UNIT, 6" ON ONE

SIDE, 12" ON REMAINING SIDE, AND 24" BETWEEN UNITS FOR PROPER AIRFLOW.

2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55°F, MAX. 125°F.

3. SERIES DESIGNATION IS THE 13TH POSITION OF THE UNIT MODEL NUMBER.

4. CENTER OF GRAVITY .

UNIT DIMENSIONS MINIMUM

DIMENSIONS (IN.)

AIR IN

TIEDOWN

/8 -IN. DIA

(2) PLACES

KNOCKOUTS

AIR DISCHARGE

SIZE SERIES

UNIT

018 0 18 25-5/16 3-3/16 5/8 3 15 16-5/16 17-3/4 10-3/16 16-1/8 17-3/4 7-7/8 8-3/8 10-1/8 18 X 18

024 0 22-1/2 25-5/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-1/4 22-1/2 X 22-1/2

030 0 22-1/2 27-5/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-3/4 22-1/2 X 22-1/2

036 0 22-1/2 33-5/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 15-1/2 22-1/2 X 22-1/2

042 0 30 27-5/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 14-1/2 30 X 30

048 0 30 33-5/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 15-1/2 30 X 30

060 0 30 29-5/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 15 30 X 30

Page 9

Combination ratings

UNIT

SIZE-SERIES

018-30

024-30

See notes on pg. 14.

INDOOR

MODEL

CC5A/CD5AA018* 17,200 NONE — 10.00 10.00 9.40

CC5A/CD5AA024 17,600 NONE 10.00 10.50 10.50 9.65

CC5A/CD5AW024 17,600 NONE 10.00 10.50 10.50 9.65

CE3AA024 17,800 NONE 10.00 10.50 10.50 9.70

CF5AA024 17,800 NONE 10.00 10.50 10.50 9.70

CG5AA024 17,800 TXV 10.00 10.50 — 9.70 CJ5A/CK5A/CK5BA018 17,200 NONE — 10.00 10.00 9.55 CJ5A/CK5A/CK5BA024 17,600 NONE 10.00 10.50 10.50 9.75 CJ5A/CK5A/CK5BW024 17,600 NONE 10.00 10.50 10.50 9.75

CK3BA024 17,600 NONE 10.00 10.50 10.50 9.75

F(A,B)4AN(F,C)018 17,000 TDR 10.00 — 10.00 9.45 F(A,B)4AN(F,C)024 17,600 TDR 10.50 — 10.50 9.80

FC4BNF024 17,600 TDR&TXV 10.50 — — 9.80 FF1(B,C,D)NA018 17,200 TDR 10.50 — 10.50 9.75 FF1(B,C,D)NA024 17,600 TDR 10.50 — 10.50 9.75

FG3AAA024 17,500 NONE — 10.20 10.20 9.55

FK4CNF001 17,600 TDR&TXV 11.00 — — 10.90

FK4CNF002 17,600 TDR 11.20 — — 11.00

CC5A/CD5AA024 17,600 TDR 11.20 — 11.20 10.50

CJ5A/CK5A/CK5BW024 17,600 TDR 11.20 — 11.20 10.65

CK3BA024 17,600 TDR 11.20 — 11.20 10.65

CC5A/CD5AW024 17,600 TDR 11.20 — 11.20 10.60

CJ5A/CK5A/CK5BW024 17,600 TDR 11.20 — 11.20 10.75

CC5A/CD5AA018 17,200 TDR 11.00 — 11.00 10.35

CC5A/CD5AA024 17,600 TDR 11.20 — 11.20 10.65 CJ5A/CK5A/CK5BA018 17,200 TDR 11.00 — 11.00 10.50 CJ5A/CK5A/CK5BA024 17,600 TDR 11.20 — 11.20 10.80

CK3BA024 17,600 TDR 11.20 — 11.20 10.80

CC5A/CD5AA024* 22,400 NONE — 10.00 10.00 9.55

CC5A/CD5AA030 22,600 NONE — 10.00 10.00 9.60

CC5A/CD5AW024 22,400 NONE — 10.00 10.00 9.55 CC5A/CD5AW030 22,600 NONE — 10.00 10.00 9.60

CE3AA024 22,600 NONE — 10.00 10.00 9.60 CE3AA030 23,000 NONE — 10.20 10.20 9.70 CF5AA024 22,600 NONE — 10.00 10.00 9.60

CG5AA024 22,600 TXV — 10.00 — 9.60 CJ5A/CK5A/CK5BA024 22,400 NONE — 10.00 10.00 9.65 CJ5A/CK5A/CK5BA030 22,600 NONE — 10.00 10.00 9.65 CJ5A/CK5A/CK5BW024 22,400 NONE — 10.00 10.00 9.65 CJ5A/CK5A/CK5BW030 22,600 NONE — 10.00 10.00 9.65

CK3BA024 22,400 NONE — 10.00 10.00 9.65

CK3BA030 22,600 NONE — 10.00 10.00 9.65 F(A,B)4AN(F,C)024 22,600 TDR 10.00 — 10.00 9.70 F(A,B)4AN(F,C)030 23,000 TDR 10.20 — 10.20 9.80

FC4BNF024 22,600 TDR&TXV 10.00 — — 9.70

FC4BNF030 23,000 TDR&TXV 10.20 — — 9.80 FF1(B,C,D)NA024 22,600 TDR 10.00 — 10.00 9.55 FF1(B,C,D)NA030 23,200 TDR 10.00 — 10.00 9.70

FG3AAA024 22,000 NONE — 10.00 10.00 9.45

FK4CNF001 23,200 TDR&TXV 11.20 — — 10.70

FK4CNF002 23,400 TDR 11.30 — — 10.75

FK4CNF003 23,600 TDR 11.50 — — 10.95

CC5A/CD5AW024 22,400 TDR 10.50 — 10.50 10.20 CC5A/CD5AW030 22,600 TDR 10.50 — 10.50 10.35

CJ5A/CK5A/CK5BW030 22,600 TDR 10.50 — 10.50 10.40

CC5A/CD5AW030 22,600 TDR 10.50 — 10.50 10.35

CJ5A/CK5A/CK5BW024 22,400 TDR 10.50 — 10.50 10.30 CJ5A/CK5A/CK5BW030 22,600 TDR 10.50 — 10.50 10.40

CK3BA024 22,400 TDR 10.50 — 10.50 10.30 CK3BA030 22,600 TDR 10.50 — 10.50 10.40

CC5A/CD5AW024 22,400 TDR 10.50 — 10.50 10.45 CC5A/CD5AW030 22,600 TDR 11.00 — 11.00 10.55

CJ5A/CK5A/CK5BW024 22,400 TDR 10.50 — 10.50 10.50 CJ5A/CK5A/CK5BW030 22,600 TDR 11.00 — 11.00 10.60

CC5A/CD5AA024 22,400 TDR 10.50 — 10.50 10.35

CC5A/CD5AA030 22,600 TDR 11.00 — 11.00 10.50

FACTORY-

TOT. CAP.

BTUH

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

COILS + 58MVP040-14 VARIABLE SPEED FURNACE

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

SUPPLIED

ENHANCE-

MENT

Standard

Rating

Carrier Gas

Furnace or

SEER

TDR†

Accessory

TXV‡

EERA

Page 10

Combination ratings continued

UNIT

SIZE-SERIES

024-30

030-30

See notes on pg. 14.

FACTORY-

INDOOR

MODEL

CC5A/CD5AW030 22,600 TDR 11.00 — 11.00 10.50

CJ5A/CK5A/CK5BA024 22,400 TDR 10.50 — 10.50 10.45 CJ5A/CK5A/CK5BA030 22,600 TDR 11.00 — 11.00 10.55

CJ5A/CK5A/CK5BW030 22,600 TDR 11.00 — 11.00 10.55

CK3BA024 22,400 TDR 10.50 — 10.50 10.45 CK3BA030 22,600 TDR 11.00 — 11.00 10.55

CC5A/CD5AA030* 28,000 NONE 10.00 10.10 10.10 9.35

CC5A/CD5AA036 29,000 NONE 10.00 10.10 10.10 9.55

CC5A/CD5AW030 28,000 NONE 10.00 10.10 10.10 9.35

CD5AW036 29,000 NONE 10.00 10.10 10.10 9.55

CE3AA030 27,800 NONE 10.00 10.10 10.10 9.40 CE3AA036 28,600 NONE 10.00 10.10 10.10 9.50 CF5AA036 28,800 NONE 10.00 10.10 10.10 9.55

CG5AA036 28,800 TXV 10.00 10.10 — 9.55 CJ5A/CK5A/CK5BA030 28,000 NONE 10.00 10.10 10.10 9.35 CJ5A/CK5A/CK5BA036 29,000 NONE 10.00 10.10 10.10 9.60 CJ5A/CK5A/CK5BN036 27,000 NONE 10.00 10.10 10.10 9.60 CJ5A/CK5A/CK5BT036 29,000 NONE 10.00 10.10 10.10 9.60

CJ5A/CK5A/CK5BW030 28,000 NONE 10.00 10.10 10.10 9.35 CJ5A/CK5A/CK5BW036 29,000 NONE 10.00 10.10 10.10 9.60

CK3BA030 28,000 NONE 10.00 10.10 10.10 9.35

CK3BA036 29,000 NONE 10.00 10.10 10.10 9.60 F(A,B)4AN(F,C)030 27,600 TDR 10.00 — 10.00 9.45 F(A,B)4AN(F,C)036 28,200 TDR 10.00 — 10.00 9.35

FC4BNF030 27,600 TDR&TXV 10.00 — — 9.45 FC4BNF036 28,200 TDR&TXV 10.00 — — 9.35

FF1(B,C,D)NA030 28,000 TDR 10.00 — 10.00 9.40

FG3AAA036 28,000 NONE 10.00 10.10 10.10 9.45 FK4CNF001 29,000 TDR&TXV 11.00 — — 10.20 FK4CNF002 29,200 TDR 11.00 — — 10.25 FK4CNF003 29,400 TDR 11.50 — — 10.55 FK4CNF005 29,600 TDR 11.50 — — 10.80

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 9.75

CD5AW036 29,000 TDR 11.00 — 11.00 10.10 CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 9.75 CJ5A/CK5A/CK5BW036 29,000 TDR 11.00 — 11.00 10.15

CC5A/CD5AA036 29,000 TDR 11.00 — 11.00 10.10

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 9.75

CJ5A/CK5A/CK5BA036 29,000 TDR 11.00 — 11.00 10.10

CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 9.80

CK3BA030 28,000 TDR 10.50 — 10.50 9.80 CK3BA036 29,000 TDR 11.00 — 11.00 10.10

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 9.85

CD5AW036 29,000 TDR 11.00 — 11.00 10.20 CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 9.85 CJ5A/CK5A/CK5BW036 29,000 TDR 11.00 — 11.00 10.20

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 9.70

CD5AW036 29,000 TDR 11.00 — 11.00 10.10 CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 9.75 CJ5A/CK5A/CK5BW036 29,000 TDR 11.00 — 11.00 10.10

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 10.05

CD5AW036 29,000 TDR 11.00 — 11.00 10.35 CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 10.05 CJ5A/CK5A/CK5BW036 29,000 TDR 11.00 — 11.00 10.40

CD5AW036 29,000 TDR 11.00 — 11.00 10.35 CJ5A/CK5A/CK5BW036 29,000 TDR 11.00 — 11.00 10.35

CC5A/CD5AA030 28,000 TDR 10.50 — 10.50 9.95 CC5A/CD5AA036 29,000 TDR 11.00 — 11.00 10.30

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 9.95 CJ5A/CK5A/CK5BA030 28,000 TDR 10.50 — 10.50 10.00 CJ5A/CK5A/CK5BA036 29,000 TDR 11.00 — 11.00 10.30

CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 10.00

CK3BA030 28,000 TDR 10.50 — 10.50 10.00 CK3BA036 29,000 TDR 11.00 — 11.00 10.30

TOT. CAP.

BTUH

COILS + 58MVP040-14 VARIABLE SPEED FURNACE

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

SUPPLIED

ENHANCE-

MENT

Standard

Rating

SEER

Carrier Gas

Furnace or

TDR†

Accessory

TXV‡

EERA

Page 11

Combination ratings continued

UNIT

SIZE-SERIES

030-30

036-30

INDOOR

MODEL

CC5A/CD5AW030 28,000 TDR 10.50 — 10.50 10.10

CD5AW036 29,000 TDR 11.00 — 11.00 10.45 CJ5A/CK5A/CK5BW030 28,000 TDR 10.50 — 10.50 10.15 CJ5A/CK5A/CK5BW036 29,000 TDR 11.00 — 11.00 10.45

CC5A/CD5AA036*

CC5A/CD5AA042 33,800 NONE 10.00 10.20 10.20 9.40

CC5A/CD5AW042 33,800 NONE 10.00 10.20 10.20 9.40

CD5AW036 33,800 NONE 10.00 10.20 10.20 9.40

CE3AA036 33,400 NONE 10.00 10.20 10.20 9.30 CE3AA042 33,600 NONE 10.00 10.20 10.20 9.45 CF5AA036 33,600 NONE 10.00 10.20 10.20 9.35

CG5AA036 33,600 TXV 10.00 10.20 — 9.35 CJ5A/CK5A/CK5BA036 33,800 NONE 10.00 10.20 10.20 9.40 CJ5A/CK5A/CK5BA042 33,800 NONE 10.00 10.20 10.20 9.40 CJ5A/CK5A/CK5BN036 31,400 NONE 10.00 10.20 10.20 9.50 CJ5A/CK5A/CK5BN042 33,800 NONE 10.00 10.20 10.20 9.40

CJ5A/CK5A/CK5BT036 33,800 NONE 10.00 10.20 10.20 9.40 CJ5A/CK5A/CK5BT042 33,800 NONE 10.00 10.20 10.20 9.40

CJ5A/CK5A/CK5BW036 33,800 NONE 10.00 10.20 10.20 9.40

CK3BA036 33,800 NONE 10.00 10.20 10.20 9.40 CK3BA042 33,800 NONE 10.00 10.20 10.20 9.40

F(A,B)4AN(F,B,C)042 33,800 TDR 10.00 — 10.00 9.35

F(A,B)4AN(F,C)036 33,000 TDR 10.00 — 10.00 9.10

FC4BN(F,B)042 33,800 TDR&TXV 10.00 — — 9.35

FC4BNB054 34,800 TDR&TXV 10.50 — — 9.90 FC4BNF036 33,000 TDR&TXV 10.00 — — 9.10 FG3AAA036 32,600 NONE — 10.00 10.00 9.25 FK4CNF001 33,000 TDR&TXV 10.00 — — 9.80 FK4CNF002 33,000 TDR 10.00 — — 9.80 FK4CNF003 33,600 TDR 10.50 — — 10.25 FK4CNF005 35,000 TDR 11.00 — — 10.60

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.00

CD5AW036 33,400 TDR 10.50 — 10.50 9.90 CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.00 CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 9.95

CC5A/CD5AA036 33,400 TDR 10.50 — 10.50 9.90

CJ5A/CK5A/CK5BA036 33,400 TDR 10.50 — 10.50 9.90

CK3BA036 33,400 TDR 10.50 — 10.50 9.90 CK3BA042 33,400 TDR 10.80 — 10.80 10.00

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.05

CC5A/CD5AW042 33,400 TDR 10.80 — 10.80 10.00

CD5AW036 33,400 TDR 10.50 — 10.50 10.00 CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.05 CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 10.00

CK3BA042 33,400 TDR 10.80 — 10.80 10.05

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 9.95

CC5A/CD5AW042 33,200 TDR 10.80 — 10.80 9.90

CD5AW036 33,400 TDR 10.50 — 10.50 9.90 CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.00 CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 9.90

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.15

CC5A/CD5AW042 33,400 TDR 10.80 — 10.80 10.15

CD5AW036 33,400 TDR 10.50 — 10.50 10.15 CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.20 CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 10.15

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.15

CD5AW036 33,400 TDR 10.50 — 10.50 10.10 CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.15 CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 10.10

CC5A/CD5AA036 33,400 TDR 10.50 — 10.50 9.85

CJ5A/CK5A/CK5BA036 33,400 TDR 10.50 — 10.50 9.90

CK3BA036 33,400 TDR 10.50 — 10.50 9.90

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.05

CC5A/CD5AW042 33,400 TDR 10.80 — 10.80 10.00

See notes on pg. 14.

FACTORY-

TOT. CAP.

BTUH

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

33,800 NONE 10.00 10.20 10.20 9.40

COILS + 58MVP040-14 VARIABLE SPEED FURNACE

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

SUPPLIED

ENHANCE-

MENT

Standard

Rating

SEER

Carrier Gas

Furnace or

TDR†

Accessory

TXV‡

EERA

Page 12

Combination ratings continued

UNIT

SIZE-SERIES

036-30

042-30

INDOOR

MODEL

CD5AW036 33,400 TDR 10.50 — 10.50 10.00

CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.10

CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 10.05

CK3BA042 33,400 TDR 10.80 — 10.80 10.10

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.30

CD5AW036 33,400 TDR 10.50 — 10.50 10.25

CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.30

CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 10.25

CC5A/CD5AA042 33,400 TDR 10.80 — 10.80 10.25

CD5AW036 33,400 TDR 10.50 — 10.50 10.15

CJ5A/CK5A/CK5BA042 33,400 TDR 10.80 — 10.80 10.25

CJ5A/CK5A/CK5BW036 33,400 TDR 10.50 — 10.50 10.20

CC5A/CD5AA042* 40,000 NONE 10.00 10.10 10.10 9.15

CC5A/CD5AC048 39,500 NONE 10.00 10.10 10.10 9.10 CC5A/CD5AW042 40,000 NONE 10.00 10.10 10.10 9.10 CC5A/CD5AW048 40,000 NONE 10.00 10.10 10.10 9.15

CD5AA048 40,000 NONE 10.00 10.10 10.10 9.15 CE3AA042 39,500 NONE 10.00 10.10 10.10 9.20 CE3AA048 40,500 NONE 10.00 10.10 10.10 9.25 CF5AA048 40,500 NONE 10.00 10.10 10.10 9.20

CG5AA048 40,500 TXV 10.00 10.10 — 9.20 CJ5A/CK5A/CK5BA042 40,000 NONE 10.00 10.10 10.10 9.15 CJ5A/CK5A/CK5BA048 40,000 NONE 10.00 10.10 10.10 9.20 CJ5A/CK5A/CK5BN042 39,000 NONE 10.00 10.10 10.10 9.15 CJ5A/CK5A/CK5BN048 39,000 NONE 10.00 10.10 10.10 9.20 CJ5A/CK5A/CK5BT042 40,000 NONE 10.00 10.10 10.10 9.15 CJ5A/CK5A/CK5BT048 40,000 NONE 10.00 10.10 10.10 9.20

CJ5A/CK5A/CK5BW048 40,000 NONE 10.00 10.10 10.10 9.20

CK3BA042 40,000 NONE 10.00 10.10 10.10 9.15

CK3BA048 40,000 NONE 10.00 10.10 10.10 9.20 F(A,B)4AN(F,B,C)042 40,000 TDR 10.00 — 10.00 9.05 F(A,B)4AN(F,B,C)048 41,000 TDR 10.10 — 10.10 9.15

FC4BN(F,B)042 40,000 TDR&TXV 10.00 — — 9.05 FC4BN(F,B)048 41,000 TDR&TXV 10.10 — — 9.15

FC4BNB054 41,500 TDR&TXV 10.50 — — 9.65 FG3AAA048 40,000 NONE 10.00 10.10 10.10 9.15 FK4CNB006 41,500 TDR 11.00 — — 10.35 FK4CNF003 40,000 TDR 10.50 — — 9.75 FK4CNF005 41,000 TDR 11.00 — — 10.10

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.45

CC5A/CD5AW048 40,000 TDR 10.70 — 10.70 9.50

CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.45

CJ5A/CK5A/CK5BW048 40,000 TDR 10.70 — 10.70 9.60

CK3BA042 40,000 TDR 10.50 — 10.50 9.45

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.55

CD5AA048 40,000 TDR 10.70 — 10.70 9.60

CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.55 CJ5A/CK5A/CK5BA048 40,000 TDR 10.70 — 10.70 9.65

CK3BA042 40,000 TDR 10.50 — 10.50 9.55

CK3BA048 40,000 TDR 10.70 — 10.70 9.65

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.45

CD5AA048 40,000 TDR 10.70 — 10.70 9.50

CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.45 CJ5A/CK5A/CK5BA048 40,000 TDR 10.70 — 10.70 9.55

CK3BA042 40,000 TDR 10.50 — 10.50 9.45

CK3BA048 40,000 TDR 10.70 — 10.70 9.55

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.70

CD5AA048 40,000 TDR 10.70 — 10.70 9.75

CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.70 CJ5A/CK5A/CK5BA048 40,000 TDR 10.70 — 10.70 9.80

CK3BA042 40,000 TDR 10.50 — 10.50 9.70

CK3BA048 40,000 TDR 10.70 — 10.70 9.80

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.70

CC5A/CD5AW048 40,000 TDR 10.70 — 10.70 9.75

See notes on pg. 14.

FACTORY-

TOT. CAP.

BTUH

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

COILS + 58MVP040-14 VARIABLE SPEED FURNACE

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

SUPPLIED

ENHANCE-

MENT

Standard

Rating

Carrier Gas

Furnace or

SEER

TDR†

Accessory

TXV‡

EERA

Page 13

Combination ratings continued

UNIT

SIZE-SERIES

042-30

048-30

See notes on pg. 14.

FACTORY-

INDOOR

MODEL

CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.70 CJ5A/CK5A/CK5BW048 40,000 TDR 10.70 — 10.70 9.80

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.60

CD5AA048 40,000 TDR 10.70 — 10.70 9.65 CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.60 CJ5A/CK5A/CK5BA048 40,000 TDR 10.70 — 10.70 9.70

CK3BA042 40,000 TDR 10.50 — 10.50 9.60 CK3BA048 40,000 TDR 10.70 — 10.70 9.70

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.80

CC5A/CD5AW048 40,000 TDR 10.70 — 10.70 9.85 CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.80 CJ5A/CK5A/CK5BW048 40,000 TDR 10.70 — 10.70 9.90

CC5A/CD5AA042 40,000 TDR 10.50 — 10.50 9.75

CC5A/CD5AW048 40,000 TDR 10.70 — 10.70 9.80 CJ5A/CK5A/CK5BA042 40,000 TDR 10.50 — 10.50 9.75 CJ5A/CK5A/CK5BW048 40,000 TDR 10.70 — 10.70 9.85

CD5AA048* 46,000 NONE 10.00 10.50 10.50 9.45

CC5A/CD5AA060 46,000 NONE 10.00 10.50 10.50 9.45

CC5A/CD5AC048 45,000 NONE 10.00 10.30 10.30 9.35

CC5A/CD5AW048 46,000 NONE 10.00 10.50 10.50 9.40

CC5A/CD5AW060 47,500 NONE 10.20 10.50 10.50 9.65

CE3AA048 46,500 NONE 10.20 10.50 10.50 9.50 CE3AA060 48,000 NONE 10.20 10.50 10.50 9.65 CF5AA048 46,000 NONE 10.20 10.50 10.50 9.50

CG5AA048 46,000 TXV 10.20 10.50 — 9.50 CJ5A/CK5A/CK5BA048 46,000 NONE 10.00 10.50 10.50 9.40 CJ5A/CK5A/CK5BA060 46,000 NONE 10.00 10.50 10.50 9.60 CJ5A/CK5A/CK5BN048 44,500 NONE 10.00 10.50 10.50 9.50 CJ5A/CK5A/CK5BN060 44,500 NONE 10.00 10.50 10.50 9.75

CJ5A/CK5A/CK5BT048 46,000 NONE 10.00 10.50 10.50 9.40

CJ5A/CK5A/CK5BT060 46,000 NONE 10.00 10.50 10.50 9.60 CJ5A/CK5A/CK5BW048 46,000 NONE 10.00 10.50 10.50 9.40 CJ5A/CK5A/CK5BX060 47,500 NONE 10.20 10.50 10.50 9.75

CK3BA048 46,000 NONE 10.00 10.50 10.50 9.40

CK3BA060 46,000 NONE 10.00 10.50 10.50 9.60 F(A,B)4AN(F,B,C)048 47,000 TDR 10.40 — 10.40 9.35 F(A,B)4AN(F,B,C)060 48,000 TDR 10.50 — 10.50 9.40

FB4ANB070 49,000 TDR 10.70 — 10.70 9.75 FC4BN(F,B)048 47,000 TDR&TXV 10.50 — — 9.35 FC4BN(F,B)060 47,500 TDR&TXV 10.50 — — 9.45

FC4BNB054 48,500 TDR&TXV 11.00 — — 9.80

FC4BNB070 49,000 TDR&TXV 10.70 — — 9.75

FG3AAA048 46,000 NONE 10.00 10.50 10.50 9.40

FG3AAA060 47,000 NONE 10.20 10.50 10.50 9.55

FK4CNF005 48,000 TDR 11.50 — — 10.30

FK4CNB006 49,000 TDR 11.50 — — 10.60

CD5AA048 45,500 TDR 10.50 — 10.50 9.55

CJ5A/CK5A/CK5BA048 45,500 TDR 10.50 — 10.50 9.60

CK3BA048 45,500 TDR 10.50 — 10.50 9.60

CC5A/CD5AA060 45,500 TDR 10.50 — 10.50 9.50

CC5A/CD5AW060 46,000 TDR 10.50 — 10.50 9.75

CD5AA048 45,500 TDR 10.50 — 10.50 9.45 CJ5A/CK5A/CK5BA048 45,500 TDR 10.50 — 10.50 9.50 CJ5A/CK5A/CK5BA060 45,500 TDR 10.50 — 10.50 9.70 CJ5A/CK5A/CK5BX060 46,000 TDR 10.50 — 10.50 9.90

CK3BA048 45,500 TDR 10.50 — 10.50 9.50

CC5A/CD5AA060 45,500 TDR 10.50 — 10.50 9.75 CC5A/CD5AC048 45,500 TDR 10.50 — 10.50 9.50

CC5A/CD5AW060 46,000 TDR 11.00 — 11.00 10.00

CD5AA048 45,500 TDR 10.50 — 10.50 9.70 CJ5A/CK5A/CK5BA048 45,500 TDR 10.50 — 10.50 9.75 CJ5A/CK5A/CK5BA060 45,500 TDR 10.50 — 10.50 9.95 CJ5A/CK5A/CK5BX060 46,000 TDR 11.00 — 11.00 10.15

CK3BA048 45,500 TDR 10.50 — 10.50 9.75 CK3BA060 45,500 TDR 11.00 — 11.00 9.95

TOT. CAP.

BTUH

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

SUPPLIED

ENHANCE-

MENT

Standard

Rating

SEER

Carrier Gas

Furnace or

TDR†

Accessory

TXV‡

EERA

Page 14

Combination ratings continued

SEER

Carrier Gas

Furnace or

TDR†

Accessory

TXV‡

EERA

UNIT

SIZE-SERIES

048-30

060-30

FACTORY-

INDOOR

MODEL

CC5A/CD5AA060 45,000 TDR 10.50 — 10.50 9.80

CC5A/CD5AW048 45,500 TDR 10.80 — 10.80 9.75 CC5A/CD5AW060 46,000 TDR 11.00 — 11.00 10.05

CJ5A/CK5A/CK5BA060 45,500 TDR 10.50 — 10.50 10.00

CJ5A/CK5A/CK5BW048 45,500 TDR 10.80 — 10.80 9.80

CJ5A/CK5A/CK5BX060 46,000 TDR 11.00 — 11.00 10.20

CK3BA060 45,500 TDR 11.00 — 11.00 10.00

CC5A/CD5AC048 45,500 TDR 10.50 — 10.50 9.45

CD5AA048 45,500 TDR 10.50 — 10.50 9.60

CJ5A/CK5A/CK5BA048 45,500 TDR 10.50 — 10.50 9.65

CK3BA048 45,500 TDR 10.50 — 10.50 9.65

CC5A/CD5AA060 45,500 TDR 11.00 — 11.00 10.05

CC5A/CD5AW048 45,500 TDR 11.00 — 11.00 9.95 CC5A/CD5AW060 46,000 TDR 11.50 — 11.50 10.30

CJ5A/CK5A/CK5BA060 45,500 TDR 11.00 — 11.00 10.25

CJ5A/CK5A/CK5BW048 45,500 TDR 11.00 — 11.00 10.05

CJ5A/CK5A/CK5BX060 46,000 TDR 11.50 — 11.50 10.50

CK3BA060 45,500 TDR 11.00 — 11.00 10.25

CC5A/CD5AA060 45,500 TDR 10.50 — 10.50 10.00

CC5A/CD5AW048 45,500 TDR 11.00 — 11.00 9.90 CC5A/CD5AW060 46,000 TDR 11.00 — 11.00 10.20

CJ5A/CK5A/CK5BA060 45,500 TDR 11.00 — 11.00 10.15

CJ5A/CK5A/CK5BW048 45,500 TDR 11.00 — 11.00 9.95

CJ5A/CK5A/CK5BX060 46,000 TDR 11.00 — 11.00 10.40

CK3BA060 45,500 TDR 11.00 — 11.00 10.15

CC5A/CD5AW060* 57,000 NONE 10.00 10.50 10.50 9.20

CC5A/CD5AA060 54,500 NONE 10.00 10.30 10.30 9.05

CE3AA060 57,500 NONE 10.00 10.50 10.50 9.30 CJ5A/CK5A/CK5BA060 54,500 NONE 10.00 10.30 10.30 9.15 CJ5A/CK5A/CK5BN060 54,500 NONE 10.00 10.50 10.50 9.40 CJ5A/CK5A/CK5BT060 54,500 NONE 10.00 10.30 10.30 9.15 CJ5A/CK5A/CK5BX060 57,000 NONE 10.00 10.50 10.50 9.40

CK3BA060 54,500 NONE 10.00 10.30 10.30 9.15

F(A,B)4AN(F,B,C)060 57,500 TDR 10.00 — 10.00 8.95

FB4ANB070 58,000 TDR 10.50 — 10.50 9.35

FC4BN(F,B)060 56,500 TDR&TXV 10.00 — — 8.90

FC4BNB054 57,500 TDR&TXV 10.00 — — 9.40 FC4BNB070 58,000 TDR&TXV 10.50 — — 9.25 FG3AAA060 56,500 NONE 10.00 10.20 10.20 9.15 FK4CNB006 57,500 TDR 11.00 — — 9.80

CC5A/CD5AA060 54,500 TDR 10.50 — 10.50 9.25

CC5A/CD5AW060 54,500 TDR 10.70 — 10.70 9.55 CJ5A/CK5A/CK5BA060 54,500 TDR 10.70 — 10.70 9.40 CJ5A/CK5A/CK5BX060 54,500 TDR 10.70 — 10.70 9.70

CK3BA060 54,500 TDR 10.70 — 10.70 9.40

CC5A/CD5AA060 54,500 TDR 10.30 — 10.30 9.10

CC5A/CD5AW060 54,500 TDR 10.70 — 10.70 9.45 CJ5A/CK5A/CK5BA060 54,500 TDR 10.50 — 10.50 9.30 CJ5A/CK5A/CK5BX060 54,500 TDR 10.70 — 10.70 9.60

CK3BA060 54,500 TDR 10.50 — 10.50 9.30

TOT. CAP.

BTUH

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

SUPPLIED

ENHANCE-

MENT

Standard

Rating

* Tested combination.

† In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in perfor-

mance. Use either the accessory Time-Dela y Rela y KAATD0101TDR or a furnace equipped with TDR. All Carrier furnaces are equipped with TDR except for the 58GFA.

‡ TXV must be hard shutoff type, based on computer simulation.

NOTES: 1. Ratings are net values reﬂecting the effects of circulating fan motor heat. Supplemental electric heat is not included.

2. Tested outdoor/indoor combinations have been tested in accordance with DOE test procedures for central air conditioners. Ratings for other combinations are determined under DOE computer simulation procedures.

3. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.

4. Minimum outdoor operating ambient in cooling mode is 55°F (12.8°C), maximum 125°F (51.7°C).

Page 15

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**

Capacity

MBtuh†

38CKS018-30 Outdoor Section With CC5A/CD5AA018 Indoor Section

72 21.0 10.0 1.77 19.9 9.58 1.88 18.7 9.11 1.98 17.4 8.65 2.09 16.2 8.18 2.18 14.9 7.73 2.27

525

600

675

CJ5A/CK5A/CK5BA 018 1.00 1.01

CJ5A/CK5A/CK5BW 024 1.02 1.02 CJ5A/CK5A/CK5BW 024 1.02 0.95

F(A,B)4AN(F,C) 018 0.99 0.99 CC5A/CD5AA 018 1.00 0.91

FF1(B,C,D)NA 018 1.00 0.97 024 1.02 0.92

See notes on pg. 22.

67 19.1 12.3 1.71 18.0 11.9 1.81 16.8 11.4 1.91 15.7 10.9 2.01 14.5 10.4 2.09 13.4 9.96 2.17 62 17.2 14.6 1.65 16.2 14.1 1.75 15.1 13.6 1.84 14.1 13.0 1.93 13.0 12.5 2.01 12.0 11.9 2.08 57 15.9 15.9 1.61 15.1 15.1 1.71 14.3 14.3 1.81 13.5 13.5 1.90 12.7 12.7 1.99 11.9 11.9 2.07

72 21.5 10.4 1.82 20.3 9.97 1.92 19.0 9.50 2.03 17.8 9.02 2.13 16.4 8.55 2.23 15.2 8.09 2.32 67 19.5 13.0 1.75 18.4 12.5 1.86 17.2 12.0 1.96 16.0 11.5 2.05 14.8 11.1 2.14 13.6 10.6 2.22 62 17.7 15.5 1.70 16.6 15.0 1.79 15.5 14.4 1.89 14.4 13.8 1.98 13.3 13.2 2.06 12.3 12.3 2.14 57 16.6 16.6 1.67 15.8 15.8 1.77 14.9 14.9 1.87 14.1 14.1 1.96 13.2 13.2 2.05 12.3 12.3 2.14

72 21.9 10.8 1.86 20.7 10.4 1.97 19.4 9.86 2.07 18.0 9.39 2.18 16.7 8.90 2.27 15.3 8.44 2.36 67 19.9 13.7 1.80 18.7 13.2 1.90 17.5 12.7 2.00 16.3 12.2 2.09 15.0 11.7 2.18 13.8 11.2 2.26 62 18.0 16.4 1.74 16.9 15.8 1.84 15.8 15.2 1.93 14.6 14.5 2.02 13.6 13.6 2.11 12.7 12.7 2.20 57 17.2 17.2 1.71 16.3 16.3 1.82 15.4 15.4 1.92 14.5 14.5 2.01 13.6 13.6 2.11 12.7 12.7 2.20

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 018 1.00 1.00 FK4CNF 001 1.02 0.93

024 1.02 1.01 002 1.02 0.93

C5A/CD5AW 024 1.02 1.01

CE3AA 024 1.03 1.01 CC5A/CD5AA 024 1.02 0.95 CF5AA 024 1.03 1.01 CJ5A/CK5A/CK5BW 024 1.02 0.95 CG5AA 024 1.03 1.01 CK3BA 024 1.02 0.95

024 1.02 1.02 CC5A/CD5AW 024 1.02 0.94

CK3BA 024 1.02 1.02

024 1.02 1.01 024 1.02 0.92

FC4BNF 024 1.02 1.01 CJ5A/CK5A/CK5BA 018 1.00 0.92

024 1.02 1.02 CK3BA 024 1.02 0.92

FG3AAA 024 1.02 1.01 — — —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

Cooling

Tot

Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 16

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS024-30 Outdoor Section With CC5A/CD5AA024 Indoor Section

72 27.2 13.2 2.34 25.8 12.6 2.46 24.3 12.0 2.57 22.7 11.5 2.68 21.1 10.9 2.78 19.5 10.3 2.88

700

800

900

CC5A/CD5AA 024 1.00 1.00

CC5A/CD5AW 024 1.00 1.00 030 1.01 0.95

CJ5A/CK5A/CK5BA 024 1.00 1.00 CK3BA 024 1.00 0.96

CJ5A/CK5A/CK5BW 024 1.00 1.00

F(A,B)4AN(F,C) 024 1.01 1.00 030 1.01 0.94

FF1(B,C,D)NA 024 1.01 1.01 CC5A/CD5AW 030 1.01 0.92

See notes on pg. 22.

67 24.8 16.4 2.25 23.4 15.8 2.36 22.0 15.2 2.47 20.5 14.6 2.57 19.1 14.0 2.67 17.6 13.4 2.76 62 22.4 19.5 2.17 21.1 18.9 2.27 19.8 18.2 2.37 18.5 17.6 2.47 17.2 16.8 2.56 15.9 15.9 2.65 57 21.0 21.0 2.12 20.0 20.0 2.23 19.0 19.0 2.34 18.0 18.0 2.45 17.0 17.0 2.55 15.9 15.9 2.65

72 27.8 13.8 2.40 26.3 13.2 2.52 24.7 12.6 2.63 23.1 12.0 2.75 21.5 11.4 2.85 19.8 10.9 2.95 67 25.3 17.4 2.31 23.9 16.8 2.42 22.4 16.2 2.53 20.9 15.6 2.64 19.4 15.0 2.73 17.8 14.4 2.82 62 23.0 20.9 2.23 21.6 20.2 2.33 20.2 19.4 2.44 18.9 18.6 2.53 17.6 17.6 2.63 16.5 16.5 2.73 57 21.9 21.9 2.19 20.9 20.9 2.30 19.8 19.8 2.42 18.7 18.7 2.52 17.6 17.6 2.63 16.5 16.5 2.73

72 28.3 14.3 2.46 26.7 13.7 2.58 25.1 13.1 2.69 23.4 12.5 2.80 21.7 11.9 2.91 20.0 11.4 3.00 67 25.8 18.3 2.37 24.3 17.7 2.48 22.7 17.1 2.59 21.2 16.5 2.69 19.6 15.8 2.79 18.0 15.2 2.87 62 23.4 22.0 2.28 22.0 21.3 2.39 20.6 20.4 2.50 19.3 19.3 2.60 18.1 18.1 2.70 16.9 16.9 2.80 57 22.7 22.7 2.26 21.6 21.6 2.37 20.5 20.5 2.49 19.3 19.3 2.60 18.1 18.1 2.70 16.9 16.9 2.81

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

030 1.01 1.00 CC5A/CD5AW 024 1.00 0.95

030 1.01 1.00 CJ5A/CK5A/CK5BW 030 1.01 0.95

CE3AA 024 1.01 1.00

030 1.03 1.01 CC5A/CD5AW 030 1.01 0.95

CF5AA 024 1.01 1.00 CJ5A/CK5A/CK5BW 024 1.00 0.96 CG5AA 024 1.01 1.00 030 1.01 0.95

030 1.01 1.01 030 1.01 0.95

030 1.01 1.01 CC5A/CD5AW 024 1.00 0.94

CK3BA 024 1.00 1.00 030 1.01 0.94

030 1.01 1.01 CJ5A/CK5A/CK5BW 024 1.00 0.94

030 1.03 1.00

FC4BNF 024 1.01 1.00 CC5A/CD5AA 024 1.00 0.92

030 1.03 1.00 030 1.01 0.92

030 1.04 1.02 CJ5A/CK5A/CK5BA 024 1.00 0.93

FG3AAA 024 0.98 1.00 030 1.01 0.93

FK4CNF 001 1.04 0.93 CJ5A/CK5A/CK5BW 030 1.01 0.93

002 1.04 0.94 CK3BA 024 1.00 0.93 003 1.05 0.93 030 1.01 0.93

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58MVP040-14 VARIABLE SPEED FURNACE

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

Cooling

Page 17

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS030-30 Outdoor Section With CC5A/CD5AA030 Indoor Section

72 34.0 16.4 2.85 32.2 15.7 3.01 30.3 15.0 3.17 28.4 14.3 3.33 26.5 13.6 3.49 24.6 12.9 3.64

875

1000

1125

CC5A/CD5AW 030 1.00 1.00

CJ5A/CK5A/CK5BA 030 1.00 1.00 CC5A/CD5AW 030 1.00 0.97

CJ5A/CK5A/CK5BN 036 0.96 1.01 CJ5A/CK5A/CK5BW 030 1.00 0.97 CJ5A/CK5A/CK5BT 036 1.04 1.01 036 1.04 0.98

CJ5A/CK5A/CK5BW 030 1.00 1.00

F(A,B)4AN(F,C) 030 0.99 1.00 036 1.04 0.95

FF1(B,C,D)NA 030 1.00 1.01

CC5A/CD5AW 030 1.00 0.97 CK3BA 030 1.00 0.94

CJ5A/CK5A/CK5BW 030 1.00 0.97

CC5A/CD5AW 030 1.00 0.97 036 1.04 0.93

CJ5A/CK5A/CK5BA 036 1.04 0.97 — — —

CJ5A/CK5A/CK5BW 030 1.00 0.97

See notes on pg. 22.

67 30.9 20.4 2.74 29.2 19.7 2.89 27.5 19.0 3.04 25.7 18.2 3.20 23.9 17.5 3.34 22.2 16.8 3.49 62 28.0 24.3 2.63 26.4 23.5 2.78 24.8 22.7 2.92 23.2 21.9 3.07 21.6 21.0 3.21 20.0 20.0 3.35 57 26.2 26.2 2.57 25.0 25.0 2.73 23.8 23.8 2.88 22.5 22.5 3.04 21.3 21.3 3.19 20.0 20.0 3.35

72 34.8 17.1 2.93 32.8 16.4 3.09 30.9 15.7 3.25 28.9 15.0 3.41 26.9 14.3 3.57 24.9 13.6 3.72 67 31.6 21.6 2.82 29.8 20.9 2.97 28.0 20.1 3.12 26.2 19.4 3.27 24.3 18.7 3.42 22.5 17.9 3.57 62 28.6 25.9 2.71 27.0 25.1 2.86 25.3 24.2 3.00 23.7 23.2 3.15 22.1 22.1 3.30 20.7 20.7 3.45 57 27.3 27.3 2.66 26.0 26.0 2.82 24.7 24.7 2.98 23.4 23.4 3.13 22.1 22.1 3.29 20.7 20.7 3.45

72 35.3 17.8 3.01 33.3 17.1 3.17 31.3 16.3 3.32 29.3 15.6 3.48 27.3 14.9 3.64 25.2 14.2 3.80 67 32.2 22.7 2.89 30.3 22.0 3.04 28.4 21.2 3.19 26.5 20.5 3.35 24.6 19.7 3.50 22.7 19.0 3.64 62 29.1 27.4 2.78 27.5 26.4 2.93 25.8 25.4 3.08 24.2 24.2 3.23 22.7 22.7 3.39 21.3 21.3 3.54 57 28.3 28.3 2.75 26.9 26.9 2.91 25.5 25.5 3.06 24.1 24.1 3.23 22.7 22.7 3.39 21.3 21.3 3.55

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 030 1.00 1.00 CK3BA 030 1.00 0.97

036 1.04 1.01 036 1.04 0.97

CD5AW 036 1.04 1.01 CC5A/CD5AW 030 1.00 0.96

CE3AA 030 0.99 1.00 CD5AW 036 1.04 0.97

036 1.02 1.01 CJ5A/CK5A/CK5BW 030 1.00 0.96 CF5AA 036 1.03 1.01 036 1.04 0.97 CG5AA 036 1.03 1.01

036 1.04 1.01 CD5AW 036 1.04 0.97

036 1.04 1.01 CC5A/CD5AW 030 1.00 0.95 CK3BA 030 1.00 1.00 CD5AW 036 1.04 0.95

036 1.04 1.01 CJ5A/CK5A/CK5BW 030 1.00 0.95

036 1.01 1.02

FC4BNF 030 0.99 1.00 CD5AW 036 1.04 0.96

036 1.01 1.02 CJ5A/CK5A/CK5BW 036 1.04 0.96

FG3AAA 036 1.00 1.01 CC5A/CD5AA 030 1.00 0.94

FK4CNF 001 1.04 0.94 036 1.04 0.94

002 1.04 0.94 CC5A/CD5AW 030 1.00 0.94

003 1.05 0.93 CJ5A/CK5A/CK5BA 030 1.00 0.94

005 1.06 0.94 036 1.04 0.94

COILS + 58MVP040-14 VARIABLE SPEED FURNACE CJ5A/CK5A/CK5BW 030 1.00 0.94

CD5AW 036 1.04 0.97 036 1.04 0.94

036 1.04 0.97 CC5A/CD5AW 030 1.00 0.93

COILS + 58MVP060-14 VARIABLE SPEED FURNACE CD5AW 036 1.04 0.93

CC5A/CD5AA 036 1.04 0.97 CJ5A/CK5A/CK5BW 030 1.00 0.93

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

Cooling

Page 18

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

38CKS036-30 Outdoor Section With CC5A/CD5AA036 Indoor Section

72 41.3 20.5 3.41 39.1 19.6 3.61 36.8 18.8 3.81 34.5 18.0 4.00 32.2 17.1 4.19 29.9 16.3 4.38

1050

1200

1350

CC5A/CD5AW 042 1.00 1.00

CJ5A/CK5A/CK5BA 036 1.00 1.00 CC5A/CD5AA 042 0.99 0.93

CJ5A/CK5A/CK5BN 036 0.93 0.97 CD5AW 036 0.99 0.93

CJ5A/CK5A/CK5BT 036 1.00 1.00 CJ5A/CK5A/CK5BW 036 0.99 0.93

CJ5A/CK5A/CK5BW 036 1.00 1.00

F(A,B)4AN(F,B,C) 042 1.00 1.01 CD5AW 036 0.99 0.94

F(A,B)4AN(F,C) 036 0.98 1.01 CJ5A/CK5A/CK5BA 042 0.99 0.93

See notes on pg. 22.

67 37.6 25.8 3.28 35.5 25.0 3.47 33.4 24.1 3.65 31.3 23.3 3.84 29.1 22.4 4.02 27.0 21.6 4.20 62 34.1 31.0 3.16 32.2 30.0 3.33 30.3 29.0 3.51 28.4 28.0 3.69 26.6 26.6 3.87 25.0 25.0 4.06 57 32.8 32.8 3.10 31.2 31.2 3.30 29.7 29.7 3.49 28.2 28.2 3.68 26.6 26.6 3.87 25.0 25.0 4.06

72 42.1 21.4 3.51 39.8 20.6 3.70 37.4 19.7 3.90 35.1 18.9 4.09 32.6 18.0 4.29 30.2 17.2 4.47 67 38.4 27.5 3.37 36.2 26.6 3.56 34.0 25.7 3.74 31.8 24.8 3.93 29.6 23.9 4.11 27.3 23.1 4.29 62 34.9 33.1 3.24 33.0 32.0 3.42 31.0 30.8 3.61 29.2 29.2 3.80 27.5 27.5 3.99 25.8 25.8 4.19 57 34.1 34.1 3.22 32.5 32.5 3.41 30.9 30.9 3.60 29.2 29.2 3.80 27.5 27.5 3.99 25.8 25.8 4.19

72 42.7 22.3 3.59 40.3 21.4 3.79 37.9 20.6 3.98 35.4 19.7 4.18 33.0 18.9 4.37 30.5 18.1 4.56 67 38.9 29.0 3.45 36.7 28.1 3.64 34.4 27.2 3.83 32.1 26.3 4.01 29.8 25.4 4.19 27.6 24.5 4.37 62 35.6 34.9 3.33 33.6 33.5 3.52 31.8 31.8 3.71 30.1 30.1 3.91 28.3 28.3 4.10 26.5 26.5 4.30 57 35.2 35.2 3.32 33.5 33.5 3.51 31.8 31.8 3.71 30.1 30.1 3.91 28.3 28.3 4.11 26.5 26.5 4.30

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 036 1.00 1.00 CJ5A/CK5A/CK5BA 042 0.99 0.93

042 1.00 1.00 CJ5A/CK5A/CK5BW 036 0.99 0.94

CD5AW 036 1.00 1.00 CC5A/CD5AA 036 0.99 0.94 CE3AA 036 0.99 1.00 CJ5A/CK5A/CK5BA 036 0.99 0.94

042 0.99 1.00 CK3BA 036 0.99 0.94 CF5AA 036 0.99 1.00 042 0.99 0.93 CG5AA 036 0.99 1.00

042 1.00 1.00 CC5A/CD5AW 042 0.99 0.92

042 1.00 1.00 CJ5A/CK5A/CK5BA 042 0.99 0.93

042 1.00 1.00 CK3BA 042 0.99 0.93

CK3BA 036 1.00 1.00 CC5A/CD5AA 042 0.99 0.93

042 1.00 1.00 CC5A/CD5AW 042 0.98 0.93

FC4BN(F,B) 042 1.00 1.01 CJ5A/CK5A/CK5BW 036 0.99 0.94

FC4BNB 054 1.03 1.01 FC4BNF 036 0.98 1.01 CC5A/CD5AA 042 0.99 0.92

FG3AAA 036 0.96 0.99 CC5A/CD5AW 042 0.99 0.91

FK4CNF 001 0.98 0.94 CD5AW 036 0.99 0.92

002 0.98 0.95 CJ5A/CK5A/CK5BA 042 0.99 0.92

003 0.99 0.92 CJ5A/CK5A/CK5BW 036 0.99 0.92

005 1.04 0.93

COILS + 58MVP040-14 VARIABLE SPEED FURNACE CC5A/CD5AA 042 0.99 0.92

CC5A/CD5AA 042 0.99 0.93 CD5AW 036 0.99 0.92

CD5AW 036 0.99 0.94 CJ5A/CK5A/CK5BA 042 0.99 0.92

—— —CJ5A/CK5A/CK5BW 036 0.99 0.92

Capacity Power Capacity Power

CONDENSER ENTERING AIR TEMPERATURES °F

Capacity

Tot

Sys

MBtuh†

Indoor

Section Size

COILS + 58MVP060-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-14 VARIABLE SPEED FURNACE

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

Cooling

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

Cooling

MBtuh†

Tot Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 19

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS036-30 Outdoor Section With CC5A/CD5AA036 Indoor Section continued

72 41.3 20.5 3.41 39.1 19.6 3.61 36.8 18.8 3.81 34.5 18.0 4.00 32.2 17.1 4.19 29.9 16.3 4.38

1050

1200

1350

CJ5A/CK5A/CK5BA 036 0.99 0.95 CD5AW 036 0.99 0.92

CC5A/CD5AW 042 0.99 0.93 CC5A/CD5AA 042 0.99 0.92

CJ5A/CK5A/CK5BA 042 0.99 0.93 CJ5A/CK5A/CK5BA 042 0.99 0.92

CJ5A/CK5A/CK5BW 036 0.99 0.94 CJ5A/CK5A/CK5BW 036 0.99 0.93

See notes on pg. 22.

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

COILS + 58U(H,X)V060-12 VARIABLE SPEED FURNACE COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

CC5A/CD5AA 036 0.99 0.95 CC5A/CD5AA 042 0.99 0.92

CK3BA 036 0.99 0.95 CJ5A/CK5A/CK5BA 042 0.99 0.92

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE CJ5A/CK5A/CK5BW 036 0.99 0.92

CC5A/CD5AA 042 0.99 0.93

CD5AW 036 0.99 0.94 CD5AW 036 0.99 0.92

CK3BA 042 0.99 0.93 — — —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

Cooling

Page 20

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS042-30 Outdoor Section With CC5A/CD5AA042 Indoor Section

72 48.6 23.6 4.08 45.9 22.6 4.35 43.2 21.6 4.60 40.5 20.6 4.85 37.7 19.6 5.08 34.8 18.5 5.31

1225

1400

1575

CC5A/CD5AW 042 1.00 1.00

CJ5A/CK5A/CK5BA 042 1.00 1.00

CJ5A/CK5A/CK5BN 042 0.98 1.00 CD5AA 048 1.00 0.93

CJ5A/CK5A/CK5BT 042 1.00 1.00 048 1.00 0.94

CJ5A/CK5A/CK5BW 048 1.00 1.00 048 1.00 0.94

F(A,B)4AN(F,B,C) 042 1.00 1.01 CC5A/CD5AW 048 1.00 0.93

CC5A/CD5AW 048 1.00 0.95 CC5A/CD5AA 042 1.00 0.93

CJ5A/CK5A/CK5BA 042 1.00 0.95 CC5A/CD5AW 048 1.00 0.93

CJ5A/CK5A/CK5BW 048 1.00 0.95 CJ5A/CK5A/CK5BA 042 1.00 0.93

CJ5A/CK5A/CK5BA 042 1.00 0.95 CJ5A/CK5A/CK5BW 048 1.00 0.93

See notes on pg. 22.

67 44.2 29.5 3.92 41.8 28.4 4.17 39.3 27.4 4.41 36.7 26.3 4.64 34.1 25.3 4.86 31.2 24.2 5.06 62 40.2 35.2 3.77 37.9 34.0 4.01 35.5 32.9 4.23 33.2 31.7 4.45 30.8 30.3 4.65 28.2 28.2 4.86 57 37.8 37.8 3.69 36.1 36.1 3.93 34.3 34.3 4.17 32.5 32.5 4.40 30.5 30.5 4.63 28.2 28.2 4.86

72 49.6 24.7 4.19 46.8 23.6 4.45 44.0 22.6 4.71 41.1 21.6 4.96 38.2 20.5 5.20 35.3 19.5 5.42 67 45.2 31.2 4.03 42.6 30.2 4.28 40.0 29.1 4.52 37.4 28.0 4.75 34.7 27.0 4.97 31.8 25.8 5.17 62 41.1 37.5 3.88 38.7 36.3 4.11 36.3 35.0 4.35 34.0 33.6 4.57 31.7 31.7 4.78 29.3 29.3 5.01 57 39.4 39.4 3.82 37.6 37.6 4.07 35.7 35.7 4.31 33.7 33.7 4.55 31.7 31.7 4.78 29.3 29.3 5.01

72 50.4 25.6 4.29 47.5 24.6 4.55 44.6 23.5 4.81 41.6 22.5 5.06 38.6 21.5 5.30 35.6 20.4 5.52 67 46.0 32.9 4.13 43.3 31.8 4.38 40.6 30.8 4.62 37.8 29.7 4.85 35.0 28.6 5.07 32.1 27.4 5.27 62 41.8 39.7 3.98 39.4 38.3 4.22 37.0 36.7 4.45 34.8 34.8 4.68 32.6 32.6 4.92 30.3 30.3 5.15 57 40.8 40.8 3.94 38.8 38.8 4.19 36.8 36.8 4.44 34.8 34.8 4.69 32.6 32.6 4.92 30.3 30.3 5.15

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 042 1.00 1.00 CK3BA 042 1.00 0.95 CC5A/CD5AC 048 0.99 0.99 048 1.00 0.95

048 1.00 1.00 CC5A/CD5AA 042 1.00 0.95 CD5AA 048 1.00 1.00 CD5AA 048 1.00 0.95 CE3AA 042 0.99 1.00 CJ5A/CK5A/CK5BA 042 1.00 0.95

048 1.01 1.01 048 1.00 0.95

CF5AA 048 1.01 1.00 CK3BA 042 1.00 0.95 CG5AA 048 1.01 1.00 048 1.00 0.95

048 1.00 1.00 CC5A/CD5AA 042 1.00 0.94

048 0.98 1.00 CJ5A/CK5A/CK5BA 042 1.00 0.94

048 1.00 1.00 CK3BA 042 1.00 0.94

CK3BA 042 1.00 1.00

048 1.00 1.00 CC5A/CD5AA 042 1.00 0.94

048 1.02 1.02 CJ5A/CK5A/CK5BA 042 1.00 0.94

FC4BN(F,B) 042 1.00 1.01 CJ5A/CK5A/CK5BW 048 1.00 0.94

048 1.02 1.02

FC4BNB 054 1.04 1.02 CC5A/CD5AA 042 1.00 0.95

FG3AAA 048 1.00 1.00 CD5AA 048 1.00 0.94

FK4CNF 003 1.00 0.94 CJ5A/CK5A/CK5BA 042 1.00 0.95

005 1.02 0.95 048 1.00 0.95

FK4CNB 006 1.04 0.95 CK3BA 042 1.00 0.95

COILS + 58MVP040-14 VARIABLE SPEED FURNACE 048 1.00 0.95

CC5A/CD5AA 042 1.00 0.95

COILS + 58MVP060-14 VARIABLE SPEED FURNACE CJ5A/CK5A/CK5BW 048 1.00 0.93

CK3BA 042 1.00 0.95

COILS + 58MVP080-14 VARIABLE SPEED FURNACE CC5A/CD5AA 042 1.00 0.93

CC5A/CD5AA 042 1.00 0.95 CC5A/CD5AW 048 1.00 0.93

CD5AA 048 1.00 0.94 CJ5A/CK5A/CK5BA 042 1.00 0.93

048 1.00 0.95 — — —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

Cooling

Page 21

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS048-30 Outdoor Section With CD5AA048 Indoor Section

72 54.3 26.2 4.17 51.9 25.3 4.65 49.5 24.4 5.18 47.0 23.5 5.75 44.4 22.6 6.35 41.8 21.6 6.99

1400

1600

1800

CC5A/CD5AW 048 1.00 1.02 CC5A/CD5AC 048 0.99 0.99

CJ5A/CK5A/CK5BA 048 1.00 1.02 CK3BA 048 0.99 0.98

CJ5A/CK5A/CK5BN 048 0.97 1.00

CJ5A/CK5A/CK5BT 048 1.00 1.02 CC5A/CD5AW 048 0.99 0.98

CJ5A/CK5A/CK5BW 048 1.00 1.02 CJ5A/CK5A/CK5BA 060 0.99 0.99

CJ5A/CK5A/CK5BX 060 1.03 1.04 CJ5A/CK5A/CK5BW 048 0.99 0.98

F(A,B)4AN(F,B,C) 048 1.02 1.05

CJ5A/CK5A/CK5BA 048 0.99 0.99

CC5A/CD5AW 060 1.00 1.00 CJ5A/CK5A/CK5BA 060 0.99 0.97

CJ5A/CK5A/CK5BA 048 0.99 1.00 CJ5A/CK5A/CK5BX 060 1.00 0.97

CJ5A/CK5A/CK5BX 060 1.00 1.01 — — —

See notes on pg. 22.

67 49.6 32.8 4.07 47.4 31.8 4.55 45.2 30.9 5.06 42.9 30.0 5.61 40.5 29.0 6.21 38.1 28.0 6.83 62 45.2 39.2 3.99 43.2 38.2 4.45 41.1 37.2 4.95 39.0 36.1 5.49 36.8 35.0 6.07 34.4 33.6 6.66 57 42.4 42.4 3.94 40.9 40.9 4.41 39.3 39.3 4.91 37.7 37.7 5.45 36.0 36.0 6.03 33.9 33.9 6.64

72 55.4 27.4 4.28 52.9 26.5 4.76 50.4 25.5 5.29 47.8 24.6 5.85 45.1 23.6 6.46 42.4 22.6 7.11 67 50.6 34.6 4.17 48.4 33.7 4.65 46.0 32.7 5.17 43.6 31.8 5.72 41.2 30.8 6.31 38.6 29.8 6.94 62 46.2 41.7 4.08 44.0 40.7 4.55 41.9 39.6 5.05 39.8 38.4 5.60 37.5 37.0 6.18 35.2 35.2 6.79 57 44.1 44.1 4.04 42.5 42.5 4.52 40.8 40.8 5.03 39.1 39.1 5.57 37.2 37.2 6.17 35.2 35.2 6.79

72 56.2 28.4 4.37 53.7 27.5 4.85 51.1 26.5 5.38 48.4 25.6 5.96 45.6 24.6 6.56 42.8 23.6 7.21 67 51.5 36.4 4.27 49.1 35.5 4.74 46.7 34.5 5.26 44.2 33.5 5.82 41.6 32.5 6.41 39.0 31.5 7.04 62 46.9 44.0 4.17 44.8 42.8 4.64 42.6 41.6 5.15 40.4 40.2 5.70 38.3 38.3 6.29 36.2 36.2 6.92 57 45.5 45.5 4.15 43.8 43.8 4.62 42.0 42.0 5.14 40.2 40.2 5.69 38.3 38.3 6.29 36.2 36.2 6.92

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CD5AA 048 1.00 1.00 CK3BA 048 0.99 1.00 CC5A/CD5AA 060 1.00 1.03 CC5A/CD5AC 048 0.98 1.01 CC5A/CD5AA 060 0.99 0.98

060 1.03 1.03 CC5A/CD5AW 060 1.00 0.98

CE3AA 048 1.01 1.03 CD5AA 048 0.99 0.98

060 1.04 1.03 CJ5A/CK5A/CK5BA 048 0.99 0.98 CF5AA 048 1.00 1.02 060 0.99 0.99 CG5AA 048 1.00 1.02 CJ5A/CK5A/CK5BX 060 1.00 0.99

060 1.00 1.03 060 0.99 0.99

060 0.97 1.04 CC5A/CD5AA 060 0.98 0.98

060 1.00 1.03 060 1.00 0.98

CK3BA 048 1.00 1.02 CJ5A/CK5A/CK5BX 060 1.00 0.99

060 1.00 1.03 CK3BA 060 0.99 0.99

060 1.04 1.07 CC5A/CD5AC 048 0.99 0.99

FB4ANB 070 1.07 1.05 CD5AA 048 0.99 0.99

FC4BN(F,B) 048 1.02 1.04 CJ5A/CK5A/CK5BA 048 0.99 0.99

060 1.03 1.05 CK3BA 048 0.99 0.99

FC4BNB 054 1.05 1.04

070 1.07 1.04 CC5A/CD5AA 060 0.99 0.96

FG3AAA 048 1.00 1.02 CC5A/CD5AW 048 0.99 0.96

060 1.02 1.03 060 1.00 0.96

FK4CNF 005 1.04 0.97 CJ5A/CK5A/CK5BA 060 0.99 0.96 FK4CNB 006 1.07 0.96 CJ5A/CK5A/CK5BW 048 0.99 0.96

COILS + 58MVP08014 VARIABLE SPEED FURNACE

CD5AA 048 0.99 0.99 CK3BA 060 0.99 0.96

CK3BA 048 0.99 0.99 CC5A/CD5AA 060 0.99 0.96

COILS + 58MVP080-20 VARIABLE SPEED FURNACE

CC5A/CD5AA 060 0.99 1.00 060 1.00 0.97

CD5AA 048 0.99 1.00 CJ5A/CK5A/CK5BW 048 0.99 0.97

060 0.99 1.01 CK3BA 060 0.99 0.97

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58MVP100-20 VARIABLE SPEED FURNACE

COILS + 58MVP120-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V080-16 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

CJ5A/CK5A/CK5BX 060 1.00 0.97

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

CC5A/CD5AW 048 0.99 0.97

Cooling

Page 22

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

Kw**

Capacity

MBtuh†

Kw**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot

Sys

Kw**

Capacity

MBtuh†

Tot Sys

Kw**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS060-30 Outdoor Section With CC5A/CD5AW060 Indoor Section

72 66.3 32.0 5.14 63.7 31.0 5.64 61.0 30.0 6.20 58.1 28.9 6.82 55.0 27.8 7.50 51.7 26.6 8.24

1750

1800

2100

2250

CC5A/CD5AW 060 1.00 1.00 FK4CNB 006 1.01 0.95

CJ5A/CK5A/CK5BA 060 0.96 0.99 CC5A/CD5AW 060 0.96 0.95 CJ5A/CK5A/CK5BN 060 0.96 0.98 CJ5A/CK5A/CK5BA 060 0.96 0.95 CJ5A/CK5A/CK5BT 060 0.96 0.99 CJ5A/CK5A/CK5BX 060 0.96 0.95 CJ5A/CK5A/CK5BX 060 1.00 1.00 CK3BA 060 0.96 0.95

F(A,B)4AN(F,B,C) 060 1.01 1.03 CC5A/CD5AA 060 0.96 0.96

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length

and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur. † Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835

Btuh (245 kw) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kw) per 1000 CFM (480 L/S) of

indoor coil air per degree above 80°F (27°C).

When the required data falls between the published data, interpolation may be performed.

** Unit kw is total of indoor and outdoor unit kilowatts. EWB — Entering Wet Bulb

67 60.6 40.0 4.96 58.1 38.9 5.46 55.6 37.9 6.01 52.9 36.7 6.63 50.0 35.6 7.30 47.1 34.4 8.02 62 55.2 47.8 4.81 52.9 46.7 5.30 50.6 45.5 5.85 48.1 44.3 6.46 45.4 42.9 7.12 42.8 41.5 7.80 57 51.8 51.8 4.72 50.0 50.0 5.22 48.2 48.2 5.78 46.3 46.3 6.40 44.2 44.2 7.07 42.1 42.1 7.77

72 66.6 32.3 5.17 64.0 31.3 5.67 61.2 30.3 6.23 58.3 29.2 6.85 55.2 28.1 7.53 51.9 26.9 8.27 67 60.8 40.4 4.99 58.4 39.4 5.48 55.8 38.3 6.04 53.1 37.2 6.65 50.2 36.0 7.33 47.2 34.8 8.05 62 55.5 48.4 4.83 53.2 47.3 5.33 50.8 46.1 5.88 48.2 44.8 6.49 45.6 43.5 7.14 42.9 42.0 7.83 57 52.2 52.2 4.75 50.4 50.4 5.25 48.6 48.6 5.81 46.6 46.6 6.43 44.5 44.5 7.11 42.4 42.4 7.81

72 68.1 33.9 5.34 65.3 32.9 5.83 62.4 31.8 6.39 59.4 30.7 7.01 56.1 29.6 7.69 52.8 28.4 8.43 67 62.2 43.1 5.14 59.7 42.1 5.64 57.0 41.0 6.20 54.2 39.8 6.81 51.2 38.6 7.48 48.0 37.4 8.21 62 56.7 52.0 4.98 54.4 50.8 5.48 51.9 49.5 6.03 49.3 48.0 6.64 46.6 46.3 7.30 44.1 44.1 8.01 57 54.6 54.6 4.93 52.7 52.7 5.43 50.7 50.7 5.99 48.6 48.6 6.62 46.4 46.4 7.29 44.1 44.1 8.01

72 68.7 34.6 5.41 65.9 33.6 5.91 62.9 32.6 6.47 59.8 31.4 7.09 56.5 30.3 7.77 53.1 29.1 8.51 67 62.8 44.4 5.22 60.2 43.4 5.71 57.5 42.3 6.27 54.6 41.1 6.89 51.5 39.9 7.56 48.3 38.6 8.28 62 57.3 53.7 5.05 54.9 52.4 5.55 52.4 51.0 6.10 49.8 49.3 6.71 47.2 47.2 7.38 44.8 44.8 8.11 57 55.6 55.6 5.01 53.7 53.7 5.51 51.6 51.6 6.08 49.5 49.5 6.70 47.2 47.2 7.38 44.8 44.8 8.11

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 060 0.96 0.97

CE3AA 060 1.01 0.99 CC5A/CD5AA 060 0.96 0.95

CK3BA 060 0.96 0.99

FB4ANB 070 1.02 1.02 CC5A/CD5AW 060 0.96 0.96

FC4BN(F,B) 060 0.99 1.02 CJ5A/CK5A/CK5BA 060 0.96 0.96

FC4BNB 054 1.01 1.00 CJ5A/CK5A/CK5BX 060 0.96 0.96

070 1.02 1.01 CK3BA 060 0.96 0.96

FG3AAA 060 0.99 0.99 — — —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58U(H,X)V100-20 VARIABLE SPEED FURNACE

COILS + 58U(H,X)V120-20 VARIABLE SPEED FURNACE

Cooling

Page 23

Condenser only ratings*

SST

°F

See notes on pg. 25.

CONDENSER ENTERING AIR TEMPERATURES °F

55 65 75 85 95 105 115 125

38CKS018-30

TCG 17.6 16.2 14.7 13.4 12.0 10.7 9.52 8.35

KW 1.37 1.49 1.58 1.66 1.73 1.77 1.80 1.82

SDT 75.6 86.1 96.4 106.0 116.0 126.0 136.0 146.0

TCG 19.6 18.1 16.6 15.1 13.6 12.3 10.9 9.68

KW 1.40 1.52 1.63 1.73 1.81 1.87 1.91 1.93

SDT 76.5 87.2 97.4 107.0 117.0 127.0 137.0 146.0

TCG 21.8 20.1 18.5 16.9 15.4 13.9 12.5 11.1

KW 1.42 1.56 1.68 1.79 1.88 1.96 2.01 2.05

SDT 77.6 88.4 98.6 109.0 119.0 128.0 138.0 147.0

TCG 24.1 22.3 20.6 18.9 17.2 15.6 14.1 12.6

KW 1.44 1.59 1.73 1.85 1.96 2.05 2.12 2.17

SDT 78.7 89.7 100.0 110.0 120.0 130.0 139.0 149.0

TCG 26.5 24.6 22.7 20.9 19.1 17.4 15.8 14.2

KW 1.46 1.62 1.77 1.91 2.03 2.14 2.22 2.29

SDT 79.8 91.0 102.0 112.0 122.0 131.0 141.0 150.0

TCG 29.0 27.0 25.0 23.1 21.2 19.4 17.6 15.9

KW 1.47 1.65 1.82 1.97 2.10 2.22 2.32 2.40

SDT 81.1 92.3 103.0 113.0 123.0 133.0 142.0 152.0

38CKS024-30

TCG 22.5 20.9 19.2 17.5 15.9 14.2 12.6 11.0

KW 1.83 1.95 2.05 2.14 2.21 2.26 2.29 2.29

SDT 70.0 82.2 93.6 104.0 115.0 125.0 135.0 145.0

TCG 24.9 23.2 21.5 19.7 17.9 16.2 14.5 12.8

KW 1.89 2.01 2.13 2.23 2.32 2.38 2.43 2.45

SDT 69.8 82.6 94.2 105.0 116.0 126.0 136.0 145.0

TCG 27.5 25.7 23.8 22.0 20.1 18.3 16.5 14.6

KW 1.94 2.08 2.21 2.32 2.42 2.50 2.57 2.60

SDT 69.5 82.9 95.0 106.0 117.0 127.0 137.0 146.0

TCG 30.1 28.3 26.3 24.4 22.4 20.5 18.5 16.6

KW 2.00 2.15 2.29 2.42 2.53 2.63 2.70 2.76

SDT 69.7 83.2 95.6 107.0 118.0 128.0 138.0 148.0

TCG 32.9 31.0 29.0 26.9 24.8 22.7 20.7 18.7

KW 2.07 2.22 2.37 2.51 2.64 2.75 2.84 2.91

SDT 70.3 83.4 96.3 108.0 119.0 129.0 139.0 149.0

TCG 35.8 33.8 31.8 29.6 27.3 25.1 23.0 20.9

KW 2.13 2.29 2.45 2.60 2.74 2.87 2.98 3.07

SDT 70.9 83.8 97.0 109.0 120.0 131.0 141.0 151.0

38CKS030-30

TCG 28.0 26.0 24.0 22.0 20.1 18.2 16.4 14.7

KW 2.21 2.35 2.48 2.61 2.72 2.82 2.91 2.98

SDT 77.5 87.5 97.4 107.0 117.0 127.0 136.0 146.0

TCG 31.1 28.9 26.7 24.6 22.6 20.6 18.6 16.8

KW 2.29 2.44 2.59 2.72 2.85 2.97 3.07 3.15

SDT 78.9 88.9 98.8 109.0 118.0 128.0 137.0 147.0

TCG 34.3 32.0 29.7 27.4 25.2 23.1 21.0 18.9

KW 2.38 2.54 2.70 2.85 2.99 3.11 3.23 3.33

SDT 80.5 90.6 100.0 110.0 120.0 129.0 139.0 148.0

TCG 37.7 35.2 32.8 30.4 28.0 25.7 23.4 21.2

KW 2.47 2.64 2.81 2.97 3.12 3.27 3.40 3.51

SDT 82.1 92.3 102.0 112.0 121.0 131.0 140.0 150.0

TCG 41.3 38.7 36.1 33.5 31.0 28.5 26.1 23.7

KW 2.56 2.75 2.92 3.10 3.27 3.42 3.57 3.70

SDT 83.9 94.0 104.0 114.0 123.0 133.0 142.0 151.0

TCG 45.1 42.3 39.5 36.8 34.1 31.4 28.8 26.3

KW 2.66 2.86 3.05 3.23 3.41 3.58 3.74 3.89

SDT 85.8 96.0 106.0 116.0 125.0 135.0 144.0 153.0

Page 24

Condenser only ratings* continued

SST

°F

See notes on pg. 25.

CONDENSER ENTERING AIR TEMPERATURES °F

55 65 75 85 95 105 115 125

38CKS036-30

TCG 32.1 30.5 28.9 27.2 25.5 23.7 21.8 19.9

KW 2.33 2.57 2.84 3.11 3.40 3.68 3.95 4.21

SDT 78.6 89.0 99.3 109.0 120.0 129.0 139.0 149.0 TCG 35.2 33.5 31.8 30.0 28.2 26.3 24.3 22.3

KW 2.40 2.65 2.92 3.21 3.51 3.81 4.10 4.39

SDT 79.9 90.4 101.0 111.0 121.0 131.0 141.0 150.0 TCG 38.4 36.7 34.9 33.0 31.0 29.0 26.9 24.8

KW 2.47 2.72 3.00 3.30 3.61 3.93 4.25 4.56

SDT 81.3 91.9 102.0 112.0 123.0 132.0 142.0 152.0 TCG 41.8 40.0 38.1 36.1 34.0 31.8 29.7 27.4

KW 2.55 2.81 3.10 3.40 3.73 4.06 4.40 4.74

SDT 82.9 93.5 104.0 114.0 124.0 134.0 144.0 154.0 TCG 45.4 43.5 41.5 39.3 37.1 34.9 32.5 30.2

KW 2.63 2.90 3.19 3.51 3.84 4.20 4.55 4.91

SDT 84.6 95.3 106.0 116.0 126.0 136.0 146.0 155.0 TCG 49.2 47.2 45.0 42.8 40.4 38.0 35.5 33.0

KW 2.72 2.99 3.29 3.62 3.97 4.33 4.70 5.08

SDT 86.4 97.0 107.0 118.0 128.0 138.0 148.0 157.0

38CKS042-30

TCG 37.9 36.1 34.2 32.1 30.0 27.8 25.6 23.3

KW 2.73 3.03 3.34 3.67 4.01 4.35 4.68 4.98

SDT 80.8 91.0 101.0 111.0 121.0 131.0 141.0 150.0 TCG 41.5 39.6 37.5 35.4 33.2 30.9 28.5 26.0

KW 2.82 3.12 3.45 3.79 4.15 4.51 4.87 5.21

SDT 82.5 92.7 103.0 113.0 123.0 133.0 142.0 152.0 TCG 45.3 43.3 41.1 38.9 36.5 34.1 31.5 28.9

KW 2.91 3.22 3.56 3.92 4.29 4.67 5.06 5.43

SDT 84.3 94.5 105.0 115.0 125.0 134.0 144.0 154.0 TCG 49.4 47.2 44.9 42.5 40.0 37.4 34.8 32.0

KW 3.01 3.33 3.68 4.05 4.44 4.84 5.25 5.65

SDT 86.3 96.5 107.0 117.0 127.0 136.0 146.0 156.0 TCG 53.6 51.2 48.8 46.3 43.6 40.9 38.1 35.2

KW 3.11 3.44 3.80 4.18 4.59 5.01 5.44 5.87

SDT 88.3 98.5 109.0 119.0 129.0 138.0 148.0 158.0 TCG 58.0 55.5 52.9 50.2 47.5 44.6 41.6 38.5

KW 3.22 3.56 3.93 4.32 4.74 5.18 5.63 6.09

SDT 90.4 101.0 111.0 121.0 131.0 140.0 150.0 160.0

38CKS048-30

TCG 42.6 40.8 38.9 36.9 34.8 32.7 30.5 28.3

KW 3.22 3.56 3.93 4.34 4.80 5.28 5.79 6.31

SDT 76.5 87.0 97.4 108.0 118.0 128.0 138.0 148.0 TCG 46.6 44.7 42.7 40.6 38.4 36.1 33.8 31.4

KW 3.28 3.61 3.99 4.41 4.87 5.37 5.89 6.44

SDT 77.7 88.2 98.6 109.0 119.0 129.0 139.0 149.0 TCG 50.9 48.8 46.7 44.4 42.1 39.7 37.2 34.7

KW 3.34 3.68 4.06 4.49 4.95 5.46 6.00 6.57

SDT 79.0 89.6 99.9 110.0 120.0 131.0 141.0 150.0 TCG 55.4 53.2 50.9 48.5 46.0 43.4 40.8 38.1

KW 3.42 3.75 4.14 4.57 5.04 5.56 6.11 6.70

SDT 80.4 91.0 101.0 112.0 122.0 132.0 142.0 152.0 TCG 60.1 57.8 55.3 52.8 50.1 47.4 44.5 41.7

KW 3.49 3.84 4.22 4.66 5.13 5.66 6.23 6.83

SDT 81.8 92.5 103.0 113.0 124.0 134.0 144.0 154.0 TCG 65.1 62.6 60.0 57.3 54.5 51.5 48.5 45.4

KW 3.58 3.93 4.32 4.75 5.24 5.77 6.34 6.96

SDT 83.4 94.1 105.0 115.0 125.0 135.0 145.0 155.0

Page 25

Condenser only ratings* continued

SST

°F

55 65 75 85 95 105 115 125

CONDENSER ENTERING AIR TEMPERATURES °F

38CKS060-30

* ARI listing applies only to systems shown in Performance Data table.

KW —Total Power (Kw) SDT — Saturated Temperature Leaving Compressor (°F) SST — Saturated Temperature Entering Compressor (°F) TCG — Gross Cooling Capacity (1000 Btuh)

TCG 52.8 50.6 48.2 45.8 43.3 40.6 37.9 35.2

KW 3.87 4.27 4.73 5.23 5.78 6.37 6.99 7.63

SDT 75.7 86.2 96.6 107.0 117.0 127.0 137.0 147.0 TCG 57.8 55.4 52.9 50.3 47.6 44.8 41.9 39.0

KW 3.94 4.35 4.81 5.32 5.87 6.48 7.12 7.79

SDT 76.9 87.5 97.9 108.0 118.0 129.0 139.0 148.0 TCG 63.0 60.5 57.8 55.1 52.2 49.2 46.1 43.0

KW 4.02 4.44 4.90 5.41 5.98 6.60 7.27 7.95

SDT 78.2 88.9 99.3 110.0 120.0 130.0 140.0 150.0 TCG 68.6 65.8 63.0 60.0 57.0 53.8 50.5 47.2

KW 4.12 4.53 5.00 5.52 6.09 6.72 7.41 8.12

SDT 79.6 90.3 101.0 111.0 121.0 132.0 142.0 152.0 TCG 74.4 71.5 68.5 65.3 62.1 58.7 55.2 51.5

KW 4.22 4.64 5.11 5.63 6.22 6.86 7.55 8.29

SDT 81.1 91.9 102.0 113.0 123.0 133.0 143.0 153.0 TCG 80.5 77.4 74.2 70.9 67.4 63.8 60.1 56.2

KW 4.33 4.75 5.23 5.76 6.35 7.00 7.70 8.46

SDT 82.7 93.6 104.0 115.0 125.0 135.0 145.0 155.0

Page 26

System Design

1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less

than 0.01-in. wc.

2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).

3. Maximum outdoor operating air temperature is 125°F (51.7°C).

4. For reliable operation, unit should be level in all horizontal planes.

5. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft, indoor coil

below = 150 ft.

6. For interconnecting refrigerant tube lengths between 50 and 175 ft, consult Residential’s Split System Long-Line

Application Guideline available from equipment distributor.

7. Crankcase heater required when interconnecting refrigerant tube length exceeds 50 ft.

8. If any refrigerant tubing is buried, provide a minimum 6 in. vertical rise to the valve connections at the unit.

Refrigerant tubing lengths up to 36 in. may be buried without further consideration. For buried lines longer than 3 ft, consult your local distributor.

9. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of

connector provided.

Page 27

Guide speciﬁcations

GENERAL

System Description

Outdoor-mounted, air-cooled, split-system air conditioner unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.

Quality Assurance

Unit will be rated in accordance with the latest edition of ARI Standard 210.

Unit will be certiﬁed for capacity, efﬁciency, and listed in the latest ARI directory.

Unit construction will comply with latest standard of ANSI/ASHRAE and with NEC.

Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will ha ve c-UL approval.

The condenser coil will be capable of withstanding the following test method standards: Salt Spray test, ASTM B117 1,000 hrs, and the Prohesion Test ASTM G85-A5 1,000 hrs.

Air-cooled condenser coils will be leak tested at 150 psig and pressure tested at 300 psig.

Unit constructed in ISO 9001 approved facility.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only.

PRODUCTS

Equipment

Factory-assembled, single-piece, air-cooled air conditioner unit. Contained within the unit enclosure is all factory wiring, piping, controls, compressor, refrigerant charge (R22), and special features required prior to ﬁeld start-up.

Unit Cabinet

Unit cabinet will be constructed of galvanized steel, bonderized, and coated with a powder coat paint.

ans

Condenser fan will be direct-drive propeller type, discharging air upward.

Air-Cooled, Split-System

Air Conditioner

38CKS

1-1/2 to 5 Tons Nominal

Condenser fan motors will be totally enclosed, 1-phase type with class B insulation and permanently lubricated bearings.

Shafts will be corrosion resistant.

Fan blades will be statically and dynamically balanced.

Condenser fan openings will be equipped with PVC-coated steel wire safety guards.

Compressor

Compressor will be hermetically sealed.

Compressor will be mounted on rubber vibration isolators. Condenser Coil

Condenser coil will be air cooled.

Coil will be constructed of aluminum ﬁns with a resinbased epoxy phenolic thermoset coating, factory applied by pre-coating and baking. The ﬁns are mechanically bonded to copper tubes which are then cleaned, dehydrated, and sealed.

Refrigeration Components

Refrigeration circuit components will include liquid line shutoff valve with sweat connections, suction line shutoff valves with sweat connections, system charge of R22 refrigerant, and compressor oil.

Operating Characteristics

The capacity of the unit will meet or exceed _____ Btuh at a suction temperature of _____ °F. The power consumption at full load will not exceed _____ kw.

Combination of the unit and the evaporator or f an coil unit will have a total net cooling capacity of _____ Btuh or greater at conditions of _____ CFM entering air temperature at the evaporator at _____ °F wet bulb and _____ °F dry bulb, and air entering the unit at _____ °F.

The system will have an SEER of _____ Btuh/watt or greater at DOE conditions.

Electrical Requirements

Nominal unit electrical characteristics will be _____ v, single phase, 60 hertz. The unit will be capable of satisfactory operation within voltage limits of _____ v to _____ v.

Unit electrical power will be single point connection.

Control circuit will be 24v.

Special Features

Refer to section of this literature identifying accessories and descriptions for speciﬁc features and available enhancements.

Page 28

SERVICE TRAINING

Packaged Service Training programs are an excellent way to increase your knowledge of the equipment discussed in this manual, including:  • Unit Familiarization • Maintenance  • Installation Overview • Operating Sequence A large selection of product, theory, and skills programs is available, using popular video-based formats and materials. All include video and/or slides, plus companion book.  Classroom Service Training plus "hands-on" the products in our labs can mean increased confidence that really pays dividends in faster troubleshooting, fewer callbacks. Course descriptions and schedules are in our catalog. 

CALL FOR FREE CATALOG 1-800-962-9212



[ ] Packaged Service Training [ ] Classroom Service Training

A94328

Carrier Corporation • Indianapolis, IN 46231 4-99

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 2 4 Page 28 Catalog No. 523-762 Printed in U.S.A. PC 101 Form 38CKS-1PD Tab 3a 1a 2a

Replaces: NEW
