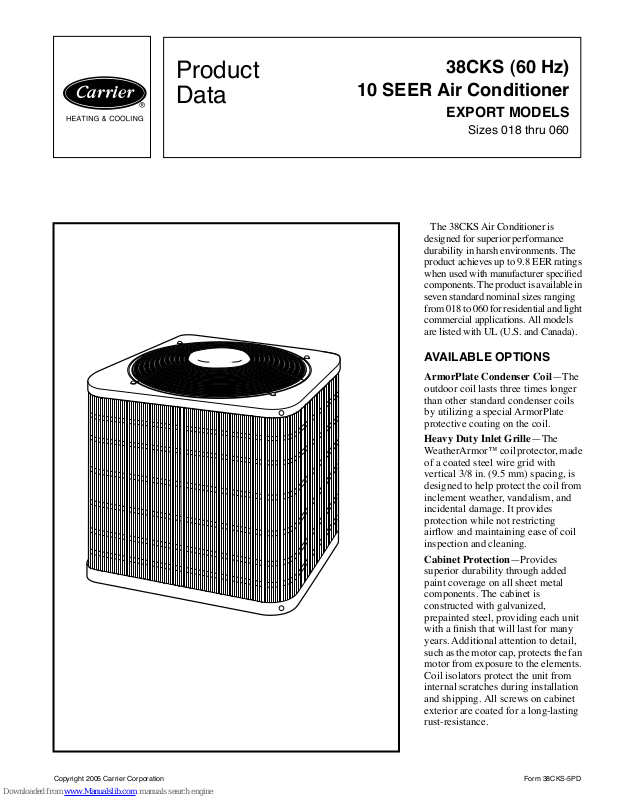

Page 1

Product Data

38CKS (60 Hz)

10 SEER Air Conditioner

EXPORT MODELS

Sizes 018 thru 060

The 38CKS Air Conditioner is designed for superior performance durability in harsh environments. The product achieves up to 9.8 EER ratings when used with manufacturer speciﬁed components. The product is available in seven standard nominal sizes ranging from 018 to 060 for residential and light commercial applications. All models are listed with UL (U.S. and Canada).

AVAILABLE OPTIONS

ArmorPlate Condenser Coil —The

outdoor coil lasts three times longer than other standard condenser coils by utilizing a special ArmorPlate protective coating on the coil.

Heavy Duty Inlet Grille —The

WeatherArmor™ coil protector, made of a coated steel wire grid with vertical 3/8 in. (9.5 mm) spacing, is designed to help protect the coil from inclement weather, vandalism, and incidental damage. It provides protection while not restricting airﬂow and maintaining ease of coil inspection and cleaning.

Cabinet Protection —Provides

superior durability through added paint coverage on all sheet metal components. The cabinet is constructed with galvanized, prepainted steel, providing each unit with a ﬁnish that will last for many years. Additional attention to detail, such as the motor cap, protects the fan motor from exposure to the elements. Coil isolators protect the unit from internal scratches during installation and shipping. All screws on cabinet exterior are coated for a long-lasting rust-resistance.

Page 2

Model

Money Saving Operation —

Investment protection through long lasting components in harsh conditions.

Electrical Range —All model sizes

are offered in single phase 208-230 volt.

Unit Design —Copper tube, wavy

aluminum ﬁn coil is designed for optimum heat transfer. Vertical air discharge carries sound and hot condenser air up and away from adjacent patio areas and foliage. Heat pump style drain pan allows for easy removal of water, dirt, and debris.

Totally Enclosed Fan Motor —

Provides greater reliability under adverse conditions and dependable performance for many years. The permanent split-capacitor type motor was designed for optimum efﬁciency. Then, under extreme conditions, the motor was tested and qualiﬁed to help ensure the greatest reliability.

External Service Valves —Both brass

service valves are front seating, with provision for ﬁeld sweat connections. Valves are externally located for quick and easy refrigerant tube connections. Each valve provides service ports for ease in checking operating refrigerant pressures.

ISO 9001:2000

REGISTERED

Easy Serviceability —One access

panel provides access to electrical controls and compressor. Removal of wire dome gives access to fan motor and removal of the top gives access to the coil.

Compressor Protection — Each

compressor is protected with internal temperature and current sensitive overloads.

Operating Range — Minimum

outdoor operating ambient in cooling mode is 55ºF (12.8ºC), maximum is 125ºF (51.7ºC).

number nomenclature

38CKS 018 3 A 1

10 SEER Coastal Air Conditioner Packaging

Nominal Capacity

018 — 18,000 Btuh 042 — 42,000 Btuh 024 — 24,000 Btuh 048 — 48,000 Btuh 030 — 30,000 Btuh 060 — 60,000 Btuh 036 — 36,000 Btuh

The data in this publication is displayed for all series; however, every series may not be available from manufacturer.

Series

Electrical

3 — 208-230-1

Page 3

Physical data

UNIT SIZE 018-3A 024-3A 030-3A 036-3A 042-3A 048-3A 060-3A OPERATING WT (Lb/Kg) COMPRESSOR—Type REFRIGERANT

Control Charge (Lb/Kg) @ 15 Ft (4.6 m)

COND FAN

Air Discharge Air Qty (CFM/L/S) Motor HP Motor RPM

COND COIL

Face Area (Sq Ft/m Fins per In./Fins per cm Rows Circuits

VALVE CONNECTION (In./mm ID)

Vapor Liquid

REFRIG TUBES* (In./mm OD)

Vapor (0–50 Ft/0-15.24m Tube Length) Vapor (Max Diameter for

Long-Line Applications)

Liquid (0–50/0-15.24m Ft Tube

Length)

Liquid (For Long-Line

Applications)

)

* For tubing sets between 50 (15.24m) and 175 ft (53.34m) horizontal and/or 20 ft (6.1m) vertical differential, consult Residential Split Systems LongLine Application Guideline.

NOTE: See unit Installation Instructions for proper installation.

115/52.3 117/53.2 133/60.5 138/62.7 142/64.5 198/90.0 218/99.1

Reciprocating Scroll

R22

3.30/1.5 3.65/1.66 4.25/1.93 4.60/2.09 5.13/2.33 6.38/2.90 8.46/3.85

AccuRater

Propeller Type, Direct Drive

1500/708 1700/802 2000/944 2500/1180 3400/1605

1/8 1/12 1/10 1/5 1/4

1500 1125 1125

Copper Tube, Aluminum Plate Fin

6.8/.63 9.1/.85 9.9/.92 12.4/1.15 14.8/1.37 18.5/1.72 16.1/1.50 20/8 20/8 20/8 20/8 20/8 20/8 20/8

1111112 1222334

5/8/15.88 5/8/15.88 3/4/19.05 3/4/19.05 7/8/22.23

5/8/15.88 3/4/19.05 7/8/22.23 1-1/8/28.58

3/4/19.05 7/8/22.23 1-1/8/28.58 1-1/8/28.58

(Bypass Type)

Vertical

1125

Sweat

3/8/9.53

1125

METERING DEVICE

UNIT SIZE AND SERIES

018-3A 024-3A 030-3A 036-3A 042-3A 048-3A 060-3A

* Piston listed is for any approved non-capillary tube coil combination.

Piston is shipped with outdoor unit and must be installed in an approved indoor coil.

IDENTIFICATION NO.

A-weighted sound power (dBA)

UNIT SIZE

018-3A 024-3A 030-3A 036-3A 042-3A 048-3A 060-3A

STANDARD

RATING

80 57.5 64.0 69.5 72.0 71.5 68.0 60.0 80 55.5 63.0 68.0 71.0 70.5 67.5 58.5 80 54.0 68.5 72.5 73.0 70.5 67.0 61.5 82 56.5 70.0 73.5 75.5 74.5 71.0 65.0 82 59.0 66.5 68.5 75.5 71.5 73.0 65.5 82 58.5 72.5 74.0 77.0 72.5 70.0 65.0 82 57.5 68.0 69.0 72.5 70.5 71.0 70.0

125 250 500 1000 2000 4000 8000

TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment) (Hz)

PISTON

Page 4

Accessories

PART NO. DESCRIPTION

KAATD0101TDR

KSALA0201R22

KSALA0401AAA*

N/A

N/A HC34GE232(RCD) HC40GE232(RCD)

KAAFT0101AAA

KAAWS0101AAA

KSACY0101AAA KSAHS0901AAA KSAHS1101AAA KSAHS1301AAA KSAHS1601AAA KAACS0201PTC

KAACH1001AAA KAACH1201AAA

N/A KSASH2001BRL KSASH1201COP KSASH2001CYL

KAATX0201RPB KAATX0301RPB KAATX0401RPB KAATX0501RPB KAATX0601RPB KAATX0701RPB KSATX0601HSO KSATX0701HSO KSATX1001HSO KAALP0101LPS

KSAHI0101HPS P502-8083S (RCD) P502-8163S (RCD)

KAALS0101LLS†

* Fan motor with ball bearings required.

† Start assist capacitor and relay required when using liquid solenoid valve or hard shutoff TXV (except 048 and 060 sizes). Do not use hard shutoff

TXV with liquid solenoid valve.

N/A — Not Applicable

Time-Delay Relay — All Sizes Low Ambient Pressure Switch Kit — All Sizes MotorMaster®—Low-Ambient Controller — Sizes 024–060 MotorMaster®—Low-Ambient Controller — Size 018 Ball Bearing Fan Motor — Size 018 Ball Bearing Fan Motor — Sizes 024, 030 Ball Bearing Fan Motor — Sizes 036–060 Evaporator Freeze Thermostat — All Sizes Winter Start Control — All Sizes Cycle Protector — Sizes 018–060 Start Assist — Capacitor and Relay — Sizes 018–030 Start Assist — Capacitor and Relay — Size 036 Start Assist — Capacitor and Relay — Size 042 Start Assist — Capacitor and Relay — Sizes 048, 060 Start Assist — PTC — All Sizes Crankcase Heater — Sizes 018–042 Crankcase Heater — Sizes 048, 060 Sound Hood — Sizes 018–030 Sound Hood — Size 036 Sound Hood — Size 042 Sound Hood — Sizes 048, 060 Thermostatic Expansion Valve (RPB) — Size 018 Thermostatic Expansion Valve (RPB) — Size 024 Thermostatic Expansion Valve (RPB) — Size 030 Thermostatic Expansion Valve (RPB) — Sizes 036, 042 Thermostatic Expansion Valve (RPB) — Size 048 Thermostatic Expansion Valve (RPB) — Size 060 Thermostatic Expansion Valve (Hard Shutoff) — Sizes 018–042 Thermostatic Expansion Valve (Hard Shutoff) — Size 048 Thermostatic Expansion Valve (Hard Shutoff) — Size 060 Low-Pressure Switch — All Sizes High-Pressure Switch — All Sizes Filter Drier — Sizes 018–036 Filter Drier — Sizes 042–060 Liquid-Line Solenoid Valve — All Sizes

Page 5

THERMOSTAT PKG. DESCRIPTION

TSTATCCPRH01-B TSTATCCPAC01-B TSTATCCNAC01-C TSTATCCBAC01-B TSTATXXSEN01-B

TSTATXXNBP01 TSTATXXPBP01 TSTATXXBBP01 TSTATXXCNV10

Thermidistat Control, Programmable/Non-Programmable Thermostat with Humidity Control Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool Thermostat, Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool Builder’s Thermostat, Manual Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool Outdoor Air Temperature Sensor Backplate for Non-Programmable Thermostat Backplate for Programmable Thermostat Backplate for Builder’s Thermostat Thermostat Conversion Kit (4 to 5 wire) — 10 Pack

Accessory usage guideline

REQUIRED FOR

LOW-AMBIENT

ACCESSORY

Crankcase Heater

Evaporator Freeze Thermostat

Winter Start Control

Accumulator

Compressor Start Assist

Capacitor and Relay

MotorMaster®—Low-Ambient

or Low-Ambient Pressure Switch

* For tubing line sets between 50 (15.24m) and 175 ft (53.34m) and/or 20 ft (6.1m) vertical differential, refer to Residential Split Systems Long-Line

Application Guideline. † Only when low-pressure switch is used. ‡ Required for Low-Ambient Controller MotorMaster® Control only.

Controller

Wind Bafﬂe

Coastal Filter

Liquid-Line Solenoid Valve

Hard Shutoff TXV

Ball Bearing Fan Motor

APPLICATIONS

(Below 55°F)

Yes Yes No Ye s N o N o

Yes† No No

No No No

Yes Yes No

Ye s N o N o

See Low-Ambient

Instructions No No

No No No

Yes‡ No No

REQUIRED FOR

LONG-LINE

APPLICATIONS*

(Over 50 Ft)

See

Long-Line

Application Guideline No

REQUIRED FOR

SEA COAST APPLICATIONS (Within 2 Miles)

Accessory description and usage (Listed alphabetically)

Ball-Bearing Fan Motor

A fan motor with ball bearings, which permits speed reduction while maintaining bearing lubrication.

Usage Guideline:

Coastal Filter

A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.

Compressor Start Assist – Capacitor and Relay

Start capacitor and relay gives a "hard" boost to compressor motor at each start up.

Usage Guideline:

Compressor Start Assist – PTC Type

Solid-state electrical device which gives a "soft" boost to the compressor motor at each start up.

Usage Guideline:

Required on all units when MotorMaster®—Low-Ambient Controller is installed.

Required for reciprocating

Long line Low ambient Hard shut off expansion valve on indoor coil Liquid line solenoid on indoor coil

Required for scroll

Long line Low ambient

Suggested for all compressors in areas with a history of low voltage problems.

Suggested when compressor power supply is marginal Suggested in reciprocating compressor applications with rapid pressure balance (RPB) expansion valve on indoor coil.

compressors in the following applications:

Page 6

Accessory description and usage (continued)

Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes the chance of liquid slugging.

Usage Guideline:

Evaporator Freeze Thermostat

An SPST temperature-actuated switch that stops unit operation when evaporator reaches freeze-up conditions.

Usage Guideline:

Filter Drier—Bi-Flow

A device for removing contaminants from refrigerant circulating in an air conditioning system: single-direction flow.

Usage Guideline:

High-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 426 ± 10 psig and resets at 320 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow.

Usage Guideline:

Liquid-Line Solenoid Valve (LLS)

This device serves two purposes. It is an electrically operated shutoff valve which stops and starts refrigerant liquid flow in response to compressor operation. It maintains a column of refrigerant liquid ready for action at next compressor operation cycle. It also provides system protection against off-cycle refrigerant migration.

NOTE:

Usage Guideline:

10. Low-Ambient Pressure Switch

A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 100 psig to 225 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when properly installed.

Usage Guideline:

11. MotorMaster®-Low-Ambient Controller

A fan speed control device activated by a temperature sensor, designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at 100°F ± 10°F (37.8°C ± – 12°C).

Usage Guideline:

12. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this publication. The device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

Usage Guideline:

13. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces the sound level by about 2 dBA.

Usage Guideline:

14. Thermostatic Expansion Valve (TXV) Single-Flow

A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available.

NOTE: When using a hard shut off TXV with single phase reciprocating compressors, a Compressor Start Assist — Capacitor and Relay is required.

Usage Guideline:

15. Time-Delay Relay

An SPST delay relay which briefly continues operation of indoor blower motor to provide additional cooling after the compressor cycles off.

NOTE: Most indoor unit controls include this feature. For those that do not, use the guideline below.

Usage Guideline:

Required in low ambient applications. Required in long line applications. Suggested in all commercial applications.

Required when low ambient kit has been added.

Suggested in all field-connected split-system air conditioners.

Suggested in installations exposed to "very dirty" outdoor air. Suggested in installations where condenser inlet air temperature exceeds 125°F. (51.7°C)

When LLS is used with reciprocating compressors, Compressor Start Assist — Capacitor and Relay is required.

Required in air conditioner long line applications with a piston indoor metering device to prevent off cycle refrigerant migration. A hard shut off TXV can be used instead of LLS in single flow air conditioner applications. See Long Line Application Guideline.

A Low-Ambient Pressure Switch or Motor Master ®—Low-Ambient Controller must be used when cooling operation is used at outdoor temperatures below 55°F (12.8°C).

A Motor Master ®—Low-Ambient Controller or Low-Ambient Pressure Switch must be used when cooling operation is used at outdoor temperatures below 55°F (12.8°C). Suggested for all commercial applications.

Suggested for all Carrier thermostats listed in this publication.

Suggested when unit is installed closer than 15 ft to quiet areas—bedrooms, etc. Suggested when unit is installed between two houses less than 10 ft apart.

Required to achieve ARI ratings in certain equipment combinations. Refer to combination ratings. Hard shut off TXV or LLS required in air conditioner long line applications. Required for use on all zoning systems.

For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

Page 7

Electrical data

60°C

UNIT

SIZE-SERIES V/PH

018-3A 024-3A 61.0 12.2 0.5 15.8 14 14 030-3A 73.0 14.0 0.8 18.4 14 14 036-3A 86.0 17.7 1.4 23.5 12 12 042-3A 102.0 19.7 1.4 26.0 10 10 048-3A 140.0 24.4 1.4 31.9 8 10 060-3A 165.0 28.9 1.4 37.5 8 8

208-230-1 253 197

OPER VOLTS* COMPRESSOR

Max Min LRA RLA

48.0 9.0 0.8 12.1 14 14

FAN FLA MCA

MIN WIRE SIZE†

75°C

MIN WIRE SIZE†

60°C MAX

LENGTH

(Ft)‡

65 61 20 49 47 20 40 38 25 58 55 35 75 70 40 95 55 50 80 75 60

75°C MAX

LENGTH

(Ft)‡

MAX FUSE** OR CKT BKR AMPS

* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.

† If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70).

The ampacity of nonmetallic-sheathed cable (NM), trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60 or 75°C (140 or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).

‡ Length shown is as measured 1 way along wire path between the unit and service panel for a voltage drop not to exceed 2%.

** Time-delay fuse.

FLA — Full Load Amps LRA — Locked Rotor Amps MCA — Minimum Circuit Amps RLA — Rated Load Amps NOTES: 1. Control circuit is 24v on all units and requires external power source.

2. Copper wire must be used from service disconnect to unit.

3. All motors/compressors contain internal overload protection.

Page 8

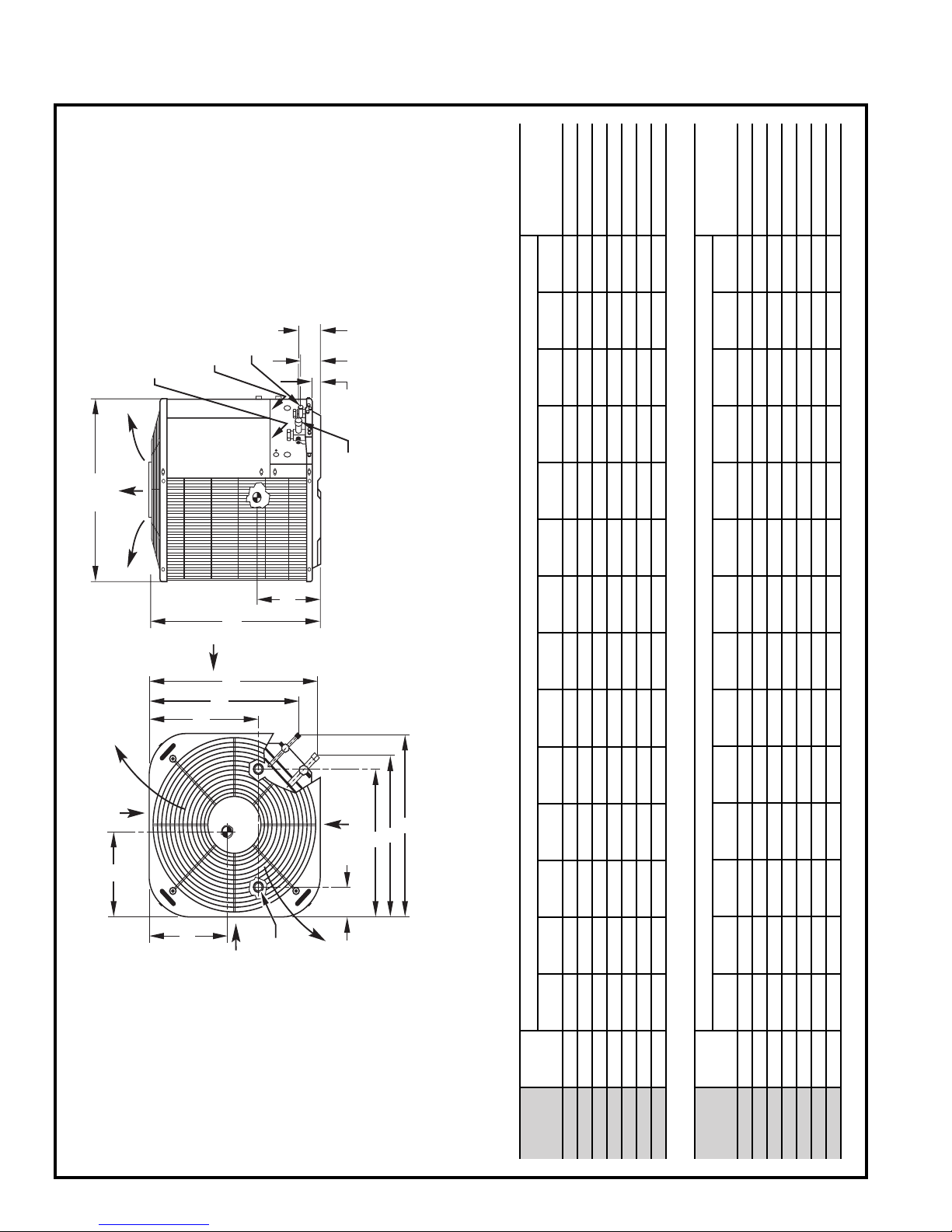

Dimensions—38CKS

AIR DISCHARGE

IN.

DIA (28.6 mm)

AND 1

IN.

DIA KNOCKOUT

(22.2 mm) DIA HOLE

IN.

(34.9 mm)

WITH 1

KNOCKOUT

FIELD POWER SUPPLY CONN

IN. (22.2 mm)

FIELD CONTROL SUPPLY

CONN

IN. (9.5mm)

DIA HOLE

DIA LIQUID

LINE CONN

DIMENSIONSABCDEFGHJKLMNP

MOUNTING PAD

8˝

≤

(73.0 mm)

4˝

≤

(31.6 mm)

A05102

DIMENSIONSABCDEFGHJKLMNP

MOUNTING PAD



DIA VAPOR LINE CONN

AIR DISCHARGE

AIR IN

NOTES:

1. ALLOW 30” (762.0mm) CLEARANCE TO SERVICE SIDE OF UNIT, 48” (1219.2mm)

ABOVE UNIT, 6” (152.4mm) ON ONE SIDE, 12” (308.8mm) ON REMAINING SIDE, AND

24” (609.6mm) BETWEEN UNITS FOR PROPER AIRFLOW.

2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55°F (12.8°C)

MAX 125°F (51.7°C).

3. SERIES DESIGNATION IS THE 13TH POSITION OF THE UNIT MODEL NUMBER.

AIR IN

4. CENTER OF GRAVITY.

UNIT DIMENSIONS (MM) MINIMUM

UNIT DIMENSIONS (IN.) MINIMUM

AIR IN

IN. DIA

(9.5mm)

AIR IN

TIEDOWN

KNOCKOUTS

(2) PLACES

AIR DISCHARGE

S.I.

018 A 457.2 658.81 81.0 15.9 76.2 381.0 414.3 450.9 258.8 409.6 450.9 200.0 212.7 257.2 457.2 X 457.2

SIZE SERIES

UNIT

024 A 571.5 658.81 81.0 15.9 93.7 460.4 501.7 565.2 365.1 496.9 560.4 260.4 241.3 285.8 571.5 X 571.5

030 A 571.5 709.61 81.0 19.1 93.7 460.4 501.7 565.2 365.1 496.9 560.4 260.4 241.3 298.5 571.5 X 571.5

036 A 571.5 862.01 81.0 19.1 93.7 460.4 501.7 565.2 365.1 496.9 560.4 260.4 241.3 393.7 571.5 X 571.5

042 A 762.0 709.61 82.6 22.2 165.1 596.9 692.2 755.7 508.0 687.4 750.9 393.7 355.6 393.7 762.0 X 762.0

048 A 762.0 862.01 82.6 22.2 165.1 596.9 692.2 755.7 508.0 687.4 750.9 393.7 355.6 393.7 762.0 X 762.0

060 A 762.0 760.41 82.6 22.2 165.1 596.9 692.2 755.7 508.0 687.4 750.9 393.7 355.6 381.0 762.0 X 762.0

UNIT

ENGLISH

018 A 18 25-15/16 3-3/16 5/8 3 15 16-5/6 17-3/4 10-3/16 16-1/8 17-3/4 7-7/8 8-3/8 10-1/8 18 X 18

024 A 22-1/2 25-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-1/4 22-1/2 X 22-1/2

SIZE SERIES

030 A 22-1/2 27-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 11-3/4 22-1/2 X 22-1/2

036 A 22-1/2 33-15/16 3-3/16 3/4 3-11/16 18-1/8 19-3/4 22-1/4 14-3/8 19-9/16 22-1/16 10-1/4 9-1/2 15-1/2 22-1/2 X 22-1/2

042 A 30 27-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 15-1/2 30 X 30

048 A 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 15-1/2 30 X 30

060 A 30 29-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-3/4 20 27-1/16 29-9/16 15-1/2 14 15 30 X 30

Page 9

Combination ratings*

COOLING CAPACITY @ 95°F (35°C) COOLING CAPACITY @ 115°F (46°C)

UNIT

SIZE-SERIES

018-3A

024-3A

030-3A

036-3A

042-3A

048-3A

060-3A

INDOOR

UNIT

FB4BNF018 600 280 17,000 4.98 1.81 9.40 14,000 4.10 2.06

FB4BNF024 600 280 17,600 5.16 1.83 9.60 15,000 4.39 2.14 FA4CN(F,C)018 600 280 17,600 5.16 1.83 9.60 15,500 4.54 2.21 FA4CN(F,C)024 600 280 17,800 5.22 1.84 9.70 15,500 4.54 2.21

FB4BNF024 800 380 23,200 6.80 2.39 9.70 18,700 5.48 2.75

FB4BNF030 800 380 23,500 6.89 2.40 9.80 19,000 5.57 2.71 FA4CN(F,C)024 800 380 23,500 6.89 2.40 9.80 19,500 5.71 2.79 FA4CN(F,C)030 800 380 23,800 6.97 2.43 9.80 19,500 5.71 2.79

FB4BNF030 1000 467 28,600 8.38 3.04 9.40 23,200 6.80 3.41

FB4BNF036 1000 467 28,800 8.44 3.06 9.40 23,500 6.89 3.36 FA4CN(F,C)030 1000 467 29,000 8.50 3.05 9.50 23,800 6.97 3.40 FA4CN(F,C)036 1000 467 29,200 8.56 3.07 9.50 24,000 7.03 3.43

FB4BNF036 1200 550 33,500 9.82 3.72 9.00 27,800 8.15 4.09 FB4BN(F,B)042 1200 550 33,800 9.90 3.63 9.30 28,200 8.26 4.03

FA4CN(F,C)036 1200 550 33,800 9.90 3.63 9.30 28,500 8.35 4.07 FA4CN(F,C)042 1200 550 34,400 10.08 3.62 9.50 29,200 8.56 4.17

FB4BN(F,B)042 1400 653 41,000 12.01 4.56 9.00 34,400 10.08 5.06 FB4BN(F,B)048 1400 653 41,500 12.16 4.51 9.20 35,000 10.25 5.00

FA4CN(F,C)042 1400 653 41,500 12.16 4.51 9.20 35,800 10.49 5.11 FA4CN(F,C)048 1400 653 42,400 12.42 4.56 9.30 36,600 10.72 5.23

FB4BN(F,B)048 1600 750 47,500 13.92 5.05 9.40 41,000 12.01 6.03 FB4BN(F,B)060 1600 750 48,500 14.21 5.16 9.40 42,000 12.31 6.00

FB4BNB070 1600 750 49,000 14.36 5.16 9.50 42,800 12.54 5.94 FA4CN(F,C)048 1600 750 48,000 14.06 5.05 9.50 42,800 12.54 6.11 FA4CN(F,C)060 1600 750 49,000 14.36 5.16 9.50 43,800 12.83 6.08

FB4BN(F,B)060 2000 919 57,500 16.85 6.39 9.00 49,500 14.50 7.62

FB4BNB070 2000 919 58,000 16.99 6.24 9.30 50,500 14.80 7.43 FA4CN(F,C)060 2000 919 58,000 16.99 6.24 9.30 50,500 14.80 7.43

* Ratings are based on: Cooling Standard: 80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor

unit.

NOTES: 1. Ratings are net values reﬂecting the effects of circulating fan motor heat. Supplemental electric heat is not included.

2. Determine actual CFM values obtainable for your system by referring to fan performance data in fan coil or furnace coil literature.

3. Minimum outdoor operating ambient in cooling mode is 55°F (12.8°C), maximum 125°F (51.7°C).

NOMINAL AIRFLOW RATED CAPACITY POWER RATED RATED CAPACITY POWER

CFM L/S BTUH kW kW EER BTUH kW kW

Page 10

Detailed cooling capacities* (S.I.)

EVAPORATOR

AIR

L/S EWB

24 29 35 41 46 52

Capacity

kW**

Tot

Sys

Capacity

CONDENSER ENTERING AIR TEMPERATURES °C

Tot

Sys

kW**

Capacity

kW**

Tot

Sys

Capacity

Tot

Sys

kW**

Capacity

Tot

Sys

kW**

38CKS018-3A Outdoor Section With FA4CN(F,C)018 Indoor Section

14 4.53 4.53 1.37 4.37 4.37 1.53 4.19 4.19 1.69 3.99 3.99 1.87 3.78 3.78 2.06 3.56 3.56 2.26

250

285

320

17 4.91 4.25 1.40 4.68 4.16 1.56 4.41 4.04 1.72 4.13 3.91 1.89 3.83 3.77 2.07 3.57 3.57 2.27 19 5.44 3.63 1.43 5.27 3.59 1.60 5.03 3.50 1.79 4.73 3.40 1.97 4.43 3.28 2.16 4.09 3.16 2.36 22 5.86 2.97 1.46 5.78 2.95 1.64 5.61 2.90 1.84 5.38 2.82 2.05 5.09 2.72 2.27 4.76 2.60 2.48

14 4.75 4.75 1.41 4.58 4.58 1.58 4.40 4.40 1.74 4.19 4.19 1.93 3.97 3.97 2.12 3.74 3.74 2.34 17 5.04 4.52 1.43 4.81 4.43 1.60 4.54 4.31 1.76 4.25 4.17 1.94 3.96 3.96 2.12 3.73 3.73 2.33 19 5.54 3.80 1.46 5.39 3.78 1.64 5.16 3.72 1.83 4.86 3.62 2.02 4.54 3.50 2.21 4.19 3.38 2.41 22 5.93 3.05 1.49 5.88 3.06 1.67 5.72 3.02 1.88 5.50 2.95 2.09 5.22 2.86 2.32 4.87 2.74 2.54

14 4.94 4.94 1.45 4.78 4.78 1.63 4.58 4.58 1.80 4.37 4.37 1.98 4.14 4.14 2.18 3.90 3.90 2.40 17 5.14 4.76 1.46 4.92 4.67 1.64 4.66 4.56 1.81 4.37 4.37 1.98 4.13 4.13 2.18 3.89 3.89 2.40 19 5.62 3.95 1.49 5.49 3.96 1.67 5.26 3.92 1.87 4.97 3.83 2.07 4.63 3.71 2.26 4.27 3.59 2.46 22 5.99 3.12 1.52 5.95 3.14 1.71 5.81 3.12 1.91 5.59 3.07 2.13 5.31 2.99 2.36 4.96 2.88 2.60

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 018 0.97 0.99 FA4CN(F,C) 024 1.01 1.00

024 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

38CKS024-3A Outdoor Section With FA4CN(F,C)024 Indoor Section

14 6.47 6.47 1.87 6.06 6.06 2.03 5.63 5.63 2.20 5.22 5.22 2.39 4.81 4.81 2.58 4.43 4.43 2.80

330

380

425

17 6.97 6.12 1.92 6.42 5.79 2.07 5.89 5.48 2.24 5.34 5.15 2.40 4.82 4.82 2.59 4.42 4.42 2.80 19 7.76 5.24 1.97 7.25 5.00 2.15 6.70 4.73 2.35 6.14 4.46 2.53 5.57 4.19 2.72 5.02 3.93 2.92 22 8.44 4.30 2.01 8.01 4.12 2.21 7.51 3.91 2.42 6.97 3.69 2.64 6.40 3.46 2.87 5.82 3.22 3.10

14 6.81 6.81 1.94 6.37 6.37 2.11 5.94 5.94 2.28 5.49 5.49 2.47 5.06 5.06 2.67 4.65 4.65 2.89 17 7.16 6.53 1.96 6.62 6.20 2.14 6.07 5.86 2.30 5.51 5.51 2.47 5.05 5.05 2.67 4.65 4.65 2.89 19 7.93 5.52 2.01 7.44 5.30 2.20 6.89 5.05 2.40 6.31 4.77 2.61 5.71 4.49 2.79 5.14 4.22 2.99 22 8.57 4.43 2.06 8.15 4.28 2.26 7.66 4.08 2.47 7.12 3.87 2.69 6.56 3.64 2.92 5.96 3.40 3.17

14 7.09 7.09 1.99 6.64 6.64 2.18 6.19 6.19 2.36 5.72 5.72 2.55 5.27 5.27 2.75 4.84 4.84 2.98 17 7.32 6.90 2.01 6.77 6.54 2.19 6.22 6.22 2.37 5.72 5.72 2.55 5.27 5.27 2.75 4.84 4.84 2.98 19 8.07 5.78 2.06 7.58 5.58 2.25 7.02 5.33 2.45 6.44 5.07 2.66 5.82 4.77 2.86 5.23 4.49 3.06 22 8.65 4.54 2.10 8.25 4.41 2.31 7.77 4.23 2.52 7.23 4.03 2.75 6.67 3.81 2.98 6.07 3.59 3.23

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 024 0.99 1.00 FA4CN(F,C) 030 1.01 1.01

030 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

38CKS030-3A Outdoor Section With FA4CN(F,C)030 Indoor Section

14 8.23 8.23 2.49 7.64 7.64 2.64 7.07 7.07 2.81 6.50 6.50 2.97 5.96 5.96 3.15 5.43 5.43 3.33

415

470

530

See notes on pg. 12.

17 8.80 7.77 2.54 8.08 7.30 2.70 7.36 6.85 2.85 6.66 6.39 3.00 6.00 6.00 3.15 5.42 5.42 3.33 19 9.75 6.63 2.60 9.04 6.27 2.79 8.30 5.90 2.98 7.55 5.51 3.15 6.82 5.13 3.31 6.13 4.78 3.48 22 10.59 5.42 2.67 9.93 5.13 2.87 9.22 4.83 3.07 8.49 4.52 3.27 7.74 4.20 3.48 7.00 3.88 3.68

14 8.63 8.63 2.58 8.02 8.02 2.74 7.40 7.40 2.91 6.80 6.80 3.08 6.24 6.24 3.26 5.68 5.68 3.44 17 9.02 8.28 2.60 8.29 7.80 2.78 7.56 7.30 2.93 6.84 6.84 3.08 6.23 6.23 3.26 5.68 5.68 3.44 19 9.96 6.98 2.67 9.24 6.64 2.86 8.50 6.27 3.05 7.72 5.87 3.24 6.97 5.49 3.40 6.26 5.11 3.57 22 10.76 5.60 2.73 10.11 5.33 2.93 9.39 5.04 3.14 8.65 4.73 3.34 7.90 4.41 3.55 7.15 4.10 3.76

14 8.95 8.95 2.65 8.33 8.33 2.84 7.69 7.69 3.01 7.07 7.07 3.18 6.48 6.48 3.36 5.90 5.90 3.55 17 9.20 8.74 2.66 8.47 8.23 2.85 7.73 7.73 3.01 7.07 7.07 3.18 6.47 6.47 3.36 5.90 5.90 3.55 19 10.11 7.31 2.73 9.39 6.97 2.92 8.64 6.61 3.12 7.86 6.22 3.31 7.08 5.82 3.48 6.35 5.42 3.65 22 10.87 5.76 2.79 10.23 5.51 3.00 9.52 5.22 3.20 8.77 4.92 3.41 8.01 4.61 3.62 7.25 4.29 3.83

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 030 0.99 1.00 FA4CN(F,C) 036 1.01 1.01

036 0.99 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Capacity

Cooling

Tot

Sys

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 11

Detailed cooling capacities* (S.I.) continued

EVAPORATOR

AIR

CFM EWB

24 29 35 41 46 52

Capacity

kW**

Tot

Sys

Capacity

CONDENSER ENTERING AIR TEMPERATURES °C

Tot

Sys

kW**

Capacity

kW**

Tot

Sys

Capacity

Tot

Sys

kW**

Capacity

Tot

Sys

kW**

Capacity

38CKS036-3A Outdoor Section With FA4CN(F,C)036 Indoor Section

14 9.33 9.33 2.96 8.83 8.83 3.15 8.29 8.29 3.35 7.73 7.73 3.57 7.18 7.18 3.81 6.62 6.62 4.04

495

565

635

17 9.89 8.83 3.00 9.24 8.45 3.21 8.56 8.07 3.39 7.86 7.65 3.59 7.19 7.19 3.81 6.62 6.62 4.04 19 10.92 7.49 3.08 10.34 7.23 3.31 9.68 6.94 3.55 8.93 6.59 3.76 8.16 6.25 3.97 7.40 5.91 4.19 22 11.79 6.06 3.16 11.35 5.90 3.41 10.76 5.67 3.65 10.09 5.41 3.91 9.31 5.10 4.18 8.53 4.79 4.42

14 9.79 9.79 3.05 9.26 9.26 3.27 8.70 8.70 3.48 8.12 8.12 3.69 7.53 7.53 3.93 6.95 6.95 4.17 17 10.14 9.43 3.08 9.50 9.05 3.30 8.82 8.63 3.49 8.12 8.12 3.70 7.53 7.53 3.93 6.94 6.94 4.17 19 11.13 7.90 3.16 10.57 7.68 3.39 9.90 7.40 3.63 9.14 7.06 3.86 8.35 6.70 4.07 7.56 6.34 4.29 22 11.94 6.25 3.24 11.53 6.13 3.48 10.96 5.93 3.74 10.29 5.68 4.00 9.53 5.39 4.27 8.71 5.07 4.53

14 10.14 10.14 3.14 9.62 9.62 3.37 9.06 9.06 3.60 8.45 8.45 3.81 7.83 7.83 4.05 7.23 7.23 4.29 17 10.34 9.94 3.16 9.72 9.56 3.38 9.07 9.07 3.60 8.45 8.45 3.81 7.83 7.83 4.05 7.22 7.22 4.29 19 11.27 8.26 3.24 10.74 8.08 3.47 10.07 7.83 3.71 9.31 7.49 3.96 8.49 7.12 4.16 7.69 6.75 4.39 22 12.05 6.42 3.31 11.65 6.33 3.56 11.10 6.16 3.81 10.43 5.93 4.08 9.68 5.66 4.35 8.85 5.34 4.62

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 036 0.99 1.02 FA4CN(F,C) 042 1.02 1.00

FB4BN(F,B) 042 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

38CKS0042-3A Outdoor Section With FA4CN(F,C)042 Indoor Section

14 11.03 11.03 3.55 10.53 10.53 3.82 9.98 9.98 4.11 9.42 9.42 4.41 8.87 8.87 4.71 8.28 8.28 5.01

580

660

745

17 11.94 10.27 3.64 11.25 9.92 3.93 10.53 9.56 4.19 9.76 9.17 4.46 9.03 8.77 4.74 8.29 8.29 5.01 19 13.14 8.77 3.74 12.56 8.53 4.07 11.86 8.24 4.41 11.05 7.89 4.69 10.25 7.56 4.98 9.42 7.21 5.26 22 14.10 7.15 3.83 13.71 7.02 4.19 13.13 6.80 4.54 12.42 6.53 4.90 11.59 6.20 5.26 10.74 5.88 5.57

14 11.59 11.59 3.68 11.06 11.06 3.97 10.49 10.49 4.26 9.89 9.89 4.56 9.30 9.30 4.87 8.68 8.68 5.18 17 12.25 10.96 3.73 11.57 10.62 4.05 10.82 10.23 4.31 10.04 9.80 4.59 9.31 9.31 4.87 8.67 8.67 5.18 19 13.41 9.21 3.83 12.86 9.04 4.17 12.16 8.77 4.51 11.33 8.42 4.82 10.49 8.08 5.11 9.63 7.73 5.40 22 14.30 7.36 3.92 13.94 7.27 4.28 13.38 7.08 4.64 12.68 6.84 5.01 11.86 6.54 5.37 10.98 6.21 5.72

14 12.04 12.04 3.78 11.51 11.51 4.12 10.92 10.92 4.41 10.29 10.29 4.71 9.67 9.67 5.02 9.02 9.02 5.34 17 12.49 11.58 3.81 11.83 11.25 4.14 11.08 10.83 4.43 10.31 10.31 4.71 9.66 9.66 5.02 9.01 9.01 5.34 19 13.60 9.59 3.91 13.08 9.49 4.26 12.38 9.25 4.60 11.54 8.93 4.94 10.67 8.58 5.23 9.79 8.21 5.52 22 14.42 7.53 4.00 14.09 7.49 4.37 13.56 7.34 4.74 12.87 7.12 5.10 12.06 6.85 5.48 11.17 6.53 5.83

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BN(F,B) 042 0.99 1.01 FA4CN(F,C) 048 1.02 1.01

048 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

38CKS048-3A Outdoor Section With FA4CN(F,C)048 Indoor Section

14 12.81 12.81 3.93 12.29 12.29 4.32 11.73 11.73 4.75 11.14 11.14 5.23 10.53 10.53 5.76 9.85 9.85 6.32

660

755

850

See notes on pg. 12.

17 13.64 11.84 3.96 13.13 11.57 4.41 12.41 11.17 4.82 11.66 10.75 5.29 10.87 10.31 5.80 10.02 9.80 6.34 19 14.75 9.96 4.02 14.36 9.82 4.46 13.80 9.56 4.96 13.07 9.22 5.46 12.26 8.84 5.98 11.42 8.46 6.55 22 15.66 7.99 4.09 15.49 7.97 4.54 15.05 7.81 5.03 14.44 7.56 5.58 13.73 7.26 6.18 12.89 6.92 6.79

14 13.30 13.30 4.02 12.85 12.85 4.46 12.27 12.27 4.89 11.65 11.65 5.37 11.02 11.02 5.91 10.34 10.34 6.48 17 13.80 12.41 4.06 13.40 12.32 4.49 12.72 11.92 4.94 11.95 11.47 5.41 11.14 10.96 5.93 10.34 10.34 6.48 19 14.97 10.40 4.11 14.62 10.35 4.56 14.06 10.12 5.05 13.38 9.80 5.59 12.54 9.42 6.11 11.67 9.02 6.68 22 15.81 8.19 4.18 15.68 8.22 4.63 15.28 8.11 5.13 14.69 7.89 5.68 13.97 7.61 6.28 13.17 7.28 6.94

14 13.70 13.70 4.11 13.29 13.29 4.57 12.73 12.73 5.02 12.09 12.09 5.51 11.43 11.43 6.05 10.75 10.75 6.63 17 14.09 13.21 4.13 13.61 12.98 4.58 12.97 12.58 5.05 12.16 12.16 5.52 11.42 11.42 6.05 10.75 10.75 6.63 19 15.11 10.79 4.20 14.81 10.83 4.65 14.26 10.64 5.14 13.58 10.34 5.69 12.75 9.96 6.23 11.86 9.56 6.81 22 15.90 8.34 4.27 15.80 8.43 4.73 15.44 8.38 5.22 14.87 8.20 5.77 14.15 7.93 6.38 13.34 7.61 7.03

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BN(F,B) 048 0.99 1.00 FB4BNF 070 1.02 1.02

060 1.01 1.02 FA4CN(F,C) 060 1.02 1.02

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

Tot

Sys

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 12

Detailed cooling capacities* (S.I.) continued

EVAPORATOR

AIR

CFM EWB

24 29 35 41 46 52

Capacity

kW**

Tot

Sys

Capacity

CONDENSER ENTERING AIR TEMPERATURES °C

Tot

Sys

kW**

Capacity

kW**

Tot

Sys

Capacity

Tot

Sys

kW**

Capacity

Tot

Sys

kW**

Capacity

Tot

Sys

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS060-3A Outdoor Section With FA4CN(F,C)060 Indoor Section

14 15.37 15.37 5.05 14.73 14.73 5.45 14.07 14.07 5.91 13.32 13.32 6.39 12.60 12.60 6.93 11.84 11.84 7.53

825

945

1060

NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length

and/or indoor unit is located above outdoor unit, a slight variation in capacity may occur. † Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27°C), deduct 835

Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S)

of indoor coil air per degree above 80°F (27°C).

** Unit kW is total of indoor and outdoor unit kilowatts. EWB — Entering Wet Bulb.

17 16.37 14.30 5.12 15.66 13.90 5.56 14.80 13.42 6.00 13.86 12.90 6.46 12.92 12.36 6.98 11.98 11.78 7.56 19 17.84 12.12 5.21 17.19 11.82 5.69 16.40 11.45 6.20 15.51 11.03 6.73 14.49 10.55 7.24 13.47 10.09 7.84 22 19.07 9.77 5.30 18.65 9.62 5.79 17.93 9.34 6.31 17.08 8.99 6.87 16.15 8.61 7.47 15.15 8.21 8.12

14 15.99 15.99 5.21 15.38 15.38 5.64 14.67 14.67 6.10 13.91 13.91 6.58 13.13 13.13 7.13 12.34 12.34 7.74 17 16.68 15.20 5.25 15.98 14.80 5.71 15.12 14.29 6.16 14.19 13.73 6.63 13.19 13.19 7.14 12.33 12.33 7.74 19 18.12 12.71 5.34 17.50 12.48 5.82 16.70 12.12 6.33 15.82 11.70 6.89 14.80 11.24 7.43 13.72 10.75 8.01 22 19.26 10.02 5.42 18.90 9.95 5.91 18.19 9.71 6.43 17.35 9.38 7.00 16.41 9.01 7.60 15.39 8.61 8.25

14 16.50 16.50 5.34 15.91 15.91 5.81 15.20 15.20 6.28 14.43 14.43 6.79 13.58 13.58 7.32 12.77 12.77 7.94 17 16.94 16.01 5.37 16.23 15.59 5.83 15.41 15.07 6.31 14.48 14.48 6.80 13.57 13.57 7.32 12.76 12.76 7.94 19 18.32 13.24 5.45 17.74 13.09 5.94 16.93 12.76 6.46 16.03 12.35 7.02 15.05 11.90 7.61 13.92 11.39 8.17 22 19.38 10.23 5.54 19.05 10.23 6.04 18.40 10.04 6.56 17.55 9.74 7.12 16.60 9.38 7.72 15.57 9.00 8.36

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BN(F,B) 060 1.01 1.01 FB4BNF 070 1.02 0.98

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

Page 13

Detailed cooling capacities* (English)

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

kW**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

kW**

Capacity

MBtuh†

kW**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

kW**

Capacity

MBtuh†

Tot Sys

kW**

38CKS018-3A Outdoor Section With FA4CN(F,C)018 Indoor Section

57 15.47 15.47 1.37 14.92 14.92 1.53 14.29 14.29 1.69 13.62 13.62 1.87 12.89 12.89 2.06 12.16 12.16 2.26

525

600

675

62 16.77 14.51 1.40 15.97 14.19 1.56 15.06 13.80 1.72 14.08 13.36 1.89 13.09 12.85 2.07 12.17 12.17 2.27 67 18.55 12.38 1.43 17.97 12.24 1.60 17.16 11.94 1.79 16.15 11.59 1.97 15.11 11.20 2.16 13.96 10.78 2.36 72 19.99 10.13 1.46 19.73 10.08 1.64 19.16 9.91 1.84 18.37 9.63 2.05 17.37 9.27 2.27 16.24 8.88 2.48

57 16.23 16.23 1.41 15.64 15.64 1.58 15.00 15.00 1.74 14.29 14.29 1.93 13.54 13.54 2.12 12.78 12.78 2.34 62 17.21 15.42 1.43 16.41 15.12 1.60 15.49 14.72 1.76 14.52 14.22 1.94 13.52 13.52 2.12 12.75 12.75 2.33 67 18.92 12.96 1.46 18.39 12.90 1.64 17.60 12.69 1.83 16.59 12.34 2.02 15.50 11.95 2.21 14.29 11.53 2.41 72 20.25 10.40 1.49 20.06 10.43 1.67 19.54 10.31 1.88 18.76 10.07 2.09 17.81 9.77 2.32 16.63 9.36 2.54

57 16.85 16.85 1.45 16.31 16.31 1.63 15.64 15.64 1.80 14.91 14.91 1.98 14.12 14.12 2.18 13.30 13.30 2.40 62 17.55 16.24 1.46 16.79 15.94 1.64 15.90 15.55 1.81 14.92 14.92 1.98 14.10 14.10 2.18 13.29 13.29 2.40 67 19.19 13.48 1.49 18.72 13.52 1.67 17.94 13.37 1.87 16.95 13.07 2.07 15.81 12.68 2.26 14.57 12.25 2.46 72 20.46 10.64 1.52 20.30 10.72 1.71 19.82 10.66 1.91 19.07 10.48 2.13 18.12 10.22 2.36 16.94 9.82 2.60

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size FB4BNF 018 0.97 0.99 FA4CN(F,C) 024 1.01 1.00

024 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

38CKS024-3A Outdoor Section With FA4CN(F,C)024 Indoor Section

57 22.09 22.09 1.87 20.67 20.67 2.03 19.22 19.22 2.20 17.80 17.80 2.39 16.42 16.42 2.58 15.12 15.12 2.80

700

800

900

62 23.78 20.87 1.92 21.93 19.76 2.07 20.12 18.70 2.24 18.23 17.56 2.40 16.46 16.46 2.59 15.08 15.08 2.80 67 26.50 17.90 1.97 24.76 17.07 2.15 22.88 16.14 2.35 20.94 15.23 2.53 19.01 14.31 2.72 17.14 13.42 2.92 72 28.79 14.67 2.01 27.33 14.06 2.21 25.62 13.35 2.42 23.78 12.60 2.64 21.86 11.81 2.87 19.87 10.99 3.10

57 23.26 23.26 1.94 21.74 21.74 2.11 20.27 20.27 2.28 18.73 18.73 2.47 17.26 17.26 2.67 15.87 15.87 2.89 62 24.45 22.29 1.96 22.58 21.16 2.14 20.73 20.00 2.30 18.80 18.80 2.47 17.23 17.23 2.67 15.86 15.86 2.89 67 27.08 18.85 2.01 25.38 18.10 2.20 23.50 17.23 2.40 21.54 16.29 2.61 19.50 15.33 2.79 17.56 14.41 2.99 72 29.23 15.13 2.06 27.83 14.60 2.26 26.14 13.94 2.47 24.30 13.21 2.69 22.38 12.44 2.92 20.33 11.62 3.17

57 24.19 24.19 1.99 22.66 22.66 2.18 21.12 21.12 2.36 19.54 19.54 2.55 18.00 18.00 2.75 16.52 16.52 2.98 62 24.99 23.56 2.01 23.11 22.33 2.19 21.22 21.22 2.37 19.51 19.51 2.55 17.99 17.99 2.75 16.51 16.51 2.98 67 27.55 19.72 2.06 25.85 19.03 2.25 23.95 18.20 2.45 21.99 17.29 2.66 19.87 16.29 2.86 17.86 15.31 3.06 72 29.51 15.50 2.10 28.17 15.06 2.31 26.51 14.45 2.52 24.68 13.76 2.75 22.76 13.01 2.98 20.73 12.24 3.23

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 024 0.99 1.00 FA4CN(F,C) 030 1.01 1.01

030 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

38CKS030-3A Outdoor Section With FA4CN(F,C)030 Indoor Section

57 28.10 28.10 2.49 26.08 26.08 2.64 24.11 24.11 2.81 22.17 22.17 2.97 20.33 20.33 3.15 18.53 18.53 3.33

875

1000

1125

See notes on pg. 15.

62 30.02 26.51 2.54 27.56 24.93 2.70 25.11 23.37 2.85 22.73 21.81 3.00 20.47 20.47 3.15 18.51 18.51 3.33 67 33.26 22.61 2.60 30.84 21.39 2.79 28.32 20.12 2.98 25.76 18.79 3.15 23.29 17.52 3.31 20.92 16.30 3.48 72 36.15 18.49 2.67 33.90 17.52 2.87 31.47 16.48 3.07 28.97 15.41 3.27 26.42 14.33 3.48 23.89 13.23 3.68

57 29.46 29.46 2.58 27.37 27.37 2.74 25.26 25.26 2.91 23.21 23.21 3.08 21.29 21.29 3.26 19.39 19.39 3.44 62 30.78 28.27 2.60 28.31 26.62 2.78 25.80 24.93 2.93 23.35 23.35 3.08 21.28 21.28 3.26 19.39 19.39 3.44 67 33.98 23.84 2.67 31.54 22.65 2.86 29.00 21.38 3.05 26.36 20.05 3.24 23.80 18.73 3.40 21.35 17.45 3.57 72 36.71 19.11 2.73 34.50 18.20 2.93 32.06 17.19 3.14 29.54 16.14 3.34 26.95 15.06 3.55 24.41 13.98 3.76

57 30.54 30.54 2.65 28.42 28.42 2.84 26.25 26.25 3.01 24.14 24.14 3.18 22.10 22.10 3.36 20.13 20.13 3.55 62 31.39 29.83 2.66 28.92 28.09 2.85 26.37 26.37 3.01 24.12 24.12 3.18 22.09 22.09 3.36 20.12 20.12 3.55 67 34.50 24.93 2.73 32.05 23.80 2.92 29.48 22.55 3.12 26.83 21.23 3.31 24.18 19.85 3.48 21.67 18.50 3.65 72 37.11 19.65 2.79 34.92 18.80 3.00 32.48 17.82 3.20 29.93 16.78 3.41 27.34 15.74 3.62 24.75 14.65 3.83

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 030 0.99 1.00 FA4CN(F,C) 036 1.01 1.01

036 0.99 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

Capacity

MBtuh†

Tot

Sys

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 14

Detailed cooling capacities* (English) continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

kW**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

kW**

Capacity

MBtuh†

kW**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

kW**

Capacity

MBtuh†

Tot

Sys

kW**

Capacity

MBtuh†

38CKS036-3A Outdoor Section With FA4CN(F,C)036 Indoor Section

57 31.84 31.84 2.96 30.13 30.13 3.15 28.28 28.28 3.35 26.39 26.39 3.57 24.50 24.50 3.81 22.61 22.61 4.04

1050

1200

1350

62 33.75 30.13 3.00 31.55 28.86 3.21 29.22 27.54 3.39 26.82 26.11 3.59 24.52 24.52 3.81 22.60 22.60 4.04 67 37.28 25.58 3.08 35.28 24.68 3.31 33.03 23.69 3.55 30.46 22.51 3.76 27.85 21.32 3.97 25.25 20.16 4.19 72 40.24 20.68 3.16 38.73 20.14 3.41 36.74 19.37 3.65 34.43 18.46 3.91 31.78 17.39 4.18 29.10 16.34 4.42

57 33.40 33.40 3.05 31.61 31.61 3.27 29.69 29.69 3.48 27.71 27.71 3.69 25.70 25.70 3.93 23.71 23.71 4.17 62 34.61 32.19 3.08 32.43 30.90 3.30 30.10 29.46 3.49 27.72 27.72 3.70 25.69 25.69 3.93 23.70 23.70 4.17 67 38.00 26.96 3.16 36.08 26.20 3.39 33.80 25.25 3.63 31.20 24.09 3.86 28.50 22.86 4.07 25.80 21.64 4.29 72 40.76 21.34 3.24 39.35 20.92 3.48 37.41 20.24 3.74 35.12 19.38 4.00 32.52 18.41 4.27 29.73 17.31 4.53

57 34.62 34.62 3.14 32.85 32.85 3.37 30.93 30.93 3.60 28.84 28.84 3.81 26.74 26.74 4.05 24.66 24.66 4.29 62 35.29 33.94 3.16 33.18 32.64 3.38 30.94 30.94 3.60 28.83 28.83 3.81 26.73 26.73 4.05 24.65 24.65 4.29 67 38.48 28.19 3.24 36.66 27.59 3.47 34.38 26.72 3.71 31.77 25.57 3.96 28.98 24.30 4.16 26.24 23.03 4.39 72 41.12 21.92 3.31 39.77 21.60 3.56 37.88 21.02 3.81 35.61 20.23 4.08 33.03 19.31 4.35 30.21 18.24 4.62

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BNF 036 0.99 1.02 FA4CN(F,C) 042 1.02 1.00

FB4BN(F,B) 042 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

38CKS042-3A Outdoor Section With FA4CN(F,C)042 Indoor Section

57 37.65 37.65 3.55 35.94 35.94 3.82 34.07 34.07 4.11 32.16 32.16 4.41 30.26 30.26 4.71 28.26 28.26 5.01

1225

1400

1575

62 40.74 35.07 3.64 38.41 33.87 3.93 35.92 32.62 4.19 33.32 31.29 4.46 30.82 29.94 4.74 28.29 28.29 5.01 67 44.85 29.92 3.74 42.87 29.12 4.07 40.49 28.14 4.41 37.71 26.94 4.69 34.97 25.79 4.98 32.14 24.62 5.26 72 48.12 24.41 3.83 46.80 23.94 4.19 44.82 23.19 4.54 42.40 22.28 4.90 39.55 21.15 5.26 36.67 20.07 5.57

57 39.57 39.57 3.68 37.75 37.75 3.97 35.79 35.79 4.26 33.75 33.75 4.56 31.73 31.73 4.87 29.61 29.61 5.18 62 41.81 37.42 3.73 39.50 36.26 4.05 36.94 34.92 4.31 34.28 33.44 4.59 31.77 31.77 4.87 29.59 29.59 5.18 67 45.78 31.43 3.83 43.90 30.85 4.17 41.50 29.92 4.51 38.66 28.75 4.82 35.80 27.58 5.11 32.87 26.39 5.40 72 48.81 25.12 3.92 47.58 24.81 4.28 45.67 24.18 4.64 43.29 23.33 5.01 40.49 22.34 5.37 37.49 21.21 5.72

57 41.08 41.08 3.78 39.29 39.29 4.12 37.25 37.25 4.41 35.12 35.12 4.71 32.99 32.99 5.02 30.78 30.78 5.34 62 42.64 39.52 3.81 40.39 38.40 4.14 37.81 36.95 4.43 35.18 35.18 4.71 32.98 32.98 5.02 30.77 30.77 5.34 67 46.41 32.74 3.91 44.64 32.38 4.26 42.26 31.57 4.60 39.40 30.48 4.94 36.42 29.27 5.23 33.41 28.02 5.52 72 49.22 25.72 4.00 48.10 25.55 4.37 46.27 25.05 4.74 43.92 24.29 5.10 41.16 23.38 5.48 38.13 22.30 5.83

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BN(F,B) 042 0.99 1.01 FA4CN(F,C) 048 1.02 1.01

048 1.00 1.00 — —— —

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

38CKS048-3A Outdoor Section With FA4CN(F,C)048 Indoor Section

57 43.73 43.73 3.93 41.94 41.94 4.32 40.03 40.03 4.75 38.02 38.02 5.23 35.95 35.95 5.76 33.62 33.62 6.32

1400

1600

1800

See notes on pg.15.

62 46.57 40.42 3.96 44.81 39.47 4.41 42.37 38.13 4.82 39.78 36.70 5.29 37.11 35.18 5.80 34.19 33.45 6.34 67 50.36 33.99 4.02 49.03 33.53 4.46 47.09 32.64 4.96 44.62 31.45 5.46 41.85 30.17 5.98 38.96 28.86 6.55 72 53.45 27.28 4.09 52.85 27.19 4.54 51.37 26.65 5.03 49.28 25.80 5.58 46.86 24.79 6.18 43.99 23.60 6.79

57 45.40 45.40 4.02 43.86 43.86 4.46 41.87 41.87 4.89 39.77 39.77 5.37 37.60 37.60 5.91 35.30 35.30 6.48 62 47.11 42.35 4.06 45.73 42.04 4.49 43.40 40.69 4.94 40.77 39.14 5.41 38.02 37.40 5.93 35.28 35.28 6.48 67 51.09 35.51 4.11 49.91 35.32 4.56 48.00 34.54 5.05 45.66 33.44 5.59 42.80 32.14 6.11 39.82 30.80 6.68 72 53.96 27.94 4.18 53.50 28.05 4.63 52.16 27.69 5.13 50.13 26.94 5.68 47.68 25.96 6.28 44.94 24.84 6.94

57 46.75 46.75 4.11 45.37 45.37 4.57 43.43 43.43 5.02 41.27 41.27 5.51 39.01 39.01 6.05 36.69 36.69 6.63 62 48.07 45.07 4.13 46.44 44.29 4.58 44.25 42.93 5.05 41.51 41.51 5.52 38.99 38.99 6.05 36.67 36.67 6.63 67 51.56 36.82 4.20 50.54 36.95 4.65 48.67 36.32 5.14 46.35 35.31 5.69 43.53 34.01 6.23 40.48 32.64 6.81 72 54.27 28.47 4.27 53.92 28.78 4.73 52.71 28.60 5.22 50.74 27.97 5.77 48.29 27.05 6.38 45.54 25.97 7.03

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BN(F,B) 048 0.99 1.00 FB4BNF 070 1.02 1.02

060 1.01 1.02 FA4CN(F,C) 060 1.02 1.02

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

Tot

Sys

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 15

Detailed cooling capacities* (English) continued

EVAPORATOR

AIR

CFM EWB

75 85 95 105 115 125

Capacity

MBtuh†

kW**

Tot

Sys

Capacity

MBtuh†

CONDENSER ENTERING AIR TEMPERATURES °F

Tot

Sys

kW**

Capacity

MBtuh†

kW**

Tot

Sys

Capacity

MBtuh†

Tot

Sys

kW**

Capacity

MBtuh†

Tot

Sys

kW**

Capacity

MBtuh†

Tot

Sys

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

38CKS060-3A Outdoor Section With FA4CN(F,C)060 Indoor Section

57 52.46 52.46 5.05 50.29 50.29 5.45 48.01 48.01 5.91 45.47 45.47 6.39 42.99 42.99 6.93 40.41 40.41 7.53

1750

2000

2250

NOTE: When the required data fall between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240-94. If additional tubing length

Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S)

of indoor coil air per degree above 80°F (27°C).

** Unit kW is total of indoor and outdoor unit kilowatts. EWB — Entering Wet Bulb

62 55.86 48.81 5.12 53.43 47.43 5.56 50.50 45.80 6.00 47.31 44.02 6.46 44.11 42.18 6.98 40.89 40.21 7.56 67 60.88 41.36 5.21 58.67 40.35 5.69 55.98 39.08 6.20 52.95 37.64 6.73 49.44 36.02 7.24 45.97 34.45 7.84 72 65.10 33.33 5.30 63.64 32.85 5.79 61.19 31.89 6.31 58.29 30.70 6.87 55.13 29.40 7.47 51.70 28.02 8.12

57 54.58 54.58 5.21 52.48 52.48 5.64 50.07 50.07 6.10 47.46 47.46 6.58 44.80 44.80 7.13 42.12 42.12 7.74 62 56.94 51.86 5.25 54.55 50.50 5.71 51.62 48.78 6.16 48.42 46.87 6.63 45.01 45.01 7.14 42.10 42.10 7.74 67 61.85 43.37 5.34 59.74 42.58 5.82 57.00 41.35 6.33 53.98 39.94 6.89 50.50 38.35 7.43 46.83 36.70 8.01 72 65.72 34.20 5.42 64.49 33.96 5.91 62.10 33.14 6.43 59.22 32.02 7.00 56.00 30.75 7.60 52.53 29.39 8.25

57 56.30 56.30 5.34 54.30 54.30 5.81 51.86 51.86 6.28 49.25 49.25 6.79 46.35 46.35 7.32 43.58 43.58 7.94 62 57.81 54.65 5.37 55.41 53.22 5.83 52.59 51.42 6.31 49.41 49.41 6.80 46.33 46.33 7.32 43.56 43.56 7.94 67 62.53 45.19 5.45 60.54 44.69 5.94 57.78 43.54 6.46 54.70 42.15 7.02 51.36 40.61 7.61 47.49 38.89 8.17 72 66.14 34.93 5.54 65.03 34.93 6.04 62.78 34.28 6.56 59.90 33.25 7.12 56.65 32.01 7.72 53.15 30.71 8.36

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

FB4BN(F,B) 060 1.01 1.01 FB4BNF 070 1.02 0.98

Capacity Power Capacity Power

Cooling

Indoor

Section Size

Cooling

Page 16

Condenser only ratings (S.I.)

SST

°C

-1

See notes on pg. 18.

CONDENSER ENTERING AIR TEMPERATURES °C

13 18 24 29 35 41 46 52

38CKS018-3A

TCG 4.80 4.30 3.90 3.40 3.00 2.50 2.10 1.60 SDT 28.00 33.00 37.00 41.00 45.00 50.00 54.00 58.00

KW 1.22 1.25 1.29 1.31 1.33 1.34 1.35 1.34

TCG 5.50 5.00 4.50 4.00 3.50 3.10 2.60 2.10 SDT 29.00 34.00 38.00 43.00 47.00 51.00 55.00 60.00

KW 1.25 1.30 1.34 1.38 1.40 1.43 1.44 1.45

TCG 6.40 5.70 5.20 4.70 4.10 3.60 3.10 2.70 SDT 30.00 35.00 40.00 44.00 49.00 53.00 57.00 61.00

KW 1.28 1.34 1.40 1.45 1.48 1.51 1.54 1.55

TCG 7.40 6.60 5.90 5.40 4.80 4.30 3.70 3.20 SDT 31.00 36.00 41.00 45.00 50.00 54.00 59.00 63.00

KW 1.30 1.37 1.44 1.51 1.57 1.59 1.63 1.66

TCG 8.60 7.60 6.80 6.20 5.60 5.00 4.40 3.90 SDT 32.00 38.00 42.00 47.00 51.00 56.00 60.00 65.00

KW 1.33 1.41 1.48 1.56 1.63 1.69 1.73 1.76

TCG 10.20 8.90 7.80 7.10 6.40 5.80 5.20 4.60 SDT 33.00 39.00 44.00 48.00 53.00 57.00 61.00 66.00

KW 1.34 1.44 1.53 1.61 1.68 1.76 1.83 1.90

38CKS024-3A

TCG 6.90 6.30 5.60 5.00 4.30 3.70 3.10 2.50 SDT 28.00 33.00 37.00 41.00 46.00 50.00 55.00 59.00

KW 1.57 1.62 1.67 1.71 1.74 1.76 1.78 1.79

TCG 7.90 7.20 6.50 5.80 5.10 4.50 3.90 3.20 SDT 29.00 34.00 39.00 43.00 47.00 52.00 56.00 61.00

KW 1.62 1.70 1.75 1.80 1.85 1.88 1.91 1.94

TCG 9.00 8.20 7.50 6.70 6.00 5.30 4.60 4.00 SDT 30.00 35.00 40.00 45.00 49.00 53.00 58.00 62.00

KW 1.67 1.76 1.85 1.91 1.96 2.00 2.04 2.09

TCG 10.30 9.30 8.50 7.70 7.00 6.20 5.50 4.80 SDT 32.00 37.00 41.00 46.00 50.00 55.00 60.00 64.00

KW 1.72 1.82 1.92 2.01 2.09 2.13 2.18 2.24

TCG 11.80 10.60 9.70 8.80 8.00 7.30 6.50 5.70 SDT 33.00 38.00 43.00 47.00 52.00 56.00 61.00 65.00

KW 1.75 1.87 1.98 2.09 2.19 2.28 2.34 2.40

TCG 13.40 12.20 11.10 10.10 9.20 8.40 7.60 6.70 SDT 34.00 39.00 44.00 49.00 53.00 58.00 62.00 67.00

KW 1.78 1.93 2.05 2.17 2.28 2.39 2.49 2.59

38CKS030-3A

TCG 8.20 7.50 6.80 6.10 5.50 4.80 4.20 3.50 SDT 28.00 33.00 37.00 42.00 46.00 51.00 55.00 60.00

KW 1.85 1.96 2.05 2.13 2.21 2.27 2.33 2.37

TCG 9.20 8.50 7.70 7.00 6.30 5.70 5.00 4.30 SDT 29.00 34.00 39.00 43.00 48.00 52.00 57.00 61.00

KW 1.92 2.04 2.15 2.25 2.34 2.42 2.49 2.55

TCG 10.40 9.60 8.80 8.00 7.30 6.50 5.80 5.10 SDT 30.00 35.00 40.00 44.00 49.00 54.00 58.00 63.00

KW 1.96 2.12 2.27 2.37 2.47 2.57 2.65 2.73

TCG 11.80 10.80 9.90 9.10 8.30 7.50 6.70 6.00 SDT 32.00 36.00 41.00 46.00 50.00 55.00 60.00 64.00

KW 2.01 2.18 2.35 2.50 2.62 2.72 2.82 2.91

TCG 13.30 12.20 11.20 10.30 9.50 8.60 7.80 7.00 SDT 33.00 38.00 42.00 47.00 52.00 56.00 61.00 65.00

KW 2.05 2.24 2.43 2.60 2.75 2.90 3.01 3.11

TCG 15.00 13.80 12.70 11.70 10.70 9.90 8.90 8.10 SDT 34.00 39.00 44.00 48.00 53.00 57.00 62.00 67.00

KW 2.08 2.30 2.50 2.69 2.86 3.03 3.18 3.34

Page 17

Condenser only ratings (S.I.) continued

SST

°C

-1

See notes on pg. 18.

CONDENSER ENTERING AIR TEMPERATURES °C

13 18 24 29 35 41 46 52

38CKS036-3A

TCG 9.50 8.80 8.00 7.20 6.30 5.50 4.60 3.60

SDT 28.00 33.00 37.00 42.00 46.00 50.00 55.00 59.00

KW 2.21 2.34 2.44 2.55 2.65 2.73 2.79 2.82

TCG 10.70 9.90 9.10 8.20 7.40 6.50 5.60 4.60

SDT 29.00 34.00 39.00 43.00 48.00 52.00 56.00 61.00

KW 2.28 2.44 2.56 2.68 2.80 2.91 2.99 3.05

TCG 12.10 11.20 10.30 9.40 8.50 7.60 6.60 5.60

SDT 30.00 35.00 40.00 45.00 49.00 53.00 58.00 62.00

KW 2.36 2.52 2.70 2.82 2.95 3.08 3.19 3.28

TCG 13.70 12.60 11.60 10.70 9.80 8.70 7.70 6.70

SDT 31.00 36.00 41.00 46.00 50.00 55.00 59.00 64.00

KW 2.44 2.61 2.79 2.97 3.12 3.25 3.38 3.50

TCG 15.60 14.20 13.10 12.10 11.10 10.00 9.00 7.90

SDT 32.00 37.00 42.00 47.00 52.00 56.00 61.00 65.00

KW 2.51 2.70 2.89 3.08 3.28 3.46 3.59 3.72

TCG 17.80 16.30 14.80 13.70 12.60 11.50 10.30 9.30

SDT 33.00 38.00 44.00 48.00 53.00 57.00 62.00 66.00

KW 2.57 2.78 2.99 3.19 3.40 3.61 3.82 3.99

38CKS042-3A

TCG 12.10 11.20 10.10 9.10 8.10 7.20 6.10 5.00

SDT 28.00 32.00 37.00 42.00 46.00 51.00 55.00 60.00

KW 2.75 2.95 3.06 3.18 3.29 3.38 3.43 3.44

TCG 13.70 12.50 11.50 10.40 9.30 8.30 7.30 6.10

SDT 29.00 34.00 38.00 43.00 47.00 52.00 56.00 61.00

KW 2.82 3.06 3.22 3.36 3.49 3.60 3.67 3.71

TCG 15.60 14.20 13.00 11.80 10.70 9.50 8.40 7.30

SDT 29.00 35.00 39.00 44.00 49.00 53.00 58.00 62.00

KW 2.90 3.16 3.39 3.57 3.69 3.82 3.92 3.98

TCG 17.80 16.10 14.70 13.40 12.20 10.90 9.70 8.50

SDT 30.00 36.00 41.00 45.00 50.00 55.00 59.00 64.00

KW 2.96 3.25 3.51 3.75 3.95 4.06 4.17 4.26

TCG 20.60 18.50 16.70 15.20 13.90 12.50 11.20 10.00

SDT 31.00 37.00 42.00 46.00 51.00 56.00 60.00 65.00

KW 3.00 3.34 3.63 3.89 4.12 4.34 4.46 4.57

TCG 24.40 21.20 19.10 17.30 15.80 14.40 12.80 11.50

SDT 32.00 38.00 43.00 48.00 52.00 57.00 62.00 66.00

KW 3.02 3.41 3.74 4.03 4.29 4.53 4.74 4.93

38CKS048-3A

TCG 13.10 12.70 11.90 11.20 10.30 9.40 8.50 7.50

SDT 28.00 34.00 39.00 44.00 48.00 53.00 58.00 63.00

KW 2.93 3.22 3.47 3.75 4.04 4.35 4.66 4.97

TCG 14.30 13.90 13.30 12.50 11.60 10.70 9.70 8.70

SDT 29.00 34.00 40.00 45.00 50.00 54.00 59.00 64.00

KW 2.96 3.27 3.59 3.86 4.17 4.49 4.82 5.16

TCG 15.50 15.10 14.60 14.00 13.10 12.10 11.00 10.00

SDT 29.00 35.00 40.00 46.00 51.00 56.00 61.00 65.00

KW 2.99 3.31 3.65 4.01 4.31 4.64 4.99 5.35

TCG 16.90 16.40 15.90 15.20 14.50 13.60 12.60 11.40

SDT 30.00 36.00 41.00 47.00 52.00 57.00 62.00 67.00

KW 3.03 3.35 3.70 4.07 4.46 4.82 5.18 5.54

TCG 18.40 17.80 17.20 16.60 15.90 15.10 14.20 13.10

SDT 30.00 36.00 42.00 47.00 53.00 58.00 63.00 68.00

KW 3.07 3.40 3.75 4.13 4.53 4.95 5.41 5.79

TCG 20.00 19.40 18.80 18.10 17.30 16.50 15.60 14.60

SDT 30.00 37.00 43.00 48.00 53.00 59.00 64.00 69.00

KW 3.08 3.44 3.80 4.18 4.60 5.03 5.49 5.98

Page 18

Condenser only ratings (S.I.) continued

SST

°C

-1

KW — Outdoor Unit Kilowatts Only SDT — Saturated Temperature Leaving Compressor (°C) SST — Saturated Temperature Entering Compressor (°C) TCG — Gross Cooling Capacity kW

TCG 16.20 15.50 14.70 13.70 12.60 11.60 10.40 9.20 SDT 28.00 34.00 38.00 43.00 48.00 53.00 58.00 63.00

KW 3.66 3.98 4.29 4.65 5.03 5.44 5.86 6.28

TCG 17.60 17.10 16.30 15.30 14.20 13.10 12.00 10.70 SDT 29.00 35.00 40.00 45.00 50.00 54.00 59.00 64.00

KW 3.73 4.10 4.46 4.81 5.19 5.62 6.07 6.53

TCG 19.10 18.60 17.90 17.00 15.90 14.70 13.60 12.30 SDT 30.00 36.00 41.00 46.00 51.00 56.00 61.00 65.00

KW 3.78 4.19 4.59 5.01 5.41 5.81 6.28 6.77

TCG 20.70 20.20 19.50 18.60 17.70 16.50 15.20 14.00 SDT 31.00 37.00 42.00 47.00 52.00 57.00 62.00 67.00

KW 3.83 4.25 4.69 5.14 5.63 6.10 6.54 7.06

TCG 22.50 21.90 21.10 20.30 19.30 18.20 17.00 15.80 SDT 31.00 37.00 43.00 48.00 53.00 58.00 63.00 68.00

KW 3.88 4.30 4.75 5.23 5.73 6.27 6.84 7.40

TCG 24.40 23.80 23.00 22.00 21.00 19.90 18.70 17.50 SDT 32.00 38.00 44.00 49.00 54.00 59.00 64.00 69.00

KW 3.89 4.35 4.82 5.30 5.82 6.36 6.93 7.54

13 18 24 29 35 41 46 52

CONDENSER ENTERING AIR TEMPERATURES °C

38CKS060-3A

Page 19

Condenser only ratings (English)

SST

°F

See notes on pg. 21.

CONDENSER ENTERING AIR TEMPERATURES °F

55 65 75 85 95 105 115 125

38CKS018-3A

TCG 16.50 14.80 13.30 11.70 10.10 8.60 7.00 5.40

SDT 82.10 90.70 98.60 106.20 113.80 121.40 129.10 136.70

KW 1.22 1.25 1.29 1.31 1.33 1.34 1.35 1.34

TCG 18.90 17.10 15.40 13.70 12.10 10.40 8.80 7.20

SDT 84.40 92.70 101.00 109.00 116.60 124.20 131.90 139.50

KW 1.25 1.30 1.34 1.38 1.40 1.43 1.44 1.45

TCG 21.90 19.50 17.70 15.90 14.10 12.40 10.70 9.00

SDT 86.60 95.10 103.20 111.30 119.40 127.10 134.80 142.50

KW 1.28 1.34 1.40 1.45 1.48 1.51 1.54 1.55

TCG 25.20 22.40 20.30 18.40 16.50 14.60 12.80 11.00

SDT 88.40 97.50 105.70 113.70 121.50 129.70 137.70 145.40

KW 1.30 1.37 1.44 1.51 1.57 1.59 1.63 1.66

TCG 29.50 25.90 23.20 21.10 19.10 17.10 15.20 13.20

SDT 90.30 99.90 108.20 116.30 124.20 132.00 140.10 148.10

KW 1.33 1.41 1.48 1.56 1.63 1.69 1.73 1.76

TCG 34.80 30.30 26.70 24.20 21.90 19.80 17.70 15.70

SDT 91.60 101.70 110.70 118.90 126.90 134.80 142.60 150.40

KW 1.34 1.44 1.53 1.61 1.68 1.76 1.83 1.90

38CKS024-3A

TCG 23.60 21.40 19.30 17.00 14.80 12.70 10.70 8.60

SDT 82.50 90.70 98.60 106.30 114.10 122.10 130.20 138.30

KW 1.57 1.62 1.67 1.71 1.74 1.76 1.78 1.79

TCG 26.90 24.50 22.10 19.90 17.60 15.30 13.20 11.00

SDT 84.50 93.30 101.60 109.40 117.20 125.00 133.10 141.10

KW 1.62 1.70 1.75 1.80 1.85 1.88 1.91 1.94

TCG 30.60 27.90 25.40 23.00 20.50 18.10 15.80 13.60

SDT 86.90 95.50 103.80 112.10 120.20 128.00 136.00 144.10

KW 1.67 1.76 1.85 1.91 1.96 2.00 2.04 2.09

TCG 35.00 31.80 29.10 26.40 23.80 21.20 18.70 16.40

SDT 89.20 98.00 106.40 114.50 122.60 131.00 139.10 147.20

KW 1.72 1.82 1.92 2.01 2.09 2.13 2.18 2.24

TCG 40.20 36.20 33.10 30.20 27.50 24.80 22.00 19.50

SDT 90.80 100.50 109.00 117.20 125.40 133.40 141.50 149.70

KW 1.75 1.87 1.98 2.09 2.19 2.28 2.34 2.40

TCG 45.70 41.60 37.80 34.50 31.50 28.70 25.80 22.90

SDT 93.10 102.70 111.60 120.00 128.10 136.20 144.10 152.10

KW 1.78 1.93 2.05 2.17 2.28 2.39 2.49 2.59

38CKS030-3A

TCG 27.80 25.70 23.30 20.90 18.70 16.50 14.30 12.00

SDT 82.60 90.90 98.80 106.80 115.00 123.40 131.60 139.90

KW 1.85 1.96 2.05 2.13 2.21 2.27 2.33 2.37

TCG 31.50 28.90 26.40 24.00 21.60 19.30 17.00 14.60

SDT 84.50 93.20 101.40 109.50 117.60 125.90 134.20 142.40

KW 1.92 2.04 2.15 2.25 2.34 2.42 2.49 2.55

TCG 35.50 32.70 30.00 27.40 24.80 22.30 19.90 17.40

SDT 86.60 95.20 103.60 112.00 120.30 128.50 136.80 145.10

KW 1.96 2.12 2.27 2.37 2.47 2.57 2.65 2.73

TCG 40.10 36.80 33.90 31.10 28.30 25.60 23.00 20.40

SDT 89.00 97.50 105.80 114.10 122.40 130.90 139.30 147.70

KW 2.01 2.18 2.35 2.50 2.62 2.72 2.82 2.91

TCG 45.30 41.50 38.30 35.20 32.30 29.30 26.50 23.80

SDT 91.30 99.90 108.30 116.50 124.80 133.00 141.30 149.70

KW 2.05 2.24 2.43 2.60 2.75 2.90 3.01 3.11

TCG 51.20 47.10 43.20 39.80 36.60 33.70 30.40 27.60

SDT 93.40 102.30 110.80 119.00 127.20 135.40 143.60 151.80

KW 2.08 2.30 2.50 2.69 2.86 3.03 3.18 3.34

Page 20

Condenser only ratings (English) continued

SST

°F

See notes on pg. 21.

CONDENSER ENTERING AIR TEMPERATURES °F

55 65 75 85 95 105 115 125

38CKS036-3A

TCG 32.50 30.20 27.30 24.50 21.70 18.80 15.70 12.40 SDT 82.50 90.70 99.10 107.00 114.90 122.90 130.70 138.40

KW 2.21 2.34 2.44 2.55 2.65 2.73 2.79 2.82

TCG 36.60 33.80 31.00 28.10 25.20 22.20 19.10 15.80 SDT 84.30 93.20 101.70 109.70 117.60 125.50 133.40 141.20

KW 2.28 2.44 2.56 2.68 2.80 2.91 2.99 3.05

TCG 41.40 38.10 35.20 32.20 29.00 25.80 22.60 19.30 SDT 86.30 95.20 103.70 112.10 120.30 128.20 136.20 144.00

KW 2.36 2.52 2.70 2.82 2.95 3.08 3.19 3.28

TCG 46.70 42.90 39.70 36.50 33.30 29.80 26.40 23.00 SDT 88.30 97.30 105.80 114.20 122.50 130.80 138.90 146.80

KW 2.44 2.61 2.79 2.97 3.12 3.25 3.38 3.50

TCG 53.10 48.40 44.70 41.20 37.90 34.20 30.70 27.10 SDT 90.00 99.40 108.10 116.50 124.70 132.90 141.10 149.20

KW 2.51 2.70 2.89 3.08 3.28 3.46 3.59 3.72

TCG 60.70 55.50 50.40 46.60 42.90 39.30 35.30 31.70 SDT 91.70 101.00 110.30 118.80 127.10 135.20 143.30 151.30

KW 2.57 2.78 2.99 3.19 3.40 3.61 3.82 3.99

38CKS042-3A

TCG 41.40 38.30 34.50 31.10 27.80 24.50 20.90 17.20 SDT 81.70 90.30 98.80 106.80 114.90 123.10 131.20 139.10

KW 2.75 2.95 3.06 3.18 3.29 3.38 3.43 3.44

TCG 46.80 42.80 39.10 35.40 31.90 28.40 24.80 21.00 SDT 83.40 92.50 101.10 109.40 117.40 125.60 133.60 141.60

KW 2.82 3.06 3.22 3.36 3.49 3.60 3.67 3.71

TCG 53.20 48.40 44.30 40.30 36.40 32.60 28.80 24.90 SDT 85.10 94.30 103.10 111.60 120.00 128.10 136.20 144.10

KW 2.90 3.16 3.39 3.57 3.69 3.82 3.92 3.98

TCG 60.80 55.00 50.20 45.70 41.50 37.30 33.30 29.20 SDT 86.80 96.10 105.00 113.60 122.10 130.40 138.60 146.70

KW 2.96 3.25 3.51 3.75 3.95 4.06 4.17 4.26

TCG 70.20 63.00 57.00 52.00 47.30 42.60 38.20 34.00 SDT 88.20 97.90 107.00 115.60 124.10 132.50 140.70 148.80

KW 3.00 3.34 3.63 3.89 4.12 4.34 4.46 4.57

TCG 83.10 72.30 65.20 59.10 53.90 49.00 43.80 39.10 SDT 89.20 99.50 108.90 117.70 126.20 134.50 142.80 150.90

KW 3.02 3.41 3.74 4.03 4.29 4.53 4.74 4.93

38CKS048-3A

TCG 44.80 43.30 40.80 38.10 35.20 32.10 28.90 25.50 SDT 82.20 92.30 101.60 110.30 118.90 127.60 136.20 144.80

KW 2.93 3.22 3.47 3.75 4.04 4.35 4.66 4.97

TCG 48.70 47.30 45.50 42.70 39.70 36.40 33.10 29.60 SDT 83.30 93.40 103.40 112.50 121.40 130.00 138.50 147.20

KW 2.96 3.27 3.59 3.86 4.17 4.49 4.82 5.16

TCG 53.00 51.50 49.70 47.70 44.60 41.30 37.60 34.00 SDT 84.50 94.80 104.70 114.30 123.40 132.30 141.00 149.60

KW 2.99 3.31 3.65 4.01 4.31 4.64 4.99 5.35

TCG 57.60 56.00 54.10 52.00 49.60 46.50 43.00 38.90 SDT 85.40 96.10 106.10 115.70 125.10 134.20 143.10 151.80

KW 3.03 3.35 3.70 4.07 4.46 4.82 5.18 5.54

TCG 62.60 60.80 58.90 56.70 54.20 51.40 48.40 44.60 SDT 86.60 97.30 107.50 117.20 126.70 135.90 145.00 153.70

KW 3.07 3.40 3.75 4.13 4.53 4.95 5.41 5.79

TCG 68.10 66.10 64.00 61.70 59.10 56.20 53.10 49.80 SDT 86.80 98.20 108.80 118.70 128.20 137.50 146.60 155.50

KW 3.08 3.44 3.80 4.18 4.60 5.03 5.49 5.98

Page 21

Condenser only ratings (English) continued

SST

°F

KW — Outdoor Unit Kilowatts Only SDT — Saturated Temperature Leaving Compressor (°F) SST — Saturated Temperature Entering Compressor (°F) TCG — Gross Cooling Capacity (1000 Btuh)

TCG 55.30 53.10 50.00 46.70 43.10 39.50 35.70 31.50

SDT 83.10 92.40 101.20 110.00 118.70 127.50 136.30 145.00

KW 3.66 3.98 4.29 4.65 5.03 5.44 5.86 6.28

TCG 60.10 58.30 55.60 52.30 48.50 44.70 40.90 36.60

SDT 84.90 94.60 103.70 112.40 121.10 129.80 138.60 147.40

KW 3.73 4.10 4.46 4.81 5.19 5.62 6.07 6.53

TCG 65.30 63.40 61.10 58.10 54.40 50.30 46.30 42.00

SDT 86.10 96.80 106.00 115.00 123.80 132.30 141.00 149.80

KW 3.78 4.19 4.59 5.01 5.41 5.81 6.28 6.77

TCG 70.80 68.90 66.40 63.60 60.30 56.50 52.00 47.60

SDT 87.20 98.10 108.00 117.30 126.40 135.20 143.70 152.40

KW 3.83 4.25 4.69 5.14 5.63 6.10 6.54 7.06

TCG 76.90 74.70 72.20 69.20 65.80 62.10 58.20 53.80

SDT 88.30 99.30 109.40 119.00 128.20 137.20 146.20 154.80

KW 3.88 4.30 4.75 5.23 5.73 6.27 6.84 7.40

TCG 83.40 81.10 78.40 75.20 71.70 68.00 64.00 59.60

SDT 88.70 100.30 110.70 120.40 129.70 138.70 147.40 156.20

KW 3.89 4.35 4.82 5.30 5.82 6.36 6.93 7.54

55 65 75 85 95 105 115 125

CONDENSER ENTERING AIR TEMPERATURES °F

38CKS060-3A

Page 22

System Design Summary

1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.

2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C).

3. Maximum outdoor operating air temperature is 125°F (51.7°C).

4. For reliable operation, unit should be level in all horizontal planes.

5. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft (15.24m), indoor coil below = 150 ft (45.72m).

6. For interconnecting refrigerant tube lengths between 50 (15.24m) and 175 (53.34m) ft and/or 20 (6.1m) ft vertical differential, consult Residential’s Split System Long-Line Application Guideline available from equipment distributor.

7. Crankcase heater required when interconnecting refrigerant tube length exceeds 50 ft (15.24m).

8. If any refrigerant tubing is buried, provide a minimum 6 in. (152mm) vertical rise to the valve connections at the unit. Refrigerant tubing lengths up to 36 in. (912mm) may be buried without further consideration. For buried lines longer than 3 ft (912mm), consult your local distributor.

9. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.

Page 23

Page 24

Guide speciﬁcations

Air-Cooled, Split-System

Air Conditioner

38CKS

1-1/2 to 5 Tons Nominal

(5.2 to 17.5 kW)

GENERAL

System Description

Outdoor-mounted, air-cooled, split-system air conditioner unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.

Quality Assurance

Unit construction will comply with latest edition of ANSI/ ASHRAE and with NEC.

Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will have c-UL approval.

The condenser coil will be capable of withstanding the following test method standards: Salt Spray test, ASTM B117 1,000 hrs, and the Prohesion Test ASTM G85-A5 1,000 hrs.

Air-cooled condenser coils will be leak tested at 150 psig (1034 KPa) and pressure tested at 300 psig (2068 KPa).

Unit constructed in ISO 9001 approved facility.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

PRODUCTS

Equipment

Factory-assembled, single-piece, air-cooled air conditioner unit. Contained within the unit enclosure is all factory wiring, piping, controls, compressor, refrigerant charge (R22), and special features required prior to ﬁeld start-up.

Unit Cabinet

Unit cabinet will be constructed of galvanized steel, bonderized, and coated with a powder coat paint.

ans

Condenser fan will be direct-drive propeller type, discharging air upward.

Condenser fan motors will be totally enclosed, 1-phase type with class B insulation and permanently lubricated bearings.

Shafts will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan openings will be equipped with PVC-coated

steel wire safety guards. Compressor

Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators.

Condenser Coil

Condenser coil will be air cooled.

Coil will be constructed of aluminum ﬁns with a resinbased epoxy phenolic thermoset coating, factory applied by pre-coating and baking. The ﬁns are mechanically bonded to copper tubes which are then cleaned, dehydrated, and sealed.

Refrigeration Components

Refrigeration circuit components will include liquid line shutoff valve with sweat connections, suction line shutoff valves with sweat connections, system charge of R22 refrigerant, and compressor oil.

Operating Characteristics

The capacity of the unit will meet or exceed _____ Btuh at a suction temperature of _____ °F (°C). The power consumption at full load will not exceed _____ kW.

Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of _____ Btuh (kW) or greater at conditions of _____ CFM entering air temperature at the evaporator at _____ °F (°C) wet bulb and _____ °F (°C) dry bulb, and air entering the unit at _____ °F (°C).

The system will have a SEER of _____ Btuh/watt or greater at DOE conditions.

Electrical Requirements

Nominal unit electrical characteristics will be _____ v, single phase, 60 hz. The unit will be capable of satisfactory operation within voltage limits of _____ v to _____ v.

Unit electrical power will be single point connection.

Control circuit will be 24v.

Special Features

Refer to section of this literature identifying accessories and descriptions for speciﬁc features and available enhancements.

Carrier Corporation • Indianapolis, IN 46231 9-05

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 2 4 Page 24 Catalog No. 38CKS-5PD Printed in U.S.A. PC 101 Replaces: 38CKS-4PD Tab 3a 1a 2a
