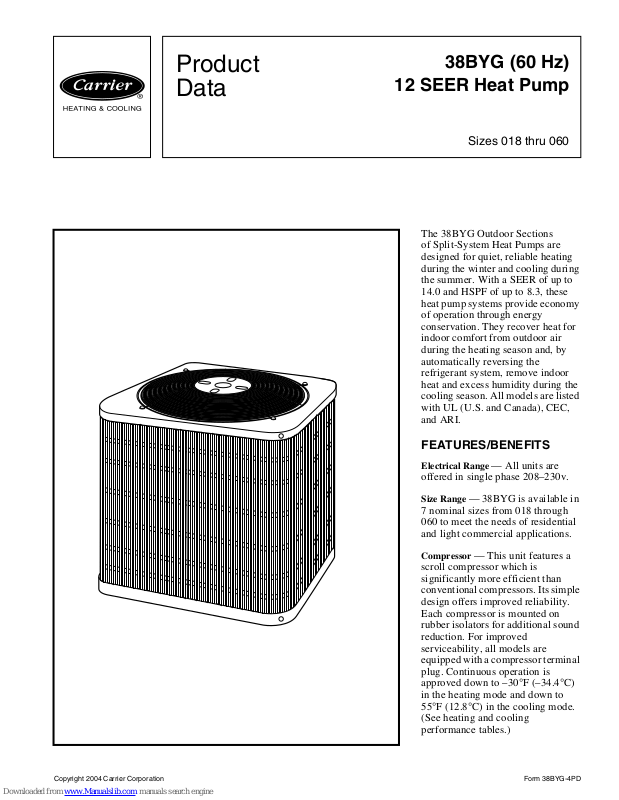

Carrier 38BYG, 38BYG018, 38BYG024, 38BYG030, 38BYG036 Product Data

...

Download

Page 1

Product Data

38BYG (60 Hz)

12 SEER Heat Pump

Sizes 018 thru 060

The 38BYG Outdoor Sections of Split-System Heat Pumps are designed for quiet, reliable heating during the winter and cooling during the summer. With a SEER of up to

14.0 and HSPF of up to 8.3, these heat pump systems provide economy of operation through energy conservation. They recover heat for indoor comfort from outdoor air during the heating season and, by automatically reversing the refrigerant system, remove indoor heat and excess humidity during the cooling season. All models are listed with UL (U.S. and Canada), CEC, and ARI.

FEATURES/BENEFITS

Electrical Range

offered in single phase 208–230v.

Size Range

7 nominal sizes from 018 through 060 to meet the needs of residential and light commercial applications.

Compressor

scroll compressor which is significantly more efficient than conventional compressors. Its simple design offers improved reliability. Each compressor is mounted on rubber isolators for additional sound reduction. For improved serviceability, all models are equipped with a compressor terminal plug. Continuous operation is approved down to –30 in the heating mode and down to 55

F (12.8 ° C) in the cooling mode. (See heating and cooling performance tables.)

— All units are

— 38BYG is available in

— This unit features a

F (–34.4 ° C)

Page 2

Built-in-Reliable Components

— Includes a suction-tube accumulator that reduces the amount of liquid refrigerant reaching the compressor, a loss of charge switch, and an internal pressure relief valve for highpressure protection.

Defrost Control Board

— Incorporates a defrost relay, defrost timer, and lowvoltage terminations. The defrost control is a time/temperature initiation/termination control which includes 3 field-selectable time periods of 30, 50, and 90 minutes.

Thermostatic Expansion Valve (TXV)

— This unit must be installed with a TXV on the indoor coil. The FC4 and FK4 indoor fan coils come factory equipped with a bi-flow TXV. When installed in this application, no further change is required. If any other indoor fan coil or furnace coil is used, an accessory bi-flow TXV must be installed. See

accessory list in this publication for correct part number.

Discharge Muffler

— Incorporated to minimize low frequency sound and pressure pulsation generated by compressor discharge gas.

Weather-Protective Cabinet

— Steel is protected with a galvanized coating and treated with a layer of zinc phosphate. A coat of modified polyester powder is then applied and baked on, providing each unit with a hard, smooth finish that will last for many years.

All screws on cabinet exterior are coated for a long-lasting, rustresistant, quality appearance.

Unit Design

— All units are equipped with totally enclosed fan motors for greater reliability under rain and snow conditions. The large, wraparound coil uses copper tube and enhanced

aluminum fin and is designed for optimum heat transfer during heating and cooling. The vertical air discharge carries the sound and air up and away from adjacent patio areas and foliage. The condenser coil can be cleaned with a common garden hose.

External Service Valves

— Both service valves are brass, front seating type. Valves are externally located so refrigerant tube connections can be made quickly and easily with sweat field connections. Each valve has a service port for ease of checking operating refrigerant pressures.

Limited Warranty

— Standard 5-year limited warranty on parts and 5-year limited warranty on compressor and outdoor coil.

Model number nomenclature

38BYG 018

12 SEER Electric Heat Pump

Nominal Capacity

018 — 18,000 Btuh 042 — 42,000 Btuh 024 — 24,000 Btuh 048 — 48,000 Btuh 030 — 30,000 Btuh 060 — 60,000 Btuh 036 — 36,000 Btuh

301

3 — 208-230-1

Packaging

Series

Electrical

Page 3

CERTIFICATION APPLIES ONLY WHEN THE

ISO 9001:2000

REGISTERED

REGISTERED QUALITY SYSTEM

COMPLETE SYSTEM IS LISTED WITH ARI.

As an ENERGY STAR® Partner, Carrier

Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

Refer to the combination ratings in the Product Data Digest for system combinations meeting ENERGY STAR® efficiency standards.

Physical data

UNIT SIZE 018 024 030 036 042 048 060

OPERATING WT (Lb) COMPRESSOR

Type

REFRIGERANT

Control Charge (Lb) @ 15 Ft

CONDENSER FAN

Air Discharge Air Qty (CFM) Motor RPM (60 Hz)

CONDENSER COIL

Face Area (Sq ft) Fins per in Rows Circuits

CONNECTION VALVE (In. ID)

Liquid Vapor

REFRIGERANT TUBES

(In. OD)

Vapor Liquid

NOTE: See unit Installation Instructions for proper installation.

115 166 182 182 209 250 278

Scroll

R-22

TXV

5.5 6.25 6.88 8.00 10.38 11.13 14.00 Propeller Type, Direct Drive

1800 1100

12.4 20

1 2

5/8 3/4 3/4 3/4 7/8 7/8 7/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8

5/8 3/4 3/4 3/4 7/8 1-1/8 1-1/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8

2800

825

14.8 20

1 3

2800

825

18.5 20

1 3

Vertical

2800

825

18.5 20

1 4

Sweat

2800

825

16.18 20

2 5

2800

825

18.5 20

2 5

3400 1125

22.40 20

2 6

UNIT SIZE SERIES

018

024

030

036

042

048

060

* TXV must be ordered separately when indoor coil is not equipped with a TXV. TXV is listed

for any approved coil combination. All TXVs are bi-flow, hard shutoff.

METERING DEVICE

OUTDOOR

PISTON

30 42 KSATX0601HSO

30 52 KSATX0601HSO

30 55 KSATX0601HSO

30 61 KSATX0601HSO

30 65 KSATX0601HSO

30 73 KSATX0701HSO

30 78 KSATX1001HSO

INDOOR

TXV*

Page 4

Accessories

ORDERING NUMBER DESCRIPTION

KAATD0101TDR

KSALA0401AAA†

HC34GE232 (RCD)

HC38GE231 (RCD)

HC40GE232 (RCD)

KAAFT0101AAA*

KHAIR0101AAA*

KSAHS1501AAA

KSAHS1701AAA

KSAHS1601AAA

KAACS0201PTC

KAACH1401AAA

KAACH1201AAA

KSASH1801COP

KSASH0601COP

KSASH2101COP

KHAOT0301FST

KHAOT0201SEC

KSALA0201R22

KSATX0601HSO

KSATX0701HSO

KSATX1001HSO

Standard

KHAHI0101HPS

P504-8083S (RCD)

P504-8163S (RCD)

KHALS0401LLS

KAACF1001MED

KAACF1101LRG

* Use with low-ambient controller.

† Fan motor with ball bearings required.

Time-Delay Relay — All Sizes

MotorMaster®—Low-Ambient Controller — All Sizes

Ball Bearing Fan Motor — Size 018

Ball Bearing Fan Motor — Size 024–048

Ball Bearing Fan Motor — Size 060

Evaporator Freeze Thermostat — All Sizes

Isolation Relay — All Sizes

Compressor Start Assist — Capacitor/Relay — Sizes 018–042

Compressor Start Assist — Capacitor/Relay — Size 048

Compressor Start Assist — Capacitor/Relay — Size 060

Compressor Start Assist — PTC — All Sizes

Crankcase Heater — Size 018

Crankcase Heater — Sizes 024–048

Sound Hood — Sizes 018–030

Sound Hood — Sizes 036, 042

Sound Hood — Sizes 048, 060

Outdoor Thermostat — All Sizes

Secondary Outdoor Thermostat — All Sizes

Low-Ambient Pressure Switch Kit — All Sizes

Thermostatic Expansion Valve (Hard Shutoff) — Sizes 018–042

Thermostatic Expansion Valve (Hard Shutoff) — Size 048

Thermostatic Expansion Valve (Hard Shutoff) — Size 060

Low-Pressure Switch — All Sizes

High-Pressure Switch — All Sizes

Liquid-Line Filter Drier (Bi-flow) — Sizes 018–036

Liquid-Line Filter Drier (Bi-flow) — Sizes 042–060

Liquid Solenoid Valve (LSV) — All Sizes

Coastal Filter Kit — Size 018

Coastal Filter Kit — Sizes 024–060

THERMOSTAT PKG DESCRIPTION

TSTATCCPRH01-B†

TSTATCCPDF01-B*

TSTATCCPHP01-B

TSTATCCNHP01-C

TSTATCCSHP01

TSTATCCBHP01-B

TSTATXXSEN01-B

TSTATXXNBP01

TSTATXXPBP01

TSTATXXBBP01

TSTATXXSBP01

TSTATXXCNV01

* High-pressure switch must be added if not supplied with the system. † Do not use in zoning heat pump applications.

Thermidistat™ Control — Non-Programmable/Programmable Thermostat with Humidity Control (For use in Dual Fuel, AC, HP, and 2S applications. Includes Outdoor Air Temperature Sensor.)

Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, Dual Fuel Thermostat, Must be used with Outdoor Sensor (TSTATXXSEN01-B) Included

Thermostat, Auto Changeover, 7-Day Programmable, °F /°C, 2-Stage Heat, 1-Stage Cool

Thermostat, Auto Changeover, Non-Programmable, °F /°C, 2-Stage Heat, 1-Stage Cool

Standard Programmable Thermostat — Manual Changeover, 5-2 Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool

Builder’s Thermostat, Manual Changeover, Non-Programmable, °F, 2-Stage Heat, 1-Stage Cool

Outdoor Air Temperature Sensor

Backplate for Non-Programmable Thermostat

Backplate for Programmable Thermostat and Thermidistat Control

Backplate for Builder’s Thermostat

Backplate for Standard Programmable Thermostat

Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack

Page 5

Accessory usage guideline

REQUIRED FOR

LOW-AMBIENT

ACCESSORY

Crankcase Heater

Evaporator Freeze Thermostat

Accumulator

Compressor Start Assist

Capacitor and Relay

MotorMaster®—Low-Ambient Controller

Wind Bafﬂe

Coastal Filter

Liquid-Line Solenoid Valve

Ball Bearing Fan Motor

For tubing line sets between 50 and 175 ft horizontal or 20 ft vertical differential, refer to Long-Line section of Application Guideline and Service Manual— Air Conditioners and Heat Pumps Using R-22 Refrigerant.

APPLICATIONS

(Below 55°F)

Ye s Ye s

Ye s N o

No No

Ye s Ye s

Ye s N o

See Low-Ambient Instructions No

No No

Ye s N o

REQUIRED FOR

LONG-LINE

APPLICATIONS*

(Over 50 Ft)

See Long-Line

Application

Guideline

Accessory description and usage (Listed alphabetically)

Ball-Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.

Usage Guideline:

Coastal Filter

A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.

Compressor Start Assist – Capacitor and Relay

Start capacitor and relay gives a "hard" boost to compressor motor at each start up.

Usage Guideline:

4. Compressor Start Assist – PTC Type

Solid-state electrical device which gives a "soft" boost to the compressor motor at each start up.

Usage Guideline:

Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes the chance of liquid slugging.

Note:

Some heat pumps are factory supplied with a crankcase heater. See accessory list for units that come standard with a crankcase heater. For units that do

not, use the guideline below.

Usage Guideline:

Cycle Protector

Solid-state timing device which prevents compressor rapid recycling. This control provides an approximate 5-minute delay after power to the compressor has been interrupted for any reason, including normal room thermostat cycling.

Usage Guideline:

Evaporator Freeze Thermostat

An SPST temperature-actuated switch that stops unit operation when evaporator reaches freeze-up conditions.

Usage Guideline:

Required on all units when MotorMaster®—Low-Ambient Controller is installed.

Required for single-phase reciprocating

Long line Low ambient cooling Hard shut off expansion valve on indoor coil Liquid line solenoid on indoor coil

Required for single-phase scroll compressors in the following applications:

Long line Low ambient cooling

Suggested for all compressors in areas with a history of low voltage problems

Suggested when compressor power supply is marginal. Suggested in reciprocating compressor applications with rapid pressure balance (RPB) expansion valve on indoor coil.

Required in low ambient cooling applications. Required in long line applications. Suggested in all commercial applications.

Suggested in the following applications:

Installations in areas where power interruptions are frequent. Where user is likely to "play" with the room thermostat. All commercial installations. Long line applications. High-rise applications.

Required when low-ambient kit has been added.

compressors in the following applications:

Page 6

Accessory description and usage (continued)

Filter Drier

A device for removing contaminants from refrigerant circulating in a heat pump system: two-direction flow.

Usage Guideline:

Suggested in all field-connected split-system heat pumps.

High-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 426 ± 10 psig and resets at 320 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow.

Usage Guideline:

Suggested in installations exposed to "very dirty" outdoor air. Suggested in installations where condenser inlet air temperature exceeds 125°F (51.7°C).

10. Isolation Relay

An SPDT relay which switches the low-ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode.

Usage Guideline:

Required in all heat pumps where low-ambient kit has been added.

11. Liquid-Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts refrigerant liquid flow in response to compressor operation. It maintains a column of refrigerant liquid ready for action at next compressor operation cycle. It also provides system protection against off-cycle refrigerant migration.

Note: When LLS is used with reciprocating compressors, Compressor Start Assist — Capacitor and Relay is required.

Usage Guideline:

Required in all heat pump long line applications to control refrigerant off cycle migration in the heating mode. A second LLS or hard shut off TXV is required in heat pump long line applications for refrigerant off cycle migration in the cooling mode. See Long Line Application Guideline.

12. Low-Ambient Pressure Switch

A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 100 psig to 225 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when properly installed.

Usage Guideline:

A Low-Ambient Pressure Switch or MotorMaster ®—Low-Ambient Controller must be used when cooling operation is used at outdoor temperatures below 55°F (12.8°C).

13. MotorMaster®—Low-Ambient Controller

A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at 100°F ± 10°F (37.8°C ± –12°C).

Usage Guideline:

A MotorMaster ®—Low-Ambient Controller or Low-Ambient Pressure Switch must be used when cooling operation is used at outdoor temperatures below 55°F (12.8°C). Suggested for all commercial applications.

14. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

Usage Guideline:

Suggested for all Carrier thermostats listed in this publication.

15. Outdoor Thermostat

An SPDT temperature-actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below a user-selected set point.

Usage Guideline:

Electric supplemental heat applications in non-variable speed indoor units when electric heat staging is desired.

16. Secondary Outdoor Thermostat

An SPDT temperature-actuated switch which turns on third-stage of supplemental electric heaters when outdoor air temperature drops below the second-stage set point.

Usage Guideline:

Outdoor Thermostat applications where electric heater is capable of 3-stage operation.

17. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces the sound level by about 2 dBA.

Usage Guideline:

Suggested when unit is installed closer than 15 ft to quiet areas—bedrooms, etc. Suggested when unit is installed between two houses less than 10 ft apart.

18. Thermostatic Expansion Valve (TXV) Bi-Flow

A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available.

Note: When using a hard shut off TXV with single phase reciprocating compressors, a Compressor Start Assist — Capacitor and Relay is required

Usage Guideline:

Required to achieve ARI ratings in certain equipment combinations. Refer to combination ratings. Required for use on all zoning systems. See long line guideline.

19. Time-Delay Relay

An SPST delay relay which briefly continues operation of indoor blower motor to provide additional cooling after the compressor cycles off.

Note: Most indoor unit controls include this feature. For those that do not, use the guideline below.

Usage Guideline:

For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

Page 7

Electrical data

MAX

LENGTH

(Ft)

60°C/75°C‡

71/67 60/57 71/67

66/63 104/63 124/76 156/88

MAX FUSE†

OR CKT

BKR AMPSMax Min LRA RLA

20 25 30 35 50 45 60

UNIT

SIZE-SERIES

018-30 024-30 030-30 036-30 042-30 048-30 060-30

V/PH

60 Hz

208-230/1 253 197

OPER VOLTS* COMPRESSOR

45.0

54.0

72.5

88.0

104.0

137.0

148.0

10.6

12.0

16.7

17.8

23.2

23.9

32.1

FAN FLA MCA

0.5

1.1

1.4

13.8

16.1

22.0

23.4

30.1

31.0

41.5

MIN WIRE

SIZE**

60°C/75°C

14/14 14/14 12/12 12/12

8/10 8/10

6/8

* Permissible limits of the voltage range at which unit will operate satisfactorily. Operation outside these limits may result in unit failure.

† Time-delay fuse. ‡ Length shown is as measured 1 way along the wire path between the unit and the service panel for voltage drop not to exceed 2%.

** If wire is applied at ambient greater than 30°C (86°F), consult Table 310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-sheathed cable (NM),

trade name ROMEX, shall be that of 60°C (140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60°or 75°C (140°or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the

NEC (ANSI/NFPA 70). FLA — Full Load Amps LRA — Locked Rotor Amps MCA — Minimum Circuit Amps RLA — Rated Load Amps NOTE: Control circuit is 24v on all units and requires external power source. Copper wire must be used from service disconnect to unit. All motors/compressors contain internal overload protection.

A-weighted sound power (dBA)

UNIT

SIZE-SERIES

STANDARD

RATING

125 250 500 1000 2000 4000 8000

018-30 78 69.5 68.0 68.0 69.5 61.0 58.0 57.0

024-30 78 70.5 69.5 69.5 73.0 65.0 63.5 58.0

030-30 78 71.5 71.5 70.5 72.0 65.0 62.0 59.0

036-30 78 68.5 69.0 69.0 71.0 66.0 61.5 61.0

042-30 78 69.0 72.5 71.5 73.0 68.0 66.5 63.0

048-30 78 77.5 68.0 70.0 71.5 68.5 64.5 60.5

060-30 80 74.5 73.5 74.5 74.0 72.0 69.0 65.0

NOTE: Tested in accordance with ARI Standard 270-95. (Not listed with ARI).

TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)

Page 8

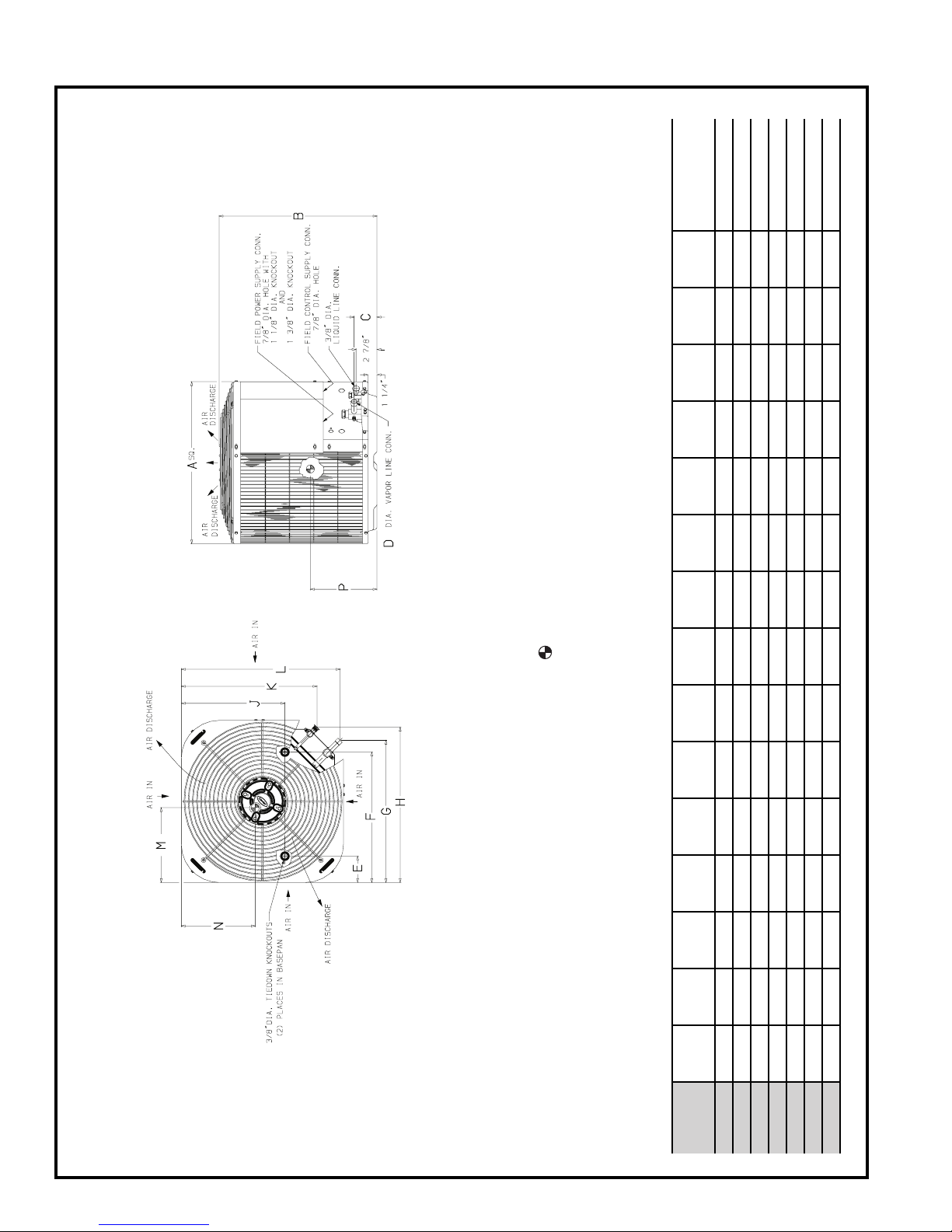

Dimensions

A03014

MINIMUM

DIMENSIONS

MOUNTING PAD

SIDE, 12˝ ON REMAINING SIDE, AND 24˝ BETWEEN UNITS FOR PROPER AIRFLOW.

NOTES:

1. ALLOW 30˝ CLEARANCE TO SERVICE SIDE OF UNIT, 48˝ ABOVE UNIT, 6˝ ON ONE

DIMENSIONS (IN.)

(UNLESS LOW AMBIENT CONTROL IS USED) MAX 125ºF.

2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING MODE IS 55ºF,

3. MAXIMUM OUTDOOR OPERATING AMBIENT IN HEATING MODE IS 66ºF.

4. SERIES DESIGNATION IS THE 14TH POSITION OF THE UNIT MODEL NUMBER.

5. CENTER OF GRAVITY .

018 30 22-1/2 33-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 10-3/4 11 14-1/4 22-1/2 x 22-1/2

024 30 30 27-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 15 11-3/4 30 x 30

030 30 30 33-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 15 14-1/2 30 x 30

036 30 30 33-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 15 14-1/2 30 x 30

042 30 30 29-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 14-3/4 14-1/4 30 x 30

048 30 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 14-1/4 14-1/2 30 x 30

SIZE SERIES ABCDEFGHJKLMNP

UNIT

060 30 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 14-3/4 13-1/2 15-1/2 30 x 30

Page 9

Printed in U.S.A.

BUILDING HEAT LOSS, 1000 BTU/HR

OUTDOOR TEMPERATURE, °F

UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR

-10

010

20 30

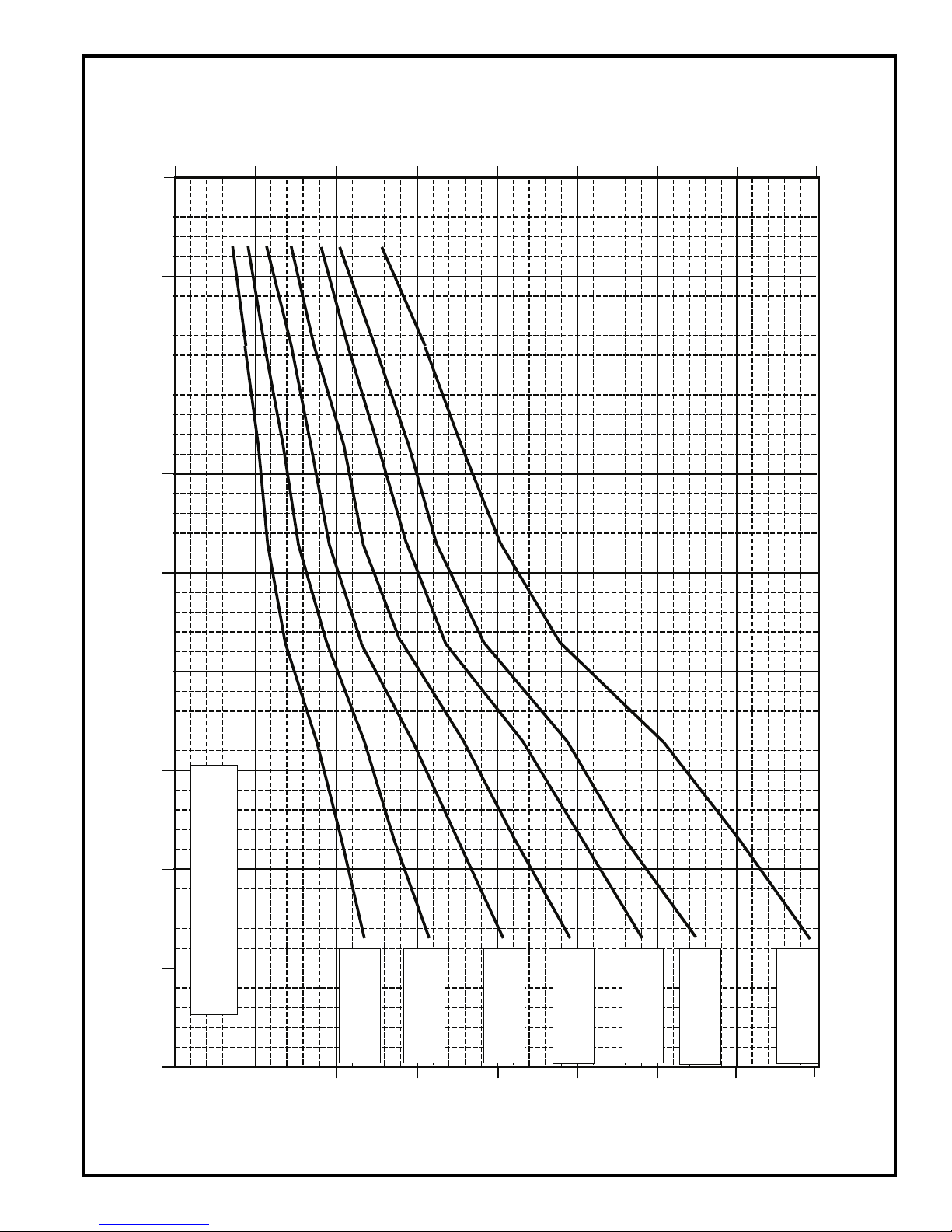

38BYG BALANCE POINT WORKSHEET

40 50

60 70

AND AT RATED CFM

BASED ON INDOOR ENT. AIR AT 70 °F

38BYG036

38BYG024

38BYG018

F(A,B)4ANF024

2.9

5.9

F(A,B)4ANF030

8.8

F(A,B)4ANF036

11.7

38BYG030

F(A,B)4AN(F,B)042

14.7

F(A,B)4AN(F,B)048

38BYG042

17.6

FK4CNB005

38BYG048

20.5

38BYG060

FK4CNB006

23.4

A02352

Page 10

Combination ratings continued

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

UNIT SIZE-

SERIES

*F(A,B)4BN(F,C)024 18,700 TDR — 12.00 — 10.80 17,800 3.30 11,200 2.28 7.5

CC5A/CD5AA018 17,800 NONE — — 11.50 10.25 17,500 2.98 11,100 2.14 7.0 CC5A/CD5AA024 18,500 NONE — — 11.50 10.60 17,700 3.16 11,200 2.22 7.2

CC5A/CD5AW024 18,500 NONE — — 11.50 10.60 17,700 3.16 11,200 2.22 7.2

CK5A/CK5BA018 17,800 NONE — — 11.50 10.40 17,700 3.18 11,200 2.24 7.0 CK5A/CK5BA024 18,500 NONE — — 11.50 10.75 17,900 3.34 11,300 2.30 7.2

CK5A/CK5BW024 18,500 NONE — — 11.50 10.75 17,900 3.34 11,300 2.30 7.2

F(A,B)4BN(F,C)018 17,400 TDR 11.30 — 10.30 17,500 3.10 11,100 2.20 7.0

018-30

CC5A/CD5AA024 18,500 TDR — 13.00 — 11.70 17,000 3.18 10,500 2.30 7.5

CC5A/CD5AW024 18,500 TDR — 13.00 — 11.70 17,000 3.18 10,500 2.30 7.5

CK5A/CK5BA024 18,500 TDR — 13.00 — 12.00 17,000 3.42 10,600 2.40 7.5

CK5A/CK5BW024 18,500 TDR — 13.00 — 12.00 17,000 3.42 10,600 2.40 7.5

*F(A,B)4BN(F,C)030 23,000 TDR — 12.00 — 11.00 23,600 3.38 14,100 2.26 7.5

CC5A/CD5AA024 22,400 NONE — — 11.70 10.60 23,600 3.18 14,100 2.18 7.3

CC5A/CD5AA030 22,600 NONE — — 12.00 10.60 23,600 3.16 14,100 2.18 7.3 CC5A/CD5AW024 22,400 NONE — — 11.70 10.60 23,600 3.18 14,100 2.18 7.3 CC5A/CD5AW030 22,600 NONE — — 12.00 10.60 23,600 3.16 14,100 2.18 7.3

CK5A/CK5BA024 22,400 NONE — — 11.70 10.75 23,600 3.40 14,200 2.26 7.3

CK5A/CK5BA030 22,600 NONE — — 12.00 10.65 23,600 3.30 14,200 2.24 7.3 CK5A/CK5BW024 22,400 NONE — — 11.70 10.75 23,600 3.40 14,200 2.26 7.3 CK5A/CK5BW030 22,600 NONE — — 12.00 10.65 23,600 3.30 14,200 2.24 7.3

F(A,B)4BN(F,C)024 22,600 TDR — 11.70 — 10.85 23,600 3.36 14,100 2.24 7.5

024-30

CC5A/CD5AA030 22,600 TDR — 13.00 — 11.70 22,800 3.20 13,300 2.26 7.4 CC5A/CD5AW030 22,600 TDR — 13.00 — 11.70 22,800 3.20 13,300 2.26 7.4

CK5A/CK5BA030 22,600 TDR — 13.00 — 11.75 23,000 3.36 13,400 2.32 7.4 CK5A/CK5BW030 22,600 TDR — 13.00 — 11.80 23,000 3.36 13,400 2.34 7.4

CC5A/CD5AA030 22,600 TDR — 13.00 — 11.55 23,200 3.30 13,600 2.30 7.4 CC5A/CD5AW030 22,600 TDR — 13.00 — 11.55 23,200 3.30 13,600 2.30 7.4

CK5A/CK5BA030 22,600 TDR — 13.00 — 11.55 23,400 3.44 13,700 2.34 7.4 CK5A/CK5BW030 22,600 TDR — 13.00 — 11.65 23,400 3.44 13,700 2.36 7.4

030-30

See notes on pg. 15.

*F(A,B)4BN(F,C)036 28,400 TDR — 12.10 — 10.45 29,600 3.28 18,500 2.28 7.6

CC5A/CD5AA030 27,800 NONE — — 12.00 10.35 29,000 3.08 18,200 2.24 7.3

CC5A/CD5AA036 28,800 NONE — — 12.50 10.70 29,400 3.32 18,300 2.30 7.5

Factory-

INDOOR

UNIT

CE3AA024 18,500 NONE — — 12.00 10.65 17,700 3.20 11,200 2.24 7.2 CF5AA024 18,500 NONE — — 12.00 10.65 17,800 3.20 11,200 2.24 7.2 CK3BA024 18,500 NONE — — 11.50 10.75 17,900 3.34 11,300 2.30 7.2

FC4CNF024 18,800 TDR&TXV 12.00 — — 10.80 17,800 3.30 11,200 2.28 7.5 FF1DNA018 17,600 TDR — 11.50 — 10.70 17,400 3.16 10,900 2.24 7.0 FF1DNA024 18,800 TDR — 12.00 — 10.75 17,800 3.30 11,200 2.28 7.5 FF1DNE018 17,600 TDR&TXV 11.50 — — 10.70 17,400 3.16 10,900 2.24 7.0 FG3AAA024 18,400 NONE — — 11.50 10.45 17,700 3.12 11,200 2.22 7.4 FK4DNF001 18,800 TDR&TXV 13.20 — — 12.20 17,200 3.46 10,600 2.42 8.0 FK4DNF002 19,000 TDR&TXV 13.50 — — 12.30 17,300 3.58 10,700 2.46 8.0

CE3AA024 18,500 TDR — 13.00 — 11.75 17,000 3.20 10,500 2.34 7.5 CK3BA024 18,500 TDR — 13.00 — 12.00 17,000 3.42 10,600 2.40 7.5

CE3AA024 22,600 NONE — — 11.80 10.65 23,600 3.24 14,100 2.20 7.3 CE3AA030 23,000 NONE — — 12.00 10.80 23,600 3.32 14,200 2.24 7.5 CF5AA024 22,600 NONE — — 11.80 10.60 23,600 3.18 14,100 2.18 7.3 CK3BA024 22,400 NONE — — 11.70 10.75 23,600 3.40 14,200 2.26 7.3 CK3BA030 22,600 NONE — — 12.00 10.65 23,600 3.28 14,200 2.24 7.3

FC4CNF024 22,600 TDR&TXV 11.70 — — 10.85 23,600 3.36 14,100 2.24 7.5 FC4CNF030 23,000 TDR&TXV 12.00 — — 11.00 23,600 3.38 14,100 2.26 7.5 FF1DNA024 22,600 TDR — 11.70 — 10.65 23,600 3.32 14,200 2.22 7.5 FF1DNA030 23,200 TDR — 12.00 — 10.80 23,600 3.36 14,200 2.24 7.5 FF1DNE024 22,600 TDR&TXV 11.70 — — 10.65 23,600 3.32 14,200 2.22 7.5 FF1DNE030 23,200 TDR&TXV 12.00 — — 10.80 23,600 3.36 14,200 2.24 7.5 FG3AAA024 22,200 NONE — — 11.60 10.40 23,600 3.20 14,100 2.18 7.4 FK4DNF001 23,200 TDR&TXV 13.00 — — 12.15 23,200 3.50 13,500 2.38 7.8 FK4DNF002 23,600 TDR&TXV 13.20 — — 12.35 23,200 3.62 13,500 2.40 8.0 FK4DNF003 23,800 TDR&TXV 14.00 — — 12.50 23,000 3.58 13,400 2.42 8.0

CE3AA030 22,600 TDR — 13.30 — 11.90 23,000 3.36 13,400 2.32 7.5 CK3BA030 22,600 TDR — 13.00 — 11.85 23,000 3.36 13,400 2.34 7.4

CE3AA030 23,000 TDR — 13.30 — 11.80 23,400 3.48 13,700 2.34 7.5

CE3AA030 23,000 TDR — 13.30 — 11.80 23,400 3.48 13,700 2.34 7.5 CK3BA030 22,600 TDR — 13.00 — 11.70 23,200 3.46 13,700 2.36 7.4

Supplied

Enhance-

ment

Standard

Rating

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE

COILS + 58MVP040-14 VARIABLE-SPEED FURNACE

COILS + 58MVP060-14 VARIABLE-SPEED FURNACE

Field-Supplied

Accessory

TXV**

TXV & TDR**

EER

High-Temp Low-Temp

TC COP TC COP

Seasonal

Efficiency

HSPF

Page 11

Combination ratings continued

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

UNIT

SIZE-

SERIES

CC5A/CD5AW030 27,800 NONE — — 12.00 10.35 29,000 3.08 18,200 2.24 7.3 CC5A/CD5AW036 28,800 NONE — — 12.50 10.70 29,400 3.32 18,300 2.30 7.5

CK5A/CK5BA036 28,800 NONE — — 12.50 10.75 29,400 3.34 18,400 2.34 7.5

CK5A/CK5BT036 28,800 NONE — — 12.50 10.75 29,400 3.36 18,400 2.34 7.5 CK5A/CK5BW030 27,800 NONE — — 12.10 10.40 29,000 3.20 18,300 2.30 7.3 CK5A/CK5BW036 28,800 NONE — — 12.50 10.75 29,400 3.36 18,400 2.34 7.5

F(A,B)4BN(F,C)030 28,000 TDR — 12.20 — 10.60 29,200 3.30 18,300 2.30 7.5

CC5A/CD5AA036 28,800 TDR — 13.50 — 11.60 29,000 3.36 17,600 2.38 7.8

CK5A/CK5BA036 28,800 TDR — 13.50 — 11.60 29,000 3.44 17,600 2.42 7.8

CK5A/CK5BT036 28,800 TDR — 13.50 — 11.60 29,000 3.44 17,600 2.42 7.8

030-30

036-30

See notes on pg. 15.

CC5A/CD5AA036 28,800 TDR — 13.50 — 11.75 29,000 3.38 17,500 2.40 7.8 CC5A/CD5AW036 28,800 TDR — 13.50 — 11.75 29,000 3.38 17,500 2.40 7.8

CK5A/CK5BA036 28,800 TDR — 13.50 — 11.80 29,000 3.46 17,600 2.44 7.8 CK5A/CK5BW036 28,800 TDR — 13.50 — 11.80 29,000 3.46 17,500 2.44 7.8

CC5A/CD5AA036 28,800 TDR — 13.00 — 11.40 29,000 3.42 17,900 2.40 7.8

CK5A/CK5BA036 28,800 TDR — 13.00 — 11.35 29,000 3.46 18,000 2.42 7.8

CK5A/CK5BT036 28,800 TDR — 13.00 — 11.35 29,000 3.46 18,000 2.42 7.8

CC5A/CD5AW036 28,800 TDR — 13.00 — 11.55 29,000 3.46 17,800 2.42 7.8

CK5A/CK5BW036 28,800 TDR — 13.00 — 11.50 29,000 3.48 17,900 2.44 7.8

CC5A/CD5AA036 28,800 TDR — 13.00 — 11.55 29,000 3.46 17,800 2.42 7.8 CC5A/CD5AW036 28,800 TDR — 13.00 — 11.55 29,000 3.46 17,800 2.42 7.8

CK5A/CK5BA036 28,800 TDR — 13.00 — 11.70 29,000 3.52 17,800 2.48 7.8

CK5A/CK5BT036 28,800 TDR — 13.00 — 11.70 29,000 3.52 17,800 2.48 7.8 CK5A/CK5BW036 28,800 TDR — 13.00 — 11.70 29,000 3.52 17,800 2.48 7.8

CC5A/CD5AW036 28,800 TDR — 13.00 — 11.55 29,000 3.46 17,800 2.42 7.8

CK5A/CK5BW036 28,800 TDR — 13.00 — 11.65 29,000 3.52 17,800 2.46 7.8

*F(A,B)4BN(F,B,C)042 33,800 TDR — 12.10 — 10.45 35,800 3.46 23,000 2.44 8.0

CC5A/CD5AA036 33,600 NONE — — 12.10 10.50 35,800 3.42 22,800 2.42 7.7 CC5A/CD5AA042 33,600 NONE — — 12.10 10.50 35,800 3.42 22,800 2.42 7.7 CC5A/CD5AW036 33,600 NONE — — 12.10 11.25 35,400 3.46 22,000 2.48 7.7 CC5A/CD5AW042 33,400 NONE — — 12.10 10.45 35,800 3.38 22,800 2.40 7.6

CK5A/CK5BA036 33,600 NONE — — 12.10 10.55 35,800 3.50 22,800 2.46 7.7

CK5A/CK5BA042 33,600 NONE — — 12.10 10.50 35,800 3.50 22,800 2.46 7.7

CK5A/CK5BE042 33,600 NONE — — 12.10 10.60 35,800 3.54 23,000 2.48 7.7

Factory-

INDOOR

UNIT

CE3AA030 28,000 NONE — — 12.10 10.50 29,400 3.28 18,300 2.28 7.5 CE3AA036 28,400 NONE — — 12.30 10.55 29,400 3.22 18,300 2.30 7.5 CF5AA036 28,400 NONE — — 12.40 10.65 29,400 3.28 18,200 2.28 7.5 CK3BA030 27,800 NONE — — 12.10 10.40 29,000 3.20 18,300 2.30 7.3 CK3BA036 28,800 NONE — — 12.50 10.75 29,400 3.36 18,400 2.34 7.5

FC4CNF030 28,000 TDR&TXV 12.20 — — 10.60 29,200 3.30 18,300 2.30 7.5 FC4CNF036 28,400 TDR&TXV 12.10 — — 10.45 29,600 3.26 18,500 2.28 7.6 FF1DNA030 28,200 TDR — 12.20 — 10.50 29,400 3.32 18,400 2.30 7.5 FF1DNE030 28,200 TDR&TXV 12.20 — 10.50 29,400 3.32 18,400 2.30 7.5 FG3AAA036 28,400 NONE — — 12.20 10.50 29,400 3.26 18,300 2.30 7.5 FK4DNF001 28,600 TDR&TXV 13.50 — — 11.50 29,000 3.38 17,600 2.38 7.9 FK4DNF002 28,600 TDR&TXV 13.50 — — 11.55 29,000 3.50 17,700 2.42 8.0 FK4DNF003 29,200 TDR&TXV 14.00 — — 11.90 28,800 3.46 17,500 2.44 8.1

CE3AA036 28,400 TDR — 13.20 — 11.35 29,000 3.28 17,600 2.36 7.8 CK3BA036 28,800 TDR — 13.50 — 11.60 29,000 3.44 17,600 2.42 7.8

CE3AA036 28,800 TDR — 13.50 — 11.60 29,000 3.32 17,400 2.38 7.8 CK3BA036 28,800 TDR — 13.50 — 11.80 29,000 3.46 17,500 2.44 7.8

CE3AA036 28,400 TDR — 13.00 — 11.15 29,000 3.32 17,900 2.38 7.8 CK3BA036 28,800 TDR — 13.00 — 11.35 29,000 3.46 18,000 2.42 7.8

CE3AA036 28,400 TDR — 13.00 — 11.30 29,000 3.34 17,800 2.38 7.8 CK3BA036 28,800 TDR — 13.00 — 11.50 29,000 3.48 17,900 2.44 7.8

CE3AA036 28,400 TDR — 13.00 — 11.35 29,000 3.36 17,800 2.40 7.8 CK3BA036 28,800 TDR — 13.00 — 11.70 29,000 3.52 17,800 2.48 7.8

CE3AA036 28,400 TDR — 13.00 — 11.35 29,000 3.36 17,800 2.40 7.8

CE3AA036 33,200 NONE — — 12.00 10.40 35,600 3.38 22,800 2.40 7.6 CE3AA042 33,800 NONE — — 12.10 10.60 36,000 3.48 22,800 2.44 7.7 CF5AA036 33,400 NONE — — 12.10 10.50 35,800 3.40 22,800 2.42 7.7 CK3BA036 33,600 NONE — — 12.10 10.50 35,800 3.50 22,800 2.46 7.7 CK3BA042 33,600 NONE — — 12.10 10.50 35,800 3.50 22,800 2.46 7.7

Supplied Enhance-

ment

Standard

Rating

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE

COILS + 58MVP060-14 VARIABLE-SPEED FURNACE

COILS + 58MVP080-14 VARIABLE-SPEED FURNACE

COILS + 58MVP100-20 VARIABLE-SPEED FURNACE

COILS + 58MVP120-20 VARIABLE-SPEED FURNACE

Field-Supplied

Accessory

TXV**

TXV & TDR**

EER

High-Temp Low-Temp

TC COP TC COP

Seasonal

Efficiency

HSPF

Page 12

Combination ratings continued

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

UNIT

SIZE-

SERIES

CK5A/CK5BT036 33,600 NONE — — 12.10 10.50 35,800 3.50 22,800 2.46 7.7 CK5A/CK5BT042 33,600 NONE — — 12.10 10.50 35,800 3.50 22,800 2.46 7.7

CK5A/CK5BW036 33,600 NONE — — 12.10 10.50 35,800 3.50 22,800 2.46 7.7

F(A,B)4BN(F,C)036 33,000 TDR — 11.70 — 10.20 36,000 3.38 23,000 2.38 7.6

FC4CN(F,B)042 33,800 TDR&TXV 12.10 — — 10.45 35,800 3.46 23,000 2.44 8.0

CK5A/CK5BE042 33,800 TDR — 13.00 — 11.35 35,200 3.60 22,200 2.54 8.0

CC5A/CD5AA042 33,800 TDR — 13.00 — 11.50 35,200 3.50 21,800 2.52 8.0

CK5A/CK5BA042 33,800 TDR — 13.00 — 11.45 35,200 3.58 22,000 2.56 8.0 CK5A/CK5BE042 33,800 TDR — 13.00 — 11.50 35,200 3.64 22,000 2.56 8.0 CK5A/CK5BT042 33,800 TDR — 13.00 — 11.45 35,200 3.58 22,000 2.56 8.0

CC5A/CD5AA042 33,800 TDR — 13.50 — 11.60 35,200 3.52 21,800 2.52 8.0

CC5A/CD5AW042 33,800 TDR — 13.50 — 11.55 35,200 3.48 21,600 2.50 8.0

CK5A/CK5BA042 33,800 TDR — 13.50 — 11.55 35,200 3.60 21,800 2.56 8.0 CK5A/CK5BT042 33,800 TDR — 13.50 — 11.55 35,200 3.60 21,800 2.56 8.0

CC5A/CD5AA042 33,800 TDR — 13.50 — 11.55 35,200 3.52 21,800 2.52 8.0

CC5A/CD5AW042 33,800 TDR — 13.50 — 11.50 35,200 3.46 21,800 2.50 8.0

036-30

See notes on pg. 15.

CK5A/CK5BA042 33,800 TDR — 13.50 — 11.50 35,200 3.60 22,000 2.56 8.0 CK5A/CK5BT042 33,800 TDR — 13.50 — 11.50 35,200 3.60 22,000 2.56 8.0

CC5A/CD5AA042 33,800 TDR — 13.50 — 11.65 35,200 3.54 21,600 2.54 8.0

CC5A/CD5AW042 33,800 TDR — 13.50 — 11.60 35,200 3.48 21,600 2.52 8.0

CK5A/CK5BA042 33,800 TDR — 13.50 — 11.60 35,200 3.62 21,800 2.58 8.0 CK5A/CK5BT042 33,800 TDR — 13.50 — 11.60 35,200 3.62 21,800 2.58 8.0

CC5A/CD5AA042 33,600 TDR — 13.00 — 11.15 35,200 3.54 22,400 2.50 8.0

CC5A/CD5AW042 33,600 TDR — 13.00 — 11.05 35,200 3.50 22,200 2.48 8.0

CK5A/CK5BA042 33,600 TDR — 13.00 — 11.05 35,200 3.60 22,400 2.54 8.0 CK5A/CK5BT042 33,600 TDR — 13.00 — 11.05 35,200 3.60 22,400 2.54 8.0

CC5A/CD5AA042 33,600 TDR — 13.00 — 11.20 35,200 3.56 22,200 2.52 8.0

CC5A/CD5AW042 33,600 TDR — 13.00 — 11.15 35,200 3.50 22,200 2.50 8.0

CK5A/CK5BA042 33,600 TDR — 13.00 — 10.90 35,200 3.58 22,600 2.52 8.0 CK5A/CK5BT042 33,600 TDR — 13.00 — 10.90 35,200 3.58 22,600 2.52 8.0

CC5A/CD5AA042 33,600 TDR — 13.00 — 11.20 35,200 3.56 22,200 2.52 8.0

CC5A/CD5AW042 33,600 TDR — 13.00 — 11.15 35,200 3.50 22,200 2.50 8.0

CK5A/CK5BA042 33,600 TDR — 13.00 — 11.30 35,200 3.64 22,400 2.56 8.0 CK5A/CK5BT042 33,600 TDR — 13.00 — 11.30 35,200 3.64 22,400 2.56 8.0

CC5A/CD5AA042 33,600 TDR — 13.00 — 11.20 35,200 3.56 22,200 2.52 8.0

Factory-

INDOOR

UNIT

FC4CNF036 33,000 TDR&TXV 11.70 — — 10.20 36,000 3.38 23,000 2.38 7.6 FG3AAA036 33,000 NONE — — 12.00 10.30 35,800 3.38 22,800 2.40 7.7 FK4DNF001 33,200 TDR&TXV 12.20 — — 11.00 35,000 3.46 22,200 2.46 7.8 FK4DNF002 33,400 TDR&TXV 12.30 — — 11.00 35,000 3.58 22,200 2.50 8.0 FK4DNF003 33,600 TDR&TXV 13.00 — — 11.55 35,000 3.58 21,800 2.56 8.0 FK4DNF005 35,000 TDR&TXV 14.00 — — 12.00 33,400 3.72 22,000 2.64 8.0

CE3AA042 33,800 TDR — 13.00 — 11.30 35,200 3.52 22,000 2.50 8.0

CE3AA042 33,800 TDR — 13.00 — 11.50 35,200 3.56 22,000 2.54 8.0 CK3BA042 33,800 TDR — 13.00 — 11.45 35,200 3.58 22,000 2.56 8.0

CE3AA042 33,800 TDR — 13.50 — 11.60 35,200 3.58 21,800 2.56 8.0 CK3BA042 33,800 TDR — 13.50 — 11.55 35,200 3.60 21,800 2.56 8.0

CE3AA042 33,800 TDR — 13.50 — 11.55 35,200 3.58 21,800 2.54 8.0 CK3BA042 33,800 TDR — 13.50 — 11.50 35,200 3.60 22,000 2.56 8.0

CE3AA042 33,800 TDR — 13.50 — 11.65 35,200 3.58 21,800 2.56 8.0 CK3BA042 33,800 TDR — 13.50 — 11.60 35,200 3.62 21,800 2.58 8.0

CE3AA042 33,600 TDR — 13.00 — 10.90 35,200 3.54 22,600 2.50 8.0

CE3AA042 33,600 TDR — 13.00 — 11.10 35,200 3.58 22,400 2.52 8.0

CE3AA042 33,600 TDR — 13.00 — 11.20 35,200 3.60 22,400 2.54 8.0 CK3BA042 33,600 TDR — 13.00 — 10.90 35,200 3.58 22,600 2.52 8.0

CE3AA042 33,600 TDR — 13.00 — 11.20 35,200 3.60 22,400 2.54 8.0 CK3BA042 33,600 TDR — 13.00 — 11.30 35,200 3.64 22,400 2.56 8.0

Supplied

Enhance-

ment

Standard

Rating

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE

COILS + 58MVP060-14 VARIABLE-SPEED FURNACE

COILS + 58MVP080-14 VARIABLE-SPEED FURNACE

COILS + 58MVP080-20 VARIABLE-SPEED FURNACE

COILS + 58MVP100-20 VARIABLE-SPEED FURNACE

COILS + 58MVP120-20 VARIABLE-SPEED FURNACE

Field-Supplied

Accessory

TXV**

TXV & TDR**

EER

High-Temp Low-Temp

TC COP TC COP

Seasonal

Efficiency

HSPF

Page 13

Combination ratings continued

UNIT

SIZE-

SERIES

036-30

042-30

See notes on pg. 15.

INDOOR

UNIT

CC5A/CD5AW042 33,600 TDR — 13.00 — 11.15 35,200 3.50 22,200 2.50 8.0

CE3AA042 33,600 TDR — 13.00 — 11.20 35,200 3.60 22,400 2.54 8.0 CK5A/CK5BA042 33,600 TDR — 13.00 — 11.30 35,200 3.64 22,400 2.56 8.0 CK5A/CK5BT042 33,600 TDR — 13.00 — 11.30 35,200 3.64 22,400 2.56 8.0

*F(A,B)4BN(F,B,C)048 40,000 TDR — 12.00 — 10.65 43,000 3.46 27,800 2.54 8.0

CC5A/CD5AA042 39,000 NONE — — 12.00 10.70 42,000 3.32 27,200 2.50 7.5

CC5A/CD5AC048 39,000 NONE — — 11.80 10.55 42,000 3.24 27,200 2.46 7.5

CC5A/CD5AW048 40,000 NONE — — 12.00 10.70 42,500 3.38 27,400 2.52 7.6

CD5AA048 40,000 NONE — — 12.00 10.75 42,500 3.38 27,400 2.52 7.6

CE3AA042 39,500 NONE — — 12.00 10.70 42,500 3.38 27,400 2.52 7.6

CE3AA048 40,000 NONE — — 12.00 10.75 42,500 3.42 27,400 2.54 7.7

CF5AA048 40,000 NONE — — 12.00 10.75 42,000 3.36 27,400 2.52 7.6

CK3BA042 39,000 NONE — — 12.00 10.70 42,000 3.38 27,200 2.52 7.5

CK3BA048 40,000 NONE — — 12.00 10.85 42,500 3.42 27,200 2.54 7.6

CK5A/CK5BA042 39,000 NONE — — 12.00 10.70 42,000 3.38 27,200 2.52 7.5 CK5A/CK5BA048 40,000 NONE — — 12.00 10.85 42,500 3.46 27,400 2.56 7.6 CK5A/CK5BE042 39,000 NONE — — 12.00 10.85 41,000 3.42 27,200 2.54 7.5

CK5A/CK5BT042 39,000 NONE — — 12.00 10.70 42,000 3.38 27,200 2.52 7.5 CK5A/CK5BT048 40,000 NONE — — 12.00 10.85 42,500 3.46 27,400 2.56 7.6

CK5A/CK5BW048 40,000 NONE — — 12.00 10.85 42,500 3.42 27,200 2.54 7.6 F(A,B)4BN(F,B,C)042 39,500 TDR 11.00 11.00 — 10.45 42,500 3.46 27,600 2.46 7.6 F(A,B)4BN(F,B,C)042 39,500 TDR — 11.70 — 10.45 42,500 3.32 27,600 2.48 7.6

FC4CN(F,B)042 39,500 TDR&TXV 11.70 — — 10.45 42,500 3.32 27,600 2.48 7.6 FC4CN(F,B)048 40,000 TDR&TXV 12.00 — — 10.65 43,000 3.46 27,800 2.54 8.0

FG3AAA048 39,500 NONE — — 11.70 10.70 42,500 3.46 27,400 2.56 7.7 FK4DNB006 42,000 TDR&TXV 14.00 — — 12.50 42,000 3.86 26,600 2.82 8.3

FK4DNF003 39,500 TDR&TXV 13.00 — — 11.55 41,500 3.40 26,400 2.60 7.8 FK4DNF005 41,500 TDR&TXV 13.50 — — 12.10 42,000 3.70 26,600 2.74 8.0

CC5A/CD5AC048 39,000 TDR — 13.00 — 11.35 42,000 3.26 26,200 2.56 7.8

CD5AA048 39,000 TDR — 13.00 — 11.55 42,000 3.44 26,400 2.60 8.0

CE3AA048 39,000 TDR — 13.00 — 11.50 42,000 3.48 26,600 2.62 8.0 CK3BA048 39,000 TDR — 13.00 — 11.50 42,000 3.52 26,600 2.64 8.0

CK5A/CK5BA048 39,000 TDR — 13.00 — 11.50 42,000 3.52 26,600 2.64 8.0

CK5A/CK5BT048 39,000 TDR — 13.00 — 11.50 42,000 3.52 26,600 2.64 8.0

CC5A/CD5AC048 39,000 TDR — 13.00 — 11.50 42,000 3.28 26,200 2.56 7.8

CC5A/CD5AW048 39,000 TDR — 13.00 — 11.65 42,000 3.44 26,200 2.62 8.0

CD5AA048 39,000 TDR — 13.00 — 11.65 42,000 3.46 26,200 2.62 8.0

CE3AA048 39,000 TDR — 13.00 — 11.60 42,000 3.50 26,400 2.64 8.0 CK3BA048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CK5A/CK5BA048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CK5A/CK5BT048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CK5A/CK5BW048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CC5A/CD5AC048 39,000 TDR — 13.00 — 11.50 42,000 3.28 26,000 2.58 7.8

CC5A/CD5AW048 39,000 TDR — 13.00 — 11.70 42,000 3.46 26,200 2.62 8.0

CD5AA048 39,000 TDR — 13.00 — 11.70 42,000 3.46 26,200 2.62 8.0

CE3AA048 39,000 TDR — 13.00 — 11.60 42,000 3.50 26,400 2.64 8.0 CK3BA048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CK5A/CK5BA048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CK5A/CK5BT048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CK5A/CK5BW048 39,000 TDR — 13.00 — 11.65 42,000 3.54 26,400 2.66 8.0

CC5A/CD5AC048 39,000 TDR — 13.00 — 11.55 42,000 3.28 26,000 2.58 7.8

CC5A/CD5AW048 39,000 TDR — 13.00 — 11.75 42,000 3.46 26,200 2.64 8.0

CD5AA048 39,000 TDR — 13.00 — 11.75 42,000 3.46 26,200 2.64 8.0

CE3AA048 39,000 TDR — 13.00 — 11.65 42,000 3.50 26,400 2.64 8.0 CK3BA048 39,000 TDR — 13.00 — 11.70 42,000 3.56 26,400 2.68 8.0

CK5A/CK5BA048 39,000 TDR — 13.00 — 11.70 42,000 3.56 26,400 2.68 8.0

CK5A/CK5BT048 39,000 TDR — 13.00 — 11.70 42,000 3.56 26,400 2.68 8.0

CK5A/CK5BW048 39,000 TDR — 13.00 — 11.70 42,000 3.56 26,400 2.68 8.0

CD5AA048 40,000 TDR — 12.50 — 11.10 42,000 3.44 27,000 2.56 8.0

CE3AA048 40,000 TDR — 12.50 — 11.00 42,000 3.46 27,200 2.58 8.0

CK5A/CK5BA048 40,000 TDR — 12.50 — 10.95 42,000 3.48 27,200 2.60 8.0

CK5A/CK5BT048 40,000 TDR — 12.50 — 10.95 42,000 3.48 27,200 2.60 8.0

CD5AA048 40,000 TDR — 13.00 — 11.20 42,000 3.46 26,800 2.58 8.0

CE3AA048 40,000 TDR — 12.50 — 11.10 42,000 3.48 27,200 2.60 8.0

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

Factory-

Supplied

Enhance-

ment

Standard

Rating

COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE

COILS + 58MVP080-14 VARIABLE-SPEED FURNACE

COILS + 58MVP080-20 VARIABLE-SPEED FURNACE

Field-Supplied

Accessory

TXV**

TXV & TDR**

EER

High-Temp Low-Temp

TC COP TC COP

Seasonal

Efficiency

HSPF

Page 14

Combination ratings continued

UNIT

SIZE-

SERIES

042-30

048-30

See notes on pg. 15.

INDOOR

UNIT

CK5A/CK5BA048 40,000 TDR — 12.50 — 10.85 42,000 3.46 27,400 2.58 8.0 CK5A/CK5BT048 40,000 TDR — 12.50 — 10.85 42,000 3.46 27,400 2.58 8.0

CD5AA048 40,000 TDR — 13.00 — 11.20 42,000 3.46 26,800 2.58 8.0 CE3AA048 40,000 TDR — 12.50 — 11.10 42,000 3.48 27,200 2.60 8.0

CK3BA048 40,000 TDR — 13.00 — 11.20 42,000 3.54 27,000 2.64 8.0 CK5A/CK5BA048 40,000 TDR — 13.00 — 11.20 42,000 3.54 27,000 2.64 8.0 CK5A/CK5BT048 40,000 TDR — 13.00 — 11.20 42,000 3.54 27,000 2.64 8.0

CC5A/CD5AW048 40,000 TDR — 13.00 — 11.20 42,000 3.46 26,800 2.58 8.0

CE3AA048 40,000 TDR — 12.50 — 11.10 42,000 3.48 27,200 2.60 8.0

CK3BA048 40,000 TDR — 13.00 — 11.25 42,000 3.54 27,000 2.64 8.0 CK5A/CK5BA048 40,000 TDR — 13.00 — 11.25 42,000 3.54 27,000 2.64 8.0 CK5A/CK5BT048 40,000 TDR — 13.00 — 11.25 42,000 3.54 27,000 2.64 8.0

CK5A/CK5BW048 40,000 TDR — 13.00 — 11.25 42,000 3.54 27,000 2.64 8.0

*FK4DNF005 48,000 TDR&TXV 13.00 — — 10.95 48,000 3.58 31,600 2.64 8.0 CC5A/CD5AA060 46,000 NONE — — 11.50 9.95 48,000 3.24 32,200 2.44 7.4 CC5A/CD5AC048 44,500 NONE — — 11.50 9.80 48,000 3.10 31,800 2.38 7.0

CC5A/CD5AW048 45,500 NONE — — 11.50 9.90 48,000 3.28 32,200 2.46 7.5 CC5A/CD5AW060 47,000 NONE — — 12.00 10.20 48,000 3.42 32,400 2.52 7.8

CD5AA048 45,500 NONE — — 11.50 9.90 48,000 3.28 32,200 2.46 7.5 CE3AA048 46,000 NONE — — 11.50 10.00 48,000 3.36 32,200 2.50 7.6 CE3AA060 47,500 NONE — — 12.00 10.25 48,000 3.44 32,400 2.54 7.8

CF5AA048 45,000 NONE — — 11.50 10.00 48,000 3.22 32,000 2.44 7.3 CK3BA048 45,500 NONE — — 11.50 9.90 48,000 3.36 32,200 2.50 7.5 CK3BA060 46,000 NONE — — 11.50 10.20 48,000 3.52 32,400 2.56 7.4

CK5A/CK5BA048 45,500 NONE — — 11.50 9.90 48,000 3.36 32,200 2.50 7.5 CK5A/CK5BA060 46,000 NONE — — 11.50 10.20 48,000 3.52 32,400 2.56 7.4 CK5A/CK5BT048 45,500 NONE — — 11.50 9.90 48,000 3.36 32,200 2.50 7.5 CK5A/CK5BT060 46,000 NONE — — 11.50 10.20 48,000 3.52 32,400 2.56 7.4

CK5A/CK5BW048 45,500 NONE — — 11.50 9.90 48,000 3.36 32,200 2.50 7.5

CK5A/CK5BX060 47,000 NONE — — 12.00 10.35 48,000 3.56 32,400 2.58 7.8 F(A,B)4BN(F,B,C)048 46,000 TDR — 11.50 — 9.90 48,000 3.40 32,600 2.50 7.6 F(A,B)4BN(F,B,C)060 47,500 TDR — 11.70 — 10.00 48,000 3.48 33,000 2.52 7.8

FB4BNB070 48,000 TDR — 12.00 — 10.40 48,000 3.62 32,800 2.60 8.0 FC4CN(F,B)048 46,000 TDR&TXV 11.50 — — 9.90 48,000 3.40 32,600 2.50 7.6 FC4CN(F,B)060 47,500 TDR&TXV 11.70 — — 10.00 48,000 3.48 33,000 2.52 7.8

FC4CNB054 48,000 TDR&TXV 12.10 — — 10.45 48,000 3.64 32,600 2.60 8.0

FC4CNB070 48,000 TDR&TXV 12.00 — — 10.40 48,000 3.62 32,800 2.60 8.0

FG3AAA048 45,000 NONE — — 11.40 9.90 48,000 3.34 32,200 2.48 7.5

FG3AAA060 46,000 NONE — — 11.80 10.10 48,000 3.38 32,400 2.50 7.6

FK4DNB006 48,000 TDR&TXV 13.50 — — 11.35 48,000 3.74 31,400 2.72 8.2

CE3AA060 45,500 TDR — 12.50 — 10.70 48,000 3.42 31,600 2.58 7.8

CC5A/CD5AA060 45,000 TDR — 12.00 — 10.60 48,000 3.24 31,000 2.50 7.8

CE3AA060 45,500 TDR — 12.50 — 10.90 48,000 3.46 31,400 2.60 7.8

CK3BA060 45,500 TDR — 12.50 — 10.85 48,000 3.58 31,400 2.64 7.8 CK5A/CK5BA060 45,500 TDR — 12.50 — 10.85 48,000 3.58 31,400 2.64 7.8 CK5A/CK5BT060 45,500 TDR — 12.50 — 10.85 48,000 3.58 31,400 2.64 7.8 CK5A/CK5BX060 47,000 TDR — 13.00 — 11.15 48,000 3.62 31,400 2.66 7.8

CC5A/CD5AA060 45,000 TDR — 12.00 — 10.55 48,000 3.24 31,200 2.50 7.8

CC5A/CD5AW060 47,000 TDR — 13.00 — 10.85 48,000 3.44 31,200 2.58 7.8

CE3AA060 45,500 TDR — 12.50 — 10.85 48,000 3.44 31,400 2.60 7.8

CC5A/CD5AA060 45,000 TDR — 12.00 — 10.65 48,000 3.26 30,200 2.46 7.8

CC5A/CD5AW060 47,000 TDR — 13.00 — 10.95 48,000 3.46 31,200 2.60 7.8

CE3AA060 45,500 TDR — 12.50 — 10.95 48,000 3.46 31,200 2.60 7.8

CK3BA060 45,500 TDR — 12.50 — 10.95 48,000 3.60 31,400 2.64 7.8 CK5A/CK5BA060 45,500 TDR — 12.50 — 10.95 48,000 3.60 31,400 2.64 7.8 CK5A/CK5BT060 45,500 TDR — 12.50 — 10.95 48,000 3.60 31,400 2.66 7.8 CK5A/CK5BX060 47,000 TDR — 13.00 — 11.15 48,000 3.62 31,400 2.68 7.8

CC5A/CD5AA060 46,000 TDR — 11.50 — 10.05 48,000 3.58 31,600 2.64 8.0

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

Factory-

Supplied

Enhance-

ment

Standard

Rating

COILS + 58MVP100-20 VARIABLE-SPEED FURNACE

COILS + 58MVP120-20 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE

COILS + 58MVP080-20 VARIABLE-SPEED FURNACE

Field-Supplied

Accessory

TXV**

TXV & TDR**

EER

High-Temp Low-Temp

TC COP TC COP

Seasonal

Efficiency

HSPF

Page 15

Combination ratings continued

UNIT

SIZE-

SERIES

048-30

060-30

* Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:

Cooling Standard:80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor unit. High-Temperature Heating Standard:70°F (21°C) db indoor entering air temperature and 47°F (8°C) db 43°F (6°C) wb air entering outdoor unit. Low-Temperature Heating Standard:70°F (21°C) db indoor entering air temperature and 17°F (–8°C) db 15°F (11°C) wb air entering outdoor

unit.

† Outdoor section/indoor section combination tested in accordance with DOE test procedures for heat pumps. Ratings for other combinations are

determined under DOE computer simulation procedures.

‡ Requires hard shutoff TXV; based on computer simulation.

** TDR is provided on most Carrier Furnaces. COP — Coefficient of Performance HSPF — Heating Seasonal Performance Factor SEER — Seasonal Energy Efficiency Ratio TC — Total Capacity (Btuh) TDR — Time-Delay Relay TXV — Thermostatic Expansion Valve

INDOOR

UNIT

CC5A/CD5AW060 47,000 TDR — 12.00 — 10.40 48,000 3.26 32,200 2.46 8.0

CE3AA060 47,000 TDR — 12.00 — 10.40 48,000 3.60 32,400 2.62 8.0

CC5A/CD5AA060 46,000 TDR — 11.50 — 10.05 48,000 3.46 32,200 2.54 8.0

CC5A/CD5AW060 47,000 TDR — 12.00 — 10.40 48,000 3.26 32,200 2.46 8.0

CE3AA060 47,000 TDR — 12.00 — 10.40 48,000 3.44 32,200 2.56 8.0 CK3BA060 47,000 TDR — 12.50 — 10.80 48,000 3.68 31,800 2.66 8.0

CK5A/CK5BA060 47,000 TDR — 12.50 — 10.80 48,000 3.46 32,200 2.54 8.0

CK5A/CK5BT060 47,000 TDR — 12.50 — 10.80 48,000 3.68 31,800 2.66 8.0

CK5A/CK5BX060 47,000 TDR — 12.00 — 10.55 48,000 3.68 31,800 2.66 8.0

CC5A/CD5AA060 46,000 TDR — 11.50 — 10.05 48,000 3.46 32,200 2.54 8.0

CC5A/CD5AW060 47,000 TDR — 12.00 — 10.40 48,000 3.26 32,200 2.46 8.0

CE3AA060 47,000 TDR — 12.00 — 10.40 48,000 3.44 32,200 2.56 8.0 CK3BA060 47,000 TDR — 12.00 — 10.35 48,000 3.58 32,400 2.60 8.0

CK5A/CK5BA060 47,000 TDR — 12.00 — 10.35 48,000 3.58 32,400 2.60 8.0

CK5A/CK5BT060 47,000 TDR — 12.00 — 10.35 48,000 3.58 32,400 2.60 8.0

CK5A/CK5BX060 47,000 TDR — 12.00 — 10.60 48,000 3.58 32,400 2.60 8.0

*FK4DNB006 59,000 TDR&TXV 12.00 — — 10.30 60,000 3.40 39,000 2.46 8.0

CC5A/CD5AA060 55,000 NONE — — 11.00 9.45 60,000 2.94 39,000 2.24 7.0

CC5A/CD5AW060 57,000 NONE — — 11.40 9.75 60,000 3.08 38,500 2.30 7.4

CE3AA060 57,000 NONE — — 11.50 9.75 60,000 3.12 39,000 2.32 7.4 CK3BA060 55,000 NONE — — 11.00 9.65 60,000 3.06 39,000 2.30 7.0

CK5A/CK5BA060 55,000 NONE — — 11.00 9.65 60,000 3.06 39,000 2.30 7.0

CK5A/CK5BT060 55,000 NONE — — 11.00 9.65 60,000 3.06 39,000 2.30 7.0

CK5A/CK5BX060 57,000 NONE — — 11.50 9.85 60,000 3.18 39,000 2.36 7.4 F(A,B)4BN(F,B,C)060 56,500 TDR 11.00 11.00 — 9.50 60,000 3.22 39,500 2.36 7.5 F(A,B)4BN(F,B,C)060 56,500 TDR — 11.20 — 9.50 60,000 3.16 40,000 2.32 7.5

FB4BNB070 58,000 TDR — 11.50 — 9.80 60,000 3.30 39,500 2.38 7.7

FC4CN(F,B)060 56,500 TDR&TXV 11.20 — — 9.50 60,000 3.16 40,000 2.32 7.5

FC4CNB070 58,000 TDR&TXV 11.50 — — 9.80 60,000 3.30 39,500 2.38 7.7 FG3AAA060 55,500 NONE — — 11.30 9.60 60,000 3.04 39,000 2.30 7.3

CC5A/CD5AA060 54,500 TDR — 11.30 — 9.75 60,000 2.96 38,500 2.28 7.2

CE3AA060 56,500 TDR — 11.50 — 10.05 60,000 3.16 38,500 2.38 7.5 CK3BA060 54,500 TDR — 11.50 — 9.90 60,000 3.28 39,000 2.40 7.5

CK5A/CK5BA060 54,500 TDR — 11.50 — 9.90 60,000 3.28 39,000 2.40 7.5

CK5A/CK5BT060 54,500 TDR — 11.50 — 9.90 60,000 3.28 39,000 2.40 7.5

CK5A/CK5BX060 56,500 TDR — 12.00 — 10.20 60,000 3.30 38,500 2.44 7.5

CC5A/CD5AA060 54,500 TDR — 11.30 — 9.70 60,000 2.96 38,500 2.28 7.2

CC5A/CD5AW060 54,500 TDR — 11.50 — 10.00 60,000 3.14 38,500 2.36 7.5

CE3AA060 56,500 TDR — 11.50 — 10.05 60,000 3.16 38,500 2.38 7.5 CK3BA060 54,500 TDR — 11.50 — 9.85 60,000 3.28 39,000 2.40 7.5

CK5A/CK5BA060 54,500 TDR — 11.50 — 9.85 60,000 3.28 39,000 2.40 7.5

CK5A/CK5BT060 54,500 TDR — 11.50 — 9.85 60,000 3.28 39,000 2.40 7.5

CK5A/CK5BX060 56,500 TDR — 12.00 — 10.20 60,000 3.30 38,500 2.44 7.5

CC5A/CD5AA060 54,500 TDR — 11.50 — 9.80 60,000 2.98 38,500 2.28 7.2

CC5A/CD5AW060 54,500 TDR — 11.50 — 10.10 60,000 3.16 38,500 2.36 7.5

CE3AA060 56,500 TDR — 11.50 — 10.10 60,000 3.18 38,500 2.38 7.5 CK3BA060 54,500 TDR — 11.50 — 9.95 60,000 3.28 38,500 2.42 7.5

CK5A/CK5BA060 54,500 TDR — 11.50 — 9.95 60,000 3.28 38,500 2.42 7.5

CK5A/CK5BT060 54,500 TDR — 11.50 — 9.95 60,000 3.28 38,500 2.42 7.5

CK5A/CK5BX060 56,500 TDR — 12.00 — 10.25 60,000 3.30 38,500 2.44 7.5

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

FactorySupplied Enhance-

ment

Standard

Rating

COILS + 58MVP100-20 VARIABLE-SPEED FURNACE

COILS + 58MVP120-20 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE

Field-Supplied

Accessory

TXV**

TXV & TDR**

EER

High-Temp Low-Temp

TC COP TC COP

Seasonal

Efficiency

HSPF

Page 16

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

System

38BYG018-30 Outdoor Section with F(A,B)4BN(F,C)024 Indoor Section

72 21.0 10.5 1.51 20.1 10.2 1.69 19.2 9.86 1.91 18.2 9.52 2.12 17.2 9.17 2.36

550 63†† 17.8 13.0 1.49 17.0 12.6 1.68 16.2 12.3 1.88 15.3 11.9 2.10 14.4 11.5 2.34

650 63†† 18.2 14.0 1.53 17.4 13.7 1.72 16.5 13.3 1.93 15.6 12.9 2.13 14.7 12.5 2.38

750 63†† 18.4 15.0 1.58 17.6 14.6 1.75 16.7 14.2 1.95 15.8 13.9 2.17 14.9 13.5 2.41

CC5A/CD5AA 018 0.95 1.00 FF1DNA 018 0.94 0.95

CC5A/CD5AW 024 0.99 1.01 FF1DNE 018 0.94 0.95

CK5A/CK5BA 018 0.95 0.99

CK5A/CK5BW 024 0.99 0.99 CC5A/CD5AW 024 0.99 0.91

F(A,B)4BN(F,C) 018 0.93 0.98 CE3AA 024 0.99 0.91

See notes on pg. 24.

67 19.1 13.4 1.51 18.3 13.0 1.68 17.5 12.7 1.88 16.6 12.3 2.11 15.6 12.0 2.34

62 17.5 16.1 1.49 16.7 15.8 1.68 16.0 15.4 1.88 15.2 15.0 2.10 14.4 14.4 2.33 57 17.0 17.0 1.50 16.4 16.4 1.68 15.8 15.8 1.87 15.1 15.1 2.08 14.4 14.4 2.34

72 21.4 11.1 1.56 20.5 10.8 1.74 19.5 10.5 1.93 18.5 10.1 2.15 17.5 9.80 2.41 67 19.5 14.4 1.53 18.7 14.1 1.73 17.8 13.8 1.93 16.8 13.4 2.14 15.9 13.1 2.39

62 18.0 17.5 1.53 17.2 17.1 1.71 16.5 16.5 1.92 15.8 15.8 2.14 15.0 15.0 2.37 57 17.8 17.8 1.53 17.2 17.2 1.72 16.5 16.5 1.91 15.8 15.8 2.12 15.0 15.0 2.38

72 21.6 11.7 1.58 20.7 11.4 1.78 19.7 11.1 1.98 18.7 10.7 2.19 17.7 10.4 2.45 67 19.8 15.5 1.58 18.9 15.1 1.75 18.0 14.8 1.97 17.1 14.4 2.18 16.1 14.1 2.41

62 18.5 18.5 1.57 17.8 17.8 1.75 17.1 17.1 1.96 16.3 16.3 2.18 15.5 15.5 2.41 57 18.5 18.5 1.57 17.8 17.8 1.75 17.1 17.1 1.95 16.3 16.3 2.19 15.5 15.5 2.42

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

024 0.99 1.01 024 1.01 1.01

CE3AA 024 0.99 1.00 FG3AAA 024 0.98 1.02

CF5AA 024 0.99 1.00 FK4DNF 001 1.01 0.89

CK3BA 024 0.99 0.99 002 1.02 0.89

024 0.99 0.99 CC5A/CD5AA 024 0.99 0.91

024 1.00 1.00 CK3BA 024 0.99 0.89

FC4CNF 024 1.01 1.01 CK5A/CK5BA 024 0.99 0.89

—— —CK5A/CK5BW 024 0.99 0.89

Capacity Power Capacity Power

Cooling

Indoor

Section Size

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE

Cooling

Total

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 17

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

System

Total

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

38BYG024-30 Outdoor Section With F(A,B)4BN(F,C)030 Indoor Section

725

825

925

CC5A/CD5AA 024 0.97 1.01 FG3AAA 024 0.97 1.02

CC5A/CD5AW 024 0.97 1.01 002 1.03 0.91

CK5A/CK5BA 024 0.97 1.00 CK5A/CK5BA 030 0.98 0.92

CK5A/CK5BW 024 0.97 1.00

F(A,B)4BN(F,C) 024 0.98 1.00

See notes on pg. 24.

67 63†† 62 57

72 67 63†† 62 57

Indoor

Section Size

CE3AA 024 0.98 1.01

CF5AA 024 0.98 1.02 CC5A/CD5AW 030 0.98 0.92

CK3BA 024 0.97 1.00 CE3AA 030 0.98 0.91

FC4CNF 024 0.98 1.00 CC5A/CD5AW 030 0.98 0.94

FF1DNA 024 0.98 1.01 CK3BA 030 0.98 0.92

FF1DNE 024 0.98 1.01 CK5A/CK5BW 030 0.98 0.93

25.7

23.6

21.9

21.7

21.1

26.0

24.0

22.3

22.1

21.9

26.3

24.2

22.5

13.0

1.95

16.6

16.1

20.1

21.1

13.5

17.6

17.0

21.4

21.9

14.0

18.5

17.9

22.4

22.5

Capacity Power Capacity Power

030 0.98 1.02 FK4DNF 001 1.01 0.91

030 0.98 1.02 003 1.03 0.91

030 1.00 1.02 CC5A/CD5AA 030 0.98 0.92

030 0.98 1.01 CK3BA 030 0.98 0.91

030 0.98 1.01 CK5A/CK5BW 030 0.98 0.92

030 0.98 1.01 CE3AA 030 1.00 0.93

030 1.00 1.00 CC5A/CD5AA 030 0.98 0.94

030 1.00 1.00 CE3AA 030 1.00 0.93

030 1.01 1.03 CK5A/CK5BA 030 0.98 0.94

030 1.01 1.03 — — —

24.7

1.95

22.7

1.95

21.1

1.94

20.8

1.94

20.4

1.98

25.0

1.98

23.0

1.98

21.4

1.98

21.2

1.98

21.1

2.01

25.2

2.01

23.2

2.01

21.6

2.01

21.7

2.01

21.7

Multipliers for Determining the Performance With Other Indoor Sections

Cooling

12.6

16.3

15.8

19.7

20.4

13.1

17.2

16.7

20.9

21.1

13.6

18.2

17.5

21.7

2.15

2.14

2.18

2.22

2.21

23.7

12.2

21.7

15.9

20.1

15.4

19.9

19.3

19.7

24.0

12.8

22.0

16.9

20.4

16.3

20.4

20.3

20.4

24.2

13.3

22.2

17.8

20.6

17.1

20.9

Indoor

Section Size

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE

COILS + 58MVP040-14 VARIABLE-SPEED FURNACE

COILS + 58MVP060-14 VARIABLE-SPEED FURNACE

2.38

2.37

2.41

2.40

2.44

22.7

20.7

19.2

19.1

19.0

22.9

21.0

19.5

19.6

23.1

21.2

19.7

20.1

11.9

15.5

15.0

18.8

19.0

12.4

16.5

15.9

19.6

12.9

17.4

16.7

20.1

2.63

2.62

2.67

2.66

2.70

2.69

21.6

19.8

18.3

18.2

21.9

20.0

18.5

18.8

22.0

20.2

18.7

19.3

Cooling

11.5

15.1

14.6

18.2

12.1

16.1

15.5

18.8

12.6

17.0

16.4

19.3

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

2.92

2.91

2.90

2.96

2.95

2.94

3.00

2.99

2.98

Page 18

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

38BYG030-30 Outdoor Section With F(A,B)4BN(F,C)036 Indoor Section

32.1 16.6 2.38 30.8 16.1 2.67 29.3 15.6 2.99 27.9 15.0 3.32 26.3 14.5 3.68

72 67

900

950

1125

CC5A/CD5AW 030 0.98 0.99 CC5A/CD5AW 036 1.01 0.90

CK5A/CK5BW 030 0.98 0.98 CK5A/CK5BA 036 1.01 0.93

F(A,B)4BN(F,C) 030 0.99 0.97

See notes on pg. 24.

63††

Indoor

Section Size

CC5A/CD5AA 030 0.98 0.99

CE3AA 030 0.99 0.98 CK3BA 036 1.01 0.90

CF5AA 036 1.00 0.98 CK5A/CK5BW 036 1.01 0.90

CK3BA 030 0.98 0.98

CK5A/CK5BA 036 1.01 0.99 CE3AA 036 1.00 0.94

CK5A/CK5BT 036 1.01 0.99 CK3BA 036 1.01 0.93

FC4CNF 030 0.99 0.97 CE3AA 036 1.00 0.92

FF1DNA 030 0.99 0.99 CK5A/CK5BW 036 1.01 0.92

FF1DNE 030 0.99 0.99

FG3AAA 036 1.00 1.00 CC5A/CD5AA 036 1.01 0.92

FK4DNF 001 1.01 0.92 CC5A/CD5AW 036 1.01 0.92

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE CK5A/CK5BA 036 1.01 0.91

CC5A/CD5AA 036 1.01 0.91 CK5A/CK5BT 036 1.01 0.91

CE3AA 036 1.00 0.92 CK5A/CK5BW 036 1.01 0.91

CK3BA 036 1.01 0.91

CK5A/CK5BA 036 1.01 0.91 CC5A/CD5AW 036 1.01 0.92

CK5A/CK5BT 036 1.01 0.91 CE3AA 036 1.00 0.92

29.2 20.7 2.39 28.0 20.2 2.67 26.7 19.6 2.98 25.3 19.1 3.31 23.8 18.5 3.67

27.1 20.0 2.39 25.9 19.5 2.67 24.7 18.9 2.98 23.4 18.3 3.30 22.0 17.7 3.65

26.7 24.8 2.39 25.5 24.2 2.67 24.4 23.6 2.97 23.2 22.9 3.30 21.9 21.9 3.65

26.0 26.0 2.39 25.1 25.1 2.67 24.1 24.1 2.97 23.1 23.1 3.30 21.9 21.9 3.65

32.6 17.3 2.43 31.2 16.8 2.72 29.8 16.3 3.03 28.3 15.7 3.37 26.6 15.1 3.73

72 67

29.7 22.0 2.43 28.4 21.4 2.72 27.1 20.9 3.03 25.6 20.3 3.36 24.1 19.7 3.72

27.6 21.2 2.44 26.3 20.6 2.72 25.0 20.1 3.02 23.7 19.5 3.35 22.3 18.8 3.70

27.2 26.4 2.44 26.1 25.7 2.72 24.9 24.9 3.02 23.8 23.8 3.35 22.7 22.7 3.71

26.9 26.9 2.44 26.0 26.0 2.72 24.9 24.9 3.02 23.8 23.8 3.35 22.7 22.7 3.71

33.0 18.0 2.47 31.6 17.5 2.76 30.1 17.0 3.08 28.5 16.4 3.41 26.8 15.8 3.78

72 67

30.1 23.2 2.48 28.8 22.6 2.77 27.3 22.1 3.08 25.9 21.5 3.40 24.3 20.8 3.77

27.9 22.3 2.48 26.6 21.7 2.77 25.3 21.2 3.07 23.9 20.6 3.40 22.5 19.9 3.75

27.8 27.8 2.48 26.7 26.7 2.77 25.6 25.6 3.07 24.5 24.5 3.40 23.2 23.2 3.76

27.7 27.7 2.48 26.7 26.7 2.77 25.6 25.6 3.07 24.5 24.5 3.40 23.3 23.3 3.76 Multipliers for Determining the Performance With Other Indoor Sections

Cooling

Capacity Power Capacity Power

036 1.01 0.99 CC5A/CD5AA 036 1.01 0.90

036 1.01 0.99 CE3AA 036 1.01 0.91

036 1.00 0.99 CK5A/CK5BA 036 1.01 0.90

036 1.01 0.99 CC5A/CD5AA 036 1.01 0.93

036 1.01 0.99 CK5A/CK5BT 036 1.01 0.93

036 1.00 1.00 CC5A/CD5AW 036 1.01 0.92

036 1.00 1.00 CK3BA 036 1.01 0.92

002 1.01 0.91 CE3AA 036 1.00 0.92

003 1.03 0.90 CK3BA 036 1.01 0.91

—— —CK5A/CK5BW 036 1.01 0.91

Indoor

Section Size

COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE

COILS + 58MVP060-14 VARIABLE-SPEED FURNACE

COILS + 58MVP080-14 VARIABLE-SPEED FURNACE

COILS + 58MVP100-20 VARIABLE-SPEED FURNACE

COILS + 58MVP120-20 VARIABLE-SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 19

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

System

Total

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

38BYG036-30 Outdoor Section With F(A,B)4BN(F,B,C)042 Indoor Section

1050

1200

1350

CC5A/CD5AA 036 0.99 0.99 CK5A/CK5BA 042 1.00 0.91

CC5A/CD5AW 036 0.99 0.92 CK5A/CK5BT 042 1.00 0.91

CK5A/CK5BA 036 0.99 0.98 CK5A/CK5BT 042 1.00 0.90

CK5A/CK5BE 042 0.99 0.98 CC5A/CD5AA 042 1.00 0.90

CK5A/CK5BT 036 0.99 0.99 CC5A/CD5AW 042 1.00 0.91

CK5A/CK5BW 036 0.99 0.99 CK3BA 042 1.00 0.91

F(A,B)4BN(F,B,C) 042 1.00 1.00 CK5A/CK5BA 042 1.00 0.91

F(A,B)4BN(F,C) 036 0.98 1.00 CK5A/CK5BT 042 1.00 0.91

FC4CN(F,B) 042 1.00 1.00

CK5A/CK5BE 042 1.00 0.92

CC5A/CD5AA 042 1.00 0.91 CC5A/CD5AW 042 0.99 0.94

See notes on pg. 24.

67 63†† 62 57

72 67 63†† 62 57

Indoor

Section Size

CE3AA 036 0.98 0.99 CC5A/CD5AA 042 1.00 0.90

CF5AA 036 0.99 0.98 CE3AA 042 1.00 0.90

CK3BA 036 0.99 0.99 CK3BA 042 1.00 0.90

FC4CNF 036 0.98 1.00 CC5A/CD5AA 042 1.00 0.90

FG3AAA 036 0.98 0.99 CC5A/CD5AW 042 1.00 0.90

FK4DNF 001 0.98 0.93 CE3AA 042 1.00 0.90

COILS + 58CV(A,X)070-12 VARIABLE-SPEED FURNACE COILS + 58MVP060-14 VARIABLE-SPEED FURNACE

CE3AA 042 1.00 0.92 CE3AA 042 0.99 0.95

COILS + 58CV(A,X)090-16 VARIABLE-SPEED FURNACE CC5A/CD5AA 042 0.99 0.93

CE3AA 042 1.00 0.91 CE3AA 042 0.99 0.94

CK3BA 042 1.00 0.91 CK5A/CK5BA 042 0.99 0.94

38.2 19.8 2.90 36.6 19.2 3.20 35.0 18.6 3.51 33.2 17.9 3.86 31.4 17.3 4.25

34.8 24.8 2.88 33.3 24.2 3.17 31.8 23.6 3.48 30.2 22.9 3.83 28.5 22.2 4.21

32.3 24.0 2.86 30.9 23.3 3.15 29.5 22.7 3.46 27.9 22.0 3.81 26.3 21.3 4.18

31.8 29.8 2.86 30.5 29.1 3.15 29.1 28.3 3.46 27.7 27.5 3.80 26.3 26.3 4.18

31.1 31.1 2.85 30.0 30.0 3.14 28.8 28.8 3.46 27.6 27.6 3.80 26.3 26.3 4.18

38.8 20.7 2.97 37.1 20.1 3.26 35.4 19.4 3.58 33.7 18.8 3.93 31.7 18.1 4.31

35.3 26.3 2.94 33.8 25.7 3.23 32.2 25.0 3.55 30.6 24.4 3.90 28.8 23.6 4.27

32.8 25.4 2.92 31.4 24.7 3.22 29.9 24.1 3.53 28.3 23.4 3.87 26.6 22.6 4.24

32.5 31.6 2.92 31.2 30.8 3.21 29.8 29.8 3.53 28.5 28.5 3.87 27.1 27.1 4.25

32.2 32.2 2.92 31.0 31.0 3.21 29.8 29.8 3.53 28.5 28.5 3.87 27.1 27.1 4.25

39.2 21.5 3.03 37.5 20.9 3.33 35.8 20.3 3.65 33.9 19.6 3.99 32.0 18.9 4.37

35.7 27.8 3.01 34.2 27.1 3.30 32.5 26.5 3.62 30.8 25.7 3.96 29.0 25.0 4.34

33.2 26.7 2.99 31.7 26.1 3.28 30.2 25.4 3.59 28.5 24.6 3.93 26.9 23.9 4.31

33.1 33.1 2.99 31.8 31.8 3.28 30.5 30.5 3.60 29.2 29.2 3.94 27.8 27.8 4.32

33.1 33.1 2.99 31.8 31.8 3.28 30.6 30.6 3.60 29.2 29.2 3.94 27.8 27.8 4.32 Multipliers for Determining the Performance With Other Indoor Sections

Cooling

Capacity Power Capacity Power

042 0.99 0.99 CK5A/CK5BE 042 1.00 0.91

042 0.99 0.99

042 1.00 0.99 CC5A/CD5AW 042 1.00 0.90

042 0.99 0.99 CK5A/CK5BA 042 1.00 0.90

042 0.99 0.99

042 0.99 0.99 CE3AA 042 1.00 0.90

002 0.99 0.94 CK3BA 042 1.00 0.90

003 0.99 0.90 CK5A/CK5BA 042 1.00 0.90

005 1.04 0.90 CK5A/CK5BT 042 1.00 0.90

—— —CK5A/CK5BT 042 0.99 0.94

Indoor

Section Size

COILS + 58CV(A,X)110-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)135-22 VARIABLE-SPEED FURNACE

COILS + 58CV(A,X)155-22 VARIABLE-SPEED FURNACE

COILS + 58MVP080-14 VARIABLE-SPEED FURNACE

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 20

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Capacity

MBtuh†

38BYG036-30 Outdoor Section With F(A,B)4BN(F,B,C)042 Indoor Section continued

1050

1200

1350

CC5A/CD5AA 042 0.99 0.93 CK3BA 042 0.99 0.92

CC5A/CD5AW 042 0.99 0.93 CK5A/CK5BA 042 0.99 0.92

CK5A/CK5BA 042 0.99 0.95 CC5A/CD5AA 042 0.99 0.93

CK5A/CK5BT 042 0.99 0.95 CC5A/CD5AW 042 0.99 0.93

CC5A/CD5AA 042 0.99 0.93 CK5A/CK5BA 042 0.99 0.92

CC5A/CD5AW 042 0.99 0.93 CK5A/CK5BT 042 0.99 0.92

See notes on pg. 24.

67 63†† 62 57

72 67 63†† 62 57

Indoor

Section Size

COILS + 58MVP080-20 VARIABLE-SPEED FURNACE CE3AA 042 0.99 0.93

CE3AA 042 0.99 0.93 CK5A/CK5BT 042 0.99 0.92

CK3BA 042 0.99 0.95

COILS + 58MVP100-20 VARIABLE-SPEED FURNACE CE3AA 042 0.99 0.93
