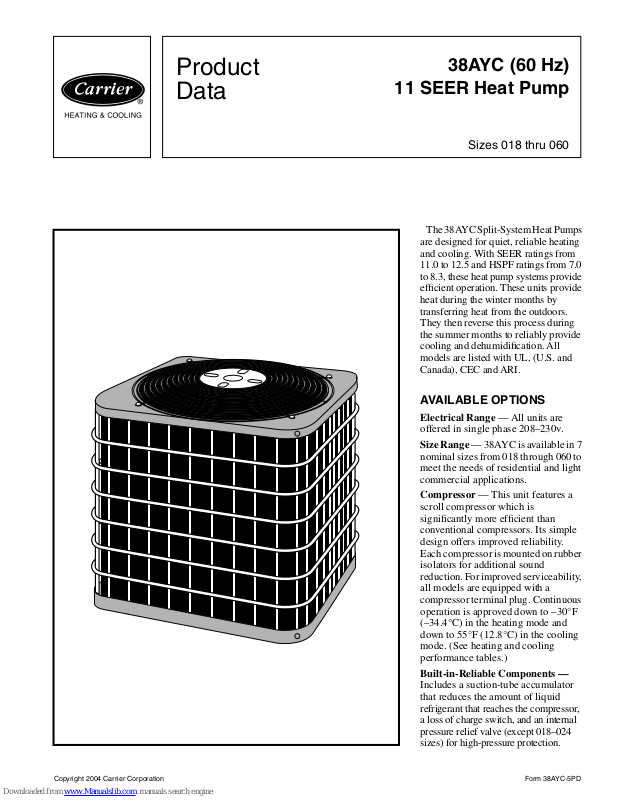

Product Data

38AYC (60 Hz)

11 SEER Heat Pump

Sizes 018 thru 060

The 38AYC Split-System Heat Pumps are designed for quiet, reliable heating and cooling. With SEER ratings from

11.0 to 12.5 and HSPF ratings from 7.0 to 8.3, these heat pump systems provide efﬁcient operation. These units provide heat during the winter months by transferring heat from the outdoors. They then reverse this process during the summer months to reliably provide cooling and dehumidiﬁcation. All models are listed with UL, (U.S. and Canada), CEC and ARI.

AVAILABLE OPTIONS

Electrical Range — All units are

offered in single phase 208–230v.

Size Range — 38AYC is available in 7

nominal sizes from 018 through 060 to meet the needs of residential and light commercial applications.

Compressor — This unit features a

scroll compressor which is signiﬁcantly more efﬁcient than conventional compressors. Its simple design offers improved reliability. Each compressor is mounted on rubber isolators for additional sound reduction. For improved serviceability, all models are equipped with a compressor terminal plug. Continuous operation is approved down to –30°F (–34.4°C) in the heating mode and down to 55°F (12.8°C) in the cooling mode. (See heating and cooling performance tables.)

Built-in-Reliable Components —

Includes a suction-tube accumulator that reduces the amount of liquid refrigerant that reaches the compressor, a loss of charge switch, and an internal pressure relief valve (except 018–024 sizes) for high-pressure protection.

Page 2

Defrost Control Board —

Incorporates a defrost relay, defrost

unit with a hard, smooth ﬁnish that will

last for many years. timer, and low-voltage terminations. The defrost control is a time/ temperature initiation/termination control which includes 3 ﬁeldselectable time periods of 30, 50, and 90 minutes.

Discharge Muffler — Incorporated to

minimize low frequency sound and pressure pulsation generated by compressor discharge gas.

Cabinet Protection — Steel is

protected with a galvanized coating and treated with a layer of zinc phosphate. A coat of modiﬁed polyester powder coating is then applied and baked on, providing each

All screws on cabinet exterior are

coated for a long-lasting, rust-resistant,

quality appearance.

Unit Design — All units are equipped

with totally enclosed fan motors for

greater reliability under rain and snow

conditions. The large, wraparound coil

uses copper tube and enhanced

aluminum ﬁn and is designed for

optimum heat transfer during heating

and cooling. The vertical air discharge

carries the sound and air up and away

from adjacent patio areas and foliage.

The condenser coil can be cleaned with

a common garden hose.

Model number nomenclature

38AYC 018

301

Stabilizer Top — Outlet grille

incorporates stabilizing technology that provides smooth, sturdy operation.

External Service Valves — Both

service valves are brass, front seating type. The 38AYC has sweat ﬁeld connections. Valves are externally located so refrigerant tube connections can be made quickly and easily. Each valve has a service port for ease of checking operating refrigerant pressures.

Limited Warranty — Standard

5-year limited warranty on parts, and a 5-year limited warranty on the compressor.

Electric Heat Pump

Nominal Capacity

018 — 18,000 Btuh 042 — 42,000 Btuh 024 — 24,000 Btuh 048 — 48,000 Btuh 030 — 30,000 Btuh 060 — 60,000 Btuh 036 — 36,000 Btuh

Packaging

Series

Electrical

3 — 208-230-1

Page 3

CERTIFICATION APPLIES ONLY

REGISTERED QUALITY SYSTEM

WHEN THE COMPLETE SYSTEM

IS LISTED WITH ARI.

Physical data

UNIT SIZE 018 024 030 036 042 048 060 OPERATING WT (Lb)

COMPRESSOR

Type

REFRIGERANT

Control Charge (Lb)@15 Ft

CONDENSER FAN

Air Discharge Air Qty (CFM) Motor HP Motor RPM (60 Hz)

CONDENSER COIL

Face Area (Sq Ft) Fins per In. Rows Circuits

VALVE CONNECTION (In. ID)

Vapor Liquid

REFRIGERANT TUBES *

(In. OD) Vapor Liquid

Tube sizes are for runs up to 50 ft. For tube set over 50 ft horizontal or 20 ft vertical differential, consult Residential Split Systems Long-Line Appli-

cation Guideline.

NOTE: See unit Installation Instructions for proper installation.

115 166 188 208 209 250 278

Scroll

R-22

5.5 5.63 7.88 9.88 10.63 11.13 14.0 Propeller Type, Direct Drive

1700 3000 3300

1/12 1/8 1/4

1100 825 1125

12.4 14.93 22.40 16.18 18.67 22.40 20 20 20 20 20

11 222 23 456

5/8 3/4 7/8

5/8 3/4 7/8 1-1/8

Piston

Ver tical

Sweat

3/8

UNIT SIZE SERIES

018

024

030

036

042

048

060

METERING DEVICE

OUTDOOR

PISTON

33, 34 42 52

33, 34 49 59

33, 34 55 63

33, 34 63 78

33, 34 65 78

33, 34 73 90

33, 34 78 101

INDOOR

PISTON

Page 4

Accessories

ORDERING NUMBER DESCRIPTION

KAATD0101TDR

KSALA0401AAA‡

HC34GE232 HC38GE231 HC40GE232

KSALA0201R22

KAAFT0101AAA†

KHAIR0101AAA†

KSAHS1501AAA KSAHS1701AAA KSAHS1601AAA

KAACS0201PTC KAACH1401AAA KAACH1201AAA

Standard KSASH1801COP KSASH0601COP KSASH2101COP KHAOT0301FST KHAOT0201SEC KSATX0601HSO KSATX0701HSO KSATX1001HSO KHATX0201RPB KHATX0301RPB KHATX0401RPB KHATX0501RPB KHATX0601RPB KHATX0701RPB

Standard

KSAHI0101HPS P504-8083S (RCD) P504-8163S (RCD)

KHALS0401LLS KAACF1001MED

KAACF1101 LRG

Isolation relay required. † Use with MotorMaster®—Low-Ambient Controller. ‡Fan motor with ball bearings required.

Time-Delay Relay — All Sizes MotorMaster®—Low-Ambient Controller — All Sizes Ball Bearing Fan Motor — Size 018 Ball Bearing Fan Motor — Sizes 024–048 Ball Bearing Fan Motor — Size 060 Low-Ambient Pressure Switch — All Sizes Evaporator Freeze Thermostat — All Sizes Isolation Relay — All Sizes Compressor Start Assist-Capacitor/Relay — Sizes 018–036 Compressor Start Assist-Capacitor/Relay — Sizes 042, 048 Compressor Start Assist-Capacitor/Relay — Size 060 Compressor Start Assist-PTC — All Sizes Crankcase Heater — Sizes 018–024 Crankcase Heater — Sizes 030–048 Crankcase Heater — Size 060 Sound Hood — Sizes 018–030 Sound Hood — Sizes 036, 042 Sound Hood — Sizes 048, 060 Outdoor Thermostat — All Sizes Secondary Outdoor Thermostat — All Sizes Thermostatic Expansion Valve (Hard Shutoff) — Sizes 018–042 Thermostatic Expansion Valve (Hard Shutoff) — Size 048 Thermostatic Expansion Valve (Hard Shutoff) — Size 060 Thermostatic Expansion Valve (RPB) — Size 018 Thermostatic Expansion Valve (RPB) — Size 024 Thermostatic Expansion Valve (RPB) — Size 030 Thermostatic Expansion Valve (RPB) — Sizes 036, 042 Thermostatic Expansion Valve (RPB) — Size 048 Thermostatic Expansion Valve (RPB) — Size 060 Low-Pressure Switch — All Sizes High-Pressure Switch — All Sizes Filter Drier (Bi-ﬂow) — Sizes 018–036 Filter Drier (Bi-ﬂow) — Sizes 042–060 Liquid Solenoid Valve (LSV) — All Sizes Coastal Filter Kit — Size 018 Coastal Filter Kit — Sizes 024–060

THERMOSTAT PKG DESCRIPTION

TSTATCCPRH01-B

TSTATCCPDF01-B

TSTATCCPHP01-B

TSTATCCNHP01-B

TSTATCCBHP01-B

TSTATXXSEN01-B

TSTATXXNBP01

TSTATXXPBP01

TSTATXXCNV10

TSTATXXBBP01

Thermidistat™ Control — Programmable Thermostat with Humidity Control

Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, Dual Fuel Must be used with Outdoor Sensor (TSTATXXSEN01-B). High-pressure switch must be added if not supplied with the system.

Thermostat — Auto Changeover, 7-Day Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool

Thermostat — Auto Changeover, Non-Programmable, °F/°C, 2-Stage Heat, 1-Stage Cool

Builder’s Thermostat — Manual Changeover, Non-Programmable, °F, 2-Stage Heat, 1-Stage Cool

Outdoor Air Temperature Sensor

Backplate for Non-Programmable Thermostat

Backplate for Programmable Thermostat

Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack

Backplate for Builder’s Thermostat

Page 5

Accessory usage guideline

REQUIRED FOR

LOW-AMBIENT

ACCESSORY

Crankcase Heater

Evaporator Freeze Thermostat

Accumulator

Compressor Start Assist

Capacitor and Relay

MotorMaster®—Low-Ambient

Controller or Low-Ambient Pressure

Switch

Wind Bafﬂe

Coastal Filter

Support Feet Recommended No Recommended

Liquid-Line Solenoid Valve

Hard Shutoff TXV No

Ball Bearing Fan Motor Ye s N o N o

For tubing line sets between 50 and 175 ft horizontal or 20 ft vertical differential, refer to Residential Split Systems Long-Line Application Guideline.

APPLICATIONS

(Below 55°F)

Ye s Yes No

Ye s N o N o

No No No

Ye s Yes No

Ye s N o N o

See Low-Ambient Instructions No No

No No Yes

REQUIRED FOR

LONG-LINE

APPLICATIONS

(Over 50 Ft)

See Long-Line

Application

Guideline No

REQUIRED FOR

SEA COAST APPLICATIONS (Within 2 Miles)

Accessory description and usage (Listed alphabetically)

Ball-Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction while maintaining bearing lubrication.

Usage Guideline:

Coastal Filter

A mesh screen inserted under the top cover and inside the base pan to protect the condenser coil from salt damage without restricting airflow.

Compressor Start Assist – Capacitor and Relay

Start capacitor and relay gives a "hard" boost to compressor motor at each start up.

Usage Guideline:

4. Compressor Start Assist – PTC Type

Solid-state electrical device which gives a "soft" boost to the compressor motor at each start up.

Usage Guideline:

Crankcase Heater

An electric resistance heater which mounts to the base of the compressor to keep the lubricant warm during off cycles. Improves compressor lubrication on restart and minimizes the chance of liquid slugging.

Note:

Some heat pumps are factory supplied with a crankcase heater. See accessory list for units that come standard with a crankcase heater. For units that do

not, use the guideline below.

Usage Guideline:

6. Evaporator Freeze Thermostat

An SPST temperature-actuated switch that stops unit operation when evaporator reaches freeze-up conditions.

Usage Guideline:

Filter Drier

A device for removing contaminants from refrigerant circulating in a heat pump system: two-direction flow.

Usage Guideline:

High-Pressure Switch

Auto reset SPST switch activated by refrigerant pressure on high side of refrigerant circuit. Cycles compressor off if refrigerant pressure rises to 426 ± 10 psig and resets at 320 ± 20 psig. Provides protection against compressor damage due to loss of outdoor airflow.

Usage Guideline:

Isolation Relay

An SPDT relay which switches the low-ambient controller out of the outdoor fan motor circuit when the heat pump switches to heating mode.

Usage Guideline:

Required on all units when MotorMaster®—Low-Ambient Controller is installed.

Required for single-phase reciprocating

Long line Low ambient cooling Hard shut off expansion valve on indoor coil Liquid line solenoid on indoor coil

Required for single-phase scroll compressors in the following applications:

Long line Low ambient cooling

Suggested for all compressors in areas with a history of low voltage problems

Suggested when compressor power supply is marginal. Suggested in reciprocating compressor applications with rapid pressure balance (RPB) expansion valve on indoor coil.

Required in low ambient cooling applications. Required in long line applications. Suggested in all commercial applications.

Required when low-ambient kit has been added.

Suggested in all field-connected split-system heat pumps.

Suggested in installations exposed to "very dirty" outdoor air. Suggested in installations where condenser inlet air temperature exceeds 125°F (51.7°C).

Required in all heat pumps where low-ambient kit has been added.

compressors in the following applications:

Page 6

Accessory description and usage (Listed alphabetically)

10. Liquid-Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts refrigerant liquid flow in response to compressor operation. It maintains a column of refrigerant liquid ready for action at next compressor operation cycle. It also provides system protection against off-cycle refrigerant migration.

Note: When LLS is used with reciprocating compressors, Compressor Start Assist — Capacitor and Relay is required.

Usage Guideline:

11. Low-Ambient Pressure Switch

A long life pressure switch which is mounted to outdoor unit service valve. It is designed to cycle the outdoor fan motor in order to maintain head pressure within normal operating limits (approximately 100 psig to 225 psig). The control will maintain working head pressure at low-ambient temperatures down to 0°F (–17.8°C) when properly installed.

Usage Guideline:

12. MotorMaster®—Low-Ambient Controller

A fan speed control device activated by a temperature sensor. Designed to control condenser fan motor speed in response to the saturated, condensing temperature during operation in cooling mode only. For outdoor temperatures down to –20°F (–28.9°C), it maintains condensing temperature at 100°F ± 10°F (37.8°C ± –12°C).

Usage Guideline:

13. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this publication. This device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

Usage Guideline:

14. Outdoor Thermostat

An SPDT temperature-actuated switch which turns on supplemental electric heaters when outdoor air temperature drops below a user-selected set point.

Usage Guideline:

15. Secondary Outdoor Thermostat

An SPDT temperature-actuated switch which turns on third-stage of supplemental electric heaters when outdoor air temperature drops below the second-stage set point.

Usage Guideline:

16. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces the sound level by about 2 dBA.

Usage Guideline:

17. Thermostatic Expansion Valve (TXV) Bi-Flow

A modulating flow-control valve which meters refrigerant liquid flow rate into the evaporator in response to the superheat of the refrigerant gas leaving the evaporator. Kit includes valve, adapter tubes, and external equalizer tube. Both hard shutoff and RPB valves are available.

Note: When using a hard shut off TXV with single phase reciprocating compressors, a Compressor Start Assist — Capacitor and Relay is required

Usage Guideline:

18. Time-Delay Relay

An SPST delay relay which briefly continues operation of indoor blower motor to provide additional cooling after the compressor cycles off.

Note: Most indoor unit controls include this feature. For those that do not, use the guideline below.

Usage Guideline:

Required in all heat pump long line applications to control refrigerant off cycle migration in the heating mode. A second LLS or hard shut off TXV is required in heat pump long line applications for refrigerant off cycle migration in the cooling mode. See Long Line Application Guideline.

A Low-Ambient Pressure Switch or MotorMaster ®—Low-Ambient Controller must be used when cooling operation is used at outdoor temperatures below 55°F (12.8°C).

A MotorMaster ®—Low-Ambient Controller or Low-Ambient Pressure Switch must be used when cooling operation is used at outdoor temperatures below 55°F (12.8°C). Suggested for all commercial applications.

Suggested for all Carrier thermostats listed in this publication.

Electric supplemental heat applications in non-variable speed indoor units when electric heat staging is desired.

Outdoor Thermostat applications where electric heater is capable of 3-stage operation.

Suggested when unit is installed closer than 15 ft to quiet areas—bedrooms, etc. Suggested when unit is installed between two houses less than 10 ft apart.

Required to achieve ARI ratings in certain equipment combinations. Refer to combination ratings. Required for use on all zoning systems. See long line guideline.

For improved efficiency ratings for certain combinations of indoor and outdoor units. Refer to ARI Unitary Directory.

Page 7

Electrical data

UNIT

SIZE

018 024 030 036 042 048 060

VOLTS/PH

60 HZ

208-230/1 253 197

OPER VOLTS* COMPRESSOR

45.0

54.0

73.0

93.0

103.0

137.0

148.0

* Per missible limits of the voltage range at which unit will operate sat-

isfactorily. Operation outside these limits may result in unit failure. † Time-delay fuse. ‡ Length shown is as measured 1 way along the wire path between

the unit and the service panel for voltage drop not to exceed 2%.

** If wire is applied at ambient greater than 30°C (86°F), consult Table

310-16 of the NEC (ANSI/NFPA 70). The ampacity of nonmetallic-

sheathed cable (NM), trade name ROMEX, shall be that of 60°C

MIN WIRE

SIZE

60°C/ 75°C**

14/14 14/14 12/12 12/12 10/10

8/10

6/8

10.6

12.0

16.6

18.5

21.6

23.9

32.1

FAN FLA MCA

0.5

1.1

1.4

13.8

16.1

21.9

24.2

28.1

31.0

41.5

FLA — Full Load Amps LRA — Locked Rotor Amps MCA — Minimum Circuit Amps RLA — Rated Load Amps NOTE: Control circuit is 24v on all units and requires external power

source. Copper wire must be used from service disconnect to unit. All motors/compressors contain internal overload protection.

MAX

LENGTH

(FT)

60°C/ 75°C‡

71/67 60/57 71/67 64/61

88/83 124/76 156/88

(140°F) conductors, per the NEC (ANSI/NFPA 70) Article 336-26. If other than uncoated (non-plated), 60° or 75°C (140° or 167°F) insulation, copper wire (solid wire for 10 AWG and smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA 70).

A-weighted sound power (dBA)

UNIT

SIZE-SERIES

018-33, 34 78 64.4 67.7 71.8 73.8 69.4 66.8 63.5

024-33, 34 78 57.5 63.6 69.4 74.2 66.9 63.6 61.3

030-33, 34 78 56.7 59.3 67.8 74.4 67.4 65.6 64.5

036-33, 34 78 55.5 60.0 66.5 73.5 73.0 67.5 59.0

042-33, 34 79 53.5 59.5 67.5 75.5 71.5 65.5 61.0

048-33, 34 78 62.9 61.4 68.3 73.3 71.2 66.8 61.5

060-33, 34 80 64.9 63.4 70.3 75.3 73.2 68.8 63.5

STANDARD

RATING

125 250 500 1000 2000 4000 8000

NOTE: Tested in accordance with ARI Standard 270-95. (Not listed with ARI.)

TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)

MAX FUSE†

OR CKT

BKR AMPSMax Min LRA RLA

20 25 30 35 40 45 60

Page 8

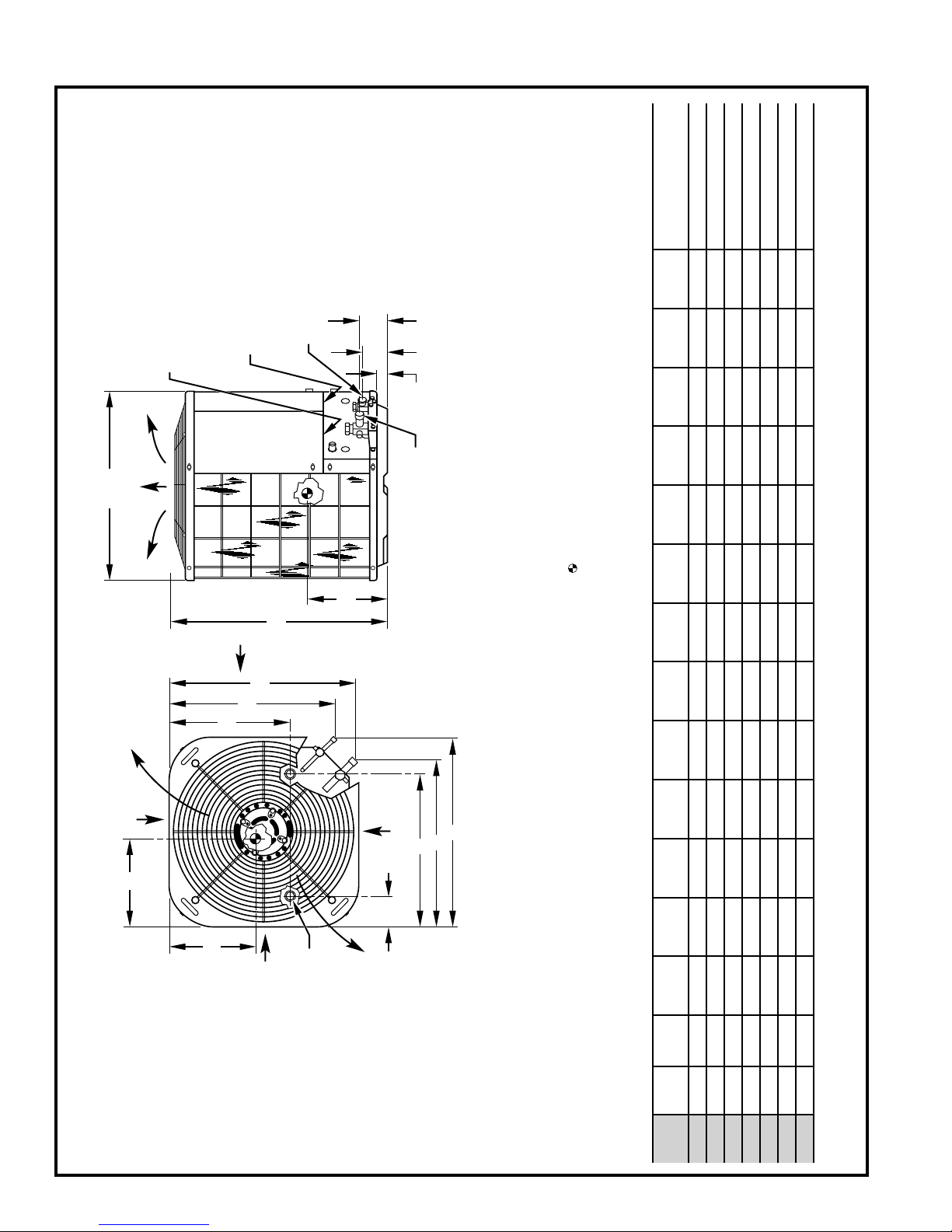

Dimensions

-IN. DIA

-IN. DIA KNOCKOUT

-IN. DIA HOLE WITH

KNOCKOUT

FIELD POWER SUPPLY CONN

AND 1

A SQ

AIR DISCHARGE

-IN. DIA

FIELD CONTROL SUPPLY

CONN

HOLE

-IN. DIA LIQUID

LINE CONN

A97045

PAD DIMENSIONSAB C D E F G HJKLMNP

MINIMUM MOUNTING

/8″

/4″

AIR DISCHARGE

AIR IN

D DIA VAPOR LINE CONN

AIR IN

NOTES:

1. Allow 30 in. clearance to service side of

unit, 48 in. above unit, 6 in. on one side, 12 in.

3. Maximum outdoor operating ambient in heating mode

is 66°F.

4. Series designation is the 13th position of the unit

model number.

on remaining side, and 24 in. between units for proper airflow.

2. Minimum outdoor operating ambient in cooling mode is

55°F (unless low ambient control is used) max. 125°F.

5. Center of gravity .

DIMENSIONS (IN.)

AIR IN

TIEDOWN

/8 -IN. DIA

(2) PLACES

KNOCKOUTS

AIR DISCHARGE

018 33, 34 22-1/2 33-15/16 3-3/16 5/8 3-11/16 18-1/8 19-3/4 21-5/8 14-3/8 18-7/8 22-1/16 10-3/4 11 14-1/4 22-1/2 x 22-1/2

SIZE SERIES

UNIT

024 33, 34 30 27-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 15 11-3/4 30 x 30

030 33, 34 30 39-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-3/4 14-3/4 16-3/4 30 x 30

036 33, 34 30 29-15/16 3-3/16 3/4 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 14-1/4 15 14 30 x 30

042 33, 34 30 29-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 14-3/4 14-1/4 30 x 30

048 33, 34 30 33-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 15-1/2 14-1/4 14-1/2 30 x 30

060 33, 34 30 39-15/16 3-1/4 7/8 6-1/2 23-1/2 27-1/4 29-1/8 20 26-3/8 29-9/16 14-3/4 13-1/2 15-1/2 30 x 30

Page 9

Print ed in U.S.A.

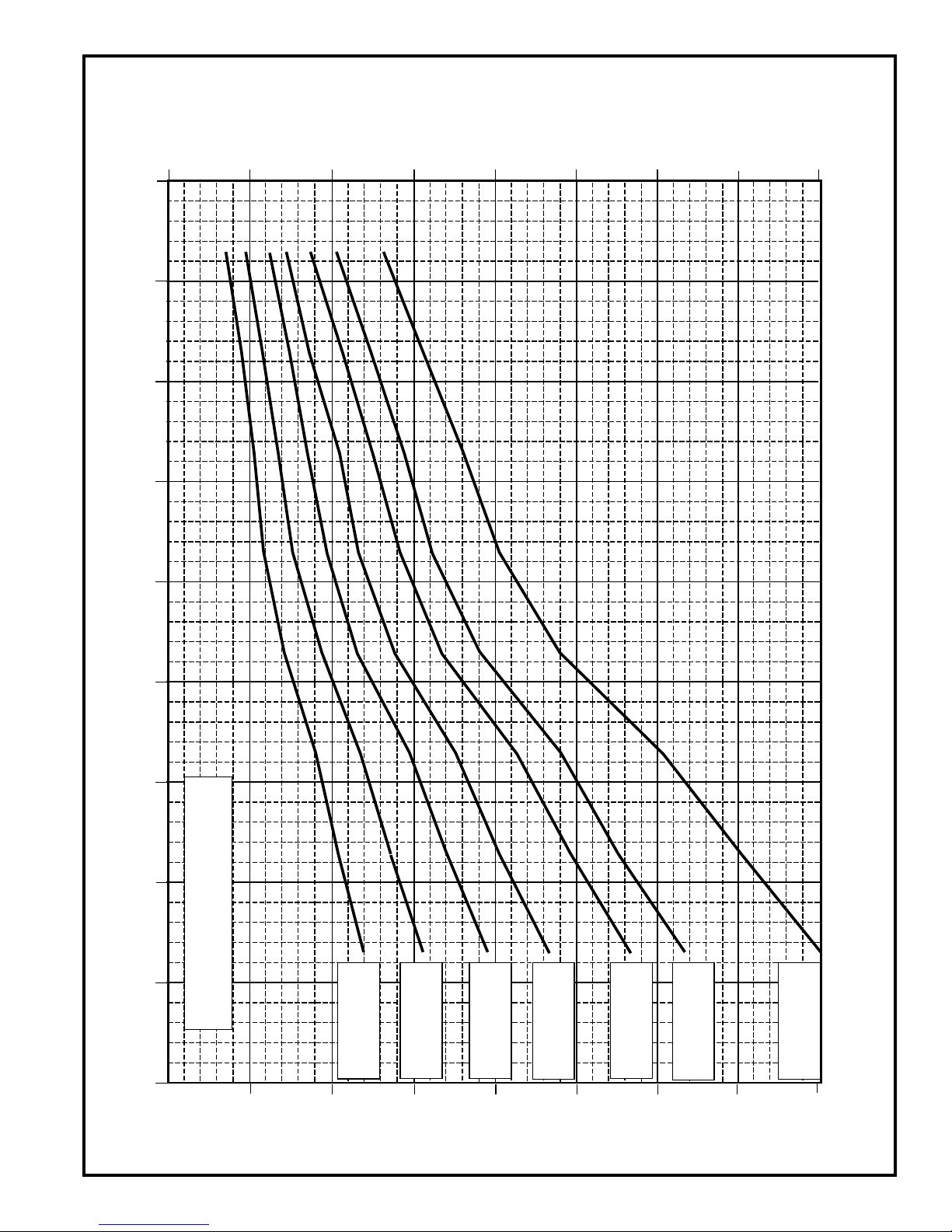

BUILDING HEAT LOSS, 1000 BTU/HR

OUTDOOR TEMPERATURE, °F

UNIT INTEGRATED HEATING CAPACITY, 1000 BTU/HR

-10

010

20 30

38AYC BALANCE POINT WORKSHEET

40 50

60 70

AND AT RATED CFM

BASED ON INDOOR ENT. AIR AT 70°F

38AYC048-34

38AYC024-34

F(A,B)ANF024

38AYC018-34

F(A,B)4ANF024

2.9

5.9

8.8

F(A,B)4ANF030

11.7

38AYC030-34

F(A,B)4ANF036

F(A,B)4AN(F,B)042

14.7

38AYC036-34

F(A,B)4AN(F,B)048

38AYC042-34

17.6

20.5

38AYC060-34

FB4ANB070

23.4

A02084

Page 10

Combination ratings*

Seasonal Efficiency SEER

Factory-

Supplied

Enhance-

ment

UNIT SIZE-

SERIES

*F(A,B)4BN(F,C)024 18,000 TDR 11.00 — 11.00 10.70 17,500 3.28 11,300 2.30 7.4

CC5A/CD5AA018 18,000 NONE — 10.50 10.50 10.30 17,200 2.96 11,200 2.16 7.0 CC5A/CD5AA024 18,000 NONE — 11.00 11.00 10.50 17,400 3.12 11,300 2.24 7.2

CC5A/CD5AW024 18,000 NONE — 11.00 11.00 10.50 17,400 3.12 11,300 2.24 7.2

CE3AA024 18,000 NONE — 11.00 11.00 10.60 17,400 3.18 11,300 2.26 7.2

CF5AA024 18,000 NONE — 11.00 11.00 10.55 17,500 3.18 11,300 2.26 7.2

CK3BA024 18,000 NONE — 11.00 11.00 10.65 17,600 3.30 11,300 2.32 7.2 CK5A/CK5BA018 18,000 NONE — 10.50 10.50 10.45 17,400 3.16 11,300 2.26 7.0 CK5A/CK5BA024 18,000 NONE — 11.00 11.00 10.65 17,600 3.30 11,300 2.32 7.2

CK5A/CK5BW024 18,000 NONE — 11.00 11.00 10.65 17,600 3.30 11,300 2.32 7.2

F(A,B)4BN(F,C)018 17,300 TDR 10.50 — 10.50 10.35 17,200 3.06 11,100 2.22 7.0

018-33, 34

024-33, 34

030-33, 34

FC4CNF024 18,000 TDR&TXV 11.00 — — 10.95 17,500 3.28 11,300 2.30 7.2 FF1DNA018 17,400 TDR 10.50 — 10.50 10.70 17,100 3.14 11,000 2.26 7.0 FF1DNA024 18,000 TDR 11.00 — 11.00 10.65 17,500 3.28 11,300 2.30 7.4 FG3AAA024 18,000 NONE 10.00 11.00 11.00 10.45 17,400 3.10 11,300 2.24 7.2 FK4DNF001 18,000 TDR&TXV 12.10 — — 12.30 16,900 3.44 10,700 2.44 7.9 FK4DNF002 18,000 TDR&TXV 12.20 — — 12.40 17,000 3.54 10,700 2.48 8.0

CC5A/CD5AA024 18,000 TDR 12.00 — 12.00 11.65 16,700 3.16 10,500 2.32 7.5

CC5A/CD5AW024 18,000 TDR 12.00 — 12.00 11.65 16,700 3.16 10,500 2.32 7.5

CE3AA024 18,000 TDR 12.00 — 12.00 11.65 16,800 3.20 10,600 2.36 7.5

CK3BA024 18,000 TDR 12.00 — 12.00 11.85 16,900 3.44 10,700 2.42 7.5 CK5A/CK5BA024 18,000 TDR 12.00 — 12.00 11.85 16,900 3.44 10,700 2.42 7.5

CK5A/CK5BW024 18,000 TDR 12.00 — 12.00 11.85 16,900 3.44 10,700 2.42 7.5

*F(A,B)4BN(F,C)024 22,600 TDR 11.00 — 11.00 10.80 23,600 3.42 14,300 2.22 7.2

CC5A/CD5AA024 22,400 NONE — 10.50 10.50 10.65 23,600 3.28 14,300 2.14 7.3

CC5A/CD5AA030 22,600 NONE — 11.00 11.00 10.70 23,600 3.30 14,300 2.16 7.3 CC5A/CD5AW024 22,400 NONE — 10.50 10.50 10.65 23,600 3.28 14,300 2.14 7.3 CC5A/CD5AW030 22,600 NONE — 11.00 11.00 10.70 23,600 3.30 14,300 2.16 7.3

CE3AA024 22,600 NONE — 10.50 10.50 10.70 23,600 3.34 14,300 2.18 7.3 CE3AA030 23,000 NONE — 11.00 11.00 10.80 23,600 3.42 14,400 2.20 7.5

CF5AA024 22,600 NONE — 11.00 11.00 10.70 23,600 3.32 14,300 2.16 7.3 CK3BA024 22,400 NONE — 10.50 10.50 10.70 23,600 3.46 14,400 2.22 7.3 CK3BA030 22,600 NONE — 11.00 11.00 10.80 23,600 3.40 14,400 2.22 7.3

CK5A/CK5BA024 22,400 NONE — 10.50 10.50 10.70 23,600 3.46 14,400 2.22 7.3

CK5A/CK5BA030 22,600 NONE — 11.00 11.00 10.80 23,600 3.40 14,400 2.22 7.3 CK5A/CK5BW024 22,400 NONE — 10.50 10.50 10.70 23,600 3.46 14,400 2.22 7.3 CK5A/CK5BW030 22,600 NONE — 11.00 11.00 10.80 23,600 3.40 14,400 2.22 7.3

F(A,B)4BN(F,C)030 23,000 TDR 11.00 — 11.00 10.95 23,600 3.44 14,300 2.22 7.5

FC4CNF024 22,600 TDR&TXV 11.00 — — 10.90 23,600 3.42 14,300 2.22 7.5 FC4CNF030 22,800 TDR&TXV 11.50 — — 11.05 23,600 3.44 14,300 2.22 7.5 FF1DNA024 22,600 TDR 10.50 — 10.50 10.60 23,600 3.40 14,400 2.20 7.5 FF1DNA030 23,200 TDR 11.00 — 11.00 10.80 23,600 3.44 14,500 2.22 7.5 FG3AAA024 22,200 NONE — 10.50 10.50 10.55 23,600 3.26 14,300 2.14 7.4 FK4DNF001 22,800 TDR&TXV 12.50 — — 12.20 23,200 3.60 13,800 2.36 7.7 FK4DNF002 23,000 TDR&TXV 12.50 — — 12.30 23,200 3.70 13,800 2.40 7.8 FK4DNF003 23,400 TDR&TXV 12.50 — — 12.55 23,200 3.70 13,700 2.42 8.0

CC5A/CD5AA030 22,600 TDR 12.00 — 12.00 11.85 23,400 3.34 13,500 2.26 7.4

CC5A/CD5AW030 22,600 TDR 12.00 — 12.00 11.85 23,400 3.34 13,500 2.26 7.4

CE3AA030 22,800 TDR 12.00 — 12.00 11.95 23,800 3.50 13,700 2.30 7.5 CK3BA030 22,600 TDR 12.00 — 12.00 11.85 23,600 3.46 13,700 2.32 7.4

CK5A/CK5BA030 22,600 TDR 12.00 — 12.00 11.90 23,600 3.46 13,700 2.32 7.4 CK5A/CK5BW030 22,600 TDR 12.00 — 12.00 11.85 23,600 3.46 13,700 2.32 7.4

*F(A,B)4BN(F,C)030 28,400 TDR 11.00 — 11.00 10.60 29,600 3.24 18,800 2.34 7.6

CC5A/CD5AA030 27,800 NONE — 11.00 11.00 10.45 29,000 3.12 18,800 2.28 7.3 CC5A/CD5AA036 28,800 NONE — 11.00 11.00 10.70 29,400 3.30 18,900 2.36 7.5

CC5A/CD5AW030 27,800 NONE — 11.00 11.00 10.45 29,000 3.12 18,800 2.28 7.3 CC5A/CD5AW036 28,800 NONE — 11.00 11.00 10.70 29,400 3.30 18,900 2.36 7.5

CE3AA030 28,000 NONE — 11.00 11.00 10.55 29,400 3.24 18,900 2.32 7.5 CE3AA036 28,400 NONE — 11.00 11.00 10.65 29,400 3.24 18,900 2.34 7.5

CF5AA036 28,400 NONE — 11.00 11.00 10.70 29,400 3.26 18,900 2.34 7.5 CK3BA030 27,800 NONE — 11.00 11.00 10.50 29,000 3.22 18,900 2.32 7.3 CK3BA036 28,800 NONE — 11.00 11.00 10.75 29,400 3.36 19,000 2.38 7.5

CK5A/CK5BA030 27,800 NONE — 11.00 11.00 10.50 29,000 3.22 18,900 2.32 7.3 CK5A/CK5BA036 28,800 NONE — 11.00 11.00 10.75 29,400 3.36 19,000 2.38 7.5

CK5A/CK5BT036 26,800 NONE — 11.00 11.00 10.75 29,400 3.36 19,000 2.38 7.5 CK5A/CK5BW030 27,800 NONE — 11.00 11.00 10.50 29,000 3.22 18,900 2.32 7.3 CK5A/CK5BW036 28,800 NONE — 11.00 11.00 10.75 29,400 3.36 19,000 2.38 7.5

F(A,B)4BN(F,C)036 28,400 TDR 11.00 — 11.00 10.45 29,600 3.26 19,100 2.32 7.6

FC4CNF030 28,000 TDR&TXV 11.00 — — 10.60 29,600 3.24 18,800 2.34 7.6 FC4CNF036 28,400 TDR&TXV 11.00 — — 10.50 29,600 3.26 19,100 2.32 7.6 FF1DNA030 28,200 TDR 11.00 — 11.00 10.55 29,400 3.28 19,000 2.34 7.5 FG3AAA036 28,400 NONE — 11.00 11.00 10.55 29,400 3.24 18,900 2.32 7.5 FK4DNF001 28,400 TDR&TXV 12.00 — — 11.55 28,800 3.38 18,200 2.44 7.9

See notes on pg. 14.

INDOOR

UNIT

ARI STANDARD RATINGS*

Cooling Heating

High-Temp Low-Temp

Carrier Fur-

Standard

Rating

nace or

Accessory

TDR‡

COILS + 58CV(A,X)070-12 FURNACE

Accessory

TXV**

EER

CAP COP CAP COP

Seasonal Ef-

ficiency

HSPF

Page 11

Combination ratings* continued

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

UNIT

SIZE-

SERIES

FK4DNF002 28,400 TDR&TXV 12.00 — — 11.60 28,800 3.48 18,300 2.48 8.0 FK4DNF003 28,800 TDR&TXV 12.00 — — 11.95 28,800 3.48 18,100 2.50 8.0

CC5A/CD5AA036 28,800 TDR 12.00 — 12.00 11.55 29,400 3.34 18,000 2.42 7.8

CE3AA036 28,800 TDR 12.00 — 12.00 11.40 29,400 3.26 18,100 2.38 7.8 CK3BA036 28,800 TDR 12.00 — 12.00 11.60 29,400 3.40 18,200 2.46 7.8

030-33, 34

036-33, 34

042-33, 34

CK5A/CK5BA036 28,800 TDR 12.00 — 12.00 11.60 29,400 3.40 18,200 2.46 7.8 CK5A/CK5BT036 28,800 TDR 12.00 — 12.00 11.60 29,400 3.40 18,100 2.46 7.8

CC5A/CD5AA036 28,800 TDR 12.20 — 12.20 11.70 29,400 3.36 18,000 2.44 7.8

CC5A/CD5AW036 28,800 TDR 12.20 — 12.20 11.70 29,400 3.36 17,900 2.44 7.8

CE3AA036 28,800 TDR 12.20 — 12.20 11.60 29,400 3.30 17,900 2.42 7.8 CK3BA036 28,800 TDR 12.20 — 12.20 11.75 29,400 3.44 18,100 2.48 7.8

CK5A/CK5BA036 28,800 TDR 12.20 — 12.20 11.75 29,400 3.44 18,000 2.48 7.8

CK5A/CK5BW036 28,800 TDR 12.20 — 12.20 11.75 29,400 3.44 18,000 2.48 7.8

*F(A,B)4BN(F,C)036 33,200 TDR 11.00 — 11.00 10.15 35,200 3.30 22,000 2.30 7.6

CC5A/CD5AA036 33,600 NONE — 11.50 11.50 10.45 35,000 3.36 21,800 2.34 7.7

CC5A/CD5AA042 33,600 NONE — 11.50 11.50 10.45 35,000 3.36 21,800 2.34 7.7 CC5A/CD5AW036 33,600 NONE — 11.50 11.50 10.45 35,000 3.36 21,800 2.34 7.7 CC5A/CD5AW042 33,400 NONE — 11.50 11.50 10.40 35,000 3.32 21,800 2.32 7.6

CE3AA036 33,200 NONE — 11.50 11.50 10.40 35,000 3.32 21,800 2.32 7.6 CE3AA042 33,800 NONE — 11.50 11.50 10.55 35,200 3.42 21,800 2.36 7.7 CF5AA036 33,400 NONE — 11.50 11.50 10.45 35,000 3.34 21,800 2.32 7.7 CK3BA036 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.7

CK3BA042 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.7 CK5A/CK5BA036 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.6 CK5A/CK5BA042 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.7 CK5A/CK5BT036 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.5 CK5A/CK5BT042 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.5

CK5A/CK5BW036 33,600 NONE — 11.50 11.50 10.50 35,200 3.42 21,800 2.36 7.7

F(A,B)4BN(F,B,C)042 33,800 TDR 11.50 — 11.50 10.40 35,200 3.40 22,000 2.34 8.0

FC4CN(F,B)042 33,800 TDR&TXV 11.50 — — 10.40 35,200 3.40 22,000 2.34 8.0

FC4CNF036 33,000 TDR&TXV 11.00 — — 10.15 35,200 3.30 22,000 2.30 7.6 FG3AAA036 33,000 NONE — 11.00 11.00 10.30 34,800 3.30 21,800 2.30 7.7 FK4DNF001 32,800 TDR&TXV 11.50 — — 10.95 34,200 3.38 21,200 2.38 7.8 FK4DNF002 32,800 TDR&TXV 12.00 — — 10.95 34,600 3.48 21,200 2.42 8.0 FK4DNF003 33,000 TDR&TXV 12.00 — — 11.55 34,000 3.52 21,000 2.46 8.0

CE3AA042 33,600 TDR 12.40 — 12.40 11.20 34,000 3.44 21,200 2.42 7.8 CK5A/CK5BE042 33,600 TDR 12.40 — 12.40 11.25 34,000 3.52 21,200 2.44 7.8

CC5A/CD5AA042 33,600 TDR 12.70 — 12.70 11.40 34,000 3.42 21,000 2.42 7.8

CE3AA042 33,600 TDR 12.70 — 12.70 11.40 34,000 3.48 21,000 2.44 7.8

CK3BA042 33,600 TDR 12.60 — 12.60 11.35 34,000 3.50 21,000 2.46 7.8 CK5A/CK5BA042 33,600 TDR 12.60 — 12.60 11.35 34,000 3.50 21,000 2.46 7.8 CK5A/CK5BE042 33,600 TDR 12.70 — 12.70 11.45 34,000 3.56 21,000 2.48 7.8 CK5A/CK5BT042 33,600 TDR 12.60 — 12.60 11.35 34,000 3.50 21,000 2.46 7.8

CC5A/CD5AA042 33,600 TDR 12.80 — 12.80 11.50 34,000 3.44 20,800 2.44 7.8

CC5A/CD5AW042 33,600 TDR 12.70 — 12.70 11.45 34,000 3.40 20,800 2.42 7.8

CE3AA042 33,600 TDR 12.70 — 12.70 11.50 34,000 3.50 21,000 2.46 7.8

CK3BA042 33,600 TDR 12.70 — 12.70 11.55 34,000 3.52 21,000 2.48 7.8 CK5A/CK5BA042 33,600 TDR 12.70 — 12.70 11.50 34,000 3.52 21,000 2.48 7.8 CK5A/CK5BT042 33,600 TDR 12.70 — 12.70 11.45 34,000 3.52 21,000 2.48 7.8

CC5A/CD5AA042 33,600 TDR 12.70 — 12.70 11.45 34,000 3.44 20,800 2.44 7.8

CC5A/CD5AW042 33,600 TDR 12.70 — 12.70 11.40 34,000 3.40 20,800 2.42 7.8

CE3AA042 33,600 TDR 12.70 — 12.70 11.45 34,000 3.48 21,000 2.46 7.8

CK3BA042 33,600 TDR 12.70 — 12.70 11.40 34,000 3.52 21,000 2.46 7.8 CK5A/CK5BA042 33,600 TDR 12.70 — 12.70 11.40 34,000 3.52 21,000 2.46 7.8 CK5A/CK5BT042 33,600 TDR 12.70 — 12.70 11.40 34,000 3.52 21,000 2.46 7.8

CC5A/CD5AA042 33,600 TDR 12.70 — 12.70 11.55 34,000 3.46 20,800 2.44 7.8

CC5A/CD5AW042 33,600 TDR 12.70 — 12.70 11.50 33,800 3.42 20,800 2.42 7.8

CE3AA042 33,600 TDR 12.70 — 12.70 11.55 34,000 3.50 20,800 2.46 7.8

CK3BA042 33,600 TDR 12.70 — 12.70 11.60 34,000 3.54 21,000 2.48 7.8 CK5A/CK5BT042 33,600 TDR 12.70 — 12.70 11.50 34,000 3.54 21,000 2.48 7.8

*F(A,B)4BN(F,B,C)042 39,500 TDR 11.00 — 11.00 10.45 42,500 3.42 27,800 2.50 7.6

CC5A/CD5AA042 39,000 NONE — 11.00 11.00 10.60 42,000 3.42 27,600 2.50 7.5

CC5A/CD5AC048 39,000 NONE — 11.00 11.00 10.50 42,000 3.32 27,600 2.46 7.5 CC5A/CD5AW042 39,000 NONE — 11.00 11.00 10.55 43,500 3.38 27,600 2.48 7.5 CC5A/CD5AW048 40,000 NONE — 11.00 11.00 10.60 42,500 3.46 27,600 2.52 7.6

CD5AA048 40,000 NONE — 11.00 11.00 10.60 42,500 3.46 27,600 2.52 7.6 CE3AA042 39,500 NONE — 11.00 11.00 10.65 42,500 3.48 27,600 2.52 7.6 CE3AA048 40,000 NONE — 11.00 11.00 10.70 42,500 3.52 27,800 2.54 7.7

See notes on pg. 14.

INDOOR

UNIT

Factory-

Supplied

Enhance-

ment

Standard

Carrier Fur-

nace or

Rating

Accessory

TDR‡

COILS + 58CV(A,X)070-12 FURNACE

COILS + 58CV(A,X)090-16 FURNACE

COILS + 58CV(A,X)070-12 FURNACE

COILS + 58CV(A,X)090-16 FURNACE

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Accessory

TXV**

EER

High-Temp Low-Temp

CAP COP CAP COP

Seasonal Ef-

ficiency

HSPF

Page 12

Combination ratings* continued

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

UNIT

SIZE-

SERIES

CF5AA048 40,000 NONE — 11.00 11.00 10.65 42,000 3.44 27,600 2.52 7.6 CK3BA042 39,000 NONE — 11.00 11.00 10.60 42,000 3.48 27,600 2.52 7.5

CK3BA048 40,000 NONE — 11.00 11.00 10.65 42,500 3.52 27,800 2.54 7.6 CK5A/CK5BA042 39,000 NONE — 11.00 11.00 10.60 42,000 3.48 27,600 2.52 7.5 CK5A/CK5BA048 40,000 NONE — 11.00 11.00 10.65 42,500 3.52 27,800 2.54 7.6 CK5A/CK5BE042 39,000 NONE — 11.00 11.00 10.65 41,000 3.52 27,800 2.54 7.4 CK5A/CK5BT042 39,000 NONE — 11.00 11.00 10.60 41,000 3.48 27,600 2.52 7.3 CK5A/CK5BT048 39,000 NONE — 11.00 11.00 10.65 41,000 3.52 27,800 2.54 7.4

CK5A/CK5BW048 40,000 NONE — 11.00 11.00 10.65 42,500 3.52 27,800 2.54 7.6

F(A,B)4BN(F,B,C)048 40,000 TDR 11.00 — 11.00 10.60 43,000 3.56 28,000 2.56 8.0

FC4CN(F,B)042 39,500 TDR&TXV 11.00 — — 10.50 42,500 3.42 27,800 2.50 7.6 FC4CN(F,B)048 40,000 TDR&TXV 11.45 — — 10.70 43,000 3.56 28,000 2.56 8.0

FG3AAA048 39,500 NONE — 11.00 11.00 10.60 42,500 3.50 27,800 2.54 7.7

FK4DNF003 39,000 TDR&TXV 11.50 — — 11.50 41,500 3.54 26,800 2.60 8.0

CC5A/CD5AC048 39,500 TDR 12.00 — 12.00 11.30 42,000 3.34 26,400 2.54 7.8

CD5AA048 39,500 TDR 12.00 — 12.00 11.45 42,000 3.52 26,600 2.60 7.8

CE3AA048 39,500 TDR 12.00 — 12.00 11.40 42,000 3.56 26,800 2.62 7.8

CK3BA048 39,500 TDR 12.00 — 12.00 11.40 42,000 3.60 26,800 2.64 7.8 CK5A/CK5BA048 39,500 TDR 12.00 — 12.00 11.40 42,000 3.60 26,800 2.64 7.8 CK5A/CK5BT048 39,500 TDR 12.00 — 12.00 11.40 42,000 3.60 26,800 2.64 7.8

CC5A/CD5AC048 39,500 TDR 12.00 — 12.00 11.40 42,000 3.36 26,400 2.56 7.8

042-33, 34

048-33, 34

CC5A/CD5AW048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.54 26,400 2.62 7.8

CD5AA048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.54 26,400 2.62 7.8

CE3AA048 39,500 TDR 12.00 — 12.00 11.50 42,000 3.58 26,600 2.64 7.8

CK3BA048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.62 26,600 2.66 7.8 CK5A/CK5BA048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.62 26,600 2.66 7.8 CK5A/CK5BT048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.62 26,600 2.66 7.8

CK5A/CK5BW048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.62 26,600 2.66 7.8

CC5A/CD5AC048 39,500 TDR 12.00 — 12.00 11.45 42,000 3.36 26,200 2.56 7.8

CC5A/CD5AW048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.54 26,400 2.62 7.8

CD5AA048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.54 26,400 2.62 7.8

CE3AA048 39,500 TDR 12.00 — 12.00 11.50 42,000 3.58 26,600 2.64 7.8

CK3BA048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.64 26,600 2.66 7.8 CK5A/CK5BA048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.64 26,600 2.66 7.8 CK5A/CK5BT048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.64 26,600 2.66 7.8

CK5A/CK5BW048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.64 26,600 2.66 7.8

CC5A/CD5AC048 39,500 TDR 12.00 — 12.00 11.45 42,000 3.36 26,200 2.58 7.8

CC5A/CD5AW048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.54 26,400 2.62 7.8

CD5AA048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.56 26,400 2.62 7.8

CE3AA048 39,500 TDR 12.00 — 12.00 11.55 42,000 3.58 26,600 2.64 7.8

CK3BA048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.64 26,600 2.66 7.8 CK5A/CK5BA048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.64 26,600 2.66 7.8 CK5A/CK5BT048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.64 26,600 2.66 7.8

CK5A/CK5BW048 39,500 TDR 12.00 — 12.00 11.60 42,000 3.64 26,600 2.66 7.8

*F(A,B)4BN(F,B,C)048 46,000 TDR 11.00 — 11.00 10.25 48,000 3.44 31,800 2.48 7.6

CC5A/CD5AA060 46,000 NONE — 11.00 11.00 10.30 48,000 3.26 31,400 2.44 7.4 CC5A/CD5AC048 44,500 NONE — 11.00 11.00 10.15 48,000 3.10 31,000 2.38 7.0

CC5A/CD5AW048 45,500 NONE — 11.00 11.00 10.25 48,000 3.30 31,400 2.44 7.4 CC5A/CD5AW060 47,000 NONE — 11.50 11.50 10.55 48,000 3.44 31,600 2.50 7.7

CD5AA048 45,000 NONE — 11.00 11.00 10.25 48,000 3.32 31,400 2.46 7.4

CE3AA048 46,000 NONE — 11.00 11.00 10.35 48,000 3.38 31,400 2.48 7.5

CE3AA060 47,500 NONE — 11.50 11.50 10.65 48,000 3.48 31,600 2.52 7.7

CF5AA048 45,000 NONE — 11.00 11.00 10.35 48,000 3.24 31,200 2.42 7.3

CK3BA048 45,500 NONE — 11.00 11.00 10.25 48,000 3.40 31,400 2.48 7.4

CK3BA060 46,000 NONE — 11.00 11.00 10.55 48,000 3.56 31,600 2.56 7.4 CK5A/CK5BA048 45,500 NONE — 11.00 11.00 10.25 48,000 3.40 31,400 2.48 7.4 CK5A/CK5BA060 46,000 NONE — 11.00 11.00 10.55 48,000 3.56 31,600 2.56 7.4 CK5A/CK5BT048 45,500 NONE — 11.00 11.00 10.25 48,000 3.40 31,400 2.48 7.4 CK5A/CK5BT060 46,000 NONE — 11.00 11.00 10.55 48,000 3.56 31,600 2.56 7.4

CK5A/CK5BW048 45,500 NONE — 11.00 11.00 10.25 48,000 3.40 31,400 2.48 7.4

CK5A/CK5BX060 47,000 NONE — 11.50 11.50 10.75 48,000 3.60 31,600 2.58 7.7

F(A,B)4BN(F,B,C)060 47,500 TDR 11.50 — 11.50 10.35 48,000 3.52 32,200 2.52 7.7

FB4BNB070 48,000 TDR 11.50 — 11.50 10.70 48,000 3.68 32,000 2.58 8.0 FC4CN(F,B)048 46,000 TDR&TXV 11.00 — — 10.25 48,000 3.44 31,800 2.48 7.6 FC4CN(F,B)060 48,000 TDR&TXV 11.50 — — 10.35 48,000 3.52 32,200 2.52 8.0

FC4CNB054 48,000 TDR&TXV 11.50 — — 10.80 48,000 3.68 31,800 2.60 8.0 FC4CNB070 47,500 TDR&TXV 11.50 — — 10.75 48,000 3.68 32,000 2.58 7.7 FG3AAA048 45,000 NONE — 11.00 11.00 10.25 48,000 3.36 31,400 2.48 7.5 FG3AAA060 46,000 NONE — 11.00 11.00 10.45 48,000 3.42 31,400 2.50 7.7 FK4DNB006 47,500 TDR&TXV 12.00 — — 11.70 48,000 3.78 30,600 2.70 8.0

FK4DNF005 48,000 TDR&TXV 12.50 — — 11.30 48,000 3.62 30,800 2.62 7.8

See notes on pg. 14.

INDOOR

UNIT

Factory-

Supplied

Enhance-

ment

Standard

Carrier Fur-

nace or

Rating

Accessory

TDR‡

COILS + 58CV(A,X)090-16 FURNACE

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Accessory

TXV**

EER

High-Temp Low-Temp

CAP COP CAP COP

Seasonal Ef-

ficiency

HSPF

Page 13

Combination ratings* continued

ARI STANDARD RATINGS*

Cooling Heating

Seasonal Efficiency SEER

UNIT

SIZE-

SERIES

CE3AA060 46,000 TDR 12.00 — 12.00 11.00 48,000 3.42 30,800 2.54 7.8

CC5A/CD5AA060 46,000 TDR 12.00 — 12.00 10.90 48,000 3.24 30,200 2.48 7.8

CE3AA060 46,000 TDR 12.00 — 12.00 11.25 48,000 3.46 30,600 2.58 7.8

CK3BA060 46,000 TDR 12.00 — 12.00 11.15 48,000 3.60 30,600 2.62 7.8 CK5A/CK5BA060 46,000 TDR 12.00 — 12.00 11.15 48,000 3.60 30,600 2.62 7.8 CK5A/CK5BT060 46,000 TDR 12.00 — 12.00 11.15 48,000 3.60 30,600 2.62 7.8 CK5A/CK5BX060 46,000 TDR 12.00 — 12.00 11.45 48,000 3.62 30,600 2.64 7.8

CC5A/CD5AA060 46,000 TDR 12.00 — 12.00 10.90 48,000 3.24 30,400 2.48 7.8

048-33, 34

060-33, 34

CC5A/CD5AW060 46,000 TDR 12.00 — 12.00 11.20 48,000 3.44 30,400 2.54 7.8

CE3AA060 46,000 TDR 12.00 — 12.00 11.20 48,000 3.44 30,600 2.58 7.8

CK3BA060 46,000 TDR 12.00 — 12.00 11.10 48,000 3.58 30,600 2.62 7.8 CK5A/CK5BA060 46,000 TDR 12.00 — 12.00 11.10 48,000 3.58 30,600 2.62 7.8 CK5A/CK5BT060 46,000 TDR 12.00 — 12.00 11.10 48,000 3.58 30,600 2.62 7.8 CK5A/CK5BX060 46,000 TDR 12.00 — 12.00 11.40 48,000 3.60 30,600 2.64 7.8

CC5A/CD5AA060 46,000 TDR 12.00 — 12.00 11.00 48,000 3.26 30,200 2.48 7.8

CC5A/CD5AW060 46,000 TDR 12.00 — 12.00 11.25 48,000 3.46 30,400 2.58 7.8

CE3AA060 46,000 TDR 12.00 — 12.00 11.30 48,000 3.46 30,400 2.58 7.8

CK3BA060 46,000 TDR 12.00 — 12.00 11.20 48,000 3.60 30,600 2.62 7.8 CK5A/CK5BA060 46,000 TDR 12.00 — 12.00 11.20 48,000 3.60 30,600 2.62 7.8 CK5A/CK5BT060 46,000 TDR 12.00 — 12.00 11.20 48,000 3.60 30,600 2.62 7.8 CK5A/CK5BX060 46,000 TDR 12.00 — 12.00 11.45 48,000 3.62 30,400 2.64 7.8

*FB4BNB070 58,000 TDR 11.00 — 11.00 10.10 60,000 3.36 39,000 2.44 7.5

CC5A/CD5AA060 55,000 NONE — 11.00 11.00 9.70 60,000 2.98 38,500 2.28 7.2

CC5A/CD5AW060 57,000 NONE — 11.00 11.00 9.90 60,000 3.22 39,000 2.38 7.5

CE3AA060 57,000 NONE — 11.00 11.00 9.95 60,000 3.24 39,000 2.40 7.5

CK3BA060 55,000 NONE — 11.00 11.00 9.85 60,000 3.12 38,500 2.34 7.2 CK5A/CK5BA060 55,000 NONE — 11.00 11.00 9.85 60,000 3.12 38,500 2.34 7.2 CK5A/CK5BT060 55,000 NONE — 11.00 11.00 9.85 60,000 3.12 38,500 2.34 7.2 CK5A/CK5BX060 57,000 NONE — 11.00 11.00 10.05 60,000 3.24 38,500 2.40 7.5

F(A,B)4BN(F,B,C)060 56,500 TDR 11.00 — 11.00 9.75 60,000 3.22 39,500 2.36 7.5

FC4CN(F,B)060 56,500 TDR&TXV 11.00 — — 9.65 60,000 3.22 39,500 2.36 7.4

FC4CNB070 57,500 TDR&TXV 11.00 — — 9.95 60,000 3.34 39,000 2.44 7.5

FG3AAA060 55,500 NONE — 11.00 11.00 9.80 60,000 3.18 39,000 2.36 7.4 FK4DNB006 58,000 TDR&TXV 11.50 — — 10.45 60,000 3.46 38,500 2.52 7.8

CC5A/CD5AA060 54,500 TDR 11.20 — 11.20 10.20 60,000 2.96 37,400 2.30 7.2

CE3AA060 56,500 TDR 11.50 — 11.50 10.55 60,000 3.16 37,800 2.40 7.5

CK3BA060 56,500 TDR 11.50 — 11.50 10.35 60,000 3.26 37,800 2.44 7.5 CK5A/CK5BA060 56,500 TDR 11.50 — 11.50 10.35 60,000 3.26 37,800 2.44 7.5 CK5A/CK5BT060 56,500 TDR 11.50 — 11.50 10.35 60,000 3.26 37,800 2.44 7.5 CK5A/CK5BX060 56,500 TDR 11.50 — 11.50 10.60 60,000 3.28 37,800 2.46 7.5

CC5A/CD5AA060 54,500 TDR 11.20 — 11.20 10.20 60,000 2.96 37,600 2.30 7.2

CC5A/CD5AW060 56,500 TDR 11.50 — 11.50 10.45 60,000 3.14 37,600 2.38 7.5

CE3AA060 56,500 TDR 11.50 — 11.50 10.50 60,000 3.16 37,800 2.40 7.5

CK3BA060 56,500 TDR 11.50 — 11.50 10.30 60,000 3.26 38,000 2.44 7.5 CK5A/CK5BA060 56,500 TDR 11.50 — 11.50 10.35 60,000 3.26 38,000 2.44 7.5 CK5A/CK5BT060 56,500 TDR 11.50 — 11.50 10.35 60,000 3.26 38,000 2.44 7.5 CK5A/CK5BX060 56,500 TDR 11.50 — 11.50 10.60 60,000 3.28 37,800 2.46 7.5

CC5A/CD5AA060 54,500 TDR 11.20 — 11.20 10.25 60,000 2.96 37,400 2.32 7.2

CC5A/CD5AW060 56,500 TDR 11.50 — 11.50 10.50 60,000 3.16 37,600 2.40 7.5

CE3AA060 56,500 TDR 11.50 — 11.50 10.60 60,000 3.16 37,600 2.42 7.5

CK3BA060 56,500 TDR 11.50 — 11.50 10.40 60,000 3.28 37,800 2.44 7.5 CK5A/CK5BA060 56,500 TDR 11.50 — 11.50 10.40 60,000 3.28 37,800 2.44 7.5 CK5A/CK5BT060 56,500 TDR 11.50 — 11.50 10.40 60,000 3.28 37,800 2.44 7.5 CK5A/CK5BX060 56,500 TDR 11.50 — 11.50 10.65 60,000 3.30 37,800 2.48 7.5

See notes on pg. 14.

INDOOR

UNIT

Factory-

Supplied

Enhance-

ment

Standard

Carrier Fur-

nace or

Rating

Accessory

TDR‡

COILS + 58CV(A,X)090-16 FURNACE

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Accessory

TXV**

EER

High-Temp Low-Temp

CAP COP CAP COP

Seasonal Ef-

ficiency

HSPF

Page 14

* Ratings are net values reﬂecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:

Cooling Standard: 80°F (27°C) db 67°F (19°C) wb indoor entering air temperature and 95°F (35°C) db air entering outdoor unit. High-Temperature Heating Standard: 70°F (21°C) db indoor entering air temperature and 47°F (8°C) db 43°F (6°C) wb air entering outdoor unit. Low-Temperature Heating Standard: 70°F (21°C) db indoor entering air temperature and 17°F (–8°C) db 15°F (11°C) wb air entering outdoor

unit.

† Outdoor section/indoor section combination tested in accordance with DOE test procedures for heat pumps. Ratings for other combinations are

determined under DOE computer simulation procedures.

‡ In most cases, only 1 method should be used to achieve TDR function. Using more than 1 method in a system may cause degradation in perfor-

mance. Use either the accessory Time-Delay Relay KAATD0101TDR or a furnace equipped with TDR.

** Requires ﬁeld-installed TXV, except FC4 and FK4 which have TXV factory installed.

COP — Coefﬁcient of Performance HSPF — Heating Seasonal Performance Factor SEER — Seasonal Energy Efﬁciency Ratio TC — Total Capacity (Btuh) TDR — Time-Delay Relay TXV — Thermostatic Expansion Valve

Page 15

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC018-33, 34 Outdoor Section With F(A,B)4BN(F,C)024 Indoor Section

72 20.2 10.1 1.49 19.5 9.87 1.66 18.5 9.53 1.85 17.5 9.17 2.05 16.5 8.82 2.27

550

650

750

CC5A/CD5AA 018 1.00 1.04 FF1DNA 018 0.97 0.97

CC5A/CD5AW 024 1.00 1.02 FG3AAA 024 1.00 1.02

CK5A/CK5BA 018 1.00 1.02 CC5A/CD5AA 024 1.00 0.92

CK5A/CK5BW 024 1.00 1.00 CE3AA 024 1.00 0.92

F(A,B)4BN(F,C) 018 0.96 0.99 CK3BA 024 1.00 0.90

See notes on pg. 21.

67 18.4 12.9 1.48 17.6 12.6 1.64 16.8 12.2 1.81 15.9 11.9 2.01 14.9 11.5 2.23 63†† 17.1 12.5 1.45 16.3 12.2 1.61 15.5 11.8 1.79 14.7 11.4 1.98 13.7 11.1 2.20 62 16.8 15.6 1.45 16.1 15.2 1.61 15.3 14.8 1.78 14.5 14.4 1.98 13.7 13.7 2.20 57 16.4 16.4 1.44 15.7 15.7 1.60 15.1 15.1 1.78 14.4 14.4 1.98 13.7 13.7 2.20

72 20.4 10.6 1.53 19.8 10.5 1.70 18.9 10.2 1.89 17.8 9.80 2.10 16.8 9.44 2.32 67 18.9 14.0 1.51 18.0 13.6 1.68 17.1 13.3 1.86 16.2 12.9 2.06 15.2 12.5 2.27 63†† 17.5 13.5 1.50 16.7 13.2 1.65 15.8 12.8 1.83 14.9 12.4 2.03 14.0 12.0 2.24 62 17.3 17.0 1.49 16.6 16.5 1.65 15.8 15.8 1.83 15.1 15.1 2.03 14.3 14.3 2.25 57 17.2 17.2 1.49 16.5 16.5 1.65 15.8 15.8 1.83 15.1 15.1 2.03 14.3 14.3 2.25

72 20.7 11.1 1.57 20.0 11.0 1.74 19.2 10.8 1.94 18.1 10.4 2.14 17.0 10.0 2.36 67 19.2 14.9 1.55 18.3 14.7 1.72 17.3 14.3 1.90 16.4 13.9 2.10 15.4 13.5 2.32 63†† 17.8 14.5 1.54 16.9 14.1 1.70 16.0 13.7 1.87 15.1 13.3 2.07 14.2 12.9 2.29 62 17.8 17.8 1.54 17.1 17.1 1.70 16.4 16.4 1.88 15.6 15.6 2.08 14.8 14.8 2.30 57 17.8 17.8 1.54 17.1 17.1 1.70 16.4 16.4 1.88 15.6 15.6 2.08 14.8 14.8 2.30

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section

CE3AA 024 1.00 1.01 FK4DNF 001 1.00 0.87

CF5AA 024 1.00 1.01 002 1.00 0.86

CK3BA 024 1.00 1.00

FC4CNF 024 1.00 0.98 CK5A/CK5BW 024 1.00 0.90

Unit Size

024 1.00 1.02 024 1.00 1.00

024 1.00 1.00 CC5A/CD5AW 024 1.00 0.92

024 1.00 1.00 CK5A/CK5BA 024 1.00 0.90

Capacity Power Capacity Power

Cooling

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Indoor

Section

Total

System

kW**

Capacity

MBtuh†

Unit Size

COILS + 58CV(A,X)070-12 FURNACE

Total

System

kW**

Cooling

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 16

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC024-33, 34 Outdoor Section With F(A,B)4BN(F,C)024 Indoor Section

72 25.4 12.8 1.92 24.4 12.5 2.09 23.4 12.2 2.28 22.2 11.7 2.49 21.0 11.3 2.72

700

800

900

See notes on pg. 21.

67 23.2 16.5 1.88 22.2 16.1 2.05 21.2 15.7 2.23 20.1 15.2 2.44 19.0 14.8 2.66 63†† 21.6 16.0 1.85 20.6 15.5 2.01 19.6 15.1 2.20 18.6 14.7 2.40 17.5 14.2 2.62 62 21.2 19.9 1.84 20.3 19.4 2.01 19.4 18.9 2.19 18.5 18.4 2.39 17.5 17.5 2.62 57 20.7 20.7 1.83 20.0 20.0 2.00 19.2 19.2 2.19 18.4 18.4 2.39 17.5 17.5 2.62

72 25.5 13.2 1.95 24.7 13.0 2.13 23.8 12.8 2.32 22.5 12.3 2.54 21.3 11.9 2.76 67 23.7 17.5 1.92 22.6 17.1 2.09 21.5 16.7 2.28 20.4 16.3 2.48 19.2 15.8 2.70 63†† 21.9 16.9 1.89 21.0 16.5 2.06 19.9 16.1 2.24 18.9 15.7 2.44 17.8 15.2 2.66 62 21.7 21.2 1.89 20.8 20.7 2.05 19.9 19.9 2.24 19.1 19.1 2.44 18.2 18.2 2.67 57 21.5 21.5 1.88 20.8 20.8 2.05 19.9 19.9 2.24 19.1 19.1 2.44 18.2 18.2 2.67

72 25.5 13.6 1.98 25.0 13.6 2.17 24.0 13.4 2.37 22.7 12.9 2.58 21.4 12.5 2.81 67 23.9 18.5 1.96 22.9 18.1 2.14 21.8 17.7 2.32 20.6 17.3 2.52 19.5 16.8 2.74 63†† 22.2 17.9 1.93 21.2 17.5 2.10 20.2 17.1 2.28 19.1 16.6 2.48 17.9 16.1 2.70 62 22.2 22.2 1.93 21.4 21.4 2.10 20.5 20.5 2.29 19.6 19.6 2.49 18.6 18.6 2.72 57 22.2 22.2 1.93 21.4 21.4 2.10 20.5 20.5 2.29 19.6 19.6 2.49 18.7 18.7 2.72

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section

CC5A/CD5AA 024 0.99 1.01 FC4CNF 024 1.00 0.99

CC5A/CD5AW 024 0.99 1.01 FF1DNA 024 1.00 1.02

CE3AA 024 1.00 1.01 FG3AAA 024 0.98 1.01

CF5AA 024 1.00 1.01 002 1.02 0.89

CK3BA 024 0.99 1.00 003 1.04 0.89

CK5A/CK5BA 024 0.99 1.00 CC5A/CD5AA 030 1.00 0.91

CK5A/CK5BW 024 0.99 1.00 CE3AA 030 1.01 0.91

F(A,B)4BN(F,C) 024 1.00 1.00 CK5A/CK5BA 030 1.00 0.91

Unit

Size

030 1.00 1.01 030 1.01 0.99

030 1.00 1.01 030 1.03 1.03

030 1.02 1.02 FK4DNF 001 1.01 0.89

030 1.00 1.00

030 1.00 1.00 CC5A/CD5AW 030 1.00 0.91

030 1.00 1.00 CK3BA 030 1.00 0.91

030 1.02 1.00 CK5A/CK5BW 030 1.00 0.91

Capacity Power Capacity Power

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Cooling

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Indoor

Section

Capacity

MBtuh†

COILS + 58CV(A,X)070-12 FURNACE

Unit

Size

Total

System

kW**

Capacity

MBtuh†

Cooling

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 17

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC030-33, 34 Outdoor Section With F(A,B)4BN(F,C)030 Indoor Section

72 31.8 15.9 2.47 30.7 15.5 2.70 29.4 15.1 2.94 28.0 14.6 3.19 26.6 14.1 3.46

875

1000

1125

CC5A/CD5AA 030 0.98 0.99 FF1DNA 030 0.99 1.00

CC5A/CD5AW 030 0.98 0.99 FK4DNF 001 1.00 0.92

CK5A/CK5BA 030 0.98 0.99 CK5A/CK5BA 036 1.01 0.93

CK5A/CK5BT 036 0.94 0.93

CK5A/CK5BW 030 0.98 0.99 CC5A/CD5AA 036 1.01 0.92

F(A,B)4BN(F,C) 030 1.00 1.00 CE3AA 036 1.01 0.93

See notes on pg. 21.

67 29.1 20.3 2.42 27.9 19.9 2.62 26.7 19.4 2.84 25.4 18.9 3.09 24.1 18.3 3.36 63†† 27.1 19.7 2.35 26.0 19.3 2.56 24.8 18.8 2.78 23.6 18.2 3.03 22.3 17.7 3.29 62 26.6 24.5 2.34 25.6 24.0 2.54 24.5 23.4 2.77 23.3 22.8 3.02 22.1 22.0 3.29 57 25.9 25.9 2.32 25.0 25.0 2.53 24.1 24.1 2.76 23.1 23.1 3.01 22.1 22.1 3.29

72 32.2 16.5 2.52 31.3 16.3 2.76 29.8 15.8 3.00 28.4 15.3 3.25 26.9 14.8 3.53 67 29.6 21.6 2.48 28.4 21.1 2.68 27.1 20.6 2.90 25.8 20.1 3.15 24.4 19.6 3.42 63†† 27.5 20.9 2.42 26.4 20.4 2.62 25.2 19.9 2.84 23.9 19.4 3.08 22.5 18.8 3.35 62 27.2 26.1 2.41 26.1 25.6 2.61 25.0 24.9 2.83 23.9 23.9 3.09 22.8 22.8 3.36 57 26.8 26.8 2.39 25.9 25.9 2.60 25.0 25.0 2.83 23.9 23.9 3.09 22.8 22.8 3.36

72 32.4 17.1 2.57 31.6 17.0 2.81 30.1 16.5 3.06 28.7 16.0 3.31 27.1 15.5 3.58 67 30.0 22.8 2.52 28.7 22.3 2.74 27.5 21.8 2.96 26.1 21.3 3.21 24.6 20.7 3.48 63†† 27.9 22.1 2.47 26.7 21.6 2.67 25.5 21.0 2.89 24.2 20.5 3.14 22.8 19.9 3.41 62 27.7 27.5 2.47 26.7 26.7 2.67 25.6 25.6 2.90 24.6 24.6 3.15 23.4 23.4 3.43 57 27.6 27.6 2.46 26.7 26.7 2.67 25.7 25.7 2.90 24.6 24.6 3.15 23.4 23.4 3.43

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section

CE3AA 030 0.99 0.99 003 1.01 0.90

CF5AA 036 1.00 0.99 CC5A/CD5AA 036 1.01 0.93

CK3BA 030 0.98 0.99 CE3AA 036 1.01 0.94

FC4CNF 030 0.99 0.99 CK5A/CK5BA 036 1.01 0.91

Unit Size

036 1.01 1.00 FG3AAA 036 1.00 1.00

036 1.01 1.00 002 1.00 0.91

036 1.00 1.00

036 1.01 1.00 CK3BA 036 1.01 0.93

036 1.01 1.00 CK5A/CK5BT 036 1.01 0.93

036 1.01 1.00 CC5A/CD5AW 036 1.01 0.92

036 1.00 1.01 CK3BA 036 1.01 0.91

036 1.00 1.01 CK5A/CK5BW 036 1.01 0.91

Capacity Power Capacity Power

Cooling

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Indoor

Section

Total

System

kW**

Capacity

MBtuh†

Unit Size

COILS + 58CV(A,X)070-12 FURNACE

COILS + 58CV(A,X)090-16 FURNACE

Total

System

kW**

Cooling

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 18

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC036-33, 34 Outdoor Section With F(A,B)4BN(F,C)036 Indoor Section

72 37.0 18.5 2.95 35.7 18.1 3.23 34.4 17.7 3.55 32.8 17.1 3.90 31.0 16.5 4.27

1050

1200

1350

CC5A/CD5AA 036 1.01 0.98 CE3AA 042 1.01 0.90

CC5A/CD5AW 036 1.01 0.98 CK5A/CK5BA 042 1.01 0.91

CK5A/CK5BA 036 1.01 0.98 CK3BA 042 1.01 0.89

CK5A/CK5BT 036 1.01 0.98 CK5A/CK5BT 042 1.01 0.90

CK5A/CK5BW 036 1.01 0.98 CC5A/CD5AA 042 1.01 0.90

F(A,B)4BN(F,B,C) 042 1.02 0.99 CC5A/CD5AW 042 1.01 0.90

F(A,B)4BN(F,C) 036 1.00 1.00 CE3AA 042 1.01 0.90

FC4CN(F,B) 042 1.02 0.99 CK3BA 042 1.01 0.90

CK5A/CK5BE 042 1.01 0.91 CK5A/CK5BT 042 1.01 0.89

CC5A/CD5AA 042 1.01 0.90

See notes on pg. 21.

67 34.0 23.9 2.92 32.6 23.4 3.20 31.2 22.8 3.50 29.7 22.2 3.83 28.1 21.6 4.20 63†† 31.6 23.2 2.88 30.3 22.6 3.15 29.0 22.0 3.45 27.5 21.4 3.78 25.9 20.7 4.14 62 31.1 28.9 2.87 29.9 28.3 3.15 28.6 27.6 3.45 27.2 26.8 3.78 25.8 25.8 4.13 57 30.3 30.3 2.86 29.3 29.3 3.13 28.2 28.2 3.44 27.1 27.1 3.77 25.8 25.8 4.14

72 37.2 19.1 3.02 36.2 18.9 3.31 34.9 18.5 3.63 33.3 18.0 3.97 31.4 17.4 4.35 67 34.6 25.5 2.99 33.2 24.9 3.27 31.7 24.3 3.57 30.1 23.7 3.91 28.5 23.0 4.27 63†† 32.2 24.6 2.95 30.8 24.0 3.23 29.4 23.4 3.53 27.9 22.8 3.86 26.3 22.1 4.21 62 31.8 30.8 2.95 30.6 30.1 3.22 29.2 29.2 3.52 28.0 28.0 3.86 26.7 26.7 4.22 57 31.4 31.4 2.94 30.4 30.4 3.22 29.2 29.2 3.52 28.0 28.0 3.86 26.7 26.7 4.22

72 37.2 19.6 3.08 36.6 19.7 3.38 35.3 19.4 3.70 33.6 18.8 4.04 31.7 18.2 4.42 67 35.1 26.9 3.06 33.6 26.4 3.34 32.1 25.8 3.64 30.5 25.1 3.98 28.8 24.5 4.34 63†† 32.6 26.0 3.02 31.2 25.4 3.30 29.7 24.8 3.60 28.2 24.1 3.93 26.5 23.4 4.28 62 32.4 32.3 3.02 31.2 31.2 3.30 30.0 30.0 3.60 28.8 28.8 3.94 27.4 27.4 4.31 57 32.4 32.4 3.02 31.2 31.2 3.30 30.0 30.0 3.60 28.8 28.8 3.94 27.4 27.4 4.31

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section

CE3AA 036 1.00 0.98 CK5A/CK5BT 042 1.01 0.91

CF5AA 036 1.01 0.98 CC5A/CD5AA 042 1.01 0.89

CK3BA 036 1.01 0.98 CC5A/CD5AW 042 1.01 0.90

FC4CNF 036 0.99 0.99 CK5A/CK5BA 042 1.01 0.90

FG3AAA 036 0.99 0.98 CK5A/CK5BT 042 1.01 0.90

FK4DNF 001 0.99 0.92

CE3AA 042 1.01 0.92 CK3BA 042 1.01 0.89

Unit

Size

042 1.01 0.98 CK3BA 042 1.01 0.91

042 1.01 0.98 CK5A/CK5BE 042 1.01 0.90

042 1.02 0.98

042 1.01 0.98 CE3AA 042 1.01 0.89

042 1.01 0.98 CK5A/CK5BA 042 1.01 0.89

042 1.01 0.98

002 0.99 0.92 CC5A/CD5AA 042 1.01 0.89

003 0.99 0.87 CC5A/CD5AW 042 1.01 0.89

COILS + 58CV(A,X)070-12 FURNACE CE3AA 042 1.01 0.89

COILS + 58CV(A,X)090-16 FURNACE —— —

Capacity Power Capacity Power

Cooling

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Indoor

Section

Total

System

kW**

Capacity

MBtuh†

Unit Size

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Total

System

kW**

Cooling

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 19

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC042-33, 34 Outdoor Section With F(A,B)4BN(F,B,C)042 Indoor Section

72 44.0 22.0 3.42 42.9 21.7 3.77 40.9 21.0 4.13 39.0 20.3 4.52 37.0 19.6 4.94

1225

1400

1575

CC5A/CD5AA 042 0.99 0.97 CK5A/CK5BT 048 1.00 0.92

CC5A/CD5AC 048 0.99 0.98

CC5A/CD5AW 042 0.99 0.98 CC5A/CD5AC 048 1.00 0.92

CK5A/CK5BA 042 0.99 0.97

CK5A/CK5BE 042 0.99 0.97 CC5A/CD5AW 048 1.00 0.90

CK5A/CK5BT 042 0.99 0.97 CD5AA 048 1.00 0.90

CK5A/CK5BW 048 1.01 0.99 CK3BA 048 1.00 0.90

F(A,B)4BN(F,B,C) 042 1.00 1.00 CK5A/CK5BA 048 1.00 0.90

FC4CN(F,B) 042 1.00 1.00 CK5A/CK5BW 048 1.00 0.90

CC5A/CD5AC 048 1.00 0.92 CE3AA 048 1.00 0.90

CK5A/CK5BA 048 1.00 0.92 CK5A/CK5BW 048 1.00 0.90

See notes on pg. 21.

67 40.5 28.5 3.38 38.9 27.8 3.69 37.2 27.2 4.04 35.4 26.4 4.42 33.6 25.7 4.84 63†† 37.7 27.6 3.32 36.1 26.9 3.63 34.5 26.3 3.97 32.8 25.5 4.35 31.0 24.7 4.76 62 37.1 34.4 3.31 35.6 33.7 3.62 34.0 32.9 3.96 32.5 32.0 4.34 30.9 30.8 4.76 57 36.2 36.2 3.29 34.9 34.9 3.60 33.7 33.7 3.95 32.3 32.3 4.34 30.9 30.9 4.76

72 44.3 22.8 3.50 43.4 22.7 3.86 41.5 22.1 4.22 39.6 21.4 4.61 37.5 20.7 5.03 67 41.3 30.3 3.46 39.5 29.6 3.78 37.7 28.9 4.13 35.9 28.2 4.51 33.9 27.4 4.93 63†† 38.3 29.3 3.41 36.7 28.6 3.71 35.0 27.9 4.06 33.2 27.2 4.44 31.3 26.4 4.85 62 37.9 36.7 3.40 36.4 35.8 3.71 34.9 34.8 4.06 33.4 33.4 4.44 31.9 31.9 4.87 57 37.5 37.5 3.39 36.2 36.2 3.70 34.8 34.8 4.05 33.4 33.4 4.44 31.8 31.8 4.87

72 44.4 23.4 3.57 43.8 23.6 3.94 42.0 23.1 4.31 39.9 22.4 4.70 37.8 21.7 5.12 67 41.7 32.0 3.54 40.0 31.4 3.87 38.2 30.7 4.21 36.3 29.9 4.59 34.3 29.1 5.01 63†† 38.7 30.9 3.49 37.1 30.2 3.80 35.4 29.5 4.14 33.6 28.7 4.52 31.7 27.9 4.94 62 38.6 38.5 3.49 37.2 37.2 3.80 35.8 35.8 4.15 34.3 34.3 4.54 32.7 32.7 4.97 57 38.5 38.5 3.49 37.2 37.2 3.80 35.8 35.8 4.15 34.3 34.3 4.54 32.7 32.7 4.97

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section

CD5AA 048 1.01 1.00 CD5AA 048 1.00 0.90

CE3AA 042 1.00 0.98 CE3AA 048 1.00 0.91

CF5AA 048 1.01 0.99 CK5A/CK5BA 048 1.00 0.90

CK3BA 042 0.99 0.97 CK5A/CK5BT 048 1.00 0.90

FG3AAA 048 1.00 0.99 CC5A/CD5AC 048 1.00 0.91

FK4DNF 003 0.99 0.90 CC5A/CD5AW 048 1.00 0.90

CD5AA 048 1.00 0.91 CK3BA 048 1.00 0.90

CE3AA 048 1.00 0.92 CK5A/CK5BA 048 1.00 0.90

CK3BA 048 1.00 0.92 CK5A/CK5BT 048 1.00 0.90

Unit Size

048 1.01 1.00 CC5A/CD5AW 048 1.00 0.90

048 1.01 0.99 CK3BA 048 1.00 0.90

048 1.01 0.99 CK5A/CK5BW 048 1.00 0.90

048 1.01 0.99 CC5A/CD5AC 048 1.00 0.91

048 0.99 0.97 CE3AA 048 1.00 0.91

048 1.01 1.00 CK5A/CK5BT 048 1.00 0.90

048 1.01 0.99

COILS + 58CV(A,X)090-16 FURNACE CD5AA 048 1.00 0.90

Capacity Power Capacity Power

Cooling

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Indoor

Section

Total

System

kW**

Capacity

MBtuh†

Unit Size

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Total

System

kW**

Cooling

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 20

Detailed cooling capacities*

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC048-33, 34 Outdoor Section With F(A,B)4BN(F,B,C)048 Indoor Section

72 51.0 25.3 3.97 49.1 24.7 4.43 47.0 24.0 4.94 44.7 23.2 5.49 42.3 22.4 6.08

1400

1600

1800

CC5A/CD5AA 060 1.00 1.00 FK4DNF 005 1.04 0.95

CC5A/CD5AC 048 0.97 0.98

CC5A/CD5AW 048 0.99 0.99 CE3AA 060 1.00 0.93

CK5A/CK5BA 048 0.99 0.99

CK5A/CK5BT 048 0.99 0.99 CC5A/CD5AW 060 1.00 0.92

CK5A/CK5BW 048 0.99 0.99 CK3BA 060 1.00 0.92

CK5A/CK5BX 060 1.02 0.97 CK5A/CK5BA 060 1.00 0.92

F(A,B)4BN(F,B,C) 048 1.00 1.00 CK5A/CK5BT 060 1.00 0.92

FC4CN(F,B) 048 1.00 1.00 CC5A/CD5AA 060 1.00 0.93

See notes on pg. 21.

67 47.4 32.8 3.95 45.3 32.0 4.40 43.1 31.1 4.90 40.6 30.1 5.44 38.2 29.2 6.02 63†† 43.8 31.8 3.92 41.8 30.9 4.37 39.7 30.0 4.86 37.6 29.1 5.39 35.2 28.1 5.95 62 43.1 39.5 3.91 41.1 38.5 4.36 39.2 37.5 4.85 37.1 36.5 5.38 34.9 34.9 5.94 57 41.8 41.8 3.90 40.2 40.2 4.35 38.6 38.6 4.84 36.9 36.9 5.38 35.0 35.0 5.94

72 51.6 26.3 4.05 49.7 25.7 4.51 47.6 25.1 5.02 45.3 24.3 5.58 42.8 23.5 6.17 67 48.2 34.8 4.03 46.0 34.0 4.49 43.7 33.1 4.99 41.2 32.2 5.53 38.7 31.2 6.11 63†† 44.6 33.7 4.01 42.5 32.8 4.46 40.3 31.9 4.95 38.1 31.0 5.48 35.7 30.0 6.04 62 44.0 42.2 4.00 42.0 41.1 4.45 40.1 39.9 4.94 38.2 38.2 5.48 36.3 36.3 6.05 57 43.4 43.4 3.99 41.7 41.7 4.45 40.0 40.0 4.94 38.2 38.2 5.48 36.2 36.2 6.05

72 52.1 27.3 4.13 50.2 26.7 4.60 48.1 26.1 5.11 45.7 25.4 5.66 43.2 24.7 6.25 67 48.8 36.8 4.11 46.6 36.0 4.57 44.2 35.2 5.07 41.7 34.2 5.61 39.1 33.1 6.20 63†† 45.2 35.6 4.09 43.0 34.7 4.54 40.8 33.8 5.03 38.5 32.8 5.56 36.1 31.7 6.13 62 44.9 44.5 4.08 43.0 43.0 4.54 41.2 41.2 5.04 39.3 39.3 5.58 37.2 37.2 6.16 57 44.7 44.7 4.08 43.0 43.0 4.54 41.2 41.2 5.04 39.3 39.3 5.58 37.3 37.3 6.15

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section

CD5AA 048 0.98 0.98 CC5A/CD5AA 060 1.00 0.94

CE3AA 048 1.00 0.99 CE3AA 060 1.00 0.91

CF5AA 048 0.98 0.97 CK5A/CK5BA 060 1.00 0.92

CK3BA 048 0.99 0.99 CK5A/CK5BT 060 1.00 0.92

FB4BNB 070 1.04 1.00

FC4CNB 054 1.04 0.99 CE3AA 060 1.00 0.91

FG3AAA 048 0.98 0.98 CK5A/CK5BA 060 1.00 0.92

FK4DNB 006 1.03 0.90 CK5A/CK5BX 060 1.00 0.90

Unit Size

060 1.02 0.99

060 1.03 0.99 CK3BA 060 1.00 0.92

060 1.00 0.97 CK5A/CK5BX 060 1.00 0.90

060 1.00 0.97 CC5A/CD5AA 060 1.00 0.94

060 1.00 0.97 CE3AA 060 1.00 0.92

060 1.03 1.02 CK5A/CK5BX 060 1.00 0.90

060 1.04 1.03 CC5A/CD5AW 060 1.00 0.91

070 1.03 0.98 CK3BA 060 1.00 0.92

060 1.00 0.98 CK5A/CK5BT 060 1.00 0.92

Capacity Power Capacity Power

Cooling

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Indoor

Section

Total

System

kW**

Capacity

MBtuh†

Unit Size

COILS + 58CV(A,X)090-16 FURNACE

COILS + 58CV(A,X)110-22 FURNACE

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Total

System

kW**

Cooling

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 21

Detailed cooling capacities* continued

EVAPORATOR

AIR

CFM EWB

85 95 105 115 125

Capacity

MBtuh†

Total

System

kW**

Capacity

38AYC060-33, 34 Outdoor Section With FB4BNB070 Indoor Section

72 65.6 32.7 5.42 63.2 32.0 6.00 60.5 31.0 6.64 57.4 29.9 7.31 54.1 28.8 8.03

1750

2000

2250

CC5A/CD5AA 060 0.95 0.99 CK5A/CK5BT 060 0.97 0.95

CC5A/CD5AW 060 0.98 1.00 CK5A/CK5BX 060 0.97 0.93

CK5A/CK5BA 060 0.95 0.97 CC5A/CD5AW 060 0.97 0.94

CK5A/CK5BT 060 0.95 0.97 CE3AA 060 0.97 0.94

CK5A/CK5BX 060 0.98 0.99 CK3BA 060 0.97 0.96

F(A,B)4BN(F,B,C) 060 0.97 1.01 CK5A/CK5BA 060 0.97 0.95

CC5A/CD5AA 060 0.94 0.93 CK3BA 060 0.97 0.95

CK5A/CK5BA 060 0.97 0.95 CK5A/CK5BX 060 0.97 0.92

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* Detailed cooling capacities are based on indoor and outdoor unit at same elevation per ARI standard 210/240-94. If additional tubing length and/or

indoor unit is located above outdoor unit, a slight variation in capacity may occur. † Total and sensible capacities are net capacities. Blower motor heat has been subtracted. ‡ Sensible capacities shown are based on 80°F (27°C) entering air at the indoor coil. For sensible capacities at other than 80°F (27·C), deduct 835

Btuh (245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80°F (27°C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S)

of indoor coil air per degree above 80°F (27°C).

** System kW is total of indoor and outdoor unit kilowatts.

†† At TVA rating indoor condition (75°F edb/63°F ewb). All other indoor air temperatures are at 80°F edb. EWB – Entering Wet Bulb

67 60.6 42.3 5.35 58.0 41.3 5.92 55.2 40.2 6.54 52.1 39.0 7.22 49.0 37.7 7.93 63†† 56.3 41.1 5.31 53.7 40.0 5.87 51.1 38.9 6.47 48.3 37.6 7.12 45.0 36.2 7.81 62 55.4 51.2 5.29 52.9 50.0 5.85 50.4 48.8 6.46 47.7 47.3 7.11 45.0 45.0 7.80 57 53.9 53.9 5.27 52.0 52.0 5.83 49.8 49.8 6.44 47.6 47.6 7.10 44.9 44.9 7.80

72 66.2 34.0 5.54 63.9 33.4 6.12 61.0 32.4 6.75 58.0 31.4 7.43 54.5 30.2 8.14 67 61.6 44.9 5.47 58.9 44.0 6.05 56.1 42.9 6.67 52.8 41.7 7.34 49.6 40.4 8.06 63†† 57.4 43.8 5.43 54.6 42.6 5.99 51.8 41.4 6.60 49.0 40.2 7.25 45.7 38.8 7.94 62 56.7 55.0 5.42 54.1 53.5 5.98 51.6 51.6 6.59 49.3 49.3 7.26 46.7 46.7 7.98 57 56.0 56.0 5.42 53.9 53.9 5.98 51.6 51.6 6.59 49.3 49.3 7.26 46.7 46.7 7.97

72 66.2 35.0 5.64 64.3 34.7 6.24 61.0 33.5 6.85 58.1 32.6 7.53 54.6 31.3 8.24 67 62.2 47.4 5.59 59.5 46.5 6.16 56.7 45.5 6.79 53.4 44.3 7.47 50.2 43.1 8.18 63†† 58.2 46.3 5.55 55.2 45.0 6.12 52.4 43.8 6.72 49.5 42.6 7.38 46.3 41.2 8.08 62 57.8 57.8 5.55 55.5 55.5 6.12 53.2 53.2 6.74 50.7 50.7 7.41 48.0 48.0 8.13 57 57.7 57.7 5.56 55.4 55.4 6.12 53.1 53.1 6.74 50.6 50.6 7.41 48.1 48.1 8.13

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CE3AA 060 0.98 1.00

CK3BA 060 0.95 0.97 CC5A/CD5AA 060 0.94 0.93

FB4BNB 070 1.00 1.00 CK5A/CK5BT 060 0.97 0.95

FC4CN(F,B) 060 0.97 1.02 CK5A/CK5BX 060 0.97 0.93

FC4CNB 070 0.99 1.01

FG3AAA 060 0.96 0.99 CC5A/CD5AA 060 0.94 0.93

FK4DNB 006 1.00 0.97 CC5A/CD5AW 060 0.97 0.94

COILS + 58CV(A,X)110-22 FURNACE CE3AA 060 0.97 0.93

CE3AA 060 0.97 0.93 CK5A/CK5BA 060 0.97 0.95

CK3BA 060 0.97 0.95 CK5A/CK5BT 060 0.97 0.95

Capacity Power Capacity Power

Cooling

CONDENSER ENTERING AIR TEMPERATURES °F

MBtuh†

Total

System

kW**

Capacity

MBtuh†

Total

System

kW**

Indoor

Section Size

Capacity

MBtuh†

COILS + 58CV(A,X)135-22 FURNACE

COILS + 58CV(A,X)155-22 FURNACE

Total

System

kW**

Cooling

Capacity

MBtuh†

Total

System

kW**Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡ Total Sens‡

Page 22

Heat pump heating performance

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

–3 7 17 27 37475767

INDOOR

AIR

EDB CFM Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW†

CC5A/CD5AA 018 0.98 1.09 FF1DNA 018 0.98 1.02

CC5A/CD5AW 024 0.99 1.05 FG3AAA 024 0.99 1.05

CK5A/CK5BA 018 0.99 1.03 CC5A/CD5AA 024 0.95 0.99

CK5A/CK5BW 024 1.01 1.00 CE3AA 024 0.96 0.98

F(A,B)4BN(F,C) 018 0.98 1.05 CK3BA 024 0.97 0.92

CC5A/CD5AA 024 1.00 1.04 FC4CNF 024 1.00 1.00

CC5A/CD5AW 024 1.00 1.04 FF1DNA 024 1.00 1.01

CK5A/CK5BA 024 1.00 0.99 CC5A/CD5AA 030 0.99 1.02

CK5A/CK5BW 024 1.00 0.99 CE3AA 030 1.01 0.99

F(A,B)4BN(F,C) 024 1.00 1.00 CK5A/CK5BA 030 1.00 0.99

See notes on pg. 27.

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

38AYC018-33, 34 Outdoor Section With F(A,B)4BN(F,C)024 Indoor Section

550 7.91 7.28 1.18 9.50 8.73 1.22 11.3 10.3 1.27 13.2 11.7 1.33 15.4 14.1 1.40 18.0 18.0 1.50 20.7 20.7 1.62 23.9 23.9 1.80 650 8.05 7.41 1.20 9.66 8.87 1.24 11.5 10.4 1.28 13.4 11.9 1.33 15.7 14.3 1.40 18.2 18.2 1.49 21.0 21.0 1.62 24.2 24.2 1.79 750 8.19 7.53 1.22 9.80 9.01 1.25 11.6 10.6 1.29 13.6 12.0 1.34 15.8 14.4 1.41 18.4 18.4 1.50 21.2 21.2 1.63 24.4 24.4 1.80

550 7.81 7.19 1.24 9.40 8.64 1.29 11.2 10.2 1.34 13.1 11.6 1.40 15.3 13.9 1.48 17.8 17.8 1.58 20.5 20.5 1.70 23.6 23.6 1.88 650 7.96 7.32 1.26 9.55 8.78 1.30 11.3 10.3 1.34 13.2 11.8 1.40 15.5 14.1 1.47 18.0 18.0 1.56 20.7 20.7 1.69 23.9 23.9 1.86 750 8.10 7.45 1.28 9.69 8.91 1.31 11.5 10.5 1.36 13.4 11.9 1.41 15.7 14.3 1.48 18.2 18.2 1.57 20.9 20.9 1.69 24.1 24.1 1.87

550 7.69 7.08 1.30 9.30 8.54 1.35 11.0 10.1 1.41 12.9 11.5 1.48 15.1 13.7 1.56 17.6 17.6 1.66 20.3 20.3 1.79 23.3 23.3 1.96 650 7.85 7.22 1.31 9.45 8.68 1.36 11.2 10.2 1.41 13.1 11.6 1.47 15.3 13.9 1.54 17.8 17.8 1.64 20.5 20.5 1.77 23.6 23.6 1.94 750 7.99 7.35 1.34 9.59 8.81 1.38 11.4 10.4 1.42 13.3 11.8 1.48 15.5 14.1 1.55 18.0 18.0 1.64 20.7 20.7 1.77 23.8 23.8 1.94

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Capacity Power Capacity Power

Heating

Indoor

Section Size

024 0.99 1.05 024 1.00 1.00

CE3AA 024 0.99 1.03 FK4DNF 001 0.97 0.92

CF5AA 024 1.00 1.03 002 0.97 0.90

CK3BA 024 1.01 1.00

COILS + 58CV(A,X)070-12 FURNACE

024 1.01 1.00 CC5A/CD5AW 024 0.95 0.99

024 1.00 1.00 CK5A/CK5BA 024 0.97 0.92

FC4CNF 024 1.00 1.00 CK5A/CK5BW 024 0.97 0.92

Heating

38AYC024-33, 34 Outdoor Section With F(A,B)4BN(F,C)024 Indoor Section

700 10.4 9.54 1.50 12.5 11.5 1.57 14.8 13.5 1.64 17.4 15.4 1.73 20.3 18.5 1.83 23.6 23.6 1.95 27.2 27.2 2.11 31.2 31.2 2.29 800 10.5 9.69 1.52 12.7 11.6 1.58 15.0 13.7 1.65 17.6 15.6 1.73 20.6 18.7 1.82 23.9 23.9 1.94 27.6 27.6 2.09 31.6 31.6 2.27 900 10.7 9.82 1.54 12.8 11.8 1.60 15.2 13.8 1.67 17.8 15.8 1.74 20.8 18.9 1.83 24.1 24.1 1.94 27.8 27.8 2.09 31.8 31.8 2.26

10.2 9.34 1.56 12.3 11.3 1.64 14.6 13.3 1.71 17.2 15.3 1.80 20.1 18.3 1.91 23.3 23.3 2.04 26.9 26.9 2.19 30.9 30.9 2.39

700

800 10.3 9.50 1.58 12.5 11.5 1.65 14.8 13.5 1.72 17.4 15.4 1.80 20.3 18.5 1.90 23.6 23.6 2.02 27.2 27.2 2.17 31.2 31.2 2.36 900 10.5 9.65 1.60 12.7 11.6 1.67 15.0 13.7 1.73 17.6 15.6 1.81 20.5 18.7 1.91 23.8 23.8 2.02 27.5 27.5 2.17 31.5 31.5 2.35

9.90 9.11 1.61 12.2 11.2 1.70 14.5 13.2 1.79 17.0 15.1 1.88 19.8 18.1 1.99 23.0 23.0 2.12 26.6 26.6 2.29 30.5 30.5 2.48

700

800 10.1 9.27 1.63 12.3 11.3 1.71 14.6 13.3 1.79 17.2 15.3 1.88 20.1 18.3 1.98 23.3 23.3 2.11 26.9 26.9 2.26 30.9 30.9 2.45 900 10.3 9.43 1.66 12.5 11.5 1.73 14.8 13.5 1.81 17.4 15.4 1.89 20.3 18.5 1.98 23.6 23.6 2.10 27.2 27.2 2.25 31.1 31.1 2.44

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Capacity Power Capacity Power

Heating

Indoor

Section Size

030 1.00 1.04 030 1.00 0.99

CE3AA 024 1.00 1.02 FG3AAA 024 1.00 1.05

030 1.00 1.00 FK4DNF 001 0.98 0.93

CF5AA 024 1.00 1.03 002 0.98 0.91

CK3BA 024 1.00 0.99 003 0.98 0.91

030 1.00 1.01

COILS + 58CV(A,X)070-12 FURNACE

030 1.00 1.01 CC5A/CD5AW 030 0.99 1.02

030 1.00 1.01 CK3BA 030 1.00 0.99

030 1.00 0.99 CK5A/CK5BW 030 1.00 0.99

Heating

Total

Power

Page 23

Heat pump heating performance continued

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

–3 7 17 2737475767

INDOOR

AIR

EDB CFM Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW†

65 1000 13.5 12.5 1.99 16.2 14.9 2.08 19.2 17.5 2.18 22.2 19.8 2.28 25.9 23.6 2.41 30.0 30.0 2.57 34.5 34.5 2.76 39.5 39.5 3.01

1125 13.7 12.6 2.02 16.4 15.1 2.11 19.4 17.7 2.20 22.5 20.0 2.29 26.2 23.8 2.42 30.3 30.3 2.57 34.8 34.8 2.75 39.9 39.9 3.00

70 1000 13.3 12.2 2.07 16.0 14.7 2.17 18.9 17.3 2.27 22.0 19.5 2.38 25.6 23.3 2.52 29.6 29.6 2.68 34.0 34.0 2.88 38.9 38.9 3.12

1125 13.5 12.4 2.10 16.2 14.9 2.20 19.2 17.5 2.29 22.2 19.7 2.39 25.9 23.5 2.52 29.9 29.9 2.67 34.4 34.4 2.87 39.3 39.3 3.11

75 1000 12.9 11.9 2.14 15.8 14.5 2.26 18.7 17.1 2.37 21.7 19.3 2.48 25.3 23.0 2.63 29.2 29.2 2.79 33.6 33.6 2.99 38.4 38.4 3.24

1125 13.1 12.1 2.17 16.0 14.7 2.28 18.9 17.3 2.39 22.0 19.5 2.50 25.5 23.2 2.63 29.5 29.5 2.79 33.9 33.9 2.98 38.8 38.8 3.23

CC5A/CD5AA 030 0.98 1.02 FF1DNA 030 0.99 0.98

CC5A/CD5AW 030 0.98 1.02 FK4DNF 001 0.97 0.93

CK5A/CK5BA 030 0.98 0.99 CK5A/CK5BA 036 0.99 0.95

CK5A/CK5BT 036 0.99 0.96

CK5A/CK5BW 030 0.98 0.99 CC5A/CD5AA 036 0.99 0.96

F(A,B)4BN(F,C) 030 1.00 1.00 CE3AA 036 0.99 0.98

See notes on pg. 27.

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

38AYC030-33, 34 Outdoor Section With F(A,B)4BN(F,C)030 Indoor Section

875 13.3 12.3 1.96 16.0 14.7 2.07 18.9 17.3 2.17 22.0 19.5 2.28 25.6 23.3 2.42 29.6 29.6 2.58 34.0 34.0 2.78 39.0 39.0 3.04

875 13.0 12.0 2.04 15.8 14.5 2.15 18.7 17.1 2.26 21.7 19.3 2.38 25.3 23.0 2.53 29.2 29.2 2.70 33.6 33.6 2.90 38.4 38.4 3.16

875 12.7 11.7 2.12 15.6 14.3 2.24 18.5 16.9 2.36 21.5 19.1 2.49 25.0 22.7 2.64 28.9 28.9 2.82 33.2 33.2 3.03 37.9 37.9 3.29

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Capacity Power Capacity Power

Heating

Indoor

Section Size

036 0.99 0.98 FG3AAA 036 0.99 0.99

036 0.99 0.98 002 0.97 0.91

CE3AA 030 0.99 0.99 003 0.97 0.91

036 0.99 0.99

COILS + 58CV(A,X)070-12 FURNACE

CF5AA 036 0.99 0.99 CC5A/CD5AA 036 0.99 0.96

CK3BA 030 0.98 0.99 CE3AA 036 0.99 0.99

036 0.99 0.96 CK3BA 036 0.99 0.95

036 0.99 0.96 CK5A/CK5BT 036 0.99 0.95

COILS + 58CV(A,X)090-16 FURNACE

036 0.99 0.96 CC5A/CD5AW 036 0.99 0.96

036 1.00 0.99 CK3BA 036 0.99 0.94

FC4CNF 030 1.00 1.00 CK5A/CK5BA 036 0.99 0.94

036 1.00 0.99 CK5A/CK5BW 036 0.99 0.94

Heating

Page 24

Heat pump heating performance continued

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

–3 7 17 2737475767

INDOOR

AIR

EDB CFM Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW†

65 1200 16.0 14.7 2.34 19.4 17.9 2.45 22.9 20.9 2.56 26.6 23.6 2.68 30.9 28.1 2.83 35.6 35.6 2.99 41.0 41.0 3.20 47.0 47.0 3.47

1350 16.3 15.0 2.38 19.7 18.1 2.48 23.2 21.1 2.59 26.9 23.9 2.70 31.2 28.4 2.84 35.9 35.9 3.00 41.4 41.4 3.20 47.5 47.5 3.46

70 1200 15.7 14.4 2.43 19.2 17.6 2.55 22.7 20.7 2.67 26.3 23.4 2.80 30.6 27.8 2.95 35.2 35.2 3.13 40.4 40.4 3.34 46.4 46.4 3.61

1350 15.9 14.7 2.47 19.4 17.9 2.58 22.9 20.9 2.70 26.6 23.7 2.82 30.9 28.1 2.96 35.6 35.6 3.12 40.9 40.9 3.33 47.0 47.0 3.59

75 1200 15.2 14.0 2.52 18.8 17.3 2.64 22.4 20.4 2.79 26.1 23.1 2.92 30.2 27.5 3.08 34.8 34.8 3.26 40.0 40.0 3.48 45.9 45.9 3.77

1350 15.5 14.3 2.56 19.1 17.6 2.68 22.7 20.7 2.81 26.4 23.4 2.94 30.6 27.8 3.09 35.2 35.2 3.26 40.4 40.4 3.47 46.4 46.4 3.74

CC5A/CD5AA 036 0.99 0.98 CE3AA 042 0.97 0.92

CC5A/CD5AW 036 0.99 0.98 CK5A/CK5BA 042 0.97 0.91

CK5A/CK5BA 036 1.00 0.96 CK3BA 042 0.97 0.91

CK5A/CK5BT 036 1.00 0.96 CK5A/CK5BT 042 0.97 0.91

CK5A/CK5BW 036 1.00 0.96 CC5A/CD5AA 042 0.97 0.93

F(A,B)4BN(F,B,C) 042 1.00 0.97 CC5A/CD5AW 042 0.97 0.94

F(A,B)4BN(F,C) 036 1.00 1.00 CE3AA 042 0.97 0.92

CK5A/CK5BE 042 0.97 0.91 CK5A/CK5BT 042 0.97 0.90

CC5A/CD5AA 042 0.97 0.93

See notes on pg. 27.

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

38AYC036-33, 34 Outdoor Section With F(A,B)4BN(F,C)036 Indoor Section

1050 15.7 14.5 2.30 19.2 17.6 2.42 22.6 20.6 2.54 26.3 23.4 2.67 30.5 27.8 2.83 35.1 35.1 3.01 40.4 40.4 3.23 46.4 46.4 3.51

1050 15.3 14.1 2.39 18.9 17.3 2.52 22.4 20.4 2.66 26.0 23.1 2.79 30.2 27.5 2.96 34.8 34.8 3.15 39.9 39.9 3.37 45.8 45.8 3.66

1050 14.9 13.7 2.48 18.5 17.0 2.62 22.1 20.2 2.77 25.7 22.9 2.92 29.9 27.2 3.09 34.4 34.4 3.29 39.5 39.5 3.52 45.2 45.2 3.82

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Capacity Power Capacity Power

Heating

Indoor

Section Size

042 0.99 0.98 CK3BA 042 0.97 0.91

042 0.99 0.99 CK5A/CK5BE 042 0.97 0.90

CE3AA 036 0.99 0.99 CK5A/CK5BT 042 0.97 0.91

042 1.00 0.96

COILS + 58CV(A,X)110-22 FURNACE

CF5AA 036 0.99 0.98 CC5A/CD5AA 042 0.97 0.93

CK3BA 036 1.00 0.96 CC5A/CD5AW 042 0.97 0.94

042 1.00 0.96 CE3AA 042 0.97 0.91

042 1.00 0.96 CK5A/CK5BA 042 0.97 0.91

042 1.00 0.96

COILS + 58CV(A,X)135-22 FURNACE

FC4CN(F,B) 042 1.00 0.97 CK3BA 042 0.97 0.91

FC4CNF 036 1.00 1.00 CK5A/CK5BA 042 0.97 0.91

FG3AAA 036 0.99 0.99 CK5A/CK5BT 042 0.97 0.91

FK4DNF 001 0.97 0.95

COILS + 58CV(A,X)155-22 FURNACE

002 0.98 0.93 CC5A/CD5AA 042 0.97 0.92

003 0.97 0.91 CC5A/CD5AW 042 0.96 0.93

COILS + 58CV(A,X)070-12 FURNACE CE3AA 042 0.97 0.91

CE3AA 042 0.97 0.93 CK3BA 042 0.97 0.90

COILS + 58CV(A,X)090-16 FURNACE —— —

Heating

Page 25

Heat pump heating performance continued

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

–3 7 17 2737475767

INDOOR

AIR

EDB CFM Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW†

65 1400 19.6 18.0 2.70 23.5 21.6 2.83 27.7 25.2 2.97 32.1 28.5 3.11 37.2 33.9 3.28 43.0 43.0 3.49 49.7 49.7 3.77 57.2 57.2 4.12

1575 19.9 18.3 2.75 23.8 21.9 2.88 28.0 25.5 3.00 32.4 28.8 3.13 37.6 34.2 3.30 43.5 43.5 3.50 50.2 50.2 3.77 57.8 57.8 4.12

70 1400 19.2 17.7 2.80 23.2 21.3 2.95 27.4 24.9 3.09 31.7 28.2 3.24 36.8 33.5 3.42 42.5 42.5 3.64 49.1 49.1 3.92 56.5 56.5 4.29

1575 19.5 18.0 2.85 23.5 21.6 2.99 27.7 25.3 3.13 32.1 28.5 3.27 37.2 33.9 3.44 43.0 43.0 3.65 49.6 49.6 3.92 57.1 57.1 4.28

75 1400 18.7 17.2 2.90 23.8 21.9 3.07 27.1 24.7 3.22 31.4 27.9 3.38 36.4 33.1 3.57 42.0 42.0 3.80 48.5 48.5 4.09 55.8 55.8 4.46

1575 19.1 17.6 2.95 23.2 21.4 3.11 27.4 25.0 3.25 31.8 28.2 3.41 36.8 33.5 3.58 42.5 42.5 3.80 49.0 49.0 4.08 56.4 56.4 4.44

CC5A/CD5AA 042 0.99 0.99 CK5A/CK5BT 048 0.99 0.94

CC5A/CD5AC 048 0.99 1.02

CC5A/CD5AW 042 1.02 1.04 CC5A/CD5AC 048 0.99 1.01

CK5A/CK5BA 042 0.99 0.97

CK5A/CK5BE 042 0.96 0.94 CC5A/CD5AW 048 0.99 0.95

CK5A/CK5BT 042 0.96 0.95 CD5AA 048 0.99 0.95

CK5A/CK5BW 048 1.00 0.97 CK3BA 048 0.99 0.93

F(A,B)4BN(F,B,C) 042 1.00 1.00 CK5A/CK5BA 048 0.99 0.93

CC5A/CD5AC 048 0.99 1.01 CE3AA 048 0.99 0.94

CK5A/CK5BA 048 0.99 0.94 CK5A/CK5BW 048 0.99 0.93

See notes on pg. 27.

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

38AYC042-33, 34 Outdoor Section With F(A,B)4BN(F,B,C)042 Indoor Section

1225 19.3 17.7 2.65 23.2 21.3 2.80 27.3 24.9 2.94 31.7 28.1 3.09 36.8 33.4 3.28 42.5 42.5 3.50 49.1 49.1 3.79 56.5 56.5 4.16

1225 18.8 17.3 2.75 22.9 21.0 2.91 27.0 24.6 3.07 31.4 27.8 3.23 36.3 33.1 3.42 42.0 42.0 3.66 48.5 48.5 3.95 55.8 55.8 4.33

1225 18.4 16.9 2.85 22.6 20.8 3.03 26.7 24.4 3.20 31.0 27.6 3.37 36.0 32.7 3.58 41.5 41.5 3.82 47.9 47.9 4.12 55.1 55.1 4.51

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Capacity Power Capacity Power

Heating

Indoor

Section Size

COILS + 58CV(A,X)110-22 FURNACE

048 1.00 0.99 CC5A/CD5AW 048 0.99 0.95

CD5AA 048 1.00 0.99 CD5AA 048 0.99 0.95

CE3AA 042 1.00 0.98 CE3AA 048 0.99 0.94

048 1.00 0.97 CK3BA 048 0.99 0.93

CF5AA 048 0.99 0.98 CK5A/CK5BA 048 0.99 0.93

CK3BA 042 0.99 0.97 CK5A/CK5BT 048 0.99 0.93

048 1.00 0.97 CK5A/CK5BW 048 0.99 0.93

COILS + 58CV(A,X)135-22 FURNACE

048 1.00 0.97 CC5A/CD5AC 048 0.99 1.01

048 0.96 0.94 CE3AA 048 0.99 0.94

048 1.01 0.97 CK5A/CK5BT 048 0.99 0.93

FC4CN(F,B) 042 1.00 1.00 CK5A/CK5BW 048 0.99 0.93

048 1.01 0.97

COILS + 58CV(A,X)155-22 FURNACE

FG3AAA 048 1.00 0.98 CC5A/CD5AC 048 0.99 1.01

FK4DNF 003 0.98 0.94 CC5A/CD5AW 048 0.99 0.95

COILS + 58CV(A,X)090-16 FURNACE CD5AA 048 0.99 0.95

CD5AA 048 0.99 0.96 CK3BA 048 0.99 0.93

CE3AA 048 0.99 0.95 CK5A/CK5BA 048 0.99 0.93

CK3BA 048 0.99 0.94 CK5A/CK5BT 048 0.99 0.93

Heating

Page 26

Heat pump heating performance continued

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

–3 7 17 2737475767

INDOOR

AIR

EDB CFM Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW†

65 1600 22.6 20.8 3.18 27.1 24.9 3.31 32.9 30.0 3.44 36.5 32.4 3.55 42.2 38.4 3.71 48.5 48.5 3.89 55.9 55.9 4.13 64.3 64.3 4.45

1800 22.9 21.1 3.22 27.4 25.2 3.34 32.0 29.2 3.45 36.8 32.7 3.56 42.6 38.7 3.70 49.0 49.0 3.87 56.5 56.5 4.10 65.0 65.0 4.40

70 1600 22.1 20.3 3.31 26.8 24.6 3.46 31.4 28.6 3.60 36.1 32.1 3.73 41.7 38.0 3.90 48.0 48.0 4.09 55.3 55.3 4.34 63.5 63.5 4.67

1800 22.4 20.6 3.35 27.1 24.9 3.49 31.7 28.9 3.62 36.5 32.4 3.74 42.1 38.3 3.89 48.5 48.5 4.07 55.8 55.8 4.30 64.2 64.2 4.61

75 1600 21.5 19.8 3.44 26.3 24.2 3.61 31.1 28.3 3.77 35.7 31.7 3.92 41.3 37.6 4.09 47.5 47.5 4.30 54.6 54.6 4.56 62.7 62.7 4.90

1800 21.9 20.1 3.49 26.7 24.5 3.64 31.4 28.6 3.79 36.1 32.1 3.92 41.7 37.9 4.08 47.9 47.9 4.27 55.2 55.2 4.52 63.4 63.4 4.84

F(A,B)4BN(F,B,C) 048 1.00 1.00 CK5A/CK5BT 060 1.00 0.96

See notes on pg. 27.

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

38AYC048-33, 34 Outdoor Section With F(A,B)4BN(F,B,C)048 Indoor Section

1400 22.2 20.4 3.14 26.7 24.6 3.29 31.3 28.5 3.43 36.1 32.0 3.57 41.7 37.9 3.74 48.0 48.0 3.94 55.2 55.2 4.20 63.5 63.5 4.54

1400 21.7 19.9 3.28 26.4 24.2 3.44 31.0 28.3 3.60 35.7 31.7 3.75 41.2 37.5 3.93 47.4 47.4 4.14 54.6 54.6 4.42 62.7 62.7 4.77

1400 21.1 19.4 3.41 25.9 23.8 3.59 30.7 28.0 3.77 35.4 31.4 3.94 40.8 37.1 4.13 46.9 46.9 4.36 53.9 53.9 4.64 61.8 61.8 5.00

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

Capacity Power Capacity Power

Heating

Indoor

Section Size

CC5A/CD5AA 060 1.00 1.06 FK4DNF 005 1.00 0.95

CC5A/CD5AC 048 1.00 1.11

COILS + 58CV(A,X)090-16 FURNACE

CC5A/CD5AW 048 1.00 1.04 CE3AA 060 1.00 1.01

060 1.00 1.00

COILS + 58CV(A,X)110-22 FURNACE

CD5AA 048 1.00 1.04 CC5A/CD5AA 060 1.00 1.06

CE3AA 048 1.00 1.02 CE3AA 060 1.00 0.99

060 1.00 0.99 CK3BA 060 1.00 0.96

CF5AA 048 1.00 1.06 CK5A/CK5BA 060 1.00 0.96

CK3BA 048 1.00 1.01 CK5A/CK5BT 060 1.00 0.96

060 1.00 0.97 CK5A/CK5BX 060 1.00 0.95

CK5A/CK5BA 048 1.00 1.01

COILS + 58CV(A,X)135-22 FURNACE

060 1.00 0.97 CC5A/CD5AA 060 1.00 1.06

CK5A/CK5BT 048 1.00 1.01 CC5A/CD5AW 060 1.00 1.00

060 1.00 0.97 CE3AA 060 1.00 1.00

CK5A/CK5BW 048 1.00 1.01 CK3BA 060 1.00 0.96

CK5A/CK5BX 060 1.00 0.96 CK5A/CK5BA 060 1.00 0.96

060 1.00 0.98 CK5A/CK5BX 060 1.00 0.96

FB4BNB 070 1.00 0.93

COILS + 58CV(A,X)155-22 FURNACE

FC4CN(F,B) 048 1.00 1.00 CC5A/CD5AA 060 1.00 1.06

060 1.00 0.98 CC5A/CD5AW 060 1.00 0.99

FC4CNB 054 1.00 0.93 CE3AA 060 1.00 0.99

070 1.00 0.93 CK3BA 060 1.00 0.96

FG3AAA 048 1.00 1.02 CK5A/CK5BA 060 1.00 0.96

060 1.00 1.01 CK5A/CK5BT 060 1.00 0.96

FK4DNB 006 1.00 0.91 CK5A/CK5BX 060 1.00 0.95

Heating

Page 27

Heat pump heating performance continued

OUTDOOR COIL ENTERING AIR TEMPERATURES °F

–3 7 17 2737475767

INDOOR

AIR

EDB CFM Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW† Total Integ* kW†

F(A,B)4BN(F,B,C) 060 1.00 1.04 CK5A/CK5BA 060 1.00 1.03

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from sup-

plement heaters should be added to those values to obtain total system capacity.

† The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these

values to obtain total system kilowatts.

EDB – Entering Dry-Bulb

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

Capacity

MBtuh†

Total

Power

38AYC060-33, 34 Outdoor Section With FB4BNB070 Indoor Section

1750 28.6 26.3 4.31 33.8 31.0 4.48 39.4 35.9 4.65 45.5 40.4 4.85 52.6 47.9 5.09 60.7 60.7 5.38 70.0 70.0 5.76 80.7 80.7 6.25 2000 29.1 26.7 4.37 34.2 31.4 4.52 39.9 36.3 4.68 46.0 40.8 4.85 53.2 48.4 5.07 61.4 61.4 5.34 71.5 71.5 5.71 81.4 81.4 6.12 2250 29.5 27.1 4.44 34.6 31.8 4.57 40.3 36.7 4.72 46.5 41.3 4.88 53.7 48.9 5.08 62.0 62.0 5.35 71.6 71.6 5.71 81.1 81.1 6.02

1750 28.2 25.9 4.48 33.5 30.8 4.68 39.0 35.6 4.87 45.0 40.0 5.08 52.0 47.4 5.33 60.0 60.0 5.63 69.2 69.2 6.03 79.7 79.7 6.53 2000 28.6 26.3 4.54 33.9 31.2 4.72 39.5 36.0 4.89 45.6 40.5 5.08 52.7 47.9 5.31 60.7 60.7 5.59 70.1 70.1 5.96 80.7 80.7 6.46 2250 29.1 26.7 4.61 34.3 31.5 4.78 39.9 36.4 4.94 46.0 40.9 5.11 53.2 48.4 5.32 61.3 61.3 5.59 70.7 70.7 5.95 81.0 81.0 6.33

1750 27.6 25.4 4.67 33.2 30.5 4.89 38.7 35.3 5.10 44.6 39.6 5.32 51.5 46.9 5.59 59.3 59.3 5.90 68.4 68.4 6.30 78.7 78.7 6.82 2000 28.1 25.8 4.72 33.6 30.9 4.93 39.2 35.7 5.12 45.1 40.1 5.32 52.2 47.5 5.56 60.1 60.1 5.85 69.3 69.3 6.23 79.8 79.8 6.74 2250 28.5 26.3 4.79 34.0 31.3 4.99 39.6 36.1 5.16 45.6 40.5 5.34 52.7 47.9 5.57 60.6 60.6 5.84 70.0 70.0 6.21 80.5 80.5 6.70

Multipliers for Determining the Performance With Other Indoor Sections

Indoor

Section Size

CC5A/CD5AA 060 1.00 1.13 CK5A/CK5BT 060 1.00 1.03

CC5A/CD5AW 060 1.00 1.04 CK5A/CK5BX 060 1.00 1.02

CE3AA 060 1.00 1.04 COILS + 58CV(A,X)135-22 FURNACE

CK3BA 060 1.00 1.08 CC5A/CD5AA 060 1.00 1.14

CK5A/CK5BA 060 1.00 1.08 CC5A/CD5AW 060 1.00 1.07

CK5A/CK5BT 060 1.00 1.08 CE3AA 060 1.00 1.06

CK5A/CK5BX 060 1.00 1.04 CK3BA 060 1.00 1.03

FB4BNB 070 1.00 1.00 CK5A/CK5BT 060 1.00 1.03

FC4CN(F,B) 060 1.00 1.04 CK5A/CK5BX 060 1.00 1.02

FC4CNB 070 1.00 1.01

FG3AAA 060 1.00 1.06 CC5A/CD5AA 060 1.00 1.14

FK4DNB 006 1.00 0.97 CC5A/CD5AW 060 1.00 1.06

COILS + 58CV(A,X)110-22 FURNACE CE3AA 060 1.00 1.06

CC5A/CD5AA 060 1.00 1.14 CK3BA 060 1.00 1.02

CE3AA 060 1.00 1.06 CK5A/CK5BA 060 1.00 1.02

CK3BA 060 1.00 1.03 CK5A/CK5BT 060 1.00 1.02

CK5A/CK5BA 060 1.00 1.03 CK5A/CK5BX 060 1.00 1.02

Capacity Power Capacity Power

Heating

Indoor

Section Size

COILS + 58CV(A,X)155-22 FURNACE

Heating

System Design

1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc.

2. Minimum outdoor operating air temperature for cooling mode without low-ambient operation accessory is 55°F (12.8°C).

3. Maximum outdoor operating air temperature for cooling mode is 125°F (51.7°C).

4. Minimum outdoor operating air temperature for heating mode is –30°F (–34.4°C).

5. Maximum outdoor operating air temperature for heating mode is 66°F (18.9°C).

6. For reliable operation, unit should be level in all horizontal planes.

7. Maximum elevation of indoor coil above or below base of outdoor unit is: indoor coil above = 50 ft, indoor coil below = 150 ft.

8. For interconnecting refrigerant tube lengths greater than 50 ft horizontal or 20 ft vertical differential, consult Residential Split-System Long-Line Application Guideline available from equipment distributor.

9. For more than 36 in. of refrigerant tubing buried in the ground, consult your local distributor.

10. Use only copper wire for electric connection at unit. Aluminum and clad aluminum are not acceptable for the type of connector provided.

11. Mismatches of indoor coil capacity more than 1 size larger than outdoor unit capacity may result in inadequate indoor comfort.

Page 28

Guide specifications

GENERAL

System Description

Outdoor-mounted, air-cooled, split-system heat pump unit suitable for ground or rooftop installation. Unit consists of a hermetic compressor, an air-cooled coil, propeller-type condenser fan, and a control box. Unit will discharge supply air upward as shown on contract drawings. Unit will be used in a refrigeration circuit to match up to a packaged fan coil or coil unit.

Quality Assurance

Unit will be rated in accordance with the latest edition of ARI Standard 240.

Unit will be certified for capacity and efficiency, and listed in the latest ARI directory.

Unit construction will comply with latest edition of ANSI/ ASHRAE and with NEC.

Unit will be constructed in accordance with UL standards and will carry the UL label of approval. Unit will have C-UL approval.

Unit cabinet will be capable of withstanding Federal Test Method Standard No. 141 (Method 6061) 500-hr salt spray test.

Air-cooled condenser coils will be leak tested at 217 psig and pressure tested at 450 psig.

Delivery, Storage, and Handling

Unit will be shipped as single package only and is stored and handled per unit manufacturer’s recommendations.

Warranty (for inclusion by specifying engineer)

U.S. and Canada only.

PRODUCTS

Equipment

Factory-assembled, single-piece, air-cooled heat pump unit. Contained within the unit enclosure will be all factory wiring, piping, controls, compressor, refrigerant charge (Puron®), and special features required prior to field start-up.

Unit Cabinet

Unit cabinet will be constructed of galvanized steel, bonderized, and coated with a powder coat paint.

Fans

Condenser fan will be direct-drive propeller type, discharging air upward.

Air-Cooled, Split-System

Heat Pump

38AYC

1-1/2 to 5 Tons Nominal

Condenser fan motors will be totally enclosed, 1-phase type

with class B insulation and permanently lubricated bearings.

Shafts will be corrosion resistant. Fan blades will be statically and dynamically balanced. Condenser fan openings will be equipped with steel wire

safety guards. Compressor

Compressor will be hermetically sealed. Compressor will be mounted on rubber vibration isolators.

Condenser Coil

Condenser coil will be air cooled.

Coil will be constructed of aluminum fins mechanically bonded to copper tubes which are then cleaned, dehydrated, and sealed.

Refrigeration Components

Refrigeration circuit components will include liquid tube shutoff valve with sweat connections, suction tube shutoff valves with sweat connections, system charge of Puron® refrigerant, POE compressor oil, accumulator, and reversing valve.

Operating Characteristics

The capacity of the unit will meet or exceed Btuh at a suction temperature of °F. The power consumption at full load will not exceed kW.

Combination of the unit and the evaporator or fan coil unit will have a total net cooling capacity of Btuh or greater at conditions of CFM entering air temperature at the evaporator at °F wet bulb and °F dry bulb, and air entering the unit at °F.

The system will have a SEER of Btuh/watt or greater at DOE conditions.

Electrical Requirements

Nominal unit electrical characteristics will be v,

phase, 60 hz. The unit will be capable of satisfactory

operation within voltage limits of v to v.

Unit electrical power will be single point connection.

Control circuit will be 24v.

Special Features

Refer to section of this literature identifying accessories and descriptions for specific features and available enhancements.

Carrier Corporation • Indianapolis, IN 46231 02-04

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Book 1 4 Page 28 Catalog No. 523-80069 Printed in U.S.A. PC 101 Form 38AYC-5PD

Tab 5a 5a

Replaces: 38AYC-4PD
