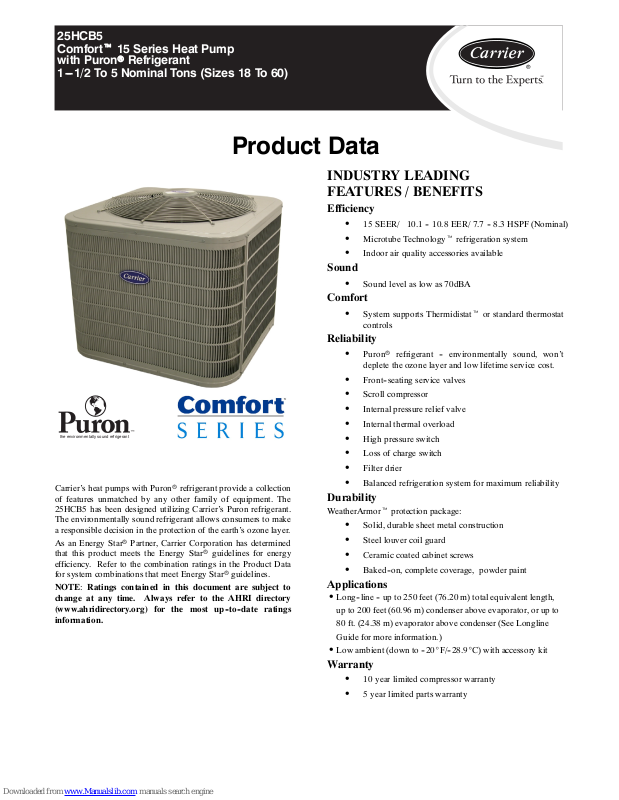

Carrier 25HCB5 Product Data

25HCB5
Comfortt 15 Series Heat Pump
with Puronr Refrigerant
1---1/2 To 5 Nominal T ons (Sizes 18 To 60)

Product Data

the environmentally sound refrigerant

Carrier’s heat pumps with Puronr refrigerant provide a collection
of features unmatched by any other family of equipment. The
25HCB5 has been designed utilizing Carrier’s Puron refrigerant.
The environmentally sound refrigerant allows consumers to make
a responsible decision in the protection of the earth’s ozone layer.

As an Ener gy Starr Partner, Carrier Corporation has determined
that this product meets the Energy Starr guidelines for energy
efficiency. Refer to the combination ratings in the Product Data
for system combinations that meet Energy Starr guidelines.

NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up--to--date ratings
information.

INDUSTRY LEADING
FEATURES / BENEFITS

Efficiency

15 SEER/ 10.1 -- 10.8 EER/ 7.7 -- 8.3 HSPF (Nominal)

S
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available

Sound

Sound level as low as 70dBA

S

Comfort

System supports Thermidistatt or standard thermostat

S

controls

Reliability

Puronr refrigerant -- environmentally sound, won’t

S

deplete the ozone layer and low lifetime service cost.

S Front--seating service valves
S Scroll compressor
S Internal pressure relief valve
S Internal thermal overload
S High pressure switch
S Loss of charge switch
S Filter drier
S Balanced refrigeration system for maximum reliability

Durability

WeatherArmort protection package:

S Solid, durable sheet metal construction
S Steel louver coil guard
S Ceramic coated cabinet screws
S Baked--on, complete coverage, powder paint

Applications

S

Long--line -- up to 250 feet (76.20 m) total equivalent length,

up to 200 feet (60.96 m) condenser above evaporator, or up to

80 ft. (24.38 m) evaporator above condenser (See Longline

Guide for more information.)

S Low ambient (down to --20_F/--28.9_C) with accessory kit

Warranty

10 year limited compressor warranty

S
S 5 year limited parts warranty

MODEL NUMBER NOMENCLATURE

12 3 4 5 6 78 9 10 11 12 13

N N A A A/N N N N A/N A/N A/N N N

25 H C B 5 36 A 0 0 3 1

Product

Series

25=HP H=RESHP C=Comfort B=Puron 5=15SEER A=Standard

the environmentally sound refrigerant

25HCB5

Product

Famil y

Tier

Major

Series

SEER

Cooling

Capacity

ISO 9001:2000

REGISTERED

Variation s Open Open Voltage

3=208/230---1

0=Not

Defined

0=Not

Defined

This product has bee n designed and
manufactured to meet Energy Star® criteria for
energy efficiency when matched with
appropriate coil components. However, proper
refrigerant charge a nd proper air flo w are critical
to achie ve rated capa city and effi ciency.
Installation of this product should follow all
manufacturing refrigerant charging a nd a ir fl ow
instructions. Failure to confirm proper charge

and air flow may reduce energy efficiency and
shorten equipment life.

5=208/230---3

6=460--- 3

STANDARD FEATURES

Feature 18 24 30 36 42 48 60

Puron Refrigerant X X X X X X X

15 SEER X X X X X X X

Scroll Compressor X X X X X X X

Louvered Coil Guard X X X X X X X

FieldInstalledFilterDrier X X X X X X X

Front Seating Service Valves X X X X X X X

Internal Pressure Relief Valve X X X X X X X

Internal Thermal Overload X X X X X X X

Long Line capability X X X X X X X

Low Ambient capability with Kit X X X X X X X

Suction Line Accumulator X X X X X X X

High Pressure Switch X X X X X X X

Loss of Charge Switch X X X X X X X

Minor

Series

0, 1, 2...

X = Standard

2

PHYSICAL DATA

UNIT SIZE SERIES 18 24 30 36 42 48 60

Operating Weight lb (kg)

Shipping Weight lb (kg)

Compressor Type Scroll
REFRIGERANT Puron (R --- 410A)

Control TXV (Puron Hard Shutoff)
Charge lb (kg) 6.4 (2.9) 7.3 (3.3) 11.2 (5.1) 13.2 (6.0) 11.9 (5.4) 13.5 (6.1) 16.2 (7.4)
Outdoor Piston no. 42 46 52 52 59 67 76

COND FAN Propeller Type, Direct Drive

Air Dischar ge Vertical
Air Qty (CFM) 2614 3223 3334 3810 3810 4046 4046
Motor HP 1/10 1/12 1/8 1/5 1/5 1/5 1/5
Motor RPM 800 800 800 800 800 800 800

COND COIL

Face Ar ea (Sq ft) 15.09 25.15 20.12 22.63 25.15 25.15 30.18
Fins per In. 20 20 20 20 20 20 20
Rows 1 1 2 2 2 2 2
Circuits 5 5 6 6 6 8 10

VALVECONNECT.(In.ID)

Vapor 5/8 5/8 3/4 3/4 7/8 7/8 7/8
Liquid 3/8

REFRIGERANT TUBES (In. OD)

Rated Vapor* 5/8 5/8 3/4 3/4 7/8 7/8 1 --- 1 / 8
Liquid 3/8”

*Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset.
Note: See unit Installation Instruction for proper installation.

VAPOR LINE SIZING AND COOLING CAPACITY LOSS

LONG LINE APPLICATION: An application is considered
”Long line” when the total equivalent tubing length exceeds 80
ft. (24.38 m) or when there is more than 20 ft. (6.09 m) vertical
separation between indoor and outdoor units. These applications
require additional accessories and system modifications for
reliable system operation. The maximum allowable total
equivalent length is 250 ft. (76.2 m). The maximum vertical

174

(79.0)

201

(91.2)

219

(99.3)

263

(119.3)

247

(112.0)

283

(128.4)

254

(115.2)

291

(132.0)

280

(127.0)

316

(143.3)

302

(134.0)

341

(154.7)

(155.1)

(173.3)

separation is 200 ft. (60.96 m) when outdoor unit is above indoor
unit, and 80 ft. (24.38 m) when the outdoor unit is below the
indoor unit. Refer to Accessory Usage Guideline below for
required accessories. See Longline Application Guideline for
required piping and system modifications. Also, refer to the table
below for vapor tube diameters based on the total length to
minimize the cooling capacity loss.

342

382

25HCB5

Cooling Capacity Loss (%)

Unit Nominal Size

(Btuh)

18,000

1 --- S ta g e P uro n H P

24,000

1 --- S ta g e P uro n H P

30,000

1 --- S ta g e P uro n H P

36,000

1 --- S ta g e P uro n H P

42,000

1 --- S ta g e P uro n H P

48,000

1 --- S ta g e P uro n H P

60,000

1 --- S ta g e P uro n H P

Applications in this area are long line. Accessories are required as shown recommended on Long Line Application Guidelines
Applications in this area may have height restrictions that limit allowable total equivalent length, when outdoor unit is below indoor unit See Long Line Applica­tion Guidelines

Maximum

Liquid Line

Diameters

(In.) OD

3/8

Vapo r L ine

Diameters

(In.) OD

1/2 1 2 3 4 6 7 8 9 10
5/8 0 0 1 1 1 2 2 3 3
5/8 0 1 1 2 3 3 4 4 5
3/4 0 0 0 0 1 1 1 1 1
5/8 1 2 3 3 4 5 6 7 8
3/4 0 0 1 1 1 2 2 2 3
7/8 0 0 0 0 1 1 1 1 1
5/8 1 2 4 5 6 7 9 10 11
3/4 0 0 1 1 2 2 3 3 4
7/8 0 0 0 0 1 1 1 1 2
3/4 0 1 2 2 3 4 4 5 6
7/8 0 0 1 1 1 2 2 2 3
3/4 0 1 2 3 4 5 5 6 7
7/8 0 0 1 1 2 2 2 3 3
3/4 1 2 4 5 6 7 9 10 11
7/8 0 1 2 2 3 4 4 5 5

1 --- 1/8 0 0 0 1 1 1 1 1 1

Standard

Application

26--- 50

(7.9--- 15.2)

51--- 80

(15.5--- 24.4)

81--- 100

(24.7--- 30.5)

Total Equivalent Line Length ft. (m)

Long Line Application Requires Accessories

101--- 125

(30.8--- 38.1)

126--- 150

(38.4--- 45.7)

151--- 175

(46.0--- 50.3)

176--- 200

(53.6--- 60.0)

201--- 225

(61.3--- 68.6)

226--- 250

(68.9--- 76.2)

3

ACCESSORIES

ORDER

NUMBER

KAACH1701AAA CRANKCASE HT R X X

Standard CRANKCASE HT R S S S S S

KAAFT0101AAA FREEZE THERMOSTAT X X X X X X X

KSAHS1701AAA HARD START (CAP/RELAY) X X X X X X X

KHAIR0101AAA ISOLATION RELAY X X X X X X X

KSALA0301410 LOW AMBIE NT PSW X X X X X X X

HC34GE242 MOTOR FAN BALL BEARING X

HC32GE229 MOTOR FAN BALL BEARING X

HC36GE232 MOTOR FAN BALL BEARING X

HC38GE228 MOTOR FAN BALL BEARING X X

HC40GE228 MOTOR FAN BALL BEARING X X

KSALA0601AAA MOTORMASTER 230V X X X X X X X

KHAOT0201SEC OUTDOOR THERMOSTAT X X X X X X X

KHAOT0301FST OUTDOOR THERMOSTAT X X X X X X X

KHASS0606MPK* HEAT PUMP SNOW RACK X X X X X X X

KHALS0401LLS SOLENOID VALVE X X X X X X X

KAACS0201PTC STARTASSISTPTC X X X X X X X

25HCB5

KSASF0101AAA SUPPORT FEET X X X X X X X

KAATD0101TDR TIME DELAY X X X X X X X

KSATX0201PUR TXV PURON HSO X X X

KSATX0301PUR TXV PURON HSO X X

KSATX0401PUR TXV PURON HSO X

KSATX0501PUR TXV PURON HSO X
x = Accessory S = Standard
* Order through RCD --- Totaline, part number KHASS0606MPK (qty 6).

DESCRIPTION 18--- 30 24 --- 30 30 --- 30 36 ---30 42--- 30 48---30 60--- 30

ACCESSORY THERMOSTATS

THERMOSTAT / SUBBASE PKG.
T P --- P R H --- 0 1 Programmable Thermidistat

T P --- N R H --- 0 1 Non--- programmable Thermidistat

T C --- P H P --- 0 1 Comfort Series Programmable HP Stat

T C --- N H P --- 0 1 Comfort Series Non --- programmable HP Stat

TSTATCCPRH01 --- B*

TSTATCCPHH01 --- B*

TSTATCCPHP01--- B Thermostat — Auto Changeover, 7 --- Day Programmable, °F/°C , 2 --- S t a ge H e a t, 1 --- S t age C o o l
TSTATCCNHP01---C Thermostat — Auto Changeover, Non---Programmable, °F/°C , 2 --- S tag e H e at, 1 --- S t age C o o l

TSTATCCSHP01

TSTATCCBHP01* --- B

TSTATXXSEN01--- B** Outdoor Air Temperature Sensor
TSTATXXNBP01 Backplate for Non ---Programmable Thermostat
TSTATXXPBP01 Backplate for Programmable Thermostat and Thermidistatt Control
TSTATXXSBP01 Backplate for Standard Programmable Thermostat
TSTATXXBBP01 Backplate for Builder’s Thermostat
TSTATXXCNV10{ Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack

* Do not use in zoning heat pump applications.
** Outdoor temperature sensor is an accessory for all Carrier electronic thermostats, except the non --- programmable air conditioner version and bu ilder;s

thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used
with the HybridHeatt (dual fuel) thermostat.

{ Thermostat conversion kit is a 24---vac accessory that can turn a 4--- wire thermostat application into a 5--- wire application. Th is kit can also be used to

replace a broken thermostat wire, or add an extra wire when needed.
The outdoor air temperature sensor is included with the Thermidistat Control and HybridHeatt (dual fuel) thermostat.

Thermidistatt Control — Non ---Programmable/Programmable Thermostat with Humidity Control (For use in
Dual Fuel, AC, HP, and 2S applications. Includes Outdoor Air Temperature Sensor.)

HybridHeatt (Dual Fuel) Thermostat — Auto Changeover, 7 ---Day Programmable, °F/°C, Includes Outdoor
Sensor (TSTATXXSEN01---B)

Standard Programmable Thermostat—Manual Changeover, 5 ---2 Day Programmable, °F/°C , 1 --- S t a g e H e a t /
1 --- S ta g e C o ol

Builder’s Thermostat — Heat Pump, Non ---Programmable, °F/°C , 2 --- S t a ge H e a t, 1 --- S t age C o o l , M a n u al
Changeover

DESCRIPTION

4

ACCESSORY USAGE GUIDELINE

REQUIRED FOR LOW --- AMBIENT

Accessory

Accumulator Standard Standard Standard

Ball Bearing Fan Motor Yes { No No

Compressor Start Assist C apacitor and

Evaporator Freeze Thermostat Ye s No No

Liquid Line Solenoid Valve No

Motor Master® Control or

* For tubing line sets between 80 an d 200 f t. (24.38 a nd 60.96 m) and/or 20 ft. (6.09 m) vertical differential, refer to Residential Split---System Longline

Application Guideline.

{ Additional requirement for Low ---Ambient Controller (full modulation feature) MotorMasterr Control.

Relay

Crankcase Heater Ye s

Hard Shutoff TXV Yes Yes Yes

Isolation Relay Yes No No

Low Ambient Switch

Support Feet Recommended No Recommended

COOLING APPLICATIONS

(Below 55°F / 12.8°C)

Ye s Ye s No

Ye s No No

Accessory Description and Usage (Listed Alphabetically)

1. Ball--Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction
while maintaining bearing lubrication.

Usage Guideline:

Required on all units when using MotorMasterr

2. Compressor Start Assist -- Capacitor and Relay

Start capacitor and relay gives a ”hard” boost to compressor
motor at each start up.

Usage Guideline:

Required for reciprocating compressors in the

following applications:

Long line
Low ambient cooling

Hard shut off expansion valve on indoor coil
Liquid line solenoid on indoor coil

Required for single--phase scroll compressors in the
following applications:

Long line

Low ambient cooling

Suggested for all compressors in areas with a history of
low voltage problems.

3. Compressor Start Assist — PTC Type

Solid state electrical device which gives a ”soft” boost to the
compressor at each start--up.

Usage Guideline:

Suggested in installations with marginal power supply.

4. Crankcase Heater

An electric resistance heater which mounts to the base of the
compressor to keep the lubricant warm during off cycles.
Improves compressor lubrication on restart and minimizes the
chance of liquid slugging.

Usage Guideline:

Required in low ambient cooling applications.

Required in long line applications.
Suggested in all commercial applications.

5. Evaporator Freeze Thermostat

An SPST temperature--actuated switch that stops unit operation
when evaporator reaches freeze--up conditions.

Usage Guideline:

Required when low ambient kit has been added.

6. Isolation Relay

An SPDT relay which switches the low--ambient controller out of
the outdoor fan motor circuit when the heat pump switches to
heating mode.

7. Liquid--Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts
refrigerant liquid flow in response to compressor operation. It is
to be installed at the outdoor unit to control refrigerant off cycle
migration in the heating mode.

8. Low--Ambient Pressure Switch Kit

A long life pressure switch which is mounted to outdoor unit
service valve. It is designed to cycle the outdoor fan motor in
order to maintain head pressure within normal operating limits.
The control will maintain working head pressure at low--ambient
temperatures down to 0_F (--17.8_C)when properly installed.

9. MotorMasterr Low--Ambient Contr oller

A fan--speed control device activated by a temperature sensor,
designed to control condenser fan motor speed in response to the
saturated, condensing temperature during operation in cooling
mode only. For outdoor temperatures down to --20_F (--28.9_C),
it maintains condensing temperature at 100_F ±10_F (37.8_C ±

6.5_C).

REQUIRED FOR

LONG LINE APPLICATIONS*

(Over 80 ft. / 24.38 m)

Ye s

See Long ---Line Application

Guideline

REQUIRED FOR

SEA COAST APPLICATIONS

(Within 2 miles / 3.22 km)

No

No

Usage Guideline:

Required in all heat pumps where low ambient kit has
been added.

Usage Guideline:

An LLS is required in all long line heat pump
applications to control refrigerant off cycle migration in
the heating mode. See Long Line Guideline.

Usage Guideline:

A Low--Ambient Pressure Switch or MotorMasterr
Low--Ambient Controller must be used when cooling
operation is used at outdoor temperatures below 55_F
(12.8_C).

Usage Guideline:

A MotorMasterr Low Ambient Controller or
Low

-Ambient Pressure Switch must be used when

-

cooling operation is used at outdoor temperatures
below 55_F (12.8_C).

Suggested for all commercial applications.

25HCB5

5

Accessory Description and Usage (Listed Alphabetically) -- CONTINUED

10. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this
publication. This device enables the thermostat to display the
outdoor temperature. This device also is required to enable
special thermostat features such as auxiliary heat lock out.

Usage Guideline:

Suggested for all Carrier thermostats listed in this
publication.

11. Outdoor Thermostat

An SPDT temperature--actuated switch which turns on
supplemental electric heaters when outdoor air temperature drops
below a user--selected set point.

Usage Guideline:

Electric supplemental heat applications in non--variable
speed indoor units when electric heat staging is desired.

12. Secondary Outdoor Thermostat

An SPDT temperature--actuated switch which turns on
third--stage of supplemental electric heaters when outdoor air
temperature drops below the second-- stage set point.

25HCB5

Usage Guideline:

Outdoor thermostat applications where electric heater is
capable of three--stage operation.

13. Snow Stand

Coated wire rack which supports unit 18 in. (457.2 mm) above
mounting pad to allow for drainage from unit base.

Usage Guideline:

Suggested in the following applications:

Heat pump installations in heavy snowfall areas.

Heat pump installations in snow drift locations.
Heat pump installations in areas of prolonged

subfreezing temperatures.
All commercial installations.

14. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces
the sound level by about 2 dBA.

Usage Guideline:

Suggested when unit is installed closer than 15 ft.
(4.577 m) to quiet areas, bedrooms, etc.

Suggested when unit is installed between two houses

less than 10 ft. (3.05 m) apart.

15. Thermostatic Expansion Valve (TXV) Bi--Flow

A modulating flow--control valve which meters refrigerant liquid
flow rate into the evaporator in response to the superheat of the
refrigerant gas leaving the evaporator.

Usage Guideline:

Accessory required to meet ARI rating and system
reliability, where indoor not equipped.

Required in all heat pump applications designed with
Puron refrigerant.

16. Time--Delay Relay

An SPST delay relay which briefly continues operation of indoor
blower motor to provide additional cooling after the compressor
cycles of f.

Note: Most indoor unit controls include this feature. For those
that do not, use the guideline below.

Usage Guideline:

Accessory required to meet ARI rating, where indoor

not equipped.

6

ELECTRICAL DATA

MIN

UNIT

SIZE

18--- 30
24--- 30 58.3 12.8 0.5 16.5 14 14 48 (14.6) 45 (13.7) 25
30--- 30 73.0 14.4 0.9 18.9 14 14 42 (12.8) 40(12.2) 30
36--- 30 79.0 16.7 1.2 22.1 12 12 57 (17.4) 54 (16.5) 35
42--- 30 109.0 22.4 1.2 29.2 10 10 68 (20.7) 65 (19.8) 45
48--- 30 117.0 22.9 1.2 29.8 10 10 67 (20.4) 64 (19.5) 50
60--- 30 134.0 26.7 1.2 34.5 8 10 90 (27.4) 55 (16.8) 50

* Permissible limits of the voltage range at which the unit will operate satisfactorily
{ If wire is applied at ambient greater th an 30_C, consult table 310 --- 16 of the NEC (ANSI/NFPA 70). The ampacity of non --- metallic---shea th ed cable (NM),

trade name ROMEX, shall be that of 60_C conditions, per the NEC (ANSI/NFPA 70) Article 336---26. If other than uncoated (no ---plated), 60 or 75_C
insulation, copper wire (solid wire for 10 AWG or smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA

70).

} Length shown is as measured 1 way along wire path between unit and service panel for voltage drop not to exceed 2%.
* * T i m e --- D ela y f u s e.

FLA --- F u l l L oad A m ps
LRA --- L o cke d R o to r A m ps
M C A --- Minimum Circuit Amps
RLA --- RatedLoadAmps
NOTE: Control circuit is 24 ---V on all units and requires external power source. Copper wire must be used from service disconnect to unit.

All motors/compressors contain internal overload protection.
Complies with 2001 requirements of ASHRAE Standards 90.1

V/PH

208/230/1 253 197

OPER VOLTS* COMPR FAN

MAX MIN LRA RLA FLA 60° C 75° C 60˚ C 75˚ C

48.0 9.0 0.7 11.9 14 14 66 (20.1) 62 (18.9) 20

MCA

WIRE

SIZE{

MIN

WIRE

SIZE{

MAX

LENGTH

ft (m)††

MAX

LENGTH

ft (m)††

A--WEIGHTED SOUND POWER

U N I T S I Z E ---

VOLTAGE,

SERIES

18--- 30 73 58.5 62.5 67.0 67.5 65.5 62.5 53.5
24--- 30 70 53.0 57.0 63.5 66.0 62.0 60.5 53.5
30--- 30 71 55.0 62.0 64.5 65.5 63.5 60.5 51.5
36--- 30 75 59.5 66.5 67.0 70.0 64.5 62.0 54.5
42--- 30 74 60.0 63.5 65.5 69.0 66.0 62.5 56.5
48--- 30 72 57.5 63.5 65.0 66.5 64.5 60.0 56.5
60--- 30 74 60.0 63.5 65.0 67.0 65.0 63.5 56.0

NOTE: Tested in accordance with ARI Standard 270 ---95 (not listed in ARI).

STANDARD

RATING

(dBA)

TYPICAL OCTAVE BAND SPECTRUM (dBA, without tone adjustment)

125 250 500 1000 2000 4000 8000

MAX

FUSE**

or CKT

BRK

AMPS

25HCB5

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE --- VOLTAGE, SERIES REQUIRED SUBCOOLING ˚F(˚C)

18--- 30 10 (5.6)
24--- 30 6 (3.3)
30--- 30 10 (5.6)
36--- 30 9 (5.0)
42--- 30 9 (5.0)
48--- 30 9 (5.0)
60--- 30 11 (6.1)

7

25HCB5

DIMENSIONS

8

25HCB560A30

FX4CN(B,F)060

25HCB548A30

FX4CN(B,F)060

25HCB542A30

FX4CN(B,F)048

25HCB536A30

FX4CN(B,F)042

25HCB530A30

FX4CN(B,F)036

25HCB524A30

FX4CNF030

25HCB518A30

FX4CNF018

BASED ON INDOOR ENT. AIR

AT 70ºF (21ºC) AND AT RATED CFM

25HCB5

40 (4.44) 50 (10) 60 (15.56) 70 (21.11) 80 (26.67)

80

70

60

50

40

30

30 (-1.11)

OUTDOOR TEMPERATURE, ºF (ºC)

0 (17.78) 10 (-12.22) 20 (-6.67)

-10 (-23)

20

10

0

CAPACITY, MBTUH

BUILDING HEAT LOSS, UNIT INTEGRATED HEATING

25HCB5 BALANCE POINT WORKSHEET

9

Wall

6”

A07833

(152.4)

12”

25HCB5

Wall

Service

24”

(304.8)

24”

(609.6)

Service

24”

12”

(609.6)

(304.8)

24”

(609.6)

Wall

Clearances (various examples)

Service

12”

(304.8)

24”

(609.6)

Wall

6”

12”

(304.8)

(152.4 mm)

24”

(609.6)

Service

CLEARANCES

24”

(609.6)

Service

10

24”

(609.6)

Note: Numbers in ( ) = mm

COMBINATION RATINGS

ARI REF

No.

3032195 25HCB518A30 † FX4CNF018 17400 11.70 14.50 17700 7.70 10300 1
3032220 25HCB518A30 FE4ANF002+UI 17600 12.00 15.00 17500 8.00 10100 1
3032221 25HCB518A30 FF1ENP018 17000 10.50 13.00 18000 7.70 10700 1
3032222 25HCB518A30 FF1ENP024 17300 10.70 13.20 18000 7.70 10700 1
3032223 25HCB518A30 FV4BNF002 17600 12.00 15.00 17500 8.00 10100 1
3032219 25HCB518A30 FX4C NF024 17600 11.70 14.50 17700 7.70 10300 1
3032217 25HCB518A30 FY4ANF018 17000 10.50 13.00 18000 7.70 10700 1
3032218 25HCB518A30 FY4ANF024 17100 10.50 13.00 18000 7.70 10700 1
3032224 25HCB518A30 CAP**1814A** 58PH*045 ---08 17200 11.50 14.50 17400 7.70 10100 1
3032196 25HCB518A30 CAP**2414A** 58CV(A,X)070---12 17200 11.70 14.75 17300 7.70 10100 1
3032225 25HCB518A30 CAP**2414A** 58PH*045 ---08 17600 11.50 14.75 17700 7.90 10200 1
3032198 25HCB518A30 CAP**2417A** 58CV(A,X)090---16 17300 11.70 14.75 17400 7.70 10100 1
3032197 25HCB518A30 CAP**2417A** 58MV(B,C)060 ---14 17200 11.70 14.75 17400 7.70 10100 1
3032210 25HCB518A30 CNPF*2418A**+TDR 17300 10.70 13.20 18000 7.70 10800 1
3032208 25HCB518A30 CNPH*2417A** 58CV(A,X)070 ---12 17200 11.70 14.75 17400 7.70 10100 1
3032209 25HCB518A30 CNPH*2417A** 58CV(A,X)090 ---16 17300 11.70 14.75 17500 7.70 10100 1
3032205 25HCB518A30 CNPH*2417A** 58MV(B,C)040 ---14 17200 11.70 14.75 17500 7.70 10100 1
3032206 25HCB518A30 CNPH*2417A** 58MV(B,C)060 ---14 17200 11.70 14.75 17400 7.70 10100 1
3032207 25HCB518A30 CNPH*2417A** 58MV(B,C)080 ---14 17300 11.70 14.75 17500 7.70 10100 1
3032228 25HCB518A30 CNPH*2417A** 58PH*045--- 08 17500 11.50 14.75 17700 8.00 10200 1
3032204 25HCB518A30 CNPH*2417A**+TDR 17300 10.70 13.20 18000 7.70 10800 1
3032226 25HCB518A30 CNPV*1814A** 58PH*045--- 08 17300 11.50 14.50 17600 7.70 10200 1
3032200 25HCB518A30 CNPV*2414A** 58CV(A,X)070 ---12 17200 11.70 14.75 17400 7.70 10100 1
3032227 25HCB518A30 CNPV*2414A** 58PH*045--- 08 17500 11.50 14.75 17700 8.00 10200 1
3032199 25HCB518A30 CNPV*2414A**+TDR 17300 10.70 13.20 18000 7.70 10800 1
3032203 25HCB518A30 CNPV*2417A** 58CV(A,X)090 ---16 17300 11.70 14.75 17500 7.70 10100 1
3032202 25HCB518A30 CNPV*2417A** 58MV(B,C)060 ---14 17200 11.70 14.75 17500 7.70 10100 1
3032201 25HCB518A30 CNPV*2417A**+TDR 17300 10.70 13.20 18000 7.70 10800 1
3032215 25HCB518A30 CSPH*2412A** 58CV(A,X)070--- 12 17300 11.70 14.75 17400 7.70 10100 1
3032216 25HCB518A30 CSPH*2412A** 58CV(A,X)090--- 16 17400 11.70 14.75 17500 7.70 10100 1
3032212 25HCB518A30 CSPH*2412A** 58MV(B,C)040--- 14 17400 11.70 14.75 17400 7.70 10100 1
3032213 25HCB518A30 CSPH*2412A** 58MV(B,C)060--- 14 17400 11.70 14.75 17500 7.70 10100 1
3032214 25HCB518A30 CSPH*2412A** 58MV(B,C)080--- 14 17400 11.70 14.75 17500 7.70 10100 1
3032229 25HCB518A30 CSPH*2412A** 58PH*045 --- 08 17600 11.50 14.75 17700 7.90 10200 1
3032211 25HCB518A30 CSPH*2412A**+TDR 17500 10.70 13.20 18000 7.70 10800 1

3032230 25HCB524A30 † FX4CNF030 23600 12.50 15.30 24000 8.80 14700 1
3032302 25HCB524A30 FE4AN(B,F)003+UI 23600 13.00 15.50 23600 8.80 14400 1
3032301 25HCB524A30 FE4ANF002+UI 23400 12.50 15.50 24000 8.80 14500 1
3032303 25HCB524A30 FF1ENP024 23000 11.00 13.50 24000 8.20 15200 1
3032304 25HCB524A30 FF1ENP030 23000 11.20 13.50 24000 8.30 15200 1
3032306 25HCB524A30 FV4BN(B,F)003 23600 13.00 15.50 23600 8.80 14400 1
3032305 25HCB524A30 FV4BNF002 23400 12.80 15.50 24000 8.80 14500 1
3032300 25HCB524A30 FX4C NF024 23200 12.00 15.00 24000 8.60 14700 1
3032298 25HCB524A30 FY4ANF024 22800 11.20 13.50 24000 8.20 15100 1
3032299 25HCB524A30 FY4ANF030 23200 11.50 14.00 24000 8.50 15200 1
3032232 25HCB524A30 CAP**2414A** 58CV(A,X)070---12 23000 12.50 15.00 23800 8.40 14400 1
3032309 25HCB524A30 CAP**2414A** 58PH*045---08 23200 12.00 15.00 24000 8.50 14600 1
3032231 25HCB524A30 CAP**2414A**+TDR 23000 11.20 13.50 24000 8.40 15200 1
3032235 25HCB524A30 CAP**2417A** 58CV(A,X)090---16 23000 12.50 15.00 23800 8.50 14400 1
3032234 25HCB524A30 CAP**2417A** 58MV(B,C)060--- 14 23000 12.50 15.00 23800 8.40 14400 1
3032233 25HCB524A30 CAP**2417A**+TDR 23000 11.20 13.50 24000 8.40 15200 1
3032237 25HCB524A30 CAP**3014A** 58CV(A,X)070---12 23200 12.50 15.00 23600 8.50 14400 1
3032310 25HCB524A30 CAP**3014A** 58PH*045---08 23400 12.50 15.25 23800 8.60 14600 1
3032236 25HCB524A30 CAP**3014A**+TDR 23400 11.20 13.50 24000 8.40 15300 1
3032240 25HCB524A30 CAP**3017A** 58CV(A,X)090---16 23400 12.80 15.50 23600 8.60 14400 1
3032239 25HCB524A30 CAP**3017A** 58MV(B,C)060--- 14 23200 12.50 15.50 23600 8.50 14400 1
3032238 25HCB524A30 CAP**3017A**+TDR 23400 11.20 13.50 24000 8.40 15300 1
3032275 25HCB524A30 CNPF*2418A**+TDR 23000 11.20 13.50 24000 8.50 15300 1
3032258 25HCB524A30 CNPH*2417A** 58CV(A,X)070 ---12 22800 12.00 15.00 24000 8.50 14500 1
3032259 25HCB524A30 CNPH*2417A** 58CV(A,X)090 ---16 23000 12.50 15.25 24000 8.60 14400 1
3032260 25HCB524A30 CNPH*2417A** 58CV(A,X)110 ---20 23000 12.00 15.00 24000 8.50 14500 1
3032261 25HCB524A30 CNPH*2417A** 58CV(A,X)135 ---22 23000 12.50 15.25 24000 8.60 14500 1
3032262 25HCB524A30 CNPH*2417A** 58CV(A,X)155 ---22 23000 12.50 15.25 24000 8.60 14500 1
3032252 25HCB524A30 CNPH*2417A** 58MV(B,C)040 ---14 23000 12.00 15.00 24000 8.50 14500 1
3032253 25HCB524A30 CNPH*2417A** 58MV(B,C)060 ---14 23000 12.50 15.25 24000 8.50 14500 1
3032254 25HCB524A30 CNPH*2417A** 58MV(B,C)080 ---14 23000 12.00 15.00 24000 8.50 14500 1
3032255 25HCB524A30 CNPH*2417A** 58MV(B,C)080 ---20 23000 12.00 15.00 24000 8.50 14500 1
3032256 25HCB524A30 CNPH*2417A** 58MV(B,C)100 ---20 23000 12.50 15.25 24000 8.60 14500 1
3032257 25HCB524A30 CNPH*2417A** 58MV(B,C)120 ---20 22800 12.00 15.00 24000 8.50 14500 1
3032313 25HCB524A30 CNPH*2417A** 58PH*045--- 08 23000 12.00 15.00 24000 8.50 14600 1
3032251 25HCB524A30 CNPH*2417A**+TDR 23000 11.20 13.50 24000 8.30 15300 1
3032270 25HCB524A30 CNPH*3017A** 58CV(A,X)070 ---12 23200 12.50 15.50 23600 8.50 14400 1
3032271 25HCB524A30 CNPH*3017A** 58CV(A,X)090 ---16 23400 12.80 15.50 23600 8.60 14400 1
3032272 25HCB524A30 CNPH*3017A** 58CV(A,X)110 ---20 23400 12.50 15.50 23600 8.60 14400 1
3032273 25HCB524A30 CNPH*3017A** 58CV(A,X)135 ---22 23400 12.50 15.50 23600 8.60 14400 1
3032274 25HCB524A30 CNPH*3017A** 58CV(A,X)155 ---22 23400 12.50 15.50 23600 8.60 14400 1
3032264 25HCB524A30 CNPH*3017A** 58MV(B,C)040 ---14 23400 12.50 15.50 23600 8.60 14500 1
3032265 25HCB524A30 CNPH*3017A** 58MV(B,C)060 ---14 23200 12.50 15.50 23600 8.50 14400 1
3032266 25HCB524A30 CNPH*3017A** 58MV(B,C)080 ---14 23400 12.50 15.50 23600 8.60 14500 1
3032267 25HCB524A30 CNPH*3017A** 58MV(B,C)080 ---20 23400 12.50 15.50 23600 8.60 14400 1
3032268 25HCB524A30 CNPH*3017A** 58MV(B,C)100 ---20 23400 12.50 15.50 23600 8.60 14400 1
3032269 25HCB524A30 CNPH*3017A** 58MV(B,C)120 ---20 23200 12.50 15.50 23600 8.50 14400 1
3032314 25HCB524A30 CNPH*3017A** 58PH*045--- 08 23600 12.50 15.25 23800 8.70 14600 1
3032263 25HCB524A30 CNPH*3017A**+TDR 23400 11.20 13.50 24000 8.40 15300 1
3032242 25HCB524A30 CNPV*2414A** 58CV(A,X)070 ---12 22800 12.00 15.00 24000 8.50 14500 1
3032311 25HCB524A30 CNPV*2414A** 58PH*045--- 08 23000 12.00 15.00 24000 8.50 14600 1
3032241 25HCB524A30 CNPV*2414A**+TDR 23000 11.20 13.50 24000 8.50 15300 1

Model Number Coil Model Number

See notes on pg. 17

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

25HCB5

11

COMBINATION RATINGS CONTINUED

ARI REF

No.

3032245 25HCB524A30 CNPV*2417A** 58CV(A,X)090 ---16 23000 12.50 15.00 24000 8.60 14400 1
3032244 25HCB524A30 CNPV*2417A** 58MV(B,C)060 ---14 23000 12.50 15.00 24000 8.50 14500 1
3032243 25HCB524A30 CNPV*2417A**+TDR 23000 11.20 13.50 24000 8.50 15300 1
3032247 25HCB524A30 CNPV*3014A** 58CV(A,X)070 ---12 23200 12.50 15.00 23600 8.50 14400 1
3032312 25HCB524A30 CNPV*3014A** 58PH*045--- 08 23400 12.50 15.25 23800 8.50 14600 1
3032246 25HCB524A30 CNPV*3014A**+TDR 23400 11.20 13.50 24000 8.40 15300 1
3032250 25HCB524A30 CNPV*3017A** 58CV(A,X)090 ---16 23400 12.80 15.50 23600 8.50 14400 1
3032249 25HCB524A30 CNPV*3017A** 58MV(B,C)060 ---14 23200 12.50 15.50 23600 8.50 14400 1
3032248 25HCB524A30 CNPV*3017A**+TDR 23400 11.20 13.50 24000 8.40 15300 1
3032282 25HCB524A30 CSPH*2412A** 58CV(A,X)070--- 12 23200 12.50 15.00 24000 8.60 14500 1
3032283 25HCB524A30 CSPH*2412A** 58CV(A,X)090--- 16 23200 12.50 15.00 24000 8.60 14500 1
3032284 25HCB524A30 CSPH*2412A** 58CV(A,X)110--- 20 23200 12.50 15.00 24000 8.60 14500 1
3032285 25HCB524A30 CSPH*2412A** 58CV(A,X)135--- 22 23200 12.50 15.00 24000 8.60 14500 1
3032286 25HCB524A30 CSPH*2412A** 58CV(A,X)155--- 22 23200 12.50 15.00 24000 8.60 14500 1
3032276 25HCB524A30 CSPH*2412A** 58MV(B,C)040--- 14 23200 12.50 15.25 24000 8.60 14600 1
3032277 25HCB524A30 CSPH*2412A** 58MV(B,C)060--- 14 23200 12.50 15.25 24000 8.60 14500 1
3032278 25HCB524A30 CSPH*2412A** 58MV(B,C)080--- 14 23200 12.50 15.25 24000 8.60 14500 1
3032279 25HCB524A30 CSPH*2412A** 58MV(B,C)080--- 20 23200 12.50 15.00 24000 8.60 14500 1
3032280 25HCB524A30 CSPH*2412A** 58MV(B,C)100--- 20 23400 12.50 15.00 24000 8.60 14500 1
3032281 25HCB524A30 CSPH*2412A** 58MV(B,C)120--- 20 23200 12.50 15.00 24000 8.50 14500 1
3032315 25HCB524A30 CSPH*2412A** 58PH*045 --- 08 23200 12.50 15.00 24000 8.50 14600 1
3032307 25HCB524A30 CSPH*2412A**+TDR 23000 11.50 14.00 24000 8.30 15000 1
3032293 25HCB524A30 CSPH*3012A** 58CV(A,X)070--- 12 23400 12.50 15.00 23600 8.50 14400 1
3032294 25HCB524A30 CSPH*3012A** 58CV(A,X)090--- 16 23400 12.80 15.50 23600 8.60 14400 1
3032295 25HCB524A30 CSPH*3012A** 58CV(A,X)110--- 20 23400 12.50 15.50 23600 8.60 14500 1
3032296 25HCB524A30 CSPH*3012A** 58CV(A,X)135--- 22 23400 12.80 15.50 23600 8.60 14500 1
3032297 25HCB524A30 CSPH*3012A** 58CV(A,X)155--- 22 23400 12.50 15.50 23600 8.60 14400 1

25HCB5

3032287 25HCB524A30 CSPH*3012A** 58MV(B,C)040--- 14 23400 12.50 15.00 23600 8.50 14500 1
3032288 25HCB524A30 CSPH*3012A** 58MV(B,C)060--- 14 23400 12.50 15.50 23600 8.50 14400 1
3032289 25HCB524A30 CSPH*3012A** 58MV(B,C)080--- 14 23400 12.50 15.00 23600 8.50 14500 1
3032290 25HCB524A30 CSPH*3012A** 58MV(B,C)080--- 20 23400 12.50 15.50 23600 8.50 14500 1
3032291 25HCB524A30 CSPH*3012A** 58MV(B,C)100--- 20 23400 12.50 15.50 23600 8.60 14500 1
3032292 25HCB524A30 CSPH*3012A** 58MV(B,C)120--- 20 23400 12.50 15.00 23600 8.50 14400 1
3032316 25HCB524A30 CSPH*3012A** 58PH*045 --- 08 23600 12.50 15.25 23600 8.60 14600 1
3032308 25HCB524A30 CSPH*3012A**+TDR 23000 11.50 14.00 24000 8.30 15000 1

3032317 25HCB530A30 †FX4CN(B,F)036 29200 12.50 15.00 30000 8.50 17800 1
3032399 25HCB530A30 FE4AN(B,F)003+UI 29000 13.00 16.00 29000 8.50 17200 1
3032400 25HCB530A30 FE4AN(B,F)005+UI 30000 13.00 16.50 29400 8.80 17300 1
3032398 25HCB530A30 FE4ANF002+UI 29000 13.00 15.75 29200 8.50 17300 1
3032401 25HCB530A30 FF1ENP030 28400 11.50 14.00 30000 8.10 18000 1
3032402 25HCB530A30 FF1ENP036 29000 11.50 14.00 30000 8.30 18100 1
3032404 25HCB530A30 FV4BN(B,F)003 29000 13.00 16.00 29000 8.50 17200 1
3032405 25HCB530A30 FV4BN(B,F)005 30000 13.00 16.50 29400 8.80 17300 1
3032403 25HCB530A30 FV4BNF002 29000 13.00 15.75 29200 8.50 17300 1
3032397 25HCB530A30 FX4C NF030 29000 12.50 15.25 29600 8.50 17600 1
3032395 25HCB530A30 FY4ANF030 28600 11.50 14.00 30000 8.30 18000 1
3032396 25HCB530A30 FY4ANF036 28800 11.50 14.00 30000 8.20 18200 1
3032319 25HCB530A30 CAP**3014A** 58CV(A,X)070---12 28600 12.50 15.00 29000 8.20 17300 1
3032318 25HCB530A30 CAP**3014A**+TDR 28800 11.50 14.00 30000 8.20 18100 1
3032322 25HCB530A30 CAP**3017A** 58CV(A,X)090---16 28800 13.00 15.50 29000 8.30 17100 1
3032321 25HCB530A30 CAP**3017A** 58MV(B,C)060--- 14 28600 12.80 15.50 29000 8.30 17200 1
3032406 25HCB530A30 CAP**3017A** 58PH*070---16 28200 12.50 15.25 29400 8.30 17500 1
3032320 25HCB530A30 CAP**3017A**+TDR 28800 11.50 14.00 30000 8.20 18100 1
3032324 25HCB530A30 CAP**3614A** 58CV(A,X)070---12 28800 12.50 15.00 29200 8.20 17300 1
3032323 25HCB530A30 CAP**3614A**+TDR 29000 11.50 14.00 30000 8.20 18200 1
3032327 25HCB530A30 CAP**3617A** 58CV(A,X)090---16 28800 13.00 15.50 29000 8.40 17200 1
3032326 25HCB530A30 CAP**3617A** 58MV(B,C)060--- 14 28800 12.80 15.50 29000 8.30 17200 1
3032407 25HCB530A30 CAP**3617A** 58PH*070---16 29000 12.50 15.25 29400 8.30 17500 1
3032325 25HCB530A30 CAP**3617A**+TDR 29000 11.50 14.00 30000 8.30 18200 1
3032332 25HCB530A30 CAP**3621A** 58CV(A,X)110---20 29000 13.00 15.50 29000 8.40 17200 1
3032329 25HCB530A30 CAP**3621A** 58MV(B,C)080--- 14 28800 13.00 15.50 29000 8.30 17200 1
3032330 25HCB530A30 CAP**3621A** 58MV(B,C)080--- 20 28800 13.00 15.50 29000 8.30 17200 1
3032331 25HCB530A30 CAP**3621A** 58MV(B,C)100--- 20 28800 13.00 15.50 29000 8.40 17200 1
3032408 25HCB530A30 CAP**3621A** 58PH*090---16 29200 13.00 15.50 29400 8.50 17400 1
3032328 25HCB530A30 CAP**3621A**+TDR 29000 11.50 14.00 30000 8.20 18200 1
3032370 25HCB530A30 CNPF*3618A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032353 25HCB530A30 CNPH*3017A** 58CV(A,X)070 ---12 28800 12.50 15.50 29000 8.30 17300 1
3032354 25HCB530A30 CNPH*3017A** 58CV(A,X)090 ---16 28800 13.00 15.50 29000 8.30 17200 1
3032355 25HCB530A30 CNPH*3017A** 58CV(A,X)110 ---20 28800 13.00 15.50 29000 8.30 17200 1
3032356 25HCB530A30 CNPH*3017A** 58CV(A,X)135 ---22 28800 13.00 15.50 29000 8.40 17200 1
3032357 25HCB530A30 CNPH*3017A** 58CV(A,X)155 ---22 28800 13.00 15.50 29000 8.40 17200 1
3032347 25HCB530A30 CNPH*3017A** 58MV(B,C)040 ---14 28600 12.80 15.50 29000 8.30 17300 1
3032348 25HCB530A30 CNPH*3017A** 58MV(B,C)060 ---14 28600 12.80 15.50 29000 8.30 17200 1
3032349 25HCB530A30 CNPH*3017A** 58MV(B,C)080 ---14 28800 12.80 15.50 29000 8.30 17300 1
3032350 25HCB530A30 CNPH*3017A** 58MV(B,C)080 ---20 28800 12.80 15.50 29000 8.30 17300 1
3032351 25HCB530A30 CNPH*3017A** 58MV(B,C)100 ---20 28800 12.80 15.50 29000 8.30 17200 1
3032352 25HCB530A30 CNPH*3017A** 58MV(B,C)120 ---20 28800 13.00 15.50 29000 8.30 17200 1
3032412 25HCB530A30 CNPH*3017A** 58PH*070--- 16 28800 12.50 15.25 29400 8.30 17500 1
3032413 25HCB530A30 CNPH*3017A** 58PH*090--- 16 29000 12.50 15.25 29200 8.30 17400 1
3032346 25HCB530A30 CNPH*3017A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032365 25HCB530A30 CNPH*3617A** 58CV(A,X)070 ---12 28800 12.80 15.50 29000 8.30 17300 1
3032366 25HCB530A30 CNPH*3617A** 58CV(A,X)090 ---16 28800 13.00 15.50 29000 8.30 17200 1
3032367 25HCB530A30 CNPH*3617A** 58CV(A,X)110 ---20 28800 13.00 15.50 29000 8.30 17200 1
3032368 25HCB530A30 CNPH*3617A** 58CV(A,X)135 ---22 28800 13.00 15.50 29000 8.40 17200 1
3032369 25HCB530A30 CNPH*3617A** 58CV(A,X)155 ---22 28800 13.00 15.50 29000 8.40 17200 1
3032359 25HCB530A30 CNPH*3617A** 58MV(B,C)040 ---14 28600 12.80 15.50 29000 8.30 17300 1
3032360 25HCB530A30 CNPH*3617A** 58MV(B,C)060 ---14 28600 12.80 15.50 29000 8.30 17200 1

Model Number Coil Model Number

See notes on pg. 17

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

12

COMBINATION RATINGS CONTINUED

ARI REF

No.

3032361 25HCB530A30 CNPH*3617A** 58MV(B,C)080 ---14 28800 12.80 15.50 29000 8.30 17300 1
3032362 25HCB530A30 CNPH*3617A** 58MV(B,C)080 ---20 28800 12.80 15.50 29000 8.30 17300 1
3032363 25HCB530A30 CNPH*3617A** 58MV(B,C)100 ---20 28800 12.80 15.50 29000 8.30 17200 1
3032364 25HCB530A30 CNPH*3617A** 58MV(B,C)120 ---20 28800 13.00 15.50 29000 8.30 17200 1
3032414 25HCB530A30 CNPH*3617A** 58PH*070--- 16 28800 12.50 15.25 29400 8.30 17500 1
3032415 25HCB530A30 CNPH*3617A** 58PH*090--- 16 29000 12.50 15.50 29200 8.30 17400 1
3032358 25HCB530A30 CNPH*3617A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032334 25HCB530A30 CNPV*3014A** 58CV(A,X)070 ---12 28600 12.50 15.00 29200 8.20 17300 1
3032333 25HCB530A30 CNPV*3014A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032337 25HCB530A30 CNPV*3017A** 58CV(A,X)090 ---16 28800 13.00 15.50 29000 8.30 17200 1
3032336 25HCB530A30 CNPV*3017A** 58MV(B,C)060 ---14 28600 12.80 15.50 29000 8.30 17200 1
3032409 25HCB530A30 CNPV*3017A** 58PH*070--- 16 28800 12.50 15.25 29400 8.30 17500 1
3032335 25HCB530A30 CNPV*3017A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032340 25HCB530A30 CNPV*3617A** 58CV(A,X)090 ---16 28800 13.00 15.50 29000 8.30 17200 1
3032339 25HCB530A30 CNPV*3617A** 58MV(B,C)060 ---14 28600 12.50 15.50 29000 8.30 17200 1
3032410 25HCB530A30 CNPV*3617A** 58PH*070--- 16 28800 12.50 15.25 29400 8.30 17500 1
3032338 25HCB530A30 CNPV*3617A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032345 25HCB530A30 CNPV*3621A** 58CV(A,X)110 ---20 28800 13.00 15.50 29000 8.30 17200 1
3032342 25HCB530A30 CNPV*3621A** 58MV(B,C)080 ---14 28800 12.80 15.50 29000 8.30 17300 1
3032343 25HCB530A30 CNPV*3621A** 58MV(B,C)080 ---20 28800 12.80 15.50 29000 8.30 17200 1
3032344 25HCB530A30 CNPV*3621A** 58MV(B,C)100 ---20 28800 12.80 15.50 29000 8.30 17200 1
3032411 25HCB530A30 CNPV*3621A** 58PH*090--- 16 29000 12.50 15.50 29200 8.30 17400 1
3032341 25HCB530A30 CNPV*3621A**+TDR 28800 11.50 14.00 30000 8.20 18200 1
3032378 25HCB530A30 CSPH*3012A** 58CV(A,X)070--- 12 28800 12.50 15.50 29200 8.30 17300 1
3032379 25HCB530A30 CSPH*3012A** 58CV(A,X)090--- 16 28800 13.00 15.50 29000 8.30 17200 1
3032380 25HCB530A30 CSPH*3012A** 58CV(A,X)110--- 20 29000 13.00 15.50 29200 8.40 17300 1
3032381 25HCB530A30 CSPH*3012A** 58CV(A,X)135--- 22 29000 13.00 15.50 29000 8.30 17300 1
3032382 25HCB530A30 CSPH*3012A** 58CV(A,X)155--- 22 29000 13.00 15.50 29000 8.40 17200 1
3032372 25HCB530A30 CSPH*3012A** 58MV(B,C)040--- 14 28800 12.80 15.00 29200 8.30 17300 1
3032373 25HCB530A30 CSPH*3012A** 58MV(B,C)060--- 14 28800 12.80 15.50 29000 8.30 17300 1
3032374 25HCB530A30 CSPH*3012A** 58MV(B,C)080--- 14 28800 12.80 15.00 29200 8.30 17300 1
3032375 25HCB530A30 CSPH*3012A** 58MV(B,C)080--- 20 28800 12.80 15.50 29200 8.30 17300 1
3032376 25HCB530A30 CSPH*3012A** 58MV(B,C)100--- 20 28800 12.80 15.50 29200 8.30 17300 1
3032377 25HCB530A30 CSPH*3012A** 58MV(B,C)120--- 20 28800 13.00 15.50 29000 8.30 17200 1
3032416 25HCB530A30 CSPH*3012A** 58PH*070 --- 16 29000 12.50 15.00 29400 8.30 17500 1
3032417 25HCB530A30 CSPH*3012A** 58PH*090 --- 16 29000 12.50 15.50 29200 8.30 17400 1
3032371 25HCB530A30 CSPH*3012A**+TDR 29000 11.50 14.00 30000 8.20 18200 1
3032390 25HCB530A30 CSPH*3612A** 58CV(A,X)070--- 12 29200 13.00 15.50 29400 8.40 17400 1
3032391 25HCB530A30 CSPH*3612A** 58CV(A,X)090--- 16 29400 13.00 16.00 29200 8.40 17300 1
3032392 25HCB530A30 CSPH*3612A** 58CV(A,X)110--- 20 29400 13.00 16.00 29400 8.40 17300 1
3032393 25HCB530A30 CSPH*3612A** 58CV(A,X)135--- 22 29400 13.00 16.00 29200 8.40 17300 1
3032394 25HCB530A30 CSPH*3612A** 58CV(A,X)155--- 22 29400 13.00 16.00 29200 8.40 17300 1
3032384 25HCB530A30 CSPH*3612A** 58MV(B,C)040--- 14 29200 13.00 15.50 29400 8.30 17400 1
3032385 25HCB530A30 CSPH*3612A** 58MV(B,C)060--- 14 29200 13.00 15.50 29200 8.40 17300 1
3032386 25HCB530A30 CSPH*3612A** 58MV(B,C)080--- 14 29400 13.00 15.50 29400 8.30 17400 1
3032387 25HCB530A30 CSPH*3612A** 58MV(B,C)080--- 20 29400 13.00 15.50 29400 8.40 17400 1
3032388 25HCB530A30 CSPH*3612A** 58MV(B,C)100--- 20 29400 13.00 15.50 29400 8.40 17300 1
3032389 25HCB530A30 CSPH*3612A** 58MV(B,C)120--- 20 29200 13.00 15.50 29200 8.40 17300 1
3032418 25HCB530A30 CSPH*3612A** 58PH*070 --- 16 29600 12.50 15.50 29800 8.50 17600 1
3032419 25HCB530A30 CSPH*3612A** 58PH*090 --- 16 29600 13.00 15.50 29600 8.60 17500 1
3032383 25HCB530A30 CSPH*3612A**+TDR 29400 11.70 14.50 30000 8.30 18300 1

3032420 25HCB536A30 †FX4CN(B,F)042 35400 12.70 15.00 36000 8.50 21600 1
3032534 25HCB536A30 FE4AN(B,F)003+UI 34600 13.00 15.50 35000 8.40 20800 1
3032535 25HCB536A30 FE4AN(B,F)005+UI 35800 13.00 16.00 35600 8.80 21000 1
3032536 25HCB536A30 FE4ANB006+UI 36000 13.50 16.50 35800 9.00 21000 1
3032533 25HCB536A30 FE4ANF002+UI 34200 12.50 15.00 35400 8.30 21000 1
3032537 25HCB536A30 FF1ENP036 34400 11.20 13.50 36000 8.00 22000 1
3032539 25HCB536A30 FV4BN(B,F)003 34600 13.00 15.50 35000 8.40 20800 1
3032540 25HCB536A30 FV4BN(B,F)005 35800 13.00 16.00 35600 8.80 21000 1
3032541 25HCB536A30 FV4BNB006 36000 13.50 16.50 35800 9.00 21000 1
3032538 25HCB536A30 FV4BNF002 34200 12.50 15.00 35400 8.20 21000 1
3032532 25HCB536A30 FX4CN(B,F)036 34800 12.50 14.50 35800 8.50 21400 1
3032530 25HCB536A30 FY4ANF036 34400 11.20 13.50 36000 8.00 22000 1
3032531 25HCB536A30 FY4ANF042 35000 11.50 14.00 36000 8.20 22200 1
3032449 25HCB536A30 CAP**3614A** 58CV(A,X)070---12 34000 12.00 14.50 35200 8.00 21000 1
3032421 25HCB536A30 CAP**3614A** 58PH*045---08 34000 11.50 14.00 35600 8.00 21400 1
3032448 25HCB536A30 CAP**3614A**+TDR 34000 11.20 13.50 36000 8.00 21600 1
3032452 25HCB536A30 CAP**3617A** 58CV(A,X)090---16 34200 12.70 15.00 35000 8.20 20800 1
3032451 25HCB536A30 CAP**3617A** 58MV(B,C)060--- 14 34200 12.70 15.00 35000 8.20 20800 1
3032422 25HCB536A30 CAP**3617A** 58PH*070---16 34200 12.00 14.50 35400 8.20 21200 1
3032450 25HCB536A30 CAP**3617A**+TDR 34400 11.20 13.50 36000 8.20 22000 1
3032457 25HCB536A30 CAP**3621A** 58CV(A,X)110---20 34400 12.70 15.25 35000 8.20 20800 1
3032454 25HCB536A30 CAP**3621A** 58MV(B,C)080--- 14 34000 12.50 14.50 35000 8.20 21000 1
3032455 25HCB536A30 CAP**3621A** 58MV(B,C)080--- 20 34200 12.70 15.00 35000 8.20 20800 1
3032456 25HCB536A30 CAP**3621A** 58MV(B,C)100--- 20 34200 12.70 15.00 35000 8.20 20800 1
3032423 25HCB536A30 CAP**3621A** 58PH*090---16 34600 12.50 15.25 35200 8.30 21000 1
3032424 25HCB536A30 CAP**3621A** 58PH*110---20 34800 12.50 15.25 35400 8.40 21000 1
3032453 25HCB536A30 CAP**3621A**+TDR 34400 11.20 13.50 36000 8.20 22000 1
3032462 25HCB536A30 CAP**4221A** 58CV(A,X)110---20 34600 12.70 15.25 35200 8.20 21000 1
3032459 25HCB536A30 CAP**4221A** 58MV(B,C)080--- 14 34200 12.50 15.00 35200 8.20 21000 1
3032460 25HCB536A30 CAP**4221A** 58MV(B,C)080--- 20 34400 12.70 15.00 35200 8.20 21000 1
3032461 25HCB536A30 CAP**4221A** 58MV(B,C)100--- 20 34400 12.70 15.25 35200 8.20 21000 1
3032425 25HCB536A30 CAP**4221A** 58PH*090---16 34800 12.50 15.25 35400 8.50 21000 1
3032426 25HCB536A30 CAP**4221A** 58PH*110---20 35000 13.00 15.50 35400 8.50 21000 1
3032458 25HCB536A30 CAP**4221A**+TDR 34600 11.50 14.00 36000 8.20 22000 1
3032466 25HCB536A30 CAP**4224A** 58CV(A,X)135---22 34600 13.00 15.50 35000 8.20 20800 1
3032467 25HCB536A30 CAP**4224A** 58CV(A,X)155---22 34600 13.00 15.50 35000 8.20 20800 1

Model Number Coil Model Number

See notes on pg. 17

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

25HCB5

13

COMBINATION RATINGS CONTINUED

ARI REF

No.

3032464 25HCB536A30 CAP**4224A** 58MV(B,C)040--- 14 34400 12.70 15.00 35200 8.20 21000 1
3032465 25HCB536A30 CAP**4224A** 58MV(B,C)120--- 20 34400 12.70 15.00 35000 8.20 20800 1
3032463 25HCB536A30 CAP**4224A**+TDR 34600 11.50 14.00 36000 8.20 22000 1
3032505 25HCB536A30 CNPF*3618A**+TDR 34400 11.20 13.50 36000 8.20 22000 1
3032488 25HCB536A30 CNPH*3617A** 58CV(A,X)070 ---12 34000 12.00 14.50 35200 8.00 21000 1
3032489 25HCB536A30 CNPH*3617A** 58CV(A,X)090 ---16 34200 12.70 15.00 35000 8.20 20800 1
3032490 25HCB536A30 CNPH*3617A** 58CV(A,X)110 ---20 34200 12.70 15.00 35000 8.20 21000 1
3032491 25HCB536A30 CNPH*3617A** 58CV(A,X)135 ---22 34200 12.70 15.00 35000 8.20 20800 1
3032492 25HCB536A30 CNPH*3617A** 58CV(A,X)155 ---22 34200 12.70 15.00 35000 8.20 20800 1
3032482 25HCB536A30 CNPH*3617A** 58MV(B,C)040 ---14 34000 12.00 14.50 35200 8.00 21000 1
3032483 25HCB536A30 CNPH*3617A** 58MV(B,C)060 ---14 34000 12.50 15.00 35000 8.20 21000 1
3032484 25HCB536A30 CNPH*3617A** 58MV(B,C)080 ---14 34000 12.00 14.50 35200 8.00 21000 1
3032485 25HCB536A30 CNPH*3617A** 58MV(B,C)080 ---20 34000 12.50 14.50 35000 8.20 21000 1
3032486 25HCB536A30 CNPH*3617A** 58MV(B,C)100 ---20 34200 12.50 15.00 35000 8.20 21000 1
3032487 25HCB536A30 CNPH*3617A** 58MV(B,C)120 ---20 34000 12.50 15.00 35000 8.20 20800 1
3032432 25HCB536A30 CNPH*3617A** 58PH*045--- 08 34000 11.50 14.00 35600 8.00 21400 1
3032433 25HCB536A30 CNPH*3617A** 58PH*070--- 16 34000 12.00 14.50 35400 8.00 21200 1
3032434 25HCB536A30 CNPH*3617A** 58PH*090--- 16 34400 12.50 15.00 35000 8.20 21000 1
3032435 25HCB536A30 CNPH*3617A** 58PH*110--- 20 34400 12.50 15.00 35200 8.20 21000 1
3032481 25HCB536A30 CNPH*3617A**+TDR 34400 11.20 13.50 36000 8.20 22000 1
3032500 25HCB536A30 CNPH*4221A** 58CV(A,X)070 ---12 34600 12.50 15.00 35200 8.20 21000 1
3032501 25HCB536A30 CNPH*4221A** 58CV(A,X)090 ---16 34600 13.00 15.50 35000 8.20 20800 1
3032502 25HCB536A30 CNPH*4221A** 58CV(A,X)110 ---20 34800 13.00 15.50 35000 8.20 20800 1
3032503 25HCB536A30 CNPH*4221A** 58CV(A,X)135 ---22 34800 13.00 15.50 35000 8.20 20800 1
3032504 25HCB536A30 CNPH*4221A** 58CV(A,X)155 ---22 34800 13.00 16.00 35000 8.20 20600 1
3032494 25HCB536A30 CNPH*4221A** 58MV(B,C)040 ---14 34600 12.70 15.25 35200 8.20 21000 1
3032495 25HCB536A30 CNPH*4221A** 58MV(B,C)060 ---14 34600 13.00 15.50 35000 8.20 20800 1

25HCB5

3032496 25HCB536A30 CNPH*4221A** 58MV(B,C)080 ---14 34400 12.50 15.00 35200 8.20 21000 1
3032497 25HCB536A30 CNPH*4221A** 58MV(B,C)080 ---20 34600 12.50 15.00 35200 8.20 21000 1
3032498 25HCB536A30 CNPH*4221A** 58MV(B,C)100 ---20 34600 13.00 15.50 35200 8.20 20800 1
3032499 25HCB536A30 CNPH*4221A** 58MV(B,C)120 ---20 34600 13.00 15.50 35000 8.20 20800 1
3032436 25HCB536A30 CNPH*4221A** 58PH*045--- 08 34400 11.50 14.00 35800 8.20 21600 1
3032437 25HCB536A30 CNPH*4221A** 58PH*070--- 16 34600 12.00 14.50 35600 8.20 21200 1
3032438 25HCB536A30 CNPH*4221A** 58PH*090--- 16 34800 12.50 15.25 35400 8.40 21000 1
3032439 25HCB536A30 CNPH*4221A** 58PH*110--- 20 35000 13.00 15.50 35400 8.40 21000 1
3032493 25HCB536A30 CNPH*4221A**+TDR 34800 11.50 14.00 36000 8.20 22000 1
3032470 25HCB536A30 CNPV*3617A** 58CV(A,X)090 ---16 34200 12.70 15.00 35000 8.20 20800 1
3032469 25HCB536A30 CNPV*3617A** 58MV(B,C)060 ---14 34000 12.50 15.00 35000 8.20 21000 1
3032427 25HCB536A30 CNPV*3617A** 58PH*070--- 16 34000 12.00 14.50 35400 8.00 21200 1
3032468 25HCB536A30 CNPV*3617A**+TDR 34400 11.20 13.50 36000 8.20 22000 1
3032475 25HCB536A30 CNPV*3621A** 58CV(A,X)110 ---20 34200 12.70 15.00 35000 8.20 21000 1
3032472 25HCB536A30 CNPV*3621A** 58MV(B,C)080 ---14 34000 12.00 14.50 35200 8.00 21000 1
3032473 25HCB536A30 CNPV*3621A** 58MV(B,C)080 ---20 34000 12.50 14.50 35000 8.20 21000 1
3032474 25HCB536A30 CNPV*3621A** 58MV(B,C)100 ---20 34200 12.50 15.00 35000 8.20 21000 1
3032428 25HCB536A30 CNPV*3621A** 58PH*090--- 16 34400 12.50 15.00 35200 8.20 21000 1
3032429 25HCB536A30 CNPV*3621A** 58PH*110--- 20 34400 12.50 15.25 35200 8.20 21000 1
3032471 25HCB536A30 CNPV*3621A**+TDR 34400 11.20 13.50 36000 8.20 22000 1
3032480 25HCB536A30 CNPV*4221A** 58CV(A,X)110 ---20 34800 13.00 15.50 35000 8.20 20800 1
3032477 25HCB536A30 CNPV*4221A** 58MV(B,C)080 ---14 34400 12.70 15.25 35200 8.20 21000 1
3032478 25HCB536A30 CNPV*4221A** 58MV(B,C)080 ---20 34600 12.70 15.25 35200 8.20 21000 1
3032479 25HCB536A30 CNPV*4221A** 58MV(B,C)100 ---20 34600 13.00 15.50 35200 8.20 20800 1
3032430 25HCB536A30 CNPV*4221A** 58PH*090--- 16 34800 12.50 15.25 35400 8.40 21000 1
3032431 25HCB536A30 CNPV*4221A** 58PH*110--- 20 35000 13.00 15.50 35400 8.40 21000 1
3032476 25HCB536A30 CNPV*4221A**+TDR 34800 11.50 14.00 36000 8.20 22000 1
3032513 25HCB536A30 CSPH*3612A** 58CV(A,X)070--- 12 34800 12.50 15.00 35400 8.20 21200 1
3032514 25HCB536A30 CSPH*3612A** 58CV(A,X)090--- 16 35000 13.00 15.50 35400 8.20 21000 1
3032515 25HCB536A30 CSPH*3612A** 58CV(A,X)110--- 20 35000 13.00 15.50 35400 8.20 21000 1
3032516 25HCB536A30 CSPH*3612A** 58CV(A,X)135--- 22 35000 13.00 15.50 35400 8.20 21000 1
3032517 25HCB536A30 CSPH*3612A** 58CV(A,X)155--- 22 35200 13.00 15.50 35400 8.20 21000 1
3032507 25HCB536A30 CSPH*3612A** 58MV(B,C)040--- 14 34800 12.50 15.00 35600 8.20 21200 1
3032508 25HCB536A30 CSPH*3612A** 58MV(B,C)060--- 14 35000 12.50 15.00 35400 8.20 21000 1
3032509 25HCB536A30 CSPH*3612A** 58MV(B,C)080--- 14 34800 12.50 15.00 35600 8.20 21200 1
3032510 25HCB536A30 CSPH*3612A** 58MV(B,C)080--- 20 35000 12.50 15.00 35400 8.20 21200 1
3032511 25HCB536A30 CSPH*3612A** 58MV(B,C)100--- 20 35000 12.50 15.00 35400 8.20 21000 1
3032512 25HCB536A30 CSPH*3612A** 58MV(B,C)120--- 20 35000 13.00 15.50 35400 8.20 21000 1
3032440 25HCB536A30 CSPH*3612A** 58PH*045 --- 08 35000 12.00 14.50 36000 8.30 21600 1
3032441 25HCB536A30 CSPH*3612A** 58PH*070 --- 16 35000 12.50 15.00 35800 8.40 21400 1
3032442 25HCB536A30 CSPH*3612A** 58PH*090 --- 16 35200 13.00 15.50 35600 8.50 21200 1
3032443 25HCB536A30 CSPH*3612A** 58PH*110 --- 20 35400 13.00 15.50 35600 8.60 21200 1
3032506 25HCB536A30 CSPH*3612A**+TDR 35200 12.00 14.00 36000 8.20 22200 1
3032525 25HCB536A30 CSPH*4212A** 58CV(A,X)070--- 12 35000 12.50 15.00 35600 8.20 21200 1
3032526 25HCB536A30 CSPH*4212A** 58CV(A,X)090--- 16 35200 13.00 15.50 35400 8.20 21000 1
3032527 25HCB536A30 CSPH*4212A** 58CV(A,X)110--- 20 35200 13.00 15.50 35600 8.20 21000 1
3032528 25HCB536A30 CSPH*4212A** 58CV(A,X)135--- 22 35200 13.00 15.50 35400 8.20 21000 1
3032529 25HCB536A30 CSPH*4212A** 58CV(A,X)155--- 22 35400 13.00 15.50 35400 8.20 21000 1
3032519 25HCB536A30 CSPH*4212A** 58MV(B,C)040--- 14 35000 12.50 15.00 35600 8.20 21200 1
3032520 25HCB536A30 CSPH*4212A** 58MV(B,C)060--- 14 35200 13.00 15.50 35400 8.20 21000 1
3032521 25HCB536A30 CSPH*4212A** 58MV(B,C)080--- 14 35000 12.50 15.00 35600 8.20 21200 1
3032522 25HCB536A30 CSPH*4212A** 58MV(B,C)080--- 20 35200 13.00 15.50 35600 8.20 21200 1
3032523 25HCB536A30 CSPH*4212A** 58MV(B,C)100--- 20 35200 13.00 15.50 35600 8.20 21200 1
3032524 25HCB536A30 CSPH*4212A** 58MV(B,C)120--- 20 35200 13.00 15.50 35400 8.20 21000 1
3032444 25HCB536A30 CSPH*4212A** 58PH*045 --- 08 35200 12.00 14.50 36000 8.40 21600 1
3032445 25HCB536A30 CSPH*4212A** 58PH*070 --- 16 35200 12.50 15.00 36000 8.50 21400 1
3032446 25HCB536A30 CSPH*4212A** 58PH*090 --- 16 35600 13.00 15.50 35800 8.60 21200 1
3032447 25HCB536A30 CSPH*4212A** 58PH*110 --- 20 35600 13.00 15.50 35800 8.70 21200 1
3032518 25HCB536A30 CSPH*4212A**+TDR 35400 12.00 14.00 36000 8.20 22200 1

Model Number Coil Model Number

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

See notes on pg. 17

14

COMBINATION RATINGS CONTINUED

ARI REF

No.

3032542 25HCB542A30 †FX4CN(B,F)048 42000 13.00 15.30 42000 8.80 26400 1
3032661 25HCB542A30 FE4AN(B,F)003+UI 41500 12.50 14.50 41500 8.20 25400 1
3032662 25HCB542A30 FE4AN(B,F)005+UI 42000 13.00 15.75 42000 8.50 25600 1
3032663 25HCB542A30 FE4ANB006+UI 42000 13.50 16.25 42000 8.70 25800 1
3032664 25HCB542A30 FV4BN(B,F)003 41500 12.50 14.50 41500 8.20 25400 1
3032665 25HCB542A30 FV4BN(B,F)005 42000 13.00 15.75 42000 8.50 25600 1
3032666 25HCB542A30 FV4BNB006 42000 13.50 16.25 42000 8.70 25800 1
3032660 25HCB542A30 FX4CN(B,F)042 42000 12.50 14.50 42000 8.40 26400 1
3032658 25HCB542A30 FY4ANF042 42000 11.50 13.50 42000 8.00 27000 1
3032659 25HCB542A30 FY4ANF048 42000 12.00 14.00 42000 8.20 27000 1
3032575 25HCB542A30 CAP**4221A** 58CV(A,X)110---20 41500 12.50 14.50 41500 8.20 25400 1
3032572 25HCB542A30 CAP**4221A** 58MV(B,C)080--- 14 41000 12.00 14.00 41500 8.00 25600 1
3032573 25HCB542A30 CAP**4221A** 58MV(B,C)080--- 20 41000 12.00 14.00 41500 8.00 25600 1
3032574 25HCB542A30 CAP**4221A** 58MV(B,C)100--- 20 41500 12.00 14.50 41500 8.00 25600 1
3032543 25HCB542A30 CAP**4221A** 58PH*090---16 41500 12.00 14.50 41500 8.30 25600 1
3032544 25HCB542A30 CAP**4221A** 58PH*110---20 41500 12.50 15.00 41500 8.40 25400 1
3032571 25HCB542A30 CAP**4221A**+TDR 41500 11.20 13.50 42000 8.00 26600 1
3032579 25HCB542A30 CAP**4224A** 58CV(A,X)135---22 41500 12.50 15.00 41500 8.20 25400 1
3032580 25HCB542A30 CAP**4224A** 58CV(A,X)155---22 41500 12.50 15.00 41500 8.20 25200 1
3032577 25HCB542A30 CAP**4224A** 58MV(B,C)040--- 14 41000 12.00 14.00 41500 8.00 25600 1
3032578 25HCB542A30 CAP**4224A** 58MV(B,C)120--- 20 41000 12.00 14.50 41500 8.00 25400 1
3032545 25HCB542A30 CAP**4224A** 58PH*135---20 41500 12.00 14.50 41500 8.40 25600 1
3032576 25HCB542A30 CAP**4224A**+TDR 41500 11.20 13.50 42000 8.00 26600 1
3032583 25HCB542A30 CAP**4817A** 58CV(A,X)090---16 42000 12.50 15.00 42000 8.30 25800 1
3032582 25HCB542A30 CAP**4817A** 58MV(B,C)060--- 14 42000 12.50 14.50 42000 8.30 26000 1
3032546 25HCB542A30 CAP**4817A** 58PH*070---16 42000 11.50 14.00 42000 8.20 26400 1
3032581 25HCB542A30 CAP**4817A**+TDR 42000 11.50 14.00 42000 8.30 27000 1
3032588 25HCB542A30 CAP**4821A** 58CV(A,X)110---20 42000 12.50 15.00 42000 8.40 25800 1
3032585 25HCB542A30 CAP**4821A** 58MV(B,C)080--- 14 41500 12.00 14.50 42000 8.20 25800 1
3032586 25HCB542A30 CAP**4821A** 58MV(B,C)080--- 20 42000 12.50 14.50 42000 8.30 25800 1
3032587 25HCB542A30 CAP**4821A** 58MV(B,C)100--- 20 42000 12.50 15.00 42000 8.30 25800 1
3032547 25HCB542A30 CAP**4821A** 58PH*090---16 42000 12.50 15.00 42000 8.50 25800 1
3032548 25HCB542A30 CAP**4821A** 58PH*110---20 42000 12.50 15.00 42000 8.60 25800 1
3032584 25HCB542A30 CAP**4821A**+TDR 42000 11.50 14.00 42000 8.20 27000 1
3032592 25HCB542A30 CAP**4824A** 58CV(A,X)135---22 42000 12.50 15.00 42000 8.40 25600 1
3032593 25HCB542A30 CAP**4824A** 58CV(A,X)155---22 42000 12.50 15.00 41500 8.30 25600 1
3032590 25HCB542A30 CAP**4824A** 58MV(B,C)040--- 14 42000 12.00 14.50 42000 8.20 25800 1
3032591 25HCB542A30 CAP**4824A** 58MV(B,C)120--- 20 42000 12.50 15.00 42000 8.20 25600 1
3032549 25HCB542A30 CAP**4824A** 58PH*135---20 42000 12.50 15.00 42000 8.60 25800 1
3032589 25HCB542A30 CAP**4824A**+TDR 42000 11.50 14.00 42000 8.20 27000 1
3032633 25HCB542A30 CNPF*4818A**+TDR 42000 11.20 13.50 42000 8.00 26800 1
3032616 25HCB542A30 CNPH*4221A** 58CV(A,X)070 ---12 41500 12.00 14.50 41500 8.00 25600 1
3032617 25HCB542A30 CNPH*4221A** 58CV(A,X)090 ---16 41500 12.50 15.00 41500 8.20 25400 1
3032618 25HCB542A30 CNPH*4221A** 58CV(A,X)110 ---20 41500 12.50 15.00 41500 8.20 25400 1
3032619 25HCB542A30 CNPH*4221A** 58CV(A,X)135 ---22 42000 12.50 15.00 41000 8.20 25200 1
3032620 25HCB542A30 CNPH*4221A** 58CV(A,X)155 ---22 41500 12.50 15.00 41000 8.20 25200 1
3032610 25HCB542A30 CNPH*4221A** 58MV(B,C)040 ---14 41500 12.00 14.50 41500 8.00 25400 1
3032611 25HCB542A30 CNPH*4221A** 58MV(B,C)060 ---14 41500 12.50 14.50 41500 8.00 25400 1
3032612 25HCB542A30 CNPH*4221A** 58MV(B,C)080 ---14 41500 12.00 14.50 41500 8.00 25600 1
3032613 25HCB542A30 CNPH*4221A** 58MV(B,C)080 ---20 41500 12.50 14.50 41500 8.00 25600 1
3032614 25HCB542A30 CNPH*4221A** 58MV(B,C)100 ---20 41500 12.50 15.00 41500 8.20 25400 1
3032615 25HCB542A30 CNPH*4221A** 58MV(B,C)120 ---20 41500 12.50 15.00 41500 8.20 25400 1
3032555 25HCB542A30 CNPH*4221A** 58PH*070--- 16 41500 11.50 13.50 42000 8.10 26200 1
3032556 25HCB542A30 CNPH*4221A** 58PH*090--- 16 41500 12.00 14.50 41500 8.30 25600 1
3032557 25HCB542A30 CNPH*4221A** 58PH*110--- 20 41500 12.00 14.50 41500 8.30 25400 1
3032558 25HCB542A30 CNPH*4221A** 58PH*135--- 20 41500 12.00 14.50 41500 8.30 25600 1
3032609 25HCB542A30 CNPH*4221A**+TDR 41500 11.20 13.50 42000 8.00 26600 1
3032628 25HCB542A30 CNPH*4821A** 58CV(A,X)070 ---12 42000 12.00 14.50 42000 8.20 25800 1
3032629 25HCB542A30 CNPH*4821A** 58CV(A,X)090 ---16 42000 12.50 15.00 42000 8.30 25600 1
3032630 25HCB542A30 CNPH*4821A** 58CV(A,X)110 ---20 42000 12.50 15.00 42000 8.30 25600 1
3032631 25HCB542A30 CNPH*4821A** 58CV(A,X)135 ---22 42000 13.00 15.00 42000 8.40 25600 1
3032632 25HCB542A30 CNPH*4821A** 58CV(A,X)155 ---22 42000 13.00 15.00 41500 8.40 25600 1
3032622 25HCB542A30 CNPH*4821A** 58MV(B,C)040 ---14 42000 12.50 14.50 42000 8.20 25800 1
3032623 25HCB542A30 CNPH*4821A** 58MV(B,C)060 ---14 42000 12.50 14.50 42000 8.20 25800 1
3032624 25HCB542A30 CNPH*4821A** 58MV(B,C)080 ---14 42000 12.00 14.50 42000 8.20 25800 1
3032625 25HCB542A30 CNPH*4821A** 58MV(B,C)080 ---20 42000 12.50 14.50 42000 8.20 25800 1
3032626 25HCB542A30 CNPH*4821A** 58MV(B,C)100 ---20 42000 12.50 15.00 42000 8.30 25800 1
3032627 25HCB542A30 CNPH*4821A** 58MV(B,C)120 ---20 42000 12.50 15.00 42000 8.30 25600 1
3032559 25HCB542A30 CNPH*4821A** 58PH*070--- 16 42000 11.50 14.00 42000 8.20 26400 1
3032560 25HCB542A30 CNPH*4821A** 58PH*090--- 16 42000 12.50 15.00 42000 8.60 25800 1
3032561 25HCB542A30 CNPH*4821A** 58PH*110--- 20 42000 12.50 15.00 42000 8.60 25800 1
3032562 25HCB542A30 CNPH*4821A** 58PH*135--- 20 42000 12.50 15.00 42000 8.60 25800 1
3032621 25HCB542A30 CNPH*4821A**+TDR 42000 11.50 14.00 42000 8.20 26800 1
3032598 25HCB542A30 CNPV*4221A** 58CV(A,X)110 ---20 41500 12.50 15.00 41500 8.20 25400 1
3032595 25HCB542A30 CNPV*4221A** 58MV(B,C)080 ---14 41500 12.00 14.50 41500 8.00 25600 1
3032596 25HCB542A30 CNPV*4221A** 58MV(B,C)080 ---20 41500 12.50 14.50 41500 8.10 25600 1
3032597 25HCB542A30 CNPV*4221A** 58MV(B,C)100 ---20 41500 12.50 15.00 41500 8.20 25400 1
3032550 25HCB542A30 CNPV*4221A** 58PH*090--- 16 41500 12.00 14.50 41500 8.30 25600 1
3032551 25HCB542A30 CNPV*4221A** 58PH*110--- 20 41500 12.00 14.50 41500 8.30 25400 1
3032594 25HCB542A30 CNPV*4221A**+TDR 41500 11.20 13.50 42000 8.00 26600 1
3032603 25HCB542A30 CNPV*4821A** 58CV(A,X)110 ---20 42000 12.50 15.00 42000 8.30 25600 1
3032600 25HCB542A30 CNPV*4821A** 58MV(B,C)080 ---14 42000 12.00 14.50 42000 8.20 25800 1
3032601 25HCB542A30 CNPV*4821A** 58MV(B,C)080 ---20 42000 12.50 14.50 42000 8.20 25800 1
3032602 25HCB542A30 CNPV*4821A** 58MV(B,C)100 ---20 42000 12.50 15.00 42000 8.30 25800 1
3032552 25HCB542A30 CNPV*4821A** 58PH*090--- 16 42000 12.50 15.00 42000 8.60 25800 1
3032553 25HCB542A30 CNPV*4821A** 58PH*110--- 20 42000 12.50 15.00 42000 8.60 25800 1
3032599 25HCB542A30 CNPV*4821A**+TDR 42000 11.50 14.00 42000 8.20 26800 1

Model Number Coil Model Number

See notes on pg. 17

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

25HCB5

15

COMBINATION RATINGS CONTINUED

ARI REF

No.

3032607 25HCB542A30 CNPV*4824A** 58CV(A,X)135 ---22 42000 13.00 15.50 42000 8.30 25600 1
3032608 25HCB542A30 CNPV*4824A** 58CV(A,X)155 ---22 42000 13.00 15.00 41500 8.30 25600 1
3032605 25HCB542A30 CNPV*4824A** 58MV(B,C)040 ---14 42000 12.50 14.50 42000 8.20 25800 1
3032606 25HCB542A30 CNPV*4824A** 58MV(B,C)120 ---20 42000 12.50 15.00 42000 8.30 25600 1
3032554 25HCB542A30 CNPV*4824A** 58PH*135--- 20 42000 12.50 15.00 42000 8.60 25800 1
3032604 25HCB542A30 CNPV*4824A**+TDR 42000 11.50 14.00 42000 8.20 26800 1
3032641 25HCB542A30 CSPH*4212A** 58CV(A,X)070--- 12 42000 12.00 14.50 42000 8.00 26000 1
3032642 25HCB542A30 CSPH*4212A** 58CV(A,X)090--- 16 42000 12.50 15.00 42000 8.20 25800 1
3032643 25HCB542A30 CSPH*4212A** 58CV(A,X)110--- 20 42000 12.50 15.00 42000 8.20 25800 1
3032644 25HCB542A30 CSPH*4212A** 58CV(A,X)135--- 22 42000 12.50 15.00 42000 8.20 25600 1
3032645 25HCB542A30 CSPH*4212A** 58CV(A,X)155--- 22 42000 12.50 15.00 42000 8.20 25600 1
3032635 25HCB542A30 CSPH*4212A** 58MV(B,C)040--- 14 42000 12.00 14.50 42000 8.20 25800 1
3032636 25HCB542A30 CSPH*4212A** 58MV(B,C)060--- 14 42000 12.50 14.50 42000 8.20 25800 1
3032637 25HCB542A30 CSPH*4212A** 58MV(B,C)080--- 14 42000 12.00 14.50 42000 8.20 26000 1
3032638 25HCB542A30 CSPH*4212A** 58MV(B,C)080--- 20 42000 12.50 14.50 42000 8.20 25800 1
3032639 25HCB542A30 CSPH*4212A** 58MV(B,C)100--- 20 42000 12.50 15.00 42000 8.20 25800 1
3032640 25HCB542A30 CSPH*4212A** 58MV(B,C)120--- 20 42000 12.50 15.00 42000 8.20 25800 1
3032563 25HCB542A30 CSPH*4212A** 58PH*070 --- 16 42000 11.50 14.00 42000 8.20 26400 1
3032564 25HCB542A30 CSPH*4212A** 58PH*090 --- 16 42000 12.50 15.00 42000 8.50 25800 1
3032565 25HCB542A30 CSPH*4212A** 58PH*110 --- 20 42000 12.50 15.00 42000 8.60 25800 1
3032566 25HCB542A30 CSPH*4212A** 58PH*135 --- 20 42000 12.50 15.00 42000 8.50 25800 1
3032634 25HCB542A30 CSPH*4212A**+TDR 42000 11.50 14.00 42000 8.00 27000 1
3032653 25HCB542A30 CSPH*4812A** 58CV(A,X)070--- 12 42000 12.00 14.50 42000 8.20 26000 1
3032654 25HCB542A30 CSPH*4812A** 58CV(A,X)090--- 16 42000 12.50 15.00 42000 8.20 25800 1
3032655 25HCB542A30 CSPH*4812A** 58CV(A,X)110--- 20 42000 12.50 15.00 42000 8.30 25800 1
3032656 25HCB542A30 CSPH*4812A** 58CV(A,X)135--- 22 42000 13.00 15.00 42000 8.40 25600 1
3032657 25HCB542A30 CSPH*4812A** 58CV(A,X)155--- 22 42000 13.00 15.50 42000 8.40 25600 1

25HCB5

3032647 25HCB542A30 CSPH*4812A** 58MV(B,C)040--- 14 42000 12.50 14.50 42000 8.20 26000 1
3032648 25HCB542A30 CSPH*4812A** 58MV(B,C)060--- 14 42000 12.50 15.00 42000 8.30 25800 1
3032649 25HCB542A30 CSPH*4812A** 58MV(B,C)080--- 14 42000 12.00 14.50 42000 8.20 26000 1
3032650 25HCB542A30 CSPH*4812A** 58MV(B,C)080--- 20 42000 12.50 14.50 42000 8.30 26000 1
3032651 25HCB542A30 CSPH*4812A** 58MV(B,C)100--- 20 42000 12.50 15.00 42000 8.30 25800 1
3032652 25HCB542A30 CSPH*4812A** 58MV(B,C)120--- 20 42000 12.50 15.00 42000 8.30 25800 1
3032567 25HCB542A30 CSPH*4812A** 58PH*070 --- 16 42000 11.50 14.00 42000 8.20 26400 1
3032568 25HCB542A30 CSPH*4812A** 58PH*090 --- 16 42000 12.50 15.00 42000 8.60 25800 1
3032569 25HCB542A30 CSPH*4812A** 58PH*110 --- 20 42000 12.50 15.00 42000 8.60 25800 1
3032570 25HCB542A30 CSPH*4812A** 58PH*135 --- 20 42000 12.50 15.00 42000 8.60 25800 1
3032646 25HCB542A30 CSPH*4812A**+TDR 42000 11.50 14.00 42000 8.20 27000 1

3032667 25HCB548A30 †FX4CN(B,F)060 48000 12.50 15.00 46500 8.60 29200 1
3032734 25HCB548A30 FE4AN(B,F)005+UI 47500 12.50 15.00 45000 8.40 28600 1
3032735 25HCB548A30 FE4ANB006+UI 48000 13.00 15.50 45000 8.60 28600 1
3032736 25HCB548A30 FV4BN(B,F)005 47500 12.50 15.00 45000 8.40 28600 1
3032737 25HCB548A30 FV4BNB006 48000 13.00 15.50 45000 8.60 28600 1
3032733 25HCB548A30 FX4CN(B,F)048 48000 12.00 14.50 46000 8.50 29200 1
3032732 25HCB548A30 FY4ANB060 48000 11.50 14.00 47000 8.40 30000 1
3032731 25HCB548A30 FY4ANF048 47000 11.20 13.50 46500 8.20 30000 1
3032669 25HCB548A30 CAP**4817A** 58CV(A,X)090---16 46500 12.00 14.00 45500 8.20 29000 1
3032668 25HCB548A30 CAP**4817A**+TDR 46500 11.20 13.50 46000 8.20 29200 1
3032673 25HCB548A30 CAP**4821A** 58CV(A,X)110---20 46000 12.00 14.50 45000 8.20 28600 1
3032671 25HCB548A30 CAP**4821A** 58MV(B,C)080--- 20 46000 11.50 14.00 45000 8.00 28800 1
3032672 25HCB548A30 CAP**4821A** 58MV(B,C)100--- 20 46000 12.00 14.00 45000 8.00 28800 1
3032738 25HCB548A30 CAP**4821A** 58PH*090---16 46500 12.00 14.50 45000 8.10 28800 1
3032739 25HCB548A30 CAP**4821A** 58PH*110---20 46500 12.00 14.50 45000 8.20 28600 1
3032670 25HCB548A30 CAP**4821A**+TDR 46500 11.20 13.50 46500 8.20 29600 1
3032676 25HCB548A30 CAP**4824A** 58CV(A,X)135---22 46000 12.00 14.50 45000 8.20 28600 1
3032677 25HCB548A30 CAP**4824A** 58CV(A,X)155---22 46500 12.00 14.50 45000 8.20 28400 1
3032675 25HCB548A30 CAP**4824A** 58MV(B,C)120--- 20 46000 12.00 14.00 45000 8.00 28600 1
3032740 25HCB548A30 CAP**4824A** 58PH*135---20 46500 12.00 14.50 45000 8.20 28800 1
3032674 25HCB548A30 CAP**4824A**+TDR 46500 11.20 13.50 46500 8.20 29600 1
3032681 25HCB548A30 CAP**6021A** 58CV(A,X)110---20 47500 12.50 15.00 45000 8.20 28800 1
3032679 25HCB548A30 CAP**6021A** 58MV(B,C)080--- 20 47000 12.00 14.50 45500 8.20 28800 1
3032680 25HCB548A30 CAP**6021A** 58MV(B,C)100--- 20 47000 12.00 14.50 45000 8.20 28800 1
3032741 25HCB548A30 CAP**6021A** 58PH*090---16 47500 12.00 14.50 45500 8.30 29000 1
3032742 25HCB548A30 CAP**6021A** 58PH*110---20 47500 12.50 15.00 45000 8.40 28600 1
3032678 25HCB548A30 CAP**6021A**+TDR 48000 11.20 13.50 46500 8.40 29800 1
3032684 25HCB548A30 CAP**6024A** 58CV(A,X)135---22 47500 12.50 15.00 45000 8.20 28600 1
3032685 25HCB548A30 CAP**6024A** 58CV(A,X)155---22 47500 12.50 15.00 45000 8.20 28600 1
3032683 25HCB548A30 CAP**6024A** 58MV(B,C)120--- 20 47000 12.00 14.50 45000 8.20 28800 1
3032743 25HCB548A30 CAP**6024A** 58PH*135---20 47500 12.00 14.50 45500 8.30 28800 1
3032682 25HCB548A30 CAP**6024A**+TDR 48000 11.20 13.50 46500 8.40 29800 1
3032714 25HCB548A30 CNPF*4818A**+TDR 45500 11.20 13.50 45500 8.00 29200 1
3032702 25HCB548A30 CNPH*4821A** 58CV(A,X)090 ---16 46000 12.00 14.50 45000 8.00 28600 1
3032703 25HCB548A30 CNPH*4821A** 58CV(A,X)110 ---20 46000 12.00 14.50 45000 8.20 28600 1
3032704 25HCB548A30 CNPH*4821A** 58CV(A,X)135 ---22 46500 12.00 14.50 45000 8.20 28600 1
3032705 25HCB548A30 CNPH*4821A** 58CV(A,X)155 ---22 46500 12.50 15.00 45000 8.20 28400 1
3032699 25HCB548A30 CNPH*4821A** 58MV(B,C)080 ---20 46000 12.00 14.00 45000 8.00 28800 1
3032700 25HCB548A30 CNPH*4821A** 58MV(B,C)100 ---20 46000 12.00 14.00 45000 8.00 28800 1
3032701 25HCB548A30 CNPH*4821A** 58MV(B,C)120 ---20 46000 12.00 14.50 45000 8.00 28600 1
3032748 25HCB548A30 CNPH*4821A** 58PH*090--- 16 46500 12.00 14.50 45000 8.20 28800 1
3032749 25HCB548A30 CNPH*4821A** 58PH*110--- 20 46500 12.00 14.50 45000 8.20 28600 1
3032750 25HCB548A30 CNPH*4821A** 58PH*135--- 20 46500 12.00 14.50 45000 8.20 28600 1
3032698 25HCB548A30 CNPH*4821A**+TDR 46500 11.20 13.50 46500 8.20 29600 1
3032710 25HCB548A30 CNPH*6024A** 58CV(A,X)090 ---16 47000 12.00 14.50 45000 8.20 28800 1
3032711 25HCB548A30 CNPH*6024A** 58CV(A,X)110 ---20 47000 12.50 15.00 45000 8.20 28600 1
3032712 25HCB548A30 CNPH*6024A** 58CV(A,X)135 ---22 47000 12.50 15.00 45000 8.20 28600 1
3032713 25HCB548A30 CNPH*6024A** 58CV(A,X)155 ---22 47500 12.50 15.00 45000 8.40 28600 1
3032707 25HCB548A30 CNPH*6024A** 58MV(B,C)080 ---20 47000 12.00 14.50 45000 8.20 28800 1

Model Number Coil Model Number

See notes on pg. 17

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

16

COMBINATION RATINGS CONTINUED

ARI REF

No.

3032708 25HCB548A30 CNPH*6024A** 58MV(B,C)100 ---20 47000 12.00 14.50 45000 8.20 28800 1
3032709 25HCB548A30 CNPH*6024A** 58MV(B,C)120 ---20 47000 12.00 14.50 45000 8.20 28800 1
3032751 25HCB548A30 CNPH*6024A** 58PH*090--- 16 47500 12.00 14.50 45500 8.30 29000 1
3032752 25HCB548A30 CNPH*6024A** 58PH*110--- 20 47500 12.50 15.00 45000 8.30 28600 1
3032753 25HCB548A30 CNPH*6024A** 58PH*135--- 20 47500 12.50 15.00 45500 8.30 28800 1
3032706 25HCB548A30 CNPH*6024A**+TDR 47500 11.20 13.50 46500 8.20 29800 1
3032689 25HCB548A30 CNPV*4821A** 58CV(A,X)110 ---20 46000 12.00 14.50 45000 8.20 28600 1
3032687 25HCB548A30 CNPV*4821A** 58MV(B,C)080 ---20 46000 12.00 14.00 45000 8.00 28800 1
3032688 25HCB548A30 CNPV*4821A** 58MV(B,C)100 ---20 46000 12.00 14.00 45000 8.00 28800 1
3032744 25HCB548A30 CNPV*4821A** 58PH*090--- 16 46500 11.50 14.50 45000 8.20 28800 1
3032745 25HCB548A30 CNPV*4821A** 58PH*110--- 20 46500 12.00 14.50 45000 8.20 28600 1
3032686 25HCB548A30 CNPV*4821A**+TDR 46500 11.20 13.50 46500 8.20 29600 1
3032692 25HCB548A30 CNPV*4824A** 58CV(A,X)135 ---22 46500 12.00 14.50 45000 8.20 28600 1
3032693 25HCB548A30 CNPV*4824A** 58CV(A,X)155 ---22 46500 12.50 15.00 45000 8.20 28400 1
3032691 25HCB548A30 CNPV*4824A** 58MV(B,C)120 ---20 46000 12.00 14.50 45000 8.00 28600 1
3032746 25HCB548A30 CNPV*4824A** 58PH*135--- 20 46500 12.00 14.50 45000 8.20 28600 1
3032690 25HCB548A30 CNPV*4824A**+TDR 46500 11.20 13.50 46500 8.20 29600 1
3032696 25HCB548A30 CNPV*6024A** 58CV(A,X)135 ---22 47000 12.50 15.00 45000 8.20 28600 1
3032697 25HCB548A30 CNPV*6024A** 58CV(A,X)155 ---22 47500 12.50 15.00 45000 8.40 28600 1
3032695 25HCB548A30 CNPV*6024A** 58MV(B,C)120 ---20 47000 12.00 14.50 45000 8.20 28800 1
3032747 25HCB548A30 CNPV*6024A** 58PH*135--- 20 47500 12.50 15.00 45500 8.30 28800 1
3032694 25HCB548A30 CNPV*6024A**+TDR 47500 11.20 13.50 46500 8.20 29800 1
3032719 25HCB548A30 CSPH*4812A** 58CV(A,X)090--- 16 46500 12.00 14.50 45000 8.20 28800 1
3032720 25HCB548A30 CSPH*4812A** 58CV(A,X)110--- 20 46500 12.00 14.50 45000 8.20 28800 1
3032721 25HCB548A30 CSPH*4812A** 58CV(A,X)135--- 22 46500 12.00 14.50 45000 8.20 28600 1
3032722 25HCB548A30 CSPH*4812A** 58CV(A,X)155--- 22 47000 12.50 15.00 45000 8.20 28600 1
3032716 25HCB548A30 CSPH*4812A** 58MV(B,C)080--- 20 46500 12.00 14.00 45500 8.20 29000 1
3032717 25HCB548A30 CSPH*4812A** 58MV(B,C)100--- 20 46500 12.00 14.50 45500 8.20 28800 1
3032718 25HCB548A30 CSPH*4812A** 58MV(B,C)120--- 20 46500 12.00 14.50 45000 8.20 28800 1
3032754 25HCB548A30 CSPH*4812A** 58PH*090 --- 16 46500 12.00 14.50 45500 8.20 28800 1
3032755 25HCB548A30 CSPH*4812A** 58PH*110 --- 20 46500 12.00 14.50 45000 8.20 28600 1
3032756 25HCB548A30 CSPH*4812A** 58PH*135 --- 20 46500 12.00 14.50 45000 8.20 28800 1
3032715 25HCB548A30 CSPH*4812A**+TDR 47000 11.20 13.50 46500 8.20 29800 1
3032727 25HCB548A30 CSPH*6012A** 58CV(A,X)090--- 16 47500 12.00 14.50 45000 8.20 28800 1
3032728 25HCB548A30 CSPH*6012A** 58CV(A,X)110--- 20 47500 12.50 15.00 45000 8.20 28800 1
3032729 25HCB548A30 CSPH*6012A** 58CV(A,X)135--- 22 47500 12.50 15.00 45000 8.20 28600 1
3032730 25HCB548A30 CSPH*6012A** 58CV(A,X)155--- 22 47500 12.50 15.00 45000 8.40 28600 1
3032724 25HCB548A30 CSPH*6012A** 58MV(B,C)080--- 20 47000 12.00 14.50 45500 8.20 29000 1
3032725 25HCB548A30 CSPH*6012A** 58MV(B,C)100--- 20 47000 12.00 14.50 45500 8.20 28800 1
3032726 25HCB548A30 CSPH*6012A** 58MV(B,C)120--- 20 47000 12.00 14.50 45000 8.20 28800 1
3032757 25HCB548A30 CSPH*6012A** 58PH*090 --- 16 47500 12.50 15.00 45500 8.40 29000 1
3032758 25HCB548A30 CSPH*6012A** 58PH*110 --- 20 47500 12.50 15.00 45500 8.40 28600 1
3032759 25HCB548A30 CSPH*6012A** 58PH*135 --- 20 47500 12.50 15.00 45500 8.40 28800 1
3032723 25HCB548A30 CSPH*6012A**+TDR 48000 11.20 13.50 46500 8.20 29800 1

3032760 25HCB560A30 †FX4CN(B,F)060 57500 12.00 15.00 57000 8.70 35200 1
3032778 25HCB560A30 FE4ANB006+UI 57500 12.00 14.75 57000 8.60 35200 1
3032779 25HCB560A30 FV4BNB006 57500 12.00 14.75 57000 8.60 35200 1
3032777 25HCB560A30 FY4ANB060 57000 11.20 13.50 58000 8.30 36200 1
3032762 25HCB560A30 CAP**6021A** 58CV(A,X)110---20 56500 11.50 14.00 57000 8.30 35600 1
3032780 25HCB560A30 CAP**6021A** 58PH*090---16 56500 11.50 14.00 57000 8.40 35400 1
3032781 25HCB560A30 CAP**6021A** 58PH*110---20 57000 11.50 14.00 57000 8.60 35400 1
3032761 25HCB560A30 CAP**6021A**+TDR 56500 11.20 13.50 57500 8.30 35800 1
3032764 25HCB560A30 CAP**6024A** 58CV(A,X)135---22 56500 11.50 14.00 57000 8.30 35400 1
3032765 25HCB560A30 CAP**6024A** 58CV(A,X)155---22 57000 12.00 14.00 57000 8.40 35200 1
3032782 25HCB560A30 CAP**6024A** 58PH*135---20 56500 11.50 14.00 57000 8.40 35400 1
3032763 25HCB560A30 CAP**6024A**+TDR 56500 11.20 13.50 57500 8.30 35800 1
3032770 25HCB560A30 CNPH*6024A** 58CV(A,X)110 ---20 56500 11.50 14.00 57000 8.20 35400 1
3032771 25HCB560A30 CNPH*6024A** 58CV(A,X)135 ---22 56500 12.00 14.00 57000 8.30 35200 1
3032772 25HCB560A30 CNPH*6024A** 58CV(A,X)155 ---22 56500 12.00 14.00 57000 8.40 35200 1
3032784 25HCB560A30 CNPH*6024A** 58PH*090--- 16 56000 11.50 14.00 57000 8.40 35400 1
3032785 25HCB560A30 CNPH*6024A** 58PH*110--- 20 56500 11.50 14.00 57000 8.50 35200 1
3032786 25HCB560A30 CNPH*6024A** 58PH*135--- 20 56500 11.50 14.00 57000 8.40 35200 1
3032769 25HCB560A30 CNPH*6024A**+TDR 56500 11.20 13.50 57500 8.20 35800 1
3032767 25HCB560A30 CNPV*6024A** 58CV(A,X)135 ---22 56500 12.00 14.00 57000 8.30 35200 1
3032768 25HCB560A30 CNPV*6024A** 58CV(A,X)155 ---22 56500 12.00 14.00 57000 8.40 35200 1
3032783 25HCB560A30 CNPV*6024A** 58PH*135--- 20 56500 11.50 14.00 57000 8.40 35200 1
3032766 25HCB560A30 CNPV*6024A**+TDR 56500 11.20 13.50 57500 8.20 35800 1
3032774 25HCB560A30 CSPH*6012A** 58CV(A,X)110--- 20 57000 11.50 14.00 57500 8.30 35600 1
3032775 25HCB560A30 CSPH*6012A** 58CV(A,X)135--- 22 57000 12.00 14.00 57000 8.40 35400 1
3032776 25HCB560A30 CSPH*6012A** 58CV(A,X)155--- 22 57000 12.00 14.50 57000 8.50 35200 1
3032787 25HCB560A30 CSPH*6012A** 58PH*090 --- 16 56500 11.50 14.00 57000 8.50 35400 1
3032788 25HCB560A30 CSPH*6012A** 58PH*110 --- 20 57000 11.50 14.00 57000 8.60 35400 1
3032789 25HCB560A30 CSPH*6012A** 58PH*135 --- 20 57000 11.50 14.00 57000 8.60 35400 1
3032773 25HCB560A30 CSPH*6012A**+TDR 57000 11.20 13.50 57500 8.30 35800 1

{ Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:

Cooling Standard: 80_F(27_C) db 67_F(19_C) wb indoor entering air temperature and 95_F(35_C) db air entering outdoor unit.
High--- Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 47_F(8_C) db 43˚F(6_C) wb air entering outdoor unit.
Low--- Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 17_F ( --- 8 _C) db 15˚F ( --- 9 _C) wb air entering outdoor unit.

Model Number Coil Model Number

SEER — Seasonal Energy Efficiency Ratio
COP — Coefficient of Performance
TDR — T i m e --- D e l ay R e l ay
HSPF — Heating Seasonal Performance Factor
EER — Energy Efficiency Ratio
NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahr idirectory.org) for the most

up--- to--- date ratings information.

Furnace Model

Number

Capacity EER SEER High Heat HSPF Low Heat Phase

25HCB5

17

Tot a l

Tot a l

Capacity MBtuh

Capacity MBtuh

KW**

System

KW**

System

25HCB5

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

Capacity MBtuh

25HCB518A30 Outdoor Section With FX4CNF018 Indoor Section

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

COOLING

CNPV*2414A** 1.01 1.02 58PH*045--- 08

CSPH*2412A** 1.01 1.03 58PH*045--- 08

INDOOR MODEL

Seenoteonpg.26

#

Capacity MBtuh

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ Tota l Sens‡ Tot a l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 21.01 10.61 1.11 19.98 10.22 1.27 18.92 9.82 1.46 17.89 9.44 1.66 17.01 9.12 1.87 16.31 8.86 2.02

67 (19.4) 19.02 13.00 1.12 18.05 12.60 1.29 17.05 12.18 1.48 16.10 11.79 1.69 15.28 11.46 1.88 14.64 11.20 2.03

62 (16.7) 17.23 15.39 1.14 16.34 14.95 1.30 15.42 14.50 1.50 14.57 14.05 1.71 13.90 13.90 1.90 13.42 13.42 2.04

57 (13.9) 16.65 16.65 1.14 15.93 15.93 1.31 15.20 15.20 1.50 14.50 14.50 1.71 13.90 13.90 1.90 13.42 13.42 2.04

72 (22.2) 21.48 11.14 1.12 20.41 10.75 1.28 19.30 10.34 1.47 18.24 9.95 1.67 17.32 9.62 1.87 16.59 9.37 2.02

67 (19.4) 19.44 13.84 1.13 18.43 13.43 1.29 17.40 13.01 1.49 16.41 12.61 1.69 15.56 12.27 1.89 14.90 12.00 2.04

63 (17.2)†† 17.59 12.54 1.14 16.67 12.12 1.30 15.72 11.70 1.50 14.82 11.31 1.71 14.06 10.97 1.90 13.46 10.71 2.04

EVAPORATOR AIR

CFM

525

63 (17.2)†† 17.99 13.33 1.14 17.03 12.90 1.31 16.05 12.48 1.50 15.12 12.07 1.71 14.32 11.73 1.90 13.70 11.46 2.05

600

62 (16.7) 17.66 16.49 1.14 16.75 16.02 1.31 15.85 15.85 1.51 15.10 15.10 1.71 14.46 14.46 1.90 13.96 13.96 2.04

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

57 (13.9) 17.37 17.37 1.15 16.62 16.62 1.31 15.84 15.84 1.51 15.10 15.10 1.71 14.46 14.46 1.90 13.96 13.96 2.04

72 (22.2) 21.85 11.65 1.12 20.74 11.24 1.28 19.60 10.83 1.47 18.50 10.44 1.68 17.55 10.10 1.88 16.80 9.84 2.03

67 (19.4) 19.78 14.64 1.14 18.74 14.22 1.30 17.67 13.79 1.49 16.65 13.38 1.70 15.78 13.03 1.90 15.10 12.76 2.05

62 (16.7) 18.05 17.89 1.15 17.20 17.20 1.32 16.39 16.39 1.51 15.61 15.61 1.71 14.94 14.94 1.91 14.41 14.41 2.05

57 (13.9) 17.99 17.99 1.15 17.20 17.20 1.32 16.39 16.39 1.51 15.61 15.61 1.71 14.94 14.94 1.91 14.41 14.41 2.05

63 (17.2)†† 18.30 14.08 1.15 17.31 13.64 1.32 16.31 13.21 1.51 15.34 12.79 1.72 14.53 12.44 1.91 13.89 12.16 2.05

675

COOLING

*FX4CNF018 1.00 1.00

CNPF*2418A** 0.99 1.09

CNPH*2417A** 0.99 1.09

INDOOR MODEL

FE4ANF002 1.01 0.99

FF1ENP018 0.98 1.09

FF1ENP024 0.99 1.09

FV4BNF002 1.01 0.99

FY4ANF018 0.98 1.09

FY4ANF024 0.98 1.10

FX4CNF024 1.01 1.01

CNPV*2414A** 0.99 1.09

CNPV*2417A** 0.99 1.09

CSPH*2412A** 1.01 1.10

CAP**2414A** 0.99 0.99 58CV(A,X)070---12

CAP**2417A** 0.99 0.99 58CV(A,X)090---16

CNPV*2414A** 0.99 0.99 58CV(A,X)070---12

CNPH*2417A** 0.99 0.99 58CV(A,X)070---12

CNPV*2417A** 0.99 0.99 58CV(A,X)090---16

CSPH*2412A** 0.99 0.99 58CV(A,X)070--- 12

CNPH*2417A** 0.99 0.99 58CV(A,X)090---16

CAP**2417A** 0.99 0.99 58MV(B,C)060---14

CSPH*2412A** 1.00 1.00 58CV(A,X)090--- 16

CNPH*2417A** 0.99 0.99 58MV(B,C)040--- 14

CNPV*2417A** 0.99 0.99 58MV(B,C)060---14

CSPH*2412A** 1.00 1.00 58MV(B,C)040---14

CNPH*2417A** 0.99 0.99 58MV(B,C)060--- 14

CAP**1814A** 0.99 1.01 58PH*045--- 08

CAP**2414A** 1.01 1.03 58PH*045--- 08

CSPH*2412A** 1.00 1.00 58MV(B,C)060---14

CSPH*2412A** 1.00 1.00 58MV(B,C)080---14

CNPH*2417A** 0.99 0.99 58MV(B,C)080--- 14

CNPV*1814A** 0.99 1.01 58PH*045--- 08

CNPH*2417A** 1.01 1.02 58PH*045---08

18

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

COOLING

CSPH*2412A** 0.98 0.98 58MV(B,C)080--- 20

CSPH*3012A** 0.99 0.99 58MV(B,C)080--- 20

CSPH*2412A** 0.99 0.99 58MV(B,C)100--- 20

CNPH*3017A** 0.99 0.99 58MV(B,C)080 --- 20

INDOOR MODEL

Tot a l

KW**

System

CSPH*3012A** 0.99 0.99 58MV(B,C)100--- 20

CNPH*2417A** 0.97 0.97 58MV(B,C)100 --- 20

CNPH*3017A** 0.99 0.99 58MV(B,C)100 --- 20

CNPH*2417A** 0.97 1.01 58MV(B,C)120 --- 20

CAP**2414A** 0.98 1.02 58PH*045 ---08

CAP**3014A** 0.99 0.99 58PH*045 ---08

CNPV*2414A** 0.97 1.02 58PH*045 ---08

CSPH*2412A** 0.98 0.98 58MV(B,C)120--- 20

CSPH*3012A** 0.99 0.99 58MV(B,C)120--- 20

CNPH*3017A** 0.98 0.98 58MV(B,C)120 --- 20

CNPV*3014A** 0.99 0.99 58PH*045 ---08

CSPH*2412A** 0.98 0.98 58PH*045 ---08

CNPH*2417A** 0.97 1.02 58PH*045 ---08

CNPH*3017A** 1.00 1.00 58PH*045 ---08

CSPH*3012A** 1.00 1.00 58PH*045 ---08

Seenoteonpg.26

25HCB5

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

CONTINUED

#

Capacity MBtuh

Tot a l

KW**

System

Capacity MBtuh

25HCB524A30 Outdoor Section With FX4CNF030 Indoor Section

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

COOLING

CNPV*2417A** 0.97 0.97 58CV(A,X)090--- 16

CNPV*3017A** 0.99 0.97 58CV(A,X)090--- 16

CSPH*2412A** 0.98 0.98 58CV(A,X)090--- 16

CSPH*3012A** 0.99 0.97 58CV(A,X)090--- 16

CSPH*2412A** 0.98 0.98 58CV(A,X)110--- 20

CSPH*3012A** 0.99 0.99 58CV(A,X)110--- 20

CSPH*2412A** 0.98 0.98 58CV(A,X)135--- 22

CSPH*3012A** 0.99 0.97 58CV(A,X)135--- 22

CSPH*2412A** 0.98 0.98 58CV(A,X)155--- 22

CNPH*3017A** 0.99 0.97 58CV(A,X)090---16

INDOOR MODEL

CNPH*2417A** 0.97 1.02 58CV(A,X)110---20

CNPH*3017A** 0.99 0.99 58CV(A,X)110---20

CNPH*2417A** 0.97 0.97 58CV(A,X)135---22

CNPH*3017A** 0.99 0.99 58CV(A,X)135---22

CSPH*3012A** 0.99 0.99 58CV(A,X)155--- 22

CNPH*2417A** 0.97 0.97 58CV(A,X)155---22

CNPH*3017A** 0.99 0.99 58CV(A,X)155---22

CNPH*2417A** 0.97 1.02 58MV(B,C)040 --- 14

CAP**2417A** 0.97 0.97 58MV(B,C)060--- 14

CAP**3017A** 0.98 0.98 58MV(B,C)060--- 14

CNPV*2417A** 0.97 0.97 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.98 58MV(B,C)040--- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)040--- 14

CNPH*3017A** 0.99 0.99 58MV(B,C)040 --- 14

CNPV*3017A** 0.98 0.98 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.98 58MV(B,C)060--- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)060--- 14

CSPH*2412A** 0.98 0.98 58MV(B,C)080--- 14

CNPH*2417A** 0.97 0.97 58MV(B,C)060 --- 14

CNPH*3017A** 0.98 0.98 58MV(B,C)060 --- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)080--- 14

CNPH*2417A** 0.97 1.02 58MV(B,C)080 --- 14

CNPH*3017A** 0.99 0.99 58MV(B,C)080 --- 14

CNPH*2417A** 0.97 1.02 58MV(B,C)080 --- 20

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To ta l Sens‡ Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 28.26 14.33 1.48 26.88 13.80 1.66 25.41 13.24 1.86 23.89 12.67 2.07 22.26 12.06 2.31 20.55 11.44 2.56

67 (19.4) 25.86 17.79 1.48 24.59 17.24 1.66 23.25 16.67 1.86 21.84 16.08 2.07 20.34 15.46 2.31 18.78 14.83 2.56

62 (16.7) 23.63 21.22 1.48 22.48 20.65 1.66 21.27 20.05 1.85 20.00 19.39 2.07 18.71 18.71 2.31 17.53 17.53 2.56

57 (13.9) 22.79 22.79 1.48 21.88 21.88 1.66 20.89 20.89 1.85 19.84 19.84 2.07 18.71 18.71 2.31 17.53 17.53 2.56

72 (22.2) 28.74 14.97 1.52 27.31 14.43 1.69 25.79 13.87 1.89 24.19 13.28 2.11 22.51 12.67 2.34 20.75 12.04 2.60

67 (19.4) 26.32 18.87 1.51 25.00 18.31 1.69 23.60 17.73 1.89 22.13 17.13 2.10 20.59 16.50 2.34 18.98 15.84 2.60

62 (16.7) 24.12 22.68 1.51 22.93 22.07 1.69 21.71 21.55 1.89 20.53 20.53 2.10 19.33 19.33 2.34 18.07 18.07 2.59

63 (17.2)†† 24.10 17.23 1.48 22.92 16.69 1.66 21.66 16.12 1.86 20.34 15.53 2.07 18.94 14.90 2.31 17.49 14.26 2.56

EVAPORATOR AIR

CFM

700

63 (17.2)†† 24.55 18.25 1.51 23.31 17.69 1.69 22.01 17.11 1.89 20.64 16.51 2.10 19.18 15.87 2.34 17.69 15.21 2.59

800

57 (13.9) 23.68 23.68 1.51 22.70 22.70 1.69 21.65 21.65 1.89 20.53 20.53 2.10 19.33 19.33 2.34 18.07 18.07 2.59

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

72 (22.2) 29.09 15.58 1.55 27.61 15.03 1.73 26.04 14.45 1.92 24.41 13.86 2.14 22.68 13.25 2.37 20.87 12.61 2.63

67 (19.4) 26.65 19.89 1.55 25.29 19.33 1.72 23.85 18.74 1.92 22.34 18.12 2.14 20.76 17.48 2.37 19.11 16.80 2.63

62 (16.7) 24.53 23.98 1.55 23.37 23.37 1.72 22.26 22.26 1.92 21.08 21.08 2.14 19.82 19.82 2.37 18.50 18.50 2.63

57 (13.9) 24.40 24.40 1.55 23.37 23.37 1.72 22.26 22.26 1.92 21.09 21.09 2.14 19.82 19.82 2.37 18.50 18.50 2.63

63 (17.2)†† 24.88 19.21 1.55 23.60 18.65 1.72 22.26 18.06 1.92 20.85 17.44 2.14 19.36 16.78 2.37 17.83 16.10 2.63

900

COOLING

FE4ANF002 0.99 0.99

FF1ENP024 0.97 1.11

FF1ENP030 0.97 1.09

FV4BNF002 0.99 0.97

FY4ANF024 0.97 1.08

FY4ANF030 0.98 1.07

*FX4CNF030 1.00 1.00

FE4AN(B,F)003 1.00 0.96

INDOOR MODEL

FX4CNF024 0.98 1.02

CAP**2414A** 0.97 1.09

CAP**2417A** 0.97 1.09

CAP**3014A** 0.99 1.11

FV4BN(B,F)003 1.00 0.96

CAP**3017A** 0.99 1.11

CNPF*2418A** 0.97 1.09

CNPV*2414A** 0.97 1.09

CNPV*2417A** 0.97 1.09

CNPH*2417A** 0.97 1.09

CNPV*3014A** 0.99 1.11

CNPH*3017A** 0.99 1.11

CAP**2414A** 0.97 0.97 58CV(A,X)070--- 12

CNPV*3017A** 0.99 1.11

CAP**3014A** 0.98 0.98 58CV(A,X)070--- 12

CSPH*2412A** 0.97 1.06

CSPH*3012A** 0.97 1.06

CNPV*2414A** 0.97 1.01 58CV(A,X)070--- 12

CNPH*2417A** 0.97 1.01 58CV(A,X)070---12

CNPH*3017A** 0.98 0.98 58CV(A,X)070---12

CAP**2417A** 0.97 0.97 58CV(A,X)090--- 16

CNPV*3014A** 0.98 0.98 58CV(A,X)070--- 12

CAP**3017A** 0.99 0.97 58CV(A,X)090--- 16

CSPH*2412A** 0.98 0.98 58CV(A,X)070--- 12

CSPH*3012A** 0.99 0.99 58CV(A,X)070--- 12

CNPH*2417A** 0.97 0.97 58CV(A,X)090---16

19

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

25HCB5

CONTINUED

#

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

Capacity MBtuh

Tot a l

KW**

25HCB530A30 Outdoor Section With FX4CN(B,F)036 Indoor Section

System

COOLING

INDOOR MODEL

CAPACITY POWER FURNACE MODEL

COOLING

INDOOR MODEL

CAP**3621A** 0.99 0.95 58MV(B,C)080---20

CNPV*3621A** 0.99 0.96 58MV(B,C)080---14

CSPH*3012A** 0.99 0.96 58MV(B,C)080---14

CSPH*3612A** 1.01 0.97 58MV(B,C)080---14

CNPH*3017A** 0.99 0.96 58MV(B,C)080--- 20

CNPH*3617A** 0.99 0.96 58MV(B,C)080--- 20

CAP**3621A** 0.99 0.95 58MV(B,C)100---20

CNPV*3621A** 0.99 0.96 58MV(B,C)080---20

CSPH*3012A** 0.99 0.96 58MV(B,C)080---20

CSPH*3612A** 1.01 0.97 58MV(B,C)080---20

CNPV*3621A** 0.99 0.96 58MV(B,C)100---20

CSPH*3012A** 0.99 0.96 58MV(B,C)100---20

CNPH*3017A** 0.99 0.96 58MV(B,C)100--- 20

CSPH*3612A** 1.01 0.97 58MV(B,C)100---20

CNPH*3617A** 0.99 0.96 58MV(B,C)100--- 20

CNPH*3017A** 0.99 0.95 58MV(B,C)120--- 20

CAP**3017A** 0.97 0.97 58PH*070--- 16

CAP**3617A** 0.99 0.99 58PH*070--- 16

CSPH*3012A** 0.99 0.95 58MV(B,C)120---20

CSPH*3612A** 1.00 0.96 58MV(B,C)120---20

CNPH*3617A** 0.99 0.95 58MV(B,C)120--- 20

CNPV*3017A** 0.99 0.99 58PH*070--- 16

CNPH*3017A** 0.99 0.99 58PH*070---16

CNPH*3617A** 0.99 0.99 58PH*070---16

CAP**3621A** 1.00 0.96 58PH*090--- 16

CNPV*3617A** 0.99 0.99 58PH*070--- 16

CSPH*3012A** 0.99 0.99 58PH*070--- 16

CSPH*3612A** 1.01 1.01 58PH*070--- 16

CNPV*3621A** 0.99 0.99 58PH*090--- 16

CSPH*3012A** 0.99 0.99 58PH*090--- 16

CNPH*3017A** 0.99 0.99 58PH*090---16

CSPH*3612A** 1.01 0.97 58PH*090--- 16

CNPH*3617A** 0.99 0.99 58PH*090---16

Seenoteonpg.26

CNPV*3017A** 0.99 0.95 58CV(A,X)090---16

CNPH*3017A** 0.99 0.95 58CV(A,X)090---16

CNPH*3617A** 0.99 0.95 58CV(A,X)090---16

CAP**3621A** 0.99 0.95 58CV(A,X)110---20

CNPV*3617A** 0.99 0.95 58CV(A,X)090---16

CSPH*3012A** 0.99 0.95 58CV(A,X)090--- 16

CSPH*3612A** 1.01 0.97 58CV(A,X)090--- 16

CNPV*3621A** 0.99 0.95 58CV(A,X)110---20

CSPH*3012A** 0.99 0.95 58CV(A,X)110--- 20

CSPH*3612A** 1.01 0.97 58CV(A,X)110--- 20

CSPH*3012A** 0.99 0.95 58CV(A,X)135--- 22

CSPH*3612A** 1.01 0.97 58CV(A,X)135--- 22

CSPH*3012A** 0.99 0.95 58CV(A,X)155--- 22

CNPH*3017A** 0.99 0.95 58CV(A,X)110---20

CNPH*3617A** 0.99 0.95 58CV(A,X)110---20

CNPH*3017A** 0.99 0.95 58CV(A,X)135---22

CNPH*3617A** 0.99 0.95 58CV(A,X)135---22

CSPH*3612A** 1.01 0.97 58CV(A,X)155--- 22

CNPH*3017A** 0.99 0.95 58CV(A,X)155---22

CNPH*3617A** 0.99 0.95 58CV(A,X)155---22

CNPH*3017A** 0.98 0.96 58MV(B,C)040--- 14

CAP**3017A** 0.98 0.96 58MV(B,C)060---14

CAP**3617A** 0.99 0.96 58MV(B,C)060---14

CSPH*3012A** 0.99 0.96 58MV(B,C)040---14

CSPH*3612A** 1.00 0.96 58MV(B,C)040---14

CNPH*3617A** 0.98 0.96 58MV(B,C)040--- 14

CNPV*3017A** 0.98 0.96 58MV(B,C)060---14

CNPH*3017A** 0.98 0.96 58MV(B,C)060--- 14

CNPH*3617A** 0.98 0.96 58MV(B,C)060--- 14

CAP**3621A** 0.99 0.95 58MV(B,C)080---14

CNPV*3617A** 0.98 0.98 58MV(B,C)060---14

CSPH*3012A** 0.99 0.96 58MV(B,C)060---14

CSPH*3612A** 1.00 0.96 58MV(B,C)060---14

CNPH*3017A** 0.99 0.96 58MV(B,C)080--- 14

CNPH*3617A** 0.99 0.96 58MV(B,C)080--- 14

Capacity MBtuh

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ Tota l Sens‡ Tot a l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 35.07 17.26 1.86 33.46 16.66 2.07 31.77 16.04 2.29 29.98 15.39 2.54 28.05 14.69 2.82 26.04 13.98 3.11

67 (19.4) 31.80 21.40 1.86 30.31 20.78 2.06 28.74 20.14 2.29 27.08 19.47 2.54 25.28 18.75 2.81 23.43 18.02 3.11

62 (16.7) 28.89 25.52 1.86 27.53 24.86 2.06 26.11 24.17 2.29 24.62 23.38 2.54 23.16 23.16 2.81 21.76 21.76 3.10

57 (13.9) 27.99 27.99 1.86 26.90 26.90 2.06 25.75 25.75 2.29 24.51 24.51 2.53 23.16 23.16 2.81 21.77 21.77 3.10

72 (22.2) 35.71 18.06 1.91 34.05 17.45 2.11 32.29 16.82 2.34 30.43 16.15 2.59 28.43 15.45 2.86 26.35 14.73 3.16

67 (19.4) 32.38 22.72 1.91 30.83 22.09 2.11 29.20 21.44 2.34 27.47 20.75 2.59 25.62 20.02 2.86 23.71 19.27 3.16

62 (16.7) 29.49 27.27 1.90 28.11 26.54 2.11 26.70 26.70 2.33 25.38 25.38 2.58 23.96 23.96 2.86 22.49 22.49 3.15

63 (17.2)†† 29.46 20.65 1.86 28.06 20.03 2.06 26.59 19.38 2.29 25.02 18.70 2.54 23.33 17.98 2.81 21.59 17.24 3.10

EVAPORATOR AIR

CFM

875

63 (17.2)†† 30.01 21.88 1.91 28.55 21.25 2.11 27.01 20.59 2.33 25.39 19.89 2.58 23.64 19.15 2.86 21.85 18.39 3.15

1000

57 (13.9) 29.08 29.08 1.90 27.92 27.92 2.11 26.70 26.70 2.33 25.39 25.39 2.58 23.97 23.97 2.86 22.49 22.49 3.15

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

72 (22.2) 36.20 18.80 1.96 34.48 18.19 2.16 32.67 17.55 2.39 30.75 16.88 2.64 28.69 16.17 2.91 26.55 15.44 3.21

67 (19.4) 32.81 23.97 1.95 31.21 23.34 2.16 29.53 22.67 2.38 27.76 21.96 2.63 25.86 21.22 2.91 23.91 20.44 3.20

62 (16.7) 30.01 30.01 1.95 28.77 28.77 2.16 27.48 27.48 2.38 26.11 26.11 2.63 24.62 24.62 2.90 23.07 23.07 3.20

57 (13.9) 29.98 29.98 1.95 28.77 28.77 2.16 27.49 27.49 2.38 26.11 26.11 2.63 24.62 24.62 2.90 23.07 23.07 3.20

63 (17.2)†† 30.41 23.05 1.95 28.91 22.40 2.16 27.33 21.73 2.38 25.66 21.02 2.63 23.87 20.25 2.90 22.04 19.46 3.20

1125

COOLING

INDOOR MODEL

FE4ANF002 0.99 0.95

FF1ENP030 0.97 1.06

FF1ENP036 0.99 1.08

FV4BNF002 0.99 0.95

FY4ANF030 0.98 1.06

FY4ANF036 0.99 1.07

FX4CNF030 0.99 0.99

CAP**3014A** 0.99 1.07

CAP**3017A** 0.99 1.07

CAP**3614A** 0.99 1.08

CAP**3617A** 0.99 1.08

FE4AN(B,F)003 0.99 0.95

FE4AN(B,F)005 1.03 0.99

*FX4C N(B,F)036 1.00 1.00

FV4BN(B,F)003 0.99 0.95

FV4BN(B,F)005 1.03 0.99

CAP**3621A** 0.99 1.08

CNPF*3618A** 0.99 1.07

CNPV*3014A** 0.99 1.07

CNPV*3017A** 0.99 1.07

CNPH*3017A** 0.99 1.07

CNPV*3617A** 0.99 1.07

CNPH*3617A** 0.99 1.07

CAP**3014A** 0.98 0.98 58CV(A,X)070---12

CNPV*3621A** 0.99 1.07

CAP**3614A** 0.99 0.99 58CV(A,X)070---12

CSPH*3012A** 0.99 1.08

CSPH*3612A** 1.01 1.08

CNPH*3017A** 0.99 0.99 58CV(A,X)070---12

CNPH*3617A** 0.99 0.96 58CV(A,X)070---12

CAP**3017A** 0.99 0.95 58CV(A,X)090---16

CNPV*3014A** 0.98 0.98 58CV(A,X)070---12

CAP**3617A** 0.99 0.95 58CV(A,X)090---16

CSPH*3012A** 0.99 0.99 58CV(A,X)070--- 12

CSPH*3612A** 1.00 0.96 58CV(A,X)070--- 12

20

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

CONTINUED

#

Capacity MBtuh

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

25HCB536A30 Outdoor Section With FX4CN(B,F)042 Indoor Section

System

COOLING

CNPV*3621A** 0.96 1.02 58MV(B,C)080--- 14

CNPH*3617A** 0.96 1.02 58MV(B,C)080 --- 14

CNPH*4221A** 0.97 0.99 58MV(B,C)080 --- 14

INDOOR MODEL

CAP**3621A** 0.97 0.97 58MV(B,C)080--- 20

CNPV*4221A** 0.97 0.97 58MV(B,C)080--- 14

CAP**4221A** 0.97 0.97 58MV(B,C)080--- 20

CSPH*3612A** 0.98 1.00 58MV(B,C)080--- 14

CSPH*4212A** 0.99 1.00 58MV(B,C)080--- 14

CNPV*3621A** 0.96 0.98 58MV(B,C)080--- 20

CNPH*3617A** 0.96 0.98 58MV(B,C)080 --- 20

CNPH*4221A** 0.98 0.99 58MV(B,C)080 --- 20

CAP**3621A** 0.97 0.97 58MV(B,C)100--- 20

CNPV*4221A** 0.98 0.98 58MV(B,C)080--- 20

CAP**4221A** 0.97 0.97 58MV(B,C)100--- 20

CSPH*3612A** 0.99 1.00 58MV(B,C)080--- 20

CSPH*4212A** 0.99 0.97 58MV(B,C)080--- 20

CNPV*3621A** 0.97 0.98 58MV(B,C)100--- 20

CNPH*3617A** 0.97 0.98 58MV(B,C)100 --- 20

CNPH*4221A** 0.98 0.95 58MV(B,C)100 --- 20

CAP**4224A** 0.97 0.97 58MV(B,C)120--- 20

CNPV*4221A** 0.98 0.95 58MV(B,C)100--- 20

CSPH*3612A** 0.99 1.00 58MV(B,C)100--- 20

CSPH*4212A** 0.99 0.97 58MV(B,C)100--- 20

CNPH*3617A** 0.96 0.98 58MV(B,C)120 --- 20

CAP**3614A** 0.96 1.06 58PH*045 ---08

CSPH*3612A** 0.99 0.97 58MV(B,C)120--- 20

CSPH*4212A** 0.99 0.97 58MV(B,C)120--- 20

CNPH*4221A** 0.98 0.95 58MV(B,C)120 --- 20

CNPH*3617A** 0.96 1.06 58PH*045 ---08

CAP**3617A** 0.97 1.02 58PH*070 ---16

CSPH*3612A** 0.99 1.05 58PH*045 ---08

CSPH*4212A** 0.99 1.05 58PH*045 ---08

CNPH*4221A** 0.97 1.07 58PH*045 ---08

25HCB5

CAPACITY POWER FURNACE MODEL

COOLING

INDOOR MODEL

CAP**3621A** 0.97 0.97 58CV(A,X)110--- 20

CNPV*3617A** 0.97 0.97 58CV(A,X)090--- 16

CAP**4221A** 0.98 0.98 58CV(A,X)110--- 20

CSPH*3612A** 0.99 0.97 58CV(A,X)090--- 16

CSPH*4212A** 0.99 0.97 58CV(A,X)090--- 16

CNPV*3621A** 0.97 0.97 58CV(A,X)110--- 20

CNPH*3617A** 0.97 0.97 58CV(A,X)110---20

CNPH*4221A** 0.98 0.96 58CV(A,X)110---20

CAP**4224A** 0.98 0.95 58CV(A,X)135--- 22

CNPV*4221A** 0.98 0.96 58CV(A,X)110--- 20

CSPH*3612A** 0.99 0.97 58CV(A,X)110--- 20

CSPH*4212A** 0.99 0.97 58CV(A,X)110--- 20

CNPH*3617A** 0.97 0.97 58CV(A,X)135---22

CAP**4224A** 0.98 0.95 58CV(A,X)155--- 22

CSPH*3612A** 0.99 0.97 58CV(A,X)135--- 22

CSPH*4212A** 0.99 0.97 58CV(A,X)135--- 22

CNPH*4221A** 0.98 0.96 58CV(A,X)135---22

CNPH*3617A** 0.97 0.97 58CV(A,X)155---22

CAP**4224A** 0.97 0.97 58MV(B,C)040--- 14

CSPH*3612A** 0.99 0.97 58CV(A,X)155--- 22

CSPH*4212A** 1.00 0.98 58CV(A,X)155--- 22

CNPH*4221A** 0.98 0.96 58CV(A,X)155---22

CNPH*3617A** 0.96 1.02 58MV(B,C)040 --- 14

CAP**3617A** 0.97 0.97 58MV(B,C)060--- 14

CSPH*3612A** 0.98 1.00 58MV(B,C)040--- 14

CSPH*4212A** 0.99 1.00 58MV(B,C)040--- 14

CNPH*4221A** 0.98 0.98 58MV(B,C)040 --- 14

CNPH*3617A** 0.96 0.98 58MV(B,C)060 --- 14

CNPH*4221A** 0.98 0.95 58MV(B,C)060 --- 14

CAP**3621A** 0.96 0.98 58MV(B,C)080--- 14

CNPV*3617A** 0.96 0.98 58MV(B,C)060--- 14

CAP**4221A** 0.97 0.98 58MV(B,C)080--- 14

CSPH*3612A** 0.99 1.00 58MV(B,C)060--- 14

CSPH*4212A** 0.99 0.97 58MV(B,C)060--- 14

Capacity MBtuh

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ Tota l Sens‡ Tot a l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 42.37 21.63 2.26 40.45 20.88 2.51 38.43 20.10 2.79 36.27 19.28 3.09 33.93 18.40 3.42 31.45 17.48 3.77

67 (19.4) 38.48 26.77 2.26 36.70 26.00 2.50 34.82 25.19 2.77 32.83 24.35 3.08 30.67 23.44 3.40 28.41 22.51 3.76

62 (16.7) 34.97 31.89 2.25 33.34 31.07 2.49 31.63 30.21 2.76 29.83 29.27 3.06 27.99 27.99 3.39 26.30 26.30 3.75

57 (13.9) 33.76 33.76 2.24 32.46 32.46 2.49 31.08 31.08 2.76 29.60 29.60 3.06 27.99 27.99 3.39 26.30 26.30 3.75

72 (22.2) 43.17 22.62 2.32 41.17 21.86 2.57 39.06 21.06 2.84 36.81 20.22 3.15 34.38 19.33 3.47 31.81 18.39 3.83

67 (19.4) 39.21 28.41 2.31 37.35 27.62 2.56 35.40 26.81 2.83 33.32 25.94 3.13 31.09 25.02 3.46 28.75 24.06 3.82

62 (16.7) 35.71 34.09 2.30 34.04 33.21 2.55 32.29 32.24 2.82 30.68 30.68 3.12 28.98 28.98 3.45 27.17 27.17 3.81

63 (17.2)†† 35.67 25.84 2.25 34.00 25.07 2.49 32.23 24.26 2.77 30.35 23.40 3.07 28.32 22.49 3.39 26.21 21.56 3.75

EVAPORATOR AIR

CFM

1050

63 (17.2)†† 36.35 27.38 2.30 34.61 26.59 2.55 32.77 25.76 2.82 30.82 24.89 3.12 28.72 23.96 3.45 26.54 22.99 3.81

1200

57 (13.9) 35.09 35.09 2.30 33.71 33.71 2.55 32.25 32.25 2.82 30.68 30.68 3.12 28.98 28.98 3.45 27.18 27.18 3.81

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

72 (22.2) 43.76 23.54 2.38 41.70 22.77 2.63 39.52 21.97 2.90 37.20 21.12 3.20 34.70 20.21 3.53 32.06 19.26 3.89

67 (19.4) 39.74 29.97 2.37 37.83 29.18 2.62 35.81 28.34 2.89 33.68 27.46 3.19 31.38 26.51 3.52 28.99 25.52 3.87

62 (16.7) 36.35 36.03 2.36 34.75 34.75 2.61 33.22 33.22 2.88 31.57 31.57 3.18 29.78 29.78 3.51 27.89 27.89 3.87

57 (13.9) 36.21 36.21 2.36 34.76 34.76 2.61 33.22 33.22 2.88 31.57 31.57 3.18 29.78 29.78 3.51 27.89 27.89 3.87

63 (17.2)†† 36.86 28.84 2.36 35.06 28.03 2.61 33.16 27.19 2.88 31.15 26.30 3.18 29.00 25.34 3.51 26.77 24.34 3.86

1350

COOLING

*FX4C N(B,F)042 1.00 1.00

INDOOR MODEL

FE4ANF002 0.97 0.98

FF1ENP036 0.97 1.10

FE4ANB006 1.02 0.96

FE4AN(B,F)003 0.98 0.95

FE4AN(B,F)005 1.01 0.99

FV4BNF002 0.97 0.98

FY4ANF036 0.97 1.10

FV4BNB006 1.02 0.96

FV4BN(B,F)003 0.98 0.95

FV4BN(B,F)005 1.01 0.99

FY4ANF042 0.99 1.09

CAP**3614A** 0.96 1.09

CAP**3617A** 0.97 1.10

CAP**3621A** 0.97 1.10

CAP**4221A** 0.98 1.08

FX4CN(B,F)036 0.98 1.00

CAP**4224A** 0.98 1.08

CNPF*3618A** 0.97 1.10

CNPV*3617A** 0.97 1.10

CNPV*3621A** 0.97 1.10

CNPH*3617A** 0.97 1.10

CNPH*4221A** 0.98 1.09

CAP**3614A** 0.96 1.02 58CV(A,X)070--- 12

CNPV*4221A** 0.98 1.09

CSPH*3612A** 0.99 1.05

CSPH*4212A** 1.00 1.06

CNPH*3617A** 0.96 1.02 58CV(A,X)070---12

CAP**3617A** 0.97 0.97 58CV(A,X)090--- 16

CSPH*3612A** 0.98 1.00 58CV(A,X)070--- 12

CSPH*4212A** 0.99 1.00 58CV(A,X)070--- 12

CNPH*4221A** 0.98 0.99 58CV(A,X)070---12

CNPH*3617A** 0.97 0.97 58CV(A,X)090---16

CNPH*4221A** 0.98 0.95 58CV(A,X)090---16

21

25HCB5

25HCB536A30 Outdoor Section With FX4CN(B,F)042 Indoor Section

CONTINUED

#

CAPACITY POWER FURNACE MODEL

DETAILED COOLING CAPACITIES

COOLING

CNPH*3617A** 0.96 1.02 58PH*070 ---16

CNPH*4221A** 0.98 1.03 58PH*070 ---16

INDOOR MODEL

CAP**3621A** 0.98 0.99 58PH*090 ---16

CNPV*3617A** 0.96 1.02 58PH*070 ---16

CAP**4221A** 0.98 1.00 58PH*090 ---16

CNPV*3621A** 0.97 0.99 58PH*090 ---16

CSPH*3612A** 0.99 1.00 58PH*070 ---16

CSPH*4212A** 0.99 1.01 58PH*070 ---16

CNPV*4221A** 0.98 1.00 58PH*090 ---16

CNPH*3617A** 0.97 0.99 58PH*090 ---16

CSPH*3612A** 0.99 0.97 58PH*090 ---16

CNPH*4221A** 0.98 1.00 58PH*090 ---16

CAP**3621A** 0.98 1.00 58PH*110 ---20

CAP**4221A** 0.99 0.97 58PH*110 ---20

CNPV*3621A** 0.97 0.99 58PH*110 ---20

CSPH*4212A** 1.01 0.98 58PH*090 ---16

CNPV*4221A** 0.99 0.97 58PH*110 ---20

CSPH*3612A** 1.00 0.98 58PH*110 ---20

CNPH*3617A** 0.97 0.99 58PH*110 ---20

CNPH*4221A** 0.99 0.97 58PH*110 ---20

CSPH*4212A** 1.01 0.98 58PH*110 ---20

Seenoteonpg.26

22

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

CONTINUED

#

Capacity MBtuh

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

25HCB542A30 Outdoor Section With FX4CN(B,F)048 Indoor Section

System

COOLING

CNPV*4221A** 0.99 1.07 58MV(B,C)080--- 14

CNPH*4221A** 0.99 1.07 58MV(B,C)080 --- 14

CNPH*4821A** 1.00 1.08 58MV(B,C)080 --- 14

INDOOR MODEL

CAP**4221A** 0.98 1.06 58MV(B,C)080--- 20

CNPV*4821A** 1.00 1.08 58MV(B,C)080--- 14

CAP**4821A** 1.00 1.04 58MV(B,C)080--- 20

CSPH*4212A** 1.00 1.08 58MV(B,C)080--- 14

CSPH*4812A** 1.00 1.08 58MV(B,C)080--- 14

CNPV*4221A** 0.99 1.03 58MV(B,C)080--- 20

CNPH*4221A** 0.99 1.03 58MV(B,C)080 --- 20

CNPH*4821A** 1.00 1.04 58MV(B,C)080 --- 20

CAP**4221A** 0.99 1.07 58MV(B,C)100--- 20

CNPV*4821A** 1.00 1.04 58MV(B,C)080--- 20

CAP**4821A** 1.00 1.04 58MV(B,C)100--- 20

CSPH*4212A** 1.00 1.04 58MV(B,C)080--- 20

CSPH*4812A** 1.00 1.04 58MV(B,C)080--- 20

CNPV*4221A** 0.99 1.03 58MV(B,C)100--- 20

CNPH*4221A** 0.99 1.03 58MV(B,C)100 --- 20

CNPH*4821A** 1.00 1.04 58MV(B,C)100 --- 20

CAP**4224A** 0.98 1.06 58MV(B,C)120--- 20

CNPV*4821A** 1.00 1.04 58MV(B,C)100--- 20

CAP**4824A** 1.00 1.04 58MV(B,C)120--- 20

CSPH*4212A** 1.00 1.04 58MV(B,C)100--- 20

CSPH*4812A** 1.00 1.04 58MV(B,C)100--- 20

CNPH*4221A** 0.99 1.03 58MV(B,C)120 --- 20

CNPH*4821A** 1.00 1.04 58MV(B,C)120 --- 20

CAP**4817A** 1.00 1.13 58PH*070 ---16

CNPV*4824A** 1.00 1.04 58MV(B,C)120--- 20

CSPH*4212A** 1.00 1.04 58MV(B,C)120--- 20

CSPH*4812A** 1.00 1.04 58MV(B,C)120--- 20

CSPH*4212A** 1.00 1.13 58PH*070 ---16

CSPH*4812A** 1.00 1.13 58PH*070 ---16

CNPH*4221A** 0.99 1.12 58PH*070 ---16

CNPH*4821A** 1.00 1.13 58PH*070 ---16

25HCB5

CAPACITY POWER FURNACE MODEL

COOLING

CNPV*4221A** 0.99 1.03 58CV(A,X)110--- 20

CNPH*4221A** 0.99 1.03 58CV(A,X)110---20

CNPH*4821A** 1.00 1.04 58CV(A,X)110---20

INDOOR MODEL

CAP**4224A** 0.99 1.03 58CV(A,X)135--- 22

CNPV*4821A** 1.00 1.04 58CV(A,X)110--- 20

CAP**4824A** 1.00 1.04 58CV(A,X)135--- 22

CSPH*4212A** 1.00 1.04 58CV(A,X)110--- 20

CSPH*4812A** 1.00 1.04 58CV(A,X)110--- 20

CNPH*4221A** 1.00 1.04 58CV(A,X)135---22

CNPH*4821A** 1.00 1.00 58CV(A,X)135---22

CAP**4224A** 0.99 1.03 58CV(A,X)155--- 22

CNPV*4824A** 1.00 1.00 58CV(A,X)135--- 22

CAP**4824A** 1.00 1.04 58CV(A,X)155--- 22

CSPH*4212A** 1.00 1.04 58CV(A,X)135--- 22

CSPH*4812A** 1.00 1.00 58CV(A,X)135--- 22

CNPH*4221A** 0.99 1.03 58CV(A,X)155---22

CNPH*4821A** 1.00 1.00 58CV(A,X)155---22

CAP**4224A** 0.98 1.06 58MV(B,C)040--- 14

CNPV*4824A** 1.00 1.00 58CV(A,X)155--- 22

CAP**4824A** 1.00 1.08 58MV(B,C)040--- 14

CSPH*4212A** 1.00 1.04 58CV(A,X)155--- 22

CSPH*4812A** 1.00 1.00 58CV(A,X)155--- 22

CNPH*4221A** 0.99 1.07 58MV(B,C)040 --- 14

CNPH*4821A** 1.00 1.04 58MV(B,C)040 --- 14

CAP**4817A** 1.00 1.04 58MV(B,C)060--- 14

CNPV*4824A** 1.00 1.04 58MV(B,C)040--- 14

CSPH*4212A** 1.00 1.08 58MV(B,C)040--- 14

CSPH*4812A** 1.00 1.04 58MV(B,C)040--- 14

CNPH*4221A** 0.99 1.03 58MV(B,C)060 --- 14

CAP**4221A** 0.98 1.06 58MV(B,C)080--- 14

CAP**4821A** 0.99 1.07 58MV(B,C)080--- 14

CSPH*4212A** 1.00 1.04 58MV(B,C)060--- 14

CSPH*4812A** 1.00 1.04 58MV(B,C)060--- 14

CNPH*4821A** 1.00 1.04 58MV(B,C)060 --- 14

Capacity MBtuh

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ Tota l Sens‡ Tot a l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 50.49 24.99 2.39 47.99 24.04 2.75 45.35 23.05 3.12 42.60 22.03 3.50 39.70 20.96 3.90 36.62 19.86 4.30

67 (19.4) 46.01 30.93 2.48 43.72 29.96 2.82 41.34 28.96 3.18 38.85 27.93 3.55 36.22 26.86 3.93 33.46 25.75 4.32

62 (16.7) 41.85 36.81 2.55 39.79 35.82 2.88 37.67 34.79 3.23 35.46 33.69 3.58 33.20 33.20 3.95 31.14 31.14 4.32

57 (13.9) 40.26 40.26 2.57 38.64 38.64 2.90 36.95 36.95 3.23 35.14 35.14 3.58 33.20 33.20 3.95 31.14 31.14 4.32

72 (22.2) 51.41 26.12 2.43 48.78 25.15 2.79 46.03 24.14 3.17 43.16 23.10 3.55 40.14 22.02 3.95 36.95 20.89 4.35

67 (19.4) 46.89 32.83 2.52 44.49 31.84 2.87 42.00 30.82 3.23 39.40 29.77 3.60 36.66 28.68 3.99 33.80 27.53 4.38

62 (16.7) 42.75 39.42 2.59 40.63 38.36 2.93 38.46 38.14 3.28 36.40 36.40 3.63 34.32 34.32 4.00 32.11 32.11 4.38

63 (17.2)†† 42.71 29.90 2.54 40.60 28.94 2.87 38.41 27.96 3.22 36.10 26.94 3.58 33.67 25.88 3.95 31.13 24.78 4.32

EVAPORATOR AIR

CFM

1225

63 (17.2)†† 43.57 31.70 2.58 41.35 30.72 2.92 39.05 29.71 3.27 36.64 28.66 3.63 34.11 27.57 4.01 31.48 26.44 4.39

1400

57 (13.9) 41.91 41.91 2.61 40.17 40.17 2.94 38.34 38.34 3.28 36.40 36.40 3.63 34.32 34.32 4.00 32.11 32.11 4.38

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

72 (22.2) 52.07 27.18 2.47 49.36 26.20 2.84 46.50 25.17 3.22 43.54 24.12 3.61 40.43 23.02 4.01 37.15 21.88 4.41

67 (19.4) 47.53 34.65 2.56 45.05 33.64 2.92 42.47 32.60 3.28 39.79 31.53 3.66 36.97 30.40 4.04 34.03 29.23 4.44

62 (16.7) 43.52 41.76 2.64 41.43 41.43 2.98 39.48 39.48 3.32 37.42 37.42 3.69 35.22 35.22 4.06 32.88 32.88 4.44

57 (13.9) 43.27 43.27 2.64 41.43 41.43 2.98 39.48 39.48 3.32 37.42 37.42 3.68 35.22 35.22 4.06 32.88 32.88 4.44

63 (17.2)†† 44.20 33.40 2.63 41.90 32.40 2.97 39.51 31.37 3.33 37.03 30.30 3.69 34.42 29.18 4.06 31.72 28.01 4.45

1575

COOLING

INDOOR MODEL

FE4ANB006 1.00 0.96

FE4AN(B,F)003 0.99 1.03

FE4AN(B,F)005 1.00 1.00

*FX4C N(B,F)048 1.00 1.00

FV4BN(B,F)003 0.99 1.03

FY4ANF042 1.00 1.13

FY4ANF048 1.00 1.08

FV4BNB006 1.00 0.96

FV4BN(B,F)005 1.00 1.00

CAP**4221A** 0.99 1.15

CAP**4224A** 0.99 1.15

CAP**4817A** 1.00 1.13

CAP**4821A** 1.00 1.13

FX4CN(B,F)042 1.00 1.04

CAP**4824A** 1.00 1.13

CNPF*4818A** 1.00 1.16

CNPV*4221A** 0.99 1.15

CNPV*4821A** 1.00 1.13

CNPV*4824A** 1.00 1.13

CSPH*4212A** 1.00 1.13

CNPH*4221A** 0.99 1.15

CNPH*4821A** 1.00 1.13

CSPH*4812A** 1.00 1.13

CNPH*4221A** 0.99 1.07 58CV(A,X)070---12

CAP**4817A** 1.00 1.04 58CV(A,X)090--- 16

CSPH*4212A** 1.00 1.08 58CV(A,X)070--- 12

CSPH*4812A** 1.00 1.08 58CV(A,X)070--- 12

CNPH*4821A** 1.00 1.08 58CV(A,X)070---12

CNPH*4221A** 0.99 1.03 58CV(A,X)090---16

CAP**4221A** 0.99 1.03 58CV(A,X)110--- 20

CAP**4821A** 1.00 1.04 58CV(A,X)110--- 20

CSPH*4212A** 1.00 1.04 58CV(A,X)090--- 16

CSPH*4812A** 1.00 1.04 58CV(A,X)090--- 16

CNPH*4821A** 1.00 1.04 58CV(A,X)090---16

23

25HCB5

25HCB542A30 Outdoor Section With FX4CN(B,F)048 Indoor Section

CONTINUED

#

CAPACITY POWER FURNACE MODEL

COOLING

CAP**4221A** 0.99 1.07 58PH*090 ---16

DETAILED COOLING CAPACITIES

CAP**4821A** 1.00 1.04 58PH*090 ---16

CNPV*4221A** 0.99 1.07 58PH*090 ---16

CNPH*4221A** 0.99 1.07 58PH*090 ---16

INDOOR MODEL

CNPH*4821A** 1.00 1.04 58PH*090 ---16

CAP**4221A** 0.99 1.03 58PH*110 ---20

CNPV*4821A** 1.00 1.04 58PH*090 ---16

CAP**4821A** 1.00 1.04 58PH*110 ---20

CSPH*4212A** 1.00 1.04 58PH*090 ---16

CSPH*4812A** 1.00 1.04 58PH*090 ---16

CNPH*4221A** 0.99 1.07 58PH*110 ---20

CNPH*4821A** 1.00 1.04 58PH*110 ---20

CAP**4224A** 0.99 1.07 58PH*135 ---20

CNPV*4221A** 0.99 1.07 58PH*110 ---20

CNPV*4821A** 1.00 1.04 58PH*110 ---20

CAP**4824A** 1.00 1.04 58PH*135 ---20

CSPH*4212A** 1.00 1.04 58PH*110 ---20

CSPH*4812A** 1.00 1.04 58PH*110 ---20

CNPV*4824A** 1.00 1.04 58PH*135 ---20

CSPH*4212A** 1.00 1.04 58PH*135 ---20

CNPH*4221A** 0.99 1.07 58PH*135 ---20

CSPH*4812A** 1.00 1.04 58PH*135 ---20

CNPH*4821A** 1.00 1.04 58PH*135 ---20

Seenoteonpg.26

24

Tot a l

Tot a l

Capacity MBtuh

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

CONTINUED

#

Tot a l

Tot a l

Tot a l

Capacity MBtuh

Capacity MBtuh

Capacity MBtuh

MODEL

CNPV*4824A** 0.96 1.00 58MV(B,C)120--- 20

CNPH*6024A** 0.98 1.02 58MV(B,C)120--- 20

COOLING INDOOR

KW**

System

KW**

System

CAPACITY POWER FURN AC E MODEL

COOLING INDOOR

MODEL

CAP**4824A** 0.96 1.00 58CV(A,X)135---22

CAP**6024A** 0.99 0.99 58CV(A,X)135---22

KW**

25HCB548A30 Outdoor Section With FX4CN(B,F)060 Indoor Section

System

CAP**4821A** 0.97 1.01 58PH*090 ---16

CNPV*6024A** 0.98 1.02 58MV(B,C)120--- 20

CAP**6021A** 0.99 1.03 58PH*090 ---16

CSPH*4812A** 0.97 1.01 58MV(B,C)120--- 20

CSPH*6012A** 0.98 1.02 58MV(B,C)120--- 20

CNPH*4821A** 0.97 1.01 58PH*090 ---16

CNPH*6024A** 0.99 1.03 58PH*090 ---16

CAP**4821A** 0.97 1.01 58PH*110 ---20

CNPV*4821A** 0.97 1.05 58PH*090--- 16

CAP**6021A** 0.99 0.99 58PH*110 ---20

CSPH*4812A** 0.97 1.01 58PH*090--- 16

CSPH*6012A** 0.99 0.99 58PH*090--- 16

CNPH*4821A** 0.97 1.01 58PH*110 ---20

CNPH*6024A** 0.99 0.99 58PH*110 ---20

CAP**4824A** 0.97 1.01 58PH*135 ---20

CNPV*4821A** 0.97 1.01 58PH*110--- 20

CAP**6024A** 0.99 1.03 58PH*135 ---20

CNPV*4824A** 0.97 1.01 58PH*135--- 20

CSPH*4812A** 0.97 1.01 58PH*110--- 20

CSPH*6012A** 0.99 0.99 58PH*110--- 20

CNPV*6024A** 0.99 0.99 58PH*135--- 20

CSPH*4812A** 0.97 1.01 58PH*135--- 20

CNPH*4821A** 0.97 1.01 58PH*135 ---20

CNPH*6024A** 0.99 0.99 58PH*135 ---20

CSPH*6012A** 0.99 0.99 58PH*135--- 20

Seenoteonpg.26

25HCB5

CAP**4824A** 0.97 1.01 58CV(A,X)155---22

CNPV*4824A** 0.97 1.01 58CV(A,X)135--- 22

CNPV*6024A** 0.98 0.98 58CV(A,X)135--- 22

CNPH*4821A** 0.97 1.01 58CV(A,X)135--- 22

CNPH*6024A** 0.98 0.98 58CV(A,X)135--- 22

CAP**6024A** 0.99 0.99 58CV(A,X)155---22

CSPH*4812A** 0.97 1.01 58CV(A,X)135--- 22

CSPH*6012A** 0.99 0.99 58CV(A,X)135--- 22

CNPV*4824A** 0.97 0.97 58CV(A,X)155--- 22

CNPH*4821A** 0.97 0.97 58CV(A,X)155--- 22

CNPH*6024A** 0.99 0.99 58CV(A,X)155--- 22

CAP**4821A** 0.96 1.04 58MV(B,C)080--- 20

CNPV*6024A** 0.99 0.99 58CV(A,X)155--- 22

CAP**6021A** 0.98 1.02 58MV(B,C)080--- 20

CSPH*4812A** 0.98 0.98 58CV(A,X)155--- 22

CSPH*6012A** 0.99 0.99 58CV(A,X)155--- 22

CNPH*4821A** 0.96 1.00 58MV(B,C)080--- 20

CNPH*6024A** 0.98 1.02 58MV(B,C)080--- 20

CAP**4821A** 0.96 1.00 58MV(B,C)100--- 20

CNPV*4821A** 0.96 1.00 58MV(B,C)080--- 20

CAP**6021A** 0.98 1.02 58MV(B,C)100--- 20

CSPH*4812A** 0.97 1.01 58MV(B,C)080--- 20

CSPH*6012A** 0.98 1.02 58MV(B,C)080--- 20

CNPH*4821A** 0.96 1.00 58MV(B,C)100--- 20

CNPH*6024A** 0.98 1.02 58MV(B,C)100--- 20

CAP**4824A** 0.96 1.00 58MV(B,C)120--- 20

CNPV*4821A** 0.96 1.00 58MV(B,C)100--- 20

CAP**6024A** 0.98 1.02 58MV(B,C)120--- 20

CSPH*4812A** 0.97 1.01 58MV(B,C)100--- 20

CSPH*6012A** 0.98 1.02 58MV(B,C)100--- 20

CNPH*4821A** 0.96 1.00 58MV(B,C)120--- 20

Capacity MBtuh

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ Tota l Sens‡ Tot a l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 57.74 29.30 2.97 54.86 28.18 3.35 51.86 27.02 3.75 48.74 25.84 4.19 45.43 24.61 4.65 41.94 23.33 5.15

67 (19.4) 52.67 36.42 2.99 50.03 35.28 3.36 47.29 34.11 3.76 44.43 32.91 4.19 41.42 31.65 4.65 38.26 30.36 5.14

62 (16.7) 47.93 43.49 3.00 45.53 42.31 3.37 43.06 41.08 3.76 40.51 39.78 4.19 38.03 38.03 4.64 35.66 35.66 5.13

57 (13.9) 46.25 46.25 3.01 44.35 44.35 3.37 42.36 42.36 3.76 40.26 40.26 4.19 38.03 38.03 4.64 35.66 35.66 5.13

72 (22.2) 58.73 30.62 3.05 55.73 29.49 3.43 52.59 28.31 3.83 49.35 27.11 4.27 45.93 25.86 4.73 42.31 24.56 5.23

67 (19.4) 53.63 38.69 3.07 50.87 37.52 3.44 48.00 36.33 3.84 45.02 35.10 4.27 41.90 33.82 4.73 38.62 32.49 5.22

63 (17.2)†† 48.93 35.22 3.00 46.46 34.08 3.37 43.91 32.91 3.76 41.25 31.71 4.19 38.46 30.46 4.64 35.54 29.18 5.13

EVAPORATOR AIR

CFM

1400

63 (17.2)†† 49.86 37.35 3.08 47.28 36.19 3.45 44.62 35.00 3.84 41.85 33.77 4.27 38.94 32.49 4.73 35.92 31.17 5.21

1600

62 (16.7) 48.93 46.60 3.08 46.45 45.32 3.45 43.95 43.95 3.84 41.70 41.70 4.27 39.31 39.31 4.73 36.77 36.77 5.22

DETAILED COOLING CAPACITIES

CAPACITY POWER FURN AC E MODEL

57 (13.9) 48.11 48.11 3.08 46.07 46.07 3.45 43.94 43.94 3.84 41.70 41.70 4.27 39.31 39.31 4.73 36.77 36.77 5.22

72 (22.2) 59.45 31.88 3.13 56.35 30.73 3.50 53.10 29.54 3.91 49.76 28.33 4.35 46.24 27.06 4.82 42.52 25.74 5.31

67 (19.4) 54.32 40.85 3.15 51.46 39.67 3.52 48.50 38.45 3.92 45.43 37.20 4.35 42.21 35.89 4.81 38.85 34.51 5.31

62 (16.7) 49.79 49.42 3.16 47.49 47.49 3.53 45.23 45.23 3.92 42.86 42.86 4.35 40.33 40.33 4.81 37.64 37.64 5.30

57 (13.9) 49.65 49.65 3.16 47.49 47.49 3.53 45.23 45.23 3.92 42.86 42.86 4.35 40.34 40.34 4.81 37.64 37.64 5.30

63 (17.2)†† 50.54 39.38 3.16 47.87 38.20 3.53 45.12 36.98 3.92 42.26 35.72 4.35 39.27 34.41 4.81 36.18 33.04 5.30

1800

COOLING INDOOR

MODEL

FE4ANB006 1.00 0.96

FE4AN(B,F)005 0.99 0.99

FV4BN(B,F)005 0.99 0.99

*FX4C N(B,F)060 1.00 1.00

FY4ANF048 0.98 1.09

FV4BNB006 1.00 0.96

FY4ANB060 1.00 1.09

CAP**4817A** 0.97 1.08

CAP**4821A** 0.97 1.08

CAP**4824A** 0.97 1.08

CAP**6021A** 1.00 1.12

FX4CN(B,F)048 1.00 1.04

CAP**6024A** 1.00 1.12

CNPF*4818A** 0.95 1.06

CNPV*4821A** 0.97 1.08

CNPV*4824A** 0.97 1.08

CNPH*4821A** 0.97 1.08

CNPH*6024A** 0.99 1.10

CAP**4817A** 0.97 1.01 58CV(A,X)090---16

CNPV*6024A** 0.99 1.10

CSPH*4812A** 0.98 1.09

CSPH*6012A** 1.00 1.12

CNPH*4821A** 0.96 1.00 58CV(A,X)090--- 16

CAP**4821A** 0.96 1.00 58CV(A,X)110---20

CAP**6021A** 0.99 0.99 58CV(A,X)110---20

CSPH*4812A** 0.97 1.01 58CV(A,X)090--- 16

CSPH*6012A** 0.99 1.03 58CV(A,X)090--- 16

CNPH*6024A** 0.98 1.02 58CV(A,X)090--- 16

CNPV*4821A** 0.96 1.00 58CV(A,X)110--- 20

CSPH*4812A** 0.97 1.01 58CV(A,X)110--- 20

CNPH*4821A** 0.96 1.00 58CV(A,X)110--- 20

CSPH*6012A** 0.99 0.99 58CV(A,X)110--- 20

CNPH*6024A** 0.98 0.98 58CV(A,X)110--- 20

25

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

25HCB5

CONTINUED

#

Tot a l

KW**

System

Capacity MBtuh

Tot a l

KW**

System

CONDEN SER ENTERING AIR TEMPERA TURES ˚F(˚C)

Capacity MBtuh

Tot a l

KW**

25HCB560A30 Outdoor Section With FX4CN(B,F)060 Indoor Section

System

COOLING

CAP**6021A** 0.98 1.03 58PH*090 ---16

CAP**6021A** 0.99 1.03 58PH*110 ---20

CAP**6024A** 0.98 1.03 58PH*135 ---20

CSPH*6012A** 0.98 1.03 58PH*090 ---16

CNPH*6024A** 0.97 1.02 58PH*090 ---16

INDOOR MODEL

CAPACITY POWER FURNACE MODEL

COOLING

CNPH*6024A** 0.98 1.03 58CV(A,X)110---20

INDOOR MODEL

CNPH*6024A** 0.98 1.03 58PH*110 ---20

CAP**6024A** 0.98 1.03 58CV(A,X)135--- 22

CNPV*6024A** 0.98 0.98 58CV(A,X)135--- 22

CSPH*6012A** 0.99 1.03 58CV(A,X)110--- 20

CNPH*6024A** 0.98 0.98 58CV(A,X)135---22

CNPV*6024A** 0.98 1.03 58PH*135 ---20

CSPH*6012A** 0.99 1.03 58PH*110 ---20

CSPH*6012A** 0.99 0.99 58CV(A,X)135--- 22

CSPH*6012A** 0.99 1.03 58PH*135 ---20

CNPH*6024A** 0.98 1.03 58PH*135 ---20

CAP**6024A** 0.99 0.99 58CV(A,X)155--- 22

CNPV*6024A** 0.98 0.98 58CV(A,X)155--- 22

CSPH*6012A** 0.99 0.99 58CV(A,X)155--- 22

CNPH*6024A** 0.98 0.98 58CV(A,X)155---22

Capacity MBtuh

Tot a l

KW**

System

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ Tota l Sens‡ Tot a l Sens‡ To ta l Sens‡

EWB

˚F(˚C)

72 (22.2) 68.70 32.70 3.90 65.41 31.53 4.30 61.88 30.29 4.75 58.19 29.01 5.24 54.18 27.65 5.77 49.86 26.19 6.35

67 (19.4) 62.98 40.92 3.84 59.96 39.72 4.25 56.75 38.47 4.69 53.37 37.17 5.18 49.73 35.78 5.72 45.82 34.30 6.30

62 (16.7) 57.63 49.03 3.79 54.91 47.78 4.20 52.05 46.43 4.64 49.08 48.73 5.14 46.20 46.20 5.68 43.21 43.21 6.27

57 (13.9) 56.02 56.02 3.78 53.81 53.81 4.18 51.47 51.47 4.64 48.95 48.95 5.13 46.21 46.21 5.68 43.21 43.21 6.27

72 (22.2) 69.76 34.18 4.00 66.31 32.99 4.40 62.65 31.73 4.85 58.82 30.44 5.34 54.67 29.05 5.87 50.21 27.58 6.44

67 (19.4) 63.99 43.43 3.94 60.84 42.21 4.35 57.50 40.94 4.79 53.99 39.61 5.28 50.22 38.19 5.82 46.19 36.67 6.39

62 (16.7) 58.76 52.39 3.89 55.98 50.97 4.30 53.22 53.22 4.75 50.53 50.53 5.24 47.60 47.60 5.79 44.39 44.39 6.37

63 (17.2)†† 58.74 39.64 3.80 55.93 38.44 4.20 52.96 37.20 4.65 49.82 35.90 5.14 46.45 34.52 5.68 42.85 33.06 6.26

EVAPORATOR AIR

CFM

1750

2000

57 (13.9) 58.09 58.09 3.89 55.74 55.74 4.29 53.22 53.22 4.75 50.54 50.54 5.24 47.60 47.60 5.79 44.40 44.40 6.37

63 (17.2)†† 59.74 42.00 3.90 56.81 40.79 4.30 53.72 39.52 4.75 50.46 38.19 5.24 46.97 36.77 5.78 43.25 35.26 6.36

DETAILED COOLING CAPACITIES

72 (22.2) 70.51 35.58 4.10 66.95 34.38 4.50 63.17 33.11 4.94 59.23 31.80 5.43 54.98 30.40 5.96 50.40 28.91 6.53

2250

CAPACITY POWER FURNACE MODEL

67 (19.4) 64.72 45.84 4.04 61.45 44.60 4.44 58.02 43.29 4.89 54.41 41.93 5.38 53.61 41.63 5.26 46.42 38.89 6.49

62 (16.7) 59.81 59.81 3.99 57.30 57.30 4.40 54.64 54.64 4.85 51.80 51.80 5.35 48.70 48.70 5.89 45.32 45.32 6.47

57 (13.9) 59.79 59.79 3.99 57.30 57.30 4.40 54.64 54.64 4.85 51.80 51.80 5.35 48.71 48.71 5.89 45.32 45.32 6.47

63 (17.2)†† 60.47 44.25 4.00 57.44 43.01 4.40 54.25 41.71 4.85 50.90 40.35 5.34 47.32 38.89 5.87 43.52 37.30 6.45

COOLING

FE4ANB006 1.00 1.00

FV4BNB006 1.00 1.00

FY4ANB060 0.99 1.06

CAP**6021A** 0.98 1.05

*FX4C N(B,F)060 1.00 1.00

INDOOR MODEL

CAP**6024A** 0.98 1.05

CAP**6021A** 0.98 1.03 58CV(A,X)110--- 20

CNPV*6024A** 0.98 1.05

CSPH*6012A** 0.99 1.06

CNPH*6024A** 0.98 1.05

{ Total and sensible capacities are net capacities. Blower motor heat has been subtracted.

} Sensible capacities shown are based on 80_F(27_C) entering air at the indoor coil. For sensible capacities at other than 80_F(27_C), deduct 835 Btuh

(245 kW) per 1000 CFM (480 L / S ) of indoor coil a ir for each degree below 80_F(27_C), or add 835 Btuh (245 kW) per 1000 CFM (480 L / S ) of indoor coil a ir per degree above 80_F(27_C).

# Detailed cooling capacities are based on indoor and outdoor unit at the same elevation per ARI standard 210/240 --- 94. If additional tubing length and/or indoor u nit is located above outdoor unit, a slight variation in capacity may

occur.

26

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB518A30 Outdoor Section With FX4CNF018 Indoor Section

Capacity MBtuh

Sys.

KW†

Tot al

25HCB5

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

525 6.28 5.77 1.08 8.17 7.51 1.13 10.20 9.30 1.19 12.44 11.05 1.25 14.98 13.63 1.32 17.76 17.76 1.41 20.85 20.85 1.52 24.27 24.27 1.66

600 6.39 5.88 1.08 8.30 7.63 1.13 10.35 9.44 1.17 12.64 11.23 1.23 15.24 13.87 1.29 18.07 18.07 1.37 21.24 21.24 1.47 24.77 24.77 1.60

675 6.49 5.97 1.09 8.41 7.73 1.13 10.48 9.56 1.17 12.81 11.38 1.21 15.44 14.05 1.28 18.32 18.32 1.35 21.54 21.54 1.45 25.12 25.12 1.57

525 5.96 5.48 1.13 7.87 7.23 1.19 9.91 9.04 1.24 12.12 10.76 1.30 14.60 13.29 1.38 17.39 17.39 1.47 20.42 20.42 1.59 23.80 23.80 1.73

600 6.07 5.59 1.13 8.01 7.36 1.18 10.07 9.18 1.23 12.32 10.94 1.29 14.89 13.55 1.36 17.70 17.70 1.44 20.82 20.82 1.54 24.29 24.29 1.67

675 6.17 5.68 1.13 8.12 7.46 1.18 10.20 9.30 1.22 12.49 11.09 1.27 15.09 13.73 1.34 17.94 17.94 1.41 21.12 21.12 1.51 24.65 24.65 1.63

525 5.62 5.17 1.17 7.56 6.95 1.24 9.61 8.76 1.30 11.82 10.50 1.37 14.26 12.97 1.45 17.02 17.02 1.54 20.00 20.00 1.66 23.34 23.34 1.80

600 5.73 5.27 1.18 7.70 7.07 1.23 9.77 8.91 1.29 12.01 10.66 1.35 14.50 13.20 1.42 17.32 17.32 1.51 20.39 20.39 1.61 23.82 23.82 1.74

675 5.83 5.36 1.18 7.81 7.18 1.23 9.91 9.03 1.28 12.16 10.80 1.33 14.72 13.39 1.40 17.57 17.57 1.48 20.69 20.69 1.58 24.18 24.18 1.70

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE

EDB CFM

65

70

(18.3)

(21.1)

HEATING

75

(23.9)

CAPACITY POWER FURNACE MODEL

FE4ANF002 0.99 0.97

FF1ENP018 1.02 1.08

FF1ENP024 1.02 1.06

FV4BNF002 0.99 0.97

FY4ANF018 1.02 1.09

FY4ANF024 1.02 1.08

*FX4CNF018 1.00 1.00

CNPF*2418A** 1.02 1.04

CNPV*2414A** 1.02 1.04

CNPV*2417A** 1.02 1.04

CSPH*2412A** 1.02 1.04

CNPH*2417A** 1.02 1.04

INDOOR MODEL

FX4CNF024 1.00 0.99

CAP**2414A** 0.98 1.01 58CV(A,X)070--- 12

CAP**2417A** 0.98 1.00 58CV(A,X)090--- 16

CNPV*2414A** 0.98 1.00 58CV(A,X)070--- 12

CNPH*2417A** 0.98 1.00 58CV(A,X)070---12

CNPV*2417A** 0.99 1.00 58CV(A,X)090--- 16

CSPH*2412A** 0.98 1.00 58CV(A,X)070--- 12

CNPH*2417A** 0.99 1.00 58CV(A,X)090---16

CAP**2417A** 0.98 1.01 58MV(B,C)060--- 14

CSPH*2412A** 0.99 1.00 58CV(A,X)090--- 16

CNPH*2417A** 0.99 1.00 58MV(B,C)040 --- 14

CNPV*2417A** 0.99 1.00 58MV(B,C)060--- 14

CSPH*2412A** 0.98 1.00 58MV(B,C)040--- 14

CNPH*2417A** 0.98 0.99 58MV(B,C)060 --- 14

CAP**1814A** 0.98 1.02 58PH*045 ---08

CAP**2414A** 1.00 0.99 58PH*045 ---08

CNPV*1814A** 0.99 1.01 58PH*045 ---08

CSPH*2412A** 0.99 1.00 58MV(B,C)060--- 14

CSPH*2412A** 0.99 1.00 58MV(B,C)080--- 14

CNPH*2417A** 0.99 1.00 58MV(B,C)080 --- 14

CNPV*2414A** 1.00 0.98 58PH*045 ---08

CSPH*2412A** 1.00 0.99 58PH*045 ---08

CNPH*2417A** 1.00 0.98 58PH*045 ---08

Seenoteonpg.33

27

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

HEATING

HEATING

CAPACITY POWER FURNACE MODEL

CAP**3014A** 0.99 1.03 58PH*045 ---08

CNPV*2414A** 1.00 1.03 58PH*045 ---08

CNPV*3014A** 0.99 1.03 58PH*045 ---08

CSPH*2412A** 1.00 1.03 58PH*045 ---08

CNPH*2417A** 1.00 1.03 58PH*045 ---08

CNPH*3017A** 0.99 1.02 58PH*045 ---08

INDOOR MODEL

CSPH*3012A** 0.98 1.02 58PH*045 ---08

Seenoteonpg.33

CAPACITY POWER FURNACE MODEL

CAP**2417A** 0.99 1.05 58MV(B,C)060--- 14

CAP**3017A** 0.98 1.03 58MV(B,C)060--- 14

CNPV*2417A** 1.00 1.04 58MV(B,C)060--- 14

CSPH*2412A** 1.00 1.03 58CV(A,X)110--- 20

CSPH*3012A** 0.98 1.03 58CV(A,X)110--- 20

CSPH*2412A** 1.00 1.03 58CV(A,X)135--- 22

CSPH*3012A** 0.98 1.02 58CV(A,X)135--- 22

CSPH*2412A** 1.00 1.03 58CV(A,X)155--- 22

CSPH*3012A** 0.98 1.02 58CV(A,X)155--- 22

CSPH*2412A** 1.00 1.03 58MV(B,C)040--- 14

CNPH*3017A** 0.98 1.02 58CV(A,X)110---20

CNPH*2417A** 1.00 1.04 58CV(A,X)135---22

CNPH*3017A** 0.98 1.02 58CV(A,X)135---22

CNPH*2417A** 1.00 1.04 58CV(A,X)155---22

INDOOR MODEL

CNPH*3017A** 0.98 1.02 58CV(A,X)155---22

CSPH*3012A** 0.98 1.03 58MV(B,C)040--- 14

CNPH*2417A** 1.00 1.04 58MV(B,C)040 --- 14

CNPH*3017A** 0.98 1.02 58MV(B,C)040 --- 14

CNPV*3017A** 0.98 1.03 58MV(B,C)060--- 14

CSPH*2412A** 1.00 1.03 58MV(B,C)060--- 14

CSPH*3012A** 0.98 1.03 58MV(B,C)060--- 14

CSPH*2412A** 1.00 1.03 58MV(B,C)080--- 14

CSPH*3012A** 0.98 1.03 58MV(B,C)080--- 14

CSPH*2412A** 1.00 1.03 58MV(B,C)080--- 20

CSPH*3012A** 0.98 1.03 58MV(B,C)080--- 20

CSPH*2412A** 1.00 1.03 58MV(B,C)100--- 20

CNPH*2417A** 1.00 1.04 58MV(B,C)060 --- 14

CNPH*3017A** 0.98 1.03 58MV(B,C)060 --- 14

CNPH*2417A** 1.00 1.04 58MV(B,C)080 --- 14

CNPH*3017A** 0.98 1.02 58MV(B,C)080 --- 14

CNPH*2417A** 1.00 1.04 58MV(B,C)080 --- 20

CNPH*3017A** 0.98 1.02 58MV(B,C)080 --- 20

CSPH*3012A** 0.98 1.02 58MV(B,C)100--- 20

CNPH*2417A** 1.00 1.04 58MV(B,C)100 --- 20

CNPH*3017A** 0.98 1.02 58MV(B,C)100 --- 20

CNPH*2417A** 1.00 1.05 58MV(B,C)120 --- 20

CAP**2414A** 1.00 1.04 58PH*045 ---08

CSPH*2412A** 1.00 1.04 58MV(B,C)120--- 20

CSPH*3012A** 0.98 1.03 58MV(B,C)120--- 20

CNPH*3017A** 0.98 1.03 58MV(B,C)120 --- 20

Capacity MBtuh

Sys.

KW†

Tot al

25HCB5

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB524A30 Outdoor Section With FX4CNF030 Indoor Section

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

700 9.03 8.31 1.34 11.51 10.58 1.41 14.16 12.91 1.49 17.15 15.23 1.58 20.52 18.67 1.69 24.13 24.13 1.80 27.24 27.24 1.91 30.45 30.45 2.03

800 9.22 8.49 1.35 11.72 10.77 1.42 14.40 13.13 1.49 17.45 15.49 1.57 20.87 18.99 1.68 24.24 24.24 1.76 27.28 27.28 1.86 28.82 28.82 1.91

900 9.40 8.64 1.37 11.90 10.94 1.44 14.62 13.33 1.50 17.73 15.75 1.58 21.15 19.25 1.67 24.25 24.25 1.75 26.58 26.58 1.82 27.42 27.42 1.83

700 8.66 7.96 1.39 11.17 10.26 1.48 13.84 12.62 1.56 16.78 14.90 1.65 20.11 18.30 1.77 23.77 23.77 1.89 27.06 27.06 2.01 30.49 30.49 2.15

800 8.85 8.14 1.41 11.39 10.46 1.49 14.08 12.84 1.56 17.07 15.16 1.65 20.47 18.63 1.75 24.00 24.00 1.85 27.03 27.03 1.96 29.28 29.28 2.03

900 9.03 8.30 1.43 11.57 10.64 1.50 14.28 13.02 1.57 17.32 15.38 1.65 20.75 18.88 1.75 24.05 24.05 1.83 27.01 27.01 1.93 28.01 28.01 1.95

700 8.25 7.59 1.45 10.81 9.93 1.54 13.50 12.31 1.63 16.39 14.55 1.73 19.71 17.94 1.85 23.36 23.36 1.99 26.79 26.79 2.11 30.15 30.15 2.25

800 8.45 7.77 1.46 11.02 10.13 1.55 13.74 12.53 1.63 16.69 14.82 1.72 20.06 18.25 1.83 23.69 23.69 1.94 26.85 26.85 2.05 29.62 29.62 2.15

900 8.62 7.93 1.48 11.22 10.31 1.56 13.95 12.72 1.64 16.94 15.05 1.72 20.35 18.52 1.83 23.83 23.83 1.92 26.79 26.79 2.02 28.52 28.52 2.07

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

65

70

EDB CFM

(18.3)

75

(21.1)

(23.9)

HEATING

CAPACITY POWER FURNACE MODEL

FE4ANF002 1.00 1.01

FF1ENP024 1.00 1.08

FF1ENP030 1.00 1.08

FV4BNF002 1.00 1.01

FY4ANF024 1.00 1.09

FY4ANF030 1.00 1.06

*FX4CNF030 1.00 1.00

FE4AN(B,F)003 0.98 1.00

INDOOR MODEL

FX4CNF024 1.00 1.03

CAP**2414A** 1.00 1.07

CAP**2417A** 1.00 1.07

CAP**3014A** 1.00 1.08

FV4BN(B,F)003 0.98 1.00

CAP**3017A** 1.00 1.08

CNPF*2418A** 1.00 1.04

CNPV*2414A** 1.00 1.04

CNPV*2417A** 1.00 1.04

CNPH*2417A** 1.00 1.04

CNPV*3014A** 1.00 1.07

CNPH*3017A** 1.00 1.07

CAP**2414A** 0.99 1.06 58CV(A,X)070--- 12

CNPV*3017A** 1.00 1.07

CAP**3014A** 0.98 1.04 58CV(A,X)070--- 12

CSPH*2412A** 1.00 1.07

CSPH*3012A** 1.00 1.09

CNPV*2414A** 1.00 1.05 58CV(A,X)070--- 12

CNPH*2417A** 1.00 1.05 58CV(A,X)070---12

CNPH*3017A** 0.98 1.03 58CV(A,X)070---12

CAP**2417A** 0.99 1.04 58CV(A,X)090--- 16

CNPV*3014A** 0.98 1.03 58CV(A,X)070--- 12

CAP**3017A** 0.98 1.02 58CV(A,X)090--- 16

CNPV*2417A** 1.00 1.04 58CV(A,X)090--- 16

CSPH*2412A** 1.00 1.04 58CV(A,X)070--- 12

CSPH*3012A** 0.98 1.03 58CV(A,X)070--- 12

CNPV*3017A** 0.98 1.02 58CV(A,X)090--- 16

CSPH*2412A** 1.00 1.03 58CV(A,X)090--- 16

CNPH*2417A** 1.00 1.04 58CV(A,X)090---16

CNPH*3017A** 0.98 1.02 58CV(A,X)090---16

CSPH*3012A** 0.98 1.02 58CV(A,X)090--- 16

CNPH*2417A** 1.00 1.04 58CV(A,X)110---20

28

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

HEATING

HEATING

CAPACITY POWER FURNACE MODEL

CAP**3017A** 0.98 1.00 58PH*070 ---16

CNPV*3621A** 0.97 0.99 58MV(B,C)100--- 20

CSPH*3012A** 0.97 1.00 58MV(B,C)100--- 20

CNPH*3017A** 0.97 0.99 58MV(B,C)100 --- 20

INDOOR MODEL

CSPH*3612A** 0.98 0.97 58MV(B,C)100--- 20

CNPH*3617A** 0.97 0.99 58MV(B,C)100 --- 20

CNPH*3017A** 0.97 1.00 58MV(B,C)120 --- 20

CNPH*3617A** 0.97 1.00 58MV(B,C)120 --- 20

CAP**3617A** 0.98 0.99 58PH*070 ---16

CSPH*3012A** 0.97 0.99 58MV(B,C)120--- 20

CSPH*3612A** 0.97 0.97 58MV(B,C)120--- 20

CNPV*3017A** 0.98 1.00 58PH*070 ---16

CNPH*3017A** 0.98 1.00 58PH*070 ---16

CNPH*3617A** 0.98 1.00 58PH*070 ---16

CAP**3621A** 0.98 0.97 58PH*090 ---16

CNPV*3617A** 0.98 1.00 58PH*070 ---16

CSPH*3012A** 0.98 1.01 58PH*070 ---16

CSPH*3612A** 0.99 0.98 58PH*070 ---16

CNPV*3621A** 0.97 0.99 58PH*090 ---16

CSPH*3012A** 0.97 0.99 58PH*090 ---16

CNPH*3017A** 0.97 0.99 58PH*090 ---16

CSPH*3612A** 0.99 0.96 58PH*090 ---16

CNPH*3617A** 0.97 0.99 58PH*090 ---16

Seenoteonpg.33

25HCB5

CAPACITY POWER FURNACE MODEL

CAP**3621A** 0.97 0.98 58CV(A,X)110--- 20

CSPH*3612A** 0.97 0.96 58CV(A,X)090--- 16

INDOOR MODEL

CNPV*3621A** 0.97 0.99 58CV(A,X)110--- 20

CSPH*3012A** 0.97 0.99 58CV(A,X)110--- 20

CSPH*3612A** 0.98 0.97 58CV(A,X)110--- 20

CSPH*3012A** 0.97 0.98 58CV(A,X)135--- 22

CSPH*3612A** 0.97 0.96 58CV(A,X)135--- 22

CSPH*3012A** 0.97 0.98 58CV(A,X)155--- 22

CNPH*3017A** 0.97 0.99 58CV(A,X)110---20

CNPH*3617A** 0.97 0.99 58CV(A,X)110---20

CNPH*3017A** 0.97 0.99 58CV(A,X)135---22

CNPH*3617A** 0.97 0.99 58CV(A,X)135---22

CSPH*3612A** 0.97 0.96 58CV(A,X)155--- 22

CNPH*3017A** 0.97 0.98 58CV(A,X)155---22

CNPH*3617A** 0.97 0.98 58CV(A,X)155---22

CNPH*3017A** 0.97 1.00 58MV(B,C)040 --- 14

CAP**3017A** 0.97 1.00 58MV(B,C)060--- 14

CAP**3617A** 0.97 0.99 58MV(B,C)060--- 14

CSPH*3012A** 0.97 1.00 58MV(B,C)040--- 14

CSPH*3612A** 0.98 0.98 58MV(B,C)040--- 14

CNPH*3617A** 0.97 1.00 58MV(B,C)040 --- 14

CNPV*3017A** 0.97 1.00 58MV(B,C)060--- 14

CNPH*3017A** 0.97 1.00 58MV(B,C)060 --- 14

CNPH*3617A** 0.97 1.00 58MV(B,C)060 --- 14

CAP**3621A** 0.97 0.98 58MV(B,C)080--- 14

CNPV*3617A** 0.97 1.00 58MV(B,C)060--- 14

CSPH*3012A** 0.97 1.00 58MV(B,C)060--- 14

CSPH*3612A** 0.97 0.97 58MV(B,C)060--- 14

CNPH*3017A** 0.97 1.00 58MV(B,C)080 --- 14

CNPH*3617A** 0.97 1.00 58MV(B,C)080 --- 14

CAP**3621A** 0.97 0.99 58MV(B,C)080--- 20

CNPV*3621A** 0.97 0.99 58MV(B,C)080--- 14

CSPH*3012A** 0.97 1.00 58MV(B,C)080--- 14

CSPH*3612A** 0.98 0.97 58MV(B,C)080--- 14

CNPH*3017A** 0.97 1.00 58MV(B,C)080 --- 20

CNPH*3617A** 0.97 1.00 58MV(B,C)080 --- 20

CAP**3621A** 0.97 0.98 58MV(B,C)100--- 20

CNPV*3621A** 0.97 1.00 58MV(B,C)080--- 20

CSPH*3012A** 0.97 1.00 58MV(B,C)080--- 20

CSPH*3612A** 0.98 0.97 58MV(B,C)080--- 20

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB530A30 Outdoor Section With FX4CN(B,F)036 Indoor Section

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

875 11.58 10.65 1.76 14.63 13.45 1.84 17.91 16.33 1.91 21.47 19.07 2.00 25.55 23.25 2.11 30.03 30.03 2.25 35.06 35.06 2.41 40.67 40.67 2.61

875 11.10 10.22 1.83 14.20 13.05 1.91 17.50 15.96 2.00 21.02 18.67 2.09 25.08 22.82 2.21 29.48 29.48 2.35 34.44 34.44 2.51 39.97 39.97 2.72

875 10.59 9.74 1.89 13.74 12.63 1.99 17.06 15.56 2.08 20.61 18.30 2.19 24.50 22.30 2.30 28.94 28.94 2.45 33.82 33.82 2.62 39.27 39.27 2.83

1000 11.37 10.46 1.86 14.50 13.32 1.93 17.82 16.25 2.01 21.39 19.00 2.09 25.50 23.21 2.20 30.00 30.00 2.32 35.06 35.06 2.48 40.69 40.69 2.66

1125 11.62 10.69 1.89 14.76 13.56 1.96 18.11 16.51 2.03 21.72 19.29 2.11 25.87 23.54 2.20 30.43 30.43 2.32 35.55 35.55 2.47 41.20 41.20 2.62

1000 10.86 9.99 1.92 14.04 12.90 2.01 17.39 15.86 2.10 20.96 18.62 2.19 24.95 22.70 2.29 29.45 29.45 2.43 34.44 34.44 2.59 40.02 40.02 2.78

1125 11.11 10.22 1.96 14.31 13.15 2.04 17.68 16.12 2.11 21.27 18.89 2.20 25.39 23.10 2.30 29.88 29.88 2.42 34.93 34.93 2.57 40.56 40.56 2.74

70

75

(21.1)

(23.9)

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

1000 11.85 10.90 1.79 14.92 13.71 1.86 18.23 16.62 1.92 21.86 19.41 2.00 25.99 23.65 2.11 30.55 30.55 2.23 35.68 35.68 2.38 41.37 41.37 2.54

1125 12.09 11.12 1.82 15.18 13.95 1.88 18.51 16.87 1.94 22.19 19.71 2.02 26.36 23.98 2.11 30.98 30.98 2.23 36.16 36.16 2.37 41.80 41.80 2.50

65

EDB CFM

(18.3)

HEATING

CAPACITY POWER FURNACE MODEL

FE4ANF002 0.97 0.97

FF1ENP030 1.00 1.06

FF1ENP036 1.00 1.04

FV4BNF002 0.97 0.97

FY4ANF030 1.00 1.04

FY4ANF036 1.00 1.04

FX4CNF030 0.99 0.99

CAP**3014A** 1.00 1.04

CAP**3017A** 1.00 1.04

CAP**3614A** 1.00 1.04

CAP**3617A** 1.00 1.04

FE4AN(B,F)003 0.97 0.96

FE4AN(B,F)005 0.98 0.93

*FX4C N(B,F)036 1.00 1.00

INDOOR MODEL

FV4BN(B,F)003 0.97 0.96

FV4BN(B,F)005 0.98 0.93

CAP**3621A** 1.00 1.04

CNPF*3618A** 1.00 1.04

CNPV*3014A** 1.00 1.04

CNPV*3017A** 1.00 1.04

CNPH*3017A** 1.00 1.04

CNPV*3617A** 1.00 1.04

CNPH*3617A** 1.00 1.04

CAP**3014A** 0.97 1.00 58CV(A,X)070--- 12

CNPV*3621A** 1.00 1.04

CAP**3614A** 0.97 1.00 58CV(A,X)070--- 12

CSPH*3012A** 1.00 1.03

CSPH*3612A** 1.00 1.00

CNPH*3017A** 0.97 1.00 58CV(A,X)070---12

CNPH*3617A** 0.97 1.00 58CV(A,X)070---12

CAP**3017A** 0.97 0.99 58CV(A,X)090--- 16

CNPV*3014A** 0.97 1.01 58CV(A,X)070--- 12

CAP**3617A** 0.97 0.98 58CV(A,X)090--- 16

CNPV*3017A** 0.97 0.99 58CV(A,X)090--- 16

CSPH*3012A** 0.97 1.00 58CV(A,X)070--- 12

CSPH*3612A** 0.98 0.98 58CV(A,X)070--- 12

CNPV*3617A** 0.97 0.99 58CV(A,X)090--- 16

CNPH*3017A** 0.97 0.99 58CV(A,X)090---16

CSPH*3012A** 0.97 0.99 58CV(A,X)090--- 16

CNPH*3617A** 0.97 0.99 58CV(A,X)090---16

29

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

HEATING

HEATING

CAPACITY POWER FURNACE MODEL

CAP**4224A** 0.97 1.01 58MV(B,C)120---20

CSPH*3612A** 0.98 1.00 58MV(B,C)100---20

CSPH*4212A** 0.99 1.00 58MV(B,C)100---20

INDOOR MODEL

CNPH*3617A** 0.97 1.04 58MV(B,C)120--- 20

CAP**3614A** 0.99 1.07 58PH*045--- 08

CSPH*3612A** 0.98 1.01 58MV(B,C)120---20

CSPH*4212A** 0.98 0.99 58MV(B,C)120---20

CNPH*4221A** 0.97 1.00 58MV(B,C)120--- 20

CNPH*3617A** 0.99 1.07 58PH*045 ---08

CAP**3617A** 0.98 1.04 58PH*070--- 16

CSPH*3612A** 1.00 1.03 58PH*045--- 08

CSPH*4212A** 1.00 1.02 58PH*045--- 08

CNPH*4221A** 0.99 1.05 58PH*045 ---08

CNPH*3617A** 0.98 1.06 58PH*070 ---16

CNPH*4221A** 0.99 1.03 58PH*070 ---16

CAP**3621A** 0.98 1.01 58PH*090--- 16

CNPV*3617A** 0.98 1.06 58PH*070--- 16

CAP**4221A** 0.98 1.00 58PH*090--- 16

CSPH*3612A** 0.99 1.02 58PH*070--- 16

CSPH*4212A** 1.00 1.01 58PH*070--- 16

CNPV*3621A** 0.98 1.03 58PH*090--- 16

CNPH*3617A** 0.97 1.02 58PH*090 ---16

CNPH*4221A** 0.98 1.01 58PH*090 ---16

CAP**3621A** 0.98 1.00 58PH*110--- 20

CNPV*4221A** 0.98 1.01 58PH*090--- 16

CAP**4221A** 0.98 0.99 58PH*110--- 20

CNPV*3621A** 0.98 1.02 58PH*110--- 20

CSPH*3612A** 0.99 0.99 58PH*090--- 16

CSPH*4212A** 0.99 0.98 58PH*090--- 16

CNPV*4221A** 0.98 1.00 58PH*110--- 20

CSPH*3612A** 0.99 0.98 58PH*110--- 20

CNPH*3617A** 0.98 1.02 58PH*110 ---20

CNPH*4221A** 0.98 1.00 58PH*110 ---20

CSPH*4212A** 0.99 0.97 58PH*110--- 20

Seenoteonpg.33

CAPACITY POWER FURNACE MODEL

CAP**4224A** 0.97 1.00 58CV(A,X)135---22

CSPH*4212A** 0.99 0.99 58CV(A,X)110--- 20

CNPH*3617A** 0.97 1.03 58CV(A,X)135--- 22

INDOOR MODEL

CAP**4224A** 0.97 0.99 58CV(A,X)155---22

CSPH*3612A** 0.98 1.00 58CV(A,X)135--- 22

CSPH*4212A** 0.98 0.98 58CV(A,X)135--- 22

CNPH*4221A** 0.97 0.99 58CV(A,X)135--- 22

CNPH*3617A** 0.97 1.03 58CV(A,X)155--- 22

CAP**4224A** 0.98 1.03 58MV(B,C)040---14

CSPH*3612A** 0.98 0.99 58CV(A,X)155--- 22

CSPH*4212A** 0.98 0.98 58CV(A,X)155--- 22

CNPH*4221A** 0.97 0.98 58CV(A,X)155--- 22

CNPH*3617A** 0.98 1.06 58MV(B,C)040--- 14

CAP**3617A** 0.97 1.03 58MV(B,C)060---14

CSPH*3612A** 0.99 1.02 58MV(B,C)040---14

CSPH*4212A** 0.99 1.01 58MV(B,C)040---14

CNPH*4221A** 0.98 1.02 58MV(B,C)040--- 14

CNPH*3617A** 0.97 1.04 58MV(B,C)060--- 14

CNPH*4221A** 0.97 1.00 58MV(B,C)060--- 14

CAP**3621A** 0.97 1.04 58MV(B,C)080---14

CNPV*3617A** 0.97 1.04 58MV(B,C)060---14

CAP**4221A** 0.98 1.03 58MV(B,C)080---14

CSPH*3612A** 0.98 1.01 58MV(B,C)060---14

CSPH*4212A** 0.98 0.99 58MV(B,C)060---14

CNPV*3621A** 0.98 1.06 58MV(B,C)080---14

CNPH*3617A** 0.98 1.06 58MV(B,C)080--- 14

CNPH*4221A** 0.98 1.02 58MV(B,C)080--- 14

CAP**3621A** 0.97 1.03 58MV(B,C)080---20

CNPV*4221A** 0.98 1.02 58MV(B,C)080---14

CAP**4221A** 0.98 1.02 58MV(B,C)080---20

CSPH*3612A** 0.99 1.03 58MV(B,C)080---14

CSPH*4212A** 0.99 1.01 58MV(B,C)080---14

CNPV*3621A** 0.97 1.04 58MV(B,C)080---20

CNPH*3617A** 0.97 1.04 58MV(B,C)080--- 20

CNPH*4221A** 0.98 1.01 58MV(B,C)080--- 20

CAP**3621A** 0.97 1.03 58MV(B,C)100---20

CNPV*4221A** 0.98 1.01 58MV(B,C)080---20

CAP**4221A** 0.98 1.02 58MV(B,C)100---20

CNPV*3621A** 0.97 1.04 58MV(B,C)100---20

CSPH*3612A** 0.98 1.01 58MV(B,C)080---20

CSPH*4212A** 0.99 1.00 58MV(B,C)080---20

CNPV*4221A** 0.98 1.01 58MV(B,C)100---20

CNPH*3617A** 0.97 1.04 58MV(B,C)100--- 20

CNPH*4221A** 0.98 1.01 58MV(B,C)100--- 20

Capacity MBtuh

Sys.

KW†

Tot al

25HCB5

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB536A30 Outdoor Section With FX4CN(B,F)042 Indoor Section

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

1050 14.10 12.97 2.05 17.58 16.15 2.14 21.40 19.51 2.25 25.78 22.89 2.38 30.60 27.85 2.53 36.09 36.09 2.70 41.58 41.58 2.88 45.41 45.41 3.02

1200 14.39 13.24 2.08 17.89 16.44 2.17 21.77 19.85 2.26 26.18 23.25 2.38 31.06 28.26 2.53 36.41 36.41 2.67 40.96 40.96 2.83 42.71 42.71 2.87

1350 14.66 13.48 2.12 18.17 16.69 2.19 22.08 20.13 2.29 26.52 23.55 2.40 31.43 28.60 2.55 36.44 36.44 2.68 39.13 39.13 2.76 40.35 40.35 2.78

1050 13.65 12.55 2.13 17.17 15.78 2.23 20.94 19.09 2.35 25.30 22.47 2.48 30.08 27.37 2.64 35.48 35.48 2.84 41.19 41.19 3.01 46.01 46.01 3.19

1200 13.94 12.83 2.16 17.49 16.07 2.26 21.31 19.43 2.36 25.71 22.83 2.49 30.54 27.79 2.64 36.00 36.00 2.79 41.26 41.26 2.97 43.37 43.37 3.03

1350 14.21 13.07 2.20 17.77 16.33 2.29 21.63 19.72 2.38 26.05 23.14 2.50 30.90 28.12 2.65 36.14 36.14 2.79 39.97 39.97 2.92 41.56 41.56 2.96

1050 13.16 12.10 2.20 16.73 15.37 2.33 20.50 18.70 2.45 24.75 21.98 2.59 29.54 26.88 2.76 34.87 34.87 2.96 40.74 40.74 3.14 45.48 45.48 3.33

1200 13.46 12.38 2.24 17.05 15.67 2.35 20.85 19.01 2.46 25.24 22.41 2.60 30.00 27.30 2.75 35.41 35.41 2.93 40.90 40.90 3.10 44.25 44.25 3.22

1350 13.73 12.63 2.28 17.34 15.93 2.38 21.16 19.29 2.48 25.59 22.72 2.61 30.38 27.65 2.76 35.78 35.78 2.91 40.91 40.91 3.09 42.26 42.26 3.12

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

65

70

EDB CFM

(18.3)

75

(21.1)

(23.9)

HEATING

CAPACITY POWER FURNACE MODEL

FE4ANF002 0.98 1.02

FF1ENP036 1.00 1.08

FE4ANB006 0.99 0.93

FE4AN(B,F)003 0.97 1.00

FE4AN(B,F)005 0.99 0.96

*FX4C N(B,F)042 1.00 1.00

INDOOR MODEL

FV4BNF002 0.98 1.02

FY4ANF036 1.00 1.07

FV4BNB006 0.99 0.93

FV4BN(B,F)003 0.97 1.00

FV4BN(B,F)005 0.99 0.96

FY4ANF042 1.00 1.04

CAP**3614A** 1.00 1.08

CAP**3617A** 1.00 1.06

CAP**3621A** 1.00 1.06

CAP**4221A** 1.00 1.05

FX4CN(B,F)036 0.99 1.02

CAP**4224A** 1.00 1.05

CNPF*3618A** 1.00 1.07

CNPV*3617A** 1.00 1.07

CNPV*3621A** 1.00 1.07

CNPH*3617A** 1.00 1.07

CNPH*4221A** 1.00 1.05

CAP**3614A** 0.98 1.05 58CV(A,X)070---12

CNPV*4221A** 1.00 1.05

CSPH*3612A** 1.00 1.02

CSPH*4212A** 1.00 1.01

CNPH*3617A** 0.98 1.05 58CV(A,X)070--- 12

CAP**3617A** 0.97 1.03 58CV(A,X)090---16

CSPH*3612A** 0.98 1.01 58CV(A,X)070--- 12

CSPH*4212A** 0.99 1.01 58CV(A,X)070--- 12

CNPH*4221A** 0.98 1.02 58CV(A,X)070--- 12

CNPH*3617A** 0.97 1.03 58CV(A,X)090--- 16

CNPH*4221A** 0.97 1.00 58CV(A,X)090--- 16

CAP**3621A** 0.97 1.02 58CV(A,X)110---20

CNPV*3617A** 0.97 1.03 58CV(A,X)090--- 16

CAP**4221A** 0.98 1.01 58CV(A,X)110---20

CNPV*3621A** 0.97 1.03 58CV(A,X)110--- 20

CSPH*3612A** 0.98 1.00 58CV(A,X)090--- 16

CSPH*4212A** 0.98 0.99 58CV(A,X)090--- 16

CNPV*4221A** 0.97 0.99 58CV(A,X)110--- 20

CNPH*3617A** 0.97 1.03 58CV(A,X)110--- 20

CSPH*3612A** 0.98 1.00 58CV(A,X)110--- 20

CNPH*4221A** 0.97 0.99 58CV(A,X)110--- 20

30

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

HEATING

HEATING

CAPACITY POWER FURNACE MODEL

CAP**4224A** 0.99 1.07 58MV(B,C)120---20

CAP**4824A** 1.00 1.05 58MV(B,C)120---20

CSPH*4212A** 1.00 1.05 58MV(B,C)100---20

CSPH*4812A** 1.00 1.04 58MV(B,C)100---20

CNPH*4221A** 0.99 1.06 58MV(B,C)120--- 20

INDOOR MODEL

CNPH*4821A** 1.00 1.05 58MV(B,C)120--- 20

CAP**4817A** 1.00 1.05 58PH*070--- 16

CNPV*4824A** 1.00 1.05 58MV(B,C)120---20

CSPH*4212A** 1.00 1.05 58MV(B,C)120---20

CSPH*4812A** 1.00 1.04 58MV(B,C)120---20

CNPH*4221A** 1.00 1.10 58PH*070 ---16

CAP**4221A** 0.99 1.06 58PH*090--- 16

CAP**4821A** 1.00 1.03 58PH*090--- 16

CSPH*4212A** 1.00 1.06 58PH*070--- 16

CSPH*4812A** 1.00 1.05 58PH*070--- 16

CNPH*4821A** 1.00 1.05 58PH*070 ---16

CNPV*4221A** 0.99 1.06 58PH*090--- 16

CNPH*4221A** 0.99 1.06 58PH*090 ---16

CNPH*4821A** 1.00 1.03 58PH*090 ---16

CAP**4221A** 0.99 1.05 58PH*110--- 20

CNPV*4821A** 1.00 1.03 58PH*090--- 16

CAP**4821A** 1.00 1.03 58PH*110--- 20

CSPH*4212A** 1.00 1.04 58PH*090--- 16

CSPH*4812A** 1.00 1.03 58PH*090--- 16

CNPV*4221A** 0.99 1.06 58PH*110--- 20

CNPH*4221A** 0.99 1.06 58PH*110 ---20

CNPH*4821A** 1.00 1.02 58PH*110 ---20

CAP**4224A** 0.99 1.05 58PH*135--- 20

CNPV*4821A** 1.00 1.02 58PH*110--- 20

CAP**4824A** 1.00 1.03 58PH*135--- 20

CSPH*4212A** 1.00 1.03 58PH*110--- 20

CSPH*4812A** 1.00 1.03 58PH*110--- 20

CNPV*4824A** 1.00 1.03 58PH*135--- 20

CSPH*4212A** 1.00 1.04 58PH*135--- 20

CNPH*4221A** 0.99 1.06 58PH*135 ---20

CSPH*4812A** 1.00 1.03 58PH*135--- 20

CNPH*4821A** 1.00 1.03 58PH*135 ---20

Seenoteonpg.33

25HCB5

CAPACITY POWER FURNACE MODEL

CAP**4224A** 0.99 1.06 58CV(A,X)155---22

CNPV*4824A** 1.00 1.03 58CV(A,X)135--- 22

INDOOR MODEL

CAP**4824A** 0.99 1.02 58CV(A,X)155---22

CSPH*4212A** 1.00 1.04 58CV(A,X)135--- 22

CSPH*4812A** 1.00 1.03 58CV(A,X)135--- 22

CNPH*4221A** 0.98 1.03 58CV(A,X)155--- 22

CNPH*4821A** 0.99 1.02 58CV(A,X)155--- 22

CAP**4224A** 0.99 1.08 58MV(B,C)040---14

CNPV*4824A** 0.99 1.02 58CV(A,X)155--- 22

CAP**4824A** 1.00 1.06 58MV(B,C)040---14

CSPH*4212A** 1.00 1.04 58CV(A,X)155--- 22

CSPH*4812A** 1.00 1.03 58CV(A,X)155--- 22

CNPH*4221A** 0.99 1.07 58MV(B,C)040--- 14

CNPH*4821A** 1.00 1.06 58MV(B,C)040--- 14

CAP**4817A** 1.00 1.04 58MV(B,C)060---14

CNPV*4824A** 1.00 1.06 58MV(B,C)040---14

CSPH*4212A** 1.00 1.06 58MV(B,C)040---14

CSPH*4812A** 1.00 1.06 58MV(B,C)040---14

CNPH*4221A** 0.99 1.06 58MV(B,C)060--- 14

CAP**4221A** 0.99 1.09 58MV(B,C)080---14

CAP**4821A** 1.00 1.07 58MV(B,C)080---14

CSPH*4212A** 1.00 1.05 58MV(B,C)060---14

CSPH*4812A** 1.00 1.05 58MV(B,C)060---14

CNPH*4821A** 1.00 1.05 58MV(B,C)060--- 14

CNPV*4221A** 0.99 1.07 58MV(B,C)080---14

CNPH*4221A** 0.99 1.07 58MV(B,C)080--- 14

CNPH*4821A** 1.00 1.06 58MV(B,C)080--- 14

CAP**4221A** 0.99 1.08 58MV(B,C)080---20

CNPV*4821A** 1.00 1.06 58MV(B,C)080---14

CAP**4821A** 1.00 1.06 58MV(B,C)080---20

CSPH*4212A** 1.00 1.07 58MV(B,C)080---14

CSPH*4812A** 1.00 1.06 58MV(B,C)080---14

CNPV*4221A** 0.99 1.06 58MV(B,C)080---20

CNPH*4221A** 0.99 1.06 58MV(B,C)080--- 20

CNPH*4821A** 1.00 1.05 58MV(B,C)080--- 20

CAP**4221A** 0.99 1.07 58MV(B,C)100---20

CNPV*4821A** 1.00 1.05 58MV(B,C)080---20

CAP**4821A** 1.00 1.05 58MV(B,C)100---20

CNPV*4221A** 0.99 1.06 58MV(B,C)100---20

CSPH*4212A** 1.00 1.05 58MV(B,C)080---20

CSPH*4812A** 1.00 1.05 58MV(B,C)080---20

CNPV*4821A** 1.00 1.05 58MV(B,C)100---20

CNPH*4221A** 0.99 1.06 58MV(B,C)100--- 20

CNPH*4821A** 1.00 1.05 58MV(B,C)100--- 20

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB542A30 Outdoor Section With FX4CN(B,F)048 Indoor Section

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

1225 17.84 16.41 2.61 21.79 20.02 2.71 26.04 23.74 2.82 30.81 27.36 2.93 36.18 32.92 3.05 42.17 42.17 3.14 48.03 48.03 3.28 52.01 52.01 3.37

1400 18.17 16.72 2.65 22.14 20.34 2.74 26.44 24.11 2.84 31.28 27.79 2.93 36.72 33.42 3.04 42.42 42.42 3.11 46.60 46.60 3.19 47.75 47.75 3.20

1575 18.47 16.99 2.70 22.47 20.65 2.78 26.79 24.43 2.87 31.74 28.19 2.96 37.17 33.83 3.03 42.49 42.49 3.11 44.37 44.37 3.14 45.16 45.16 3.14

1225 17.34 15.95 2.69 21.31 19.58 2.80 25.59 23.33 2.92 30.27 26.89 3.04 35.61 32.40 3.17 41.54 41.54 3.29 47.52 47.52 3.42 51.68 51.68 3.52

1400 17.68 16.26 2.73 21.68 19.92 2.83 25.99 23.70 2.94 30.74 27.31 3.04 36.14 32.89 3.16 42.00 42.00 3.25 46.92 46.92 3.35 48.85 48.85 3.38

1575 18.01 16.57 2.77 22.01 20.23 2.87 26.35 24.03 2.97 31.15 27.67 3.06 36.59 33.30 3.17 42.15 42.15 3.25 45.37 45.37 3.30 46.90 46.90 3.32

1225 16.82 15.47 2.76 20.83 19.15 2.89 25.11 22.90 3.02 29.73 26.41 3.15 35.04 31.89 3.29 40.88 40.88 3.44 46.96 46.96 3.57 51.86 51.86 3.70

1400 17.16 15.79 2.80 21.21 19.49 2.92 25.53 23.27 3.04 30.21 26.83 3.15 35.57 32.37 3.28 41.52 41.52 3.39 47.22 47.22 3.52 49.71 49.71 3.57

1575 17.47 16.08 2.85 21.54 19.80 2.96 25.89 23.61 3.07 30.63 27.20 3.18 36.02 32.78 3.29 41.76 41.76 3.38 46.06 46.06 3.47 47.46 47.46 3.48

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

65

70

EDB CFM

(18.3)

75

(21.1)

(23.9)

HEATING

CAPACITY POWER FURNACE MODEL

FY4ANF042 1.00 1.08

FE4ANB006 1.00 0.99

FE4AN(B,F)003 0.99 1.07

FE4AN(B,F)005 1.00 1.01

FV4BN(B,F)003 0.99 1.07

*FX4C N(B,F)048 1.00 1.00

INDOOR MODEL

FV4BN(B,F)005 1.00 1.01

FY4ANF048 1.00 1.05

FV4BNB006 1.00 0.99

CAP**4221A** 1.00 1.08

CAP**4224A** 1.00 1.08

CAP**4817A** 1.00 1.03

CAP**4821A** 1.00 1.05

FX4CN(B,F)042 1.00 1.04

CAP**4824A** 1.00 1.05

CNPF*4818A** 1.00 1.06

CNPV*4221A** 1.00 1.08

CNPV*4821A** 1.00 1.05

CNPV*4824A** 1.00 1.05

CSPH*4212A** 1.00 1.04

CNPH*4221A** 1.00 1.08

CNPH*4821A** 1.00 1.05

CSPH*4812A** 1.00 1.03

CNPH*4221A** 0.99 1.07 58CV(A,X)070--- 12

CAP**4817A** 1.00 1.04 58CV(A,X)090---16

CSPH*4212A** 1.00 1.06 58CV(A,X)070--- 12

CSPH*4812A** 1.00 1.06 58CV(A,X)070--- 12

CNPH*4821A** 1.00 1.06 58CV(A,X)070--- 12

CNPH*4221A** 0.99 1.06 58CV(A,X)090--- 16

CAP**4221A** 0.99 1.06 58CV(A,X)110---20

CAP**4821A** 1.00 1.04 58CV(A,X)110---20

CSPH*4212A** 1.00 1.05 58CV(A,X)090--- 16

CSPH*4812A** 1.00 1.04 58CV(A,X)090--- 16

CNPH*4821A** 1.00 1.04 58CV(A,X)090--- 16

CNPV*4221A** 0.99 1.05 58CV(A,X)110--- 20

CNPH*4221A** 0.99 1.05 58CV(A,X)110--- 20

CNPH*4821A** 1.00 1.04 58CV(A,X)110--- 20

CAP**4224A** 0.99 1.06 58CV(A,X)135---22

CNPV*4821A** 1.00 1.04 58CV(A,X)110--- 20

CAP**4824A** 1.00 1.04 58CV(A,X)135---22

CSPH*4212A** 1.00 1.04 58CV(A,X)110--- 20

CSPH*4812A** 1.00 1.04 58CV(A,X)110--- 20

CNPH*4221A** 0.98 1.03 58CV(A,X)135--- 22

CNPH*4821A** 1.00 1.03 58CV(A,X)135--- 22

31

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

HEATING

HEATING

CAPACITY POWER FURNACE MODEL

CAP**4824A** 0.97 1.05 58PH*135--- 20

CNPV*4821A** 0.97 1.04 58PH*110--- 20

CNPH*4821A** 0.97 1.04 58PH*110 ---20

CNPH*6024A** 0.97 1.02 58PH*110 ---20

INDOOR MODEL

CAP**6024A** 0.98 1.04 58PH*135--- 20

CNPV*4824A** 0.97 1.05 58PH*135--- 20

CSPH*4812A** 0.97 1.04 58PH*110--- 20

CSPH*6012A** 0.98 1.02 58PH*110--- 20

CNPV*6024A** 0.98 1.04 58PH*135--- 20

CSPH*4812A** 0.97 1.05 58PH*135--- 20

CNPH*4821A** 0.97 1.05 58PH*135 ---20

CNPH*6024A** 0.98 1.04 58PH*135 ---20

CSPH*6012A** 0.98 1.02 58PH*135--- 20

Seenoteonpg.33

CAPACITY POWER FURNACE MODEL

CAP**4824A** 0.97 1.04 58CV(A,X)155---22

CAP**6024A** 0.97 1.03 58CV(A,X)155---22

CSPH*6012A** 0.97 1.02 58CV(A,X)135--- 22

INDOOR MODEL

CNPV*4824A** 0.97 1.04 58CV(A,X)155--- 22

CNPH*4821A** 0.97 1.04 58CV(A,X)155--- 22

CNPH*6024A** 0.97 1.03 58CV(A,X)155--- 22

CAP**4821A** 0.97 1.07 58MV(B,C)080---20

CNPV*6024A** 0.97 1.03 58CV(A,X)155--- 22

CAP**6021A** 0.98 1.06 58MV(B,C)080---20

CSPH*4812A** 0.97 1.03 58CV(A,X)155--- 22

CSPH*6012A** 0.97 1.01 58CV(A,X)155--- 22

CNPH*4821A** 0.97 1.07 58MV(B,C)080--- 20

CNPH*6024A** 0.97 1.06 58MV(B,C)080--- 20

CAP**4821A** 0.97 1.07 58MV(B,C)100---20

CNPV*4821A** 0.97 1.07 58MV(B,C)080---20

CAP**6021A** 0.97 1.05 58MV(B,C)100---20

CSPH*4812A** 0.98 1.07 58MV(B,C)080---20

CSPH*6012A** 0.98 1.06 58MV(B,C)080---20

CNPH*4821A** 0.97 1.07 58MV(B,C)100--- 20

CNPH*6024A** 0.97 1.05 58MV(B,C)100--- 20

CAP**4824A** 0.97 1.07 58MV(B,C)120---20

CNPV*4821A** 0.97 1.07 58MV(B,C)100---20

CAP**6024A** 0.97 1.05 58MV(B,C)120---20

CSPH*4812A** 0.98 1.07 58MV(B,C)100---20

CSPH*6012A** 0.98 1.05 58MV(B,C)100---20

CNPV*4824A** 0.97 1.07 58MV(B,C)120---20

CNPH*4821A** 0.97 1.07 58MV(B,C)120--- 20

CNPH*6024A** 0.97 1.05 58MV(B,C)120--- 20

CAP**4821A** 0.97 1.05 58PH*090--- 16

CNPV*6024A** 0.97 1.05 58MV(B,C)120---20

CAP**6021A** 0.98 1.03 58PH*090--- 16

CSPH*4812A** 0.97 1.06 58MV(B,C)120---20

CSPH*6012A** 0.97 1.04 58MV(B,C)120---20

CNPH*4821A** 0.97 1.05 58PH*090 ---16

CNPH*6024A** 0.98 1.04 58PH*090 ---16

CAP**4821A** 0.97 1.05 58PH*110--- 20

CNPV*4821A** 0.97 1.05 58PH*090--- 16

CAP**6021A** 0.97 1.02 58PH*110--- 20

CSPH*4812A** 0.98 1.05 58PH*090--- 16

CSPH*6012A** 0.98 1.03 58PH*090--- 16

Capacity MBtuh

Sys.

KW†

Tot al

25HCB5

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB548A30 Outdoor Section With FX4CN(B,F)060 Indoor Section

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

1400 19.28 17.73 2.81 23.80 21.87 2.92 28.66 26.13 3.03 33.92 30.13 3.15 39.75 36.17 3.29 46.41 46.41 3.44 53.58 53.58 3.59 61.03 61.03 3.79

1600 19.68 18.11 2.86 24.23 22.26 2.95 29.15 26.58 3.05 34.44 30.59 3.16 40.47 36.83 3.28 47.14 47.14 3.38 53.94 53.94 3.53 57.96 57.96 3.61

1800 20.06 18.45 2.91 24.62 22.63 3.00 29.58 26.97 3.09 34.89 30.99 3.18 41.01 37.32 3.29 47.48 47.48 3.37 53.36 53.36 3.48 54.85 54.85 3.49

1400 18.72 17.22 2.93 23.26 21.37 3.04 28.15 25.67 3.17 33.42 29.68 3.30 39.13 35.61 3.44 45.69 45.69 3.62 52.90 52.90 3.77 60.14 60.14 3.98

1600 19.12 17.59 2.98 23.70 21.78 3.08 28.63 26.11 3.19 33.94 30.14 3.31 39.76 36.18 3.43 46.50 46.50 3.56 53.35 53.35 3.70 58.10 58.10 3.81

1800 19.50 17.94 3.03 24.10 22.14 3.13 29.07 26.50 3.22 34.40 30.55 3.33 40.30 36.68 3.44 46.98 46.98 3.54 53.54 53.54 3.67 55.74 55.74 3.70

1400 18.12 16.67 3.05 22.72 20.88 3.18 27.62 25.18 3.31 32.90 29.22 3.45 38.53 35.06 3.61 45.02 45.02 3.80 52.20 52.20 3.95 59.41 59.41 4.17

1600 18.54 17.05 3.10 23.14 21.27 3.21 28.10 25.62 3.33 33.42 29.69 3.46 39.12 35.60 3.59 45.78 45.78 3.74 52.73 52.73 3.88 58.87 58.87 4.04

1800 18.92 17.40 3.15 23.55 21.64 3.26 28.53 26.01 3.36 33.89 30.10 3.48 39.67 36.10 3.60 46.44 46.44 3.71 53.01 53.01 3.85 56.89 56.89 3.93

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

65

70

EDB CFM

(18.3)

75

(21.1)

(23.9)

HEATING

CAPACITY POWER FURNACE MODEL

FE4ANB006 0.97 0.99

FE4AN(B,F)005 0.97 1.03

FV4BN(B,F)005 0.97 1.03

*FX4C N(B,F)060 1.00 1.00

INDOOR MODEL

FY4ANF048 1.00 1.09

FV4BNB006 0.97 0.99

FY4ANB060 1.01 1.06

CAP**4817A** 0.99 1.08

CAP**4821A** 1.00 1.08

CAP**4824A** 1.00 1.08

CAP**6021A** 1.00 1.05

FX4CN(B,F)048 0.99 1.04

CAP**6024A** 1.00 1.05

CNPF*4818A** 0.98 1.11

CNPV*4821A** 1.00 1.08

CNPV*4824A** 1.00 1.08

CNPH*4821A** 1.00 1.08

CNPH*6024A** 1.00 1.07

CAP**4817A** 0.98 1.07 58CV(A,X)090---16

CNPV*6024A** 1.00 1.07

CSPH*4812A** 1.00 1.07

CSPH*6012A** 1.00 1.05

CNPH*4821A** 0.97 1.06 58CV(A,X)090--- 16

CAP**4821A** 0.97 1.06 58CV(A,X)110---20

CNPH*6024A** 0.97 1.05 58CV(A,X)090--- 16

CNPH*4821A** 0.97 1.06 58CV(A,X)110--- 20

CNPH*6024A** 0.97 1.04 58CV(A,X)110--- 20

CAP**6021A** 0.97 1.04 58CV(A,X)110---20

CSPH*4812A** 0.97 1.06 58CV(A,X)090--- 16

CSPH*6012A** 0.97 1.04 58CV(A,X)090--- 16

CAP**4824A** 0.97 1.05 58CV(A,X)135---22

CNPV*4821A** 0.97 1.06 58CV(A,X)110--- 20

CAP**6024A** 0.97 1.03 58CV(A,X)135---22

CNPV*4824A** 0.97 1.05 58CV(A,X)135--- 22

CSPH*4812A** 0.97 1.05 58CV(A,X)110--- 20

CSPH*6012A** 0.97 1.03 58CV(A,X)110--- 20

CNPV*6024A** 0.97 1.03 58CV(A,X)135--- 22

CNPH*4821A** 0.97 1.05 58CV(A,X)135--- 22

CSPH*4812A** 0.97 1.04 58CV(A,X)135--- 22

CNPH*6024A** 0.97 1.03 58CV(A,X)135--- 22

32

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

CAP**6021A** 1.00 1.06 58PH*090--- 16

CAP**6021A** 1.00 1.04 58PH*110--- 20

CAP**6024A** 1.00 1.05 58PH*135--- 20

CSPH*6012A** 1.00 1.04 58PH*090--- 16

CNPH*6024A** 1.00 1.06 58PH*090 ---16

CNPH*6024A** 1.00 1.04 58PH*110 ---20

CNPV*6024A** 1.00 1.05 58PH*135--- 20

CSPH*6012A** 1.00 1.03 58PH*110--- 20

CSPH*6012A** 1.00 1.04 58PH*135--- 20

CNPH*6024A** 1.00 1.05 58PH*135 ---20

Capacity MBtuh

Sys.

KW†

Tot al

Capacity MBtuh

Sys.

KW†

Tot al

OUTDOOR COIL ENTERING AIR T EMPERATURES ˚F(˚C)

Capacity MBtuh

Sys.

KW†

Tot al

25HCB560A30 Outdoor Section With FX4CN(B,F)060 Indoor Section

CAP**6021A** 1.00 1.05 58CV(A,X)110---20

CAP**6024A** 1.00 1.04 58CV(A,X)135---22

CSPH*6012A** 1.01 1.05 58CV(A,X)110--- 20

CNPH*6024A** 1.00 1.06 58CV(A,X)110--- 20

Capacity MBtuh

Sys.

KW†

Tot al

CAP**6024A** 1.00 1.03 58CV(A,X)155---22

CNPV*6024A** 1.00 1.05 58CV(A,X)135--- 22

CNPH*6024A** 1.00 1.05 58CV(A,X)135--- 22

CNPV*6024A** 1.00 1.04 58CV(A,X)155--- 22

CSPH*6012A** 1.00 1.03 58CV(A,X)135--- 22

CSPH*6012A** 1.00 1.02 58CV(A,X)155--- 22

CNPH*6024A** 1.00 1.04 58CV(A,X)155--- 22

25HCB5

Capacity MBtuh

Sys.

KW†

Tot al

--- 3 ( --- 19 . 4 ) 7 (--- 13.9) 17 ( ---8.3) 27 (--- 2.8) 37 (2. 8) 47 (8. 3) 57 (13. 9) 67 (19.4)

Tot al Integ* To ta l Integ* To ta l Integ* To ta l In teg* To ta l Integ* To ta l Integ* To ta l Integ* To ta l Integ*

Capacity MBtuh

1750 23.48 21.60 3.26 29.16 26.80 3.39 35.23 32.12 3.53 41.70 37.04 3.70 48.76 44.37 3.88 57.02 57.02 4.12 66.63 66.63 4.35 76.53 76.53 4.64

2000 23.94 22.03 3.31 29.66 27.26 3.42 35.77 32.61 3.55 42.29 37.56 3.70 49.47 45.02 3.86 57.90 57.90 4.08 67.49 67.49 4.27 77.13 77.13 4.53

2250 24.37 22.42 3.36 30.11 27.67 3.47 36.24 33.05 3.59 42.81 38.02 3.72 50.12 45.61 3.87 58.69 58.69 4.06 67.98 67.98 4.24 77.31 77.31 4.47

1750 22.72 20.90 3.41 28.46 26.15 3.55 34.56 31.51 3.71 41.06 36.46 3.88 48.05 43.73 4.07 56.15 56.15 4.31 65.57 65.57 4.57 75.53 75.53 4.86

2000 23.18 21.33 3.46 28.97 26.62 3.59 35.11 32.01 3.72 41.66 37.00 3.88 48.74 44.35 4.05 57.00 57.00 4.27 66.59 66.59 4.48 76.22 76.22 4.75

2250 23.61 21.72 3.52 29.43 27.04 3.63 35.60 32.46 3.76 42.18 37.46 3.90 49.33 44.89 4.06 57.73 57.73 4.26 67.16 67.16 4.44 76.51 76.51 4.68

1750 21.89 20.14 3.56 27.70 25.46 3.72 33.86 30.87 3.89 40.39 35.87 4.07 47.50 43.23 4.28 55.05 55.05 4.51 64.53 64.53 4.79 74.52 74.52 5.09

2000 22.37 20.58 3.61 28.22 25.93 3.76 34.42 31.38 3.90 40.99 36.40 4.07 48.02 43.70 4.25 55.99 55.99 4.47 65.60 65.60 4.69 75.29 75.29 4.97

2250 22.80 20.98 3.67 28.68 26.36 3.80 34.91 31.83 3.94 41.52 36.88 4.09 48.61 44.24 4.25 56.84 56.84 4.46 66.32 66.32 4.65 75.63 75.63 4.90

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

65

EDB CFM

70

(18.3)

(21.1)

HEATING

75

(23.9)

CAPACITY POWER FURNACE MODEL

FE4ANB006 1.00 1.00

FV4BNB006 1.00 1.00

FY4ANB060 1.02 1.07

CAP**6021A** 1.01 1.06

CAP**6024A** 1.01 1.06

CNPV*6024A** 1.01 1.07

CSPH*6012A** 1.01 1.05

*FX4C N(B,F)060 1.00 1.00

INDOOR MODEL

CNPH*6024A** 1.01 1.07

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from supplement heaters should be added to those values to obtain total system capacity.

{ The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these values to obtain total system kilowatts.

EDB —EnteringDryBulb

33

GUIDE SPECIFICATIONS
GENERAL

AIR--COOLED, S PLIT --SYSTEM HEAT PUMP

25HCB5

1--1/2 TO 5 NOMINAL TONS

System Description

Outdoor--mounted, air--cooled, split--system heat pump unit
suitable for ground or rooftop installation. Unit consists of a
hermetic compressor, an air--cooled coil, propeller--type
condenser fan, and a control box. Unit will discharge supply air
upward as shown on contract drawings. Unit will be used in a
refrigeration circuit to match up to a packaged fan coil or coil
unit.

Quality Assurance

— Unit will be rated in accordance with the latest edition

of ARI Standard 240.

— Unit will be certified for capacity and efficiency, and

listed in the latest ARI directory.

— Unit construction will comply with latest edition of

ANSI/ ASHRAE and with NEC.

— Unit will be constructed in accordance with UL

25HCB5

standards and will carry the UL label of approval. Unit
will have C--UL approval.

— Unit cabinet will be capable of withstanding Federal

Test Method Standard No. 141 (Method 6061) 500--hr
salt spray test.

— Air-- cooled condenser coils are pressure tested and the

outdoor unit is leak tested.

— Unit constructed in ISO9001 approved facility.

Delivery, Storage, and Handling

— Unit will be shipped as single package only and is

stored and handled per unit manufacturer’s
recommendations.

Warranty (for inclusion by specifying engineer)

— U.S. and Canada only.

PRODUCTS

Equipment

— Factory assembled, single piece, air--cooled heat pump

unit. Contained within the unit enclosure is all factory
wiring, piping, controls, compressor, refrigerant charge
Puronr (R--410A), and special features required prior
to field start--up.

Unit Cabinet

— Unit cabinet will be constructed of galvanized steel,

bonderized, and coated with a powder coat paint.

Fans

— Condenser fan will be direct--drive propeller type,

discharging air upward.

— Condenser fan motors will be totally enclosed, 1--phase

type with class B insulation and permanently lubricated

bearings.
— Shafts will be corrosion resistant.

— Fan blades will be statically and dynamically balanced.
— Condenser fan openings will be equipped with steel

wire safety guards.

Compressor

— Compressor will be hermetically sealed.

— Compressor will be mounted on rubber vibration

isolators.

Condenser Coil

— Condenser coil will be air cooled.

— Coil will be constructed of aluminum fins mechanically

bonded to copper tubes which are then cleaned,

dehydrated, and sealed.

Refrigeration Components

— Refrigeration circuit components will include

liquid--line shutoff valve with sweat connections,

vapor--line shutoff valve with sweat connections,

system charge of Puronr (R--410A) refrigerant, POE

compressor oil, accumulator, and reversing valve.

Operating Characteristics

— The capacity of the unit will meet or exceed _____

Btuh at a suction temperature of _____ _F/_C. The

power consumption at full load will not exceed _____

kW.

— Combination of the unit and the evaporator or fan coil

unit will have a total net cooling capacity of _____

Btuh or greater at conditions of _____ CFM entering

air temperature at the evaporator at _____ _F wet bulb

and _____ _F/_C dry bulb, and air entering the unit at

_____ _F/_C.
— The system will have a SEER of _____ Btuh/watt or

greater at DOE conditions.

Electrical Requirements

— Nominal unit electrical characteristics will be _____ v,

single phase, 60 hz. The unit will be capable of

satisfactory operation within voltage limits of _____ v

to _____ v.

— Nominal unit electrical characteristics will be _____ v,

three phase, 60 hz. The unit will be capable of

satisfactory operation within voltage limits of _____ v

to _____ v.
— Unit electrical power will be single point connection.

— Control circuit will be 24v.

Special Features

— Refer to section of this literature identifying accessories

and descriptions for specific features and available

enhancements.

Copyright 2008 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231

Manufacturer r eser ves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Printed in U.S.A. Edition Date: 06/08

34

Catalog No. 25HCB5--- 1PD

Replaces: New
