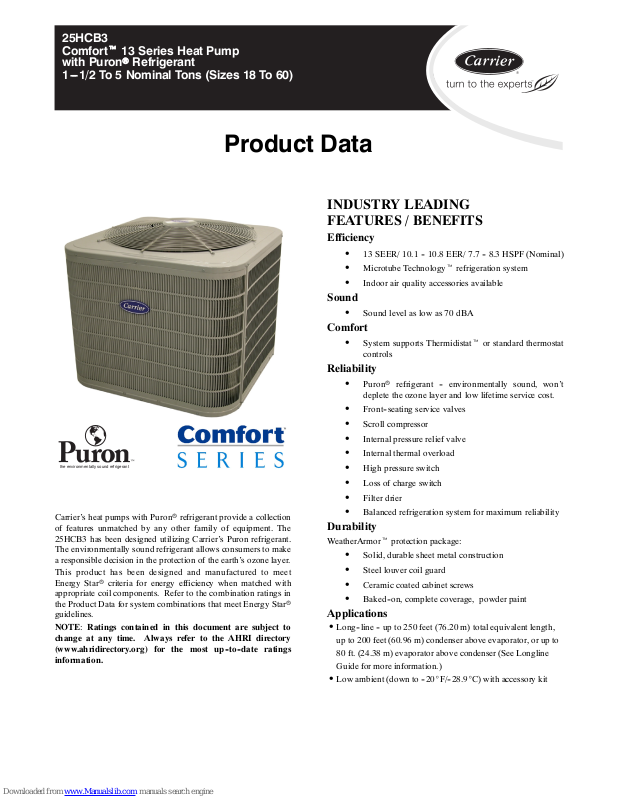

Carrier 25HCB3, 25HCB318, 25HCB324, 25HCB330, 25HCB336 Product Data

25HCB3
Comfortt 13 Series Heat Pump
with Puronr Refrigerant
1---1/2 To 5 Nominal Tons (Sizes 18 To 60)

Product Data

the environmentally sound refrigerant

Carrier’s heat pumps with Puronr refrigerant provide a collection
of features unmatched by any other family of equipment. The
25HCB3 has been designed utilizing Carrier’s Puron refrigerant.
The environmentally sound refrigerant allows consumers to make
a responsible decision in the protection of the earth’s ozone layer.

This product has been designed and manufactured to meet
Energy Starr criteria for energy efficiency when matched with
appropriate coil components. Refer to the combination ratings in
the Product Data for system combinations that meet Energy Starr
guidelines.

NOTE: Ratings contained in this document are subject to
change at any time. Always refer to the AHRI directory
(www.ahridirectory.org) for the most up--to--date ratings
information.

INDUSTRY LEADING
FEATURES / BENEFITS

Efficiency

13 SEER/ 10.1 -- 10.8 EER/ 7.7 -- 8.3 HSPF (Nominal)

S
S Microtube Technologyt refrigeration system
S Indoor air quality accessories available

Sound

Sound level as low as 70 dBA

S

Comfort

System supports Thermidistatt or standard thermostat

S

controls

Reliability

S

Puronr refrigerant -- environmentally sound, won’t
deplete the ozone layer and low lifetime service cost.

S Front--seating service valves
S Scroll compressor
S Internal pressure relief valve
S Internal thermal overload
S High pressure switch
S Loss of charge switch
S Filter drier
S Balanced refrigeration system for maximum reliability

Durability

WeatherArmort protection package:

S Solid, durable sheet metal construction
S Steel louver coil guard
S Ceramic coated cabinet screws
S Baked--on, complete coverage, powder paint

Applications

S

Long--line -- up to 250 feet (76.20 m) total equivalent length,
up to 200 feet (60.96 m) condenser above evaporator, or up to
80 ft. (24.38 m) evaporator above condenser (See Longline
Guide for more information.)

S Low ambient (down to --20_F/--28.9_C) with accessory kit

MODEL NUMBER NOMENCLATURE

12 3 4 5 6 78 9 10 11 12 13

N N A A A/N N N N A/N A/N A/N N N

25 H C B 3 36 A 0 0 3 1

Product

Series

25=HP H=RESHP C=Comfort B=Puron 3=13SEER A=Standard

the environmentally sound refrigerant

25HCB3

Product

Famil y

Tier

Use of the AHRI Certified
TM Mark indicates a
manufacturer’s
participation in the
program For verification
of certification for individual
products, go to
www.ahridirectory.org.

Major

Series

SEER

Cooling

Capacity

Variation s Open Open Voltage

0=Not

Defined

0=Not

Defined

This product has been designed an d manufactur ed to
meet Ener gy Star® criteria for energy effi ciency when
matched with appropriate coil components. However,
proper ref rigerant ch arge and proper air f low are cr itical
to achieve rated capacity and efficiency. Installation of
this product should follow all manufacturing refri gerant
charging and air flow instructions. Failure to confirm

proper charge and air flow may reduce energy
efficiency a nd shorten equipment life.

3=208/230---1
5=208/230---3

6=460--- 3

STANDARD FEATURES

Feature 18 24 30 36 42 48 60

Puron Refrigerant X X X X X X X

13 SEER X X X X X X X

Scroll Compressor X X X X X X X

Louvered Coil Guard X X X X X X X

FieldInstalledFilterDrier X X X X X X X

Front Seating Service Valves X X X X X X X

Internal Pressure Relief Valve X X X X X X X

Internal Thermal Overload X X X X X X X

Long Line capability X X X X X X X

Low Ambient capability with Kit X X X X X X X

Suction Line Accumulator X X X X X X X

High Pressure Switch X X X X X X X

Loss of Charge Switch X X X X X X X

Minor

Series

0, 1, 2...

X = Standard

2

PHYSICAL DATA

UNIT SIZE --- SERIES, VOLTAGE 18--- 30 24 --- 30 30 --- 30 36 --- 30 42- -- 30 48 -- -30 60 --- 31

Operating Weight lb (kg)

Shipping Weigh lb (kg)

Compressor Type Scroll
Refrigerant Puronr (R ---410A)

Control TXV (Puron Hard Shutoff)

Charge lb (kg) 6.4 (2.9) 5.5 (2.5) 7.5 (3.4) 7.2 (3.2) 8.1 (3.7) 11.6 (5.3) 12.4 (5.6)
Outdoor Heating Piston # 42 46 55 57 61 61 76

Cond Fan Propeller Type, Direct Drive

Air Discharge Vertical

Air Qty (C FM) 2614 2614 2614 3472 3810 4046 4046

Motor HP 1/10 1/10 1/10 1/8 1/5 1/4 1/4

Motor RPM 800 800 800 800 800 800 800
Cond Coil

Face Area (Sq ft) 15.09 15.09 21.56 20.12 25.15 20.12 22.63

Fins per In. 20 20 20 20 20 20 20

Rows 1 1 1 1 1 2 2

Circuits 5 5 5 6 6 8 8
Valve Connect (In.) ID

Vapor 5/8 5/8 3/4 3/4 7/8 7/8 7/8

Liquid 3/8
Refrigerant Tubes (In.) OD

Rated Vapor* 5/8 5/8 3/4 3/4 7/8 7/8 1 --- 1 / 8

Liquid 3/8

*Units are rated with 25 ft (7.6 m) of lineset length. See Vapor Line Sizing and Cooling Capacity Loss table when using other sizes and lengths of lineset.
Note: See unit Installation Instruction for proper installation.

VAPOR LINE SIZING AND COOLING CAPACITY LOSS

LONG LINE APPLICATION: An application is considered
”Long line” when the total equivalent tubing length exceeds 80
ft. (24.38 m) or when there is more than 20 ft. (6.09 m) vertical
separation between indoor and outdoor units. These applications
require additional accessories and system modifications for
reliable system operation. The maximum allowable total
equivalent length is up to 250 ft. (76.2 m). The maximum

174

(78.9)

201

(91.2)

183

(83.0)

210

(95.3)

206

(93.4)

235

(106.6)

203

(92.1)

241

(109.3)

263

(119.32)

295

(133.8)

283

(128.4)

313

(142.0)

vertical separation is 200 ft. (60.96 m) when outdoor unit is
above indoor unit, and up to 80 ft. (24.38 m) when the outdoor
unit is below the indoor unit. Refer to Accessory Usage Guideline
below for required accessories. See Longline Application
Guideline for required piping and system modifications. Also,
refer to the table below for vapor tube diameters based on the
total length to minimize the cooling capacity loss.

299

(135.6)

331

(150.1)

25HCB3

Cooling Capacity Loss (%)

Unit Nominal Size

(Btuh)

18,000

1 --- S tag e P u r o n H P

24,000

1 --- S tag e P u r o n H P

30,000

1 --- S tag e P u r o n H P

36,000

1 --- S tag e P u r o n H P

42,000

1 --- S tag e P u r o n H P

48,000

1 --- S tag e P u r o n H P

60,000

1 --- S tag e P u r o n H P

Applications in this area are long line. Accessories are required as shown recommended on Long Line Application Guidelines
Applications in this area may have height restrictions that limit allowable total equivalent length, when outdoor unit is below indoor unit See Long Line Applica­tion Guidelines

Maximum

Liquid Line

Diameters

(In.) OD

3/8

Vapo r L ine

Diameters

(In.) OD

1/2 1 2 3 4 6 7 8 9 10
5/8 0 0 1 1 1 2 2 3 3
5/8 0 1 1 2 3 3 4 4 5
3/4 0 0 0 0 1 1 1 1 1
5/8 1 2 3 3 4 5 6 7 8
3/4 0 0 1 1 1 2 2 2 3
7/8 0 0 0 0 1 1 1 1 1
5/8 1 2 4 5 6 7 9 10 11
3/4 0 0 1 1 2 2 3 3 4
7/8 0 0 0 0 1 1 1 1 2
3/4 0 1 2 2 3 4 4 5 6
7/8 0 0 1 1 1 2 2 2 3
3/4 0 1 2 3 4 5 5 6 7
7/8 0 0 1 1 2 2 2 3 3
3/4 1 2 4 5 6 7 9 10 11
7/8 0 1 2 2 3 4 4 5 5

1 --- 1 / 8 0 0 0 1 1 1 1 1 1

Standard

Application

26--- 50

(7.9--- 15.2)

51--- 80

(15.5--- 24.4)

81--- 100

(24.7--- 30.5)

Total Equivalent Line L e ngth ft. (m)

Long Line Application Requires Accessories

101--- 125

(30.8--- 38.1)

126--- 150

(38.4--- 45.7)

151--- 175

(46.0--- 50.3)

176--- 200

(53.6--- 60.0)

201--- 225

(61.3--- 68.6)

226--- 250

(68.9--- 76.2)

3

ACCESSORIES

ORDER

NUMBER

KAACH1701AAA CRANKCASE HTR X X X X

KAACH1601AAA CRANKCASE HTR X

STANADARD CRANKCASE HT R S S

KAAFT0101AAA FREEZE THERMOSTAT X X X X X X X

KSAHS1701AAA HARD START (CAP/RELAY) X X X X X X X

KHAIR0101AAA ISOLATION RELA Y X X X X X X X

KSALA0301410 LOW AMBIENT PSW X X X X X X X

HC34GE242 MOTOR FAN BALL BEARING X X X

HC36GE232 MOTOR FAN BALL BEARING X

HC38GE228 MOTOR FAN BALL BEARING X

HC40GE228 MOTOR FAN BALL BEARING X X

KSALA0601AAA MOTORMASTER 230V X X X X X X X

KHAOT0201SEC OUTDOOR THERMOSTAT X X X X X X X

KHAOT0301FST OUTDOOR THERMOSTA T X X X X X X X

KHALS0401LLS SOLENOID VALVE X X X X X X X

KHASS0606MPK* SNOW STAND X X X X X X X

KAACS0201PTC STARTASSISTPTC X X X X X X X

25HCB3

KSASF0101AAA SUPPORT FEET X X X X X X X

KAATD0101TDR TIME DELAY X X X X X X X

KSATX0201PUR TXV PURON HSO X X X

KSATX0301PUR TXV PURON HSO X X

KSATX0401PUR TXV PURON HSO X

KSATX0501PUR TXV PURON HSO X
x = Accessory S = Standard
* Sold in 6 pk. quantities Obtain through RCD.

DESCRIPTION

18--- 30 24 --- 30 30--- 30 36 --- 30 42- -- 30 48 --- 30 60--- 31

UNIT SIZES --- SERIES, VOLTAGE

ACCESSORY THERMOSTATS

THERMOSTAT / SUBBASE PKG.
T P --- P R H --- 0 1 Programmable Thermidistat

T P --- N R H --- 0 1 Non ---programmable Thermidistat

T C --- P H P --- 0 1 Comfort Series Programmable HP S tat

T C --- N H P --- 0 1 Comfort Ser ies Non ---programmable HP Stat

TSTATCCPRH01 --- B*

TSTATCCPHH01 --- B*

TSTATCCPHP01--- B Thermostat — Auto Changeover, 7 --- Day Programmable, °F/°C , 2 --- S t a ge Hea t , 1 --- S t a ge Coo l
TSTATCCNHP01---C Thermostat — Auto Changeover, Non ---Programmable, °F/°C, 2 --- S t a ge H e a t , 1 --- S tag e C o o l

TSTATCCSHP01

TSTATCCBHP01* --- B

TSTATXXSEN01--- B** Outdoor Air Temperature Sensor
TSTATXXNBP01 Backplate for Non ---Programmable Thermostat
TSTATXXPBP01 Backplate for Programmable Thermostat and Thermidistatt Control
TSTATXXSBP01 Backplate for Standard Programmable Thermostat
TSTATXXBBP01 Backplate for Builder’s Thermostat
TSTATXXCNV10{ Thermostat Conversion Kit (4 to 5 Wire) — 10 Pack

* Do n ot use in zoning heat pump applications.
** Outdoor temperature sen sor is an accessory for all Carrier electronic thermostats, except the non -- -programmable air condition er version and builder;s

thermostats. It allows the temperature at a remote location (outdoors) to be displayed on the thermostat. The outdoor air temperature sensor must be used
with the HybridHeatt (dual fuel) thermostat.

{ Thermostat conversion kit is a 24 --- vac accessory that can turn a 4 ---wire thermostat application into a 5 ---wire application. This kit can also be used to

replace a broken thermostat wire, or add an extra wire when needed.
The outdoor air temperature sensor is included with the Thermidistat Control and HybridHeatt (dual fuel) thermostat.

Thermidistatt Control — Non ---Programmable/Programmable Thermostat with Humidity Control (For use in
Dual Fuel, AC, HP, and 2S applications. Includes Outdoor Air Temperature Sensor.)

HybridHeatt (Dual Fuel) Thermostat — Auto Changeover, 7 ---Day Programmable, °F/°C, Includes Outdoor
Sensor (TSTATXXSEN01---B)

Standard Programmable Thermostat—Manual Changeover, 5 --- 2 Day Programmable, °F/°C , 1 --- S t a ge H e a t /
1 --- S tag e C o o l

Builder’s Thermostat — Heat Pump, Non ---Programmable, °F/°C, 2 --- S t a ge H e a t , 1 --- S tag e C o o l , M a nual
Changeover

DESCRIPTION

4

ACCESSORY USAGE GUIDELINE

REQUIRED FOR LOW--- AMBIENT

Accessory

Accumulator Standard Standard Standard

Ball Bearing Fan Motor Ye s{ No No

Compressor Start Assist Capacitor and

Evaporator Freeze Thermostat Ye s No No

Liquid Line Solenoid Valve No

Motor Master® Control or

* For tubing line sets between 80 and 200 ft. (24.38 and 60.96 m) and/or 20 ft. (6.09 m) vertical differential, refer to Residential Split ---System Longline

Application Guideline.

{ Additional requirement for Low ---Ambient Controller (full modulation feature) MotorMasterr Control.

Relay

Crankcase Heater Ye s

Hard Shutoff TXV Yes Ye s Yes

Isolation Relay Yes No No

Low Ambient Switch

Support Feet Recommended No Recommended

COOLING APPLICATIONS

(Below 55°F / 12.8°C)

Ye s Ye s No

Ye s No No

Accessory Description and Usage (Listed Alphabetically)

1. Ball--Bearing Fan Motor

A fan motor with ball bearings which permits speed reduction
while maintaining bearing lubrication.

Usage Guideline:

Required on all units when using MotorMasterr

2. Compressor Start Assist -- Capacitor and Relay

Start capacitor and relay gives a ”hard” boost to compressor
motor at each start up.

Usage Guideline:

Required for reciprocating compressors in the

following applications:

Long line
Low ambient cooling
Hard shut off expansion valve on indoor coil
Liquid line solenoid on indoor coil

Required for single--phase scroll compressors in the
following applications:

Long line
Low ambient cooling

Suggested for all compressors in areas with a history of
low voltage problems.

3. Compressor Start Assist — PTC Type

Solid state electrical device which gives a ”soft” boost to the
compressor at each start--up.

Usage Guideline:

Suggested in installations with marginal power supply.

4. Crankcase Heater

An electric resistance heater which mounts to the base of the
compressor to keep the lubricant warm during off cycles.
Improves compressor lubrication on restart and minimizes the
chance of liquid slugging.

Usage Guideline:

Required in low ambient cooling applications.
Required in long line applications.
Suggested in all commercial applications.

5. Evaporator Freeze Thermostat

An SPST temperature--actuated switch that stops unit operation
when evaporator reaches freeze--up conditions.

Usage Guideline:

Required when low ambient kit has been added.

6. Isolation Relay

An SPDT relay which switches the low--ambient controller out of
the outdoor fan motor circuit when the heat pump switches to
heating mode.

7. Liquid--Line Solenoid Valve (LLS)

An electrically operated shutoff valve which stops and starts
refrigerant liquid flow in response to compressor operation. It is
to be installed at the outdoor unit to control refrigerant off cycle
migration in the heating mode.

8. Low--Ambient Pressure Switch Kit

A long life pressure switch which is mounted to outdoor unit
service valve. It is designed to cycle the outdoor fan motor in
order to maintain head pressure within normal operating limits.
The control will maintain working head pressure at low--ambient
temperatures down to 0_F (--17.8_C)when properly installed.

9. MotorMasterr Low--Ambient Controller

A fan--speed control device activated by a temperature sensor,
designed to control condenser fan motor speed in response to the
saturated, condensing temperature during operation in cooling
mode only. For outdoor temperatures down to --20_F (--28.9_C),
it maintains condensing temperature at 100_F ±10_F (37.8_C ±

6.5_C).

REQUIRED FOR

LONG LINE APPLICATIONS*

(Over 80 ft. / 24.38 m)

Ye s

See Long --- Line Application

Guideline

REQUIRED FOR

SEA COAST APPLICATIONS

(Within 2 miles / 3.22 km)

No

No

Usage Guideline:

Required in all heat pumps where low ambient kit has
been added.

Usage Guideline:

An LLS is required in all long line heat pump
applications to control refrigerant off cycle migration in
the heating mode. See Long Line Guideline.

Usage Guideline:

A Low--Ambient Pressure Switch or MotorMasterr
Low--Ambient Controller must be used when cooling
operation is used at outdoor temperatures below 55_F
(12.8_C).

Usage Guideline:

A MotorMasterr

Low Ambient Controller or
Low--Ambient Pressure Switch must be used when
cooling operation is used at outdoor temperatures
below 55_F (12.8_C).

Suggested for all commercial applications.

25HCB3

5

Accessory Description and Usage (Listed Alphabetically) -- CONTINUED

10. Outdoor Air Temperature Sensor

Designed for use with Carrier Thermostats listed in this
publication. This device enables the thermostat to display the
outdoor temperature. This device also is required to enable
special thermostat features such as auxiliary heat lock out.

Usage Guideline:

Suggested for all Carrier thermostats listed in this
publication.

11. Outdoor Thermostat

An SPDT temperature--actuated switch which turns on
supplemental electric heaters when outdoor air temperature drops
below a user--selected set point.

Usage Guideline:

Electric supplemental heat applications in non--variable
speed indoor units when electric heat staging is desired.

12. Secondary Outdoor Thermostat

An SPDT temperature--actuated switch which turns on
third--stage of supplemental electric heaters when outdoor air
temperature drops below the second--stage set point.

25HCB3

Usage Guideline:

Outdoor thermostat applications where electric heater is
capable of three--stage operation.

13. Snow Stand

Coated wire rack which supports unit 18 in. (457.2 mm) above
mounting pad to allow for drainage from unit base.

Usage Guideline:

Suggested in the following applications:

Heat pump installations in heavy snowfall areas.
Heat pump installations in snow drift locations.
Heat pump installations in areas of prolonged

subfreezing temperatures.
All commercial installations.

14. Sound Hood

Wraparound sound reducing cover for the compressor. Reduces
the sound level by about 2 dBA.

Usage Guideline:

Suggested when unit is installed closer than 15 ft.
(4.577 m) to quiet areas, bedrooms, etc.

Suggested when unit is installed between two houses

less than 10 ft. (3.05 m) apart.

15. Thermostatic Expansion Valve (TXV) Bi--Flow

A modulating flow--control valve which meters refrigerant liquid
flow rate into the evaporator in response to the superheat of the
refrigerant gas leaving the evaporator.

Usage Guideline:

Accessory required to meet AHRI rating and system
reliability, where indoor not equipped.

Required in all heat pump applications designed with
Puron refrigerant.

16. Time--Delay Relay

An SPST delay relay which briefly continues operation of indoor
blower motor to provide additional cooling after the compressor
cycles off.

Note: Most indoor unit controls include this feature. For those
that do not, use the guideline below.

Usage Guideline:

Accessory required to meet AHRI rating, where indoor

not equipped.

6

ELECTRICAL DATA

U N I T S I Z E ---

SERIES,

VOLTAGE

18--- 30
24--- 30 58.3 12.8 0.7 16.7 14 14 47 (14.3) 45 (13.7) 25
30--- 30 77.0 16.0 0.8 20.8 12 12 60 (18.3) 57 (17.4) 30
36--- 30 79.0 17.1 0.9 22.3 12 12 56 (17.1) 53 (16.2) 35
42--- 30 109.0 19.9 1.2 26.0 10 10 77 (23.5) 73 (22.3) 40
48--- 30 117.0 27.3 1.2 35.4 8 8 88 (26.8) 84 (25.6) 50
60--- 31 134.0 26.3 1.2 34.1 8 8 91 (27.7) 87 (26.5) 50

* Permissible limits of the voltage range at which the unit will operate satisfactorily
{ If wire is applied at ambient greater than 30_C, consult table 310 ---16 of the NEC (ANSI/NFPA 70). The ampacity of non ---metallic ---sheathed cable ( NM),

trade name ROMEX, shall be that of 60_C conditions, per the NEC (ANSI/NFPA 70) Article 336 ---26. If other than uncoated (no---plated), 60 or 75_C
insulation, copper wire (solid wire for 10 AWG or smaller, stranded wire for larger than 10 AWG) is used, consult applicable tables of the NEC (ANSI/NFPA

70).

} Length shown is as measured 1 way along wire path between unit and service panel for voltage drop not to exceed 2%.
* * T i m e --- D e lay f use .

FLA --- F u l l L o ad A m p s
LRA --- L o cke d R o t or A m p s
M C A --- Minimum Cir cuit Amps
RLA --- RatedLoadAmps
NOTE: Control circuit is 24 ---V on all units and requires external power source. Copper wire must be used from service disconnect to unit.

All motors/compressors contain internal overload protection.
Complies with 2007 requirements of ASHRAE Standards 90.1

V/PH

208/230/1 253 197

OPER VOLTS* COMPR FAN

MAX MIN LRA RLA FLA 60° C 75° C 60° C 75° C

48.0 9.0 0.7 11.9 14 14 66 (20.1) 62 (18.9) 20

MCA

MIN
WIRE
SIZE†

MIN
WIRE
SIZE†

MAX

LENGTH

ft (m)‡

MAX

LENGTH

ft (m)‡

A--WEIGHTED SOUND POWER

STANDARD

UNIT SIZE ---SERIES, VOLTAGE

RATING

(dBA)
18 --- 30 73 58.5 62.5 67.0 67.5 65.5 62.5 53.5
24 --- 30 72 54.5 63.0 66.5 66.0 64.0 60.5 51.5
30 --- 30 73 57.0 63.5 68.0 69.0 65.0 61.0 52.5
36 --- 30 70 54.5 62.0 63.5 64.5 63.0 60.0 51.5
42 --- 30 73 55.0 60.0 64.0 67.5 61.5 60.0 55.0
42 --- 30 73 55.0 60.0 64.0 67.5 61.5 60.0 55.0
48 --- 30 74 57.5 64.5 67.5 69.5 66.5 61.0 53.0
60 --- 31 74 53.5 63.0 67.5 70.0 63.5 60.0 55.5

NOTE: Tested in accordance with AHRI Stan dard 270---2008 (not listed in AHRI).

TYPICAL OCTAVE BAND SPECTRUM (dBA, without tone adjustment)

125 250 500 1000 2000 4000 8000

MAX

FUSE**

or CKT

BRK

AMPS

25HCB3

CHARGING SUBCOOLING (TXV--TYPE EXPANSION DEVICE)

UNIT SIZE ---SERIES, VOLTAGE REQUIRED SUBCOOLING _F(_C)

18 --- 30 10 (5.6)
24 --- 30 12 (6.7)
30 --- 30 12 (6.7)
36 --- 30 10 (5.6)
42 --- 30 11 (6.1)
48 --- 30 11 (6.1)
60 --- 31 12 (6.7)

7

AIR IN

SHIPPING

F

N

DIMENSIONS (L x W x H)

SHIPPING

WEIGHT (lbs)

OPERATING

WEIGHT (lbs)

AIR

DISCHARGE

AIR IN

E

AIR IN

25HCB3

M

G

K

(2) PLACES

AIR IN

1 1/8"

L

3 13/16"

P

3/8" TIEDOWN KNOCKOUTS

ABCDEFGKLMNP

O

ELECTRICAL

CHARACTERISTICS

1 7/8"

SQ.

A

X = YES

O = NO

O

O

O

O

O

O

O

O

460-3-60

208/230-3-60

230-1-60

208-230-1-60

AIR DISCHARGE

7/8" HOLE

SUPPLY CONN.

FIELD CONTROL

FIELD POWER SUPPLY CONN.

B

3/8"

7/8" HOLE WITH

1 1/8" KNOCKOUT

LIQUID LINE CONN.

3 1/2"

C

D

VAPOR LINE CONN.

MINIMUM

DIMENSIONS

MOUNTING PAD

- 26" X 26"

18,24,30 31 1/2" X 31 1/2"

UNIT SIZE

36,42,48,60 35" X 35"

UNIT SERIES

25HCB330 0 X O O 31 3/16" 39 1/8" 3 3/4" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 16 1/2" 15 1/2" 17" 206 235 32 3/8" X 35 1/2" X 42 3/4"

25HCB324 0 X O O O 31 3/16" 28 15/16" 3 3/4" 5/8" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 15 5/8" 16 3/4" 14 1/2" 183 210 32 3/8" X 35 1/2" X 32 9/16"

25HCB318 0 X O O O 31 3/16" 28 15/16" 3 3/4" 5/8" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 14" 14 3/4" 14" 174 201 32 3/8" X 35 1/2" X 32 9/16"

25HCB360 X O 35" 39 1/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 19" 19" 19" 299 331 36 1/8" X 39 5/16" X 42 3/4"

25HCB348 0 X O 35" 32 5/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 19" 19" 14 1/2" 283 313 36 1/8" X 39 5/16" X 35 15/16"

25HCB342 0 X O 35" 39 1/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17 1/4" 19 1/8" 15 3/4" 263 295 36 1/8" X 39 5/16" X 42 3/4"

25HCB336 0 X O 35" 32 5/16" 3 3/4" 3/4" 6 9/16" 28 7/16" 9 1/8" 2 13/16" 1/2" 16" 16 1/2" 13 1/2" 203 241 36 1/8" X 39 5/16" X 35 15/16"

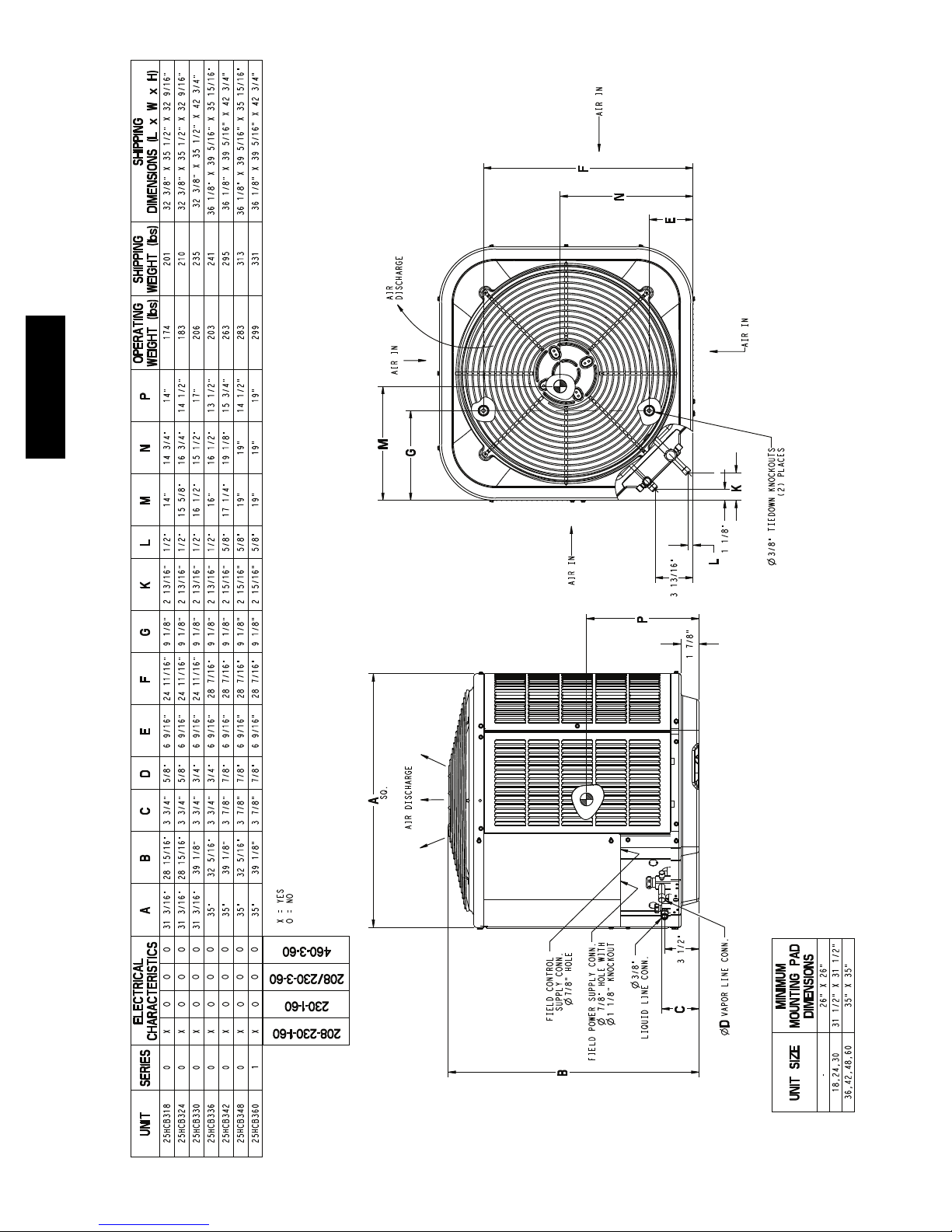

DIMENSIONS -- ENGLISH

8

SHIPPING

AIR IN

DIMENSIONS (L x W x H)

SHIPPING

WEIGHT (Kgs)

OPERATING

WEIGHT (Kgs)

M

AIR

DISCHARGE

AIR IN

F

N

E

AIR IN

25HCB3

G

(2) PLACES

K

AIR IN

28.6

L

96.8

P

9.53 TIEDOWN KNOCKOUTS

ABCDEFGKLMNP

O

ELECTRICAL

CHARACTERISTICS

UNIT SERIES

25HCB330 0 X O O 792.2 993.8 95.2 19.0 166.7 627.1 231.8 71.4 12.7 419.1 393.7 431.8 93.4 106.6 822.3 X 901.7 X 1085.8

25HCB324 0 X O O O 792.2 735.0 95.2 15.9 166.7 627.1 231.8 71.4 12.7 396.9 425.4 368.3 83.0 95.2 822.3 X 901.7 X 827.1

25HCB318 0 X O O O 792.2 735.0 95.2 15.9 166.7 627.1 231.8 71.4 12.7 355.6 374.6 355.6 78.9 91.2 822.3 X 901.7 X 827.1

O

O

O

O

O

O

O

O

25HCB360 X O 889.0 993.8 98.4 22.2 166.7 722.3 231.8 74.6 15.9 482.6 482.6 482.6 135.6 150.1 917.6 X 998.6 X 1085.8

25HCB348 0 X O 889.0 820.8 98.4 22.2 166.7 722.3 231.8 74.6 15.9 482.6 482.6 368.3 128.4 142.0 917.6 X 998.6 X 912.8

25HCB342 0 X O 889.0 993.8 98.4 22.2 166.7 722.3 231.8 74.6 15.9 438.2 485.8 400.0 119.3 133.8 917.6 X 998.6 X 1085.8

25HCB336 0 X O 889.0 820.8 95.2 19.0 166.7 722.3 231.8 71.4 12.7 406.4 419.1 342.9 92.1 109.3 917.6 X 998.6 X 912.8

X = YES

O = NO

460-3-60

208/230-3-60

230-1-60

208-230-1-60

A

SQ.

AIR DISCHARGE

22.23 HOLE

SUPPLY CONN.

FIELD CONTROL

FIELD POWER SUPPLY CONN.

B

9.53

28.58 KNOCKOUT

22.23 HOLE WITH

LIQUID LINE CONN.

47.6

88.9

C

D

VAPOR LINE CONN.

MINIMUM

DIMENSIONS

MOUNTING PAD

- 660.4 X 660.4

18,24,30 800.1 X 800.1

UNIT SIZE

36,42,48,60 889.0 X 889.0

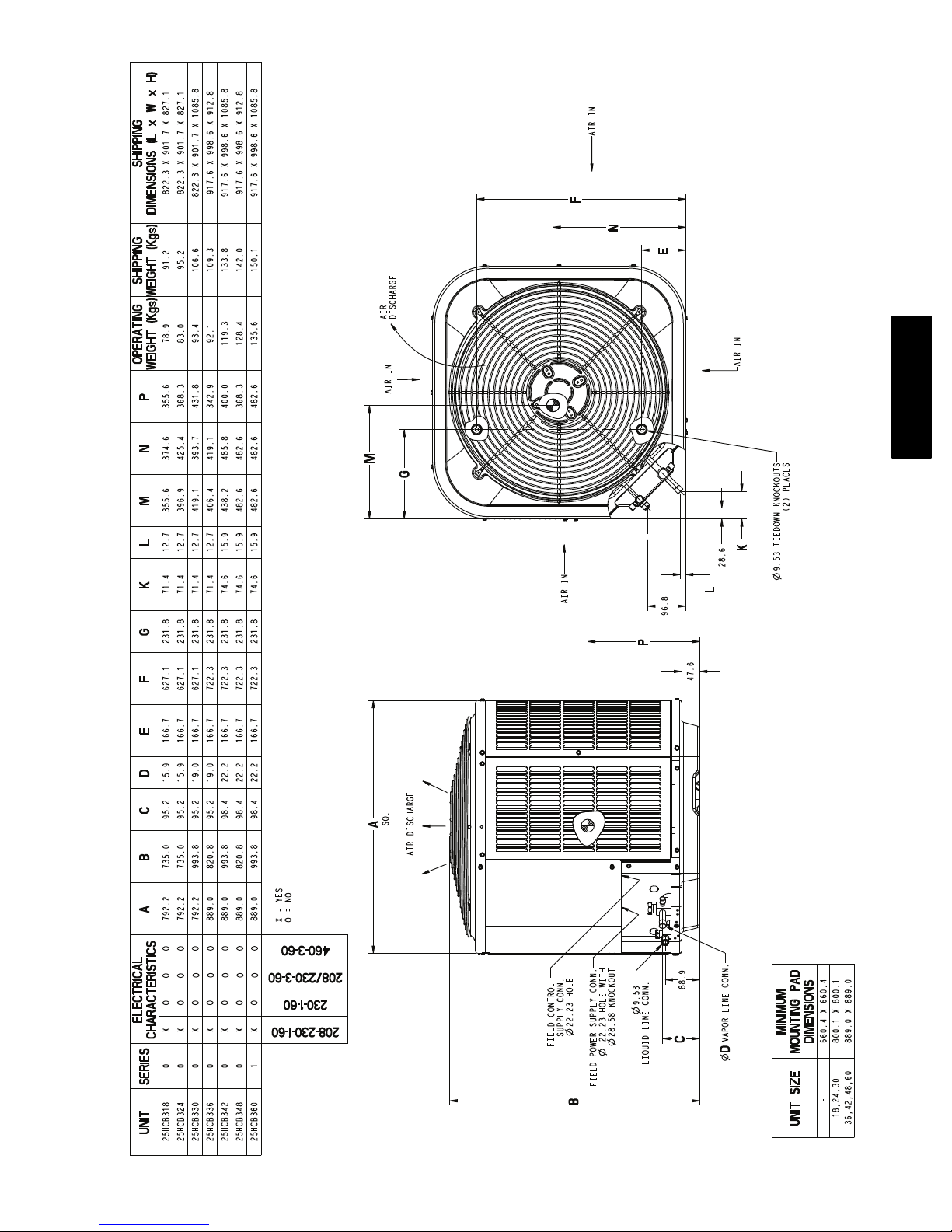

DIMENSIONS -- SI

9

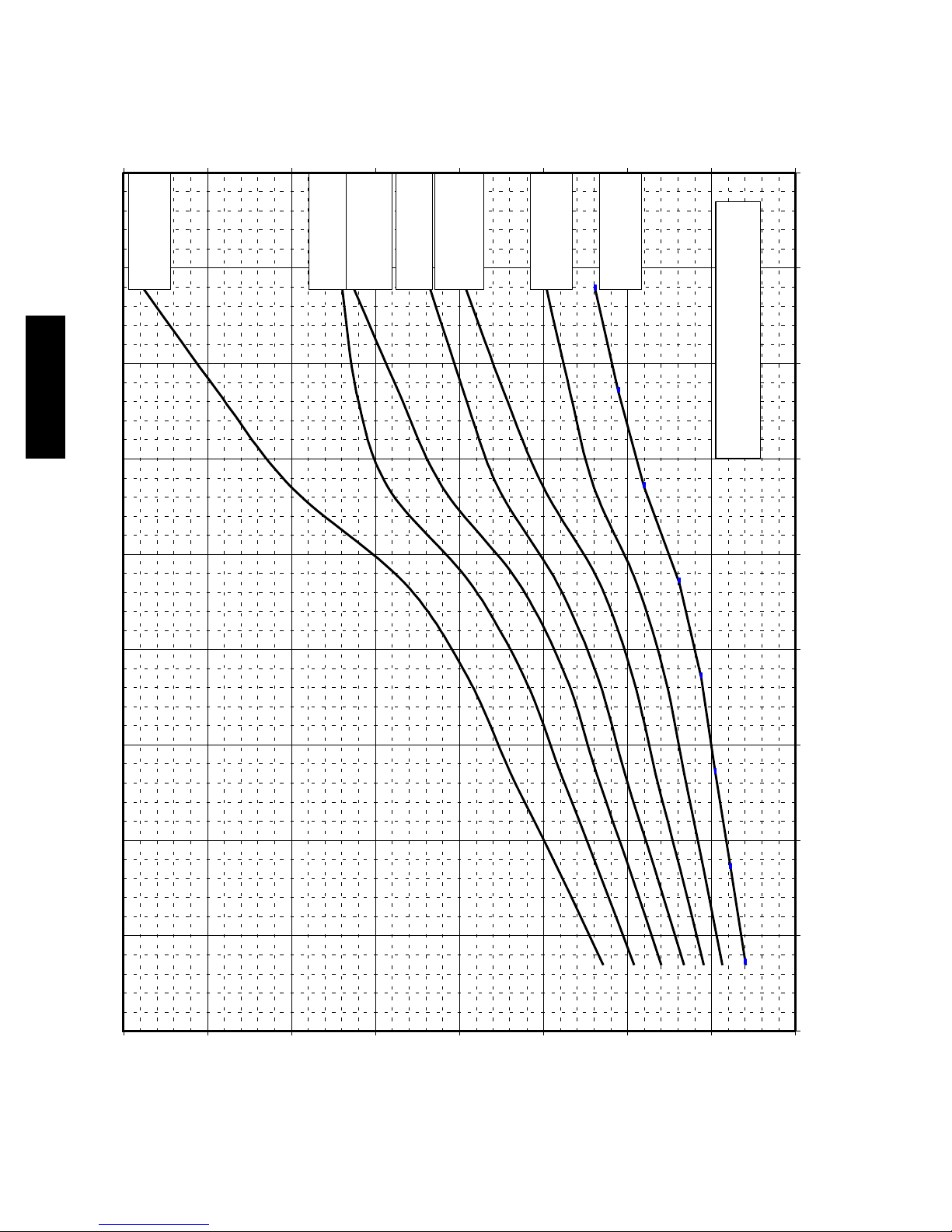

BUILDING

HEATLOSS,UNIT

INTEGRA

TED

HEA

TING

kW

2.9

25HCB318A

FX4CNF018

5.9

8.8

25HCB324A

FX4CNF024

FX4CNF048

FC4DNF048

25HCB342A

14.6

FX4CNF042

25HCB336A

23.4

25HCB360A

FX4CNB060

20.5

17.6

25HCB348A

25HBA348A

FX4CNF036

11.7

25HCB330A

FX4CNF030

0.0

25HCB3

BASED ON INDOOR ENT. AIR

AT 70ºF (21ºC) AND AT RATED CFM

40 (4.44) 50 (10) 60 (15.56) 70 (21.11) 80 (26.67)

80

70

60

50

40

30

CAPACITY, MBTUH

20

10

0

30 (-1.11)

OUTDOOR TEMPERATURE, ºF (ºC)

0 (17.78) 10 (-12.22) 20 (-6.67)

-10 (-23)

25HCB3 BALANCE POINT WORKSHEET

10

Wall

6”

A07833

(152.4)

24”

Wall

Clearances (various examples)

Service

12”

(304.8)

6”

Wall

(152.4 mm)

12”

(304.8)

12”

(304.8)

12”

(304.8)

Wall

24”

(609.6)

24”

(609.6)

24”

(609.6)

Service

Service

Service

25HCB3

24”

(609.6)

24”

(609.6)

24”

CLEARANCES

(609.6)

Service

11

24”

(609.6)

Note: Numbers in ( ) = mm

IMPORTANT: When installing multiple units in an alcove, roof well, or partially enclosed area, ensure there is adequate ventilation to prevent re--circulation of discharge air.

COMBINATION RATINGS

AHRI Ref.

3850430 25HCB318A30 †FB4CNF018 17200 11.0 13.0 17,400 3.60 8.0 10,200 2.34
3684925 25HCB318A30 FB4CNF018+TXV 17400 11.5 14.5 17,700 3.60 7.8 10,300 2.34
3850431 25HCB318A30 FB4CNF024 17200 11.0 13.0 17,400 3.60 8.0 10,200 2.32
3684926 25HCB318A30 FB4CNF024+TXV 17300 11.5 14.5 17,700 3.60 7.8 10,300 2.34
3033416 25HCB318A30 FE4ANF002+UI 17500 12.0 15.0 16,800 3.62 8.2 10,100 2.38
3033417 25HCB318A30 FF1ENP018 17100 10.5 13.0 18,000 3.40 7.7 10,700 2.22
3463943 25HCB318A30 FF1ENP019 17300 11.5 14.0 17,700 3.60 8.0 10,300 2.34
3033418 25HCB318A30 FF1ENP024 17200 10.8 13.2 17,600 3.40 7.7 10,700 2.24
3463944 25HCB318A30 FF1ENP025 17600 12.0 14.5 17,700 3.70 8.2 10,300 2.40
3405749 25HCB318A30 FV4CNF002 17500 12.0 15.0 16,800 3.62 8.2 10,100 2.38
3684922 25HCB318A30 FX4DNF019 17800 12.2 15.0 17,700 3.74 8.0 10,300 2.42
3684923 25HCB318A30 FX4DNF025 17700 12.2 15.0 17,800 3.72 8.0 10,300 2.42
3033385 25HCB318A30 FY4ANF018 17100 10.5 13.0 18,000 3.38 7.7 10,700 2.20
3033413 25HCB318A30 FY4ANF024 17100 10.5 13.0 18,000 3.40 7.7 10,700 2.22
3850432 25HCB318A30 FY5BNF018 17200 11.0 13.0 17,400 3.48 8.0 10,500 2.26
3684927 25HCB318A30 FY5BNF018+TXV 17300 11.0 13.5 17,900 3.48 7.7 10,500 2.28
3850433 25HCB318A30 FY5BNF024 17200 11.0 13.0 17,400 3.52 8.0 10,500 2.28
3684928 25HCB318A30 FY5BNF024+TXV 17400 11.2 13.5 18,000 3.52 7.7 10,600 2.30
3033387 25HCB318A30 CAP**1814A** 58CV(A,X)070 ---12 17000 11.5 14.0 17,100 3.36 7.7 10,000 2.26
3033420 25HCB318A30 CAP**1814A** 58PH*045---08 17000 11.5 14.0 17,400 3.46 7.7 10,200 2.32
3033386 25HCB318A30 CAP**1814A**+TDR 17100 10.5 13.0 18,000 3.34 7.7 10,600 2.20
3033389 25HCB318A30 CAP**2414A** 58CV(A,X)070 ---12 17200 11.7 14.5 17,300 3.50 7.8 10,100 2.32
3033421 25HCB318A30 CAP**2414A** 58PH*045---08 17500 12.0 14.8 17,700 3.64 8.2 10,300 2.38

25HCB3

3033388 25HCB318A30 CAP**2414A**+TDR 17300 10.8 13.2 18,000 3.48 7.8 10,700 2.26
3033392 25HCB318A30 CAP**2417A** 58CV(A,X)090 ---16 17300 12.0 14.5 17,400 3.54 7.9 10,100 2.34
3618339 25HCB318A30 CAP**2417A** 58ME(B,C)040 --- 12 17800 12.0 15.0 17,800 3.82 8.2 10,300 2.46
3121363 25HCB318A30 CAP**2417A** 58ME(B,C)060 --- 12 17700 12.0 15.0 17,700 3.72 8.2 10,200 2.42
3121362 25HCB318A30 CAP**2417A** 58MEB040--- 12 17800 12.0 15.0 17,800 3.82 8.2 10,300 2.46
3033391 25HCB318A30 CAP**2417A** 58MV(B,C)060--- 14 17200 12.0 14.5 17,400 3.52 7.8 10,100 2.32
3757407 25HCB318A30 CAP**2417A** 58UVB060 ---14 17200 12.0 14.5 17,400 3.52 7.8 10,100 2.32
3684907 25HCB318A30 CAP**2417A** 58VLR105 ---12 17600 12.0 14.5 17,600 3.72 8.2 10,200 2.42
3684906 25HCB318A30 CAP**2417A** 58VMR105--- 12 17300 12.0 14.5 17,400 3.58 8.0 10,100 2.36
4209687 25HCB318A30 CAP**2417A** OVLAAB036098 17600 12.0 15.0 17,400 3.66 8.1 10,200 2.36
4209686 25HCB318A30 CAP**2417A** OVMAAB036098 17700 12.0 15.0 17,600 3.72 8.2 10,300 2.38
3033390 25HCB318A30 CAP**2417A**+TDR 17300 10.8 13.2 18,000 3.48 7.8 10,700 2.26
3684924 25HCB318A30 CAP**3619A**+TDR 17500 10.9 13.0 18,000 3.52 7.7 10,800 2.28
3033406 25HCB318A30 CNPF*2418A**+TDR 17300 10.8 13.2 18,000 3.54 7.9 10,800 2.28
3033404 25HCB318A30 CNPH*2417A** 58CV(A,X)070 ---12 17200 11.7 14.5 17,400 3.54 7.9 10,100 2.34
3033405 25HCB318A30 CNPH*2417A** 58CV(A,X)090 ---16 17200 12.0 14.5 17,500 3.58 7.9 10,100 2.34
3684910 25HCB318A30 CNPH*2417A** 58HDV060--- ---12 17600 11.5 14.0 17,800 3.80 8.2 10,600 2.42
3618345 25HCB318A30 CNPH*2417A** 58ME(B,C)040 ---12 17700 12.0 15.0 17,800 3.78 8.2 10,300 2.42
3121367 25HCB318A30 CNPH*2417A** 58ME(B,C)060 ---12 17400 12.0 15.0 17,600 3.66 8.2 10,200 2.38
3121366 25HCB318A30 CNPH*2417A** 58MEB040 ---12 17700 12.0 15.0 17,800 3.78 8.2 10,300 2.42
3033401 25HCB318A30 CNPH*2417A** 58MV(B,C)040 ---14 17200 11.7 14.5 17,400 3.56 7.9 10,100 2.34
3033402 25HCB318A30 CNPH*2417A** 58MV(B,C)060 ---14 17200 11.7 14.5 17,400 3.56 7.9 10,100 2.34
3033403 25HCB318A30 CNPH*2417A** 58MV(B,C)080 ---14 17200 11.7 14.5 17,500 3.58 7.9 10,100 2.34
3033424 25HCB318A30 CNPH*2417A** 58PH*045--- 08 17400 12.0 14.8 17,700 3.66 8.1 10,300 2.38
3684912 25HCB318A30 CNPH*2417A** 58VLR105--- 12 17600 12.0 14.5 17,800 3.76 8.2 10,300 2.42
3684911 25HCB318A30 CNPH*2417A** 58VMR105 ---12 17200 11.5 14.0 17,600 3.60 8.0 10,200 2.36
4209693 25HCB318A30 CNPH*2417A** OVLAAB036098 17600 12.0 15.0 17,500 3.70 8.2 10,300 2.38
4209692 25HCB318A30 CNPH*2417A** OVMAAB036098 17700 12.0 15.0 17,700 3.76 8.3 10,400 2.40
3033400 25HCB318A30 CNPH*2417A**+TDR 17300 10.8 13.2 18,000 3.54 7.9 10,800 2.28
3033394 25HCB318A30 CNPV*1814A** 58CV(A,X)070 ---12 17100 11.7 14.5 17,400 3.48 7.8 10,100 2.30
3033422 25HCB318A30 CNPV*1814A** 58PH*045--- 08 17200 11.5 14.5 17,600 3.54 8.0 10,200 2.32
3033393 25HCB318A30 CNPV*1814A**+TDR 17200 10.5 13.0 18,000 3.48 7.8 10,700 2.26
3684919 25HCB318A30 CNPV*1917A** 58CV(A,X)090 ---16 17400 12.0 15.0 17,500 3.62 7.8 10,100 2.36
3684921 25HCB318A30 CNPV*1917A** 58ME(B,C)060 ---12 17800 12.0 15.0 17,800 3.84 8.2 10,300 2.46
3684920 25HCB318A30 CNPV*1917A** 58MEB040 ---12 18000 12.5 15.5 18,000 3.94 8.3 10,400 2.48
3684918 25HCB318A30 CNPV*1917A** 58MV(B,C)060 ---14 17400 12.0 15.0 17,500 3.60 7.8 10,100 2.36
3685287 25HCB318A30 CNPV*1917A** 58UVB060--- 14 17400 12.0 15.0 17,500 3.60 7.8 10,100 2.36
4209689 25HCB318A30 CNPV*1917A** OVLAAB036098 17700 12.0 15.0 17,600 3.76 8.3 10,300 2.40
4209688 25HCB318A30 CNPV*1917A** OVMAAB036098 17900 12.0 15.0 17,800 3.82 8.4 10,400 2.42
3684917 25HCB318A30 CNPV*1917A**+TDR 17400 10.9 13.0 18,000 3.58 7.7 10,800 2.28
3033396 25HCB318A30 CNPV*2414A** 58CV(A,X)070 ---12 17200 11.7 14.5 17,400 3.54 7.9 10,100 2.34
3033423 25HCB318A30 CNPV*2414A** 58PH*045--- 08 17400 12.0 14.8 17,700 3.66 8.1 10,300 2.38
3033395 25HCB318A30 CNPV*2414A**+TDR 17300 10.8 13.2 18,000 3.54 7.8 10,800 2.26
3033399 25HCB318A30 CNPV*2417A** 58CV(A,X)090 ---16 17200 12.0 14.5 17,500 3.58 7.9 10,100 2.34
4209696 25HCB318A30 CNPV*2417A** 58HDV040--- --- 12 17900 11.7 15.0 18,000 3.80 8.3 10,600 2.40
4209697 25HCB318A30 CNPV*2417A** 58HDV060--- --- 12 17900 11.7 15.0 18,000 3.80 8.3 10,500 2.40
3618340 25HCB318A30 CNPV*2417A** 58ME(B,C)040 ---12 17700 12.0 15.0 17,800 3.78 8.2 10,300 2.42
3121365 25HCB318A30 CNPV*2417A** 58ME(B,C)060 ---12 17400 12.0 15.0 17,600 3.66 8.2 10,200 2.38
3121364 25HCB318A30 CNPV*2417A** 58MEB040 ---12 17700 12.0 15.0 17,800 3.78 8.2 10,300 2.42
3033398 25HCB318A30 CNPV*2417A** 58MV(B,C)060 ---14 17300 11.7 14.5 17,400 3.56 7.9 10,100 2.34
3758722 25HCB318A30 CNPV*2417A** 58UVB060--- 14 17300 11.7 14.5 17,400 3.56 7.9 10,100 2.34
3684909 25HCB318A30 CNPV*2417A** 58VLR105--- 12 17600 12.0 14.5 17,800 3.76 8.2 10,300 2.42
3684908 25HCB318A30 CNPV*2417A** 58VMR105 ---12 17300 11.5 14.0 17,600 3.60 8.0 10,200 2.36
4209691 25HCB318A30 CNPV*2417A** OVLAAB036098 17600 12.0 15.0 17,500 3.70 8.1 10,300 2.38
4209690 25HCB318A30 CNPV*2417A** OVMAAB036098 17700 12.0 15.0 17,700 3.76 8.3 10,400 2.40
3033397 25HCB318A30 CNPV*2417A**+TDR 17300 10.8 13.2 18,000 3.54 7.9 10,800 2.28

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

12

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3033411 25HCB318A30 CSPH*2412A** 58CV(A,X)070--- 12 17300 12.0 14.5 17,400 3.52 7.9 10,100 2.32
3033412 25HCB318A30 CSPH*2412A** 58CV(A,X)090--- 16 17400 12.0 14.5 17,500 3.56 7.9 10,100 2.34
3684913 25HCB318A30 CSPH*2412A** 58HDV040 --- --- 12 17800 11.5 14.0 17,800 3.78 8.2 10,600 2.40
3684914 25HCB318A30 CSPH*2412A** 58HDV060 --- --- 12 17800 11.5 14.0 17,800 3.78 8.2 10,600 2.40
3618346 25HCB318A30 CSPH*2412A** 58ME(B,C)040--- 12 17700 12.0 15.0 17,700 3.72 8.2 10,200 2.40
3121369 25HCB318A30 CSPH*2412A** 58ME(B,C)060--- 12 17400 12.0 15.0 17,400 3.58 8.0 10,100 2.36
3121368 25HCB318A30 CSPH*2412A** 58MEB040--- 12 17700 12.0 15.0 17,700 3.72 8.2 10,200 2.40
3033408 25HCB318A30 CSPH*2412A** 58MV(B,C)040--- 14 17400 12.0 14.5 17,400 3.54 7.9 10,100 2.34
3033409 25HCB318A30 CSPH*2412A** 58MV(B,C)060--- 14 17400 12.0 14.5 17,400 3.54 7.9 10,100 2.34
3033410 25HCB318A30 CSPH*2412A** 58MV(B,C)080--- 14 17400 12.0 14.5 17,500 3.56 7.9 10,100 2.34
3033425 25HCB318A30 CSPH*2412A** 58PH*045---08 17600 12.0 14.8 17,700 3.64 8.0 10,200 2.36
3684916 25HCB318A30 CSPH*2412A** 58VLR105 ---12 17600 12.0 14.5 17,800 3.76 8.2 10,300 2.42
3684915 25HCB318A30 CSPH*2412A** 58VMR105--- 12 17400 12.0 14.5 17,600 3.60 8.0 10,200 2.36
4209695 25HCB318A30 CSPH*2412A** OVLAAB036098 17700 12.0 15.0 17,600 3.68 8.1 10,300 2.36
4209694 25HCB318A30 CSPH*2412A** OVMAAB036098 17900 12.0 15.0 17,700 3.74 8.2 10,400 2.38
3033407 25HCB318A30 CSPH*2412A**+TDR 17500 10.8 13.2 18,000 3.54 7.9 10,800 2.28

3853212 25HCB324A30 †FY5BNF024 23000 11.0 13.0 23,000 3.66 8.0 14,800 2.54
3853213 25HCB324A30 FB4CNF024 22400 11.0 13.0 23,000 3.60 8.0 14,600 2.52
3684965 25HCB324A30 FB4CNF024+TXV 22600 11.2 13.5 23,800 3.62 8.2 14,600 2.56
3853214 25HCB324A30 FB4CNF030 23000 11.0 13.0 23,000 3.78 8.0 14,600 2.62
3684966 25HCB324A30 FB4CNF030+TXV 23400 11.5 14.5 23,800 3.84 8.5 14,600 2.66
3033512 25HCB324A30 FE4AN(B,F)003+UI 23400 12.0 15.0 23,000 3.76 8.5 14,200 2.66
3033511 25HCB324A30 FE4ANF002+UI 23200 11.7 14.5 23,200 3.78 8.5 14,300 2.64
3033510 25HCB324A30 FF1ENP024 22800 10.7 13.0 24,000 3.54 8.2 15,200 2.46
3463945 25HCB324A30 FF1ENP025 22600 11.5 14.0 23,600 3.62 8.2 14,400 2.56
3033507 25HCB324A30 FF1ENP030 22800 10.4 13.0 24,200 3.56 8.0 15,100 2.48
3463946 25HCB324A30 FF1ENP031 22800 11.5 14.5 23,400 3.68 8.4 14,400 2.60
3405751 25HCB324A30 FV4CN(B,F)003 23400 12.0 14.5 23,000 3.78 8.5 14,300 2.66
3405750 25HCB324A30 FV4CNF002 23200 11.7 14.5 23,200 3.80 8.5 14,400 2.66
3684963 25HCB324A30 FX4DN(B,F)031 23400 11.5 14.0 23,400 3.80 8.5 14,800 2.64
3684962 25HCB324A30 FX4DNF025 23400 11.5 14.5 23,800 3.84 8.5 14,600 2.66
3033426 25HCB324A30 FY4ANF024 22600 10.5 13.0 24,000 3.54 8.2 15,000 2.48
3033504 25HCB324A30 FY4ANF030 23000 10.6 13.2 24,000 3.64 8.4 15,100 2.52
3684967 25HCB324A30 FY5BNF024+TXV 23200 11.2 13.5 23,800 3.68 8.3 14,800 2.58
3853215 25HCB324A30 FY5BNF030 23000 11.0 13.0 23,000 3.70 8.0 14,900 2.56
3684968 25HCB324A30 FY5BNF030+TXV 23400 11.2 13.5 23,600 3.72 8.4 15,000 2.58
3033436 25HCB324A30 CAP**2414A** 58CV(A,X)070 ---12 22600 11.5 14.0 23,400 3.62 8.3 14,300 2.58
3033427 25HCB324A30 CAP**2414A** 58PH*045---08 22800 11.5 14.0 23,800 3.68 8.4 14,500 2.60
3033435 25HCB324A30 CAP**2414A**+TDR 22800 10.5 13.0 24,400 3.60 8.3 15,100 2.50
3033439 25HCB324A30 CAP**2417A** 58CV(A,X)090 ---16 22800 11.7 14.5 23,400 3.66 8.4 14,300 2.60
3618347 25HCB324A30 CAP**2417A** 58ME(B,C)040 --- 12 23000 12.0 14.5 23,600 3.82 8.5 14,500 2.66
3121371 25HCB324A30 CAP**2417A** 58ME(B,C)060 --- 12 23000 12.0 14.5 23,600 3.84 8.6 14,500 2.68
3121372 25HCB324A30 CAP**2417A** 58ME(B,C)080 --- 12 23000 12.0 14.5 22,600 3.80 8.6 14,500 2.66
3121370 25HCB324A30 CAP**2417A** 58MEB040--- 12 23000 12.0 14.5 23,600 3.82 8.5 14,500 2.66
3033438 25HCB324A30 CAP**2417A** 58MV(B,C)060--- 14 22800 11.7 14.5 23,400 3.64 8.4 14,300 2.58
3757408 25HCB324A30 CAP**2417A** 58UVB060 ---14 22800 11.7 14.5 23,400 3.64 8.4 14,300 2.58
3684945 25HCB324A30 CAP**2417A** 58VLR105 ---12 22800 11.5 14.0 23,400 3.72 8.5 14,400 2.62
3684944 25HCB324A30 CAP**2417A** 58VMR105--- 12 22600 11.5 14.0 23,000 3.62 8.2 14,300 2.58
4209699 25HCB324A30 CAP**2417A** OVLAAB036098 22600 11.5 14.5 23,200 3.68 8.3 14,400 2.58
4209698 25HCB324A30 CAP**2417A** OVMAAB036098 22600 11.5 14.5 23,400 3.68 8.4 14,500 2.58
4209700 25HCB324A30 CAP**2417A** OVMAAB042112 22400 12.0 14.5 23,000 3.66 8.2 14,300 2.58
3033437 25HCB324A30 CAP**2417A**+TDR 22800 10.5 13.0 24,400 3.60 8.3 15,100 2.50
3033441 25HCB324A30 CAP**3014A** 58CV(A,X)070 ---12 23000 11.7 14.5 23,000 3.64 8.4 14,400 2.60
3033428 25HCB324A30 CAP**3014A** 58PH*045---08 23200 11.5 14.5 23,000 3.70 8.5 14,500 2.62
3033440 25HCB324A30 CAP**3014A**+TDR 23000 10.6 13.0 23,400 3.56 8.3 15,200 2.52
3033444 25HCB324A30 CAP**3017A** 58CV(A,X)090 ---16 23000 11.7 14.5 23,000 3.68 8.5 14,300 2.62
3618348 25HCB324A30 CAP**3017A** 58ME(B,C)040 --- 12 23400 12.0 14.5 22,600 3.82 8.6 14,500 2.70
3121374 25HCB324A30 CAP**3017A** 58ME(B,C)060 --- 12 23400 12.0 14.5 22,600 3.82 8.5 14,500 2.70
3121375 25HCB324A30 CAP**3017A** 58ME(B,C)080 --- 12 23200 12.0 14.5 22,800 3.80 8.5 14,500 2.68
3121373 25HCB324A30 CAP**3017A** 58MEB040--- 12 23400 12.0 14.5 22,600 3.82 8.6 14,500 2.70
3033443 25HCB324A30 CAP**3017A** 58MV(B,C)060--- 14 23000 11.7 14.5 23,000 3.68 8.5 14,300 2.62
3757409 25HCB324A30 CAP**3017A** 58UVB060 ---14 23000 11.7 14.5 23,000 3.68 8.5 14,300 2.62
3684947 25HCB324A30 CAP**3017A** 58VLR105 ---12 23200 12.0 14.5 23,200 3.76 8.5 14,400 2.66
3684946 25HCB324A30 CAP**3017A** 58VMR105--- 12 22800 12.0 14.5 23,000 3.68 8.5 14,300 2.60
4209702 25HCB324A30 CAP**3017A** OVLAAB036098 22800 12.0 14.5 23,000 3.72 8.5 14,400 2.60
4209701 25HCB324A30 CAP**3017A** OVMAAB036098 22800 12.0 14.5 23,000 3.72 8.3 14,500 2.60
4209703 25HCB324A30 CAP**3017A** OVMAAB042112 22800 12.0 15.0 22,800 3.72 8.5 14,300 2.60
3033442 25HCB324A30 CAP**3017A**+TDR 23000 10.6 13.0 23,400 3.56 8.3 15,200 2.52
3684960 25HCB324A30 CAP**3619A** 58HDV040--- --- 12 23400 11.5 14.0 23,200 3.76 8.5 14,700 2.64
3684961 25HCB324A30 CAP**3619A** 58HDV060--- --- 12 23600 11.5 14.0 23,200 3.80 8.6 14,800 2.66
3684964 25HCB324A30 CAP**3619A**+TDR 23200 10.9 13.0 23,600 3.60 8.2 15,200 2.52
3033479 25HCB324A30 CNPF*2418A**+TDR 22800 10.5 13.0 24,400 3.68 8.5 15,200 2.52
3033462 25HCB324A30 CNPH*2417A** 58CV(A,X)070 ---12 22600 11.5 14.0 23,400 3.68 8.4 14,400 2.58
3033463 25HCB324A30 CNPH*2417A** 58CV(A,X)090 ---16 22800 11.6 14.5 23,400 3.72 8.5 14,400 2.62
3033464 25HCB324A30 CNPH*2417A** 58CV(A,X)110 ---20 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3033465 25HCB324A30 CNPH*2417A** 58CV(A,X)135 ---22 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3033466 25HCB324A30 CNPH*2417A** 58CV(A,X)155 ---22 22800 11.5 14.0 23,400 3.72 8.5 14,400 2.60

See notes on pg. 30

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

13

COMBINATION RATINGS CONTINUED

AHRI Ref.

3684929 25HCB324A30 CNPH*2417A** 58HDV040--- ---12 22400 11.2 13.5 23,800 3.70 8.4 14,600 2.58
3684930 25HCB324A30 CNPH*2417A** 58HDV060--- ---12 22800 11.2 13.5 23,800 3.76 8.5 14,700 2.60
3684931 25HCB324A30 CNPH*2417A** 58HDV080--- ---20 23200 11.2 13.5 23,800 3.90 8.5 14,800 2.66
3684932 25HCB324A30 CNPH*2417A** 58HDV100--- ---20 23000 11.5 14.0 23,800 3.84 8.5 14,700 2.64
3618336 25HCB324A30 CNPH*2417A** 58ME(B,C)040 ---12 22800 11.5 14.5 23,600 3.82 8.5 14,500 2.64
3121383 25HCB324A30 CNPH*2417A** 58ME(B,C)060 ---12 22800 11.5 14.5 23,600 3.84 8.5 14,500 2.66
3121384 25HCB324A30 CNPH*2417A** 58ME(B,C)080 ---12 22800 11.5 14.5 22,600 3.80 8.6 14,500 2.64
3121382 25HCB324A30 CNPH*2417A** 58MEB040 ---12 22800 11.5 14.5 23,600 3.82 8.5 14,500 2.64
3033456 25HCB324A30 CNPH*2417A** 58MV(B,C)040 ---14 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3033457 25HCB324A30 CNPH*2417A** 58MV(B,C)060 ---14 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3033458 25HCB324A30 CNPH*2417A** 58MV(B,C)080 ---14 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3033459 25HCB324A30 CNPH*2417A** 58MV(B,C)080 ---20 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3033460 25HCB324A30 CNPH*2417A** 58MV(B,C)100 ---20 22800 11.5 14.0 23,400 3.72 8.5 14,400 2.60
3033461 25HCB324A30 CNPH*2417A** 58MV(B,C)120 ---20 22600 11.5 14.0 23,400 3.66 8.4 14,400 2.58
3033431 25HCB324A30 CNPH*2417A** 58PH*045--- 08 22800 11.5 14.0 23,800 3.72 8.5 14,500 2.60
3684953 25HCB324A30 CNPH*2417A** 58VLR105--- 12 22800 11.5 14.0 23,600 3.78 8.4 14,500 2.64
3684952 25HCB324A30 CNPH*2417A** 58VMR105 ---12 22600 11.5 14.0 23,200 3.66 8.3 14,400 2.58
4209711 25HCB324A30 CNPH*2417A** OVLAAB036098 22600 11.5 14.5 23,400 3.72 8.5 14,500 2.58
4209710 25HCB324A30 CNPH*2417A** OVMAAB036098 22600 11.5 14.0 23,400 3.72 8.5 14,600 2.58
4209712 25HCB324A30 CNPH*2417A** OVMAAB042112 22400 11.7 14.5 23,200 3.70 8.5 14,400 2.58
3033455 25HCB324A30 CNPH*2417A**+TDR 22800 10.5 13.0 24,400 3.68 8.5 15,200 2.52
3033474 25HCB324A30 CNPH*3017A** 58CV(A,X)070 ---12 23000 11.7 14.5 23,000 3.66 8.5 14,300 2.60
3033475 25HCB324A30 CNPH*3017A** 58CV(A,X)090 ---16 23000 11.7 14.5 23,000 3.70 8.5 14,300 2.62

25HCB3

3033476 25HCB324A30 CNPH*3017A** 58CV(A,X)110 ---20 23000 11.7 14.5 23,000 3.70 8.5 14,400 2.62
3033477 25HCB324A30 CNPH*3017A** 58CV(A,X)135 ---22 23200 11.7 14.5 23,000 3.70 8.5 14,400 2.62
3033478 25HCB324A30 CNPH*3017A** 58CV(A,X)155 ---22 23200 11.7 14.5 23,000 3.70 8.5 14,300 2.64
3684933 25HCB324A30 CNPH*3017A** 58HDV040--- ---12 23200 11.5 14.0 23,200 3.74 8.5 14,700 2.62
3684934 25HCB324A30 CNPH*3017A** 58HDV060--- ---12 23400 11.5 14.0 23,200 3.78 8.5 14,800 2.66
3684935 25HCB324A30 CNPH*3017A** 58HDV100--- ---20 23600 12.0 14.5 23,000 3.86 8.5 14,700 2.70
3618337 25HCB324A30 CNPH*3017A** 58ME(B,C)040 ---12 23400 12.0 14.5 22,600 3.82 8.6 14,500 2.70
3121386 25HCB324A30 CNPH*3017A** 58ME(B,C)060 ---12 23400 12.0 14.5 22,600 3.82 8.5 14,600 2.70
3121387 25HCB324A30 CNPH*3017A** 58ME(B,C)080 ---12 23200 12.0 14.5 22,600 3.80 8.5 14,500 2.68
3121385 25HCB324A30 CNPH*3017A** 58MEB040 ---12 23400 12.0 14.5 22,600 3.82 8.6 14,500 2.70
3033468 25HCB324A30 CNPH*3017A** 58MV(B,C)040 ---14 23000 11.7 14.5 23,000 3.68 8.5 14,400 2.62
3033469 25HCB324A30 CNPH*3017A** 58MV(B,C)060 ---14 23000 11.7 14.5 23,000 3.68 8.5 14,300 2.62
3033470 25HCB324A30 CNPH*3017A** 58MV(B,C)080 ---14 23000 11.7 14.5 23,000 3.68 8.7 14,400 2.62
3033471 25HCB324A30 CNPH*3017A** 58MV(B,C)080 ---20 23000 11.7 14.5 23,000 3.68 8.5 14,400 2.62
3033472 25HCB324A30 CNPH*3017A** 58MV(B,C)100 ---20 23200 11.7 14.5 23,000 3.70 8.5 14,400 2.62
3033473 25HCB324A30 CNPH*3017A** 58MV(B,C)120 ---20 23000 11.7 14.5 23,000 3.66 8.5 14,300 2.60
3033432 25HCB324A30 CNPH*3017A** 58PH*045--- 08 23200 11.5 14.5 23,000 3.72 8.6 14,500 2.64
3684955 25HCB324A30 CNPH*3017A** 58VLR105--- 12 23200 12.0 14.5 23,200 3.78 8.5 14,400 2.66
3684954 25HCB324A30 CNPH*3017A** 58VMR105 ---12 22800 12.0 14.5 23,000 3.70 8.4 14,300 2.60
4209714 25HCB324A30 CNPH*3017A** OVLAAB036098 22800 12.0 14.5 23,000 3.74 8.5 14,400 2.60
4209713 25HCB324A30 CNPH*3017A** OVMAAB036098 22800 12.0 14.5 23,000 3.72 8.5 14,500 2.60
4209715 25HCB324A30 CNPH*3017A** OVMAAB042112 22800 12.0 15.0 22,800 3.72 8.5 14,300 2.60
3033467 25HCB324A30 CNPH*3017A**+TDR 23000 10.6 13.0 23,400 3.56 8.3 15,200 2.52
3033446 25HCB324A30 CNPV*2414A** 58CV(A,X)070 ---12 22600 11.5 14.0 23,400 3.68 8.4 14,400 2.58
3033429 25HCB324A30 CNPV*2414A** 58PH*045--- 08 22800 11.5 14.0 23,800 3.72 8.5 14,500 2.60
3033445 25HCB324A30 CNPV*2414A**+TDR 22800 10.5 13.0 24,400 3.68 8.5 15,200 2.52
3033449 25HCB324A30 CNPV*2417A** 58CV(A,X)090 ---16 22800 11.5 14.5 23,400 3.72 8.5 14,400 2.62
4209722 25HCB324A30 CNPV*2417A** 58HDV040--- --- 12 22400 11.5 14.0 23,600 3.68 8.4 14,600 2.56
4209723 25HCB324A30 CNPV*2417A** 58HDV060--- --- 12 22600 11.5 14.0 23,600 3.74 8.5 14,700 2.58
3618349 25HCB324A30 CNPV*2417A** 58ME(B,C)040 ---12 22800 11.5 14.5 23,600 3.82 8.5 14,500 2.64
3121377 25HCB324A30 CNPV*2417A** 58ME(B,C)060 ---12 22800 11.5 14.5 23,600 3.84 8.5 14,500 2.66
3121378 25HCB324A30 CNPV*2417A** 58ME(B,C)080 ---12 22800 11.5 14.5 22,600 3.80 8.5 14,500 2.64
3121376 25HCB324A30 CNPV*2417A** 58MEB040 ---12 22800 11.5 14.5 23,600 3.82 8.5 14,500 2.64
3033448 25HCB324A30 CNPV*2417A** 58MV(B,C)060 ---14 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3758723 25HCB324A30 CNPV*2417A** 58UVB060--- 14 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.60
3684949 25HCB324A30 CNPV*2417A** 58VLR105--- 12 22800 11.5 14.0 23,600 3.78 8.5 14,500 2.64
3684948 25HCB324A30 CNPV*2417A** 58VMR105 ---12 22600 11.5 14.0 23,400 3.66 8.3 14,400 2.58
4209705 25HCB324A30 CNPV*2417A** OVLAAB036098 22600 11.5 14.5 23,400 3.72 8.5 14,500 2.58
4209704 25HCB324A30 CNPV*2417A** OVMAAB036098 22600 11.5 14.0 23,400 3.72 8.5 14,600 2.58
4209706 25HCB324A30 CNPV*2417A** OVMAAB042112 22400 11.7 14.5 23,200 3.70 8.5 14,400 2.58
3033447 25HCB324A30 CNPV*2417A**+TDR 22800 10.5 13.0 24,400 3.68 8.5 15,200 2.52
3033451 25HCB324A30 CNPV*3014A** 58CV(A,X)070 ---12 23000 11.7 14.5 23,000 3.66 8.4 14,400 2.60
3033430 25HCB324A30 CNPV*3014A** 58PH*045--- 08 23200 11.5 14.5 23,000 3.68 8.5 14,500 2.62
3033450 25HCB324A30 CNPV*3014A**+TDR 23000 10.6 13.0 23,400 3.56 8.3 15,200 2.52
3033454 25HCB324A30 CNPV*3017A** 58CV(A,X)090 ---16 23000 11.7 14.5 23,000 3.70 8.5 14,300 2.62
4209724 25HCB324A30 CNPV*3017A** 58HDV040--- --- 12 22800 11.5 14.5 23,000 3.72 8.5 14,600 2.60
4209725 25HCB324A30 CNPV*3017A** 58HDV060--- --- 12 23200 11.5 14.5 23,000 3.76 8.5 14,700 2.62
3618335 25HCB324A30 CNPV*3017A** 58ME(B,C)040 ---12 23400 12.0 14.5 22,600 3.82 8.6 14,500 2.70
3121380 25HCB324A30 CNPV*3017A** 58ME(B,C)060 ---12 23400 12.0 14.5 22,600 3.82 8.5 14,600 2.70
3121381 25HCB324A30 CNPV*3017A** 58ME(B,C)080 ---12 23200 12.0 14.5 22,600 3.80 8.5 14,500 2.68
3121379 25HCB324A30 CNPV*3017A** 58MEB040 ---12 23400 12.0 14.5 22,600 3.82 8.6 14,500 2.70
3033453 25HCB324A30 CNPV*3017A** 58MV(B,C)060 ---14 23000 11.7 14.5 23,000 3.68 8.5 14,300 2.62
3758724 25HCB324A30 CNPV*3017A** 58UVB060--- 14 23000 11.7 14.5 23,000 3.68 8.5 14,300 2.62
3684951 25HCB324A30 CNPV*3017A** 58VLR105--- 12 23200 12.0 14.5 23,200 3.78 8.5 14,400 2.66
3684950 25HCB324A30 CNPV*3017A** 58VMR105 ---12 22800 12.0 14.5 23,000 3.70 8.4 14,300 2.60
4209708 25HCB324A30 CNPV*3017A** OVLAAB036098 22800 12.0 14.5 23,000 3.74 8.5 14,400 2.60

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

14

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

4209707 25HCB324A30 CNPV*3017A** OVMAAB036098 22800 12.0 14.5 23,000 3.72 8.5 14,500 2.60
4209709 25HCB324A30 CNPV*3017A** OVMAAB042112 22800 12.0 15.0 22,800 3.72 8.5 14,300 2.60
3033452 25HCB324A30 CNPV*3017A**+TDR 23000 10.6 13.0 23,400 3.56 8.3 15,200 2.52
3033487 25HCB324A30 CSPH*2412A** 58CV(A,X)070--- 12 22800 11.6 14.5 23,400 3.70 8.5 14,400 2.60
3033488 25HCB324A30 CSPH*2412A** 58CV(A,X)090--- 16 22800 11.7 14.5 23,400 3.74 8.6 14,400 2.62
3033489 25HCB324A30 CSPH*2412A** 58CV(A,X)110--- 20 22800 11.5 14.0 23,400 3.72 8.5 14,500 2.60
3033490 25HCB324A30 CSPH*2412A** 58CV(A,X)135--- 22 22800 11.7 14.5 23,400 3.74 8.6 14,500 2.60
3033491 25HCB324A30 CSPH*2412A** 58CV(A,X)155--- 22 22800 11.7 14.5 23,400 3.74 8.6 14,400 2.62
3684936 25HCB324A30 CSPH*2412A** 58HDV040 --- --- 12 23000 11.2 13.5 23,800 3.72 8.4 14,700 2.58
3684937 25HCB324A30 CSPH*2412A** 58HDV060 --- --- 12 23000 11.2 13.5 23,800 3.78 8.5 14,700 2.60
3684938 25HCB324A30 CSPH*2412A** 58HDV080 --- --- 20 23400 11.5 14.0 23,800 3.90 8.5 14,800 2.66
3684939 25HCB324A30 CSPH*2412A** 58HDV100 --- --- 20 23200 11.5 14.0 23,800 3.86 8.5 14,700 2.66
3618338 25HCB324A30 CSPH*2412A** 58ME(B,C)040--- 12 23000 12.0 14.5 23,400 3.82 8.6 14,500 2.64
3121389 25HCB324A30 CSPH*2412A** 58ME(B,C)060--- 12 23200 11.5 14.5 23,400 3.84 8.5 14,500 2.66
3121390 25HCB324A30 CSPH*2412A** 58ME(B,C)080--- 12 23000 11.5 14.5 23,400 3.80 8.5 14,500 2.64
3121388 25HCB324A30 CSPH*2412A** 58MEB040--- 12 23000 12.0 14.5 23,400 3.82 8.6 14,500 2.64
3033481 25HCB324A30 CSPH*2412A** 58MV(B,C)040--- 14 22800 11.5 14.0 23,400 3.72 8.5 14,500 2.60
3033482 25HCB324A30 CSPH*2412A** 58MV(B,C)060--- 14 22800 11.7 14.5 23,400 3.72 8.5 14,400 2.60
3033483 25HCB324A30 CSPH*2412A** 58MV(B,C)080--- 14 22800 11.5 14.0 23,400 3.74 8.5 14,500 2.60
3033484 25HCB324A30 CSPH*2412A** 58MV(B,C)080--- 20 22800 11.6 14.5 23,400 3.72 8.5 14,400 2.60
3033485 25HCB324A30 CSPH*2412A** 58MV(B,C)100--- 20 22800 11.7 14.5 23,400 3.74 8.6 14,500 2.62
3033486 25HCB324A30 CSPH*2412A** 58MV(B,C)120--- 20 22800 11.5 14.0 23,400 3.70 8.5 14,400 2.58
3033433 25HCB324A30 CSPH*2412A** 58PH*045---08 23000 11.5 14.0 23,600 3.74 8.5 14,500 2.60
3684957 25HCB324A30 CSPH*2412A** 58VLR105 ---12 23200 11.5 14.0 23,600 3.80 8.5 14,500 2.64
3684956 25HCB324A30 CSPH*2412A** 58VMR105--- 12 22800 11.5 14.0 23,200 3.68 8.3 14,400 2.58
4209717 25HCB324A30 CSPH*2412A** OVLAAB036098 22800 11.5 14.5 23,400 3.76 8.5 14,600 2.58
4209716 25HCB324A30 CSPH*2412A** OVMAAB036098 22800 11.5 14.5 23,400 3.76 8.5 14,600 2.58
4209718 25HCB324A30 CSPH*2412A** OVMAAB042112 22800 12.0 14.5 23,200 3.72 8.5 14,400 2.60
3033480 25HCB324A30 CSPH*2412A**+TDR 22800 10.6 13.0 24,200 3.68 8.5 15,200 2.54
3033499 25HCB324A30 CSPH*3012A** 58CV(A,X)070--- 12 23000 11.7 14.5 22,800 3.64 8.4 14,400 2.60
3033500 25HCB324A30 CSPH*3012A** 58CV(A,X)090--- 16 23000 11.7 14.5 22,800 3.68 8.5 14,400 2.62
3033501 25HCB324A30 CSPH*3012A** 58CV(A,X)110--- 20 23000 11.7 14.5 22,800 3.68 8.5 14,400 2.62
3033502 25HCB324A30 CSPH*3012A** 58CV(A,X)135--- 22 23000 11.7 14.5 22,800 3.68 8.5 14,400 2.62
3033503 25HCB324A30 CSPH*3012A** 58CV(A,X)155--- 22 23000 11.7 14.5 22,800 3.68 8.5 14,400 2.62
3684940 25HCB324A30 CSPH*3012A** 58HDV040 --- --- 12 23200 11.5 14.0 23,000 3.72 8.4 14,700 2.62
3684941 25HCB324A30 CSPH*3012A** 58HDV060 --- --- 12 23400 11.5 14.0 23,000 3.76 8.4 14,800 2.64
3684942 25HCB324A30 CSPH*3012A** 58HDV080 --- --- 20 23800 11.5 14.0 22,800 3.84 8.4 14,900 2.70
3684943 25HCB324A30 CSPH*3012A** 58HDV100 --- --- 20 23600 11.5 14.0 22,800 3.84 8.4 14,700 2.70
3618341 25HCB324A30 CSPH*3012A** 58ME(B,C)040--- 12 23400 12.0 14.5 22,600 3.78 8.6 14,500 2.68
3121392 25HCB324A30 CSPH*3012A** 58ME(B,C)060--- 12 23400 12.0 14.5 22,600 3.80 8.5 14,500 2.70
3121393 25HCB324A30 CSPH*3012A** 58ME(B,C)080--- 12 23200 12.0 14.5 22,600 3.76 8.6 14,500 2.66
3121391 25HCB324A30 CSPH*3012A** 58MEB040--- 12 23400 12.0 14.5 22,600 3.78 8.6 14,500 2.68
3033493 25HCB324A30 CSPH*3012A** 58MV(B,C)040--- 14 23000 11.7 14.5 22,800 3.66 8.5 14,400 2.60
3033494 25HCB324A30 CSPH*3012A** 58MV(B,C)060--- 14 23000 11.7 14.5 22,800 3.66 8.5 14,400 2.60
3033495 25HCB324A30 CSPH*3012A** 58MV(B,C)080--- 14 23000 11.7 14.5 22,800 3.66 8.5 14,400 2.60
3033496 25HCB324A30 CSPH*3012A** 58MV(B,C)080--- 20 23000 11.7 14.5 22,800 3.66 8.5 14,400 2.60
3033497 25HCB324A30 CSPH*3012A** 58MV(B,C)100--- 20 23000 11.7 14.5 22,800 3.68 8.5 14,400 2.62
3033498 25HCB324A30 CSPH*3012A** 58MV(B,C)120--- 20 23000 11.7 14.5 22,800 3.64 8.4 14,400 2.60
3033434 25HCB324A30 CSPH*3012A** 58PH*045---08 23400 12.0 14.5 23,000 3.70 8.5 14,500 2.62
3684959 25HCB324A30 CSPH*3012A** 58VLR105 ---12 23200 12.0 14.5 23,000 3.76 8.5 14,500 2.64
3684958 25HCB324A30 CSPH*3012A** 58VMR105--- 12 23000 11.5 14.0 23,000 3.68 8.4 14,400 2.60
4209720 25HCB324A30 CSPH*3012A** OVLAAB036098 23000 12.0 14.5 23,200 3.80 8.5 14,500 2.62
4209719 25HCB324A30 CSPH*3012A** OVMAAB036098 23000 12.0 14.5 23,400 3.80 8.5 14,600 2.60
4209721 25HCB324A30 CSPH*3012A** OVMAAB042112 22800 12.0 15.0 23,200 3.78 8.5 14,400 2.62
3033492 25HCB324A30 CSPH*3012A**+TDR 23000 10.6 13.0 23,200 3.56 8.3 15,200 2.52

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

3819231 25HCB330A30 †FB4CNF030 30000 11.0 13.0 30,000 3.58 8.0 18,300 2.44
3685043 25HCB330A30 FB4CNF030+TXV 30000 11.2 13.5 30,000 3.58 8.0 18,300 2.46
3819202 25HCB330A30 FB4CNF036 30000 11.0 13.0 30,000 3.58 8.0 18,300 2.44
3685044 25HCB330A30 FB4CNF036+TXV 30000 11.2 13.5 30,000 3.58 8.0 18,300 2.46
3033608 25HCB330A30 FE4AN(B,F)003+UI 30000 12.0 14.0 29,800 3.56 8.2 17,800 2.48
3033607 25HCB330A30 FE4ANF002+UI 30000 11.5 14.0 30,000 3.56 8.2 18,000 2.48
3033609 25HCB330A30 FF1ENP030 29800 10.8 13.0 30,000 3.40 7.7 18,600 2.36
3463947 25HCB330A30 FF1ENP031 29800 11.5 14.0 29,800 3.44 7.8 17,900 2.42
3033610 25HCB330A30 FF1ENP036 30000 10.8 13.0 30,000 3.48 8.0 18,700 2.38
3463948 25HCB330A30 FF1ENP037 30000 11.5 14.0 30,000 3.50 8.0 18,000 2.44
3405753 25HCB330A30 FV4CN(B,F)003 30000 12.0 14.0 29,800 3.56 8.2 17,800 2.48
3405752 25HCB330A30 FV4CNF002 30000 11.5 14.0 30,000 3.56 8.2 18,000 2.48
3685039 25HCB330A30 FX4DN(B,F)031 30000 11.5 14.0 30,000 3.68 8.2 18,200 2.52
3685040 25HCB330A30 FX4DN(B,F)037 30000 12.0 14.5 30,000 3.82 8.5 18,300 2.56
3033513 25HCB330A30 FY4ANF030 30000 10.8 13.0 30,000 3.46 8.0 18,700 2.38
3033605 25HCB330A30 FY4ANF036 30000 10.7 13.0 30,000 3.46 8.0 18,800 2.38
3819203 25HCB330A30 FY5BNF030 30000 11.0 13.0 30,000 3.60 8.0 18,400 2.46
3685045 25HCB330A30 FY5BNF030+TXV 30000 11.2 13.5 30,000 3.60 8.1 18,500 2.46
3685046 25HCB330A30 FY5BNF036+TXV 30000 11.0 13.0 30,000 3.56 8.0 18,600 2.42
3033529 25HCB330A30 CAP**3014A** 58CV(A,X)070 ---12 30000 11.5 14.0 30,000 3.44 8.0 18,000 2.42
3033528 25HCB330A30 CAP**3014A**+TDR 30000 10.8 13.0 30,000 3.46 8.0 18,800 2.38
3033532 25HCB330A30 CAP**3017A** 58CV(A,X)090 ---16 30000 11.5 14.0 29,800 3.46 8.0 17,800 2.44
3618350 25HCB330A30 CAP**3017A** 58ME(B,C)040 --- 12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48

See notes on pg. 30

15

COMBINATION RATINGS CONTINUED

AHRI Ref.

3121395 25HCB330A30 CAP**3017A** 58ME(B,C)060 --- 12 30000 11.5 14.0 30,000 3.60 8.2 18,100 2.48
3121396 25HCB330A30 CAP**3017A** 58ME(B,C)080 --- 12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3121397 25HCB330A30 CAP**3017A** 58ME(B,C)080 --- 16 30000 11.5 14.0 30,000 3.62 8.2 18,200 2.50
3121394 25HCB330A30 CAP**3017A** 58MEB040--- 12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3033531 25HCB330A30 CAP**3017A** 58MV(B,C)060--- 14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3033514 25HCB330A30 CAP**3017A** 58PH*070---16 30000 11.0 14.0 30,000 3.50 8.0 18,100 2.44
3757410 25HCB330A30 CAP**3017A** 58UVB060 ---14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3684988 25HCB330A30 CAP**3017A** 58VLR105 ---12 30000 11.5 14.0 29,800 3.52 8.0 18,000 2.46
3684987 25HCB330A30 CAP**3017A** 58VMR105--- 12 29600 11.5 14.0 29,400 3.40 7.9 17,800 2.40
4209727 25HCB330A30 CAP**3017A** OVLAAB036098 29800 11.5 14.0 29,800 3.48 8.0 18,000 2.42
4209726 25HCB330A30 CAP**3017A** OVMAAB036098 29800 11.2 13.5 30,000 3.48 8.0 18,100 2.42
4209728 25HCB330A30 CAP**3017A** OVMAAB042112 30000 11.5 14.5 29,800 3.52 8.2 17,900 2.46
3033530 25HCB330A30 CAP**3017A**+TDR 30000 10.8 13.0 30,000 3.46 8.0 18,800 2.38
3033534 25HCB330A30 CAP**3614A** 58CV(A,X)070 ---12 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033533 25HCB330A30 CAP**3614A**+TDR 30000 10.8 13.0 30,000 3.50 8.0 18,800 2.40
3033537 25HCB330A30 CAP**3617A** 58CV(A,X)090 ---16 30000 11.5 14.0 29,800 3.50 8.0 17,800 2.46
3618351 25HCB330A30 CAP**3617A** 58ME(B,C)040 --- 12 30000 11.5 14.0 30,000 3.62 8.2 18,000 2.50
3121399 25HCB330A30 CAP**3617A** 58ME(B,C)060 --- 12 30000 11.5 14.0 30,000 3.62 8.2 18,100 2.50
3121400 25HCB330A30 CAP**3617A** 58ME(B,C)080 --- 12 30000 11.5 14.5 30,000 3.60 8.2 18,000 2.50
3121401 25HCB330A30 CAP**3617A** 58ME(B,C)080 --- 16 30000 11.5 14.0 30,000 3.66 8.3 18,200 2.50
3121398 25HCB330A30 CAP**3617A** 58MEB040--- 12 30000 11.5 14.0 30,000 3.62 8.2 18,000 2.50
3033536 25HCB330A30 CAP**3617A** 58MV(B,C)060--- 14 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033515 25HCB330A30 CAP**3617A** 58PH*070---16 30000 11.0 14.0 30,000 3.54 8.2 18,200 2.46

25HCB3

3757411 25HCB330A30 CAP**3617A** 58UVB060 ---14 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3684990 25HCB330A30 CAP**3617A** 58VLR105 ---12 30000 11.5 14.0 29,800 3.54 8.1 18,000 2.46
3684989 25HCB330A30 CAP**3617A** 58VMR105--- 12 29600 11.5 14.0 29,600 3.44 7.9 17,800 2.42
4209730 25HCB330A30 CAP**3617A** OVLAAB036098 30000 11.5 14.0 29,800 3.50 8.0 18,000 2.44
4209729 25HCB330A30 CAP**3617A** OVMAAB036098 30000 11.2 13.5 30,000 3.52 8.0 18,100 2.44
4209731 25HCB330A30 CAP**3617A** OVMAAB042112 30000 11.5 14.5 29,800 3.56 8.2 17,900 2.46
3033535 25HCB330A30 CAP**3617A**+TDR 30000 10.8 13.0 30,000 3.50 8.0 18,800 2.40
3684969 25HCB330A30 CAP**3619A** 58HDV040--- --- 12 30000 11.2 13.5 30,000 3.50 8.1 18,300 2.42
3684970 25HCB330A30 CAP**3619A** 58HDV060--- --- 12 30000 11.2 13.5 30,000 3.56 8.2 18,300 2.46
3685041 25HCB330A30 CAP**3619A**+TDR 30000 10.8 13.0 30,000 3.50 8.0 18,800 2.40
3033542 25HCB330A30 CAP**3621A** 58CV(A,X)110 ---20 30000 11.5 14.0 29,800 3.52 8.0 17,900 2.46
3033539 25HCB330A30 CAP**3621A** 58MV(B,C)080--- 14 30000 11.5 14.0 30,000 3.50 8.0 17,900 2.46
3033540 25HCB330A30 CAP**3621A** 58MV(B,C)080--- 20 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3033541 25HCB330A30 CAP**3621A** 58MV(B,C)100--- 20 30000 11.5 14.0 29,800 3.50 8.0 17,900 2.46
3033516 25HCB330A30 CAP**3621A** 58PH*090---16 30000 11.5 14.5 30,000 3.62 8.2 18,100 2.50
3757412 25HCB330A30 CAP**3621A** 58UVB080 ---14 30000 11.5 14.0 30,000 3.50 8.0 17,900 2.46
3757413 25HCB330A30 CAP**3621A** 58UVB080 ---20 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3757414 25HCB330A30 CAP**3621A** 58UVB100 ---20 30000 11.5 14.0 29,800 3.50 8.0 17,900 2.46
4209732 25HCB330A30 CAP**3621A** OVLAAB048112 30000 11.5 14.5 30,000 3.60 8.3 18,100 2.48
3033538 25HCB330A30 CAP**3621A**+TDR 30000 10.8 13.0 30,000 3.50 8.0 18,800 2.40
3685003 25HCB330A30 CAP**4823A** 58HDV040--- --- 12 30000 11.5 14.0 30,000 3.70 8.3 18,400 2.50
3685004 25HCB330A30 CAP**4823A** 58HDV060--- --- 12 30000 11.5 14.0 30,000 3.76 8.4 18,500 2.52
3685042 25HCB330A30 CAP**4823A**+TDR 30000 11.0 13.0 30,000 3.66 8.2 18,900 2.46
3033580 25HCB330A30 CNPF*3618A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3033563 25HCB330A30 CNPH*3017A** 58CV(A,X)070 ---12 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033564 25HCB330A30 CNPH*3017A** 58CV(A,X)090 ---16 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3033565 25HCB330A30 CNPH*3017A** 58CV(A,X)110 ---20 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3033566 25HCB330A30 CNPH*3017A** 58CV(A,X)135 ---22 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.46
3033567 25HCB330A30 CNPH*3017A** 58CV(A,X)155 ---22 30000 11.5 14.0 29,800 3.50 8.0 17,900 2.46
3684971 25HCB330A30 CNPH*3017A** 58HDV040--- ---12 30000 11.2 13.5 30,000 3.46 8.0 18,200 2.42
3684972 25HCB330A30 CNPH*3017A** 58HDV060--- ---12 30000 11.2 13.5 30,000 3.52 8.1 18,300 2.44
3684973 25HCB330A30 CNPH*3017A** 58HDV080--- ---20 30000 11.2 13.5 30,000 3.62 8.2 18,200 2.48
3684974 25HCB330A30 CNPH*3017A** 58HDV100--- ---20 30000 11.5 14.0 30,000 3.56 8.2 18,000 2.46
3618344 25HCB330A30 CNPH*3017A** 58ME(B,C)040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3121411 25HCB330A30 CNPH*3017A** 58ME(B,C)060 ---12 30000 11.5 14.0 30,000 3.58 8.1 18,100 2.48
3121412 25HCB330A30 CNPH*3017A** 58ME(B,C)080 ---12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3121413 25HCB330A30 CNPH*3017A** 58ME(B,C)080 ---16 30000 11.5 14.0 30,000 3.60 8.2 18,200 2.48
3121410 25HCB330A30 CNPH*3017A** 58MEB040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3033557 25HCB330A30 CNPH*3017A** 58MV(B,C)040 ---14 30000 11.5 14.0 30,000 3.44 8.0 17,900 2.42
3033558 25HCB330A30 CNPH*3017A** 58MV(B,C)060 ---14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3033559 25HCB330A30 CNPH*3017A** 58MV(B,C)080 ---14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.44
3033560 25HCB330A30 CNPH*3017A** 58MV(B,C)080 ---20 30000 11.5 14.0 30,000 3.46 8.0 17,900 2.42
3033561 25HCB330A30 CNPH*3017A** 58MV(B,C)100 ---20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033562 25HCB330A30 CNPH*3017A** 58MV(B,C)120 ---20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033520 25HCB330A30 CNPH*3017A** 58PH*070--- 16 30000 11.0 14.0 30,000 3.50 8.1 18,100 2.44
3033521 25HCB330A30 CNPH*3017A** 58PH*090--- 16 30000 11.5 14.0 30,000 3.52 8.1 18,000 2.46
3684996 25HCB330A30 CNPH*3017A** 58VLR105--- 12 30000 11.5 14.0 29,800 3.52 8.0 18,000 2.46
3684995 25HCB330A30 CNPH*3017A** 58VMR105 ---12 29600 11.5 14.0 29,600 3.42 7.9 17,800 2.42
4209746 25HCB330A30 CNPH*3017A** OVLAAB036098 29800 11.2 13.5 29,800 3.48 8.0 18,100 2.42
4209748 25HCB330A30 CNPH*3017A** OVLAAB048112 30000 11.5 14.0 30,000 3.56 8.2 18,100 2.46
4209745 25HCB330A30 CNPH*3017A** OVMAAB036098 29800 11.2 13.5 30,000 3.48 8.0 18,100 2.42
4209747 25HCB330A30 CNPH*3017A** OVMAAB042112 30000 11.5 14.5 29,800 3.54 8.2 18,000 2.46
3033556 25HCB330A30 CNPH*3017A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3685028 25HCB330A30 CNPH*3117A** 58CV(A,X)070 ---12 30000 11.5 14.5 30,000 3.64 8.1 18,100 2.50
3685029 25HCB330A30 CNPH*3117A** 58CV(A,X)090 ---16 30000 12.0 14.5 30,000 3.66 8.2 18,000 2.52
3685030 25HCB330A30 CNPH*3117A** 58CV(A,X)110 ---20 30000 12.0 14.5 30,000 3.68 8.2 18,000 2.52

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

16

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3685031 25HCB330A30 CNPH*3117A** 58CV(A,X)135 ---22 30000 12.0 14.5 30,000 3.68 8.2 18,000 2.54
3685032 25HCB330A30 CNPH*3117A** 58CV(A,X)155 ---22 30000 12.0 14.5 30,000 3.70 8.2 18,000 2.54
3685047 25HCB330A30 CNPH*3117A** 58HDV040--- ---12 30000 11.5 14.0 30,000 3.66 8.2 18,400 2.48
3685048 25HCB330A30 CNPH*3117A** 58HDV060--- ---12 30000 11.5 14.0 30,000 3.74 8.3 18,400 2.52
3685036 25HCB330A30 CNPH*3117A** 58ME(B,C)060 ---12 30000 12.0 14.5 30,000 3.82 8.5 18,200 2.58
3685037 25HCB330A30 CNPH*3117A** 58ME(B,C)080 ---12 30000 12.0 14.5 30,000 3.78 8.5 18,200 2.56
3685038 25HCB330A30 CNPH*3117A** 58ME(B,C)080 ---16 30000 12.0 14.5 30,000 3.86 8.6 18,300 2.58
3685035 25HCB330A30 CNPH*3117A** 58MEB040 ---12 30000 12.0 14.5 30,000 3.82 8.5 18,200 2.58
3685023 25HCB330A30 CNPH*3117A** 58MV(B,C)060 ---14 30000 12.0 14.5 30,000 3.72 8.3 18,100 2.54
3685024 25HCB330A30 CNPH*3117A** 58MV(B,C)080 ---14 30000 11.5 14.5 30,000 3.62 8.2 18,000 2.50
3685025 25HCB330A30 CNPH*3117A** 58MV(B,C)080 ---20 30000 12.0 14.5 30,000 3.66 8.2 18,000 2.52
3685026 25HCB330A30 CNPH*3117A** 58MV(B,C)100 ---20 30000 11.5 14.5 30,000 3.58 8.0 18,000 2.48
3685027 25HCB330A30 CNPH*3117A** 58MV(B,C)120 ---20 30000 12.0 14.5 30,000 3.68 8.2 18,000 2.52
3685022 25HCB330A30 CNPH*3117A** 58MVB040 ---14 30000 11.5 14.5 30,000 3.64 8.2 18,100 2.50
3685033 25HCB330A30 CNPH*3117A** 58PH*070--- 16 30000 11.5 14.0 30,000 3.72 8.5 18,300 2.52
3685034 25HCB330A30 CNPH*3117A** 58PH*090--- 16 30000 12.0 14.5 30,000 3.76 8.5 18,200 2.54
4209750 25HCB330A30 CNPH*3117A** OVLAAB036098 30000 11.5 14.5 30,000 3.66 8.4 18,200 2.50
4209752 25HCB330A30 CNPH*3117A** OVLAAB048112 30000 11.5 14.5 30,000 3.76 8.6 18,300 2.54
4209749 25HCB330A30 CNPH*3117A** OVMAAB036098 30000 11.5 14.5 30,000 3.68 8.4 18,300 2.50
4209751 25HCB330A30 CNPH*3117A** OVMAAB042112 30000 12.0 14.5 30,000 3.74 8.5 18,100 2.54
3685021 25HCB330A30 CNPH*3117A**+TDR 30000 11.0 13.0 30,000 3.68 8.2 18,900 2.46
3033575 25HCB330A30 CNPH*3617A** 58CV(A,X)070 ---12 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033576 25HCB330A30 CNPH*3617A** 58CV(A,X)090 ---16 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3033577 25HCB330A30 CNPH*3617A** 58CV(A,X)110 ---20 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3033578 25HCB330A30 CNPH*3617A** 58CV(A,X)135 ---22 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.46
3033579 25HCB330A30 CNPH*3617A** 58CV(A,X)155 ---22 30000 11.5 14.0 29,800 3.50 8.0 17,900 2.46
3684975 25HCB330A30 CNPH*3617A** 58HDV040--- ---12 30000 11.2 13.5 30,000 3.46 8.0 18,200 2.42
3684976 25HCB330A30 CNPH*3617A** 58HDV060--- ---12 30000 11.2 13.5 30,000 3.52 8.1 18,300 2.44
3684977 25HCB330A30 CNPH*3617A** 58HDV080--- ---20 30000 11.2 13.5 30,000 3.62 8.2 18,200 2.48
3684978 25HCB330A30 CNPH*3617A** 58HDV100--- ---20 30000 11.5 14.0 30,000 3.56 8.2 18,000 2.46
3618352 25HCB330A30 CNPH*3617A** 58ME(B,C)040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3121415 25HCB330A30 CNPH*3617A** 58ME(B,C)060 ---12 30000 11.5 14.0 30,000 3.58 8.1 18,100 2.48
3121416 25HCB330A30 CNPH*3617A** 58ME(B,C)080 ---12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3121417 25HCB330A30 CNPH*3617A** 58ME(B,C)080 ---16 30000 11.5 14.0 30,000 3.60 8.2 18,200 2.48
3121414 25HCB330A30 CNPH*3617A** 58MEB040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3033569 25HCB330A30 CNPH*3617A** 58MV(B,C)040 ---14 30000 11.5 14.0 30,000 3.44 8.0 17,900 2.42
3033570 25HCB330A30 CNPH*3617A** 58MV(B,C)060 ---14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3033571 25HCB330A30 CNPH*3617A** 58MV(B,C)080 ---14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.44
3033572 25HCB330A30 CNPH*3617A** 58MV(B,C)080 ---20 30000 11.5 14.0 30,000 3.46 8.0 17,900 2.42
3033573 25HCB330A30 CNPH*3617A** 58MV(B,C)100 ---20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033574 25HCB330A30 CNPH*3617A** 58MV(B,C)120 ---20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033522 25HCB330A30 CNPH*3617A** 58PH*070--- 16 30000 11.0 14.0 30,000 3.50 8.1 18,100 2.44
3033523 25HCB330A30 CNPH*3617A** 58PH*090--- 16 30000 11.5 14.0 30,000 3.52 8.1 18,000 2.46
3684998 25HCB330A30 CNPH*3617A** 58VLR105--- 12 30000 11.5 14.0 29,800 3.52 8.0 18,000 2.46
3684997 25HCB330A30 CNPH*3617A** 58VMR105 ---12 29600 11.5 14.0 29,600 3.42 7.9 17,800 2.42
4209754 25HCB330A30 CNPH*3617A** OVLAAB036098 29800 11.2 13.5 29,800 3.48 8.0 18,100 2.42
4209756 25HCB330A30 CNPH*3617A** OVLAAB048112 30000 11.5 14.0 30,000 3.56 8.2 18,100 2.46
4209753 25HCB330A30 CNPH*3617A** OVMAAB036098 29800 11.2 13.5 30,000 3.48 8.0 18,100 2.42
4209755 25HCB330A30 CNPH*3617A** OVMAAB042112 30000 11.5 14.5 29,800 3.54 8.1 18,000 2.46
3033568 25HCB330A30 CNPH*3617A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3033544 25HCB330A30 CNPV*3014A** 58CV(A,X)070 ---12 30000 11.2 13.5 30,000 3.44 8.0 18,000 2.42
3033543 25HCB330A30 CNPV*3014A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3033547 25HCB330A30 CNPV*3017A** 58CV(A,X)090 ---16 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
4209765 25HCB330A30 CNPV*3017A** 58HDV040--- --- 12 29800 11.2 13.5 30,000 3.46 8.0 18,200 2.40
4209766 25HCB330A30 CNPV*3017A** 58HDV060--- --- 12 30000 11.2 13.5 30,000 3.52 8.0 18,300 2.42
3618342 25HCB330A30 CNPV*3017A** 58ME(B,C)040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3121403 25HCB330A30 CNPV*3017A** 58ME(B,C)060 ---12 30000 11.5 14.0 30,000 3.58 8.1 18,100 2.48
3121404 25HCB330A30 CNPV*3017A** 58ME(B,C)080 ---12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3121405 25HCB330A30 CNPV*3017A** 58ME(B,C)080 ---16 30000 11.5 14.0 30,000 3.60 8.2 18,200 2.48
3121402 25HCB330A30 CNPV*3017A** 58MEB040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3033546 25HCB330A30 CNPV*3017A** 58MV(B,C)060 ---14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3033517 25HCB330A30 CNPV*3017A** 58PH*070--- 16 30000 11.0 14.0 30,000 3.50 8.1 18,100 2.44
3758725 25HCB330A30 CNPV*3017A** 58UVB060--- 14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3684992 25HCB330A30 CNPV*3017A** 58VLR105--- 12 30000 11.5 14.0 29,800 3.52 8.0 18,000 2.46
3684991 25HCB330A30 CNPV*3017A** 58VMR105 ---12 29600 11.5 14.0 29,600 3.42 7.9 17,800 2.42
4209734 25HCB330A30 CNPV*3017A** OVLAAB036098 29800 11.2 13.5 29,800 3.48 8.0 18,100 2.42
4209733 25HCB330A30 CNPV*3017A** OVMAAB036098 29800 11.2 13.5 30,000 3.48 8.0 18,100 2.42
4209735 25HCB330A30 CNPV*3017A** OVMAAB042112 30000 11.5 14.5 29,800 3.54 8.2 18,000 2.46
3033545 25HCB330A30 CNPV*3017A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3685007 25HCB330A30 CNPV*3117A** 58CV(A,X)090 ---16 30000 12.0 14.5 30,000 3.66 8.2 18,000 2.52
4209767 25HCB330A30 CNPV*3117A** 58HDV040--- --- 12 30000 11.5 14.0 30,000 3.68 8.4 18,400 2.48
4209768 25HCB330A30 CNPV*3117A** 58HDV060--- --- 12 30000 11.5 14.0 30,000 3.74 8.5 18,400 2.52
3685010 25HCB330A30 CNPV*3117A** 58ME(B,C)060 ---12 30000 12.0 14.5 30,000 3.82 8.5 18,200 2.58
3685011 25HCB330A30 CNPV*3117A** 58ME(B,C)080 ---12 30000 12.0 14.5 30,000 3.78 8.5 18,200 2.56
3685012 25HCB330A30 CNPV*3117A** 58ME(B,C)080 ---16 30000 12.0 14.5 30,000 3.86 8.5 18,300 2.58
3685009 25HCB330A30 CNPV*3117A** 58MEB040 ---12 30000 12.0 14.5 30,000 3.82 8.5 18,200 2.58
3685006 25HCB330A30 CNPV*3117A** 58MV(B,C)060 ---14 30000 12.0 14.5 30,000 3.72 8.5 18,100 2.54
3685008 25HCB330A30 CNPV*3117A** 58PH*070--- 16 30000 11.5 14.0 30,000 3.72 8.5 18,300 2.52
3685288 25HCB330A30 CNPV*3117A** 58UVB060--- 14 30000 12.0 14.5 30,000 3.72 8.5 18,100 2.54

See notes on pg. 30

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

17

COMBINATION RATINGS CONTINUED

AHRI Ref.

4209737 25HCB330A30 CNPV*3117A** OVLAAB036098 30000 11.5 14.5 30,000 3.66 8.4 18,200 2.50
4209736 25HCB330A30 CNPV*3117A** OVMAAB036098 30000 11.5 14.0 30,000 3.68 8.4 18,300 2.50
4209738 25HCB330A30 CNPV*3117A** OVMAAB042112 30000 12.0 14.5 30,000 3.72 8.5 18,100 2.54
3685005 25HCB330A30 CNPV*3117A**+TDR 30000 11.0 13.0 30,000 3.68 8.2 18,900 2.46
3033550 25HCB330A30 CNPV*3617A** 58CV(A,X)090 ---16 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
4209769 25HCB330A30 CNPV*3617A** 58HDV040--- --- 12 29800 11.2 13.5 30,000 3.46 8.0 18,200 2.40
4209770 25HCB330A30 CNPV*3617A** 58HDV060--- --- 12 30000 11.2 13.5 30,000 3.52 8.0 18,300 2.42
3618343 25HCB330A30 CNPV*3617A** 58ME(B,C)040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3121407 25HCB330A30 CNPV*3617A** 58ME(B,C)060 ---12 30000 11.5 14.0 30,000 3.58 8.1 18,100 2.48
3121408 25HCB330A30 CNPV*3617A** 58ME(B,C)080 ---12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3121409 25HCB330A30 CNPV*3617A** 58ME(B,C)080 ---16 30000 11.5 14.0 30,000 3.60 8.2 18,200 2.48
3121406 25HCB330A30 CNPV*3617A** 58MEB040 ---12 30000 11.5 14.0 29,800 3.58 8.1 18,000 2.48
3033549 25HCB330A30 CNPV*3617A** 58MV(B,C)060 ---14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3033518 25HCB330A30 CNPV*3617A** 58PH*070--- 16 30000 11.0 14.0 30,000 3.50 8.1 18,100 2.44
3758726 25HCB330A30 CNPV*3617A** 58UVB060--- 14 30000 11.5 14.0 29,800 3.44 8.0 17,900 2.42
3684994 25HCB330A30 CNPV*3617A** 58VLR105--- 12 30000 11.5 14.0 29,800 3.52 8.0 18,000 2.46
3684993 25HCB330A30 CNPV*3617A** 58VMR105 ---12 29600 11.5 14.0 29,600 3.42 7.9 17,800 2.42
4209740 25HCB330A30 CNPV*3617A** OVLAAB036098 29800 11.2 13.5 29,800 3.48 8.0 18,100 2.42
4209739 25HCB330A30 CNPV*3617A** OVMAAB036098 29800 11.2 13.5 30,000 3.48 8.0 18,100 2.42
4209741 25HCB330A30 CNPV*3617A** OVMAAB042112 30000 11.5 14.5 29,800 3.54 8.2 18,000 2.46
3033548 25HCB330A30 CNPV*3617A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3033555 25HCB330A30 CNPV*3621A** 58CV(A,X)110 ---20 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
4209771 25HCB330A30 CNPV*3621A** 58HDV040--- --- 12 29800 11.2 13.5 30,000 3.48 8.0 18,200 2.40

25HCB3

4209772 25HCB330A30 CNPV*3621A** 58HDV060--- --- 12 30000 11.2 13.5 30,000 3.54 8.2 18,300 2.44
4209773 25HCB330A30 CNPV*3621A** 58HDV080--- --- 20 30000 11.5 14.0 30,000 3.62 8.3 18,200 2.48
3033552 25HCB330A30 CNPV*3621A** 58MV(B,C)080 ---14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.44
3033553 25HCB330A30 CNPV*3621A** 58MV(B,C)080 ---20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033554 25HCB330A30 CNPV*3621A** 58MV(B,C)100 ---20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033519 25HCB330A30 CNPV*3621A** 58PH*090--- 16 30000 11.5 14.0 30,000 3.54 8.1 18,000 2.46
3758727 25HCB330A30 CNPV*3621A** 58UVB080--- 14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.44
3758728 25HCB330A30 CNPV*3621A** 58UVB080--- 20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3758729 25HCB330A30 CNPV*3621A** 58UVB100--- 20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033551 25HCB330A30 CNPV*3621A**+TDR 30000 10.8 13.0 30,000 3.48 8.0 18,800 2.38
3685015 25HCB330A30 CNPV*3717A** 58CV(A,X)090 ---16 30000 12.0 14.5 30,000 3.78 8.5 18,000 2.56
4209774 25HCB330A30 CNPV*3717A** 58HDV040--- --- 12 30000 11.5 14.0 30,000 3.78 8.5 18,500 2.52
4209775 25HCB330A30 CNPV*3717A** 58HDV060--- --- 12 30000 11.5 14.5 30,000 3.86 8.8 18,500 2.56
3685018 25HCB330A30 CNPV*3717A** 58ME(B,C)060 ---12 30000 12.0 14.5 30,000 3.94 8.7 18,300 2.62
3685019 25HCB330A30 CNPV*3717A** 58ME(B,C)080 ---12 30000 12.0 14.5 30,000 3.90 8.6 18,200 2.60
3685020 25HCB330A30 CNPV*3717A** 58ME(B,C)080 ---16 30000 12.0 14.5 30,000 3.96 8.8 18,400 2.62
3685017 25HCB330A30 CNPV*3717A** 58MEB040 ---12 30000 12.2 15.0 30,000 3.92 8.7 18,200 2.62
3685014 25HCB330A30 CNPV*3717A** 58MV(B,C)060 ---14 30000 12.0 14.5 30,000 3.84 8.5 18,100 2.58
3685016 25HCB330A30 CNPV*3717A** 58PH*070--- 16 30000 12.0 14.5 30,000 3.84 8.5 18,400 2.56
3685289 25HCB330A30 CNPV*3717A** 58UVB060--- 14 30000 12.0 14.5 30,000 3.84 8.5 18,100 2.58
4209743 25HCB330A30 CNPV*3717A** OVLAAB036098 30000 12.0 14.5 30,000 3.78 8.6 18,200 2.54
4209742 25HCB330A30 CNPV*3717A** OVMAAB036098 30000 11.5 14.5 30,000 3.78 8.6 18,300 2.52
4209744 25HCB330A30 CNPV*3717A** OVMAAB042112 30000 12.0 14.5 30,000 3.84 8.8 18,100 2.58
3685013 25HCB330A30 CNPV*3717A**+TDR 30000 11.2 13.5 30,000 3.76 8.5 19,000 2.48
3033588 25HCB330A30 CSPH*3012A** 58CV(A,X)070--- 12 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033589 25HCB330A30 CSPH*3012A** 58CV(A,X)090--- 16 30000 11.5 14.0 29,800 3.48 8.0 17,900 2.44
3033590 25HCB330A30 CSPH*3012A** 58CV(A,X)110--- 20 30000 11.5 14.0 30,000 3.50 8.0 18,000 2.44
3033591 25HCB330A30 CSPH*3012A** 58CV(A,X)135--- 22 30000 11.5 14.0 30,000 3.50 8.0 17,900 2.46
3033592 25HCB330A30 CSPH*3012A** 58CV(A,X)155--- 22 30000 11.5 14.0 30,000 3.50 8.0 17,900 2.46
3684979 25HCB330A30 CSPH*3012A** 58HDV040 --- --- 12 30000 11.2 13.5 30,000 3.46 8.0 18,300 2.40
3684980 25HCB330A30 CSPH*3012A** 58HDV060 --- --- 12 30000 11.2 13.5 30,000 3.50 8.1 18,300 2.42
3684981 25HCB330A30 CSPH*3012A** 58HDV080 --- --- 20 30000 11.2 13.5 30,000 3.60 8.2 18,200 2.48
3684982 25HCB330A30 CSPH*3012A** 58HDV100 --- --- 20 30000 11.5 14.0 30,000 3.52 8.1 18,000 2.46
3618353 25HCB330A30 CSPH*3012A** 58ME(B,C)040--- 12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3121419 25HCB330A30 CSPH*3012A** 58ME(B,C)060--- 12 30000 11.5 14.0 30,000 3.58 8.1 18,100 2.48
3121420 25HCB330A30 CSPH*3012A** 58ME(B,C)080--- 12 30000 11.5 14.0 29,800 3.54 8.1 18,000 2.46
3121421 25HCB330A30 CSPH*3012A** 58ME(B,C)080--- 16 30000 11.5 14.0 30,000 3.60 8.2 18,200 2.48
3121418 25HCB330A30 CSPH*3012A** 58MEB040--- 12 30000 11.5 14.0 29,800 3.56 8.1 18,000 2.48
3033582 25HCB330A30 CSPH*3012A** 58MV(B,C)040--- 14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033583 25HCB330A30 CSPH*3012A** 58MV(B,C)060--- 14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033584 25HCB330A30 CSPH*3012A** 58MV(B,C)080--- 14 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.42
3033585 25HCB330A30 CSPH*3012A** 58MV(B,C)080--- 20 30000 11.5 14.0 30,000 3.46 8.0 18,000 2.44
3033586 25HCB330A30 CSPH*3012A** 58MV(B,C)100--- 20 30000 11.5 14.0 30,000 3.48 8.0 18,000 2.44
3033587 25HCB330A30 CSPH*3012A** 58MV(B,C)120--- 20 30000 11.5 14.0 29,800 3.46 8.0 17,900 2.44
3033524 25HCB330A30 CSPH*3012A** 58PH*070---16 30000 11.0 14.0 30,000 3.48 8.1 18,100 2.44
3033525 25HCB330A30 CSPH*3012A** 58PH*090---16 30000 11.5 14.0 30,000 3.50 8.1 18,000 2.44
3685000 25HCB330A30 CSPH*3012A** 58VLR105 ---12 30000 11.5 14.0 30,000 3.54 8.0 18,100 2.46
3684999 25HCB330A30 CSPH*3012A** 58VMR105--- 12 29800 11.5 14.0 29,600 3.42 7.9 17,900 2.40
4209758 25HCB330A30 CSPH*3012A** OVLAAB036098 29800 11.2 13.5 30,000 3.54 8.0 18,200 2.44
4209760 25HCB330A30 CSPH*3012A** OVLAAB048112 30000 11.5 14.0 30,000 3.62 8.3 18,300 2.48
4209757 25HCB330A30 CSPH*3012A** OVMAAB036098 30000 11.2 13.5 30,000 3.56 8.2 18,200 2.44
4209759 25HCB330A30 CSPH*3012A** OVMAAB042112 30000 11.5 14.0 30,000 3.58 8.1 18,100 2.46
3033581 25HCB330A30 CSPH*3012A**+TDR 30000 10.8 13.0 30,000 3.50 8.0 18,800 2.40
3033600 25HCB330A30 CSPH*3612A** 58CV(A,X)070--- 12 30000 11.5 14.0 30,000 3.60 8.2 18,100 2.48
3033601 25HCB330A30 CSPH*3612A** 58CV(A,X)090--- 16 30000 12.0 14.0 30,000 3.62 8.2 18,000 2.50
3033602 25HCB330A30 CSPH*3612A** 58CV(A,X)110--- 20 30000 12.0 14.0 30,000 3.64 8.2 18,000 2.50

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

18

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3033603 25HCB330A30 CSPH*3612A** 58CV(A,X)135--- 22 30000 12.0 14.0 30,000 3.64 8.2 18,000 2.50
3033604 25HCB330A30 CSPH*3612A** 58CV(A,X)155--- 22 30000 12.0 14.0 30,000 3.64 8.2 17,900 2.52
3684983 25HCB330A30 CSPH*3612A** 58HDV040 --- --- 12 30000 11.2 13.5 29,800 3.60 8.1 18,400 2.48
3684984 25HCB330A30 CSPH*3612A** 58HDV060 --- --- 12 30000 11.2 13.5 29,800 3.68 8.2 18,400 2.50
3684985 25HCB330A30 CSPH*3612A** 58HDV080 --- --- 20 30000 11.5 14.0 29,800 3.80 8.2 18,400 2.56
3684986 25HCB330A30 CSPH*3612A** 58HDV100 --- --- 20 30000 11.5 14.0 29,600 3.72 8.2 18,200 2.54
3618354 25HCB330A30 CSPH*3612A** 58ME(B,C)040--- 12 30000 12.0 14.5 30,000 3.76 8.3 18,100 2.54
3121423 25HCB330A30 CSPH*3612A** 58ME(B,C)060--- 12 30000 12.0 14.5 30,000 3.78 8.3 18,200 2.56
3121424 25HCB330A30 CSPH*3612A** 58ME(B,C)080--- 12 30000 12.0 14.5 30,000 3.74 8.3 18,100 2.54
3121425 25HCB330A30 CSPH*3612A** 58ME(B,C)080--- 16 30000 11.5 14.5 30,000 3.80 8.4 18,300 2.56
3121422 25HCB330A30 CSPH*3612A** 58MEB040--- 12 30000 12.0 14.5 30,000 3.76 8.3 18,100 2.54
3033594 25HCB330A30 CSPH*3612A** 58MV(B,C)040--- 14 30000 11.5 14.0 30,000 3.58 8.2 18,000 2.48
3033595 25HCB330A30 CSPH*3612A** 58MV(B,C)060--- 14 30000 11.5 14.0 30,000 3.58 8.2 18,000 2.48
3033596 25HCB330A30 CSPH*3612A** 58MV(B,C)080--- 14 30000 11.5 14.0 30,000 3.60 8.2 18,100 2.48
3033597 25HCB330A30 CSPH*3612A** 58MV(B,C)080--- 20 30000 11.5 14.0 30,000 3.60 8.2 18,000 2.48
3033598 25HCB330A30 CSPH*3612A** 58MV(B,C)100--- 20 30000 12.0 14.0 30,000 3.62 8.2 18,000 2.50
3033599 25HCB330A30 CSPH*3612A** 58MV(B,C)120--- 20 30000 12.0 14.0 30,000 3.58 8.2 18,000 2.48
3033526 25HCB330A30 CSPH*3612A** 58PH*070---16 30000 11.5 14.0 30,000 3.68 8.2 18,300 2.50
3033527 25HCB330A30 CSPH*3612A** 58PH*090---16 30000 12.0 14.5 30,000 3.72 8.3 18,200 2.52
3685002 25HCB330A30 CSPH*3612A** 58VLR105 ---12 29600 11.5 14.0 30,000 3.66 8.3 18,100 2.52
3685001 25HCB330A30 CSPH*3612A** 58VMR105--- 12 30000 11.5 14.0 29,800 3.54 8.0 17,900 2.46
4209762 25HCB330A30 CSPH*3612A** OVLAAB036098 30000 11.5 14.5 30,000 3.62 8.3 18,100 2.48
4209764 25HCB330A30 CSPH*3612A** OVLAAB048112 30000 11.5 14.5 30,000 3.70 8.5 18,200 2.52
4209761 25HCB330A30 CSPH*3612A** OVMAAB036098 30000 11.5 14.0 30,000 3.62 8.3 18,200 2.48
4209763 25HCB330A30 CSPH*3612A** OVMAAB042112 30000 12.0 14.5 30,000 3.68 8.4 18,000 2.52
3033593 25HCB330A30 CSPH*3612A**+TDR 30000 10.8 13.0 30,000 3.64 8.2 18,900 2.44

3853223 25HCB336A30 †FY5BNF036 34000 11.0 13.0 34,000 3.64 8.0 21,400 2.52
3853224 25HCB336A30 FB4CNF036 34000 11.0 13.0 34,000 3.60 8.0 21,400 2.50
3685136 25HCB336A30 FB4CNF036+TXV 33800 11.0 13.5 35,000 3.58 7.7 21,400 2.50
3853225 25HCB336A30 FB4CNF042 34000 11.0 13.0 34,000 3.86 8.0 21,200 2.64
3685137 25HCB336A30 FB4CNF042+TXV 35200 12.0 14.5 34,400 3.88 8.3 21,200 2.66
3033802 25HCB336A30 FE4AN(B,F)003+UI 34200 11.7 14.5 34,400 3.68 8.1 20,800 2.58
3033801 25HCB336A30 FE4ANF002+UI 33800 11.5 14.0 34,600 3.64 8.0 21,000 2.54
3033803 25HCB336A30 FF1ENP036 33800 10.5 13.0 35,400 3.52 7.8 21,800 2.44
3463949 25HCB336A30 FF1ENP037 33600 11.2 14.0 34,600 3.58 7.8 21,000 2.52
3405757 25HCB336A30 FV4CN(B,F)003 34200 11.7 14.5 34,400 3.68 8.1 20,800 2.58
3405756 25HCB336A30 FV4CNF002 33800 11.5 14.0 34,600 3.64 8.0 21,000 2.54
3685132 25HCB336A30 FX4DN(B,F)037 35200 12.0 14.5 34,400 3.86 8.5 21,200 2.66
3685133 25HCB336A30 FX4DN(B,F)043 35200 12.0 14.5 34,400 3.86 8.5 21,200 2.66
3033715 25HCB336A30 FY4ANF036 33800 10.5 13.0 35,600 3.54 7.9 21,800 2.44
3033798 25HCB336A30 FY4ANF042 34400 10.8 13.0 34,800 3.60 8.0 22,000 2.50
3685138 25HCB336A30 FY5BNF036+TXV 34200 11.0 13.5 35,200 3.64 7.9 21,400 2.52
3853226 25HCB336A30 FY5BNF042 34000 11.0 13.0 34,000 3.76 8.0 21,600 2.56
3685139 25HCB336A30 FY5BNF042+TXV 34800 11.2 13.5 34,800 3.74 8.1 21,600 2.56
3033717 25HCB336A30 CAP**3614A** 58CV(A,X)070 ---12 33600 11.2 13.5 34,600 3.54 7.9 21,000 2.50
3033806 25HCB336A30 CAP**3614A** 58PH*045---08 33600 11.0 13.0 35,000 3.50 7.9 21,400 2.46
3033716 25HCB336A30 CAP**3614A**+TDR 33600 10.8 13.0 35,200 3.52 7.8 21,600 2.46
3033720 25HCB336A30 CAP**3617A** 58CV(A,X)090 ---16 33800 11.5 14.0 34,400 3.60 8.0 20,800 2.54
3618355 25HCB336A30 CAP**3617A** 58ME(B,C)040 --- 12 34000 11.5 14.0 34,600 3.64 8.1 21,000 2.56
3121427 25HCB336A30 CAP**3617A** 58ME(B,C)060 --- 12 34000 11.5 14.0 34,600 3.66 8.1 21,000 2.56
3121428 25HCB336A30 CAP**3617A** 58ME(B,C)080 --- 12 34000 11.5 14.0 34,600 3.64 8.1 21,000 2.56
3121429 25HCB336A30 CAP**3617A** 58ME(B,C)080 --- 16 34000 11.5 14.0 34,600 3.66 8.1 21,000 2.56
3121426 25HCB336A30 CAP**3617A** 58MEB040--- 12 34000 11.5 14.0 34,600 3.64 8.1 21,000 2.56
3033719 25HCB336A30 CAP**3617A** 58MV(B,C)060--- 14 33800 11.5 14.0 34,400 3.58 7.9 20,800 2.52
3033807 25HCB336A30 CAP**3617A** 58PH*070---16 33800 11.2 13.5 34,800 3.58 7.9 21,200 2.50
3757437 25HCB336A30 CAP**3617A** 58UVB060 ---14 33800 11.5 14.0 34,400 3.58 7.9 20,800 2.52
3685067 25HCB336A30 CAP**3617A** 58VLR105 ---12 33600 11.2 13.5 34,600 3.62 8.0 21,000 2.54
3685066 25HCB336A30 CAP**3617A** 58VMR105--- 12 33400 11.2 13.5 34,200 3.52 7.8 20,800 2.50
4209777 25HCB336A30 CAP**3617A** OVLAAB036098 33400 11.2 13.5 34,400 3.54 7.8 21,000 2.48
4209776 25HCB336A30 CAP**3617A** OVMAAB036098 33600 11.2 13.5 34,600 3.56 7.8 21,200 2.48
4209778 25HCB336A30 CAP**3617A** OVMAAB042112 33600 11.2 14.0 34,400 3.60 8.0 21,000 2.52
3033718 25HCB336A30 CAP**3617A**+TDR 33800 10.8 13.0 35,400 3.56 7.9 21,800 2.46
3685050 25HCB336A30 CAP**3619A** 58HDV060--- --- 12 33600 11.0 13.2 35,000 3.60 8.0 21,200 2.50
3685134 25HCB336A30 CAP**3619A**+TDR 33800 10.8 13.0 35,400 3.58 7.9 21,800 2.48
3033725 25HCB336A30 CAP**3621A** 58CV(A,X)110 ---20 34000 11.8 14.0 34,400 3.64 8.0 20,800 2.56
3121430 25HCB336A30 CAP**3621A** 58ME(B,C)100 --- 20 34200 11.5 14.5 34,400 3.66 8.1 20,800 2.58
3033722 25HCB336A30 CAP**3621A** 58MV(B,C)080--- 14 33600 11.5 14.0 34,400 3.56 7.9 20,800 2.50
3033723 25HCB336A30 CAP**3621A** 58MV(B,C)080--- 20 33800 11.5 14.0 34,400 3.60 8.0 20,800 2.54
3033724 25HCB336A30 CAP**3621A** 58MV(B,C)100--- 20 33800 11.5 14.0 34,400 3.60 8.0 20,800 2.54
3033808 25HCB336A30 CAP**3621A** 58PH*090---16 34200 11.5 14.3 34,600 3.68 8.1 20,800 2.58
3033809 25HCB336A30 CAP**3621A** 58PH*110---20 34400 11.5 14.3 34,600 3.72 8.2 21,000 2.60
3757438 25HCB336A30 CAP**3621A** 58UVB080 ---14 33600 11.5 14.0 34,400 3.56 7.9 20,800 2.50
3757439 25HCB336A30 CAP**3621A** 58UVB080 ---20 33800 11.5 14.0 34,400 3.60 8.0 20,800 2.54
3757440 25HCB336A30 CAP**3621A** 58UVB100 ---20 33800 11.5 14.0 34,400 3.60 8.0 20,800 2.54
3685069 25HCB336A30 CAP**3621A** 58VLR120 ---20 33600 11.5 14.0 34,000 3.62 8.0 20,600 2.56
3685068 25HCB336A30 CAP**3621A** 58VMR120--- 20 33600 11.5 14.0 34,200 3.58 8.0 20,800 2.54
4209779 25HCB336A30 CAP**3621A** OVLAAB048112 33800 11.2 14.0 34,400 3.66 8.0 21,000 2.54
3033721 25HCB336A30 CAP**3621A**+TDR 33800 10.8 13.0 35,400 3.56 7.9 21,800 2.46

See notes on pg. 30

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

19

COMBINATION RATINGS CONTINUED

AHRI Ref.

3121431 25HCB336A30 CAP**4221A** 58ME(B,C)100 --- 20 34400 11.5 14.5 34,400 3.72 8.1 20,800 2.60
3033730 25HCB336A30 CAP**4221A** 58CV(A,X)110 ---20 34200 11.5 14.0 34,400 3.68 8.1 20,800 2.58
3033727 25HCB336A30 CAP**4221A** 58MV(B,C)080--- 14 33800 11.5 14.0 34,400 3.60 8.0 21,000 2.52
3033728 25HCB336A30 CAP**4221A** 58MV(B,C)080--- 20 34000 11.5 14.0 34,400 3.64 8.1 20,800 2.56
3033729 25HCB336A30 CAP**4221A** 58MV(B,C)100--- 20 34000 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3033810 25HCB336A30 CAP**4221A** 58PH*090---16 34400 11.5 14.3 34,400 3.76 8.2 21,000 2.60
3033811 25HCB336A30 CAP**4221A** 58PH*110---20 34600 12.0 14.5 34,600 3.78 8.2 21,000 2.62
3757441 25HCB336A30 CAP**4221A** 58UVB080 ---14 33800 11.5 14.0 34,400 3.60 8.0 21,000 2.52
3757442 25HCB336A30 CAP**4221A** 58UVB080 ---20 34000 11.5 14.0 34,400 3.64 8.1 20,800 2.56
3757443 25HCB336A30 CAP**4221A** 58UVB100 ---20 34000 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3685071 25HCB336A30 CAP**4221A** 58VLR120 ---20 34000 11.5 14.0 34,200 3.68 8.1 20,800 2.58
3685070 25HCB336A30 CAP**4221A** 58VMR120--- 20 33600 11.5 14.0 34,400 3.64 8.1 20,800 2.56
4209780 25HCB336A30 CAP**4221A** OVLAAB048112 34000 11.5 14.0 34,600 3.72 8.0 21,200 2.56
3033726 25HCB336A30 CAP**4221A**+TDR 34200 10.8 13.0 35,400 3.60 8.0 21,800 2.48
3033734 25HCB336A30 CAP**4224A** 58CV(A,X)135 ---22 34200 11.7 14.5 34,200 3.70 8.2 20,800 2.58
3033735 25HCB336A30 CAP**4224A** 58CV(A,X)155 ---22 34200 11.7 14.5 34,200 3.72 8.2 20,600 2.60
3685049 25HCB336A30 CAP**4224A** 58HDV100--- --- 20 34400 11.5 14.0 34,800 3.78 8.3 21,200 2.60
3033732 25HCB336A30 CAP**4224A** 58MV(B,C)040--- 14 34000 11.5 14.0 34,400 3.62 8.0 20,800 2.54
3033733 25HCB336A30 CAP**4224A** 58MV(B,C)120--- 20 34000 11.5 14.0 34,200 3.66 8.1 20,800 2.56
3757444 25HCB336A30 CAP**4224A** 58UVB040 ---14 34000 11.5 14.0 34,400 3.62 8.0 20,800 2.54
3757445 25HCB336A30 CAP**4224A** 58UVB120 ---20 34000 11.5 14.0 34,200 3.66 8.1 20,800 2.56
3033731 25HCB336A30 CAP**4224A**+TDR 34200 10.8 13.0 35,400 3.60 8.0 21,800 2.48
3685095 25HCB336A30 CAP**4823A** 58HDV040--- --- 12 34400 11.2 13.5 34,200 3.64 7.9 21,600 2.54

25HCB3

3685096 25HCB336A30 CAP**4823A** 58HDV060--- --- 12 34800 11.2 13.5 34,000 3.72 8.1 21,600 2.58
3685097 25HCB336A30 CAP**4823A** 58HDV080--- --- 20 35200 11.5 14.0 34,000 3.82 8.3 21,600 2.64
3685135 25HCB336A30 CAP**4823A**+TDR 34800 11.0 13.0 34,400 3.66 8.0 22,000 2.54
3033773 25HCB336A30 CNPF*3618A**+TDR 33800 10.8 13.0 35,400 3.56 7.9 21,800 2.46
3033756 25HCB336A30 CNPH*3617A** 58CV(A,X)070 ---12 33600 11.2 13.5 34,400 3.52 7.8 21,000 2.50
3033757 25HCB336A30 CNPH*3617A** 58CV(A,X)090 ---16 33800 11.5 14.0 34,400 3.56 7.9 20,800 2.52
3033758 25HCB336A30 CNPH*3617A** 58CV(A,X)110 ---20 33800 11.5 14.0 34,400 3.58 7.9 20,800 2.52
3033759 25HCB336A30 CNPH*3617A** 58CV(A,X)135 ---22 33800 11.5 14.0 34,400 3.58 7.9 20,800 2.54
3033760 25HCB336A30 CNPH*3617A** 58CV(A,X)155 ---22 33800 11.5 14.0 34,200 3.60 8.0 20,800 2.54
3685051 25HCB336A30 CNPH*3617A** 58HDV060--- ---12 33400 11.0 13.2 35,000 3.52 7.8 21,200 2.48
3685052 25HCB336A30 CNPH*3617A** 58HDV080--- ---20 33800 11.2 13.5 35,000 3.64 8.1 21,200 2.54
3685053 25HCB336A30 CNPH*3617A** 58HDV100--- ---20 33800 11.2 13.5 34,600 3.60 8.0 21,000 2.54
3618358 25HCB336A30 CNPH*3617A** 58ME(B,C)040 ---12 33800 11.5 14.0 34,600 3.60 8.0 20,800 2.54
3121447 25HCB336A30 CNPH*3617A** 58ME(B,C)060 ---12 33800 11.5 14.0 34,600 3.58 8.0 21,000 2.54
3121448 25HCB336A30 CNPH*3617A** 58ME(B,C)080 ---12 33800 11.5 14.0 34,600 3.58 8.0 20,800 2.52
3121449 25HCB336A30 CNPH*3617A** 58ME(B,C)080 ---16 33800 11.5 14.0 34,600 3.58 8.0 21,000 2.52
3121450 25HCB336A30 CNPH*3617A** 58ME(B,C)100 ---20 33800 11.5 14.0 34,200 3.56 8.0 20,600 2.54
3121446 25HCB336A30 CNPH*3617A** 58MEB040 ---12 33800 11.5 14.0 34,600 3.60 8.0 20,800 2.54
3033750 25HCB336A30 CNPH*3617A** 58MV(B,C)040 ---14 33600 11.2 13.5 34,400 3.50 7.8 21,000 2.48
3033751 25HCB336A30 CNPH*3617A** 58MV(B,C)060 ---14 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.52
3033752 25HCB336A30 CNPH*3617A** 58MV(B,C)080 ---14 33400 11.2 13.5 34,400 3.50 7.8 21,000 2.48
3033753 25HCB336A30 CNPH*3617A** 58MV(B,C)080 ---20 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.50
3033754 25HCB336A30 CNPH*3617A** 58MV(B,C)100 ---20 33600 11.5 14.0 34,400 3.56 7.9 20,800 2.52
3033755 25HCB336A30 CNPH*3617A** 58MV(B,C)120 ---20 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.52
3033817 25HCB336A30 CNPH*3617A** 58PH*045--- 08 33600 11.0 13.0 35,000 3.48 7.9 21,400 2.46
3033818 25HCB336A30 CNPH*3617A** 58PH*070--- 16 33600 11.0 13.5 34,600 3.52 7.9 21,000 2.48
3033819 25HCB336A30 CNPH*3617A** 58PH*090--- 16 33800 11.5 14.0 34,400 3.58 8.0 20,800 2.54
3033820 25HCB336A30 CNPH*3617A** 58PH*110--- 20 34000 11.5 14.3 34,400 3.62 8.0 20,800 2.56
3685080 25HCB336A30 CNPH*3617A** 58VLR105--- 12 33400 11.2 13.5 34,600 3.56 7.9 21,000 2.52
3685082 25HCB336A30 CNPH*3617A** 58VLR120--- 20 33600 11.5 14.0 34,200 3.56 7.9 20,800 2.54
3998990 25HCB336A30 CNPH*3617A** 58VMR105 ---12 33000 11.2 13.5 34,200 3.52 7.8 20,800 2.48
3685081 25HCB336A30 CNPH*3617A** 58VMR120 ---20 33400 11.2 13.5 34,200 3.54 7.9 20,800 2.52
4209793 25HCB336A30 CNPH*3617A** OVLAAB036098 33400 11.0 13.2 34,400 3.50 7.7 21,200 2.46
4209795 25HCB336A30 CNPH*3617A** OVLAAB048112 33600 11.2 13.5 34,600 3.58 7.8 21,200 2.50
4209796 25HCB336A30 CNPH*3617A** OVLAAB060154 34400 11.2 14.0 35,000 3.76 8.1 21,400 2.58
4209792 25HCB336A30 CNPH*3617A** OVMAAB036098 33400 11.0 13.2 34,600 3.52 7.7 21,200 2.46
4209794 25HCB336A30 CNPH*3617A** OVMAAB042112 33600 11.2 13.5 34,400 3.56 7.8 21,000 2.50
3033749 25HCB336A30 CNPH*3617A**+TDR 33800 10.8 13.0 35,400 3.54 7.9 21,800 2.46
3033768 25HCB336A30 CNPH*4221A** 58CV(A,X)070 ---12 34000 11.5 14.0 34,600 3.64 8.0 21,000 2.54
3033769 25HCB336A30 CNPH*4221A** 58CV(A,X)090 ---16 34200 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3033770 25HCB336A30 CNPH*4221A** 58CV(A,X)110 ---20 34200 11.5 14.0 34,400 3.68 8.1 20,800 2.58
3033771 25HCB336A30 CNPH*4221A** 58CV(A,X)135 ---22 34200 11.5 14.0 34,400 3.68 8.1 20,800 2.58
3033772 25HCB336A30 CNPH*4221A** 58CV(A,X)155 ---22 34200 11.7 14.5 34,400 3.72 8.2 20,800 2.60
3685054 25HCB336A30 CNPH*4221A** 58HDV040--- ---12 33400 11.0 13.2 35,200 3.58 8.0 21,400 2.48
3685055 25HCB336A30 CNPH*4221A** 58HDV060--- ---12 34000 11.2 13.5 35,200 3.66 8.1 21,400 2.52
3685056 25HCB336A30 CNPH*4221A** 58HDV080--- ---20 34400 11.2 13.5 35,200 3.76 8.3 21,400 2.58
3685057 25HCB336A30 CNPH*4221A** 58HDV100--- ---20 34200 11.5 14.0 34,800 3.74 8.2 21,200 2.58
3618360 25HCB336A30 CNPH*4221A** 58ME(B,C)040 ---12 34400 11.5 14.0 34,600 3.72 8.2 21,000 2.58
3121452 25HCB336A30 CNPH*4221A** 58ME(B,C)060 ---12 34400 11.5 14.0 34,600 3.72 8.2 21,000 2.58
3121453 25HCB336A30 CNPH*4221A** 58ME(B,C)080 ---12 34400 11.5 14.0 34,600 3.70 8.2 21,000 2.58
3121454 25HCB336A30 CNPH*4221A** 58ME(B,C)080 ---16 34400 11.5 14.0 34,600 3.72 8.2 21,000 2.58
3121455 25HCB336A30 CNPH*4221A** 58ME(B,C)100 ---20 34200 11.5 14.5 34,400 3.70 8.2 20,800 2.58
3121451 25HCB336A30 CNPH*4221A** 58MEB040 ---12 34400 11.5 14.0 34,600 3.72 8.2 21,000 2.58
3033762 25HCB336A30 CNPH*4221A** 58MV(B,C)040 ---14 34000 11.5 14.0 34,600 3.62 8.0 21,000 2.52
3033763 25HCB336A30 CNPH*4221A** 58MV(B,C)060 ---14 34000 11.5 14.0 34,400 3.64 8.1 20,800 2.56
3033764 25HCB336A30 CNPH*4221A** 58MV(B,C)080 ---14 33800 11.5 14.0 34,600 3.60 8.0 21,000 2.52

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

20

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3033765 25HCB336A30 CNPH*4221A** 58MV(B,C)080 ---20 34000 11.5 14.0 34,400 3.64 8.1 21,000 2.54
3033766 25HCB336A30 CNPH*4221A** 58MV(B,C)100 ---20 34000 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3033767 25HCB336A30 CNPH*4221A** 58MV(B,C)120 ---20 34000 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3033821 25HCB336A30 CNPH*4221A** 58PH*045--- 08 34000 11.0 13.5 35,000 3.60 8.0 21,400 2.50
3033822 25HCB336A30 CNPH*4221A** 58PH*070--- 16 34000 11.0 13.5 34,800 3.64 8.0 21,200 2.52
3033823 25HCB336A30 CNPH*4221A** 58PH*090--- 16 34400 11.5 14.3 34,600 3.72 8.0 21,000 2.58
3033824 25HCB336A30 CNPH*4221A** 58PH*110--- 20 34400 11.5 14.3 34,600 3.76 8.0 21,000 2.60
3685084 25HCB336A30 CNPH*4221A** 58VLR105--- 12 34000 11.5 14.0 34,600 3.68 8.1 21,200 2.56
3685086 25HCB336A30 CNPH*4221A** 58VLR120--- 20 34000 11.5 14.0 34,200 3.68 8.0 20,800 2.58
3685083 25HCB336A30 CNPH*4221A** 58VMR105 ---12 33600 11.5 14.0 24,200 3.60 8.0 20,800 2.54
3685085 25HCB336A30 CNPH*4221A** 58VMR120 ---20 33600 11.5 14.0 34,200 3.64 8.0 20,800 2.56
4209798 25HCB336A30 CNPH*4221A** OVLAAB036098 33800 11.2 13.5 34,600 3.60 7.8 21,200 2.50
4209800 25HCB336A30 CNPH*4221A** OVLAAB048112 34000 11.2 13.5 34,600 3.70 8.0 21,200 2.54
4209801 25HCB336A30 CNPH*4221A** OVLAAB060154 34800 11.5 14.5 34,800 3.88 8.2 21,400 2.62
4209797 25HCB336A30 CNPH*4221A** OVMAAB036098 33800 11.2 13.5 34,600 3.62 8.0 21,200 2.50
4209799 25HCB336A30 CNPH*4221A** OVMAAB042112 34000 11.5 14.0 34,400 3.68 8.0 21,000 2.54
3033761 25HCB336A30 CNPH*4221A**+TDR 34200 10.8 13.0 35,400 3.62 8.0 21,800 2.50
3685118 25HCB336A30 CNPH*4321A** 58CV(A,X)070 ---12 35000 12.0 14.5 34,200 3.82 8.2 21,200 2.62
3685119 25HCB336A30 CNPH*4321A** 58CV(A,X)090 ---16 35000 12.0 14.5 34,200 3.86 8.5 21,000 2.66
3685120 25HCB336A30 CNPH*4321A** 58CV(A,X)110 ---20 35000 12.0 14.5 34,200 3.88 8.5 21,000 2.66
3685121 25HCB336A30 CNPH*4321A** 58CV(A,X)135 ---22 35000 12.2 15.0 34,000 3.90 8.5 21,000 2.68
3685122 25HCB336A30 CNPH*4321A** 58CV(A,X)155 ---22 35000 12.2 15.0 34,000 3.92 8.5 20,800 2.70
3685141 25HCB336A30 CNPH*4321A** 58HDV040--- ---12 35000 11.2 13.5 34,600 3.76 8.1 21,600 2.58
3685142 25HCB336A30 CNPH*4321A** 58HDV060--- ---12 35400 11.5 14.0 34,400 3.84 8.3 21,600 2.62
3685143 25HCB336A30 CNPH*4321A** 58HDV080--- ---20 35800 11.5 14.5 34,200 3.94 8.5 21,600 2.68
3685144 25HCB336A30 CNPH*4321A** 58HDV100--- ---20 35600 12.0 14.5 34,200 3.94 8.5 21,400 2.70
3685128 25HCB336A30 CNPH*4321A** 58ME(B,C)060 ---12 35000 12.0 14.5 34,200 3.94 8.5 21,200 2.68
3685129 25HCB336A30 CNPH*4321A** 58ME(B,C)080 ---12 35000 12.0 14.5 34,200 3.92 8.5 21,200 2.68
3685130 25HCB336A30 CNPH*4321A** 58ME(B,C)080 ---16 35000 12.0 14.5 34,200 3.92 8.5 21,200 2.68
3685131 25HCB336A30 CNPH*4321A** 58ME(B,C)100 ---20 35000 12.2 15.0 34,000 3.94 8.5 21,000 2.70
3685127 25HCB336A30 CNPH*4321A** 58MEB040 ---12 35000 12.0 14.5 34,200 3.92 8.5 21,200 2.68
3685113 25HCB336A30 CNPH*4321A** 58MV(B,C)060 ---14 35000 12.0 14.5 34,200 3.90 8.5 21,200 2.66
3685114 25HCB336A30 CNPH*4321A** 58MV(B,C)080 ---14 35000 12.0 14.5 34,200 3.84 8.5 21,200 2.64
3685115 25HCB336A30 CNPH*4321A** 58MV(B,C)080 ---20 35000 12.0 14.5 34,200 3.84 8.5 21,000 2.64
3685116 25HCB336A30 CNPH*4321A** 58MV(B,C)100 ---20 35000 12.0 14.5 34,200 3.88 8.5 21,200 2.66
3685117 25HCB336A30 CNPH*4321A** 58MV(B,C)120 ---20 35000 12.0 14.5 34,000 3.88 8.5 21,000 2.66
3685112 25HCB336A30 CNPH*4321A** 58MVB040 ---14 35000 11.5 14.5 34,200 3.82 8.2 21,200 2.62
3685123 25HCB336A30 CNPH*4321A** 58PH*045--- 08 35000 11.2 13.5 34,600 3.78 8.2 21,600 2.60
3685124 25HCB336A30 CNPH*4321A** 58PH*070--- 16 35000 11.5 14.0 34,400 3.84 8.2 21,400 2.62
3685125 25HCB336A30 CNPH*4321A** 58PH*090--- 16 35000 12.0 14.5 34,200 3.94 8.5 21,200 2.70
3685126 25HCB336A30 CNPH*4321A** 58PH*110--- 20 35000 12.2 15.0 34,000 3.98 8.5 21,200 2.72
4209803 25HCB336A30 CNPH*4321A** OVLAAB036098 34800 11.5 14.5 34,200 3.80 8.4 21,400 2.60
4209805 25HCB336A30 CNPH*4321A** OVLAAB048112 35200 12.0 14.5 34,200 3.90 8.5 21,400 2.64
4209806 25HCB336A30 CNPH*4321A** OVLAAB060154 36000 12.0 14.5 33,800 4.02 8.8 21,600 2.72
4209802 25HCB336A30 CNPH*4321A** OVMAAB036098 34800 11.5 14.5 34,200 3.82 8.4 21,400 2.60
4209804 25HCB336A30 CNPH*4321A** OVMAAB042112 35000 12.0 14.5 34,000 3.88 8.4 21,200 2.64
3685111 25HCB336A30 CNPH*4321A**+TDR 35200 11.0 13.0 34,800 3.76 8.5 22,000 2.58
3033738 25HCB336A30 CNPV*3617A** 58CV(A,X)090 ---16 33800 11.5 14.0 34,400 3.56 7.9 20,800 2.52
4209817 25HCB336A30 CNPV*3617A** 58HDV040--- --- 12 33200 11.0 13.0 34,600 3.48 7.7 21,400 2.44
4209818 25HCB336A30 CNPV*3617A** 58HDV060--- --- 12 33600 11.0 13.2 34,600 3.56 7.7 21,200 2.48
3618356 25HCB336A30 CNPV*3617A** 58ME(B,C)040 ---12 33800 11.5 14.0 34,600 3.60 8.0 20,800 2.54
3121433 25HCB336A30 CNPV*3617A** 58ME(B,C)060 ---12 33800 11.5 14.0 34,600 3.58 8.0 21,000 2.54
3121434 25HCB336A30 CNPV*3617A** 58ME(B,C)080 ---12 33800 11.5 14.0 34,600 3.58 8.0 20,800 2.52
3121435 25HCB336A30 CNPV*3617A** 58ME(B,C)080 ---16 33800 11.5 14.0 34,600 3.58 8.0 21,000 2.52
3121432 25HCB336A30 CNPV*3617A** 58MEB040 ---12 33800 11.5 14.0 34,600 3.60 8.0 20,800 2.54
3033737 25HCB336A30 CNPV*3617A** 58MV(B,C)060 ---14 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.52
3033812 25HCB336A30 CNPV*3617A** 58PH*070--- 16 33600 11.0 13.5 34,600 3.52 7.9 21,000 2.48
3758749 25HCB336A30 CNPV*3617A** 58UVB060--- 14 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.52
3685073 25HCB336A30 CNPV*3617A** 58VLR105--- 12 33600 11.2 13.5 34,600 3.56 8.0 21,000 2.52
3685072 25HCB336A30 CNPV*3617A** 58VMR105 ---12 33000 11.2 13.5 34,200 3.48 7.8 20,800 2.48
4209782 25HCB336A30 CNPV*3617A** OVLAAB036098 33400 11.0 13.2 34,400 3.50 7.7 21,200 2.46
4209781 25HCB336A30 CNPV*3617A** OVMAAB036098 33400 11.0 13.2 34,600 3.52 7.8 21,200 2.46
4209783 25HCB336A30 CNPV*3617A** OVMAAB042112 33600 11.2 13.5 34,400 3.56 7.8 21,000 2.50
3033736 25HCB336A30 CNPV*3617A**+TDR 33800 10.8 13.0 35,400 3.56 7.9 21,800 2.46
3033743 25HCB336A30 CNPV*3621A** 58CV(A,X)110 ---20 33800 11.5 14.0 34,400 3.58 7.9 20,800 2.54
4209819 25HCB336A30 CNPV*3621A** 58HDV040--- --- 12 33200 11.0 13.2 34,600 3.48 7.7 21,400 2.44
4209820 25HCB336A30 CNPV*3621A** 58HDV060--- --- 12 33600 11.2 13.5 34,600 3.56 7.7 21,200 2.48
4209821 25HCB336A30 CNPV*3621A** 58HDV080--- --- 20 34000 11.2 14.0 34,800 3.68 8.0 21,200 2.54
3121436 25HCB336A30 CNPV*3621A** 58ME(B,C)100 ---20 33800 11.5 14.0 34,400 3.58 8.0 20,600 2.54
3033740 25HCB336A30 CNPV*3621A** 58MV(B,C)080 ---14 33400 11.2 13.5 34,400 3.50 7.8 21,000 2.48
3033741 25HCB336A30 CNPV*3621A** 58MV(B,C)080 ---20 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.52
3033742 25HCB336A30 CNPV*3621A** 58MV(B,C)100 ---20 33800 11.5 14.0 34,400 3.56 7.9 20,800 2.52
3033813 25HCB336A30 CNPV*3621A** 58PH*090--- 16 34000 11.5 14.0 34,400 3.60 8.0 20,800 2.54
3033814 25HCB336A30 CNPV*3621A** 58PH*110--- 20 34000 11.5 14.0 34,600 3.62 8.0 20,800 2.56
3758750 25HCB336A30 CNPV*3621A** 58UVB080--- 14 33400 11.2 13.5 34,400 3.50 7.8 21,000 2.48
3758751 25HCB336A30 CNPV*3621A** 58UVB080--- 20 33600 11.5 14.0 34,400 3.54 7.9 20,800 2.52
3758752 25HCB336A30 CNPV*3621A** 58UVB100--- 20 33800 11.5 14.0 34,400 3.56 7.9 20,800 2.52
3685075 25HCB336A30 CNPV*3621A** 58VLR120--- 20 33600 11.5 14.0 34,000 3.58 8.0 20,800 2.54
3685074 25HCB336A30 CNPV*3621A** 58VMR120 ---20 33400 11.2 13.5 34,200 3.54 7.9 20,800 2.52

See notes on pg. 30

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

21

COMBINATION RATINGS CONTINUED

AHRI Ref.

4209784 25HCB336A30 CNPV*3621A** OVLAAB048112 33600 11.2 13.5 34,600 3.60 7.8 21,200 2.50
3033739 25HCB336A30 CNPV*3621A**+TDR 33800 10.8 13.0 35,400 3.56 7.9 21,800 2.46
3685100 25HCB336A30 CNPV*3717A** 58CV(A,X)090 ---16 35200 12.0 14.5 34,200 3.86 8.5 21,000 2.66
4209822 25HCB336A30 CNPV*3717A** 58HDV040--- --- 12 34800 11.2 13.5 34,400 3.76 8.2 21,600 2.56
4209823 25HCB336A30 CNPV*3717A** 58HDV060--- --- 12 35000 11.5 14.0 34,200 3.84 8.2 21,600 2.62
3685103 25HCB336A30 CNPV*3717A** 58ME(B,C)060 ---12 35400 12.0 14.5 34,200 3.90 8.5 21,200 2.68
3685104 25HCB336A30 CNPV*3717A** 58ME(B,C)080 ---12 35400 12.0 14.5 34,200 3.90 8.5 21,200 2.66
3685105 25HCB336A30 CNPV*3717A** 58ME(B,C)080 ---16 35400 12.0 14.5 34,200 3.90 8.5 21,200 2.68
3685102 25HCB336A30 CNPV*3717A** 58MEB040 ---12 35400 12.0 14.5 34,200 3.90 8.5 21,200 2.68
3685099 25HCB336A30 CNPV*3717A** 58MV(B,C)060 ---14 35200 12.0 14.5 34,200 3.88 8.5 21,200 2.66
3685101 25HCB336A30 CNPV*3717A** 58PH*070--- 16 35200 11.5 14.0 34,400 3.82 8.2 21,400 2.62
3685290 25HCB336A30 CNPV*3717A** 58UVB060--- 14 35200 12.0 14.5 34,200 3.88 8.5 21,200 2.66
4209786 25HCB336A30 CNPV*3717A** OVLAAB036098 34800 11.5 14.0 34,200 3.80 8.3 21,400 2.58
4209785 25HCB336A30 CNPV*3717A** OVMAAB036098 34800 11.5 14.0 34,200 3.80 8.4 21,400 2.60
4209787 25HCB336A30 CNPV*3717A** OVMAAB042112 35000 12.0 14.5 34,000 3.86 8.5 21,200 2.64
3685098 25HCB336A30 CNPV*3717A**+TDR 35200 11.0 13.0 34,800 3.76 8.1 22,000 2.58
3121439 25HCB336A30 CNPV*4217A** 58CV(A,X)090 ---16 34400 11.5 14.5 34,400 3.74 8.2 21,000 2.58
4209824 25HCB336A30 CNPV*4217A** 58HDV040--- --- 12 34000 11.0 13.2 34,800 3.66 8.0 21,400 2.50
4209825 25HCB336A30 CNPV*4217A** 58HDV060--- --- 12 34400 11.2 14.0 34,800 3.74 8.2 21,400 2.54
3618357 25HCB336A30 CNPV*4217A** 58ME(B,C)040 ---12 34600 11.5 14.5 34,400 3.78 8.3 21,000 2.60
3121442 25HCB336A30 CNPV*4217A** 58ME(B,C)060 ---12 34600 11.5 14.0 34,600 3.78 8.3 21,200 2.60
3121443 25HCB336A30 CNPV*4217A** 58ME(B,C)080 ---12 34600 11.5 14.5 34,400 3.76 8.3 21,000 2.60
3121444 25HCB336A30 CNPV*4217A** 58ME(B,C)080 ---16 34600 11.5 14.0 34,600 3.78 8.3 21,200 2.60

25HCB3

3121441 25HCB336A30 CNPV*4217A** 58MEB040 ---12 34600 11.5 14.5 34,400 3.78 8.3 21,000 2.60
3121438 25HCB336A30 CNPV*4217A** 58MV(B,C)060 ---14 34600 11.5 14.0 34,600 3.76 8.2 21,000 2.60
3121440 25HCB336A30 CNPV*4217A** 58PH*070--- 16 34400 11.0 14.0 34,600 3.70 8.2 21,200 2.56
3758815 25HCB336A30 CNPV*4217A** 58UVB060--- 14 34600 11.5 14.0 34,600 3.76 8.2 21,000 2.60
3685077 25HCB336A30 CNPV*4217A** 58VLR105--- 12 34200 11.5 14.0 34,600 3.74 8.1 21,200 2.58
3685076 25HCB336A30 CNPV*4217A** 58VMR105 ---12 34000 11.5 14.0 34,400 3.66 8.0 21,000 2.56
4209789 25HCB336A30 CNPV*4217A** OVLAAB036098 34000 11.2 14.0 34,600 3.68 8.0 21,200 2.52
4209788 25HCB336A30 CNPV*4217A** OVMAAB036098 34200 11.2 13.5 34,600 3.70 8.0 21,200 2.54
4209790 25HCB336A30 CNPV*4217A** OVMAAB042112 34200 11.5 14.0 34,600 3.74 8.2 21,200 2.56
3121437 25HCB336A30 CNPV*4217A**+TDR 34600 10.5 13.0 35,200 3.68 8.1 22,000 2.52
3033748 25HCB336A30 CNPV*4221A** 58CV(A,X)110 ---20 34200 11.5 14.0 34,400 3.68 8.1 20,800 2.58
4209826 25HCB336A30 CNPV*4221A** 58HDV040--- --- 12 33800 11.0 13.2 34,800 3.60 7.8 21,400 2.48
4209827 25HCB336A30 CNPV*4221A** 58HDV060--- --- 12 34000 11.2 13.5 34,800 3.68 8.0 21,400 2.52
4209828 25HCB336A30 CNPV*4221A** 58HDV080--- --- 20 34400 11.5 14.0 34,800 3.80 8.2 21,400 2.58
3121445 25HCB336A30 CNPV*4221A** 58ME(B,C)100 ---20 34200 11.5 14.5 34,400 3.70 8.2 20,800 2.58
3033745 25HCB336A30 CNPV*4221A** 58MV(B,C)080 ---14 33800 11.5 14.0 34,600 3.60 8.0 21,000 2.52
3033746 25HCB336A30 CNPV*4221A** 58MV(B,C)080 ---20 34000 11.5 14.0 34,600 3.64 8.1 21,000 2.54
3033747 25HCB336A30 CNPV*4221A** 58MV(B,C)100 ---20 34000 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3033815 25HCB336A30 CNPV*4221A** 58PH*090--- 16 34400 11.5 14.5 34,600 3.72 8.2 21,000 2.58
3033816 25HCB336A30 CNPV*4221A** 58PH*110--- 20 34400 11.5 14.5 34,600 3.76 8.2 21,000 2.60
3758753 25HCB336A30 CNPV*4221A** 58UVB080--- 14 33800 11.5 14.0 34,600 3.60 8.0 21,000 2.52
3758754 25HCB336A30 CNPV*4221A** 58UVB080--- 20 34000 11.5 14.0 34,600 3.64 8.1 21,000 2.54
3758755 25HCB336A30 CNPV*4221A** 58UVB100--- 20 34000 11.5 14.0 34,400 3.66 8.1 20,800 2.56
3685079 25HCB336A30 CNPV*4221A** 58VLR120--- 20 34000 11.5 14.0 34,200 3.68 8.0 20,800 2.58
3685078 25HCB336A30 CNPV*4221A** 58VMR120 ---20 33800 11.5 14.0 34,400 3.64 8.0 20,800 2.56
4209791 25HCB336A30 CNPV*4221A** OVLAAB048112 34000 11.2 14.0 34,600 3.70 8.0 21,200 2.54
3033744 25HCB336A30 CNPV*4221A**+TDR 34200 10.8 13.0 35,400 3.62 8.0 21,800 2.50
3685109 25HCB336A30 CNPV*4324A** 58CV(A,X)135 ---22 35200 12.2 15.0 34,000 3.92 8.5 21,000 2.68
3685110 25HCB336A30 CNPV*4324A** 58CV(A,X)155 ---22 35400 12.5 15.0 34,000 3.94 8.5 20,800 2.70
4209829 25HCB336A30 CNPV*4324A** 58HDV080--- --- 20 35600 12.0 14.5 34,000 3.98 8.6 21,600 2.70
4149676 25HCB336A30 CNPV*4324A** 58HDV100--- --- 20 35800 12.2 14.5 34,200 3.96 8.5 21,400 2.70

3685140 25HCB336A30 CNPV*4324A**

3685108 25HCB336A30 CNPV*4324A** 58MV(B,C)120 ---20 35200 12.2 15.0 34,000 3.90 8.5 21,000 2.68
3685107 25HCB336A30 CNPV*4324A** 58MVB040 ---14 35000 12.0 14.5 34,200 3.82 8.2 21,000 2.64
3685291 25HCB336A30 CNPV*4324A** 58UVB120--- 20 35200 12.2 15.0 34,000 3.90 8.5 21,000 2.68
3685106 25HCB336A30 CNPV*4324A**+TDR 35200 11.0 13.0 34,800 3.76 8.1 22,000 2.58
3033781 25HCB336A30 CSPH*3612A** 58CV(A,X)070--- 12 34400 11.5 14.0 34,600 3.70 8.2 21,000 2.56
3033782 25HCB336A30 CSPH*3612A** 58CV(A,X)090--- 16 34600 11.7 14.5 34,400 3.74 8.2 21,000 2.60
3033783 25HCB336A30 CSPH*3612A** 58CV(A,X)110--- 20 34600 11.7 14.5 34,400 3.76 8.3 21,000 2.60
3033784 25HCB336A30 CSPH*3612A** 58CV(A,X)135--- 22 34600 11.7 14.5 34,400 3.76 8.3 20,800 2.60
3033785 25HCB336A30 CSPH*3612A** 58CV(A,X)155--- 22 34600 11.7 14.5 34,200 3.78 8.3 20,800 2.62
3685058 25HCB336A30 CSPH*3612A** 58HDV040 --- --- 12 34000 11.0 13.2 35,200 3.64 8.1 21,600 2.52
3685059 25HCB336A30 CSPH*3612A** 58HDV060 --- --- 12 34400 11.2 13.5 35,200 3.74 8.2 21,400 2.56
3685060 25HCB336A30 CSPH*3612A** 58HDV080 --- --- 20 34800 11.5 14.0 35,200 3.84 8.3 21,400 2.62
3685061 25HCB336A30 CSPH*3612A** 58HDV100 --- --- 20 34600 11.5 14.0 34,800 3.82 8.2 21,200 2.62
3618361 25HCB336A30 CSPH*3612A** 58ME(B,C)040--- 12 34800 11.5 14.5 34,600 3.80 8.3 21,000 2.62
3121457 25HCB336A30 CSPH*3612A** 58ME(B,C)060--- 12 34800 11.5 14.5 34,600 3.80 8.3 21,200 2.62
3121458 25HCB336A30 CSPH*3612A** 58ME(B,C)080--- 12 34800 11.5 14.5 34,600 3.78 8.3 21,000 2.62
3121459 25HCB336A30 CSPH*3612A** 58ME(B,C)080--- 16 34800 11.5 14.5 34,600 3.80 8.3 21,200 2.62
3121460 25HCB336A30 CSPH*3612A** 58ME(B,C)100--- 20 34600 12.0 14.5 34,400 3.78 8.3 20,800 2.62
3121456 25HCB336A30 CSPH*3612A** 58MEB040--- 12 34800 11.5 14.5 34,600 3.80 8.3 21,000 2.62
3033775 25HCB336A30 CSPH*3612A** 58MV(B,C)040--- 14 34400 11.5 14.0 34,600 3.68 8.1 21,000 2.56
3033776 25HCB336A30 CSPH*3612A** 58MV(B,C)060--- 14 34400 11.5 14.0 34,400 3.72 8.2 21,000 2.58
3033777 25HCB336A30 CSPH*3612A** 58MV(B,C)080--- 14 34400 11.5 14.0 34,600 3.68 8.1 21,000 2.56
3033778 25HCB336A30 CSPH*3612A** 58MV(B,C)080--- 20 34400 11.5 14.0 34,400 3.72 8.2 21,000 2.58

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

58HDV100--- --- 20

(DNFLW ONLY)

Cooling

Capacity

35800 12.2 14.5 34,200 3.96 8.5 21,400 2.70

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

22

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3033779 25HCB336A30 CSPH*3612A** 58MV(B,C)100--- 20 34600 11.5 14.0 34,400 3.72 8.2 21,000 2.58
3033780 25HCB336A30 CSPH*3612A** 58MV(B,C)120--- 20 34400 11.5 14.0 34,400 3.72 8.2 21,000 2.58
3033825 25HCB336A30 CSPH*3612A** 58PH*045---08 34400 11.0 13.5 35,000 3.68 8.0 21,400 2.54
3033826 25HCB336A30 CSPH*3612A** 58PH*070---16 34400 11.5 14.0 34,800 3.72 8.0 21,200 2.56
3033827 25HCB336A30 CSPH*3612A** 58PH*090---16 34800 12.0 14.5 34,400 3.80 8.0 21,000 2.62
3033828 25HCB336A30 CSPH*3612A** 58PH*110---20 35000 12.0 14.5 34,400 3.84 8.0 21,000 2.64
3685088 25HCB336A30 CSPH*3612A** 58VLR105 ---12 34200 11.5 14.0 34,800 3.76 8.1 21,200 2.60
3685090 25HCB336A30 CSPH*3612A** 58VLR120 ---20 34200 12.0 14.5 34,400 3.76 8.3 20,800 2.62
3685087 25HCB336A30 CSPH*3612A** 58VMR105--- 12 34000 11.5 14.0 24,200 3.68 8.0 21,000 2.56
3685089 25HCB336A30 CSPH*3612A** 58VMR120--- 20 34000 11.5 14.0 34,400 3.72 8.1 21,000 2.58
4209808 25HCB336A30 CSPH*3612A** OVLAAB036098 34200 11.2 14.0 34,600 3.68 8.0 21,200 2.54
4209810 25HCB336A30 CSPH*3612A** OVLAAB048112 34600 11.5 14.0 34,800 3.78 8.2 21,200 2.58
4209811 25HCB336A30 CSPH*3612A** OVLAAB060154 35200 11.5 14.5 34,800 3.94 8.5 21,400 2.66
4209807 25HCB336A30 CSPH*3612A** OVMAAB036098 34200 11.2 13.5 34,800 3.70 8.0 21,200 2.54
4209809 25HCB336A30 CSPH*3612A** OVMAAB042112 34400 11.5 14.5 34,600 3.76 8.2 21,200 2.58
3033774 25HCB336A30 CSPH*3612A**+TDR 34600 11.0 13.2 35,200 3.68 8.1 22,000 2.52
3033793 25HCB336A30 CSPH*4212A** 58CV(A,X)070--- 12 34600 11.5 14.0 34,400 3.74 8.2 21,000 2.58
3033794 25HCB336A30 CSPH*4212A** 58CV(A,X)090--- 16 34800 11.7 14.5 34,200 3.78 8.3 21,000 2.62
3033795 25HCB336A30 CSPH*4212A** 58CV(A,X)110--- 20 34800 11.7 14.5 34,200 3.80 8.3 21,000 2.62
3033796 25HCB336A30 CSPH*4212A** 58CV(A,X)135--- 22 34800 11.7 14.5 34,200 3.80 8.4 21,000 2.62
3033797 25HCB336A30 CSPH*4212A** 58CV(A,X)155--- 22 35000 11.7 14.5 34,000 3.82 8.4 20,800 2.64
3685062 25HCB336A30 CSPH*4212A** 58HDV040 --- --- 12 34400 11.2 13.5 34,800 3.70 8.1 21,600 2.54
3685063 25HCB336A30 CSPH*4212A** 58HDV060 --- --- 12 34600 11.2 13.5 34,800 3.78 8.1 21,600 2.58
3685064 25HCB336A30 CSPH*4212A** 58HDV080 --- --- 20 35200 11.5 14.0 34,600 3.88 8.2 21,600 2.64
3685065 25HCB336A30 CSPH*4212A** 58HDV100 --- --- 20 35000 11.5 14.0 34,200 3.86 8.2 21,200 2.64
3618362 25HCB336A30 CSPH*4212A** 58ME(B,C)040--- 12 35000 12.0 14.5 34,400 3.84 8.4 21,200 2.64
3121462 25HCB336A30 CSPH*4212A** 58ME(B,C)060--- 12 35200 11.5 14.5 34,400 3.84 8.3 21,200 2.64
3121463 25HCB336A30 CSPH*4212A** 58ME(B,C)080--- 12 35000 11.5 14.5 34,400 3.82 8.3 21,000 2.64
3121464 25HCB336A30 CSPH*4212A** 58ME(B,C)080--- 16 35000 11.5 14.5 34,400 3.84 8.3 21,200 2.64
3121535 25HCB336A30 CSPH*4212A** 58ME(B,C)100--- 20 35000 12.0 14.5 34,200 3.84 8.3 21,000 2.64
3121461 25HCB336A30 CSPH*4212A** 58MEB040--- 12 35000 12.0 14.5 34,400 3.84 8.4 21,200 2.64
3033787 25HCB336A30 CSPH*4212A** 58MV(B,C)040--- 14 34600 11.5 14.0 34,400 3.72 8.2 21,000 2.58
3033788 25HCB336A30 CSPH*4212A** 58MV(B,C)060--- 14 34600 11.7 14.5 34,200 3.76 8.3 21,000 2.60
3033789 25HCB336A30 CSPH*4212A** 58MV(B,C)080--- 14 34600 11.5 14.0 34,400 3.70 8.2 21,000 2.58
3033790 25HCB336A30 CSPH*4212A** 58MV(B,C)080--- 20 34600 11.5 14.0 34,200 3.74 8.3 21,000 2.60
3033791 25HCB336A30 CSPH*4212A** 58MV(B,C)100--- 20 34800 11.7 14.5 34,200 3.76 8.3 21,000 2.60
3033792 25HCB336A30 CSPH*4212A** 58MV(B,C)120--- 20 34600 11.7 14.5 34,200 3.76 8.3 21,000 2.60
3033829 25HCB336A30 CSPH*4212A** 58PH*045---08 34600 11.0 13.5 34,800 3.70 8.0 21,600 2.56
3033830 25HCB336A30 CSPH*4212A** 58PH*070---16 34800 11.5 14.0 34,600 3.76 8.0 21,200 2.58
3033831 25HCB336A30 CSPH*4212A** 58PH*090---16 35000 12.0 14.5 34,200 3.84 8.0 21,000 2.64
3033832 25HCB336A30 CSPH*4212A** 58PH*110---20 35200 12.0 14.5 34,200 3.88 8.0 21,000 2.66
3685092 25HCB336A30 CSPH*4212A** 58VLR105 ---12 34600 11.5 14.0 34,600 3.80 8.3 21,200 2.62
3685094 25HCB336A30 CSPH*4212A** 58VLR120 ---20 34600 12.0 14.5 34,200 3.82 8.3 20,800 2.64
3685091 25HCB336A30 CSPH*4212A** 58VMR105--- 12 34200 11.5 14.0 34,400 3.72 8.1 21,000 2.58
3685093 25HCB336A30 CSPH*4212A** 58VMR120--- 20 34200 11.5 14.0 34,400 3.76 8.2 21,000 2.60
4209813 25HCB336A30 CSPH*4212A** OVLAAB036098 34400 11.5 14.0 34,600 3.74 8.2 21,200 2.56
4209815 25HCB336A30 CSPH*4212A** OVLAAB048112 34800 11.5 14.5 34,600 3.82 8.2 21,400 2.60
4209816 25HCB336A30 CSPH*4212A** OVLAAB060154 35600 12.0 14.5 34,400 3.98 8.5 21,400 2.68
4209812 25HCB336A30 CSPH*4212A** OVMAAB036098 34600 11.5 14.0 34,600 3.76 8.2 21,400 2.56
4209814 25HCB336A30 CSPH*4212A** OVMAAB042112 34600 11.5 14.5 34,400 3.80 8.2 21,200 2.60
3033786 25HCB336A30 CSPH*4212A**+TDR 34800 11.0 13.2 34,800 3.70 8.2 22,000 2.54

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

3850723 25HCB342A30 †FY5BNF042 41000 11.0 13.0 41,000 3.64 8.0 26,000 2.54
3850724 25HCB342A30 FB4CNF042 41000 11.0 13.0 41,000 3.68 8.0 25,800 2.56
3685210 25HCB342A30 FB4CNF042+TXV 41000 11.5 14.0 42,000 3.68 8.2 25,800 2.56
3850725 25HCB342A30 FB4CNF048 41000 11.0 13.0 41,000 3.72 8.0 25,600 2.58
3685211 25HCB342A30 FB4CNF048+TXV 41500 11.5 14.0 42,000 3.70 8.3 25,800 2.58
3034161 25HCB342A30 FE4AN(B,F)003+UI 40000 11.5 14.0 41,000 3.42 7.9 25,600 2.40
3034162 25HCB342A30 FE4AN(B,F)005+UI 42000 12.1 14.5 40,500 3.64 8.3 25,800 2.50
3034163 25HCB342A30 FE4ANB006+UI 42500 12.4 15.0 39,500 3.68 8.4 25,800 2.56
3405762 25HCB342A30 FV4CN(B,F)003 40000 11.5 14.0 41,000 3.42 7.9 25,600 2.40
3405763 25HCB342A30 FV4CN(B,F)005 42000 12.1 14.5 40,500 3.64 8.3 25,800 2.50
3405764 25HCB342A30 FV4CNB006 42500 12.4 15.0 39,500 3.68 8.4 25,800 2.56
3685207 25HCB342A30 FX4DN(B,F)043 41500 11.5 14.0 42,000 3.70 8.2 25,800 2.56
3685208 25HCB342A30 FX4DN(B,F)049 42000 12.0 14.5 41,000 3.78 8.5 25,800 2.64
3034069 25HCB342A30 FY4ANF042 40500 10.4 13.0 42,000 3.54 8.1 26,400 2.46
3034158 25HCB342A30 FY4ANF048 41500 10.6 13.2 41,000 3.56 8.2 26,600 2.50
3685212 25HCB342A30 FY5BNF042+TXV 41000 11.2 13.5 42,000 3.64 8.1 26,000 2.54
3850726 25HCB342A30 FY5BNF048 41000 11.0 13.0 41,000 3.74 8.0 26,200 2.56
3685213 25HCB342A30 FY5BNF048+TXV 42000 11.2 13.5 41,500 3.66 8.2 26,200 2.56
3034157 25HCB342A30 CAP**4221A** 58CV(A,X)090 ---16 40000 11.2 14.0 41,500 3.40 7.8 25,800 2.40
3034074 25HCB342A30 CAP**4221A** 58CV(A,X)110 ---20 40000 11.2 14.0 41,000 3.50 8.1 25,200 2.52
3121465 25HCB342A30 CAP**4221A** 58ME(B,C)100 --- 20 40500 11.5 14.0 41,000 3.56 8.2 25,200 2.54

See notes on pg. 30

23

COMBINATION RATINGS CONTINUED

AHRI Ref.

3034071 25HCB342A30 CAP**4221A** 58MV(B,C)080--- 14 39500 10.9 13.5 41,500 3.42 7.9 25,400 2.46
3034072 25HCB342A30 CAP**4221A** 58MV(B,C)080--- 20 40000 11.0 13.5 41,500 3.46 8.0 25,200 2.48
3034073 25HCB342A30 CAP**4221A** 58MV(B,C)100--- 20 40000 11.2 13.5 41,000 3.48 8.0 25,200 2.50
3034168 25HCB342A30 CAP**4221A** 58PH*090---16 40000 11.2 13.5 41,000 3.54 8.2 25,200 2.54
3034169 25HCB342A30 CAP**4221A** 58PH*110---20 40500 11.5 14.0 41,000 3.56 8.2 25,200 2.54
3757464 25HCB342A30 CAP**4221A** 58UVB080 ---14 39500 10.9 13.5 41,500 3.42 7.9 25,400 2.46
3757465 25HCB342A30 CAP**4221A** 58UVB080 ---20 40000 11.0 13.5 41,500 3.46 8.0 25,200 2.48
3757466 25HCB342A30 CAP**4221A** 58UVB100 ---20 40000 11.2 13.5 41,000 3.48 8.0 25,200 2.50
3685160 25HCB342A30 CAP**4221A** 58VLR120 ---20 39500 11.2 13.5 41,000 3.50 8.0 25,200 2.52
3685159 25HCB342A30 CAP**4221A** 58VMR120--- 20 39500 11.2 13.5 41,000 3.48 8.0 25,200 2.50
4209830 25HCB342A30 CAP**4221A** OVLAAB048112 40000 11.0 13.2 41,500 3.52 8.0 25,800 2.48
3034070 25HCB342A30 CAP**4221A**+TDR 40000 10.4 13.0 42,500 3.50 8.0 26,200 2.46
3034078 25HCB342A30 CAP**4224A** 58CV(A,X)135 ---22 40000 11.4 14.0 41,000 3.54 8.2 25,000 2.54
3034079 25HCB342A30 CAP**4224A** 58CV(A,X)155 ---22 40000 11.5 14.0 41,000 3.52 8.2 25,000 2.54
3685145 25HCB342A30 CAP**4224A** 58HDV100--- --- 20 40000 11.2 13.5 41,000 3.54 8.2 25,400 2.52
3121466 25HCB342A30 CAP**4224A** 58ME(B,C)120 --- 20 40500 11.5 14.0 41,000 3.60 8.3 25,200 2.56
3034076 25HCB342A30 CAP**4224A** 58MV(B,C)040--- 14 39500 11.0 13.5 41,000 3.44 8.0 25,200 2.48
3034077 25HCB342A30 CAP**4224A** 58MV(B,C)120--- 20 40000 11.2 14.0 41,000 3.48 8.0 25,200 2.50
3034170 25HCB342A30 CAP**4224A** 58PH*135---20 40500 11.5 14.0 41,000 3.56 8.2 25,200 2.54
3757467 25HCB342A30 CAP**4224A** 58UVB040 ---14 39500 11.0 13.5 41,000 3.44 8.0 25,200 2.48
3757468 25HCB342A30 CAP**4224A** 58UVB120 ---20 40000 11.2 14.0 41,000 3.48 8.0 25,200 2.50
3034075 25HCB342A30 CAP**4224A**+TDR 40000 10.4 13.0 42,500 3.50 8.0 26,200 2.46
3034082 25HCB342A30 CAP**4817A** 58CV(A,X)090 ---16 40000 11.4 14.0 39,500 3.68 8.4 25,400 2.58

25HCB3

3618363 25HCB342A30 CAP**4817A** 58ME(B,C)040 --- 12 41500 11.5 14.0 41,000 3.68 8.4 25,800 2.58
3121468 25HCB342A30 CAP**4817A** 58ME(B,C)060 --- 12 41500 11.5 14.0 41,000 3.68 8.4 25,800 2.58
3121467 25HCB342A30 CAP**4817A** 58MEB040--- 12 41500 11.5 14.0 41,000 3.68 8.4 25,800 2.58
3034081 25HCB342A30 CAP**4817A** 58MV(B,C)060--- 14 40000 11.3 14.0 39,500 3.64 8.4 25,600 2.56
3034171 25HCB342A30 CAP**4817A** 58PH*070---16 41000 11.0 13.5 41,000 3.60 8.2 26,000 2.52
3757469 25HCB342A30 CAP**4817A** 58UVB060 ---14 40000 11.3 14.0 39,500 3.64 8.4 25,600 2.56
4209831 25HCB342A30 CAP**4817A** OVMAAB042112 41000 11.2 14.0 41,500 3.66 8.3 25,800 2.54
3034080 25HCB342A30 CAP**4817A**+TDR 40500 10.7 13.0 40,000 3.64 8.4 26,400 2.54
3034087 25HCB342A30 CAP**4821A** 58CV(A,X)110 ---20 41000 11.4 14.0 41,000 3.68 8.4 25,400 2.58
3121469 25HCB342A30 CAP**4821A** 58ME(B,C)100 --- 20 41000 11.5 14.0 41,000 3.72 8.4 25,400 2.60
3034084 25HCB342A30 CAP**4821A** 58MV(B,C)080--- 14 40500 11.4 13.5 41,500 3.58 8.2 25,600 2.52
3034085 25HCB342A30 CAP**4821A** 58MV(B,C)080--- 20 40500 11.2 13.5 41,000 3.62 8.3 25,400 2.54
3034086 25HCB342A30 CAP**4821A** 58MV(B,C)100--- 20 40500 11.3 14.0 41,000 3.64 8.4 25,400 2.56
3034172 25HCB342A30 CAP**4821A** 58PH*090---16 41000 11.5 14.0 41,000 3.68 8.2 25,400 2.58
3034173 25HCB342A30 CAP**4821A** 58PH*110---20 41000 11.5 14.0 41,000 3.70 8.4 25,400 2.60
3757470 25HCB342A30 CAP**4821A** 58UVB080 ---14 40500 11.4 13.5 41,500 3.58 8.2 25,600 2.52
3757471 25HCB342A30 CAP**4821A** 58UVB080 ---20 40500 11.2 13.5 41,000 3.62 8.3 25,400 2.54
3757472 25HCB342A30 CAP**4821A** 58UVB100 ---20 40500 11.3 14.0 41,000 3.64 8.4 25,400 2.56
3685162 25HCB342A30 CAP**4821A** 58VLR120 ---20 40500 11.5 14.0 41,500 3.66 8.3 25,400 2.56
3685161 25HCB342A30 CAP**4821A** 58VMR120--- 20 40500 11.2 13.5 41,500 3.64 8.2 25,400 2.56
4209832 25HCB342A30 CAP**4821A** OVLAAB048112 41000 11.0 13.5 42,000 3.66 8.3 26,000 2.52
3034083 25HCB342A30 CAP**4821A**+TDR 41000 10.6 13.0 42,000 3.62 8.3 26,400 2.52
3685177 25HCB342A30 CAP**4823A** 58HDV080--- --- 20 41000 11.2 13.5 41,500 3.70 8.3 25,800 2.56
3685209 25HCB342A30 CAP**4823A**+TDR 41000 10.6 13.0 42,000 3.64 8.3 26,400 2.52
3034091 25HCB342A30 CAP**4824A** 58CV(A,X)135 ---22 41000 11.6 14.5 41,000 3.70 8.5 25,200 2.60
3034092 25HCB342A30 CAP**4824A** 58CV(A,X)155 ---22 41000 11.6 14.5 41,000 3.70 8.5 25,200 2.60
3685146 25HCB342A30 CAP**4824A** 58HDV100--- --- 20 41000 11.2 13.5 40,000 3.70 8.2 25,600 2.58
3121470 25HCB342A30 CAP**4824A** 58ME(B,C)120 --- 20 41000 11.5 14.5 41,500 3.74 8.4 25,400 2.62
3034089 25HCB342A30 CAP**4824A** 58MV(B,C)040--- 14 40500 11.1 13.5 41,000 3.60 8.3 25,400 2.52
3034090 25HCB342A30 CAP**4824A** 58MV(B,C)120--- 20 40500 11.4 14.0 41,000 3.64 8.4 25,200 2.56
3034174 25HCB342A30 CAP**4824A** 58PH*135---20 41000 11.5 14.0 41,000 3.70 8.4 25,400 2.58
3757473 25HCB342A30 CAP**4824A** 58UVB040 ---14 40500 11.1 13.5 41,000 3.60 8.3 25,400 2.52
3757474 25HCB342A30 CAP**4824A** 58UVB120 ---20 40500 11.4 14.0 41,000 3.64 8.4 25,200 2.56
3034088 25HCB342A30 CAP**4824A**+TDR 41000 10.6 13.0 42,000 3.62 8.3 26,400 2.52
3034132 25HCB342A30 CNPF*4818A**+TDR 40500 10.5 13.0 42,000 3.58 8.2 26,400 2.48
3034115 25HCB342A30 CNPH*4221A** 58CV(A,X)070 ---12 40000 11.1 13.5 41,500 3.48 8.0 25,200 2.50
3034116 25HCB342A30 CNPH*4221A** 58CV(A,X)090 ---16 40000 11.4 14.0 41,000 3.52 8.2 25,000 2.54
3034117 25HCB342A30 CNPH*4221A** 58CV(A,X)110 ---20 40000 11.5 14.0 41,000 3.56 8.2 25,000 2.56
3034118 25HCB342A30 CNPH*4221A** 58CV(A,X)135 ---22 40000 11.6 14.5 41,000 3.58 8.2 25,000 2.56
3034119 25HCB342A30 CNPH*4221A** 58CV(A,X)155 ---22 40000 11.6 14.5 41,000 3.58 8.2 24,800 2.56
3685148 25HCB342A30 CNPH*4221A** 58HDV080--- ---20 40000 11.0 13.2 42,000 3.54 8.2 25,600 2.52
3685149 25HCB342A30 CNPH*4221A** 58HDV100--- ---20 40000 11.2 13.5 41,500 3.52 8.1 25,400 2.52
3618365 25HCB342A30 CNPH*4221A** 58ME(B,C)040 ---12 40500 11.0 13.5 41,500 3.54 8.1 25,400 2.52
3121483 25HCB342A30 CNPH*4221A** 58ME(B,C)060 ---12 40000 11.0 13.5 41,500 3.52 8.1 25,600 2.52
3121484 25HCB342A30 CNPH*4221A** 58ME(B,C)080 ---12 40000 11.0 13.5 41,500 3.52 8.1 25,400 2.52
3121485 25HCB342A30 CNPH*4221A** 58ME(B,C)080 ---16 40000 11.0 13.5 41,000 3.50 8.1 25,400 2.50
3121486 25HCB342A30 CNPH*4221A** 58ME(B,C)100 ---20 40000 11.0 13.5 41,000 3.54 8.2 25,200 2.54
3121487 25HCB342A30 CNPH*4221A** 58ME(B,C)120 ---20 40500 11.5 14.0 41,000 3.56 8.2 25,200 2.54
3121482 25HCB342A30 CNPH*4221A** 58MEB040 ---12 40500 11.0 13.5 41,500 3.54 8.1 25,400 2.52
3034109 25HCB342A30 CNPH*4221A** 58MV(B,C)040 ---14 39500 11.2 13.5 41,000 3.48 8.0 25,200 2.50
3034110 25HCB342A30 CNPH*4221A** 58MV(B,C)060 ---14 39500 11.3 14.0 41,000 3.50 8.1 25,200 2.52
3034111 25HCB342A30 CNPH*4221A** 58MV(B,C)080 ---14 39500 11.1 13.5 41,000 3.48 8.0 25,200 2.50
3034112 25HCB342A30 CNPH*4221A** 58MV(B,C)080 ---20 40000 11.2 14.0 41,000 3.50 8.1 25,200 2.52
3034113 25HCB342A30 CNPH*4221A** 58MV(B,C)100 ---20 40000 11.4 14.0 41,000 3.54 8.2 25,000 2.54
3034114 25HCB342A30 CNPH*4221A** 58MV(B,C)120 ---20 40000 11.4 14.0 41,000 3.52 8.2 25,000 2.54
3034180 25HCB342A30 CNPH*4221A** 58PH*070--- 16 40000 10.8 13.0 42,000 3.44 8.0 25,800 2.46

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

24

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3034181 25HCB342A30 CNPH*4221A** 58PH*090--- 16 40000 11.2 13.5 41,000 3.52 8.1 25,200 2.52
3034182 25HCB342A30 CNPH*4221A** 58PH*110--- 20 40000 11.5 14.0 41,000 3.52 8.1 25,200 2.54
3034183 25HCB342A30 CNPH*4221A** 58PH*135--- 20 40000 11.2 13.5 41,000 3.50 8.1 25,200 2.52
3685170 25HCB342A30 CNPH*4221A** 58VLR120--- 20 40000 11.2 13.5 41,000 3.50 8.0 25,200 2.52
3685169 25HCB342A30 CNPH*4221A** 58VMR120 ---20 39500 11.2 13.5 41,000 3.48 8.0 25,200 2.50
4209837 25HCB342A30 CNPH*4221A** OVLAAB048112 40000 11.0 13.2 42,000 3.52 8.0 25,800 2.48
4209838 25HCB342A30 CNPH*4221A** OVLAAB060154 41000 11.2 13.5 42,000 3.66 8.3 26,000 2.54
4209836 25HCB342A30 CNPH*4221A** OVMAAB042112 40000 11.0 13.2 41,500 3.50 8.0 25,600 2.48
3034108 25HCB342A30 CNPH*4221A**+TDR 40000 10.4 13.0 42,500 3.50 8.0 26,200 2.46
3685192 25HCB342A30 CNPH*4321A** 58CV(A,X)070 ---12 41000 11.5 14.0 42,000 3.70 8.2 25,600 2.56
3685193 25HCB342A30 CNPH*4321A** 58CV(A,X)090 ---16 41500 11.5 14.5 41,500 3.76 8.3 25,400 2.60
3685194 25HCB342A30 CNPH*4321A** 58CV(A,X)110 ---20 41500 11.5 14.5 41,500 3.76 8.4 25,400 2.60
3685195 25HCB342A30 CNPH*4321A** 58CV(A,X)135 ---22 41500 12.0 14.5 41,500 3.80 8.4 25,400 2.62
3685196 25HCB342A30 CNPH*4321A** 58CV(A,X)155 ---22 41500 12.0 14.5 41,500 3.78 8.4 25,400 2.62
3685215 25HCB342A30 CNPH*4321A** 58HDV080--- ---20 42000 11.5 14.0 42,000 3.82 8.5 26,000 2.60
3685216 25HCB342A30 CNPH*4321A** 58HDV100--- ---20 41500 11.5 14.0 42,000 3.80 8.4 25,600 2.60
3685202 25HCB342A30 CNPH*4321A** 58ME(B,C)060 ---12 41500 11.5 14.0 42,000 3.80 8.4 25,800 2.60
3685203 25HCB342A30 CNPH*4321A** 58ME(B,C)080 ---12 41500 11.5 14.0 42,000 3.80 8.4 25,800 2.60
3685204 25HCB342A30 CNPH*4321A** 58ME(B,C)080 ---16 41500 11.5 14.0 42,000 3.78 8.4 25,600 2.60
3685205 25HCB342A30 CNPH*4321A** 58ME(B,C)100 ---20 42000 12.0 14.5 41,500 3.82 8.5 25,600 2.64
3685206 25HCB342A30 CNPH*4321A** 58ME(B,C)120 ---20 42000 12.0 14.5 41,500 3.86 8.5 25,600 2.64
3685201 25HCB342A30 CNPH*4321A** 58MEB040 ---12 42000 11.5 14.0 42,000 3.80 8.4 25,800 2.60
3685187 25HCB342A30 CNPH*4321A** 58MV(B,C)060 ---14 41500 11.5 14.0 42,000 3.78 8.4 25,800 2.60
3685188 25HCB342A30 CNPH*4321A** 58MV(B,C)080 ---14 41000 11.5 14.0 42,000 3.70 8.3 25,800 2.56
3685189 25HCB342A30 CNPH*4321A** 58MV(B,C)080 ---20 41500 11.5 14.0 42,000 3.74 8.3 25,600 2.58
3685190 25HCB342A30 CNPH*4321A** 58MV(B,C)100 ---20 41000 11.5 14.0 41,500 3.70 8.2 25,400 2.58
3685191 25HCB342A30 CNPH*4321A** 58MV(B,C)120 ---20 41500 11.5 14.5 41,500 3.76 8.4 25,400 2.60
3685186 25HCB342A30 CNPH*4321A** 58MVB040 ---14 41000 11.5 14.0 41,500 3.68 8.2 25,600 2.56
3685197 25HCB342A30 CNPH*4321A** 58PH*070--- 16 41500 11.2 13.5 41,500 3.70 8.3 26,200 2.54
3685198 25HCB342A30 CNPH*4321A** 58PH*090--- 16 41500 11.5 14.5 41,500 3.80 8.4 25,600 2.62
3685199 25HCB342A30 CNPH*4321A** 58PH*110--- 20 41500 12.0 14.5 41,500 3.82 8.5 25,400 2.64
3685200 25HCB342A30 CNPH*4321A** 58PH*135--- 20 41500 11.5 14.5 41,500 3.80 8.4 25,600 2.62
4209840 25HCB342A30 CNPH*4321A** OVLAAB048112 41500 11.2 13.5 42,000 3.78 8.5 26,000 2.58
4209841 25HCB342A30 CNPH*4321A** OVLAAB060154 42000 11.5 14.5 42,000 3.90 8.6 26,200 2.64
4209839 25HCB342A30 CNPH*4321A** OVMAAB042112 41000 11.5 14.0 42,000 3.74 8.4 25,800 2.58
3685185 25HCB342A30 CNPH*4321A**+TDR 41500 11.0 13.5 42,000 3.72 8.3 26,600 2.54
3034127 25HCB342A30 CNPH*4821A** 58CV(A,X)070 ---12 40500 11.1 13.5 41,000 3.60 8.3 25,600 2.52
3034128 25HCB342A30 CNPH*4821A** 58CV(A,X)090 ---16 41000 11.4 14.0 41,000 3.66 8.4 25,200 2.58
3034129 25HCB342A30 CNPH*4821A** 58CV(A,X)110 ---20 41000 11.5 14.0 41,000 3.68 8.4 25,400 2.58
3034130 25HCB342A30 CNPH*4821A** 58CV(A,X)135 ---22 41000 11.6 14.5 41,000 3.70 8.5 25,200 2.60
3034131 25HCB342A30 CNPH*4821A** 58CV(A,X)155 ---22 41000 11.7 14.5 41,000 3.70 8.5 25,200 2.60
3685150 25HCB342A30 CNPH*4821A** 58HDV060--- ---12 40500 11.0 13.2 42,000 3.62 8.2 26,000 2.52
3685151 25HCB342A30 CNPH*4821A** 58HDV080--- ---20 41000 11.2 13.5 42,000 3.72 8.4 25,800 2.58
3685152 25HCB342A30 CNPH*4821A** 58HDV100--- ---20 41000 11.5 14.0 42,000 3.68 8.4 25,600 2.58
3618366 25HCB342A30 CNPH*4821A** 58ME(B,C)040 ---12 41000 11.5 14.0 42,000 3.70 8.4 25,600 2.58
3121489 25HCB342A30 CNPH*4821A** 58ME(B,C)060 ---12 41000 11.5 14.0 42,000 3.70 8.4 25,600 2.58
3121490 25HCB342A30 CNPH*4821A** 58ME(B,C)080 ---12 41000 11.5 14.0 42,000 3.72 8.4 25,600 2.58
3121491 25HCB342A30 CNPH*4821A** 58ME(B,C)080 ---16 41000 11.5 14.0 41,500 3.68 8.3 25,600 2.58
3121492 25HCB342A30 CNPH*4821A** 58ME(B,C)100 ---20 41000 11.5 14.5 41,500 3.74 8.4 25,400 2.60
3121493 25HCB342A30 CNPH*4821A** 58ME(B,C)120 ---20 41500 11.5 14.5 41,500 3.76 8.4 25,400 2.62
3121488 25HCB342A30 CNPH*4821A** 58MEB040 ---12 41000 11.5 14.0 42,000 3.70 8.4 25,600 2.58
3034121 25HCB342A30 CNPH*4821A** 58MV(B,C)040 ---14 40500 11.2 13.5 41,500 3.60 8.2 25,400 2.52
3034122 25HCB342A30 CNPH*4821A** 58MV(B,C)060 ---14 40500 11.3 14.0 41,500 3.62 8.3 25,400 2.56
3034123 25HCB342A30 CNPH*4821A** 58MV(B,C)080 ---14 40500 11.1 13.5 41,500 3.58 8.2 25,400 2.52
3034124 25HCB342A30 CNPH*4821A** 58MV(B,C)080 ---20 40500 11.2 14.0 41,000 3.62 8.3 25,400 2.54
3034125 25HCB342A30 CNPH*4821A** 58MV(B,C)100 ---20 41000 11.4 14.0 41,000 3.66 8.4 25,400 2.56
3034126 25HCB342A30 CNPH*4821A** 58MV(B,C)120 ---20 40500 11.4 14.0 41,000 3.64 8.3 25,200 2.56
3034184 25HCB342A30 CNPH*4821A** 58PH*070--- 16 41000 11.0 13.5 42,000 3.62 8.2 26,000 2.52
3034185 25HCB342A30 CNPH*4821A** 58PH*090--- 16 41000 11.5 14.0 41,500 3.70 8.4 25,400 2.58
3034186 25HCB342A30 CNPH*4821A** 58PH*110--- 20 41000 11.5 14.5 41,500 3.72 8.4 25,400 2.60
3034187 25HCB342A30 CNPH*4821A** 58PH*135--- 20 41000 11.5 14.0 41,500 3.72 8.4 25,400 2.60
3685172 25HCB342A30 CNPH*4821A** 58VLR120--- 20 40500 11.5 14.0 41,500 3.64 8.2 25,200 2.58
3685171 25HCB342A30 CNPH*4821A** 58VMR120 ---20 40500 11.5 14.0 41,500 3.60 8.2 25,200 2.56
4209843 25HCB342A30 CNPH*4821A** OVLAAB048112 41000 11.2 13.5 42,000 3.68 8.3 25,800 2.54
4209844 25HCB342A30 CNPH*4821A** OVLAAB060154 41500 11.5 14.5 42,000 3.82 8.5 26,000 2.60
4209842 25HCB342A30 CNPH*4821A** OVMAAB042112 40500 11.2 13.5 41,500 3.64 8.2 25,600 2.54
3034120 25HCB342A30 CNPH*4821A**+TDR 41000 10.6 13.0 42,000 3.64 8.3 26,400 2.52
3121473 25HCB342A30 CNPV*4217A** 58CV(A,X)090 ---16 40500 11.5 13.5 41,500 3.56 8.2 25,400 2.54
4209851 25HCB342A30 CNPV*4217A** 58HDV060--- --- 12 40000 11.0 13.2 42,000 3.52 8.0 26,000 2.48
3618364 25HCB342A30 CNPV*4217A** 58ME(B,C)040 ---12 40500 11.0 13.5 41,500 3.60 8.3 25,600 2.54
3121476 25HCB342A30 CNPV*4217A** 58ME(B,C)060 ---12 40500 11.0 13.5 42,000 3.60 8.2 25,600 2.54
3121477 25HCB342A30 CNPV*4217A** 58ME(B,C)080 ---12 40500 11.0 13.5 41,500 3.60 8.3 25,600 2.54
3121478 25HCB342A30 CNPV*4217A** 58ME(B,C)080 ---16 40500 11.0 13.5 41,500 3.56 8.2 25,400 2.52
3121475 25HCB342A30 CNPV*4217A** 58MEB040 ---12 40500 11.0 13.5 41,500 3.60 8.3 25,600 2.54
3121472 25HCB342A30 CNPV*4217A** 58MV(B,C)060 ---14 40500 11.0 13.5 41,500 3.58 8.2 25,600 2.52
3121474 25HCB342A30 CNPV*4217A** 58PH*070--- 16 40000 10.5 13.0 42,000 3.50 8.1 25,800 2.48
3758816 25HCB342A30 CNPV*4217A** 58UVB060--- 14 40500 11.0 13.5 41,500 3.58 8.2 25,600 2.52
4209833 25HCB342A30 CNPV*4217A** OVMAAB042112 40000 11.0 13.5 41,500 3.54 8.0 25,600 2.50
3121471 25HCB342A30 CNPV*4217A**+TDR 40500 10.5 13.0 42,000 3.58 8.2 26,400 2.50

See notes on pg. 30

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

25

COMBINATION RATINGS CONTINUED

AHRI Ref.

3034167 25HCB342A30 CNPV*4221A** 58CV(A,X)090 ---16 40500 11.5 14.0 41,500 3.44 7.7 25,600 2.42
3034097 25HCB342A30 CNPV*4221A** 58CV(A,X)110 ---20 40000 11.5 14.5 41,000 3.56 8.2 25,000 2.56
4209852 25HCB342A30 CNPV*4221A** 58HDV060--- --- 12 40000 10.9 13.0 42,000 3.48 7.8 25,800 2.46
4209853 25HCB342A30 CNPV*4221A** 58HDV080--- --- 20 40500 11.2 13.5 41,500 3.56 8.0 25,600 2.52
3121479 25HCB342A30 CNPV*4221A** 58ME(B,C)100 ---20 40000 11.5 13.5 41,000 3.54 8.2 25,200 2.54
3034094 25HCB342A30 CNPV*4221A** 58MV(B,C)080 ---14 39500 11.1 13.5 41,000 3.48 8.0 25,200 2.50
3034095 25HCB342A30 CNPV*4221A** 58MV(B,C)080 ---20 40000 11.2 14.0 41,000 3.50 8.1 25,200 2.52
3034096 25HCB342A30 CNPV*4221A** 58MV(B,C)100 ---20 40000 11.4 14.0 41,000 3.54 8.1 25,000 2.54
3034175 25HCB342A30 CNPV*4221A** 58PH*090--- 16 40000 11.2 13.5 41,000 3.52 8.1 25,200 2.52
3034176 25HCB342A30 CNPV*4221A** 58PH*110--- 20 40000 11.2 14.0 41,000 3.52 8.1 25,200 2.54
3758770 25HCB342A30 CNPV*4221A** 58UVB080--- 14 39500 11.1 13.5 41,000 3.48 8.0 25,200 2.50
3758771 25HCB342A30 CNPV*4221A** 58UVB080--- 20 40000 11.2 14.0 41,000 3.50 8.1 25,200 2.52
3758772 25HCB342A30 CNPV*4221A** 58UVB100--- 20 40000 11.4 14.0 41,000 3.54 8.1 25,000 2.54
3685164 25HCB342A30 CNPV*4221A** 58VLR120--- 20 40000 11.2 13.5 41,000 3.50 8.0 25,200 2.52
3685163 25HCB342A30 CNPV*4221A** 58VMR120 ---20 39500 11.2 13.5 41,000 3.48 8.0 25,200 2.50
4209834 25HCB342A30 CNPV*4221A** OVLAAB048112 40000 11.0 13.2 42,000 3.52 8.0 25,800 2.48
3034093 25HCB342A30 CNPV*4221A**+TDR 40000 10.4 13.0 42,500 3.50 8.0 26,200 2.46
3685166 25HCB342A30 CNPV*4321A** 58VLR120--- 20 41000 11.5 14.0 41,500 3.76 8.5 25,400 2.60
3685165 25HCB342A30 CNPV*4321A** 58VMR120 ---20 41000 11.5 14.5 41,500 3.72 8.4 25,400 2.60
3685181 25HCB342A30 CNPV*4324A** 58CV(A,X)135 ---22 41500 12.0 14.5 41,500 3.80 8.5 25,400 2.64
3685182 25HCB342A30 CNPV*4324A** 58CV(A,X)155 ---22 41500 12.0 14.5 41,500 3.80 8.5 25,200 2.64
4209854 25HCB342A30 CNPV*4324A** 58HDV080--- --- 20 42000 11.5 14.5 42,000 3.86 8.5 26,000 2.62

25HCB3

4149680 25HCB342A30 CNPV*4324A** 58HDV100--- --- 20 42000 11.5 14.5 42,000 3.82 8.5 25,600 2.62

3685214 25HCB342A30 CNPV*4324A**

3685184 25HCB342A30 CNPV*4324A** 58ME(B,C)120 ---20 42000 12.0 14.5 41,500 3.88 8.6 25,600 2.66
3685180 25HCB342A30 CNPV*4324A** 58MV(B,C)120 ---20 41500 11.5 14.5 41,500 3.76 8.5 25,400 2.60
3685179 25HCB342A30 CNPV*4324A** 58MVB040 ---14 41000 11.5 14.0 41,500 3.70 8.5 25,600 2.58
3685183 25HCB342A30 CNPV*4324A** 58PH*135--- 20 42000 12.0 14.5 41,500 3.84 8.5 25,600 2.64
3685292 25HCB342A30 CNPV*4324A** 58UVB120--- 20 41500 11.5 14.5 41,500 3.76 8.5 25,400 2.60
3685178 25HCB342A30 CNPV*4324A**+TDR 41500 11.0 13.5 42,000 3.72 8.5 26,600 2.54
3034102 25HCB342A30 CNPV*4821A** 58CV(A,X)110 ---20 41000 11.5 14.0 41,000 3.68 8.4 25,400 2.58
4209855 25HCB342A30 CNPV*4821A** 58HDV060--- --- 12 41000 11.2 13.5 42,000 3.64 8.2 26,000 2.52
4209856 25HCB342A30 CNPV*4821A** 58HDV080--- --- 20 41500 11.5 14.0 42,000 3.76 8.4 25,800 2.58
3121480 25HCB342A30 CNPV*4821A** 58ME(B,C)100 ---20 41000 11.5 14.5 41,500 3.74 8.4 25,400 2.60
3034099 25HCB342A30 CNPV*4821A** 58MV(B,C)080 ---14 40500 11.1 13.5 41,500 3.58 8.2 25,400 2.52
3034100 25HCB342A30 CNPV*4821A** 58MV(B,C)080 ---20 40500 11.2 14.0 41,000 3.62 8.3 25,400 2.54
3034101 25HCB342A30 CNPV*4821A** 58MV(B,C)100 ---20 40500 11.4 14.0 41,000 3.66 8.4 25,400 2.56
3034177 25HCB342A30 CNPV*4821A** 58PH*090--- 16 41000 11.5 14.0 41,500 3.70 8.4 25,400 2.58
3034178 25HCB342A30 CNPV*4821A** 58PH*110--- 20 41000 11.5 14.5 41,500 3.72 8.4 25,400 2.60
3758773 25HCB342A30 CNPV*4821A** 58UVB080--- 14 40500 11.1 13.5 41,500 3.58 8.2 25,400 2.52
3758774 25HCB342A30 CNPV*4821A** 58UVB080--- 20 40500 11.2 14.0 41,000 3.62 8.3 25,400 2.54
3758775 25HCB342A30 CNPV*4821A** 58UVB100--- 20 40500 11.4 14.0 41,000 3.66 8.4 25,400 2.56
3685168 25HCB342A30 CNPV*4821A** 58VLR120--- 20 40500 11.5 14.0 41,500 3.64 8.2 25,200 2.58
3685167 25HCB342A30 CNPV*4821A** 58VMR120 ---20 40500 11.5 14.0 41,500 3.60 8.2 25,200 2.56
4209835 25HCB342A30 CNPV*4821A** OVLAAB048112 41000 11.2 13.5 42,000 3.68 8.3 25,800 2.54
3034098 25HCB342A30 CNPV*4821A**+TDR 41000 10.6 13.0 42,000 3.64 8.3 26,400 2.52
3034106 25HCB342A30 CNPV*4824A** 58CV(A,X)135 ---22 41000 11.6 14.5 41,000 3.70 8.5 25,200 2.60
3034107 25HCB342A30 CNPV*4824A** 58CV(A,X)155 ---22 41000 11.6 14.5 41,000 3.70 8.5 25,200 2.60
4209857 25HCB342A30 CNPV*4824A** 58HDV080--- --- 20 41500 11.5 14.0 42,000 3.76 8.4 25,800 2.58
4149677 25HCB342A30 CNPV*4824A** 58HDV100--- --- 20 41000 11.5 14.0 42,000 3.68 8.4 25,600 2.58

3685147 25HCB342A30 CNPV*4824A**

3121481 25HCB342A30 CNPV*4824A** 58ME(B,C)120 ---20 41500 11.5 14.5 41,500 3.76 8.4 25,400 2.62
3034104 25HCB342A30 CNPV*4824A** 58MV(B,C)040 ---14 40500 11.2 13.5 41,000 3.60 8.2 25,400 2.52
3034105 25HCB342A30 CNPV*4824A** 58MV(B,C)120 ---20 40500 11.4 14.0 41,000 3.64 8.3 25,200 2.56
3034179 25HCB342A30 CNPV*4824A** 58PH*135--- 20 41000 11.5 14.0 41,500 3.72 8.4 25,400 2.60
3758776 25HCB342A30 CNPV*4824A** 58UVB120--- 20 40500 11.4 14.0 41,000 3.64 8.3 25,200 2.56
3034103 25HCB342A30 CNPV*4824A**+TDR 41000 10.6 13.0 42,000 3.64 8.3 26,400 2.52
3034140 25HCB342A30 CSPH*4212A** 58CV(A,X)070--- 12 39500 11.1 13.5 41,500 3.60 8.2 25,600 2.52
3034141 25HCB342A30 CSPH*4212A** 58CV(A,X)090--- 16 40000 11.4 14.0 41,000 3.66 8.4 25,400 2.56
3034142 25HCB342A30 CSPH*4212A** 58CV(A,X)110--- 20 40000 11.4 14.0 41,000 3.66 8.4 25,400 2.58
3034143 25HCB342A30 CSPH*4212A** 58CV(A,X)135--- 22 40000 11.5 14.5 41,000 3.70 8.4 25,200 2.60
3034144 25HCB342A30 CSPH*4212A** 58CV(A,X)155--- 22 40000 11.6 14.5 41,000 3.68 8.4 25,200 2.60
3685153 25HCB342A30 CSPH*4212A** 58HDV060 --- --- 12 40500 11.0 13.2 42,000 3.60 8.2 26,000 2.52
3685154 25HCB342A30 CSPH*4212A** 58HDV080 --- --- 20 41000 11.2 13.5 42,000 3.70 8.4 25,800 2.56
3685155 25HCB342A30 CSPH*4212A** 58HDV100 --- --- 20 41000 11.2 13.5 42,000 3.66 8.4 25,600 2.56
3618367 25HCB342A30 CSPH*4212A** 58ME(B,C)040--- 12 41000 11.5 14.0 42,000 3.70 8.3 25,600 2.58
3121495 25HCB342A30 CSPH*4212A** 58ME(B,C)060--- 12 41000 11.5 14.0 42,000 3.70 8.3 25,600 2.56
3121496 25HCB342A30 CSPH*4212A** 58ME(B,C)080--- 12 41000 11.5 14.0 42,000 3.70 8.3 25,600 2.58
3121497 25HCB342A30 CSPH*4212A** 58ME(B,C)080--- 16 41000 11.5 14.0 41,500 3.66 8.3 25,600 2.56
3121498 25HCB342A30 CSPH*4212A** 58ME(B,C)100--- 20 41000 11.5 14.0 41,500 3.70 8.3 25,400 2.60
3121499 25HCB342A30 CSPH*4212A** 58ME(B,C)120--- 20 41500 11.5 14.5 41,500 3.74 8.4 25,400 2.60
3121494 25HCB342A30 CSPH*4212A** 58MEB040--- 12 41000 11.5 14.0 42,000 3.70 8.3 25,600 2.58
3034134 25HCB342A30 CSPH*4212A** 58MV(B,C)040--- 14 39500 11.1 13.5 41,500 3.58 8.2 25,600 2.52
3034135 25HCB342A30 CSPH*4212A** 58MV(B,C)060--- 14 40000 11.3 14.0 41,500 3.62 8.3 25,400 2.54
3034136 25HCB342A30 CSPH*4212A** 58MV(B,C)080--- 14 39500 11.1 13.5 41,500 3.58 8.2 25,600 2.52
3034137 25HCB342A30 CSPH*4212A** 58MV(B,C)080--- 20 40000 11.2 14.0 41,500 3.62 8.3 25,600 2.54
3034138 25HCB342A30 CSPH*4212A** 58MV(B,C)100--- 20 40000 11.3 14.0 41,000 3.64 8.3 25,400 2.56

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

58HDV100--- --- 20

(DNFLW ONLY)

58HDV100--- --- 20

(DNFLW ONLY)

Cooling

Capacity

42000 11.5 14.5 42,000 3.82 8.5 25,600 2.62

41000 11.5 14.0 42,000 3.68 8.4 25,600 2.58

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

26

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3034139 25HCB342A30 CSPH*4212A** 58MV(B,C)120--- 20 40000 11.4 14.0 41,000 3.62 8.3 25,400 2.56
3034188 25HCB342A30 CSPH*4212A** 58PH*070---16 41000 11.0 13.5 42,000 3.60 8.2 26,000 2.52
3034189 25HCB342A30 CSPH*4212A** 58PH*090---16 41000 11.5 14.0 41,500 3.68 8.2 25,400 2.58
3034190 25HCB342A30 CSPH*4212A** 58PH*110---20 41000 11.5 14.0 41,500 3.70 8.4 25,400 2.58
3034191 25HCB342A30 CSPH*4212A** 58PH*135---20 41000 11.5 14.0 41,500 3.68 8.4 25,400 2.58
3685174 25HCB342A30 CSPH*4212A** 58VLR120 ---20 40500 11.5 14.0 41,500 3.62 8.2 25,400 2.56
3685173 25HCB342A30 CSPH*4212A** 58VMR120--- 20 40500 11.5 14.0 41,500 3.60 8.2 25,400 2.56
4209846 25HCB342A30 CSPH*4212A** OVLAAB048112 41000 11.2 13.5 42,000 3.66 8.2 26,000 2.54
4209847 25HCB342A30 CSPH*4212A** OVLAAB060154 42000 11.5 14.0 42,000 3.82 8.5 26,000 2.60
4209845 25HCB342A30 CSPH*4212A** OVMAAB042112 41000 11.2 13.5 42,000 3.62 8.2 25,600 2.54
3034133 25HCB342A30 CSPH*4212A**+TDR 40000 10.7 13.0 42,500 3.66 8.3 26,400 2.52
3034152 25HCB342A30 CSPH*4812A** 58CV(A,X)070--- 12 40500 11.1 13.5 41,000 3.64 8.3 25,600 2.54
3034153 25HCB342A30 CSPH*4812A** 58CV(A,X)090--- 16 40500 11.4 14.0 41,000 3.70 8.4 25,400 2.58
3034154 25HCB342A30 CSPH*4812A** 58CV(A,X)110--- 20 41000 11.4 14.0 41,000 3.70 8.5 25,400 2.58
3034155 25HCB342A30 CSPH*4812A** 58CV(A,X)135--- 22 41000 11.6 14.5 41,000 3.74 8.5 25,400 2.60
3034156 25HCB342A30 CSPH*4812A** 58CV(A,X)155--- 22 41000 11.6 14.5 41,000 3.72 8.5 25,200 2.60
3685156 25HCB342A30 CSPH*4812A** 58HDV060 --- --- 12 41000 11.0 13.2 42,000 3.64 8.3 26,000 2.52
3685157 25HCB342A30 CSPH*4812A** 58HDV080 --- --- 20 41500 11.2 13.5 42,000 3.74 8.4 25,800 2.58
3685158 25HCB342A30 CSPH*4812A** 58HDV100 --- --- 20 41000 11.2 13.5 42,000 3.70 8.4 25,600 2.58
3618359 25HCB342A30 CSPH*4812A** 58ME(B,C)040--- 12 41500 11.5 14.0 42,000 3.74 8.4 25,800 2.58
3121501 25HCB342A30 CSPH*4812A** 58ME(B,C)060--- 12 41500 11.5 14.0 42,000 3.72 8.4 25,800 2.58
3121502 25HCB342A30 CSPH*4812A** 58ME(B,C)080--- 12 41500 11.5 14.0 42,000 3.72 8.4 25,600 2.58
3121503 25HCB342A30 CSPH*4812A** 58ME(B,C)080--- 16 41000 11.5 14.0 41,500 3.70 8.3 25,600 2.58
3121504 25HCB342A30 CSPH*4812A** 58ME(B,C)100--- 20 41500 11.5 14.5 41,500 3.74 8.4 25,400 2.60
3121505 25HCB342A30 CSPH*4812A** 58ME(B,C)120--- 20 41500 11.5 14.5 41,500 3.78 8.4 25,400 2.62
3121500 25HCB342A30 CSPH*4812A** 58MEB040--- 12 41500 11.5 14.0 42,000 3.74 8.4 25,800 2.58
3034146 25HCB342A30 CSPH*4812A** 58MV(B,C)040--- 14 40500 11.2 13.5 41,500 3.62 8.3 25,600 2.52
3034147 25HCB342A30 CSPH*4812A** 58MV(B,C)060--- 14 40500 11.3 14.0 41,000 3.66 8.4 25,400 2.56
3034148 25HCB342A30 CSPH*4812A** 58MV(B,C)080--- 14 40500 11.1 13.5 41,500 3.62 8.3 25,600 2.52
3034149 25HCB342A30 CSPH*4812A** 58MV(B,C)080--- 20 40500 11.3 14.0 41,000 3.66 8.4 25,600 2.56
3034150 25HCB342A30 CSPH*4812A** 58MV(B,C)100--- 20 40500 11.3 14.0 41,000 3.68 8.4 25,400 2.56
3034151 25HCB342A30 CSPH*4812A** 58MV(B,C)120--- 20 40500 11.4 14.0 41,000 3.68 8.4 25,400 2.56
3034192 25HCB342A30 CSPH*4812A** 58PH*070---16 41000 11.0 13.5 42,000 3.64 8.2 26,000 2.52
3034193 25HCB342A30 CSPH*4812A** 58PH*090---16 41000 11.5 14.0 41,500 3.72 8.4 25,400 2.58
3034194 25HCB342A30 CSPH*4812A** 58PH*110---20 41500 11.5 14.0 41,500 3.74 8.4 25,400 2.60
3034195 25HCB342A30 CSPH*4812A** 58PH*135---20 41000 11.5 14.0 41,500 3.72 8.4 25,400 2.58
3685176 25HCB342A30 CSPH*4812A** 58VLR120 ---20 41000 11.5 14.0 41,500 3.66 8.3 25,400 2.58
3685175 25HCB342A30 CSPH*4812A** 58VMR120--- 20 41000 11.5 14.0 41,500 3.64 8.2 25,400 2.56
4209849 25HCB342A30 CSPH*4812A** OVLAAB048112 41000 11.2 13.5 42,000 3.70 8.3 26,000 2.54
4209850 25HCB342A30 CSPH*4812A** OVLAAB060154 42000 11.5 14.5 42,000 3.86 8.5 26,200 2.62
4209848 25HCB342A30 CSPH*4812A** OVMAAB042112 41000 11.2 13.5 42,000 3.66 8.3 25,800 2.54
3034145 25HCB342A30 CSPH*4812A**+TDR 41000 10.7 13.0 41,000 3.68 8.4 26,400 2.52

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

3843011 25HCB348A30 †FY5BNF048 46500 11.0 13.0 48,500 3.72 8.0 30,200 2.66
3843012 25HCB348A30 FB4CNF048 46000 11.0 13.0 48,500 3.62 8.0 30,000 2.60
3685251 25HCB348A30 FB4CNF048+TXV 46000 11.5 14.0 48,000 3.64 8.4 30,000 2.60
3843013 25HCB348A30 FB4CNF060 47000 12.2 14.5 48,000 3.76 8.6 30,000 2.68
3034541 25HCB348A30 FE4AN(B,F)005+UI 47000 12.2 15.0 47,500 3.78 8.6 29,400 2.72
3034542 25HCB348A30 FE4ANB006+UI 48000 12.5 15.5 46,000 3.86 8.8 29,400 2.78
3405771 25HCB348A30 FV4CN(B,F)005 47000 12.2 15.0 47,500 3.78 8.6 29,400 2.72
3405772 25HCB348A30 FV4CNB006 48000 12.5 15.5 46,000 3.86 8.8 29,400 2.78
3685248 25HCB348A30 FX4DN(B,F)049 47500 12.2 14.5 48,000 3.80 8.7 29,800 2.70
3869392 25HCB348A30 FX4DN(B,F)061 48000 12.5 15.0 44,000 3.84 8.5 30,200 2.76
3034450 25HCB348A30 FY4ANF048 46500 10.8 13.0 48,500 3.60 8.3 30,800 2.58
3685254 25HCB348A30 FY5BNB060 47500 11.5 13.5 47,000 3.60 8.4 30,800 2.62
3685253 25HCB348A30 FY5BNF048+TXV 47000 12.0 14.0 48,000 3.72 8.6 30,200 2.66
3034474 25HCB348A30 CAP**4817A** 58CV(A,X)090 ---16 45000 11.5 14.0 47,500 3.70 8.4 29,800 2.62
3121506 25HCB348A30 CAP**4817A** 58ME(B,C)080 --- 16 46000 11.5 14.0 48,000 3.70 8.5 30,000 2.62
3034473 25HCB348A30 CAP**4817A**+TDR 45000 10.8 13.0 48,000 3.66 8.4 30,200 2.60
3034478 25HCB348A30 CAP**4821A** 58CV(A,X)110 ---20 45500 11.5 14.0 48,000 3.68 8.4 29,600 2.62
3121507 25HCB348A30 CAP**4821A** 58ME(B,C)100 --- 20 46000 12.0 14.5 48,000 3.70 8.5 29,600 2.64
3034476 25HCB348A30 CAP**4821A** 58MV(B,C)080--- 20 45500 11.5 14.0 48,500 3.62 8.3 29,800 2.58
3034477 25HCB348A30 CAP**4821A** 58MV(B,C)100--- 20 45500 11.5 14.0 48,000 3.64 8.3 29,600 2.60
3034451 25HCB348A30 CAP**4821A** 58PH*090---16 45500 12.0 14.0 48,000 3.68 8.4 29,800 2.62
3034452 25HCB348A30 CAP**4821A** 58PH*110---20 45500 12.0 14.5 48,000 3.70 8.4 29,400 2.64
3757497 25HCB348A30 CAP**4821A** 58UVB080 ---20 45500 11.5 14.0 48,500 3.62 8.3 29,800 2.58
3757498 25HCB348A30 CAP**4821A** 58UVB100 ---20 45500 11.5 14.0 48,000 3.64 8.3 29,600 2.60
3685231 25HCB348A30 CAP**4821A** 58VLR120 ---20 45000 11.5 14.0 48,000 3.64 8.5 29,600 2.62
3685230 25HCB348A30 CAP**4821A** 58VMR120--- 20 45000 11.2 13.5 48,000 3.60 8.5 29,800 2.60
4209858 25HCB348A30 CAP**4821A** OVLAAB048112 45000 11.5 14.0 47,000 3.60 8.0 30,600 2.56
3034475 25HCB348A30 CAP**4821A**+TDR 46000 10.8 13.0 49,000 3.68 8.4 30,400 2.60
3685246 25HCB348A30 CAP**4823A** 58HDV080--- --- 20 45500 11.5 13.5 48,000 3.64 8.4 30,000 2.60
3685249 25HCB348A30 CAP**4823A**+TDR 46000 10.8 13.0 49,000 3.66 8.4 30,400 2.60
3034481 25HCB348A30 CAP**4824A** 58CV(A,X)135 ---22 45500 11.7 14.5 48,000 3.70 8.5 29,400 2.64
3034482 25HCB348A30 CAP**4824A** 58CV(A,X)155 ---22 46000 11.5 14.5 48,000 3.74 8.5 29,400 2.66
3685217 25HCB348A30 CAP**4824A** 58HDV100--- --- 20 45500 11.2 13.5 48,000 3.66 8.4 29,800 2.62
3121508 25HCB348A30 CAP**4824A** 58ME(B,C)120 --- 20 46000 12.0 14.5 48,000 3.74 8.5 29,600 2.66
3034480 25HCB348A30 CAP**4824A** 58MV(B,C)120--- 20 45500 11.5 14.0 48,000 3.64 8.3 29,600 2.60
3034453 25HCB348A30 CAP**4824A** 58PH*135---20 46000 12.0 14.0 48,000 3.70 8.4 29,600 2.64

See notes on pg. 30

27

COMBINATION RATINGS CONTINUED

AHRI Ref.

3757499 25HCB348A30 CAP**4824A** 58UVB120 ---20 45500 11.5 14.0 48,000 3.64 8.3 29,600 2.60
3034479 25HCB348A30 CAP**4824A**+TDR 46000 10.8 13.0 49,000 3.68 8.4 30,400 2.60
3034486 25HCB348A30 CAP**6021A** 58CV(A,X)110 ---20 46500 11.7 14.5 46,500 3.68 8.5 29,600 2.66
3121509 25HCB348A30 CAP**6021A** 58ME(B,C)100 --- 20 47000 12.0 14.5 46,500 3.70 8.5 29,600 2.68
3034484 25HCB348A30 CAP**6021A** 58MV(B,C)080--- 20 46500 11.7 14.5 47,000 3.64 8.4 29,800 2.62
3034485 25HCB348A30 CAP**6021A** 58MV(B,C)100--- 20 46500 11.7 14.5 47,000 3.66 8.4 29,600 2.64
3034454 25HCB348A30 CAP**6021A** 58PH*090---16 47000 12.0 14.5 46,500 3.66 8.4 29,800 2.66
3034455 25HCB348A30 CAP**6021A** 58PH*110---20 47000 12.5 14.5 47,000 3.72 8.5 29,600 2.70
3757500 25HCB348A30 CAP**6021A** 58UVB080 ---20 46500 11.7 14.5 47,000 3.64 8.4 29,800 2.62
3757501 25HCB348A30 CAP**6021A** 58UVB100 ---20 46500 11.7 14.5 47,000 3.66 8.4 29,600 2.64
3685233 25HCB348A30 CAP**6021A** 58VLR120 ---20 46500 12.0 14.5 48,000 3.68 8.5 29,600 2.66
3685232 25HCB348A30 CAP**6021A** 58VMR120--- 20 46500 11.5 14.0 48,000 3.66 8.5 29,800 2.64
4209859 25HCB348A30 CAP**6021A** OVLAAB048112 46500 12.0 14.5 46,500 3.62 8.2 30,600 2.60
3034483 25HCB348A30 CAP**6021A**+TDR 47000 10.8 13.0 44,500 3.50 8.3 30,600 2.62
3034489 25HCB348A30 CAP**6024A** 58CV(A,X)135 ---22 47000 11.7 14.5 47,000 3.70 8.5 29,600 2.68
3034490 25HCB348A30 CAP**6024A** 58CV(A,X)155 ---22 47000 12.0 15.0 46,500 3.72 8.6 29,400 2.68
3685218 25HCB348A30 CAP**6024A** 58HDV100--- --- 20 46500 11.5 14.0 48,000 3.68 8.5 30,000 2.64
3121510 25HCB348A30 CAP**6024A** 58ME(B,C)120 --- 20 47000 12.0 14.5 47,000 3.72 8.5 29,600 2.70
3034488 25HCB348A30 CAP**6024A** 58MV(B,C)120--- 20 46500 11.7 14.5 47,000 3.64 8.4 29,600 2.64
3034456 25HCB348A30 CAP**6024A** 58PH*135---20 47000 12.0 14.5 47,000 3.68 8.5 29,800 2.66
3757502 25HCB348A30 CAP**6024A** 58UVB120 ---20 46500 11.7 14.5 47,000 3.64 8.4 29,600 2.64
3034487 25HCB348A30 CAP**6024A**+TDR 47000 10.8 13.0 45,000 3.52 8.3 30,400 2.66
3685247 25HCB348A30 CAP**6025A** 58HDV080--- --- 20 47000 12.0 14.0 47,500 3.66 8.5 30,200 2.64

25HCB3

3685219 25HCB348A30 CAP**6025A** 58HDV100--- --- 20 46500 11.5 14.0 48,000 3.68 8.5 30,000 2.64
3685250 25HCB348A30 CAP**6025A**+TDR 47000 10.8 13.0 45,000 3.60 8.3 30,600 2.62
3034519 25HCB348A30 CNPF*4818A**+TDR 45000 10.8 13.0 48,500 3.50 8.1 30,000 2.54
3034507 25HCB348A30 CNPH*4821A** 58CV(A,X)090 ---16 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3034508 25HCB348A30 CNPH*4821A** 58CV(A,X)110 ---20 45500 11.5 14.0 48,000 3.64 8.4 29,600 2.62
3034509 25HCB348A30 CNPH*4821A** 58CV(A,X)135 ---22 46000 11.7 14.5 48,000 3.68 8.4 29,400 2.64
3034510 25HCB348A30 CNPH*4821A** 58CV(A,X)155 ---22 46000 11.7 14.5 48,000 3.70 8.5 29,400 2.66
3685222 25HCB348A30 CNPH*4821A** 58HDV080--- ---20 45500 11.2 13.5 48,000 3.64 8.5 30,000 2.62
3685223 25HCB348A30 CNPH*4821A** 58HDV100--- ---20 45500 11.5 14.0 48,000 3.62 8.4 29,800 2.62
3121514 25HCB348A30 CNPH*4821A** 58ME(B,C)080 ---16 46000 11.5 14.0 48,000 3.66 8.4 30,000 2.60
3121515 25HCB348A30 CNPH*4821A** 58ME(B,C)100 ---20 46000 12.0 14.5 48,000 3.68 8.4 29,600 2.64
3121516 25HCB348A30 CNPH*4821A** 58ME(B,C)120 ---20 46000 12.0 14.5 48,000 3.72 8.4 29,600 2.66
3034504 25HCB348A30 CNPH*4821A** 58MV(B,C)080 ---20 45500 11.5 14.0 48,500 3.60 8.3 29,600 2.60
3034505 25HCB348A30 CNPH*4821A** 58MV(B,C)100 ---20 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3034506 25HCB348A30 CNPH*4821A** 58MV(B,C)120 ---20 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3034461 25HCB348A30 CNPH*4821A** 58PH*090--- 16 46000 12.0 14.5 48,500 3.68 8.4 29,600 2.62
3034462 25HCB348A30 CNPH*4821A** 58PH*110--- 20 46000 12.0 14.5 48,000 3.68 8.4 29,400 2.64
3034463 25HCB348A30 CNPH*4821A** 58PH*135--- 20 46000 12.0 14.5 48,500 3.68 8.4 29,600 2.64
3685237 25HCB348A30 CNPH*4821A** 58VLR120--- 20 45500 11.5 14.0 48,000 3.60 8.5 29,400 2.62
3685236 25HCB348A30 CNPH*4821A** 58VMR120 ---20 45500 11.5 14.0 48,000 3.58 8.5 29,600 2.60
4209861 25HCB348A30 CNPH*4821A** OVLAAB048112 45500 12.0 14.0 47,500 3.60 8.0 30,400 2.56
4209862 25HCB348A30 CNPH*4821A** OVLAAB060154 46500 12.0 14.5 47,500 3.76 8.2 30,600 2.64
3034503 25HCB348A30 CNPH*4821A**+TDR 46000 10.8 13.0 49,000 3.68 8.4 30,400 2.60
3034515 25HCB348A30 CNPH*6024A** 58CV(A,X)090 ---16 46500 11.7 14.5 47,000 3.68 8.4 29,600 2.64
3034516 25HCB348A30 CNPH*6024A** 58CV(A,X)110 ---20 46500 11.7 14.5 47,000 3.70 8.5 29,600 2.66
3034517 25HCB348A30 CNPH*6024A** 58CV(A,X)135 ---22 46500 12.0 15.0 47,000 3.74 8.5 29,400 2.68
3034518 25HCB348A30 CNPH*6024A** 58CV(A,X)155 ---22 47000 12.0 15.0 46,500 3.76 8.6 29,400 2.68
3685224 25HCB348A30 CNPH*6024A** 58HDV080--- ---20 46500 11.5 14.0 48,000 3.70 8.5 30,200 2.64
3685225 25HCB348A30 CNPH*6024A** 58HDV100--- ---20 46500 11.5 14.0 48,000 3.70 8.5 30,000 2.64
3121517 25HCB348A30 CNPH*6024A** 58ME(B,C)080 ---16 46500 12.0 14.0 48,000 3.68 8.4 30,000 2.64
3121518 25HCB348A30 CNPH*6024A** 58ME(B,C)100 ---20 47000 12.0 14.5 48,000 3.74 8.5 29,600 2.68
3121519 25HCB348A30 CNPH*6024A** 58ME(B,C)120 ---20 47000 12.0 15.0 48,000 3.76 8.5 29,600 2.70
3034512 25HCB348A30 CNPH*6024A** 58MV(B,C)080 ---20 46500 11.5 14.0 47,000 3.66 8.4 29,800 2.62
3034513 25HCB348A30 CNPH*6024A** 58MV(B,C)100 ---20 46500 11.7 14.5 47,000 3.68 8.4 29,600 2.64
3034514 25HCB348A30 CNPH*6024A** 58MV(B,C)120 ---20 46500 11.7 14.5 47,000 3.68 8.4 29,600 2.64
3034464 25HCB348A30 CNPH*6024A** 58PH*090--- 16 47000 12.0 14.5 48,000 3.72 8.5 29,800 2.66
3034465 25HCB348A30 CNPH*6024A** 58PH*110--- 20 47000 12.0 14.5 48,000 3.74 8.5 29,600 2.68
3034466 25HCB348A30 CNPH*6024A** 58PH*135--- 20 47000 12.0 14.5 48,000 3.74 8.5 29,600 2.66
3685239 25HCB348A30 CNPH*6024A** 58VLR120--- 20 46500 12.0 14.5 48,000 3.70 8.5 29,600 2.66
3685238 25HCB348A30 CNPH*6024A** 58VMR120 ---20 46000 12.0 14.5 48,000 3.68 8.5 29,600 2.64
4209863 25HCB348A30 CNPH*6024A** OVLAAB048112 46500 12.0 14.5 47,500 3.66 8.2 30,400 2.60
4209864 25HCB348A30 CNPH*6024A** OVLAAB060154 47000 12.5 15.0 47,000 3.76 8.5 30,600 2.66
3034511 25HCB348A30 CNPH*6024A**+TDR 47000 10.8 13.0 45,000 3.66 8.5 30,600 2.62
3685241 25HCB348A30 CNPH*6124A** 58VLR120--- 20 46500 12.0 14.5 47,500 3.72 8.5 29,600 2.68
3685240 25HCB348A30 CNPH*6124A** 58VMR120 ---20 46500 11.5 14.0 47,500 3.68 8.5 29,800 2.66
3567689 25HCB348A30 CNPV*4821A** 58CV(A,X)090 ---16 45500 11.5 14.0 48,000 3.60 8.5 29,600 2.62
3034494 25HCB348A30 CNPV*4821A** 58CV(A,X)110 ---20 45500 11.5 14.0 48,000 3.64 8.4 29,600 2.62
4209869 25HCB348A30 CNPV*4821A** 58HDV080--- --- 20 46000 12.0 14.5 47,500 3.68 8.2 30,200 2.60
3121511 25HCB348A30 CNPV*4821A** 58ME(B,C)100 ---20 46000 12.0 14.5 48,000 3.68 8.4 29,600 2.64
3034492 25HCB348A30 CNPV*4821A** 58MV(B,C)080 ---20 45500 11.5 14.0 48,500 3.60 8.3 29,600 2.60
3034493 25HCB348A30 CNPV*4821A** 58MV(B,C)100 ---20 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3034457 25HCB348A30 CNPV*4821A** 58PH*090--- 16 46000 11.5 14.5 48,500 3.68 8.4 29,600 2.62
3034458 25HCB348A30 CNPV*4821A** 58PH*110--- 20 46000 12.0 14.5 48,000 3.68 8.4 29,400 2.64
3758791 25HCB348A30 CNPV*4821A** 58UVB080--- 20 45500 11.5 14.0 48,500 3.60 8.3 29,600 2.60
3758792 25HCB348A30 CNPV*4821A** 58UVB100--- 20 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3685235 25HCB348A30 CNPV*4821A** 58VLR120--- 20 45500 12.0 14.5 48,000 3.60 8.5 29,400 2.62

See notes on pg. 30

No.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

28

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3685234 25HCB348A30 CNPV*4821A** 58VMR120 ---20 45500 11.5 14.0 48,000 3.58 8.5 29,600 2.60
4209860 25HCB348A30 CNPV*4821A** OVLAAB048112 45500 12.0 14.0 47,500 3.60 8.0 30,400 2.56
3034491 25HCB348A30 CNPV*4821A**+TDR 46000 10.8 13.0 49,000 3.68 8.4 30,400 2.60
3034497 25HCB348A30 CNPV*4824A** 58CV(A,X)135 ---22 45500 11.7 14.5 48,000 3.68 8.4 29,400 2.64
3034498 25HCB348A30 CNPV*4824A** 58CV(A,X)155 ---22 46000 11.5 14.5 48,000 3.70 8.5 29,400 2.66
4209870 25HCB348A30 CNPV*4824A** 58HDV080--- --- 20 46000 12.0 14.5 47,500 3.68 8.2 30,200 2.60
4149678 25HCB348A30 CNPV*4824A** 58HDV100--- --- 20 45500 11.5 14.0 48,000 3.62 8.4 29,800 2.62

3685220 25HCB348A30 CNPV*4824A**

3121512 25HCB348A30 CNPV*4824A** 58ME(B,C)120 ---20 46000 12.0 14.5 48,000 3.72 8.5 29,600 2.66
3034496 25HCB348A30 CNPV*4824A** 58MV(B,C)120 ---20 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3034459 25HCB348A30 CNPV*4824A** 58PH*135--- 20 46000 12.0 14.5 48,500 3.68 8.4 29,600 2.64
3758793 25HCB348A30 CNPV*4824A** 58UVB120--- 20 45500 11.5 14.0 48,000 3.62 8.3 29,600 2.60
3034495 25HCB348A30 CNPV*4824A**+TDR 46000 10.8 13.0 49,000 3.68 8.4 30,400 2.60
3034501 25HCB348A30 CNPV*6024A** 58CV(A,X)135 ---22 46500 12.0 15.0 47,000 3.74 8.5 29,400 2.68
3034502 25HCB348A30 CNPV*6024A** 58CV(A,X)155 ---22 47000 12.0 15.0 46,500 3.76 8.6 29,400 2.68
4209871 25HCB348A30 CNPV*6024A** 58HDV080--- --- 20 46500 12.5 15.0 47,000 3.72 8.5 30,400 2.64
4149679 25HCB348A30 CNPV*6024A** 58HDV100--- --- 20 46500 11.5 14.0 48,000 3.70 8.5 30,000 2.64

3685221 25HCB348A30 CNPV*6024A**

3121513 25HCB348A30 CNPV*6024A** 58ME(B,C)120 ---20 47000 12.0 15.0 48,000 3.76 8.5 29,600 2.70
3034500 25HCB348A30 CNPV*6024A** 58MV(B,C)120 ---20 46500 11.7 14.5 47,000 3.68 8.4 29,600 2.64
3034460 25HCB348A30 CNPV*6024A** 58PH*135--- 20 47000 12.0 14.5 48,000 3.74 8.5 29,600 2.66
3758794 25HCB348A30 CNPV*6024A** 58UVB120--- 20 46500 11.7 14.5 47,000 3.68 8.4 29,600 2.64
3034499 25HCB348A30 CNPV*6024A**+TDR 47000 10.8 13.0 45,000 3.66 8.5 30,600 2.62
4209872 25HCB348A30 CNPV*6124A** 58HDV080--- --- 20 47000 12.5 15.0 46,500 3.78 8.5 30,400 2.68
4209873 25HCB348A30 CNPV*6124A** 58HDV100--- --- 20 47000 12.5 15.0 46,500 3.80 8.5 30,200 2.68
3034524 25HCB348A30 CSPH*4812A** 58CV(A,X)090--- 16 45500 11.5 14.0 48,000 3.68 8.4 29,800 2.62
3034525 25HCB348A30 CSPH*4812A** 58CV(A,X)110--- 20 45500 11.5 14.0 48,000 3.70 8.4 29,600 2.62
3034526 25HCB348A30 CSPH*4812A** 58CV(A,X)135--- 22 45500 11.7 14.5 48,000 3.72 8.5 29,600 2.64
3034527 25HCB348A30 CSPH*4812A** 58CV(A,X)155--- 22 45500 11.7 14.5 48,000 3.76 8.6 29,400 2.66
3685226 25HCB348A30 CSPH*4812A** 58HDV080 --- --- 20 46000 11.2 13.5 48,000 3.68 8.5 30,200 2.62
3685227 25HCB348A30 CSPH*4812A** 58HDV100 --- --- 20 46000 11.2 13.5 48,000 3.66 8.4 29,800 2.62
3121520 25HCB348A30 CSPH*4812A** 58ME(B,C)080--- 16 46000 11.5 14.0 48,000 3.70 8.5 30,000 2.62
3121521 25HCB348A30 CSPH*4812A** 58ME(B,C)100--- 20 46000 12.0 14.5 48,000 3.72 8.5 29,600 2.64
3121522 25HCB348A30 CSPH*4812A** 58ME(B,C)120--- 20 46500 12.0 14.5 48,000 3.76 8.5 29,600 2.66
3034521 25HCB348A30 CSPH*4812A** 58MV(B,C)080--- 20 45500 11.5 14.0 48,500 3.66 8.4 29,800 2.60
3034522 25HCB348A30 CSPH*4812A** 58MV(B,C)100--- 20 45500 11.5 14.0 48,000 3.68 8.4 29,800 2.62
3034523 25HCB348A30 CSPH*4812A** 58MV(B,C)120--- 20 45500 11.5 14.0 48,000 3.66 8.4 29,600 2.62
3034467 25HCB348A30 CSPH*4812A** 58PH*090---16 46000 12.0 14.5 48,500 3.72 8.5 29,800 2.64
3034468 25HCB348A30 CSPH*4812A** 58PH*110---20 46000 12.0 14.5 48,000 3.70 8.5 29,400 2.64
3034469 25HCB348A30 CSPH*4812A** 58PH*135---20 46000 12.0 14.5 48,500 3.70 8.4 29,600 2.64
3685243 25HCB348A30 CSPH*4812A** 58VLR120 ---20 45500 11.5 14.0 48,000 3.66 8.5 29,600 2.64
3685242 25HCB348A30 CSPH*4812A** 58VMR120--- 20 45500 11.5 14.0 48,000 3.64 8.5 29,800 2.62
4209865 25HCB348A30 CSPH*4812A** OVLAAB048112 45500 12.0 14.0 47,500 3.64 8.2 30,600 2.56
4209866 25HCB348A30 CSPH*4812A** OVLAAB060154 46500 12.0 14.5 47,500 3.78 8.2 30,600 2.64
3034520 25HCB348A30 CSPH*4812A**+TDR 46000 10.8 13.0 49,000 3.72 8.5 30,600 2.62
3034532 25HCB348A30 CSPH*6012A** 58CV(A,X)090--- 16 46500 11.7 14.5 47,000 3.74 8.5 29,600 2.66
3034533 25HCB348A30 CSPH*6012A** 58CV(A,X)110--- 20 46500 11.7 14.5 46,500 3.76 8.6 29,600 2.68
3034534 25HCB348A30 CSPH*6012A** 58CV(A,X)135--- 22 46500 12.0 15.0 46,500 3.78 8.6 29,600 2.70
3034535 25HCB348A30 CSPH*6012A** 58CV(A,X)155--- 22 46500 12.0 15.0 46,500 3.80 8.7 29,400 2.70
3685228 25HCB348A30 CSPH*6012A** 58HDV080 --- --- 20 47000 11.5 14.0 48,000 3.74 8.5 30,200 2.66
3685229 25HCB348A30 CSPH*6012A** 58HDV100 --- --- 20 47000 11.5 14.0 48,000 3.76 8.5 30,000 2.66
3121523 25HCB348A30 CSPH*6012A** 58ME(B,C)080--- 16 47000 12.0 14.5 48,000 3.74 8.5 30,000 2.66
3121524 25HCB348A30 CSPH*6012A** 58ME(B,C)100--- 20 47000 12.0 14.5 48,000 3.80 8.5 29,800 2.70
3121525 25HCB348A30 CSPH*6012A** 58ME(B,C)120--- 20 47500 12.5 15.0 48,000 3.82 8.5 29,600 2.72
3034529 25HCB348A30 CSPH*6012A** 58MV(B,C)080--- 20 46500 11.7 14.5 47,000 3.70 8.5 29,800 2.64
3034530 25HCB348A30 CSPH*6012A** 58MV(B,C)100--- 20 46500 11.7 14.5 47,000 3.72 8.5 29,800 2.66
3034531 25HCB348A30 CSPH*6012A** 58MV(B,C)120--- 20 46500 11.7 14.5 47,000 3.72 8.5 29,600 2.66
3034470 25HCB348A30 CSPH*6012A** 58PH*090---16 47000 12.0 14.5 48,000 3.76 8.5 29,800 2.68
3034471 25HCB348A30 CSPH*6012A** 58PH*110---20 47000 12.0 14.5 48,000 3.80 8.5 29,600 2.70
3034472 25HCB348A30 CSPH*6012A** 58PH*135---20 47000 12.0 14.5 48,000 3.78 8.5 29,800 2.70
3685245 25HCB348A30 CSPH*6012A** 58VLR120 ---20 46500 12.0 14.5 48,000 3.74 8.5 29,600 2.68
3685244 25HCB348A30 CSPH*6012A** 58VMR120--- 20 46500 12.0 14.5 48,000 3.72 8.5 29,800 2.66
4209867 25HCB348A30 CSPH*6012A** OVLAAB048112 46500 12.0 14.5 47,000 3.70 8.2 30,400 2.62
4209868 25HCB348A30 CSPH*6012A** OVLAAB060154 47000 12.0 15.0 46,500 3.82 8.5 30,600 2.70
3034528 25HCB348A30 CSPH*6012A**+TDR 47000 10.8 13.0 45,000 3.68 8.5 30,600 2.64

Model

Number

Coil Model Number

Furnace Mod el

Number

58HDV100--- --- 20

(DNFLW ONLY)

58HDV100--- --- 20

(DNFLW ONLY)

Cooling

Capacity

45500 11.5 14.0 48,000 3.62 8.4 29,800 2.62

46500 11.5 14.0 48,000 3.70 8.5 30,000 2.64

EER SEER

High Temp

E

Capacity

ECOP

HSPF

Low Temp

H

Capacity

HCOP

25HCB3

3853240 25HCB360A31 †FY5BNB060 59500 10.8 13.0 60,000 3.62 8.0 38,500 2.56
3853235 25HCB360A31 FB4CNF060 57000 11.0 13.0 57,000 3.56 8.0 36,800 2.58
4157095 25HCB360A31 FE4ANB006 60000 11.5 14.0 58,500 3.70 8.2 36,400 2.68
3286572 25HCB360A31 FE4ANB006+UI 60000 11.5 14.0 58,500 3.74 8.2 36,200 2.68
3405777 25HCB360A31 FV4CNB006 60000 11.5 14.0 58,500 3.74 8.2 36,200 2.68
4157055 25HCB360A31 FX4DN(B,F)061 60000 12.0 14.0 59,500 3.82 8.2 37,200 2.70
3286560 25HCB360A31 CAP**6021A** 58CV(A,X)110 ---20 58000 11.2 13.5 56,500 3.48 7.8 36,000 2.52
3286574 25HCB360A31 CAP**6021A** 58ME(B,C)100 --- 20 58000 11.5 13.5 58,000 3.52 8.0 36,400 2.58
3286550 25HCB360A31 CAP**6021A** 58PH*090---16 58500 11.5 13.5 58,000 3.50 8.0 36,600 2.58
3286551 25HCB360A31 CAP**6021A** 58PH*110---20 59000 11.5 13.5 58,500 3.58 8.0 36,600 2.60
3286544 25HCB360A31 CAP**6021A**+TDR 59000 10.8 13.0 58,000 3.48 7.8 36,400 2.52
3286561 25HCB360A31 CAP**6024A** 58CV(A,X)135 ---22 59000 11.5 13.5 57,500 3.50 7.8 35,800 2.54

See notes on pg. 30

29

COMBINATION RATINGS CONTINUED

AHRI Ref.

No.

3286562 25HCB360A31 CAP**6024A** 58CV(A,X)155 ---22 59000 11.5 14.0 57,500 3.54 7.9 35,800 2.56
3286575 25HCB360A31 CAP**6024A** 58ME(B,C)120 --- 20 58000 11.5 13.5 58,000 3.54 8.0 36,400 2.60
3286552 25HCB360A31 CAP**6024A** 58PH*135---20 58500 11.5 13.5 58,000 3.52 8.0 36,600 2.58
3286545 25HCB360A31 CAP**6024A**+TDR 60000 10.8 13.0 59,000 3.60 8.0 37,000 2.54
4157035 25HCB360A31 CAP**6025A** 58HDV100--- --- 20 58500 11.2 13.0 59,000 3.52 7.7 37,400 2.56
4157056 25HCB360A31 CAP**6025A**+TDR 60000 10.8 13.0 59,000 3.66 8.0 37,600 2.60
3286565 25HCB360A31 CNPH*6024A** 58CV(A,X)110 ---20 58500 11.2 13.5 57,500 3.46 7.7 36,000 2.52
3286566 25HCB360A31 CNPH*6024A** 58CV(A,X)135 ---22 58500 11.2 13.5 57,000 3.48 7.8 35,800 2.54
3286567 25HCB360A31 CNPH*6024A** 58CV(A,X)155 ---22 59000 11.5 14.0 57,000 3.52 7.8 35,800 2.56
4157059 25HCB360A31 CNPH*6024A** 58HDV080--- ---20 58500 11.0 13.0 59,500 3.50 7.7 37,600 2.54
4157060 25HCB360A31 CNPH*6024A** 58HDV100--- ---20 58500 11.2 13.0 59,000 3.50 7.7 37,200 2.54
3286577 25HCB360A31 CNPH*6024A** 58ME(B,C)080 ---16 57500 11.5 13.5 58,000 3.42 7.8 36,600 2.54
3286578 25HCB360A31 CNPH*6024A** 58ME(B,C)100 ---20 58000 11.5 13.5 58,000 3.50 7.9 36,400 2.58
3286579 25HCB360A31 CNPH*6024A** 58ME(B,C)120 ---20 58000 11.5 13.5 58,000 3.52 8.0 36,200 2.60
3286554 25HCB360A31 CNPH*6024A** 58PH*090--- 16 58500 11.5 13.5 58,000 3.48 8.0 36,600 2.56
3286555 25HCB360A31 CNPH*6024A** 58PH*110--- 20 58500 11.5 13.5 58,000 3.54 8.0 36,600 2.60
3286556 25HCB360A31 CNPH*6024A** 58PH*135--- 20 58500 11.5 13.5 58,000 3.50 8.0 36,600 2.58
4157033 25HCB360A31 CNPH*6024A** 58VLR120--- 20 58000 11.2 13.5 58,000 3.52 7.9 36,800 2.58
3286547 25HCB360A31 CNPH*6024A**+TDR 59500 10.8 13.0 58,500 3.54 8.0 37,600 2.60
4157046 25HCB360A31 CNPH*6124A** 58CV(A,X)110 ---20 59000 11.5 13.5 59,000 3.60 7.8 37,000 2.60
4157047 25HCB360A31 CNPH*6124A** 58CV(A,X)135 ---22 59000 11.5 13.5 58,500 3.64 7.9 36,600 2.62
4157048 25HCB360A31 CNPH*6124A** 58CV(A,X)155 ---22 58500 11.5 14.0 58,500 3.68 7.9 36,600 2.64
4157061 25HCB360A31 CNPH*6124A** 58HDV080--- ---20 59000 11.0 13.0 60,000 3.60 7.8 37,800 2.56

25HCB3

4157062 25HCB360A31 CNPH*6124A** 58HDV100--- ---20 59000 11.2 13.0 59,500 3.60 7.8 37,400 2.58
4157051 25HCB360A31 CNPH*6124A** 58ME(B,C)080 ---16 58500 11.5 13.5 58,500 3.50 7.7 36,600 2.56
4157052 25HCB360A31 CNPH*6124A** 58ME(B,C)100 ---20 59000 11.5 13.5 58,000 3.58 7.8 36,600 2.60
4157096 25HCB360A31 CNPH*6124A** 58ME(B,C)120 ---20 59000 11.5 14.0 58,000 3.62 7.8 36,400 2.62
4157043 25HCB360A31 CNPH*6124A** 58MV(B,C)080 ---20 58500 11.0 13.0 59,500 3.52 7.7 37,600 2.52
4157044 25HCB360A31 CNPH*6124A** 58MV(B,C)100 ---20 58500 11.0 13.0 59,000 3.50 7.7 37,200 2.54
4157045 25HCB360A31 CNPH*6124A** 58MV(B,C)120 ---20 59000 11.2 13.5 59,000 3.56 7.7 37,000 2.58
4157049 25HCB360A31 CNPH*6124A** 58PH*110--- 20 59000 11.5 13.5 58,500 3.64 7.9 36,600 2.62
4157050 25HCB360A31 CNPH*6124A** 58PH*135--- 20 59000 11.5 13.5 58,500 3.58 7.8 36,600 2.60
4157042 25HCB360A31 CNPH*6124A**+TDR 59000 11.5 13.5 59,000 3.62 7.9 37,200 2.60
3286563 25HCB360A31 CNPV*6024A** 58CV(A,X)135 ---22 58500 11.2 13.5 57,000 3.48 7.8 35,800 2.54
3286564 25HCB360A31 CNPV*6024A** 58CV(A,X)155 ---22 59000 11.5 14.0 57,000 3.52 7.8 35,800 2.56
4209874 25HCB360A31 CNPV*6024A** 58HDV080--- --- 20 58000 11.0 13.0 58,500 3.52 7.7 37,600 2.54
4157057 25HCB360A31 CNPV*6024A** 58HDV100--- --- 20 58500 11.2 13.0 59,000 3.50 7.7 37,200 2.54
3286576 25HCB360A31 CNPV*6024A** 58ME(B,C)120 ---20 58000 11.5 13.5 58,000 3.52 8.0 36,200 2.60
3286553 25HCB360A31 CNPV*6024A** 58PH*135--- 20 58500 11.5 13.5 58,000 3.50 8.0 36,600 2.58
3286546 25HCB360A31 CNPV*6024A**+TDR 59500 10.8 13.0 58,500 3.54 7.9 36,800 2.54
4157038 25HCB360A31 CNPV*6124A** 58CV(A,X)135 ---22 59500 12.0 14.0 58,500 3.66 7.9 36,600 2.64
4157039 25HCB360A31 CNPV*6124A** 58CV(A,X)155 ---22 59500 12.0 14.0 58,500 3.68 8.0 36,600 2.66
4209875 25HCB360A31 CNPV*6124A** 58HDV080--- --- 20 60000 11.0 13.0 60,000 3.62 7.8 37,800 2.58
4157058 25HCB360A31 CNPV*6124A** 58HDV100--- --- 20 59500 11.2 13.0 59,500 3.60 7.8 37,400 2.60
4157041 25HCB360A31 CNPV*6124A** 58ME(B,C)120 ---20 59500 12.0 14.0 58,500 3.66 7.9 36,400 2.66
4157037 25HCB360A31 CNPV*6124A** 58MV(B,C)120 ---20 59500 11.5 13.5 59,000 3.60 7.8 37,000 2.60
4157040 25HCB360A31 CNPV*6124A** 58PH*135--- 20 59500 11.5 14.0 58,500 3.64 7.9 36,600 2.64
4157036 25HCB360A31 CNPV*6124A**+TDR 60000 11.5 13.5 60,000 3.74 8.0 37,800 2.64
3286568 25HCB360A31 CSPH*6012A** 58CV(A,X)110--- 20 59000 11.2 13.5 57,500 3.52 7.8 36,000 2.54
3286569 25HCB360A31 CSPH*6012A** 58CV(A,X)135--- 22 59000 11.5 14.0 57,500 3.56 7.9 35,800 2.56
3286570 25HCB360A31 CSPH*6012A** 58CV(A,X)155--- 22 59000 11.5 14.0 57,500 3.58 7.9 35,800 2.58
4157053 25HCB360A31 CSPH*6012A** 58HDV080 --- --- 20 58500 11.0 13.0 59,000 3.56 7.7 37,800 2.56
4157054 25HCB360A31 CSPH*6012A** 58HDV100 --- --- 20 58500 11.2 13.0 59,000 3.56 7.7 37,400 2.58
3286580 25HCB360A31 CSPH*6012A** 58ME(B,C)080--- 16 58000 11.5 13.5 58,500 3.48 7.9 36,600 2.56
3286581 25HCB360A31 CSPH*6012A** 58ME(B,C)100--- 20 58500 11.5 13.5 58,000 3.56 8.0 36,600 2.60
3286582 25HCB360A31 CSPH*6012A** 58ME(B,C)120--- 20 58500 11.5 14.0 58,000 3.58 8.0 36,400 2.62
3286557 25HCB360A31 CSPH*6012A** 58PH*090---16 59000 11.5 13.5 58,000 3.54 8.0 36,600 2.58
3286558 25HCB360A31 CSPH*6012A** 58PH*110---20 59000 11.5 13.5 58,000 3.60 8.0 36,600 2.62
3286559 25HCB360A31 CSPH*6012A** 58PH*135---20 59000 11.5 13.5 58,000 3.56 8.0 36,600 2.60
4157034 25HCB360A31 CSPH*6012A** 58VLR120 ---20 58000 11.2 13.5 58,000 3.58 8.0 37,000 2.60
3286548 25HCB360A31 CSPH*6012A**+TDR 60000 10.8 13.0 59,000 3.62 8.0 37,000 2.56

{ Ratings are net values reflecting the effects of circulating fan heat. Supplemental electric heat is not included. Ratings are based on:

Cooling Standard: 80_F(27_C) db 67_F(19_C) wb indoor entering air temperature and 95_F(35_C) db air entering outdoor unit.
High--- Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 47_F(8_C) db 43° F (6_C) wb air entering outdoor unit.
Low--- Temp Heating Standard: 70_F(21_C) db indoor entering air temperature and 17_F ( --- 8 _C) db 15° F ( ---9_C) wb air entering outdoor unit.

Model

Number

Coil Model Number

Furnace Mod el

Number

Cooling

Capacity

EER SEER

SEER — Seasonal Energy Efficiency Ratio
COP — Coefficient of Performance
TDR — Time--- Delay Relay
HSPF — Heating Seasonal Performance Factor
EER — Energy Efficiency Ratio
NOTE: Ratings contained in this document are subject to change at any time. Always refer to the AHRI directory (www.ahridirectory.org) for the most

up--- to--- date ratings information.

High Temp

E

Capacity

ECOP

HSPF

Capacity

Low Temp

H

HCOP

30

Tot a l

Capacity MBtuh

Tot a l

Sys.

KW**

Sys.

KW**

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

Capacity MBtuh

25HCB318A30 Outdoor Section With FY4ANF018 Indoor Section

Sys.

Tot a l

KW**

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CAP**2417A** 1.02 0.94 58VLR105--- 12

CNPV*1814A** 1.00 0.96 58PH*045--- 08

CNPV*2414A** 1.01 0.93 58PH*045--- 08

CSPH*2412A** 1.02 0.94 58PH*045--- 08

CAP**2417A** 1.01 0.92 58VMR105--- 12

CNPV*2417A** 1.02 0.94 58VLR105--- 12

CSPH*2412A** 1.02 0.94 58VLR105--- 12

CNPH*2417A** 1.02 0.94 58VLR105--- 12

CAP**2417A** 1.02 0.94 OVLAAB036098

CNPV*2417A** 1.01 0.96 58VMR105--- 12

CSPH*2412A** 1.01 0.93 58VMR105--- 12

CNPH*2417A** 1.00 0.96 58VMR105--- 12

CNPH*2417A** 1.02 0.94 OVLAAB036098

CNPV*1917A** 1.03 0.94 OVLAAB036098

CNPV*2417A** 1.02 0.94 OVLAAB036098

CAP**2417A** 1.03 0.94 OVMAAB036098

CSPH*2412A** 1.03 0.94 OVLAAB036098

CNPV*1917A** 1.04 0.95 OVMAAB036098

CNPH*2417A** 1.03 0.94 OVMAAB036098

CNPV*2417A** 1.03 0.94 OVMAAB036098

CSPH*2412A** 1.04 0.95 OVMAAB036098

Seenoteonpg.43

25HCB3

MODEL

CAP**2417A** 1.01 0.92 58CV(A,X)090--- 16

CNPV*1917A** 1.01 0.93 58CV(A,X)090--- 16

CNPV*2417A** 1.00 0.92 58CV(A,X)090--- 16

CNPV*1917A** 1.04 0.95 58HDV040--- --- 12

CSPH*2412A** 1.01 0.92 58CV(A,X)070--- 12

CNPH*2417A** 1.00 0.92 58CV(A,X)090--- 16

CNPV*2417A** 1.04 0.98 58HDV040--- --- 12

CSPH*2412A** 1.01 0.93 58CV(A,X)090--- 16

CSPH*2412A** 1.03 0.99 58HDV040 --- --- 12

CNPH*2417A** 1.02 0.98 58HDV040--- --- 12

CNPH*2417A** 1.02 0.98 58HDV060--- --- 12

CAP**2417A** 1.03 0.94 58ME(B,C)060--- 12

CNPV*1917A** 1.04 0.95 58HDV060--- --- 12

CNPV*2417A** 1.04 0.98 58HDV060--- --- 12

CSPH*2412A** 1.03 0.99 58HDV060 --- --- 12

CNPH*2417A** 1.01 0.93 58ME(B,C)060---12

CAP**2417A** 1.03 0.95 58MEB040--- 12

CNPV*1917A** 1.03 0.95 58ME(B,C)060--- 12

CNPV*2417A** 1.01 0.93 58ME(B,C)060--- 12

CNPV*1917A** 1.05 0.92 58MEB040--- 12

CSPH*2412A** 1.01 0.93 58ME(B,C)060--- 12

CNPV*2417A** 1.03 0.94 58MEB040--- 12

CNPH*2417A** 1.03 0.94 58MEB040 ---12

CAP**2417A** 1.00 0.92 58MV(B,C)060--- 14

CNPV*1917A** 1.01 0.93 58MV(B,C)060--- 14

CSPH*2412A** 1.03 0.94 58MEB040--- 12

CSPH*2412A** 1.01 0.93 58MV(B,C)040--- 14

CNPH*2417A** 1.00 0.94 58MV(B,C)040---14

CNPV*2417A** 1.01 0.95 58MV(B,C)060--- 14

CNPH*2417A** 1.00 0.94 58MV(B,C)060---14

CAP**1814A** 0.99 0.95 58PH*045 ---08

CSPH*2412A** 1.01 0.93 58MV(B,C)060--- 14

CAP**2414A** 1.02 0.93 58PH*045 ---08

CSPH*2412A** 1.01 0.93 58MV(B,C)080--- 14

CNPH*2417A** 1.00 0.94 58MV(B,C)080---14

CNPH*2417A** 1.01 0.93 58PH*045 ---08

CONTINUED

#

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To ta l Sens‡ Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

°F(°C)

72 (22.2) 20.62 10.13 0.83 19.63 9.76 0.92 18.58 9.37 1.03 17.48 8.97 1.14 16.29 8.54 1.27 15.00 8.08 1.41

67 (19.4) 18.71 12.53 0.83 17.79 12.14 0.93 16.82 11.74 1.03 15.79 11.32 1.15 14.68 10.88 1.28 13.49 10.40 1.42

62 (16.7) 16.99 14.91 0.84 16.14 14.50 0.93 15.25 14.07 1.04 14.32 13.59 1.15 13.41 13.41 1.28 12.51 12.51 1.42

57 (13.9) 16.39 16.39 0.84 15.71 15.71 0.93 14.99 14.99 1.04 14.23 14.23 1.15 13.41 13.41 1.28 12.51 12.51 1.42

72 (22.2) 21.01 10.59 0.84 19.98 10.22 0.94 18.89 9.82 1.04 17.74 9.41 1.16 16.51 8.98 1.29 15.18 8.52 1.43

67 (19.4) 19.07 13.30 0.85 18.11 12.91 0.94 17.10 12.50 1.05 16.03 12.07 1.17 14.89 11.62 1.29 13.66 11.13 1.43

62 (16.7) 17.36 15.94 0.85 16.48 15.50 0.95 15.58 15.58 1.05 14.76 14.76 1.17 13.89 13.89 1.30 12.94 12.94 1.44

57 (13.9) 17.05 17.05 0.86 16.33 16.33 0.95 15.57 15.57 1.05 14.77 14.77 1.17 13.89 13.89 1.30 12.94 12.94 1.44

63 (17.2)†† 17.34 12.09 0.84 16.46 11.70 0.93 15.54 11.29 1.04 14.57 10.87 1.15 13.53 10.42 1.28 12.40 9.94 1.42

EVAPORATOR AIR

CFM

525

63 (17.2)†† 17.68 12.81 0.85 16.77 12.42 0.95 15.81 12.01 1.05 14.80 11.57 1.17 13.73 11.11 1.30 12.57 10.62 1.44

600

72 (22.2) 21.30 11.03 0.86 20.23 10.65 0.96 19.11 10.25 1.06 17.93 9.84 1.18 16.67 9.40 1.31 15.30 8.93 1.45

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

67 (19.4) 19.34 14.03 0.87 18.35 13.64 0.96 17.31 13.22 1.07 16.21 12.79 1.18 15.04 12.32 1.31 13.78 11.82 1.45

62 (16.7) 17.68 16.86 0.87 16.85 16.85 0.97 16.05 16.05 1.07 15.20 15.20 1.19 14.29 14.29 1.32 13.29 13.29 1.45

57 (13.9) 17.60 17.60 0.87 16.85 16.85 0.97 16.05 16.05 1.07 15.21 15.21 1.19 14.29 14.29 1.32 13.30 13.30 1.45

63 (17.2)†† 17.93 13.50 0.87 16.99 13.10 0.97 16.01 12.68 1.07 14.97 12.24 1.19 13.87 11.76 1.32 12.68 11.25 1.46

675

COOLING INDOOR

MODEL

*FB4CNF018 1.00 1.00

FE4ANF002 1.02 0.93

FF1ENP018 0.99 1.04

FF1ENP019 1.01 0.96

FF1ENP024 1.00 1.02

FF1ENP025 1.02 0.94

FV4BNF002 1.02 0.93

FB4CNF018 1.01 0.97

FB4CNF024 1.01 0.96

FB4CNF024 1.00 1.00

FX4CNF018 1.01 0.95

FY4ANF018 0.99 1.04

FY4ANF024 0.99 1.04

FY5BNF018 1.01 1.01

FY5BNF018 1.00 1.00

FY5BNF024 1.01 0.99

FX4CNF024 1.02 0.94

FX4DNF019 1.03 0.93

FX4DNF025 1.03 0.93

FY5BNF024 1.00 1.00

CAP**1814A** 0.99 1.04

CAP**2414A** 1.01 1.02

CAP**2417A** 1.01 1.02

CAP**3619A** 1.02 1.03

CNPF*2418A** 1.01 1.02

CNPV*1814A** 1.00 1.05

CNPV*1917A** 1.01 1.02

CNPH*2417A** 1.01 1.02

CAP**1814A** 0.99 0.95 58CV(A,X)070--- 12

CNPV*2414A** 1.01 1.02

CAP**2414A** 1.00 0.94 58CV(A,X)070--- 12

CNPV*2417A** 1.01 1.02

CSPH*2412A** 1.02 1.04

CNPV*1814A** 0.99 0.93 58CV(A,X)070--- 12

CNPV*2414A** 1.00 0.94 58CV(A,X)070--- 12

CNPH*2417A** 1.00 0.94 58CV(A,X)070--- 12

31

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

Sys.

25HCB3

#

Tot a l

Capacity MBtuh

Tot a l

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Tot a l

CONTINUED

KW**

Sys.

KW**

25HCB324A30 Outdoor Section With FY4ANF024 Indoor Section

Sys.

KW**

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPV*2417A** 0.98 0.94 58HDV060--- --- 12

CNPV*3017A** 1.01 0.96 58HDV060--- --- 12

CSPH*2412A** 1.00 0.98 58HDV060--- --- 12

CSPH*3012A** 1.02 0.97 58HDV060--- --- 12

CSPH*2412A** 1.02 0.97 58HDV080--- --- 20

CNPH*2417A** 0.99 0.97 58HDV060 --- --- 12

CNPH*3017A** 1.02 0.97 58HDV060 --- --- 12

MODEL

CAP**2414A** 0.98 0.94 58CV(A,X)070--- 12

CAP**3014A** 1.00 0.94 58CV(A,X)070--- 12

CNPV*2414A** 0.98 0.94 58CV(A,X)070 ---12

CNPV*3014A** 1.00 0.94 58CV(A,X)070 ---12

CNPH*2417A** 0.98 0.94 58CV(A,X)070--- 12

CNPH*3017A** 1.00 0.94 58CV(A,X)070--- 12

CSPH*3012A** 1.03 0.99 58HDV080--- --- 20

CNPH*2417A** 1.01 0.99 58HDV080 --- --- 20

CNPH*3017A** 1.00 0.96 58HDV080 --- --- 20

CNPH*2417A** 1.00 0.96 58HDV100 --- --- 20

CAP**2417A** 0.99 0.93 58CV(A,X)090--- 16

CAP**3017A** 1.00 0.94 58CV(A,X)090--- 16

CSPH*2412A** 0.99 0.94 58CV(A,X)070 ---12

CSPH*3012A** 1.00 0.94 58CV(A,X)070 ---12

CNPH*2417A** 0.99 0.94 58CV(A,X)090--- 16

CAP**2417A** 1.00 0.92 58ME(B,C)060--- 12

CAP**3017A** 1.02 0.93 58ME(B,C)060--- 12

CSPH*2412A** 1.01 0.96 58HDV100--- --- 20

CSPH*3012A** 1.03 0.98 58HDV100--- --- 20

CNPH*3017A** 1.03 0.94 58HDV100 --- --- 20

CNPV*2417A** 0.99 0.95 58CV(A,X)090 ---16

CNPV*3017A** 1.00 0.94 58CV(A,X)090 ---16

CSPH*2412A** 0.99 0.93 58CV(A,X)090 ---16

CNPH*3017A** 1.00 0.94 58CV(A,X)090--- 16

CNPV*2417A** 0.99 0.95 58ME(B,C)060--- 12

CNPH*2417A** 0.99 0.95 58ME(B,C)060--- 12

CNPH*3017A** 1.02 0.93 58ME(B,C)060--- 12

CSPH*3012A** 1.00 0.94 58CV(A,X)090 ---16

CSPH*2412A** 0.99 0.95 58CV(A,X)110 ---20

CNPH*2417A** 0.99 0.95 58CV(A,X)110--- 20

CNPH*3017A** 1.00 0.94 58CV(A,X)110--- 20

CAP**2417A** 1.00 0.92 58ME(B,C)080--- 12

CNPV*3017A** 1.02 0.93 58ME(B,C)060--- 12

CSPH*3012A** 1.00 0.94 58CV(A,X)110 ---20

CAP**3017A** 1.01 0.92 58ME(B,C)080--- 12

CSPH*2412A** 1.01 0.96 58ME(B,C)060--- 12

CSPH*3012A** 1.02 0.93 58ME(B,C)060--- 12

CSPH*2412A** 0.99 0.93 58CV(A,X)135 ---22

CNPH*2417A** 0.99 0.95 58CV(A,X)135--- 22

CNPH*3017A** 1.01 0.95 58CV(A,X)135--- 22

CNPV*2417A** 0.99 0.95 58ME(B,C)080--- 12

CNPH*2417A** 0.99 0.95 58ME(B,C)080--- 12

CNPH*3017A** 1.01 0.92 58ME(B,C)080--- 12

CSPH*3012A** 1.00 0.94 58CV(A,X)135 ---22

CSPH*2412A** 0.99 0.93 58CV(A,X)155 ---22

CNPH*2417A** 0.99 0.95 58CV(A,X)155--- 22

CNPH*3017A** 1.01 0.95 58CV(A,X)155--- 22

CAP**2417A** 1.00 0.92 58MEB040 ---12

CNPV*3017A** 1.01 0.92 58ME(B,C)080--- 12

CSPH*3012A** 1.00 0.94 58CV(A,X)155 ---22

CAP**3017A** 1.02 0.93 58MEB040 ---12

CNPV*2417A** 0.99 0.95 58MEB040---12

CSPH*2412A** 1.00 0.96 58ME(B,C)080--- 12

CSPH*3012A** 1.01 0.92 58ME(B,C)080--- 12

CAP**3619A** 1.02 0.97 58HDV040--- --- 12

CNPV*2417A** 0.97 0.93 58HDV040--- --- 12

CNPH*2417A** 0.97 0.96 58HDV040 --- --- 12

CNPH*3017A** 1.01 0.96 58HDV040 --- --- 12

CNPV*3017A** 1.02 0.93 58MEB040---12

CNPH*2417A** 0.99 0.95 58MEB040 ---12

CNPH*3017A** 1.02 0.93 58MEB040 ---12

CAP**3619A** 1.03 0.98 58HDV060--- --- 12

CNPV*3017A** 0.99 0.95 58HDV040--- --- 12

CSPH*2412A** 1.00 0.98 58HDV040--- --- 12

CSPH*3012A** 1.01 0.96 58HDV040--- --- 12

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot al Sens‡ Tot a l Sens‡ Tot al Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

°F(°C)

72 (22.2) 26.97 13.80 1.66 25.72 13.32 1.86 24.41 12.81 2.09 23.03 12.29 2.34 21.54 11.73 2.61 19.91 11.13 2.91

67 (19.4) 24.65 17.15 1.66 23.49 16.65 1.86 22.26 16.12 2.09 20.97 15.57 2.34 19.59 15.00 2.62 18.09 14.38 2.92

62 (16.7) 22.50 20.46 1.66 21.42 19.93 1.86 20.30 19.36 2.09 19.14 18.75 2.34 17.96 17.96 2.62 16.82 16.82 2.92

57 (13.9) 21.73 21.73 1.66 20.87 20.87 1.86 19.96 19.96 2.09 19.00 19.00 2.34 17.96 17.96 2.62 16.82 16.82 2.92

72 (22.2) 27.42 14.42 1.69 26.13 13.93 1.90 24.76 13.42 2.12 24.27 13.23 2.06 21.80 12.33 2.65 20.12 11.72 2.94

67 (19.4) 25.09 18.20 1.69 23.88 17.68 1.90 22.60 17.15 2.12 21.27 16.60 2.37 19.84 16.01 2.65 18.29 15.38 2.95

62 (16.7) 22.96 21.88 1.69 21.86 21.30 1.90 20.72 20.69 2.13 19.67 19.67 2.38 18.57 18.57 2.65 17.37 17.37 2.95

57 (13.9) 22.57 22.57 1.69 21.66 21.66 1.90 20.70 20.70 2.13 19.67 19.67 2.38 18.57 18.57 2.65 17.37 17.37 2.95

63 (17.2)†† 22.94 16.60 1.66 21.84 16.09 1.86 20.68 15.56 2.09 19.46 15.01 2.34 18.16 14.43 2.62 16.76 13.81 2.92

EVAPORATOR AIR

CFM

700

63 (17.2)†† 23.37 17.58 1.69 22.22 17.07 1.90 21.02 16.52 2.13 19.76 15.96 2.38 18.41 15.37 2.65 16.96 14.73 2.95

800

72 (22.2) 27.75 15.01 1.73 26.42 14.51 1.93 26.10 14.39 1.86 24.55 13.82 2.09 22.87 13.22 2.36 20.25 12.28 2.98

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

67 (19.4) 25.40 19.19 1.73 24.16 18.68 1.93 22.85 18.13 2.16 21.48 17.57 2.41 20.02 16.97 2.69 18.43 16.31 2.98

62 (16.7) 23.36 23.12 1.73 22.32 22.31 1.93 21.30 21.30 2.16 20.23 20.23 2.41 19.07 19.07 2.69 17.81 17.81 2.99

57 (13.9) 23.27 23.27 1.73 22.31 22.31 1.93 21.30 21.30 2.16 20.23 20.23 2.41 19.07 19.07 2.69 17.81 17.81 2.99

63 (17.2)†† 23.68 18.52 1.73 22.50 17.99 1.93 21.26 17.44 2.16 19.97 16.87 2.41 18.59 16.26 2.69 17.11 15.60 2.99

900

COOLING INDOOR

MODEL

FB4CNF024 0.98 0.97

FB4CNF024 0.97 0.97

*FY5BNF024 1.00 1.00

FE4ANF002 1.01 0.95

FF1ENP024 0.99 1.02

FF1ENP025 0.98 0.94

FF1ENP030 0.99 1.05

FF1ENP031 0.99 0.95

FV4BNF002 1.01 0.95

FB4CNF030 1.02 0.97

FB4CNF030 1.00 1.00

FE4AN(B,F)003 1.02 0.93

FX4CNF024 1.00 0.96

FV4BN(B,F)003 1.02 0.93

FY4ANF024 0.98 1.03

FY4ANF030 1.00 1.04

FY5BNF024 1.01 0.99

FY5BNF030 1.02 1.00

FX4CNF030 1.02 0.96

FX4DNF025 1.02 0.97

FX4DN(B,F)031 1.02 0.97

FY5BNF030 1.00 1.00

CAP**2414A** 0.99 1.04

CAP**2417A** 0.99 1.04

CAP**3014A** 1.00 1.04

CAP**3017A** 1.00 1.04

CAP**3619A** 1.01 1.02

CNPF*2418A** 0.99 1.04

CNPV*2414A** 0.99 1.04

CNPV*2417A** 0.99 1.04

CNPV*3014A** 1.00 1.04

CNPV*3017A** 1.00 1.04

CSPH*2412A** 0.99 1.03

CNPH*2417A** 0.99 1.04

CNPH*3017A** 1.00 1.04

CSPH*3012A** 1.00 1.04

32

25HCB324A30 Outdoor Section With FY4ANF024 Indoor Section

CONTINUED

#

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CAP**2417A** 0.98 0.94 OVLAAB036098

CAP**3017A** 0.99 0.91 OVLAAB036098

CNPH*2417A** 0.98 0.94 OVLAAB036098

CNPH*3017A** 0.99 0.91 OVLAAB036098

CNPV*2417A** 0.98 0.94 OVLAAB036098

CNPV*3017A** 0.99 0.91 OVLAAB036098

CSPH*2412A** 0.99 0.95 OVLAAB036098

CSPH*3012A** 1.00 0.92 OVLAAB036098

CAP**2417A** 0.98 0.94 OVMAAB036098

CAP**3017A** 0.99 0.91 OVMAAB036098

CNPH*2417A** 0.98 0.94 OVMAAB036098

CNPH*3017A** 0.99 0.91 OVMAAB036098

CNPV*2417A** 0.98 0.94 OVMAAB036098

CNPV*3017A** 0.99 0.91 OVMAAB036098

CSPH*2412A** 0.99 0.95 OVMAAB036098

CSPH*3012A** 1.00 0.92 OVMAAB036098

CAP**2417A** 0.97 0.89 OVMAAB042112

CAP**3017A** 0.99 0.91 OVMAAB042112

CNPH*2417A** 0.97 0.92 OVMAAB042112

CNPH*3017A** 0.99 0.91 OVMAAB042112

CNPV*2417A** 0.97 0.92 OVMAAB042112

CNPV*3017A** 0.99 0.91 OVMAAB042112

CSPH*2412A** 0.99 0.91 OVMAAB042112

CSPH*3012A** 0.99 0.91 OVMAAB042112

25HCB3

Seenoteonpg.43

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CSPH*2412A** 1.00 0.92 58MEB040--- 12

CSPH*3012A** 1.02 0.93 58MEB040--- 12

CNPH*2417A** 0.99 0.95 58MV(B,C)040--- 14

CAP**2417A** 0.99 0.93 58MV(B,C)060--- 14

CAP**3017A** 1.00 0.94 58MV(B,C)060--- 14

CNPV*2417A** 0.99 0.95 58MV(B,C)060--- 14

CSPH*2412A** 0.99 0.95 58MV(B,C)040--- 14

CSPH*3012A** 1.00 0.94 58MV(B,C)040--- 14

CNPH*3017A** 1.00 0.94 58MV(B,C)040--- 14

CNPV*3017A** 1.00 0.94 58MV(B,C)060--- 14

CNPH*2417A** 0.99 0.95 58MV(B,C)060--- 14

CNPH*3017A** 1.00 0.94 58MV(B,C)060--- 14

DETAILED COOLING CAPACITIES

CAP**2414A** 0.99 0.95 58PH*045 ---08

CAP**3014A** 1.01 0.96 58PH*045 ---08

CSPH*2412A** 0.99 0.93 58MV(B,C)060--- 14

CSPH*3012A** 1.00 0.94 58MV(B,C)060--- 14

CSPH*2412A** 0.99 0.95 58MV(B,C)080--- 14

CSPH*3012A** 1.00 0.94 58MV(B,C)080--- 14

CSPH*2412A** 0.99 0.94 58MV(B,C)080--- 20

CSPH*3012A** 1.00 0.94 58MV(B,C)080--- 20

CSPH*2412A** 0.99 0.93 58MV(B,C)100--- 20

CSPH*3012A** 1.00 0.94 58MV(B,C)100--- 20

CSPH*2412A** 0.99 0.95 58MV(B,C)120--- 20

CNPH*2417A** 0.99 0.95 58MV(B,C)080--- 14

CNPH*3017A** 1.00 0.94 58MV(B,C)080--- 14

CNPH*2417A** 0.99 0.95 58MV(B,C)080--- 20

CNPH*3017A** 1.00 0.94 58MV(B,C)080--- 20

CNPH*2417A** 0.99 0.95 58MV(B,C)100--- 20

CNPH*3017A** 1.01 0.95 58MV(B,C)100--- 20

CSPH*3012A** 1.00 0.94 58MV(B,C)120--- 20

CNPH*2417A** 0.98 0.94 58MV(B,C)120--- 20

CNPH*3017A** 1.00 0.94 58MV(B,C)120--- 20

CNPV*2414A** 0.99 0.95 58PH*045--- 08

CNPH*2417A** 0.99 0.95 58PH*045 ---08

CNPH*3017A** 1.01 0.96 58PH*045 ---08

CAP**2417A** 0.99 0.95 58VLR105---12

CNPV*3014A** 1.01 0.96 58PH*045--- 08

CAP**3017A** 1.01 0.92 58VLR105---12

CSPH*2412A** 1.00 0.96 58PH*045--- 08

CSPH*3012A** 1.00 0.92 58PH*045--- 08

CNPV*2417A** 0.99 0.95 58VLR105--- 12

CNPH*2417A** 0.99 0.95 58VLR105 ---12

CNPH*3017A** 1.01 0.92 58VLR105 ---12

CAP**2417A** 0.98 0.94 58VMR105--- 12

CNPV*3017A** 1.01 0.92 58VLR105--- 12

CAP**3017A** 0.99 0.91 58VMR105--- 12

CNPV*2417A** 0.98 0.94 58VMR105--- 12

CSPH*2412A** 1.01 0.96 58VLR105--- 12

CSPH*3012A** 1.01 0.92 58VLR105--- 12

CNPV*3017A** 0.99 0.91 58VMR105--- 12

CSPH*2412A** 0.99 0.95 58VMR105--- 12

CNPH*2417A** 0.98 0.94 58VMR105 ---12

CNPH*3017A** 0.99 0.91 58VMR105 ---12

CSPH*3012A** 1.00 0.96 58VMR105--- 12

33

Tot a l

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

Sys.

Tot a l

25HCB3

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

Capacity MBtuh

25HCB330A30 Outdoor Section With FY4ANF030 Indoor Section

Sys.

Tot a l

KW**

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPH*3117A** 1.00 0.92 58CV(A,X)155--- 22

MODEL

CNPV*3621A** 1.00 1.02

CAP**3619A** 1.00 0.98 58HDV040--- --- 12

CAP**4823A** 1.00 0.96 58HDV040--- --- 12

CSPH*3012A** 1.00 0.96 58CV(A,X)155 ---22

CSPH*3612A** 1.00 0.92 58CV(A,X)155 ---22

CNPH*3617A** 1.00 0.96 58CV(A,X)155--- 22

CAP**3014A** 1.00 0.96 58CV(A,X)070--- 12

CNPV*3717A** 1.00 0.98

CAP**3614A** 1.00 0.96 58CV(A,X)070--- 12

CSPH*3012A** 1.00 1.02

CSPH*3612A** 1.00 1.02

CNPV*3017A** 0.99 0.98 58HDV040--- --- 12

CNPV*3117A** 1.00 0.96 58HDV040--- --- 12

CNPV*3617A** 0.99 0.98 58HDV040--- --- 12

CNPH*3017A** 1.00 0.98 58HDV040 --- --- 12

CNPH*3117A** 1.00 0.96 58HDV040 --- --- 12

CNPH*3617A** 1.00 0.98 58HDV040 --- --- 12

CNPH*3017A** 1.00 0.96 58CV(A,X)070--- 12

CNPH*3117A** 1.00 0.96 58CV(A,X)070--- 12

CNPH*3617A** 1.00 0.96 58CV(A,X)070--- 12

CNPV*3621A** 0.99 0.98 58HDV040--- --- 12

CAP**3017A** 1.00 0.96 58CV(A,X)090--- 16

CNPV*3014A** 1.00 0.98 58CV(A,X)070 ---12

CSPH*3012A** 1.00 0.96 58CV(A,X)070 ---12

CSPH*3612A** 1.00 0.96 58CV(A,X)070 ---12

CAP**3619A** 1.00 0.98 58HDV060--- --- 12

CNPV*3717A** 1.00 0.96 58HDV040--- --- 12

CAP**3617A** 1.00 0.96 58CV(A,X)090--- 16

CAP**4823A** 1.00 0.96 58HDV060--- --- 12

CSPH*3012A** 1.00 0.98 58HDV040--- --- 12

CSPH*3612A** 1.00 0.98 58HDV040--- --- 12

CNPV*3017A** 1.00 0.96 58CV(A,X)090 ---16

CNPH*3017A** 1.00 0.96 58CV(A,X)090--- 16

CNPH*3117A** 1.00 0.92 58CV(A,X)090--- 16

CNPH*3617A** 1.00 0.96 58CV(A,X)090--- 16

CNPV*3017A** 1.00 0.98 58HDV060--- --- 12

CNPV*3117A** 1.00 0.96 58HDV060--- --- 12

CNPV*3617A** 1.00 0.98 58HDV060--- --- 12

CNPV*3621A** 1.00 0.98 58HDV060--- --- 12

CNPV*3717A** 1.00 0.96 58HDV060--- --- 12

CNPH*3017A** 1.00 0.98 58HDV060 --- --- 12

CNPH*3117A** 1.00 0.96 58HDV060 --- --- 12

CNPH*3617A** 1.00 0.98 58HDV060 --- --- 12

CNPV*3117A** 1.00 0.92 58CV(A,X)090 ---16

CNPV*3617A** 1.00 0.96 58CV(A,X)090 ---16

CNPV*3717A** 1.00 0.92 58CV(A,X)090 ---16

CSPH*3012A** 1.00 0.96 58CV(A,X)090 ---16

CSPH*3612A** 1.00 0.92 58CV(A,X)090 ---16

CSPH*3012A** 1.00 0.98 58HDV060--- --- 12

CAP**3621A** 1.00 0.96 58CV(A,X)110--- 20

CNPH*3017A** 1.00 0.96 58CV(A,X)110--- 20

CNPH*3117A** 1.00 0.92 58CV(A,X)110--- 20

CNPH*3617A** 1.00 0.96 58CV(A,X)110--- 20

CNPV*3621A** 1.00 0.96 58HDV080--- --- 20

CSPH*3612A** 1.00 0.98 58HDV060--- --- 12

CNPV*3621A** 1.00 0.96 58CV(A,X)110 ---20

CSPH*3012A** 1.00 0.98 58HDV080--- --- 20

CSPH*3612A** 1.00 0.96 58HDV080--- --- 20

CNPH*3017A** 1.00 0.98 58HDV080 --- --- 20

CNPH*3617A** 1.00 0.98 58HDV080 --- --- 20

CSPH*3012A** 1.00 0.96 58CV(A,X)110 ---20

CSPH*3612A** 1.00 0.92 58CV(A,X)110 ---20

CNPH*3017A** 1.00 0.96 58CV(A,X)135--- 22

CNPH*3117A** 1.00 0.92 58CV(A,X)135--- 22

CSPH*3012A** 1.00 0.96 58HDV100--- --- 20

CNPH*3017A** 1.00 0.96 58HDV100 --- --- 20

CNPH*3617A** 1.00 0.96 58HDV100 --- --- 20

CSPH*3012A** 1.00 0.96 58CV(A,X)135 ---22

CSPH*3612A** 1.00 0.92 58CV(A,X)135 ---22

CNPH*3617A** 1.00 0.96 58CV(A,X)135--- 22

CNPH*3017A** 1.00 0.96 58CV(A,X)155--- 22

CONTINUED

#

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To ta l Sens‡ Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

°F(°C)

72 (22.2) 35.79 17.64 2.16 34.09 16.98 2.44 32.29 16.30 2.74 30.43 15.61 3.07 28.40 14.86 3.43 26.15 14.05 3.82

67 (19.4) 32.75 21.77 2.16 31.19 21.11 2.43 29.54 20.42 2.73 27.82 19.70 3.07 25.96 18.94 3.43 23.92 18.12 3.83

62 (16.7) 29.92 25.87 2.15 28.49 25.18 2.43 26.99 24.45 2.73 25.43 23.67 3.06 23.79 22.80 3.43 22.14 22.14 3.83

57 (13.9) 28.64 28.64 2.15 27.51 27.51 2.42 26.31 26.31 2.73 25.04 25.04 3.07 23.66 23.66 3.43 22.14 22.14 3.83

72 (22.2) 36.41 18.38 2.21 34.64 17.72 2.48 32.77 17.03 2.78 30.84 16.33 3.12 28.73 15.57 3.48 26.40 14.75 3.87

67 (19.4) 33.35 23.03 2.20 31.72 22.36 2.48 30.00 21.65 2.78 28.22 20.92 3.11 26.27 20.15 3.47 24.17 19.31 3.87

62 (16.7) 30.53 27.59 2.20 29.06 26.85 2.47 27.52 26.05 2.77 25.93 25.93 3.11 24.45 24.45 3.48 22.82 22.82 3.87

57 (13.9) 29.74 29.74 2.20 28.54 28.54 2.47 27.26 27.26 2.77 25.91 25.91 3.11 24.45 24.45 3.48 22.83 22.83 3.87

63 (17.2)†† 30.50 21.10 2.15 29.04 20.44 2.43 27.50 19.74 2.73 25.89 19.02 3.07 24.15 18.26 3.43 22.26 17.45 3.83

EVAPORATOR AIR

CFM

875

63 (17.2)†† 31.09 22.29 2.20 29.56 21.61 2.47 27.96 20.90 2.78 26.27 20.17 3.11 24.47 19.39 3.47 22.52 18.55 3.87

1000

72 (22.2) 36.88 19.09 2.25 35.06 18.43 2.53 33.12 17.73 2.83 31.13 17.01 3.16 28.96 16.25 3.52 26.56 15.42 3.91

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

67 (19.4) 33.80 24.25 2.25 32.12 23.56 2.52 30.34 22.85 2.82 28.49 22.10 3.16 26.51 21.31 3.52 24.34 20.44 3.91

62 (16.7) 31.05 29.15 2.24 29.55 28.32 2.52 28.04 28.04 2.82 26.61 26.61 3.15 25.08 25.08 3.52 23.36 23.36 3.92

57 (13.9) 30.66 30.66 2.24 29.39 29.39 2.52 28.04 28.04 2.82 26.62 26.62 3.15 25.08 25.08 3.52 23.37 23.37 3.92

63 (17.2)†† 31.54 23.44 2.24 29.96 22.75 2.52 28.30 22.03 2.82 26.56 21.28 3.15 24.71 20.48 3.52 22.71 19.60 3.92

1125

COOLING INDOOR

MODEL

FB4CNF030 1.00 0.98

*FB4CNF030 1.00 1.00

FE4ANF002 1.00 0.96

FF1ENP030 0.99 1.01

FF1ENP031 0.99 0.95

FF1ENP036 1.00 1.02

FF1ENP037 1.00 0.96

FB4CNF036 1.00 0.98

FB4CNF036 1.00 1.00

FE4AN(B,F)003 1.00 0.92

FV4BNF002 1.00 0.96

FV4BN(B,F)003 1.00 0.92

FX4CN(B,F)036 1.00 0.96

FY4ANF030 1.00 1.02

FY4ANF036 1.00 1.03

FY5BNF030 1.00 0.98

FY5BNF030 1.00 1.00

FX4CNF030 1.00 0.96

FX4DN(B,F)031 1.00 0.96

FX4DN(B,F)037 1.00 0.92

FY5BNF036 1.00 1.00

CAP**3014A** 1.00 1.02

CAP**3017A** 1.00 1.02

CAP**3614A** 1.00 1.02

CAP**3617A** 1.00 1.02

CAP**3619A** 1.00 1.02

CAP**3621A** 1.00 1.02

CAP**4823A** 1.00 1.00

CNPF*3618A** 1.00 1.02

CNPV*3014A** 1.00 1.02

CNPV*3017A** 1.00 1.02

CNPV*3117A** 1.00 1.00

CNPH*3017A** 1.00 1.02

CNPH*3117A** 1.00 1.00

CNPH*3617A** 1.00 1.02

CNPV*3617A** 1.00 1.02

34

CAPACITY POWER FURNACE MODEL

25HCB330A30 Outdoor Section With FY4ANF030 Indoor Section

CONTINUED

#

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPV*3017A** 1.00 0.96 58VLR105--- 12

CNPH*3617A** 1.00 0.96 58VLR105 ---12

CAP**3017A** 0.99 0.94 58VMR105--- 12

CNPV*3617A** 1.00 0.96 58VLR105--- 12

CAP**3617A** 0.99 0.94 58VMR105--- 12

CSPH*3012A** 1.00 0.96 58VLR105--- 12

CSPH*3612A** 0.99 0.94 58VLR105--- 12

CNPV*3017A** 0.99 0.94 58VMR105--- 12

CNPH*3017A** 0.99 0.94 58VMR105 ---12

CNPH*3617A** 0.99 0.94 58VMR105 ---12

CAP**3017A** 0.99 0.95 OVLAAB036098

CNPV*3617A** 0.99 0.94 58VMR105--- 12

CAP**3617A** 1.00 0.96 OVLAAB036098

CSPH*3012A** 0.99 0.95 58VMR105--- 12

CSPH*3612A** 1.00 0.96 58VMR105--- 12

CNPH*3017A** 0.99 0.98 OVLAAB036098

CNPH*3117A** 1.00 0.96 OVLAAB036098

CNPV*3017A** 0.99 0.98 OVLAAB036098

CNPH*3617A** 0.99 0.98 OVLAAB036098

CNPV*3117A** 1.00 0.96 OVLAAB036098

CNPV*3617A** 0.99 0.98 OVLAAB036098

CNPV*3717A** 1.00 0.92 OVLAAB036098

CSPH*3012A** 0.99 0.98 OVLAAB036098

CAP**3621A** 1.00 0.96 OVLAAB048112

CSPH*3612A** 1.00 0.96 OVLAAB036098

CNPH*3017A** 1.00 0.96 OVLAAB048112

CNPH*3117A** 1.00 0.96 OVLAAB048112

CSPH*3012A** 1.00 0.96 OVLAAB048112

CNPH*3617A** 1.00 0.96 OVLAAB048112

CAP**3017A** 0.99 0.98 OVMAAB036098

CSPH*3612A** 1.00 0.96 OVLAAB048112

CAP**3617A** 1.00 0.98 OVMAAB036098

CNPH*3017A** 0.99 0.98 OVMAAB036098

CNPH*3117A** 1.00 0.96 OVMAAB036098

CNPH*3617A** 0.99 0.98 OVMAAB036098

CNPV*3017A** 0.99 0.98 OVMAAB036098

CNPV*3117A** 1.00 0.96 OVMAAB036098

CNPV*3617A** 0.99 0.98 OVMAAB036098

CNPV*3717A** 1.00 0.96 OVMAAB036098

CSPH*3012A** 1.00 0.98 OVMAAB036098

CSPH*3612A** 1.00 0.96 OVMAAB036098

CAP**3017A** 1.00 0.96 OVMAAB042112

CAP**3617A** 1.00 0.96 OVMAAB042112

CNPH*3017A** 1.00 0.96 OVMAAB042112

CNPH*3117A** 1.00 0.92 OVMAAB042112

CNPV*3017A** 1.00 0.96 OVMAAB042112

CNPH*3617A** 1.00 0.96 OVMAAB042112

CNPV*3117A** 1.00 0.92 OVMAAB042112

CNPV*3617A** 1.00 0.96 OVMAAB042112

CNPV*3717A** 1.00 0.92 OVMAAB042112

CSPH*3012A** 1.00 0.96 OVMAAB042112

CSPH*3612A** 1.00 0.92 OVMAAB042112

Seenoteonpg.43

25HCB3

MODEL

CNPV*3017A** 1.00 0.96 58MV(B,C)060--- 14

CNPV*3117A** 1.00 0.92 58MV(B,C)060--- 14

CNPV*3617A** 1.00 0.96 58MV(B,C)060--- 14

CAP**3621A** 1.00 0.96 58MV(B,C)080--- 14

CNPV*3717A** 1.00 0.92 58MV(B,C)060--- 14

CSPH*3012A** 1.00 0.96 58MV(B,C)060--- 14

CSPH*3612A** 1.00 0.96 58MV(B,C)060--- 14

CNPH*3017A** 1.00 0.96 58MV(B,C)080--- 14

CNPH*3117A** 1.00 0.96 58MV(B,C)080--- 14

CNPH*3617A** 1.00 0.96 58MV(B,C)080--- 14

CAP**3621A** 1.00 0.96 58MV(B,C)080--- 20

CNPV*3621A** 1.00 0.96 58MV(B,C)080--- 14

CSPH*3012A** 1.00 0.96 58MV(B,C)080--- 14

CSPH*3612A** 1.00 0.96 58MV(B,C)080--- 14

CNPH*3017A** 1.00 0.96 58MV(B,C)080--- 20

CNPH*3117A** 1.00 0.92 58MV(B,C)080--- 20

CNPH*3617A** 1.00 0.96 58MV(B,C)080--- 20

CAP**3621A** 1.00 0.96 58MV(B,C)100--- 20

CNPV*3621A** 1.00 0.96 58MV(B,C)080--- 20

CSPH*3012A** 1.00 0.96 58MV(B,C)080--- 20

CSPH*3612A** 1.00 0.96 58MV(B,C)080--- 20

CNPV*3621A** 1.00 0.96 58MV(B,C)100--- 20

CSPH*3012A** 1.00 0.96 58MV(B,C)100--- 20

CNPH*3017A** 1.00 0.96 58MV(B,C)100--- 20

CNPH*3117A** 1.00 0.96 58MV(B,C)100--- 20

CSPH*3612A** 1.00 0.92 58MV(B,C)100--- 20

CNPH*3617A** 1.00 0.96 58MV(B,C)100--- 20

CNPH*3017A** 1.00 0.96 58MV(B,C)120--- 20

CNPH*3117A** 1.00 0.92 58MV(B,C)120--- 20

CNPH*3617A** 1.00 0.96 58MV(B,C)120--- 20

CAP**3017A** 1.00 1.00 58PH*070 ---16

CSPH*3012A** 1.00 0.96 58MV(B,C)120--- 20

CAP**3617A** 1.00 1.00 58PH*070 ---16

CSPH*3612A** 1.00 0.92 58MV(B,C)120--- 20

CNPH*3117A** 1.00 0.96 58MVB040 ---14

CNPV*3017A** 1.00 1.00 58PH*070--- 16

CNPV*3117A** 1.00 0.96 58PH*070--- 16

CNPH*3017A** 1.00 1.00 58PH*070 ---16

CNPH*3117A** 1.00 0.96 58PH*070 ---16

CNPV*3617A** 1.00 1.00 58PH*070--- 16

CNPH*3617A** 1.00 1.00 58PH*070 ---16

CAP**3621A** 1.00 0.96 58PH*090 ---16

CNPV*3717A** 1.00 0.92 58PH*070--- 16

CSPH*3012A** 1.00 1.00 58PH*070--- 16

CSPH*3612A** 1.00 0.96 58PH*070--- 16

CNPH*3017A** 1.00 0.96 58PH*090 ---16

CNPH*3117A** 1.00 0.92 58PH*090 ---16

CNPH*3617A** 1.00 0.96 58PH*090 ---16

CAP**3017A** 1.00 0.96 58VLR105---12

CNPV*3621A** 1.00 0.96 58PH*090--- 16

CAP**3617A** 1.00 0.96 58VLR105---12

CSPH*3012A** 1.00 0.96 58PH*090--- 16

CSPH*3612A** 1.00 0.92 58PH*090--- 16

CNPH*3017A** 1.00 0.96 58VLR105 ---12

CAPACITY POWER FURNACE MODEL

MODEL

CAP**3017A** 1.00 0.96 58ME(B,C)060--- 12

COOLING INDOOR

CAP**3617A** 1.00 0.96 58ME(B,C)060--- 12

CSPH*3612A** 1.00 0.96 58HDV100--- --- 20

CNPV*3017A** 1.00 0.96 58ME(B,C)060--- 12

CNPV*3117A** 1.00 0.92 58ME(B,C)060--- 12

CNPV*3617A** 1.00 0.96 58ME(B,C)060--- 12

CNPV*3717A** 1.00 0.92 58ME(B,C)060--- 12

CSPH*3012A** 1.00 0.96 58ME(B,C)060--- 12

CNPH*3017A** 1.00 0.96 58ME(B,C)060--- 12

CNPH*3117A** 1.00 0.92 58ME(B,C)060--- 12

CNPH*3617A** 1.00 0.96 58ME(B,C)060--- 12

CSPH*3612A** 1.00 0.92 58ME(B,C)060--- 12

DETAILED COOLING CAPACITIES

CAP**3017A** 1.00 0.96 58ME(B,C)080--- 12

CAP**3617A** 1.00 0.96 58ME(B,C)080--- 12

CNPV*3017A** 1.00 0.96 58ME(B,C)080--- 12

CNPV*3117A** 1.00 0.92 58ME(B,C)080--- 12

CNPH*3017A** 1.00 0.96 58ME(B,C)080--- 12

CNPH*3117A** 1.00 0.92 58ME(B,C)080--- 12

CNPV*3617A** 1.00 0.96 58ME(B,C)080--- 12

CNPH*3617A** 1.00 0.96 58ME(B,C)080--- 12

CAP**3017A** 1.00 0.96 58ME(B,C)080--- 16

CNPV*3717A** 1.00 0.92 58ME(B,C)080--- 12

CAP**3617A** 1.00 0.96 58ME(B,C)080--- 16

CSPH*3012A** 1.00 0.96 58ME(B,C)080--- 12

CSPH*3612A** 1.00 0.92 58ME(B,C)080--- 12

CNPV*3017A** 1.00 0.96 58ME(B,C)080--- 16

CNPV*3117A** 1.00 0.92 58ME(B,C)080--- 16

CNPH*3017A** 1.00 0.96 58ME(B,C)080--- 16

CNPH*3117A** 1.00 0.92 58ME(B,C)080--- 16

CNPV*3617A** 1.00 0.96 58ME(B,C)080--- 16

CNPH*3617A** 1.00 0.96 58ME(B,C)080--- 16

CAP**3017A** 1.00 0.96 58MEB040 ---12

CNPV*3717A** 1.00 0.92 58ME(B,C)080--- 16

CAP**3617A** 1.00 0.96 58MEB040 ---12

CSPH*3012A** 1.00 0.96 58ME(B,C)080--- 16

CSPH*3612A** 1.00 0.96 58ME(B,C)080--- 16

CNPV*3017A** 1.00 0.96 58MEB040---12

CNPV*3117A** 1.00 0.92 58MEB040---12

CNPV*3617A** 1.00 0.96 58MEB040---12

CNPV*3717A** 1.00 0.90 58MEB040---12

CSPH*3012A** 1.00 0.96 58MEB040--- 12

CNPH*3017A** 1.00 0.96 58MEB040 ---12

CNPH*3117A** 1.00 0.92 58MEB040 ---12

CNPH*3617A** 1.00 0.96 58MEB040 ---12

CSPH*3612A** 1.00 0.92 58MEB040--- 12

CNPH*3017A** 1.00 0.96 58MV(B,C)040--- 14

CAP**3017A** 1.00 0.96 58MV(B,C)060--- 14

CAP**3617A** 1.00 0.96 58MV(B,C)060--- 14

CSPH*3012A** 1.00 0.96 58MV(B,C)040--- 14

CSPH*3612A** 1.00 0.96 58MV(B,C)040--- 14

CNPH*3617A** 1.00 0.96 58MV(B,C)040--- 14

CNPH*3017A** 1.00 0.96 58MV(B,C)060--- 14

CNPH*3117A** 1.00 0.92 58MV(B,C)060--- 14

CNPH*3617A** 1.00 0.96 58MV(B,C)060--- 14

35

Tot a l S ys .

Capacity MBtuh

Tot a l S ys .

KW**

KW**

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

MODEL

CAP**4823A** 1.01 0.99 58HDV040--- --- 12

CNPV*4324A** 1.04 0.92 58CV(A,X)155 ---22

CSPH*3612A** 1.02 0.96 58CV(A,X)155 ---22

CSPH*4212A** 1.03 0.97 58CV(A,X)155 ---22

CAP**3614A** 0.99 0.97 58CV(A,X)070--- 12

CSPH*3612A** 1.02 1.02

CSPH*4212A** 1.02 1.02

CNPV*3617A** 0.98 0.98 58HDV040--- --- 12

CNPV*3621A** 0.98 0.98 58HDV040--- --- 12

CNPV*3717A** 1.02 1.01 58HDV040--- --- 12

CNPH*4221A** 0.98 0.98 58HDV040 --- --- 12

CNPH*4321A** 1.03 1.01 58HDV040 --- --- 12

CNPH*3617A** 0.99 0.97 58CV(A,X)070--- 12

CNPH*4221A** 1.00 0.96 58CV(A,X)070--- 12

CNPH*4321A** 1.03 0.94 58CV(A,X)070--- 12

CNPV*4217A** 1.00 1.00 58HDV040--- --- 12

CAP**3617A** 0.99 0.95 58CV(A,X)090--- 16

CSPH*3612A** 1.01 0.97 58CV(A,X)070 ---12

CSPH*4212A** 1.02 0.97 58CV(A,X)070 ---12

CNPH*3617A** 0.99 0.95 58CV(A,X)090--- 16

CAP**3619A** 0.99 0.99 58HDV060--- --- 12

CNPV*4221A** 0.99 0.99 58HDV040--- --- 12

CNPH*4221A** 1.01 0.96 58CV(A,X)090--- 16

CAP**4823A** 1.02 1.01 58HDV060--- --- 12

CSPH*3612A** 1.00 1.00 58HDV040--- --- 12

CSPH*4212A** 1.01 0.99 58HDV040--- --- 12

CNPV*3617A** 0.99 0.95 58CV(A,X)090 ---16

CNPV*3717A** 1.04 0.95 58CV(A,X)090 ---16

CNPV*4217A** 1.01 0.97 58CV(A,X)090 ---16

CNPH*4321A** 1.03 0.94 58CV(A,X)090--- 16

CNPV*3617A** 0.99 0.99 58HDV060--- --- 12

CNPV*3621A** 0.99 0.97 58HDV060--- --- 12

CNPV*3717A** 1.03 0.98 58HDV060--- --- 12

CNPH*3617A** 0.98 0.98 58HDV060 --- --- 12

CNPH*4221A** 1.00 0.98 58HDV060 --- --- 12

CNPH*4321A** 1.04 1.00 58HDV060 --- --- 12

CAP**3621A** 1.00 0.93 58CV(A,X)110--- 20

CSPH*3612A** 1.02 0.96 58CV(A,X)090 ---16

CSPH*4212A** 1.02 0.96 58CV(A,X)090 ---16

CNPV*4217A** 1.01 0.99 58HDV060--- --- 12

CAP**4221A** 1.01 0.96 58CV(A,X)110--- 20

CNPH*3617A** 0.99 0.95 58CV(A,X)110--- 20

CNPH*4221A** 1.01 0.96 58CV(A,X)110--- 20

CNPH*4321A** 1.03 0.94 58CV(A,X)110--- 20

CAP**4823A** 1.04 0.99 58HDV080--- --- 20

CNPV*4221A** 1.00 0.98 58HDV060--- --- 12

CSPH*3612A** 1.01 0.99 58HDV060--- --- 12

CSPH*4212A** 1.02 1.00 58HDV060--- --- 12

CNPV*3621A** 0.99 0.95 58CV(A,X)110 ---20

CNPV*4221A** 1.01 0.96 58CV(A,X)110 ---20

CSPH*3612A** 1.02 0.96 58CV(A,X)110 ---20

CSPH*4212A** 1.02 0.96 58CV(A,X)110 ---20

CNPV*3621A** 1.00 0.98 58HDV080--- --- 20

CNPH*3617A** 0.99 0.98 58HDV080 --- --- 20

CAP**4224A** 1.01 0.95 58CV(A,X)135--- 22

CNPV*4221A** 1.01 0.97 58HDV080--- --- 20

CNPH*4221A** 1.01 0.99 58HDV080 --- --- 20

CNPH*4321A** 1.05 1.01 58HDV080 --- --- 20

CNPV*4324A** 1.04 0.93 58CV(A,X)135 ---22

CNPH*3617A** 0.99 0.95 58CV(A,X)135--- 22

CNPH*4221A** 1.01 0.96 58CV(A,X)135--- 22

CNPH*4321A** 1.03 0.93 58CV(A,X)135--- 22

CAP**4224A** 1.01 0.97 58HDV100--- --- 20

CNPV*4324A** 1.05 0.96 58HDV080--- --- 20

CSPH*3612A** 1.02 0.98 58HDV080--- --- 20

CSPH*4212A** 1.04 0.99 58HDV080--- --- 20

CNPH*3617A** 0.99 0.98 58HDV100 --- --- 20

CNPH*4221A** 1.01 0.96 58HDV100 --- --- 20

CAP**4224A** 1.01 0.95 58CV(A,X)155--- 22

CSPH*3612A** 1.02 0.96 58CV(A,X)135 ---22

CSPH*4212A** 1.02 0.96 58CV(A,X)135 ---22

CNPH*3617A** 0.99 0.95 58CV(A,X)155--- 22

CNPH*4221A** 1.01 0.95 58CV(A,X)155--- 22

CNPH*4321A** 1.03 0.93 58CV(A,X)155--- 22

Capacity MBtuh

25HCB3

CONTINUED

#

KW**

Tot a l S ys .

Capacity MBtuh

KW**

Tot a l S ys .

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

Capacity MBtuh

25HCB336A30 Outdoor Section With FY4ANF036 Indoor Section

KW**

Tot a l S ys .

Capacity MBtuh

KW**

Tot a l S ys .

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To ta l Sens‡ Tot a l Sens‡

EWB

°F(°C)

72 (22.2) 40.40 20.45 2.52 38.54 19.75 2.80 36.56 19.01 3.12 34.48 18.26 3.46 32.22 17.44 3.83 29.71 16.54 4.24

67 (19.4) 36.96 25.67 2.51 35.23 24.94 2.80 33.39 24.19 3.11 31.45 23.40 3.45 29.35 22.56 3.83 27.05 21.63 4.23

62 (16.7) 33.82 30.80 2.51 32.24 30.00 2.79 30.59 29.14 3.10 28.87 28.87 3.45 27.24 27.24 3.82 25.46 25.46 4.22

57 (13.9) 33.00 33.00 2.51 31.70 31.70 2.79 30.32 30.32 3.10 28.85 28.85 3.45 27.25 27.25 3.82 25.47 25.47 4.22

72 (22.2) 40.96 21.34 2.58 39.04 20.63 2.87 36.99 19.89 3.18 34.85 19.12 3.52 32.51 18.30 3.90 29.93 17.39 4.30

67 (19.4) 37.50 27.20 2.58 35.70 26.46 2.86 33.80 25.70 3.17 31.80 24.89 3.51 29.64 24.02 3.89 27.27 23.06 4.29

62 (16.7) 34.45 32.77 2.57 32.87 32.61 2.85 31.30 31.30 3.17 29.75 29.75 3.51 28.06 28.06 3.88 26.18 26.18 4.29

57 (13.9) 34.14 34.14 2.57 32.77 32.77 2.85 31.31 31.31 3.17 29.75 29.75 3.51 28.06 28.06 3.88 26.18 26.18 4.29

72 (22.2) 41.39 22.20 2.64 39.41 21.49 2.93 37.31 20.74 3.24 35.10 19.96 3.58 32.71 19.13 3.96 30.06 18.21 4.36

63 (17.2)†† 34.44 24.83 2.51 32.80 24.10 2.79 31.07 23.34 3.10 29.24 22.53 3.45 27.26 21.68 3.82 25.10 20.74 4.22

EVAPORATOR AIR

CFM

1050

63 (17.2)†† 34.96 26.27 2.57 33.27 25.52 2.85 31.47 24.74 3.17 29.58 23.92 3.51 27.55 23.04 3.88 25.34 22.07 4.28

1200

67 (19.4) 37.90 28.69 2.64 36.05 27.94 2.92 34.10 27.15 3.23 32.05 26.32 3.58 29.84 25.42 3.95 27.43 24.41 4.35

DETAILED COOLING CAPACITIES

63 (17.2)†† 35.36 27.66 2.63 33.61 26.90 2.92 31.77 26.10 3.23 29.84 25.25 3.57 27.76 24.33 3.94 25.51 23.30 4.34

1350

CAPACITY POWER FURNACE MODEL

62 (16.7) 35.07 35.07 2.63 33.63 33.63 2.92 32.10 32.10 3.23 30.47 30.47 3.57 28.70 28.70 3.95 26.73 26.73 4.35

57 (13.9) 35.07 35.07 2.63 33.63 33.63 2.92 32.10 32.10 3.23 30.48 30.48 3.57 28.71 28.71 3.95 26.73 26.73 4.35

COOLING INDOOR

MODEL

FB4CNF036 0.99 0.99

FB4CNF036 1.00 1.00

*FY5BNF036 1.00 1.00

FE4ANF002 0.99 0.95

FF1ENP036 0.99 1.04

FF1ENP037 0.99 0.97

FB4CNF042 1.00 1.00

FB4CNF042 1.04 0.95

FE4AN(B,F)003 1.01 0.95

FV4BNF002 0.99 0.95

FV4BN(B,F)003 1.01 0.95

FX4CN(B,F)036 1.01 0.97

FY4ANF036 0.99 1.04

FY4ANF042 1.01 1.03

FY5BNF036 1.01 1.01

FY5BNF042 1.00 1.00

FY5BNF042 1.02 1.01

CAP**3614A** 0.99 1.01

CAP**3617A** 0.99 1.01

CAP**3619A** 0.99 1.01

CAP**3621A** 0.99 1.01

CAP**4221A** 1.01 1.02

CAP**4224A** 1.01 1.02

FX4CN(B,F)042 1.03 0.98

FX4DN(B,F)037 1.04 0.95

FX4DN(B,F)043 1.04 0.95

CAP**4823A** 1.02 1.02

CNPF*3618A** 0.99 1.01

CNPV*3617A** 0.99 1.01

CNPV*3621A** 0.99 1.01

CNPV*3717A** 1.04 1.04

CNPV*4217A** 1.02 1.07

CNPV*4221A** 1.01 1.02

CNPH*3617A** 0.99 1.01

CNPH*4221A** 1.01 1.02

CNPH*4321A** 1.04 1.04

CNPV*4324A** 1.04 1.04

36

CAPACITY POWER FURNACE MODEL

25HCB336A30 Outdoor Section With FY4ANF036 Indoor Section

CONTINUED

#

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPV*3617A** 0.99 0.99 58PH*070--- 16

CNPV*3717A** 1.04 0.99 58PH*070--- 16

CNPH*4221A** 1.00 1.00 58PH*070 ---16

CNPH*4321A** 1.03 0.98 58PH*070 ---16

CAP**3621A** 1.01 0.96 58PH*090 ---16

CNPV*4217A** 1.01 1.01 58PH*070--- 16

CAP**4221A** 1.01 0.97 58PH*090 ---16

CSPH*3612A** 1.01 0.97 58PH*070--- 16

CSPH*4212A** 1.02 0.98 58PH*070--- 16

CNPV*3621A** 1.00 0.96 58PH*090--- 16

CNPH*3617A** 0.99 0.95 58PH*090 ---16

CNPH*4221A** 1.01 0.97 58PH*090 ---16

CNPH*4321A** 1.03 0.94 58PH*090 ---16

CAP**3621A** 1.01 0.97 58PH*110 ---20

CNPV*4221A** 1.01 0.97 58PH*090--- 16

CAP**4221A** 1.02 0.93 58PH*110 ---20

CSPH*3612A** 1.02 0.94 58PH*090--- 16

CSPH*4212A** 1.03 0.94 58PH*090--- 16

CNPV*3621A** 1.00 0.96 58PH*110--- 20

CNPH*3617A** 1.00 0.96 58PH*110 ---20

CNPH*4221A** 1.01 0.97 58PH*110 ---20

CNPH*4321A** 1.03 0.93 58PH*110 ---20

CAP**3617A** 0.99 0.97 58VLR105---12

CNPV*4221A** 1.01 0.97 58PH*110--- 20

CSPH*3612A** 1.03 0.94 58PH*110--- 20

CSPH*4212A** 1.04 0.95 58PH*110--- 20

CNPV*3617A** 0.99 0.97 58VLR105--- 12

CNPH*3617A** 0.98 0.96 58VLR105 ---12

CNPH*4221A** 1.00 0.96 58VLR105 ---12

CAP**3621A** 0.99 0.95 58VLR120---20

CNPV*4217A** 1.01 0.96 58VLR105--- 12

CAP**4221A** 1.00 0.96 58VLR120---20

CSPH*3612A** 1.01 0.96 58VLR105--- 12

CSPH*4212A** 1.02 0.97 58VLR105--- 12

CNPV*3621A** 0.99 0.95 58VLR120--- 20

CNPH*3617A** 0.99 0.95 58VLR120 ---20

CNPH*4221A** 1.00 0.96 58VLR120 ---20

CAP**3617A** 0.98 0.96 58VMR105--- 12

CNPV*4221A** 1.00 0.96 58VLR120--- 20

CSPH*3612A** 1.01 0.92 58VLR120--- 20

CSPH*4212A** 1.02 0.93 58VLR120--- 20

CNPV*3617A** 0.97 0.95 58VMR105--- 12

CNPH*3617A** 0.68 0.66 58VMR105 ---12

CNPH*4221A** 0.99 0.95 58VMR105 ---12

CAP**3621A** 0.99 0.95 58VMR120--- 20

CNPV*4217A** 1.00 0.96 58VMR105--- 12

CAP**4221A** 0.99 0.95 58VMR120--- 20

CNPV*3621A** 0.98 0.96 58VMR120--- 20

CSPH*3612A** 1.00 0.96 58VMR105--- 12

CSPH*4212A** 1.01 0.96 58VMR105--- 12

CNPV*4221A** 0.99 0.95 58VMR120--- 20

CNPH*3617A** 0.98 0.96 58VMR120 ---20

CSPH*3612A** 1.00 0.96 58VMR120--- 20

CNPH*4221A** 0.99 0.95 58VMR120 ---20

25HCB3

MODEL

CAP**3617A** 0.99 0.95 58MV(B,C)060--- 14

CSPH*4212A** 1.02 0.97 58MV(B,C)040--- 14

CNPV*3617A** 0.99 0.95 58MV(B,C)060--- 14

CNPH*3617A** 0.99 0.95 58MV(B,C)060--- 14

CNPV*3717A** 1.04 0.95 58MV(B,C)060--- 14

CNPH*4221A** 1.00 0.96 58MV(B,C)060--- 14

CNPH*4321A** 1.03 0.94 58MV(B,C)060--- 14

CAP**3621A** 0.99 0.95 58MV(B,C)080--- 14

CNPV*4217A** 1.02 0.97 58MV(B,C)060--- 14

CAP**4221A** 0.99 0.95 58MV(B,C)080--- 14

CSPH*3612A** 1.01 0.97 58MV(B,C)060--- 14

CSPH*4212A** 1.02 0.96 58MV(B,C)060--- 14

CNPV*3621A** 0.98 0.96 58MV(B,C)080--- 14

CNPH*3617A** 0.98 0.96 58MV(B,C)080--- 14

CNPH*4221A** 0.99 0.95 58MV(B,C)080--- 14

CNPH*4321A** 1.03 0.94 58MV(B,C)080--- 14

CAP**3621A** 0.99 0.95 58MV(B,C)080--- 20

CNPV*4221A** 0.99 0.95 58MV(B,C)080--- 14

CAP**4221A** 1.00 0.96 58MV(B,C)080--- 20

CSPH*3612A** 1.01 0.97 58MV(B,C)080--- 14

CSPH*4212A** 1.02 0.97 58MV(B,C)080--- 14

CNPV*3621A** 0.99 0.95 58MV(B,C)080--- 20

CNPH*3617A** 0.99 0.95 58MV(B,C)080--- 20

CNPH*4221A** 1.00 0.96 58MV(B,C)080--- 20

CNPH*4321A** 1.03 0.94 58MV(B,C)080--- 20

CAP**3621A** 0.99 0.95 58MV(B,C)100--- 20

CNPV*4221A** 1.00 0.96 58MV(B,C)080--- 20

CAP**4221A** 1.00 0.96 58MV(B,C)100--- 20

CSPH*3612A** 1.01 0.97 58MV(B,C)080--- 20

CSPH*4212A** 1.02 0.97 58MV(B,C)080--- 20

CNPV*3621A** 0.99 0.95 58MV(B,C)100--- 20

CNPH*3617A** 0.99 0.95 58MV(B,C)100--- 20

CNPH*4221A** 1.00 0.96 58MV(B,C)100--- 20

CNPH*4321A** 1.03 0.94 58MV(B,C)100--- 20

CAP**4224A** 1.00 0.96 58MV(B,C)120--- 20

CNPV*4221A** 1.00 0.96 58MV(B,C)100--- 20

CSPH*3612A** 1.02 0.97 58MV(B,C)100--- 20

CSPH*4212A** 1.02 0.96 58MV(B,C)100--- 20

CNPV*4324A** 1.04 0.93 58MV(B,C)120--- 20

CNPH*3617A** 0.99 0.95 58MV(B,C)120--- 20

CSPH*3612A** 1.01 0.97 58MV(B,C)120--- 20

CNPH*4221A** 1.00 0.96 58MV(B,C)120--- 20

CNPH*4321A** 1.03 0.94 58MV(B,C)120--- 20

CAP**3614A** 0.99 0.99 58PH*045 ---08

CNPV*4324A** 1.03 0.94 58MVB040--- 14

CSPH*4212A** 1.02 0.96 58MV(B,C)120--- 20

CNPH*4321A** 1.03 0.98 58MVB040 ---14

CNPH*3617A** 0.99 0.99 58PH*045 ---08

CNPH*4221A** 1.00 1.00 58PH*045 ---08

CAP**3617A** 0.99 0.98 58PH*070 ---16

CSPH*3612A** 1.01 1.01 58PH*045--- 08

CSPH*4212A** 1.02 1.02 58PH*045--- 08

CNPH*4321A** 1.03 1.01 58PH*045 ---08

CNPH*3617A** 0.99 0.99 58PH*070 ---16

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPV*4324A** 1.05 0.95 58HDV100--- --- 20

CNPH*4321A** 1.05 0.96 58HDV100 --- --- 20

CAP**3617A** 1.00 0.96 58ME(B,C)060--- 12

CNPV*4324A** 1.05 0.96 58HDV100--- --- 20

CSPH*3612A** 1.02 0.97 58HDV100--- --- 20

CSPH*4212A** 1.03 0.98 58HDV100--- --- 20

CNPV*3617A** 0.99 0.95 58ME(B,C)060--- 12

CNPV*3717A** 1.04 0.95 58ME(B,C)060--- 12

CNPH*3617A** 0.99 0.95 58ME(B,C)060--- 12

CNPH*4221A** 1.01 0.97 58ME(B,C)060--- 12

CNPV*4217A** 1.02 0.97 58ME(B,C)060--- 12

CNPH*4321A** 1.03 0.94 58ME(B,C)060--- 12

DETAILED COOLING CAPACITIES

CAP**3617A** 1.00 0.96 58ME(B,C)080--- 12

CSPH*3612A** 1.02 0.98 58ME(B,C)060--- 12

CSPH*4212A** 1.04 0.99 58ME(B,C)060--- 12

CNPV*3617A** 0.99 0.95 58ME(B,C)080--- 12

CNPH*3617A** 0.99 0.95 58ME(B,C)080--- 12

CNPV*3717A** 1.04 0.95 58ME(B,C)080--- 12

CNPH*4221A** 1.01 0.97 58ME(B,C)080--- 12

CNPH*4321A** 1.03 0.94 58ME(B,C)080--- 12

CAP**3617A** 1.00 0.96 58ME(B,C)080--- 16

CNPV*4217A** 1.02 0.97 58ME(B,C)080--- 12

CSPH*3612A** 1.02 0.98 58ME(B,C)080--- 12

CSPH*4212A** 1.03 0.98 58ME(B,C)080--- 12

CNPV*3617A** 0.99 0.95 58ME(B,C)080--- 16

CNPH*3617A** 0.99 0.95 58ME(B,C)080--- 16

CNPV*3717A** 1.04 0.95 58ME(B,C)080--- 16

CNPH*4221A** 1.01 0.97 58ME(B,C)080--- 16

CNPH*4321A** 1.03 0.94 58ME(B,C)080--- 16

CAP**3621A** 1.01 0.96 58ME(B,C)100--- 20

CNPV*4217A** 1.02 0.97 58ME(B,C)080--- 16

CAP**4221A** 1.01 0.97 58ME(B,C)100--- 20

CSPH*3612A** 1.02 0.98 58ME(B,C)080--- 16

CSPH*4212A** 1.03 0.98 58ME(B,C)080--- 16

CNPV*3621A** 0.99 0.95 58ME(B,C)100--- 20

CNPH*3617A** 0.99 0.95 58ME(B,C)100--- 20

CNPH*4221A** 1.01 0.96 58ME(B,C)100--- 20

CNPH*4321A** 1.03 0.93 58ME(B,C)100--- 20

CAP**3617A** 1.00 0.96 58MEB040 ---12

CNPV*4221A** 1.01 0.96 58ME(B,C)100--- 20

CSPH*3612A** 1.02 0.93 58ME(B,C)100--- 20

CSPH*4212A** 1.03 0.94 58ME(B,C)100--- 20

CNPV*3617A** 0.99 0.95 58MEB040---12

CNPH*3617A** 0.99 0.95 58MEB040 ---12

CNPV*3717A** 1.04 0.95 58MEB040---12

CNPH*4221A** 1.01 0.97 58MEB040 ---12

CNPH*4321A** 1.03 0.94 58MEB040 ---12

CAP**4224A** 1.00 0.96 58MV(B,C)040--- 14

CNPV*4217A** 1.02 0.97 58MEB040---12

CSPH*3612A** 1.02 0.98 58MEB040--- 12

CSPH*4212A** 1.03 0.94 58MEB040--- 12

CSPH*3612A** 1.01 0.97 58MV(B,C)040--- 14

CNPH*3617A** 0.99 0.97 58MV(B,C)040--- 14

CNPH*4221A** 1.00 0.96 58MV(B,C)040--- 14

37

25HCB3

25HCB336A30 Outdoor Section With FY4ANF036 Indoor Section

CONTINUED

#

CAPACITY POWER FURNACE MODEL

MODEL

COOLING INDOOR

CSPH*4212A** 1.01 0.96 58VMR120--- 20

CAP**3617A** 0.98 0.96 OVLAAB036098

CNPH*3617A** 0.98 0.98 OVLAAB036098

CNPH*4221A** 0.99 0.98 OVLAAB036098

CNPH*4321A** 1.02 0.98 OVLAAB036098

CNPV*3617A** 0.98 0.98 OVLAAB036098

CNPV*3717A** 1.02 0.98 OVLAAB036098

CNPV*4217A** 1.00 0.98 OVLAAB036098

CSPH*3612A** 1.01 0.99 OVLAAB036098

CAP**3621A** 0.99 0.98 OVLAAB048112

CSPH*4212A** 1.01 0.97 OVLAAB036098

CAP**4221A** 1.00 0.96 OVLAAB048112

CNPH*3617A** 0.99 0.97 OVLAAB048112

DETAILED COOLING CAPACITIES

CNPH*4221A** 1.00 0.98 OVLAAB048112

CNPH*4321A** 1.04 0.95 OVLAAB048112

CNPV*3621A** 0.99 0.97 OVLAAB048112

CNPV*4221A** 1.00 0.98 OVLAAB048112

CSPH*3612A** 1.02 0.97 OVLAAB048112

CSPH*4212A** 1.02 0.98 OVLAAB048112

CNPH*3617A** 1.01 0.99 OVLAAB060154

CNPH*4221A** 1.02 0.98 OVLAAB060154

CSPH*3612A** 1.04 0.99 OVLAAB060154

CNPH*4321A** 1.06 0.97 OVLAAB060154

CAP**3617A** 0.99 0.97 OVMAAB036098

CSPH*4212A** 1.05 0.96 OVLAAB060154

CNPH*3617A** 0.98 0.98 OVMAAB036098

CNPH*4221A** 0.99 0.98 OVMAAB036098

38

CNPV*3617A** 0.98 0.98 OVMAAB036098

CNPH*4321A** 1.02 0.98 OVMAAB036098

CNPV*3717A** 1.02 0.98 OVMAAB036098

CNPV*4217A** 1.01 0.99 OVMAAB036098

CSPH*3612A** 1.01 0.99 OVMAAB036098

CSPH*4212A** 1.02 0.97 OVMAAB036098

CAP**3617A** 0.99 0.97 OVMAAB042112

CNPH*3617A** 0.99 0.97 OVMAAB042112

CNPH*4221A** 1.00 0.96 OVMAAB042112

CNPH*4321A** 1.03 0.94 OVMAAB042112

CNPV*3617A** 0.99 0.97 OVMAAB042112

CNPV*3717A** 1.03 0.94 OVMAAB042112

CNPV*4217A** 1.01 0.96 OVMAAB042112

CSPH*3612A** 1.01 0.97 OVMAAB042112

CSPH*4212A** 1.02 0.97 OVMAAB042112

Seenoteonpg.43

Tot a l

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

Capacity MBtuh

25HCB342A30 Outdoor Section With FY4ANF042 Indoor Section

Sys.

Tot a l

KW**

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPV*4324A** 1.01 0.93 58CV(A,X)155 ---22

CNPV*4824A** 1.00 0.95 58CV(A,X)155 ---22

CNPH*4321A** 1.01 0.93 58CV(A,X)155--- 22

CNPH*4821A** 1.00 0.94 58CV(A,X)155--- 22

CNPV*4217A** 0.98 0.98 58HDV060--- --- 12

CSPH*4212A** 0.98 0.93 58CV(A,X)155 ---22

CNPV*4221A** 0.98 0.98 58HDV060--- --- 12

CSPH*4812A** 1.00 0.95 58CV(A,X)155 ---22

CNPH*4821A** 0.99 0.99 58HDV060 --- --- 12

CAP**4823A** 1.00 0.98 58HDV080--- --- 20

CNPV*4821A** 1.00 0.98 58HDV060--- --- 12

CSPH*4212A** 0.99 0.99 58HDV060--- --- 12

CSPH*4812A** 1.00 1.00 58HDV060--- --- 12

CNPV*4221A** 0.99 0.97 58HDV080--- --- 20

CNPV*4324A** 1.02 0.98 58HDV080--- --- 20

CNPH*4221A** 0.98 0.98 58HDV080 --- --- 20

CNPH*4321A** 1.02 0.98 58HDV080 --- --- 20

CNPV*4821A** 1.01 0.97 58HDV080--- --- 20

CNPH*4821A** 1.00 0.98 58HDV080 --- --- 20

CAP**4224A** 0.98 0.96 58HDV100--- --- 20

CNPV*4824A** 1.01 0.97 58HDV080--- --- 20

CAP**4824A** 1.00 0.98 58HDV100--- --- 20

CSPH*4212A** 1.00 0.98 58HDV080--- --- 20

CSPH*4812A** 1.01 0.99 58HDV080--- --- 20

CNPV*4324A** 1.01 0.93 58HDV100--- --- 20

CNPV*4324A** 1.02 0.98 58HDV100--- --- 20

CNPH*4221A** 0.98 0.96 58HDV100 --- --- 20

CNPH*4321A** 1.01 0.97 58HDV100 --- --- 20

CNPV*4824A** 1.00 0.96 58HDV100--- --- 20

CNPH*4821A** 1.00 0.96 58HDV100 --- --- 20

CAP**4817A** 1.01 0.97 58ME(B,C)060--- 12

CNPV*4824A** 1.00 0.96 58HDV100--- --- 20

CSPH*4212A** 1.00 0.98 58HDV100--- --- 20

CSPH*4812A** 1.00 0.98 58HDV100--- --- 20

CNPH*4221A** 0.98 0.98 58ME(B,C)060--- 12

CNPH*4321A** 1.01 0.97 58ME(B,C)060--- 12

25HCB3

MODEL

CSPH*4812A** 1.00 1.03

CNPH*4221A** 0.98 0.97 58CV(A,X)070--- 12

CNPH*4321A** 1.00 0.96 58CV(A,X)070--- 12

CAP**4221A** 0.98 0.96 58CV(A,X)090--- 16

CAP**4817A** 0.98 0.94 58CV(A,X)090--- 16

CSPH*4212A** 0.96 0.95 58CV(A,X)070 ---12

CSPH*4812A** 0.99 0.98 58CV(A,X)070 ---12

CNPH*4821A** 0.99 0.98 58CV(A,X)070--- 12

CNPV*4217A** 0.99 0.97 58CV(A,X)090 ---16

CNPH*4221A** 0.98 0.94 58CV(A,X)090--- 16

CNPH*4321A** 1.01 0.97 58CV(A,X)090--- 16

CNPH*4821A** 1.00 0.96 58CV(A,X)090--- 16

CAP**4221A** 0.98 0.96 58CV(A,X)110--- 20

CNPV*4221A** 0.99 0.94 58CV(A,X)090 ---16

CAP**4821A** 1.00 0.96 58CV(A,X)110--- 20

CSPH*4212A** 0.98 0.94 58CV(A,X)090 ---16

CSPH*4812A** 0.99 0.95 58CV(A,X)090 ---16

CNPV*4221A** 0.98 0.93 58CV(A,X)110 ---20

CNPH*4221A** 0.98 0.93 58CV(A,X)110--- 20

CNPH*4321A** 1.01 0.97 58CV(A,X)110--- 20

CNPH*4821A** 1.00 0.96 58CV(A,X)110--- 20

CAP**4224A** 0.98 0.94 58CV(A,X)135--- 22

CNPV*4821A** 1.00 0.96 58CV(A,X)110 ---20

CAP**4824A** 1.00 0.95 58CV(A,X)135--- 22

CSPH*4212A** 0.98 0.94 58CV(A,X)110 ---20

CSPH*4812A** 1.00 0.96 58CV(A,X)110 ---20

CNPV*4324A** 1.01 0.93 58CV(A,X)135 ---22

CNPH*4221A** 0.98 0.93 58CV(A,X)135--- 22

CNPH*4321A** 1.01 0.93 58CV(A,X)135--- 22

CNPH*4821A** 1.00 0.95 58CV(A,X)135--- 22

CAP**4224A** 0.98 0.93 58CV(A,X)155--- 22

CNPV*4824A** 1.00 0.95 58CV(A,X)135 ---22

CAP**4824A** 1.00 0.95 58CV(A,X)155--- 22

CSPH*4212A** 0.98 0.93 58CV(A,X)135 ---22

CSPH*4812A** 1.00 0.95 58CV(A,X)135 ---22

CNPH*4221A** 0.98 0.93 58CV(A,X)155--- 22

CONTINUED

#

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To ta l Sens‡ Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

°F(°C)

72 (22.2) 48.26 24.63 3.08 46.00 23.75 3.41 43.63 22.84 3.77 41.15 21.90 4.17 38.47 20.90 4.61 35.49 19.80 5.09

67 (19.4) 44.21 30.69 3.06 42.14 29.80 3.39 39.96 28.86 3.76 37.67 27.90 4.16 35.20 26.87 4.60 32.50 25.76 5.08

62 (16.7) 40.45 36.69 3.05 38.56 35.75 3.38 36.58 34.74 3.74 34.53 33.66 4.15 32.38 32.38 4.60 30.32 30.32 5.08

57 (13.9) 39.05 39.05 3.04 37.54 37.54 3.37 35.93 35.93 3.74 34.22 34.22 4.15 32.37 32.37 4.60 30.32 30.32 5.08

72 (22.2) 48.98 25.68 3.16 46.64 24.79 3.48 44.18 23.87 3.84 41.64 22.93 4.25 38.84 21.90 4.68 35.77 20.79 5.16

67 (19.4) 44.93 32.50 3.14 42.77 31.59 3.47 40.50 30.64 3.83 38.12 29.66 4.23 35.57 28.61 4.68 32.78 27.46 5.16

62 (16.7) 41.22 39.13 3.12 39.28 38.11 3.45 37.28 36.95 3.82 35.34 35.34 4.22 33.37 33.37 4.67 31.19 31.19 5.16

57 (13.9) 40.48 40.48 3.12 38.87 38.87 3.45 37.16 37.16 3.82 35.34 35.34 4.22 33.38 33.38 4.67 31.19 31.19 5.16

63 (17.2)†† 41.23 29.75 3.05 39.29 28.85 3.38 37.24 27.91 3.75 35.09 26.94 4.15 32.79 25.91 4.60 30.28 24.80 5.08

EVAPORATOR AIR

CFM

1225

63 (17.2)†† 41.93 31.44 3.13 39.91 30.53 3.45 37.78 29.58 3.82 35.55 28.58 4.23 33.17 27.53 4.67 30.58 26.38 5.16

1400

72 (22.2) 49.51 26.67 3.23 47.10 25.77 3.56 44.56 24.84 3.92 41.96 23.89 4.32 39.08 22.86 4.76 35.93 21.74 5.23

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

67 (19.4) 45.43 34.21 3.21 43.21 33.29 3.54 40.87 32.32 3.90 38.43 31.32 4.31 35.82 30.25 4.75 32.96 29.06 5.23

62 (16.7) 41.88 41.27 3.20 39.96 39.96 3.53 38.15 38.15 3.89 36.24 36.24 4.30 34.17 34.17 4.74 31.87 31.87 5.23

57 (13.9) 41.65 41.65 3.20 39.96 39.96 3.53 38.15 38.15 3.89 36.24 36.24 4.30 34.18 34.18 4.74 31.87 31.87 5.23

63 (17.2)†† 42.44 33.06 3.20 40.35 32.13 3.53 38.16 31.15 3.89 35.87 30.14 4.30 33.43 29.06 4.74 30.78 27.86 5.23

1575

COOLING INDOOR

MODEL

FB4CNF042 1.00 0.96

FB4CNF042 1.00 1.00

FB4CNF048 1.00 1.00

*FY5BNF042 1.00 1.00

FE4ANB006 1.04 0.92

FB4CNF048 1.01 0.97

FE4AN(B,F)003 0.98 0.93

FE4AN(B,F)005 1.02 0.93

FV4BNB006 1.04 0.92

FV4BN(B,F)003 0.98 0.93

FV4BN(B,F)005 1.02 0.93

FX4CN(B,F)042 1.01 0.99

FY4ANF042 0.99 1.04

FY4ANF048 1.01 1.05

FY5BNF042 1.00 0.98

FY5BNF048 1.00 1.00

FY5BNF048 1.02 1.01

CAP**4221A** 0.98 1.03

CAP**4224A** 0.98 1.03

CAP**4817A** 0.99 1.02

CAP**4821A** 1.00 1.04

CAP**4823A** 1.00 1.04

FX4CN(B,F)048 1.04 0.97

FX4DN(B,F)043 1.01 0.97

FX4DN(B,F)049 1.02 0.94

CAP**4824A** 1.00 1.04

CNPF*4818A** 0.99 1.03

CNPV*4217A** 0.99 1.03

CNPV*4221A** 0.98 1.03

CNPV*4324A** 1.01 1.01

CNPV*4821A** 1.00 1.04

CNPV*4824A** 1.00 1.04

CNPH*4221A** 0.98 1.03

CNPH*4321A** 1.01 1.01

CNPH*4821A** 1.00 1.04

CSPH*4212A** 0.98 1.00

39

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CNPV*4221A** 0.98 0.96 58PH*110--- 20

CNPH*4321A** 1.01 0.93 58PH*110 ---20

CNPH*4821A** 1.00 0.96 58PH*110 ---20

CAP**4224A** 0.99 0.94 58PH*135 ---20

CNPV*4821A** 1.00 0.96 58PH*110--- 20

CAP**4824A** 1.00 0.96 58PH*135 ---20

CSPH*4212A** 1.00 0.96 58PH*110--- 20

CSPH*4812A** 1.01 0.97 58PH*110--- 20

CNPV*4324A** 1.02 0.94 58PH*135--- 20

CNPH*4221A** 0.98 0.96 58PH*135 ---20

CNPH*4321A** 1.01 0.97 58PH*135 ---20

CNPH*4821A** 1.00 0.96 58PH*135 ---20

CAP**4221A** 0.96 0.95 58VLR120---20

CNPV*4824A** 1.00 0.96 58PH*135--- 20

CAP**4821A** 0.99 0.94 58VLR120---20

CNPV*4221A** 0.98 0.96 58VLR120--- 20

CSPH*4212A** 1.00 0.96 58PH*135--- 20

CSPH*4812A** 1.00 0.96 58PH*135--- 20

CNPV*4321A** 1.00 0.96 58VLR120--- 20

CNPH*4221A** 0.98 0.96 58VLR120 ---20

CNPH*4821A** 0.99 0.94 58VLR120 ---20

CAP**4221A** 0.96 0.95 58VMR120--- 20

CNPV*4821A** 0.99 0.94 58VLR120--- 20

CAP**4821A** 0.99 0.97 58VMR120--- 20

CNPV*4221A** 0.96 0.95 58VMR120--- 20

CSPH*4212A** 0.99 0.94 58VLR120--- 20

CSPH*4812A** 1.00 0.96 58VLR120--- 20

CNPV*4321A** 1.00 0.96 58VMR120--- 20

CNPH*4221A** 0.96 0.95 58VMR120 ---20

CNPH*4821A** 0.99 0.94 58VMR120 ---20

CAP**4221A** 0.98 0.98 OVLAAB048112

CNPV*4821A** 0.99 0.94 58VMR120--- 20

CAP**4821A** 1.00 1.00 OVLAAB048112

CSPH*4212A** 0.99 0.94 58VMR120--- 20

CSPH*4812A** 1.00 0.96 58VMR120--- 20

CNPH*4221A** 0.98 0.98 OVLAAB048112

CNPH*4321A** 1.01 0.99 OVLAAB048112

CNPV*4221A** 0.98 0.98 OVLAAB048112

CNPH*4821A** 1.00 0.98 OVLAAB048112

CNPV*4821A** 1.00 0.98 OVLAAB048112

CSPH*4212A** 1.00 0.98 OVLAAB048112

CSPH*4812A** 1.00 0.98 OVLAAB048112

CNPH*4221A** 1.00 0.98 OVLAAB060154

CNPH*4321A** 1.02 0.98 OVLAAB060154

CSPH*4212A** 1.02 0.98 OVLAAB060154

CNPH*4821A** 1.01 0.97 OVLAAB060154

CAP**4817A** 1.00 0.98 OVMAAB042112

CSPH*4812A** 1.02 0.98 OVLAAB060154

CNPH*4221A** 0.98 0.98 OVMAAB042112

CNPH*4321A** 1.00 0.96 OVMAAB042112

CNPV*4217A** 0.98 0.98 OVMAAB042112

CNPH*4821A** 0.99 0.97 OVMAAB042112

CSPH*4212A** 1.00 0.98 OVMAAB042112

CSPH*4812A** 1.00 0.98 OVMAAB042112

Seenoteonpg.43

25HCB3

CAPACITY POWER FURNACE MODEL

25HCB342A30 Outdoor Section With FY4ANF042 Indoor Section

MODEL

CONTINUED

#

COOLING INDOOR

CAP**4821A** 0.99 0.95 58MV(B,C)080--- 14

CNPV*4221A** 0.96 0.95 58MV(B,C)080--- 14

CNPH*4221A** 0.96 0.95 58MV(B,C)080--- 14

CNPH*4321A** 1.00 0.96 58MV(B,C)080--- 14

CNPH*4821A** 0.99 0.98 58MV(B,C)080--- 14

CAP**4221A** 0.98 0.98 58MV(B,C)080--- 20

CNPV*4821A** 0.99 0.98 58MV(B,C)080--- 14

CAP**4821A** 0.99 0.97 58MV(B,C)080--- 20

CSPH*4212A** 0.96 0.95 58MV(B,C)080--- 14

CSPH*4812A** 0.99 0.98 58MV(B,C)080--- 14

CNPV*4221A** 0.98 0.96 58MV(B,C)080--- 20

CNPH*4221A** 0.98 0.96 58MV(B,C)080--- 20

CNPH*4321A** 1.01 0.97 58MV(B,C)080--- 20

CNPH*4821A** 0.99 0.97 58MV(B,C)080--- 20

CAP**4221A** 0.98 0.96 58MV(B,C)100--- 20

CNPV*4821A** 0.99 0.97 58MV(B,C)080--- 20

CAP**4821A** 0.99 0.96 58MV(B,C)100--- 20

CSPH*4212A** 0.98 0.96 58MV(B,C)080--- 20

CSPH*4812A** 0.99 0.96 58MV(B,C)080--- 20

CNPV*4221A** 0.98 0.94 58MV(B,C)100--- 20

CNPH*4221A** 0.98 0.94 58MV(B,C)100--- 20

CNPH*4321A** 1.00 0.96 58MV(B,C)100--- 20

CNPH*4821A** 1.00 0.96 58MV(B,C)100--- 20

CAP**4224A** 0.98 0.96 58MV(B,C)120--- 20

CNPV*4821A** 0.99 0.95 58MV(B,C)100--- 20

CAP**4824A** 0.99 0.95 58MV(B,C)120--- 20

CSPH*4212A** 0.98 0.95 58MV(B,C)100--- 20

CSPH*4812A** 0.99 0.96 58MV(B,C)100--- 20

CNPV*4324A** 1.01 0.97 58MV(B,C)120--- 20

CNPV*4824A** 0.99 0.95 58MV(B,C)120--- 20

CNPH*4221A** 0.98 0.94 58MV(B,C)120--- 20

CNPH*4321A** 1.01 0.97 58MV(B,C)120--- 20

CSPH*4212A** 0.98 0.94 58MV(B,C)120--- 20

CNPH*4821A** 0.99 0.95 58MV(B,C)120--- 20

CAP**4817A** 1.00 1.00 58PH*070 ---16

CNPV*4324A** 1.00 0.96 58MVB040--- 14

CSPH*4812A** 0.99 0.95 58MV(B,C)120--- 20

CNPH*4321A** 1.00 0.96 58MVB040 ---14

CNPH*4221A** 0.98 0.99 58PH*070 ---16

CNPH*4321A** 1.01 0.99 58PH*070 ---16

CNPH*4821A** 1.00 1.00 58PH*070 ---16

CAP**4221A** 0.98 0.96 58PH*090 ---16

CNPV*4217A** 0.98 1.02 58PH*070--- 16

CAP**4821A** 1.00 0.96 58PH*090 ---16

CSPH*4212A** 1.00 1.00 58PH*070--- 16

CSPH*4812A** 1.00 1.00 58PH*070--- 16

CNPV*4221A** 0.98 0.96 58PH*090--- 16

CNPH*4221A** 0.98 0.96 58PH*090 ---16

CNPH*4321A** 1.01 0.97 58PH*090 ---16

CNPH*4821A** 1.00 0.96 58PH*090 ---16

CAP**4221A** 0.99 0.94 58PH*110 ---20

CNPV*4821A** 1.00 0.96 58PH*090--- 16

CAP**4821A** 1.00 0.96 58PH*110 ---20

CSPH*4212A** 1.00 0.96 58PH*090--- 16

CSPH*4812A** 1.00 0.96 58PH*090--- 16

CNPH*4221A** 0.98 0.93 58PH*110 ---20

CAPACITY POWER FURNACE MODEL

MODEL

COOLING INDOOR

CNPV*4217A** 0.99 0.99 58ME(B,C)060--- 12

CSPH*4212A** 1.00 0.96 58ME(B,C)060--- 12

CSPH*4812A** 1.01 0.97 58ME(B,C)060--- 12

CNPH*4821A** 1.00 0.96 58ME(B,C)060--- 12

CNPV*4217A** 0.99 0.99 58ME(B,C)080--- 12

CSPH*4212A** 1.00 0.96 58ME(B,C)080--- 12

CNPH*4221A** 0.98 0.98 58ME(B,C)080--- 12

CNPH*4321A** 1.01 0.97 58ME(B,C)080--- 12

CSPH*4812A** 1.01 0.97 58ME(B,C)080--- 12

CNPH*4821A** 1.00 0.96 58ME(B,C)080--- 12

CNPH*4221A** 0.98 0.98 58ME(B,C)080--- 16

CNPH*4321A** 1.01 0.97 58ME(B,C)080--- 16

CNPH*4821A** 1.00 0.96 58ME(B,C)080--- 16

DETAILED COOLING CAPACITIES

CAP**4221A** 0.99 0.94 58ME(B,C)100--- 20

CNPV*4217A** 0.99 0.99 58ME(B,C)080--- 16

CAP**4821A** 1.00 0.96 58ME(B,C)100--- 20

CSPH*4212A** 1.00 0.96 58ME(B,C)080--- 16

CSPH*4812A** 1.00 0.96 58ME(B,C)080--- 16

CNPV*4221A** 0.98 0.93 58ME(B,C)100--- 20

CNPH*4221A** 0.98 0.98 58ME(B,C)100--- 20

CNPH*4321A** 1.02 0.94 58ME(B,C)100--- 20

CNPH*4821A** 1.00 0.96 58ME(B,C)100--- 20

CAP**4224A** 0.99 0.94 58ME(B,C)120--- 20

CNPV*4821A** 1.00 0.96 58ME(B,C)100--- 20

CAP**4824A** 1.00 0.96 58ME(B,C)120--- 20

CSPH*4212A** 1.00 0.96 58ME(B,C)100--- 20

CSPH*4812A** 1.01 0.97 58ME(B,C)100--- 20

CNPV*4324A** 1.02 0.94 58ME(B,C)120--- 20

CNPH*4221A** 0.99 0.94 58ME(B,C)120--- 20

CNPH*4321A** 1.02 0.94 58ME(B,C)120--- 20

CNPH*4821A** 1.01 0.97 58ME(B,C)120--- 20

CAP**4817A** 1.01 0.97 58MEB040 ---12

CNPV*4824A** 1.01 0.97 58ME(B,C)120--- 20

CSPH*4212A** 1.01 0.97 58ME(B,C)120--- 20

CSPH*4812A** 1.01 0.97 58ME(B,C)120--- 20

CNPH*4221A** 0.99 0.99 58MEB040 ---12

CNPH*4321A** 1.02 0.98 58MEB040 ---12

CNPH*4821A** 1.00 0.96 58MEB040 ---12

CAP**4224A** 0.96 0.96 58MV(B,C)040--- 14

CNPV*4217A** 0.99 0.99 58MEB040---12

CAP**4824A** 0.99 0.98 58MV(B,C)040--- 14

CSPH*4212A** 1.00 0.96 58MEB040--- 12

CSPH*4812A** 1.01 0.97 58MEB040--- 12

CNPH*4221A** 0.96 0.95 58MV(B,C)040--- 14

CNPH*4821A** 0.99 0.97 58MV(B,C)040--- 14

CAP**4817A** 0.98 0.95 58MV(B,C)060--- 14

CNPV*4824A** 0.99 0.97 58MV(B,C)040--- 14

CSPH*4212A** 0.96 0.95 58MV(B,C)040--- 14

CSPH*4812A** 0.99 0.97 58MV(B,C)040--- 14

CNPH*4221A** 0.96 0.94 58MV(B,C)060--- 14

CNPH*4321A** 1.01 0.97 58MV(B,C)060--- 14

CNPH*4821A** 0.99 0.96 58MV(B,C)060--- 14

CAP**4221A** 0.96 0.97 58MV(B,C)080--- 14

CNPV*4217A** 0.99 0.99 58MV(B,C)060--- 14

CSPH*4212A** 0.98 0.95 58MV(B,C)060--- 14

CSPH*4812A** 0.99 0.96 58MV(B,C)060--- 14

40

Tot a l

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

CAPACITY POWER FURNACE MODEL

Capacity MBtuh

Sys.

Tot a l

KW**

Capacity MBtuh

Sys.

Tot a l

KW**

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

Capacity MBtuh

25HCB348A30 Outdoor Section With FY4ANF048 Indoor Section

Sys.

Tot a l

KW**

COOLING INDOOR

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CAP**6024A** 1.00 0.96 58HDV100--- --- 20

CAP**6025A** 1.00 0.96 58HDV100--- --- 20

CNPV*4824A** 0.98 0.94 58HDV100--- --- 20

CNPV*4824A** 0.98 0.86 58HDV100--- --- 20

CNPV*6024A** 1.00 0.96 58HDV100--- --- 20

CNPH*4821A** 0.98 0.94 58HDV100 --- --- 20

CNPH*6024A** 1.00 0.96 58HDV100 --- --- 20

CNPV*6024A** 1.00 0.88 58HDV100--- --- 20

CAP**4817A** 0.99 0.95 58ME(B,C)080--- 16

CNPV*6124A** 1.01 0.89 58HDV100--- --- 20

CSPH*4812A** 0.99 0.97 58HDV100--- --- 20

CSPH*6012A** 1.01 0.97 58HDV100--- --- 20

CNPH*4821A** 0.98 0.94 58ME(B,C)080--- 16

CAP**4821A** 0.98 0.90 58ME(B,C)100--- 20

CNPH*6024A** 1.00 0.92 58ME(B,C)080--- 16

CNPH*4821A** 0.98 0.90 58ME(B,C)100--- 20

CNPH*6024A** 1.00 0.92 58ME(B,C)100--- 20

CAP**6021A** 1.01 0.93 58ME(B,C)100--- 20

CSPH*4812A** 0.99 0.95 58ME(B,C)080--- 16

CSPH*6012A** 1.01 0.93 58ME(B,C)080--- 16

CAP**4824A** 0.99 0.91 58ME(B,C)120--- 20

CNPV*4821A** 0.98 0.90 58ME(B,C)100--- 20

CAP**6024A** 1.01 0.93 58ME(B,C)120--- 20

CSPH*4812A** 0.99 0.91 58ME(B,C)100--- 20

CSPH*6012A** 1.01 0.93 58ME(B,C)100--- 20

CNPV*4824A** 0.99 0.91 58ME(B,C)120--- 20

CNPH*4821A** 0.99 0.91 58ME(B,C)120--- 20

CNPH*6024A** 1.01 0.93 58ME(B,C)120--- 20

CAP**4821A** 0.98 0.94 58MV(B,C)080--- 20

CNPV*6024A** 1.01 0.93 58ME(B,C)120--- 20

CAP**6021A** 1.00 0.94 58MV(B,C)080--- 20

CSPH*4812A** 0.99 0.91 58ME(B,C)120--- 20

CSPH*6012A** 1.01 0.89 58ME(B,C)120--- 20

CNPV*4821A** 0.98 0.94 58MV(B,C)080--- 20

CNPH*4821A** 0.98 0.94 58MV(B,C)080--- 20

CNPH*6024A** 1.00 0.96 58MV(B,C)080--- 20

25HCB3

MODEL

CAP**4821A** 0.98 0.94 58CV(A,X)110--- 20

CAP**6021A** 1.00 0.94 58CV(A,X)110--- 20

CSPH*4812A** 0.98 0.94 58CV(A,X)090 ---16

CSPH*6012A** 1.00 0.94 58CV(A,X)090 ---16

CNPH*4821A** 0.98 0.94 58CV(A,X)110--- 20

CNPH*6024A** 1.00 0.94 58CV(A,X)110--- 20

CAP**4824A** 0.98 0.92 58CV(A,X)135--- 22

CNPV*4821A** 0.98 0.94 58CV(A,X)110 ---20

CAP**6024A** 1.01 0.95 58CV(A,X)135--- 22

CSPH*4812A** 0.98 0.94 58CV(A,X)110 ---20

CSPH*6012A** 1.00 0.94 58CV(A,X)110 ---20

CNPV*4824A** 0.98 0.92 58CV(A,X)135 ---22

CNPH*4821A** 0.99 0.93 58CV(A,X)135--- 22

CNPH*6024A** 1.00 0.92 58CV(A,X)135--- 22

CAP**4824A** 0.99 0.95 58CV(A,X)155--- 22

CNPV*6024A** 1.00 0.92 58CV(A,X)135 ---22

CAP**6024A** 1.01 0.93 58CV(A,X)155--- 22

CSPH*4812A** 0.98 0.92 58CV(A,X)135 ---22

CSPH*6012A** 1.00 0.92 58CV(A,X)135 ---22

CNPV*4824A** 0.99 0.95 58CV(A,X)155 ---22

CNPH*4821A** 0.99 0.93 58CV(A,X)155--- 22

CNPH*6024A** 1.01 0.93 58CV(A,X)155--- 22

CAP**4823A** 0.98 0.94 58HDV080--- --- 20

CNPV*6024A** 1.01 0.93 58CV(A,X)155 ---22

CAP**6025A** 1.01 0.93 58HDV080--- --- 20

CNPV*4821A** 0.99 0.91 58HDV080--- --- 20

CNPV*4824A** 0.99 0.91 58HDV080--- --- 20

CSPH*4812A** 0.98 0.92 58CV(A,X)155 ---22

CSPH*6012A** 1.00 0.92 58CV(A,X)155 ---22

CNPH*4821A** 0.98 0.96 58HDV080 --- --- 20

CNPV*6024A** 1.00 0.88 58HDV080--- --- 20

CNPH*6024A** 1.00 0.96 58HDV080 --- --- 20

CAP**4824A** 0.98 0.96 58HDV100--- --- 20

CNPV*6124A** 1.01 0.89 58HDV080--- --- 20

CSPH*4812A** 0.99 0.97 58HDV080--- --- 20

CSPH*6012A** 1.01 0.97 58HDV080--- --- 20

CONTINUED

#

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ To ta l Sens‡ Tot a l Sens‡ To ta l Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

°F(°C)

72 (22.2) 55.40 28.31 3.28 52.85 27.32 3.64 50.16 26.29 4.04 47.32 25.21 4.48 44.24 24.07 4.96 40.83 22.81 5.48

67 (19.4) 50.66 35.30 3.27 48.32 34.30 3.63 45.85 33.24 4.03 43.23 32.13 4.47 40.39 30.96 4.95 37.28 29.68 5.48

62 (16.7) 46.25 42.22 3.27 44.12 41.16 3.63 41.87 40.03 4.03 39.52 38.79 4.47 37.13 37.13 4.95 34.77 34.77 5.47

57 (13.9) 44.75 44.75 3.27 43.04 43.04 3.63 41.21 41.21 4.03 39.26 39.26 4.47 37.13 37.13 4.95 34.77 34.77 5.47

72 (22.2) 56.26 29.55 3.36 53.63 28.56 3.72 50.81 27.50 4.12 47.87 26.42 4.56 44.68 25.26 5.04 41.16 23.99 5.56

67 (19.4) 51.50 37.44 3.36 49.07 36.42 3.72 46.50 35.35 4.12 43.77 34.22 4.56 40.83 33.02 5.04 37.62 31.70 5.56

62 (16.7) 47.16 45.12 3.35 44.97 43.96 3.71 42.69 42.69 4.11 40.59 40.59 4.55 38.33 38.33 5.03 35.82 35.82 5.56

57 (13.9) 46.44 46.44 3.35 44.61 44.61 3.71 42.67 42.67 4.11 40.59 40.59 4.55 38.34 38.34 5.03 35.83 35.83 5.56

63 (17.2)†† 47.16 34.17 3.27 44.97 33.16 3.63 42.65 32.10 4.03 40.18 30.98 4.47 37.54 29.81 4.95 34.64 28.52 5.47

EVAPORATOR AIR

CFM

1400

63 (17.2)†† 47.98 36.18 3.35 45.70 35.15 3.71 43.28 34.07 4.11 40.73 32.94 4.55 37.99 31.73 5.03 35.00 30.41 5.56

1600

72 (22.2) 56.87 30.73 3.45 54.16 29.72 3.81 51.25 28.65 4.20 48.26 27.57 4.64 44.97 26.39 5.12 41.36 25.11 5.64

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

67 (19.4) 52.10 39.48 3.44 49.59 38.45 3.80 46.94 37.35 4.20 44.13 36.19 4.64 41.13 34.96 5.12 37.84 33.60 5.64

62 (16.7) 47.96 47.60 3.44 45.90 45.90 3.80 43.85 43.85 4.20 41.66 41.66 4.64 39.30 39.30 5.12 36.65 36.65 5.64

57 (13.9) 47.82 47.82 3.44 45.90 45.90 3.80 43.86 43.86 4.20 41.67 41.67 4.64 39.30 39.30 5.12 36.65 36.65 5.64

63 (17.2)†† 48.58 38.09 3.44 46.22 37.05 3.80 43.74 35.94 4.20 41.11 34.78 4.64 38.30 33.54 5.12 35.25 32.17 5.64

1800

COOLING INDOOR

MODEL

FB4CNF048 0.99 0.95

FB4CNF048 0.99 0.99

*FY5BNF048 1.00 1.00

FE4ANB006 1.03 0.91

FB4CNF060 1.00 1.00

FB4CNF060 1.01 0.91

FV4BNB006 1.03 0.91

FE4AN(B,F)005 1.01 0.91

FV4BN(B,F)005 1.01 0.91

FX4CN(B,F)048 1.02 0.96

FX4CN(B,F)060 1.03 0.95

FY4ANF048 1.00 1.02

FY5BNF048 1.01 0.93

FY4ANB060 1.02 1.02

FY5BNB060 1.02 0.98

CAP**4817A** 0.97 0.99

CAP**4821A** 0.99 1.01

CAP**4823A** 0.99 1.01

CAP**4824A** 0.99 1.01

CAP**6021A** 1.01 1.03

CAP**6024A** 1.01 1.03

FX4DN(B,F)049 1.02 0.92

FX4DN(B,F)061 1.03 0.91

CAP**6025A** 1.01 1.03

CNPF*4818A** 0.97 0.99

CNPV*4821A** 0.99 1.01

CNPV*4824A** 0.99 1.01

CNPH*4821A** 0.99 1.01

CNPH*6024A** 1.01 1.03

CAP**4817A** 0.97 0.93 58CV(A,X)090--- 16

CNPV*6024A** 1.01 1.03

CSPH*4812A** 0.99 1.01

CSPH*6012A** 1.01 1.03

CNPV*4821A** 0.98 0.94 58CV(A,X)090 ---16

CNPH*4821A** 0.98 0.94 58CV(A,X)090--- 16

CNPH*6024A** 1.00 0.94 58CV(A,X)090--- 16

41

25HCB3

CAPACITY POWER FURNACE MODEL

25HCB348A30 Outdoor Section With FY4ANF048 Indoor Section

MODEL

CAP**4821A** 0.97 0.93 OVLAAB048112

CAP**6021A** 1.00 0.92 OVLAAB048112

CNPH*4821A** 0.98 0.90 OVLAAB048112

CNPH*6024A** 1.00 0.92 OVLAAB048112

CNPV*4821A** 0.98 0.90 OVLAAB048112

CSPH*4812A** 0.98 0.90 OVLAAB048112

CSPH*6012A** 1.00 0.92 OVLAAB048112

CNPH*4821A** 1.00 0.92 OVLAAB060154

CSPH*4812A** 1.00 0.92 OVLAAB060154

CNPH*6024A** 1.01 0.89 OVLAAB060154

CSPH*6012A** 1.01 0.93 OVLAAB060154

Seenoteonpg.43

CONTINUED

#

COOLING INDOOR

CSPH*6012A** 1.00 0.92 58VMR120--- 20

CAPACITY POWER FURNACE MODEL

MODEL

CAP**4821A** 0.98 0.94 58MV(B,C)100--- 20

COOLING INDOOR

CAP**6021A** 1.00 0.94 58MV(B,C)100--- 20

CSPH*4812A** 0.98 0.94 58MV(B,C)080--- 20

CSPH*6012A** 1.00 0.94 58MV(B,C)080--- 20

CNPH*4821A** 0.98 0.94 58MV(B,C)100--- 20

CNPH*6024A** 1.00 0.94 58MV(B,C)100--- 20

CAP**4824A** 0.98 0.94 58MV(B,C)120--- 20

CNPV*4821A** 0.98 0.94 58MV(B,C)100--- 20

CAP**6024A** 1.00 0.94 58MV(B,C)120--- 20

CSPH*4812A** 0.98 0.94 58MV(B,C)100--- 20

CSPH*6012A** 1.00 0.94 58MV(B,C)100--- 20

CNPH*4821A** 0.98 0.94 58MV(B,C)120--- 20

DETAILED COOLING CAPACITIES

CAP**4821A** 0.98 0.90 58PH*090 ---16

CNPV*4824A** 0.98 0.94 58MV(B,C)120--- 20

CNPV*6024A** 1.00 0.94 58MV(B,C)120--- 20

CNPH*6024A** 1.00 0.94 58MV(B,C)120--- 20

CAP**6021A** 1.00 0.92 58PH*090 ---16

CSPH*4812A** 0.98 0.94 58MV(B,C)120--- 20

CSPH*6012A** 1.00 0.94 58MV(B,C)120--- 20

CNPH*4821A** 0.98 0.90 58PH*090 ---16

CNPH*6024A** 1.00 0.92 58PH*090 ---16

CAP**4821A** 0.98 0.90 58PH*110 ---20

CNPV*4821A** 0.98 0.94 58PH*090--- 16

CAP**6021A** 1.01 0.89 58PH*110 ---20

CSPH*4812A** 0.99 0.91 58PH*090--- 16

CSPH*6012A** 1.01 0.93 58PH*090--- 16

CNPH*4821A** 0.98 0.90 58PH*110 ---20

CNPH*6024A** 1.00 0.92 58PH*110 ---20

CAP**4824A** 0.98 0.90 58PH*135 ---20

CNPV*4821A** 0.98 0.90 58PH*110--- 20

CAP**6024A** 1.00 0.92 58PH*135 ---20

CSPH*4812A** 0.99 0.91 58PH*110--- 20

CSPH*6012A** 1.01 0.93 58PH*110--- 20

CNPV*4824A** 0.98 0.90 58PH*135--- 20

CNPH*4821A** 0.98 0.90 58PH*135 ---20

CNPH*6024A** 1.00 0.92 58PH*135 ---20

CAP**4821A** 0.97 0.93 58VLR120---20

CNPV*6024A** 1.00 0.92 58PH*135--- 20

CAP**6021A** 1.00 0.92 58VLR120---20

CSPH*4812A** 0.99 0.91 58PH*135--- 20

CSPH*6012A** 1.01 0.93 58PH*135--- 20

CNPH*4821A** 0.98 0.94 58VLR120 ---20

CNPH*6024A** 1.00 0.92 58VLR120 ---20

CNPH*6124A** 1.00 0.92 58VLR120 ---20

CAP**4821A** 0.97 0.95 58VMR120--- 20

CNPV*4821A** 0.98 0.90 58VLR120--- 20

CAP**6021A** 1.00 0.96 58VMR120--- 20

CSPH*4812A** 0.98 0.94 58VLR120--- 20

CSPH*6012A** 1.00 0.92 58VLR120--- 20

CNPV*4821A** 0.98 0.94 58VMR120--- 20

CNPH*4821A** 0.98 0.94 58VMR120 ---20

CSPH*4812A** 0.98 0.94 58VMR120--- 20

CNPH*6024A** 0.99 0.91 58VMR120 ---20

CNPH*6124A** 1.00 0.96 58VMR120 ---20

42

Tot a l

Tot a l

Capacity MBtuh

Sys.

KW**

Sys.

KW**

CAPACITY POWER FURNACE MODEL

CONDENSER ENTERI NG AIR TEMPERATURES ° F (° C)

CONTINUED

#

Tot a l

Tot a l

Tot a l

Capacity MBtuh

Capacity MBtuh

Capacity MBtuh

MODEL

CAP**6024A** 0.97 0.92 58ME(B,C)120--- 20

CNPV*6024A** 0.97 0.92 58ME(B,C)120--- 20

CNPV*6124A** 1.00 0.90 58ME(B,C)120--- 20

CNPH*6024A** 0.97 0.92 58ME(B,C)120--- 20

COOLING INDOOR

Sys.

KW**

Sys.

KW**

CAPACITY POWER FURNACE MODEL

COOLING INDOOR

MODEL

CAP**6024A** 0.99 0.93 58CV(A,X)155--- 22

CNPH*6024A** 0.99 0.93 58CV(A,X)155--- 22

25HCB360A31 Outdoor Section With FY4ANF060 Indoor Section

Sys.

KW**

CSPH*6012A** 0.98 0.92 58ME(B,C)120--- 20

CNPH*6124A** 0.99 0.93 58ME(B,C)120--- 20

CNPH*6124A** 0.98 0.92 58CV(A,X)155--- 22

CNPH*6124A** 0.98 0.97 58MV(B,C)080--- 20

CNPV*6024A** 0.99 0.93 58CV(A,X)155 ---22

CNPV*6124A** 1.00 0.90 58CV(A,X)155 ---22

CSPH*6012A** 0.99 0.93 58CV(A,X)155 ---22

CNPH*6024A** 0.98 0.97 58HDV080 --- --- 20

CAP**6021A** 0.98 0.92 58PH*090 ---16

CNPV*6124A** 1.00 0.94 58MV(B,C)120--- 20

CNPH*6124A** 0.98 0.97 58MV(B,C)100--- 20

CNPH*6124A** 0.99 0.96 58MV(B,C)120--- 20

CAP**6021A** 0.99 0.93 58PH*110 ---20

CSPH*6012A** 0.99 0.93 58PH*090--- 16

CNPH*6024A** 0.98 0.92 58PH*090 ---16

CAP**6024A** 0.98 0.92 58PH*135 ---20

CNPV*6024A** 0.98 0.92 58PH*135--- 20

CSPH*6012A** 0.99 0.93 58PH*110--- 20

CNPH*6024A** 0.98 0.92 58PH*110 ---20

CNPH*6124A** 0.99 0.93 58PH*110 ---20

CNPV*6124A** 1.00 0.94 58PH*135--- 20

CSPH*6012A** 0.99 0.93 58PH*135--- 20

CNPH*6024A** 0.98 0.92 58PH*135 ---20

CNPH*6124A** 0.99 0.93 58PH*135 ---20

CSPH*6012A** 0.97 0.94 58VLR120--- 20

CNPH*6024A** 0.97 0.94 58VLR120 ---20

25HCB3

CAP**6025A** 0.98 0.95 58HDV100--- --- 20

CNPV*6024A** 0.97 0.96 58HDV080--- --- 20

CNPV*6124A** 1.01 0.99 58HDV080--- --- 20

CSPH*6012A** 0.98 0.97 58HDV080--- --- 20

CNPH*6124A** 0.99 0.97 58HDV080 --- --- 20

CNPV*6024A** 0.98 0.95 58HDV100--- --- 20

CNPV*6024A** 0.98 0.97 58HDV100--- --- 20

CNPV*6124A** 0.99 0.97 58HDV100--- --- 20

CNPV*6124A** 1.00 0.96 58HDV100--- --- 20

CNPH*6024A** 0.98 0.95 58HDV100 --- --- 20

CNPH*6124A** 0.99 0.96 58HDV100 --- --- 20

CSPH*6012A** 0.98 0.95 58HDV100--- --- 20

CAP**6021A** 0.97 0.92 58ME(B,C)100--- 20

CSPH*6012A** 0.97 0.92 58ME(B,C)080--- 16

CNPH*6024A** 0.97 0.91 58ME(B,C)080--- 16

CNPH*6124A** 0.98 0.92 58ME(B,C)080--- 16

CSPH*6012A** 0.98 0.92 58ME(B,C)100--- 20

CNPH*6024A** 0.97 0.92 58ME(B,C)100--- 20

CNPH*6124A** 0.99 0.93 58ME(B,C)100--- 20

Capacity MBtuh

Sys.

Tot a l

KW**

75 (23.9) 85 (29.4) 95 (35) 105 (40.6) 115 (46.1) 125 (51.7)

Capacity MBtuh

Tot a l Sens‡ Tot al Sens‡ Tot a l Sens‡ Tot al Sens‡ To ta l Sens‡ To ta l Sens‡

EWB

°F(°C)

72 (22.2) 71.08 36.09 4.41 67.69 34.77 4.86 64.09 33.39 5.36 60.33 31.96 5.90 56.30 30.45 6.50 51.84 28.81 7.14

67 (19.4) 65.19 45.05 4.36 62.05 43.69 4.81 58.73 42.27 5.30 55.30 40.82 5.85 51.61 39.29 6.44 47.57 37.62 7.09

62 (16.7) 59.61 53.90 4.30 56.75 52.49 4.75 53.77 51.00 5.25 50.69 49.41 5.80 47.50 47.50 6.40 45.90 45.90 6.36

57 (13.9) 57.48 57.48 4.28 55.20 55.20 4.74 52.79 52.79 5.24 50.24 50.24 5.79 47.49 47.49 6.40 44.42 44.42 7.06

72 (22.2) 72.12 37.62 4.54 68.55 36.26 4.99 64.87 34.89 5.48 60.98 33.44 6.03 56.80 31.91 6.62 52.19 30.25 7.26

67 (19.4) 66.24 47.72 4.48 62.96 46.34 4.93 59.50 44.89 5.43 55.93 43.42 5.97 52.11 41.85 6.57 47.93 40.14 7.21

62 (16.7) 60.73 57.58 4.43 57.79 56.05 4.88 54.77 54.33 5.38 51.88 51.88 5.93 48.94 48.94 6.53 47.37 47.37 6.51

57 (13.9) 59.63 59.63 4.42 57.18 57.18 4.87 54.60 54.60 5.38 51.89 51.89 5.93 48.94 48.94 6.53 45.66 45.66 7.19

63 (17.2)†† 60.79 43.67 4.31 57.85 42.31 4.76 54.78 40.90 5.26 51.57 39.45 5.81 48.15 37.91 6.40 44.41 36.26 7.05

EVAPORATOR AIR

CFM

1750

63 (17.2)†† 61.83 46.19 4.44 58.77 44.80 4.89 55.56 43.36 5.38 52.22 41.88 5.93 48.67 40.31 6.53 44.80 38.60 7.18

2000

72 (22.2) 72.83 39.05 4.66 69.16 37.69 5.11 65.40 36.31 5.61 61.39 34.85 6.15 57.10 33.30 6.74 52.35 31.61 7.37

DETAILED COOLING CAPACITIES

CAPACITY POWER FURNACE MODEL

67 (19.4) 66.96 50.26 4.61 63.58 48.86 5.06 60.01 47.39 5.55 56.35 45.89 6.09 52.43 44.28 6.69 48.14 42.52 7.33

62 (16.7) 61.68 60.83 4.56 58.79 58.79 5.01 56.05 56.05 5.51 53.19 53.19 6.06 50.08 50.08 6.66 46.62 46.62 7.31

57 (13.9) 61.37 61.37 4.55 58.79 58.79 5.01 56.06 56.06 5.51 53.19 53.19 6.06 50.08 50.08 6.66 46.62 46.62 7.31

63 (17.2)†† 62.58 48.57 4.56 59.40 47.16 5.01 56.09 45.69 5.51 52.66 44.18 6.05 49.01 42.56 6.65 45.05 40.80 7.30

2250

MODEL

COOLING INDOOR

FE4ANB006 1.01 0.95

FV4BNB006 1.01 0.95

FB4CNF060 0.96 0.94

FB4CNF060 0.99 0.96

*FY5BNB060 1.00 1.00

FY4ANB060 1.00 1.00

CAP**6021A** 0.99 0.99

CAP**6024A** 1.01 1.01

FX4CN(B,F)060 1.01 0.91

FX4DN(B,F)061 1.01 0.91

CAP**6025A** 1.01 1.01

CNPH*6024A** 1.00 1.00

CNPH*6124A** 0.99 0.93

CAP**6021A** 0.97 0.94 58CV(A,X)110--- 20

CNPV*6024A** 1.00 1.00

CNPV*6124A** 1.01 0.95

CSPH*6012A** 1.01 1.01

CAP**6024A** 0.99 0.93 58CV(A,X)135--- 22

CNPV*6024A** 0.98 0.95 58CV(A,X)135 ---22

CSPH*6012A** 0.99 0.96 58CV(A,X)110 ---20

CNPH*6024A** 0.98 0.95 58CV(A,X)110--- 20

CNPH*6124A** 0.99 0.93 58CV(A,X)110--- 20

CNPV*6124A** 1.00 0.90 58CV(A,X)135 ---22

CNPH*6024A** 0.98 0.95 58CV(A,X)135--- 22

CSPH*6012A** 0.99 0.93 58CV(A,X)135 ---22

CNPH*6124A** 0.99 0.93 58CV(A,X)135--- 22

{ Total and sensible capacities are net capacities. Blower motor heat has been subtracted.

} Sensible capacities shown are based on 80_F(27_C) entering air at the indoor coil. For sensible capacities at other than 80_F(27_C), deduct 835 Btuh

(245 kW) per 1000 CFM (480 L/S) of indoor coil air for each degree below 80_F(27_C), or add 835 Btuh (245 kW) per 1000 CFM (480 L/S ) of indoor coil air per degree above 80_F(27_C).

# Detailed cooling capacities are based on indoor an d outdoor u nit at the same elevation per AHRI standard 210/240 ---94. If additional tubing length and/or indoor unit is located above outdoor unit, a slight variation in capacity may

occur.

43

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

CAP**2417A** 1.00 0.98 OVLAAB036098

CNPV*2417A** 1.01 1.01 58VMR105--- 12

CSPH*2412A** 1.01 1.01 58VMR105--- 12

CNPH*2417A** 1.01 1.01 58VMR105 ---12

CNPH*2417A** 1.01 0.98 OVLAAB036098

CNPV*1917A** 1.01 0.97 OVLAAB036098

CNPV*2417A** 1.01 0.98 OVLAAB036098

CAP**2417A** 1.01 0.98 OVMAAB036098

CSPH*2412A** 1.01 0.99 OVLAAB036098

CNPV*1917A** 1.02 0.96 OVMAAB036098

CNPH*2417A** 1.02 0.97 OVMAAB036098

CNPV*2417A** 1.02 0.97 OVMAAB036098

CSPH*2412A** 1.02 0.98 OVMAAB036098

Seenoteonpg.56

25HCB3

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB318A30 Outdoor Section With FY4ANF018 Indoor Section

MODEL

HEATING INDOOR

CNPV*2417A** 1.01 1.02 58CV(A,X)090 ---16

CNPV*1917A** 1.03 0.95 58HDV040--- --- 12

CNPV*2417A** 1.03 0.98 58HDV040--- --- 12

CSPH*2412A** 1.01 1.02 58CV(A,X)090 ---16

CSPH*2412A** 1.02 0.97 58HDV040--- --- 12

CNPH*2417A** 1.02 0.97 58HDV040 --- --- 12

CNPH*2417A** 1.02 0.97 58HDV060 --- --- 12

CAP**2417A** 1.02 0.98 58ME(B,C)060--- 12

CNPV*1917A** 1.03 0.94 58HDV060--- --- 12

CNPV*2417A** 1.03 0.98 58HDV060--- --- 12

CSPH*2412A** 1.02 0.97 58HDV060--- --- 12

CNPH*2417A** 1.01 0.99 58ME(B,C)060--- 12

CAP**2417A** 1.02 0.96 58MEB040 ---12

CNPV*1917A** 1.02 0.96 58ME(B,C)060--- 12

CNPV*2417A** 1.01 0.99 58ME(B,C)060--- 12

CNPV*1917A** 1.03 0.95 58MEB040---12

CSPH*2412A** 1.00 1.01 58ME(B,C)060--- 12

CNPV*2417A** 1.02 0.97 58MEB040---12

CNPH*2417A** 1.02 0.97 58MEB040 ---12

CAP**2417A** 1.00 1.02 58MV(B,C)060--- 14

CNPV*1917A** 1.01 1.01 58MV(B,C)060--- 14

CSPH*2412A** 1.02 0.98 58MEB040--- 12

CSPH*2412A** 1.00 1.02 58MV(B,C)040--- 14

CNPH*2417A** 1.00 1.02 58MV(B,C)040--- 14

CNPV*2417A** 1.00 1.02 58MV(B,C)060--- 14

CNPH*2417A** 1.00 1.02 58MV(B,C)060--- 14

CAP**1814A** 1.00 1.03 58PH*045 ---08

CSPH*2412A** 1.00 1.02 58MV(B,C)060--- 14

CAP**2414A** 1.02 1.01 58PH*045 ---08

CSPH*2412A** 1.01 1.02 58MV(B,C)080--- 14

CNPH*2417A** 1.01 1.02 58MV(B,C)080--- 14

CNPH*2417A** 1.02 1.00 58PH*045 ---08

CAP**2417A** 1.01 0.98 58VLR105---12

CNPV*1814A** 1.01 1.02 58PH*045--- 08

CNPV*2414A** 1.02 1.00 58PH*045--- 08

CSPH*2412A** 1.02 1.01 58PH*045--- 08

CAP**2417A** 1.00 1.01 58VMR105--- 12

CNPV*2417A** 1.02 0.98 58VLR105--- 12

CSPH*2412A** 1.02 0.98 58VLR105--- 12

CNPH*2417A** 1.02 0.98 58VLR105 ---12

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

525 6.61 6.08 0.80 8.47 7.79 0.84 10.49 9.56 0.87 12.71 11.29 0.91 15.25 13.88 0.96 18.01 18.01 1.02 21.07 21.07 1.09 23.90 23.90 1.15

600 6.77 6.23 0.81 8.66 7.96 0.84 10.69 9.75 0.87 12.97 11.52 0.91 15.55 14.15 0.95 18.36 18.36 1.01 21.41 21.41 1.06 24.06 24.06 1.12

675 6.92 6.37 0.82 8.82 8.11 0.85 10.87 9.91 0.88 13.19 11.71 0.91 15.80 14.38 0.95 18.65 18.65 1.00 21.54 21.54 1.05 24.09 24.09 1.10

525 6.29 5.79 0.83 8.20 7.53 0.87 10.20 9.30 0.91 12.39 11.01 0.95 14.87 13.53 1.00 17.64 17.64 1.06 20.64 20.64 1.14 23.62 23.62 1.20

600 6.46 5.94 0.84 8.39 7.71 0.88 10.41 9.49 0.91 12.62 11.21 0.95 15.21 13.84 0.99 18.00 18.00 1.05 21.06 21.06 1.11 23.79 23.79 1.17

675 6.61 6.08 0.86 8.53 7.84 0.89 10.59 9.66 0.92 12.87 11.43 0.95 15.46 14.07 0.99 18.28 18.28 1.04 21.29 21.29 1.10 23.87 23.87 1.15

525 5.96 5.48 0.86 7.87 7.23 0.90 9.91 9.03 0.95 12.09 10.74 0.99 14.52 13.21 1.04 17.27 17.27 1.11 20.23 20.23 1.19 23.29 23.29 1.26

600 6.12 5.63 0.87 8.06 7.40 0.91 10.12 9.22 0.95 12.33 10.95 0.99 14.82 13.49 1.04 17.62 17.62 1.10 20.67 20.67 1.17 23.50 23.50 1.22

CFM

INDOOR AIR

EDB

HEAT PUMP HEATING PERFORMANCE

°F (°C)

65

70

(18.3)

(21.1)

675 6.27 5.77 0.89 8.24 7.58 0.92 10.30 9.39 0.95 12.54 11.14 0.99 15.07 13.71 1.03 17.90 17.90 1.09 20.94 20.94 1.15 23.61 23.61 1.20

75

(23.9)

CAPACITY POWER FURNACE MODEL

MODEL

HEATING INDOOR

FE4ANF002 0.97 0.95

FF1ENP018 1.03 1.10

FF1ENP019 1.02 1.02

FF1ENP024 1.01 1.06

FF1ENP025 1.02 1.00

FV4BNF002 0.97 0.95

FB4CNF018 1.02 1.02

FB4CNF024 1.02 1.02

FB4CNF024 1.00 1.00

*FB4CNF018 1.00 1.00

FX4CNF018 1.02 1.02

FY4ANF018 1.03 1.10

FY4ANF024 1.03 1.10

FY5BNF018 1.02 1.06

FY5BNF018 1.00 1.03

FY5BNF024 1.03 1.06

FX4CNF024 0.99 0.98

FX4DNF019 1.02 0.98

FX4DNF025 1.02 0.99

FY5BNF024 1.00 1.02

CAP**1814A** 1.03 1.12

CAP**2414A** 1.03 1.07

CAP**2417A** 1.03 1.07

CAP**3619A** 1.03 1.06

CNPF*2418A** 1.03 1.06

CNPV*1814A** 1.03 1.07

CNPV*1917A** 1.03 1.04

CNPH*2417A** 1.03 1.06

CAP**1814A** 0.98 1.05 58CV(A,X)070--- 12

CNPV*2414A** 1.03 1.06

CAP**2414A** 0.99 1.02 58CV(A,X)070--- 12

CNPV*2417A** 1.03 1.06

CSPH*2412A** 1.03 1.06

CNPH*2417A** 1.00 1.02 58CV(A,X)070--- 12

CAP**2417A** 1.00 1.02 58CV(A,X)090--- 16

CNPV*1814A** 1.00 1.03 58CV(A,X)070 ---12

CNPV*2414A** 1.00 1.02 58CV(A,X)070 ---12

CNPV*1917A** 1.01 1.00 58CV(A,X)090 ---16

CSPH*2412A** 1.00 1.02 58CV(A,X)070 ---12

CNPH*2417A** 1.01 1.02 58CV(A,X)090--- 16

44

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

CAP**2417A** 1.03 0.99 58ME(B,C)060--- 12

CAP**3017A** 0.96 0.91 58ME(B,C)060--- 12

CSPH*2412A** 1.03 0.98 58HDV080--- --- 20

CSPH*3012A** 0.99 0.95 58HDV080--- --- 20

CSPH*2412A** 1.03 0.99 58HDV100--- --- 20

CSPH*3012A** 0.99 0.95 58HDV100--- --- 20

CNPH*2417A** 1.03 0.99 58HDV100 --- --- 20

HEATING INDOOR

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CNPH*3017A** 1.00 0.95 58HDV100 --- --- 20

CNPV*2417A** 1.03 0.99 58ME(B,C)060--- 12

CNPH*2417A** 1.03 0.99 58ME(B,C)060--- 12

CNPH*3017A** 0.96 0.91 58ME(B,C)060--- 12

CAP**2417A** 0.98 0.96 58ME(B,C)080--- 12

CNPV*3017A** 0.96 0.91 58ME(B,C)060--- 12

CAP**3017A** 0.99 0.95 58ME(B,C)080--- 12

CSPH*2412A** 1.02 0.98 58ME(B,C)060--- 12

CSPH*3012A** 0.96 0.92 58ME(B,C)060--- 12

CNPV*2417A** 0.98 0.96 58ME(B,C)080--- 12

CNPH*2417A** 0.98 0.96 58ME(B,C)080--- 12

CNPH*3017A** 0.96 0.92 58ME(B,C)080--- 12

CAP**2417A** 1.03 0.99 58MEB040 ---12

CNPV*3017A** 0.96 0.92 58ME(B,C)080--- 12

CAP**3017A** 0.96 0.91 58MEB040 ---12

CNPV*2417A** 1.03 0.99 58MEB040---12

CSPH*2412A** 1.02 0.99 58ME(B,C)080--- 12

CSPH*3012A** 0.96 0.93 58ME(B,C)080--- 12

CNPV*3017A** 0.96 0.92 58MEB040---12

CSPH*2412A** 1.02 0.99 58MEB040--- 12

CNPH*2417A** 1.03 0.99 58MEB040 ---12

CNPH*3017A** 0.96 0.92 58MEB040 ---12

CSPH*3012A** 0.96 0.92 58MEB040--- 12

CNPH*2417A** 1.02 1.02 58MV(B,C)040--- 14

CAP**2417A** 1.02 1.03 58MV(B,C)060--- 14

CAP**3017A** 1.00 1.00 58MV(B,C)060--- 14

CNPV*2417A** 1.02 1.02 58MV(B,C)060--- 14

CSPH*2412A** 1.02 1.01 58MV(B,C)040--- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)040--- 14

CNPH*3017A** 1.00 0.99 58MV(B,C)040--- 14

CNPV*3017A** 1.00 0.99 58MV(B,C)060--- 14

CNPH*2417A** 1.02 1.02 58MV(B,C)060--- 14

CNPH*3017A** 1.00 0.99 58MV(B,C)060--- 14

25HCB3

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB324A30 Outdoor Section With FY4ANF024 Indoor Section

MODEL

HEATING INDOOR

CAP**2417A** 1.02 1.02 58CV(A,X)090--- 16

CNPV*2414A** 1.02 1.02 58CV(A,X)070 ---12

CNPV*3014A** 1.00 1.01 58CV(A,X)070 ---12

CAP**3017A** 1.00 0.99 58CV(A,X)090--- 16

CNPV*2417A** 1.02 1.01 58CV(A,X)090 ---16

CSPH*2412A** 1.02 1.02 58CV(A,X)070 ---12

CSPH*3012A** 0.99 1.00 58CV(A,X)070 ---12

CNPV*3017A** 1.00 0.99 58CV(A,X)090 ---16

CSPH*2412A** 1.02 1.01 58CV(A,X)090 ---16

CSPH*3012A** 0.99 0.99 58CV(A,X)090 ---16

CSPH*2412A** 1.02 1.01 58CV(A,X)110 ---20

CSPH*3012A** 0.99 0.99 58CV(A,X)110 ---20

CSPH*2412A** 1.02 1.01 58CV(A,X)135 ---22

CNPH*2417A** 1.02 1.01 58CV(A,X)090--- 16

CNPH*3017A** 1.00 0.99 58CV(A,X)090--- 16

CNPH*2417A** 1.02 1.02 58CV(A,X)110--- 20

CNPH*3017A** 1.00 0.99 58CV(A,X)110--- 20

CSPH*3012A** 0.99 0.99 58CV(A,X)135 ---22

CNPH*2417A** 1.02 1.01 58CV(A,X)135--- 22

CNPH*3017A** 1.00 0.99 58CV(A,X)135--- 22

CNPH*2417A** 1.02 1.01 58CV(A,X)155--- 22

CAP**3619A** 1.01 0.99 58HDV040--- --- 12

CSPH*2412A** 1.02 1.01 58CV(A,X)155 ---22

CSPH*3012A** 0.99 0.99 58CV(A,X)155 ---22

CNPH*3017A** 1.00 0.99 58CV(A,X)155--- 22

CNPV*2417A** 1.03 1.02 58HDV040--- --- 12

CNPH*2417A** 1.03 1.03 58HDV040 --- --- 12

CNPH*3017A** 1.01 0.99 58HDV040 --- --- 12

CAP**3619A** 1.01 0.98 58HDV060--- --- 12

CNPV*3017A** 1.00 0.98 58HDV040--- --- 12

CSPH*2412A** 1.03 1.02 58HDV040--- --- 12

CSPH*3012A** 1.00 0.99 58HDV040--- --- 12

CNPV*2417A** 1.03 1.00 58HDV060--- --- 12

CNPV*3017A** 1.00 0.97 58HDV060--- --- 12

CSPH*2412A** 1.03 1.01 58HDV060--- --- 12

CNPH*2417A** 1.03 1.01 58HDV060 --- --- 12

CNPH*3017A** 1.01 0.98 58HDV060 --- --- 12

CSPH*3012A** 1.00 0.98 58HDV060--- --- 12

CNPH*2417A** 1.03 0.98 58HDV080 --- --- 20

CNPH*3017A** 1.00 0.95 58HDV080 --- --- 20

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

700 9.58 8.82 1.52 11.98 11.01 1.59 14.58 13.29 1.66 17.51 15.56 1.75 20.82 18.94 1.86 24.20 24.20 1.96 27.14 27.14 2.06 30.15 30.15 2.17

800 9.77 8.99 1.54 12.19 11.20 1.60 14.81 13.51 1.66 17.80 15.81 1.74 21.14 19.24 1.84 24.17 24.17 1.91 26.94 26.94 2.00 29.60 29.60 2.09

900 9.94 9.15 1.56 12.37 11.37 1.61 15.03 13.70 1.67 18.06 16.04 1.74 21.40 19.47 1.83 24.07 24.07 1.89 26.59 26.59 1.97 28.87 28.87 2.03

700 9.29 8.54 1.59 11.70 10.75 1.67 14.30 13.04 1.74 17.18 15.26 1.84 20.47 18.63 1.95 23.95 23.95 2.06 26.95 26.95 2.17 30.01 30.01 2.29

800 9.48 8.72 1.61 11.91 10.94 1.67 14.53 13.25 1.74 17.46 15.51 1.82 20.79 18.92 1.93 24.00 24.00 2.01 26.83 26.83 2.11 29.61 29.61 2.20

900 9.65 8.87 1.63 12.09 11.11 1.69 14.73 13.43 1.75 17.71 15.73 1.83 21.06 19.16 1.92 23.97 23.97 1.99 26.60 26.60 2.07 29.03 29.03 2.15

700 8.96 8.24 1.67 11.40 10.48 1.75 14.02 12.78 1.83 16.85 14.97 1.93 20.14 18.33 2.05 23.63 23.63 2.17 26.71 26.71 2.28 29.80 29.80 2.41

800 9.15 8.42 1.68 11.61 10.67 1.75 14.25 12.99 1.83 17.13 15.21 1.91 20.44 18.60 2.03 23.84 23.84 2.12 26.68 26.68 2.22 29.54 29.54 2.32

900 9.33 8.58 1.70 11.80 10.84 1.77 14.45 13.17 1.83 17.37 15.43 1.91 20.71 18.84 2.02 23.82 23.82 2.09 26.53 26.53 2.18 29.10 29.10 2.27

75

(23.9)

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

CFM

65

EDB

°F (°C)

70

(18.3)

(21.1)

CAPACITY POWER FURNACE MODEL

MODEL

HEATING INDOOR

FE4ANF002 1.01 0.98

FF1ENP024 1.04 1.08

FF1ENP025 1.03 1.04

FF1ENP030 1.05 1.09

FF1ENP031 1.02 1.02

FV4BNF002 1.01 0.98

FB4CNF024 1.03 1.05

FB4CNF024 1.00 1.02

FB4CNF030 1.03 1.00

*FY5BNF024 1.00 1.00

FB4CNF030 1.00 0.97

FE4AN(B,F)003 1.00 0.97

FX4CNF024 1.03 1.03

FV4BN(B,F)003 1.00 0.97

FY4ANF024 1.04 1.08

FY4ANF030 1.04 1.06

FY5BNF024 1.03 1.03

FY5BNF030 1.03 1.02

FX4CNF030 1.03 0.98

FX4DNF025 1.03 1.00

FX4DN(B,F)031 1.02 0.99

FY5BNF030 1.00 0.99

CAP**2414A** 1.06 1.08

CAP**2417A** 1.06 1.08

CAP**3014A** 1.02 1.05

CAP**3017A** 1.02 1.05

CAP**3619A** 1.03 1.05

CNPF*2418A** 1.06 1.06

CNPV*2414A** 1.06 1.06

CNPV*2417A** 1.06 1.06

CNPH*2417A** 1.06 1.06

CNPV*3014A** 1.02 1.04

CNPH*3017A** 1.02 1.04

CAP**2414A** 1.02 1.04 58CV(A,X)070--- 12

CNPV*3017A** 1.02 1.04

CAP**3014A** 1.00 1.01 58CV(A,X)070--- 12

CSPH*2412A** 1.05 1.05

CSPH*3012A** 1.01 1.03

CNPH*2417A** 1.02 1.02 58CV(A,X)070--- 12

CNPH*3017A** 1.00 1.00 58CV(A,X)070--- 12

45

25HCB3

CAPACITY POWER FURNACE MODEL

25HCB324A30 Outdoor Section With FY4ANF024 Indoor Section

HEATING INDOOR

MODEL

CNPV*2417A** 1.02 1.00 OVMAAB036098

CNPV*3017A** 1.00 0.98 OVMAAB036098

CSPH*2412A** 1.02 0.99 OVMAAB036098

CAP**2417A** 1.00 1.00 OVMAAB042112

CSPH*3012A** 1.02 0.98 OVMAAB036098

CAP**3017A** 0.99 0.98 OVMAAB042112

CNPH*2417A** 1.01 1.00 OVMAAB042112

CNPV*2417A** 1.01 1.00 OVMAAB042112

CNPH*3017A** 0.99 0.98 OVMAAB042112

CNPV*3017A** 0.99 0.98 OVMAAB042112

CSPH*2412A** 1.01 0.99 OVMAAB042112

CSPH*3012A** 1.01 0.98 OVMAAB042112

Seenoteonpg.56

CAPACITY POWER FURNACE MODEL

MODEL

CSPH*2412A** 1.02 1.01 58MV(B,C)060--- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)060--- 14

CSPH*2412A** 1.02 1.01 58MV(B,C)080--- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)080--- 14

CSPH*2412A** 1.02 1.01 58MV(B,C)080--- 20

HEATING INDOOR

CNPH*2417A** 1.02 1.02 58MV(B,C)080--- 14

CNPH*3017A** 1.00 0.99 58MV(B,C)080--- 14

CSPH*3012A** 0.99 0.99 58MV(B,C)080--- 20

CNPH*2417A** 1.02 1.02 58MV(B,C)080--- 20

CNPH*3017A** 1.00 0.99 58MV(B,C)080--- 20

CNPH*2417A** 1.02 1.01 58MV(B,C)100--- 20

CNPH*3017A** 1.00 0.99 58MV(B,C)100--- 20

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**2414A** 1.03 1.03 58PH*045 ---08

CAP**3014A** 0.99 0.98 58PH*045 ---08

CSPH*2412A** 1.02 1.01 58MV(B,C)100--- 20

CSPH*3012A** 0.99 0.99 58MV(B,C)100--- 20

CSPH*2412A** 1.02 1.02 58MV(B,C)120--- 20

CSPH*3012A** 0.99 1.00 58MV(B,C)120--- 20

CNPH*2417A** 1.02 1.02 58MV(B,C)120--- 20

CNPH*3017A** 1.00 1.00 58MV(B,C)120--- 20

CNPV*2414A** 1.03 1.03 58PH*045--- 08

CNPH*2417A** 1.03 1.03 58PH*045 ---08

CNPH*3017A** 1.00 0.98 58PH*045 ---08

CAP**2417A** 1.02 1.01 58VLR105---12

CNPV*3014A** 1.00 0.99 58PH*045--- 08

CAP**3017A** 1.01 0.99 58VLR105---12

CSPH*2412A** 1.03 1.01 58PH*045--- 08

CSPH*3012A** 0.99 0.98 58PH*045--- 08

CNPV*2417A** 1.03 1.00 58VLR105--- 12

CNPH*2417A** 1.03 1.00 58VLR105 ---12

CNPH*3017A** 1.01 0.99 58VLR105 ---12

CAP**2417A** 1.00 1.02 58VMR105--- 12

CNPV*3017A** 1.01 0.99 58VLR105--- 12

CAP**3017A** 1.00 1.00 58VMR105--- 12

CSPH*2412A** 1.03 0.99 58VLR105--- 12

CSPH*3012A** 1.00 0.98 58VLR105--- 12

CNPV*2417A** 1.02 1.02 58VMR105--- 12

CNPH*2417A** 1.01 1.01 58VMR105 ---12

CNPH*3017A** 1.00 1.00 58VMR105 ---12

CAP**2417A** 1.01 1.00 OVLAAB036098

CNPV*3017A** 1.00 1.00 58VMR105--- 12

CAP**3017A** 1.00 0.98 OVLAAB036098

CSPH*2412A** 1.01 1.01 58VMR105--- 12

CSPH*3012A** 1.00 1.01 58VMR105--- 12

CNPH*2417A** 1.02 1.00 OVLAAB036098

CNPH*3017A** 1.00 0.98 OVLAAB036098

CNPV*2417A** 1.02 1.00 OVLAAB036098

CNPV*3017A** 1.00 0.98 OVLAAB036098

CSPH*2412A** 1.02 0.99 OVLAAB036098

CAP**2417A** 1.02 1.01 OVMAAB036098

CSPH*3012A** 1.01 0.97 OVLAAB036098

CAP**3017A** 1.00 0.98 OVMAAB036098

CNPH*2417A** 1.02 1.00 OVMAAB036098

CNPH*3017A** 1.00 0.98 OVMAAB036098

46

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

CAP**3619A** 1.00 1.00 58HDV060--- --- 12

CNPV*3017A** 1.00 1.03 58HDV040--- --- 12

CNPV*3117A** 1.00 0.97 58HDV040--- --- 12

CNPV*3617A** 1.00 1.03 58HDV040--- --- 12

CNPV*3621A** 1.00 1.03 58HDV040--- --- 12

CNPH*3617A** 1.00 1.03 58HDV040 --- --- 12

HEATING INDOOR

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CNPV*3717A** 1.00 0.95 58HDV040--- --- 12

CAP**4823A** 1.00 0.95 58HDV060--- --- 12

CSPH*3012A** 1.00 1.03 58HDV040--- --- 12

CSPH*3612A** 0.99 0.98 58HDV040--- --- 12

CNPV*3017A** 1.00 1.02 58HDV060--- --- 12

CNPV*3117A** 1.00 0.96 58HDV060--- --- 12

CNPV*3617A** 1.00 1.02 58HDV060--- --- 12

CNPV*3621A** 1.00 1.01 58HDV060--- --- 12

CNPV*3717A** 1.00 0.93 58HDV060--- --- 12

CNPH*3017A** 1.00 1.02 58HDV060 --- --- 12

CNPH*3117A** 1.00 0.96 58HDV060 --- --- 12

CNPH*3617A** 1.00 1.02 58HDV060 --- --- 12

CSPH*3012A** 1.00 1.02 58HDV060--- --- 12

CNPV*3621A** 1.00 0.99 58HDV080--- --- 20

CSPH*3612A** 0.99 0.97 58HDV060--- --- 12

CSPH*3012A** 1.00 0.99 58HDV080--- --- 20

CNPH*3017A** 1.00 0.99 58HDV080 --- --- 20

CSPH*3612A** 0.99 0.94 58HDV080--- --- 20

CNPH*3617A** 1.00 0.99 58HDV080 --- --- 20

CNPH*3017A** 1.00 1.01 58HDV100 --- --- 20

CAP**3017A** 1.00 0.99 58ME(B,C)060--- 12

CAP**3617A** 1.00 0.98 58ME(B,C)060--- 12

CSPH*3012A** 1.00 1.02 58HDV100--- --- 20

CSPH*3612A** 0.99 0.95 58HDV100--- --- 20

CNPH*3617A** 1.00 1.01 58HDV100 --- --- 20

CNPV*3017A** 1.00 0.99 58ME(B,C)060--- 12

CNPV*3117A** 1.00 0.94 58ME(B,C)060--- 12

CNPV*3617A** 1.00 0.99 58ME(B,C)060--- 12

CNPV*3717A** 1.00 0.90 58ME(B,C)060--- 12

CSPH*3012A** 1.00 1.00 58ME(B,C)060--- 12

CNPH*3017A** 1.00 0.99 58ME(B,C)060--- 12

CNPH*3117A** 1.00 0.94 58ME(B,C)060--- 12

CNPH*3617A** 1.00 0.99 58ME(B,C)060--- 12

CSPH*3612A** 0.98 0.93 58ME(B,C)060--- 12

25HCB3

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB330A30 Outdoor Section With FY4ANF030 Indoor Section

MODEL

HEATING INDOOR

CAP**3014A** 1.00 1.04 58CV(A,X)070--- 12

CAP**3614A** 1.00 1.03 58CV(A,X)070--- 12

CNPH*3017A** 1.00 1.03 58CV(A,X)070--- 12

CNPH*3117A** 1.00 0.98 58CV(A,X)070--- 12

CNPH*3617A** 1.00 1.03 58CV(A,X)070--- 12

CAP**3017A** 0.99 1.02 58CV(A,X)090--- 16

CNPV*3014A** 1.00 1.03 58CV(A,X)070 ---12

CAP**3617A** 0.99 1.02 58CV(A,X)090--- 16

CSPH*3012A** 1.00 1.03 58CV(A,X)070 ---12

CSPH*3612A** 1.00 0.99 58CV(A,X)070 ---12

CNPV*3017A** 0.99 1.02 58CV(A,X)090 ---16

CNPV*3117A** 1.00 0.98 58CV(A,X)090 ---16

CNPH*3017A** 0.99 1.02 58CV(A,X)090--- 16

CNPH*3117A** 1.00 0.98 58CV(A,X)090--- 16

CNPV*3617A** 0.99 1.02 58CV(A,X)090 ---16

CNPH*3617A** 0.99 1.02 58CV(A,X)090--- 16

CAP**3621A** 0.99 1.00 58CV(A,X)110--- 20

CNPV*3717A** 1.00 0.95 58CV(A,X)090 ---16

CSPH*3012A** 0.99 1.02 58CV(A,X)090 ---16

CSPH*3612A** 1.00 0.99 58CV(A,X)090 ---16

CNPV*3621A** 0.99 1.02 58CV(A,X)110 ---20

CSPH*3012A** 1.00 1.02 58CV(A,X)110 ---20

CNPH*3017A** 0.99 1.02 58CV(A,X)110--- 20

CNPH*3117A** 1.00 0.97 58CV(A,X)110--- 20

CSPH*3612A** 1.00 0.98 58CV(A,X)110 ---20

CNPH*3617A** 0.99 1.02 58CV(A,X)110--- 20

CSPH*3012A** 1.00 1.02 58CV(A,X)135 ---22

CNPH*3017A** 0.99 1.02 58CV(A,X)135--- 22

CSPH*3612A** 1.00 0.98 58CV(A,X)135 ---22

CNPH*3117A** 1.00 0.97 58CV(A,X)135--- 22

CNPH*3617A** 0.99 1.02 58CV(A,X)135--- 22

CNPH*3017A** 0.99 1.01 58CV(A,X)155--- 22

CNPH*3117A** 1.00 0.97 58CV(A,X)155--- 22

CAP**3619A** 1.00 1.02 58HDV040--- --- 12

CAP**4823A** 1.00 0.97 58HDV040--- --- 12

CSPH*3012A** 1.00 1.02 58CV(A,X)155 ---22

CSPH*3612A** 1.00 0.98 58CV(A,X)155 ---22

CNPH*3617A** 0.99 1.01 58CV(A,X)155--- 22

CNPH*3017A** 1.00 1.03 58HDV040 --- --- 12

CNPH*3117A** 1.00 0.97 58HDV040 --- --- 12

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

875 12.02 11.06 1.89 15.08 13.85 1.97 18.33 16.72 2.07 21.82 19.38 2.18 25.66 23.35 2.31 29.99 29.99 2.47 34.77 34.77 2.64 39.32 39.32 2.79

875 11.62 10.69 1.98 14.71 13.52 2.08 17.98 16.40 2.18 21.49 19.08 2.30 25.25 22.98 2.43 29.55 29.55 2.60 34.31 34.31 2.79 38.81 38.81 2.94

875 11.19 10.29 2.07 14.32 13.16 2.18 17.61 16.06 2.29 21.13 18.77 2.42 24.86 22.62 2.56 29.13 29.13 2.74 33.84 33.84 2.95 38.33 38.33 3.09

1000 11.85 10.91 2.00 14.97 13.76 2.08 18.26 16.65 2.17 21.79 19.35 2.28 25.64 23.33 2.40 30.00 30.00 2.55 34.70 34.70 2.69 39.17 39.17 2.83

1125 12.07 11.10 2.02 15.20 13.97 2.10 18.51 16.88 2.18 22.05 19.59 2.27 25.97 23.63 2.38 30.39 30.39 2.52 34.94 34.94 2.63 39.35 39.35 2.77

1000 11.42 10.51 2.09 14.58 13.40 2.19 17.90 16.32 2.29 21.44 19.04 2.40 25.23 22.95 2.52 29.56 29.56 2.68 34.25 34.25 2.84 38.72 38.72 2.98

1125 11.64 10.70 2.12 14.82 13.61 2.20 18.15 16.55 2.29 21.72 19.29 2.39 25.55 23.25 2.50 29.93 29.93 2.65 34.55 34.55 2.78 38.96 38.96 2.91

70

75

(21.1)

(23.9)

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

CFM

EDB

1000 12.26 11.28 1.90 15.33 14.09 1.98 18.61 16.97 2.06 22.12 19.64 2.16 26.04 23.69 2.28 30.47 30.47 2.42 35.11 35.11 2.55 39.58 39.58 2.69

1125 12.47 11.47 1.92 15.56 14.30 1.99 18.86 17.19 2.07 22.38 19.88 2.15 26.41 24.04 2.26 30.87 30.87 2.39 35.28 35.28 2.49 39.69 39.69 2.63

65

°F (°C)

(18.3)

CAPACITY POWER FURNACE MODEL

MODEL

HEATING INDOOR

FE4ANF002 1.00 1.01

FF1ENP030 1.00 1.05

FF1ENP031 0.99 1.03

FF1ENP036 1.00 1.03

FF1ENP037 1.00 1.02

FB4CNF030 1.00 1.00

FB4CNF036 1.00 1.00

FB4CNF036 1.00 1.00

*FB4CNF030 1.00 1.00

FE4AN(B,F)003 0.99 0.99

FV4BNF002 1.00 1.01

FV4BN(B,F)003 0.99 0.99

FX4CN(B,F)036 1.00 0.97

FY4ANF030 1.00 1.03

FY4ANF036 1.00 1.03

FY5BNF030 1.00 0.99

FY5BNF030 1.00 0.99

FX4CNF030 1.00 0.99

FX4DN(B,F)031 1.00 0.97

FX4DN(B,F)037 1.00 0.94

FY5BNF036 1.00 1.01

CAP**3014A** 1.00 1.03

CAP**3017A** 1.00 1.03

CAP**3614A** 1.00 1.02

CAP**3617A** 1.00 1.02

CAP**3619A** 1.00 1.02

CAP**3621A** 1.00 1.02

CAP**4823A** 1.00 0.98

CNPF*3618A** 1.00 1.02

CNPV*3014A** 1.00 1.02

CNPV*3017A** 1.00 1.02

CNPV*3117A** 1.00 0.97

CNPV*3617A** 1.00 1.02

CNPV*3621A** 1.00 1.02

CNPV*3717A** 1.00 0.95

CSPH*3012A** 1.00 1.02

CNPH*3017A** 1.00 1.02

CNPH*3117A** 1.00 0.97

CNPH*3617A** 1.00 1.02

CSPH*3612A** 1.00 0.98

47

CAPACITY POWER FURNACE MODEL

MODEL

CAP**3017A** 0.99 1.02 OVLAAB036098

HEATING INDOOR

CAP**3617A** 0.99 1.02 OVLAAB036098

CSPH*3612A** 0.99 1.00 58VMR105--- 12

CNPH*3017A** 0.99 1.02 OVLAAB036098

CNPH*3117A** 1.00 0.98 OVLAAB036098

CNPV*3017A** 0.99 1.02 OVLAAB036098

CNPH*3617A** 0.99 1.02 OVLAAB036098

CNPV*3117A** 1.00 0.98 OVLAAB036098

CNPV*3617A** 0.99 1.02 OVLAAB036098

CNPV*3717A** 1.00 0.95 OVLAAB036098

CSPH*3012A** 1.00 1.01 OVLAAB036098

CAP**3621A** 1.00 0.99 OVLAAB048112

CSPH*3612A** 1.00 0.99 OVLAAB036098

CNPH*3017A** 1.00 1.01 OVLAAB048112

CNPH*3117A** 1.00 0.95 OVLAAB048112

CSPH*3012A** 1.00 0.99 OVLAAB048112

CNPH*3617A** 1.00 1.01 OVLAAB048112

CAP**3017A** 1.00 1.03 OVMAAB036098

CSPH*3612A** 1.00 0.97 OVLAAB048112

CAP**3617A** 1.00 1.02 OVMAAB036098

CNPH*3017A** 1.00 1.03 OVMAAB036098

CNPH*3117A** 1.00 0.97 OVMAAB036098

CNPH*3617A** 1.00 1.03 OVMAAB036098

CNPV*3017A** 1.00 1.03 OVMAAB036098

CNPV*3117A** 1.00 0.97 OVMAAB036098

CNPV*3617A** 1.00 1.03 OVMAAB036098

CNPV*3717A** 1.00 0.95 OVMAAB036098

CSPH*3012A** 1.00 1.01 OVMAAB036098

CSPH*3612A** 1.00 0.99 OVMAAB036098

CAP**3017A** 0.99 1.01 OVMAAB042112

CAP**3617A** 0.99 1.00 OVMAAB042112

CNPH*3017A** 0.99 1.00 OVMAAB042112

CNPH*3117A** 1.00 0.96 OVMAAB042112

CNPV*3017A** 0.99 1.00 OVMAAB042112

CNPH*3617A** 0.99 1.00 OVMAAB042112

CNPV*3117A** 1.00 0.96 OVMAAB042112

CNPV*3617A** 0.99 1.00 OVMAAB042112

CNPV*3717A** 1.00 0.93 OVMAAB042112

CSPH*3012A** 1.00 1.00 OVMAAB042112

CSPH*3612A** 1.00 0.97 OVMAAB042112

Seenoteonpg.56

25HCB3

CAPACITY POWER FURNACE MODEL

25HCB330A30 Outdoor Section With FY4ANF030 Indoor Section

HEATING INDOOR

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

HEAT PUMP HEATING PERFORMANCE CONTINUED

MODEL

CAP**3621A** 0.99 1.02 58MV(B,C)080--- 20

CSPH*3612A** 1.00 0.99 58MV(B,C)080--- 14

CNPH*3017A** 1.00 1.03 58MV(B,C)080--- 20

CNPH*3117A** 1.00 0.98 58MV(B,C)080--- 20

CNPH*3617A** 1.00 1.03 58MV(B,C)080--- 20

MODEL

CAP**3017A** 0.99 1.00 58ME(B,C)080--- 12

CAP**3617A** 1.00 0.99 58ME(B,C)080--- 12

CNPH*3017A** 0.99 0.99 58ME(B,C)080--- 12

CNPH*3117A** 1.00 0.95 58ME(B,C)080--- 12

CNPH*3617A** 0.99 0.99 58ME(B,C)080--- 12

CAP**3621A** 0.99 1.01 58MV(B,C)100--- 20

CNPV*3621A** 0.99 1.02 58MV(B,C)080--- 20

CSPH*3012A** 1.00 1.03 58MV(B,C)080--- 20

CSPH*3612A** 1.00 0.99 58MV(B,C)080--- 20

CNPV*3017A** 0.99 0.99 58ME(B,C)080--- 12

CNPV*3117A** 1.00 0.95 58ME(B,C)080--- 12

CNPV*3617A** 0.99 0.99 58ME(B,C)080--- 12

CNPV*3717A** 1.00 0.92 58ME(B,C)080--- 12

CNPV*3621A** 0.99 1.02 58MV(B,C)100--- 20

CSPH*3012A** 1.00 1.02 58MV(B,C)100--- 20

CNPH*3017A** 0.99 1.02 58MV(B,C)100--- 20

CNPH*3117A** 1.00 1.00 58MV(B,C)100--- 20

CSPH*3012A** 0.99 1.00 58ME(B,C)080--- 12

CSPH*3612A** 0.98 0.94 58ME(B,C)080--- 12

CSPH*3612A** 1.00 0.99 58MV(B,C)100--- 20

CNPH*3617A** 0.99 1.02 58MV(B,C)100--- 20

CAP**3017A** 1.00 0.98 58ME(B,C)080--- 16

CNPH*3017A** 0.99 1.03 58MV(B,C)120--- 20

CNPH*3117A** 1.00 0.97 58MV(B,C)120--- 20

CNPH*3617A** 0.99 1.03 58MV(B,C)120--- 20

CAP**3617A** 1.00 0.98 58ME(B,C)080--- 16

CNPV*3017A** 1.00 0.99 58ME(B,C)080--- 16

CNPH*3017A** 1.00 0.99 58ME(B,C)080--- 16

CNPV*3117A** 1.00 0.93 58ME(B,C)080--- 16

CNPH*3117A** 1.00 0.93 58ME(B,C)080--- 16

CNPH*3617A** 1.00 0.99 58ME(B,C)080--- 16

CAP**3017A** 1.00 1.02 58PH*070 ---16

CSPH*3012A** 0.99 1.02 58MV(B,C)120--- 20

CNPV*3617A** 1.00 0.99 58ME(B,C)080--- 16

CAP**3617A** 1.00 1.01 58PH*070 ---16

CSPH*3612A** 1.00 0.99 58MV(B,C)120--- 20

CNPH*3117A** 1.00 0.98 58MVB040 ---14

CAP**3017A** 0.99 0.99 58MEB040 ---12

CNPV*3717A** 1.00 0.90 58ME(B,C)080--- 16

CSPH*3012A** 1.00 0.99 58ME(B,C)080--- 16

CSPH*3612A** 0.99 0.93 58ME(B,C)080--- 16

CNPV*3017A** 1.00 1.02 58PH*070--- 16

CNPV*3117A** 1.00 0.96 58PH*070--- 16

CNPH*3017A** 1.00 1.02 58PH*070 ---16

CNPH*3117A** 1.00 0.96 58PH*070 ---16

CAP**3617A** 1.00 0.98 58MEB040 ---12

CNPH*3017A** 0.99 0.99 58MEB040 ---12

CNPV*3617A** 1.00 1.02 58PH*070--- 16

CNPH*3617A** 1.00 1.02 58PH*070 ---16

CNPV*3017A** 0.99 0.99 58MEB040---12

CNPV*3117A** 1.00 0.94 58MEB040---12

CNPH*3117A** 1.00 0.94 58MEB040 ---12

CNPH*3617A** 0.99 0.99 58MEB040 ---12

CAP**3621A** 1.00 0.98 58PH*090 ---16

CNPV*3717A** 1.00 0.93 58PH*070--- 16

CSPH*3012A** 1.00 1.02 58PH*070--- 16

CSPH*3612A** 0.99 0.97 58PH*070--- 16

CNPH*3017A** 1.00 1.01 58PH*090 ---16

CNPH*3117A** 1.00 0.95 58PH*090 ---16

CNPH*3617A** 1.00 1.01 58PH*090 ---16

CNPV*3617A** 0.99 0.99 58MEB040---12

CNPV*3717A** 1.00 0.91 58MEB040---12

CSPH*3012A** 0.99 0.99 58MEB040--- 12

CSPH*3612A** 0.98 0.93 58MEB040--- 12

CSPH*3012A** 1.00 1.03 58MV(B,C)040--- 14

CNPH*3017A** 1.00 1.03 58MV(B,C)040--- 14

CNPH*3617A** 1.00 1.03 58MV(B,C)040--- 14

CAP**3017A** 0.99 1.01 58VLR105---12

CNPV*3621A** 1.00 1.01 58PH*090--- 16

CSPH*3612A** 1.00 1.00 58MV(B,C)040--- 14

CAP**3617A** 0.99 1.00 58VLR105---12

CSPH*3012A** 1.00 1.02 58PH*090--- 16

CSPH*3612A** 0.98 0.95 58PH*090--- 16

CAP**3017A** 0.99 1.03 58MV(B,C)060--- 14

CAP**3617A** 0.99 1.02 58MV(B,C)060--- 14

CNPH*3017A** 0.99 1.03 58MV(B,C)060--- 14

CNPV*3017A** 0.99 1.01 58VLR105--- 12

CNPH*3017A** 0.99 1.01 58VLR105 ---12

CNPH*3617A** 0.99 1.01 58VLR105 ---12

CNPV*3017A** 0.99 1.03 58MV(B,C)060--- 14

CNPV*3117A** 1.00 0.96 58MV(B,C)060--- 14

CNPH*3117A** 1.00 0.96 58MV(B,C)060--- 14

CNPH*3617A** 0.99 1.03 58MV(B,C)060--- 14

CAP**3017A** 0.98 1.03 58VMR105--- 12

CNPV*3617A** 0.99 1.01 58VLR105--- 12

CNPV*3617A** 0.99 1.03 58MV(B,C)060--- 14

CAP**3617A** 0.99 1.03 58VMR105--- 12

CNPV*3017A** 0.99 1.03 58VMR105--- 12

CSPH*3012A** 1.00 1.01 58VLR105--- 12

CSPH*3612A** 1.00 0.98 58VLR105--- 12

CAP**3621A** 1.00 1.02 58MV(B,C)080--- 14

CNPV*3717A** 1.00 0.93 58MV(B,C)060--- 14

CSPH*3012A** 1.00 1.03 58MV(B,C)060--- 14

CSPH*3612A** 1.00 1.00 58MV(B,C)060--- 14

CNPV*3617A** 0.99 1.03 58VMR105--- 12

CNPH*3017A** 0.99 1.03 58VMR105 ---12

CNPH*3017A** 1.00 1.03 58MV(B,C)080--- 14

CSPH*3012A** 0.99 1.03 58VMR105--- 12

CNPH*3617A** 0.99 1.03 58VMR105 ---12

CNPV*3621A** 1.00 1.03 58MV(B,C)080--- 14

CSPH*3012A** 1.00 1.03 58MV(B,C)080--- 14

CNPH*3117A** 1.00 0.99 58MV(B,C)080--- 14

CNPH*3617A** 1.00 1.03 58MV(B,C)080--- 14

48

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

CAP**3619A** 1.03 1.04 58HDV060--- --- 12

CNPV*3617A** 1.02 1.06 58HDV040--- --- 12

CNPV*3621A** 1.02 1.06 58HDV040--- --- 12

CNPV*3717A** 1.01 0.98 58HDV040--- --- 12

CNPV*4217A** 1.02 1.02 58HDV040--- --- 12

HEATING INDOOR

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CNPV*4221A** 1.02 1.03 58HDV040--- --- 12

CAP**4823A** 1.00 0.97 58HDV060--- --- 12

CSPH*3612A** 1.04 1.02 58HDV040--- --- 12

CSPH*4212A** 1.02 1.00 58HDV040--- --- 12

CNPV*3617A** 1.02 1.04 58HDV060--- --- 12

CNPV*3621A** 1.02 1.04 58HDV060--- --- 12

CNPV*3717A** 1.01 0.95 58HDV060--- --- 12

CNPH*3617A** 1.03 1.05 58HDV060 --- --- 12

CNPH*4221A** 1.04 1.02 58HDV060 --- --- 12

CNPH*4321A** 1.01 0.95 58HDV060 --- --- 12

CNPV*4217A** 1.02 1.00 58HDV060--- --- 12

CAP**4823A** 1.00 0.94 58HDV080--- --- 20

CNPV*4221A** 1.02 1.01 58HDV060--- --- 12

CSPH*3612A** 1.04 1.00 58HDV060--- --- 12

CSPH*4212A** 1.02 0.98 58HDV060--- --- 12

CNPV*3621A** 1.02 1.01 58HDV080--- --- 20

CNPH*3617A** 1.03 1.02 58HDV080 --- --- 20

CNPV*4221A** 1.02 0.98 58HDV080--- --- 20

CNPH*4221A** 1.04 0.99 58HDV080 --- --- 20

CNPH*4321A** 1.01 0.92 58HDV080 --- --- 20

CAP**4224A** 1.02 0.98 58HDV100--- --- 20

CNPV*4324A** 1.00 0.91 58HDV080--- --- 20

CSPH*3612A** 1.04 0.97 58HDV080--- --- 20

CSPH*4212A** 1.02 0.94 58HDV080--- --- 20

CNPV*4324A** 1.00 0.91 58HDV100--- --- 20

CNPH*3617A** 1.02 1.02 58HDV100 --- --- 20

CNPH*4221A** 1.02 0.99 58HDV100 --- --- 20

CNPH*4321A** 1.01 0.92 58HDV100 --- --- 20

CAP**3617A** 1.02 1.01 58ME(B,C)060--- 12

CNPV*4324A** 1.01 0.92 58HDV100--- --- 20

CSPH*3612A** 1.02 0.97 58HDV100--- --- 20

CSPH*4212A** 1.01 0.94 58HDV100--- --- 20

CNPH*3617A** 1.02 1.02 58ME(B,C)060--- 12

CNPH*4221A** 1.02 0.99 58ME(B,C)060--- 12

CNPH*4321A** 1.01 0.92 58ME(B,C)060--- 12

25HCB3

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB336A30 Outdoor Section With FY4ANF036 Indoor Section

MODEL

HEATING INDOOR

CAP**3617A** 1.01 1.02 58CV(A,X)090--- 16

CSPH*3612A** 1.02 1.00 58CV(A,X)070 ---12

CNPH*3617A** 1.01 1.04 58CV(A,X)070--- 12

CSPH*4212A** 1.01 0.97 58CV(A,X)070 ---12

CNPH*4221A** 1.02 1.02 58CV(A,X)070--- 12

CNPH*4321A** 1.01 0.95 58CV(A,X)070--- 12

CNPV*3617A** 1.01 1.03 58CV(A,X)090 ---16

CNPH*3617A** 1.01 1.03 58CV(A,X)090--- 16

CNPV*3717A** 1.01 0.94 58CV(A,X)090 ---16

CNPH*4221A** 1.01 1.00 58CV(A,X)090--- 16

CNPH*4321A** 1.01 0.94 58CV(A,X)090--- 16

CAP**3621A** 1.01 1.01 58CV(A,X)110--- 20

CNPV*4217A** 1.01 0.98 58CV(A,X)090 ---16

CAP**4221A** 1.01 0.99 58CV(A,X)110--- 20

CSPH*3612A** 1.01 0.97 58CV(A,X)090 ---16

CSPH*4212A** 1.01 0.96 58CV(A,X)090 ---16

CNPV*3621A** 1.01 1.02 58CV(A,X)110 ---20

CNPH*3617A** 1.01 1.03 58CV(A,X)110--- 20

CNPH*4221A** 1.01 1.00 58CV(A,X)110--- 20

CNPH*4321A** 1.01 0.93 58CV(A,X)110--- 20

CAP**4224A** 1.01 0.98 58CV(A,X)135--- 22

CNPV*4221A** 1.01 1.00 58CV(A,X)110 ---20

CSPH*3612A** 1.01 0.97 58CV(A,X)110 ---20

CSPH*4212A** 1.01 0.95 58CV(A,X)110 ---20

CNPH*3617A** 1.01 1.03 58CV(A,X)135--- 22

CNPH*4221A** 1.01 1.00 58CV(A,X)135--- 22

CNPH*4321A** 1.00 0.93 58CV(A,X)135--- 22

CAP**4224A** 1.01 0.98 58CV(A,X)155--- 22

CNPV*4324A** 1.00 0.92 58CV(A,X)135 ---22

CSPH*3612A** 1.01 0.97 58CV(A,X)135 ---22

CSPH*4212A** 1.01 0.95 58CV(A,X)135 ---22

CNPH*3617A** 1.01 1.02 58CV(A,X)155--- 22

CNPH*4221A** 1.01 0.98 58CV(A,X)155--- 22

CNPH*4321A** 1.00 0.92 58CV(A,X)155--- 22

CAP**4823A** 1.01 0.99 58HDV040--- --- 12

CNPV*4324A** 1.00 0.92 58CV(A,X)155 ---22

CSPH*3612A** 1.01 0.96 58CV(A,X)155 ---22

CSPH*4212A** 1.00 0.94 58CV(A,X)155 ---22

CNPH*4221A** 1.04 1.05 58HDV040 --- --- 12

CNPH*4321A** 1.02 0.98 58HDV040 --- --- 12

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

CFM

1050 14.39 13.24 2.21 18.06 16.60 2.32 21.96 20.02 2.43 26.08 23.17 2.56 30.79 28.02 2.71 35.73 35.73 2.85 40.33 40.33 3.00 45.07 45.07 3.17

1200 14.71 13.53 2.25 18.40 16.91 2.34 22.34 20.36 2.44 26.49 23.53 2.56 31.26 28.45 2.70 35.98 35.98 2.81 40.39 40.39 2.94 44.90 44.90 3.09

1350 14.99 13.79 2.29 18.71 17.19 2.38 22.66 20.66 2.47 26.86 23.85 2.57 31.69 28.84 2.70 36.10 36.10 2.80 40.33 40.33 2.92 44.58 44.58 3.04

1050 13.84 12.73 2.30 17.57 16.15 2.42 21.50 19.60 2.54 25.64 22.78 2.67 30.17 27.46 2.83 35.32 35.32 2.99 39.94 39.94 3.15 44.64 44.64 3.32

1200 14.16 13.02 2.33 17.92 16.46 2.44 21.87 19.94 2.55 26.04 23.13 2.67 30.67 27.91 2.82 35.60 35.60 2.95 40.07 40.07 3.09 44.62 44.62 3.24

1350 14.45 13.29 2.37 18.22 16.75 2.48 22.20 20.24 2.58 26.40 23.45 2.69 31.12 28.32 2.82 35.80 35.80 2.93 40.08 40.08 3.06 44.43 44.43 3.19

1050 13.24 12.18 2.38 17.03 15.65 2.52 21.00 19.15 2.65 25.18 22.36 2.79 29.65 26.98 2.95 34.80 34.80 3.14 39.50 39.50 3.29 44.18 44.18 3.48

1200 13.56 12.47 2.42 17.38 15.98 2.54 21.38 19.49 2.66 25.59 22.73 2.79 30.13 27.42 2.94 35.27 35.27 3.09 39.71 39.71 3.23 44.27 44.27 3.39

1350 13.85 12.74 2.46 17.70 16.26 2.58 21.72 19.80 2.69 25.94 23.04 2.81 30.55 27.80 2.95 35.47 35.47 3.07 39.79 39.79 3.20 44.18 44.18 3.34

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

65

70

°F (°C)

(18.3)

75

(21.1)

(23.9)

CAPACITY POWER FURNACE MODEL

MODEL

HEATING INDOOR

FE4ANF002 1.02 1.02

FF1ENP036 1.04 1.06

FF1ENP037 1.02 1.03

FB4CNF036 1.00 1.01

FB4CNF036 1.03 1.04

FB4CNF042 1.00 0.94

*FY5BNF036 1.00 1.00

FB4CNF042 1.01 0.94

FE4AN(B,F)003 1.01 1.00

FV4BNF002 1.02 1.02

FV4BN(B,F)003 1.01 1.00

FX4CN(B,F)036 1.03 1.00

FY4ANF036 1.05 1.06

FY4ANF042 1.02 1.02

FY5BNF036 1.04 1.03

FY5BNF042 1.00 0.97

FY5BNF042 1.02 0.99

CAP**3614A** 1.04 1.06

CAP**3617A** 1.04 1.05

CAP**3619A** 1.04 1.05

CAP**3621A** 1.04 1.05

CAP**4221A** 1.04 1.04

CAP**4224A** 1.04 1.04

FX4CN(B,F)042 1.01 0.96

FX4DN(B,F)037 1.01 0.94

FX4DN(B,F)043 1.01 0.94

CAP**4823A** 1.01 1.00

CNPF*3618A** 1.04 1.06

CNPV*3617A** 1.04 1.06

CNPV*3621A** 1.04 1.06

CNPV*3717A** 1.02 0.99

CNPV*4217A** 1.04 1.01

CNPH*3617A** 1.04 1.06

CNPH*4221A** 1.04 1.04

CNPH*4321A** 1.02 0.99

CNPV*4221A** 1.04 1.04

CAP**3614A** 1.02 1.04 58CV(A,X)070--- 12

CNPV*4324A** 1.02 0.99

CSPH*3612A** 1.04 1.01

CSPH*4212A** 1.02 0.99

49

CAPACITY POWER FURNACE MODEL

MODEL

CAP**3621A** 1.02 1.00 58PH*090 ---16

HEATING INDOOR

CAP**4221A** 1.01 0.97 58PH*090 ---16

CNPV*3621A** 1.01 1.02 58PH*090--- 16

CNPH*3617A** 1.01 1.02 58PH*090 ---16

CNPH*4221A** 1.02 0.99 58PH*090 ---16

CNPH*4321A** 1.01 0.92 58PH*090 ---16

CAP**3621A** 1.02 0.99 58PH*110 ---20

CNPV*4221A** 1.02 0.99 58PH*090--- 16

CAP**4221A** 1.02 0.97 58PH*110 ---20

CSPH*3612A** 1.01 0.96 58PH*090--- 16

CSPH*4212A** 1.00 0.93 58PH*090--- 16

CNPV*3621A** 1.02 1.01 58PH*110--- 20

CNPH*3617A** 1.01 1.01 58PH*110 ---20

CNPH*4221A** 1.02 0.98 58PH*110 ---20

CNPH*4321A** 1.00 0.91 58PH*110 ---20

CAP**3617A** 1.02 1.02 58VLR105---12

CNPV*4221A** 1.02 0.98 58PH*110--- 20

CSPH*3612A** 1.01 0.95 58PH*110--- 20

CSPH*4212A** 1.00 0.93 58PH*110--- 20

CNPV*3617A** 1.02 1.03 58VLR105--- 12

CNPH*3617A** 1.02 1.03 58VLR105 ---12

CNPH*4221A** 1.02 1.00 58VLR105 ---12

CAP**3621A** 1.00 1.00 58VLR120---20

CNPV*4217A** 1.02 0.98 58VLR105--- 12

CAP**4221A** 1.01 0.98 58VLR120---20

CSPH*3612A** 1.02 0.99 58VLR105--- 12

CSPH*4212A** 1.02 0.96 58VLR105--- 12

CNPV*3621A** 1.00 1.01 58VLR120--- 20

CNPH*3617A** 1.01 1.02 58VLR120 ---20

CNPH*4221A** 1.01 0.99 58VLR120 ---20

CAP**3617A** 1.01 1.03 58VMR105--- 12

CNPV*4221A** 1.01 0.99 58VLR120--- 20

CSPH*3612A** 1.01 0.97 58VLR120--- 20

CSPH*4212A** 1.01 0.95 58VLR120--- 20

CNPV*3617A** 1.01 1.04 58VMR105--- 12

CNPH*3617A** 1.01 1.04 58VMR105 ---12

CNPH*4221A** 0.71 0.72 58VMR105 ---12

CAP**3621A** 1.01 1.02 58VMR120--- 20

CNPV*4217A** 1.01 1.00 58VMR105--- 12

CAP**4221A** 1.01 1.00 58VMR120--- 20

CSPH*3612A** 0.71 0.70 58VMR105--- 12

CSPH*4212A** 1.01 0.98 58VMR105--- 12

CNPV*3621A** 1.01 1.03 58VMR120--- 20

CNPH*3617A** 1.01 1.03 58VMR120 ---20

CNPH*4221A** 1.01 1.00 58VMR120 ---20

CAP**3617A** 1.01 1.04 OVLAAB036098

CNPV*4221A** 1.01 1.01 58VMR120--- 20

CSPH*3612A** 1.01 0.98 58VMR120--- 20

CSPH*4212A** 1.01 0.97 58VMR120--- 20

CNPH*3617A** 1.01 1.05 OVLAAB036098

CNPH*4221A** 1.02 1.03 OVLAAB036098

CNPV*3617A** 1.01 1.05 OVLAAB036098

CNPH*4321A** 1.01 0.96 OVLAAB036098

25HCB3

CAPACITY POWER FURNACE MODEL

25HCB336A30 Outdoor Section With FY4ANF036 Indoor Section

HEAT PUMP HEATING PERFORMANCE CONTINUED

HEATING INDOOR

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

MODEL

CAP**3621A** 1.01 1.03 58MV(B,C)080--- 14

CAP**4221A** 1.01 1.02 58MV(B,C)080--- 14

CSPH*3612A** 1.01 0.98 58MV(B,C)060--- 14

CSPH*4212A** 1.01 0.96 58MV(B,C)060--- 14

MODEL

CNPV*3617A** 1.02 1.02 58ME(B,C)060--- 12

CNPV*3717A** 1.01 0.93 58ME(B,C)060--- 12

CNPV*4217A** 1.02 0.97 58ME(B,C)060--- 12

CSPH*3612A** 1.02 0.96 58ME(B,C)060--- 12

CNPV*3621A** 1.01 1.05 58MV(B,C)080--- 14

CNPH*3617A** 1.01 1.05 58MV(B,C)080--- 14

CNPH*4221A** 1.02 1.02 58MV(B,C)080--- 14

CNPH*4321A** 1.01 0.94 58MV(B,C)080--- 14

CAP**3617A** 1.02 1.01 58ME(B,C)080--- 12

CSPH*4212A** 1.00 0.93 58ME(B,C)060--- 12

CNPH*3617A** 1.02 1.03 58ME(B,C)080--- 12

CNPH*4221A** 1.02 0.99 58ME(B,C)080--- 12

CAP**3621A** 1.01 1.02 58MV(B,C)080--- 20

CNPV*4221A** 1.02 1.02 58MV(B,C)080--- 14

CNPH*4321A** 1.01 0.93 58ME(B,C)080--- 12

CAP**4221A** 1.01 1.01 58MV(B,C)080--- 20

CSPH*3612A** 1.02 1.00 58MV(B,C)080--- 14

CSPH*4212A** 1.01 0.98 58MV(B,C)080--- 14

CNPV*3617A** 1.02 1.03 58ME(B,C)080--- 12

CNPV*3717A** 1.01 0.93 58ME(B,C)080--- 12

CNPV*4217A** 1.01 0.97 58ME(B,C)080--- 12

CSPH*3612A** 1.02 0.97 58ME(B,C)080--- 12

CNPV*3621A** 1.01 1.03 58MV(B,C)080--- 20

CNPH*3617A** 1.01 1.03 58MV(B,C)080--- 20

CNPH*4221A** 1.01 1.01 58MV(B,C)080--- 20

CNPH*4321A** 1.01 0.94 58MV(B,C)080--- 20

CAP**3617A** 1.02 1.01 58ME(B,C)080--- 16

CSPH*4212A** 1.00 0.94 58ME(B,C)080--- 12

CNPH*3617A** 1.02 1.02 58ME(B,C)080--- 16

CNPH*4221A** 1.02 0.99 58ME(B,C)080--- 16

CAP**3621A** 1.01 1.02 58MV(B,C)100--- 20

CNPV*4221A** 1.02 1.01 58MV(B,C)080--- 20

CNPH*4321A** 1.01 0.93 58ME(B,C)080--- 16

CAP**4221A** 1.01 1.00 58MV(B,C)100--- 20

CSPH*3612A** 1.01 0.98 58MV(B,C)080--- 20

CSPH*4212A** 1.01 0.96 58MV(B,C)080--- 20

CNPV*3617A** 1.02 1.02 58ME(B,C)080--- 16

CNPV*3717A** 1.01 0.93 58ME(B,C)080--- 16

CNPV*4217A** 1.02 0.97 58ME(B,C)080--- 16

CSPH*3612A** 1.02 0.96 58ME(B,C)080--- 16

CNPV*3621A** 1.01 1.03 58MV(B,C)100--- 20

CNPH*3617A** 1.01 1.03 58MV(B,C)100--- 20

CNPH*4221A** 1.01 1.00 58MV(B,C)100--- 20

CNPH*4321A** 1.01 0.94 58MV(B,C)100--- 20

CAP**3621A** 1.01 1.00 58ME(B,C)100--- 20

CAP**4221A** 1.01 0.98 58ME(B,C)100--- 20

CSPH*4212A** 1.00 0.94 58ME(B,C)080--- 16

CNPH*3617A** 1.01 1.02 58ME(B,C)100--- 20

CAP**4224A** 1.01 0.99 58MV(B,C)120--- 20

CNPV*4221A** 1.01 1.00 58MV(B,C)100--- 20

CSPH*3612A** 1.01 0.98 58MV(B,C)100--- 20

CSPH*4212A** 1.01 0.96 58MV(B,C)100--- 20

CNPV*3621A** 1.01 1.02 58ME(B,C)100--- 20

CNPV*4221A** 1.01 0.99 58ME(B,C)100--- 20

CNPH*4221A** 1.01 0.99 58ME(B,C)100--- 20

CNPH*4321A** 1.00 0.92 58ME(B,C)100--- 20

CNPV*4324A** 1.00 0.93 58MV(B,C)120--- 20

CNPH*3617A** 1.01 1.03 58MV(B,C)120--- 20

CSPH*3612A** 1.01 0.96 58ME(B,C)100--- 20

CSPH*3612A** 1.01 0.98 58MV(B,C)120--- 20

CNPH*4221A** 1.01 1.01 58MV(B,C)120--- 20

CNPH*4321A** 1.00 0.93 58MV(B,C)120--- 20

CAP**3617A** 1.02 1.01 58MEB040 ---12

CSPH*4212A** 1.00 0.94 58ME(B,C)100--- 20

CNPH*3617A** 1.02 1.02 58MEB040 ---12

CNPH*4221A** 1.02 0.99 58MEB040 ---12

CAP**3614A** 1.03 1.06 58PH*045 ---08

CNPV*4324A** 1.01 0.95 58MVB040--- 14

CSPH*4212A** 1.01 0.96 58MV(B,C)120--- 20

CNPH*4321A** 1.01 0.95 58MVB040 ---14

CNPH*3617A** 1.03 1.07 58PH*045 ---08

CNPH*4221A** 1.03 1.04 58PH*045 ---08

CNPV*3617A** 1.02 1.02 58MEB040---12

CNPV*3717A** 1.01 0.93 58MEB040---12

CNPV*4217A** 1.01 0.96 58MEB040---12

CSPH*3612A** 1.02 0.96 58MEB040--- 12

CNPH*4321A** 1.01 0.92 58MEB040 ---12

CSPH*4212A** 1.00 0.94 58MEB040--- 12

CAP**3617A** 1.02 1.03 58PH*070 ---16

CSPH*3612A** 1.03 1.01 58PH*045--- 08

CSPH*4212A** 1.01 0.98 58PH*045--- 08

CNPH*4321A** 1.02 0.97 58PH*045 ---08

CAP**4224A** 1.01 1.01 58MV(B,C)040--- 14

CSPH*3612A** 1.02 1.00 58MV(B,C)040--- 14

CNPH*3617A** 1.01 1.05 58MV(B,C)040--- 14

CNPH*4221A** 1.02 1.02 58MV(B,C)040--- 14

CNPV*3617A** 1.02 1.05 58PH*070--- 16

CNPV*3717A** 1.01 0.96 58PH*070--- 16

CNPV*4217A** 1.02 0.99 58PH*070--- 16

CSPH*3612A** 1.02 1.00 58PH*070--- 16

CNPH*3617A** 1.02 1.05 58PH*070 ---16

CNPH*4221A** 1.02 1.02 58PH*070 ---16

CNPH*4321A** 1.01 0.95 58PH*070 ---16

CAP**3617A** 1.01 1.03 58MV(B,C)060--- 14

CSPH*4212A** 1.01 0.98 58MV(B,C)040--- 14

CNPH*3617A** 1.01 1.03 58MV(B,C)060--- 14

CNPH*4221A** 1.01 1.01 58MV(B,C)060--- 14

CSPH*4212A** 1.01 0.96 58PH*070--- 16

CNPV*3617A** 1.01 1.03 58MV(B,C)060--- 14

CNPV*3717A** 1.01 0.94 58MV(B,C)060--- 14

CNPV*4217A** 1.02 0.97 58MV(B,C)060--- 14

CNPH*4321A** 1.01 0.93 58MV(B,C)060--- 14

50

25HCB3

25HCB336A30 Outdoor Section With FY4ANF036 Indoor Section

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

MODEL

CNPV*3717A** 1.01 0.96 OVLAAB036098

CNPV*4217A** 1.02 1.01 OVLAAB036098

CSPH*3612A** 1.02 1.01 OVLAAB036098

CAP**3621A** 1.01 1.01 OVLAAB048112

CSPH*4212A** 1.02 0.99 OVLAAB036098

CAP**4221A** 1.02 1.00 OVLAAB048112

CNPH*3617A** 1.02 1.03 OVLAAB048112

CNPH*4221A** 1.02 1.00 OVLAAB048112

CNPH*4321A** 1.01 0.94 OVLAAB048112

CNPV*3621A** 1.02 1.03 OVLAAB048112

CNPV*4221A** 1.02 1.00 OVLAAB048112

CSPH*3612A** 1.02 0.99 OVLAAB048112

HEAT PUMP HEATING PERFORMANCE CONTINUED

CSPH*4212A** 1.02 0.97 OVLAAB048112

CNPH*3617A** 1.03 1.00 OVLAAB060154

CNPH*4221A** 1.02 0.96 OVLAAB060154

CNPH*4321A** 0.99 0.90 OVLAAB060154

CSPH*3612A** 1.02 0.95 OVLAAB060154

CSPH*4212A** 1.01 0.93 OVLAAB060154

CAP**3617A** 1.02 1.04 OVMAAB036098

CNPH*3617A** 1.02 1.05 OVMAAB036098

CNPH*4221A** 1.02 1.02 OVMAAB036098

CNPH*4321A** 1.01 0.96 OVMAAB036098

CNPV*3617A** 1.02 1.05 OVMAAB036098

CNPV*3717A** 1.01 0.96 OVMAAB036098

CNPV*4217A** 1.02 1.00 OVMAAB036098

CSPH*3612A** 1.02 1.01 OVMAAB036098

CSPH*4212A** 1.02 0.99 OVMAAB036098

51

CAP**3617A** 1.01 1.02 OVMAAB042112

CNPH*3617A** 1.01 1.03 OVMAAB042112

CNPH*4221A** 1.01 1.00 OVMAAB042112

CNPH*4321A** 1.00 0.94 OVMAAB042112

CNPV*3617A** 1.01 1.03 OVMAAB042112

CNPV*3717A** 1.00 0.94 OVMAAB042112

CNPV*4217A** 1.02 0.99 OVMAAB042112

CSPH*3612A** 1.02 0.99 OVMAAB042112

CSPH*4212A** 1.01 0.97 OVMAAB042112

Seenoteonpg.56

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

CNPV*4221A** 1.02 1.07 58HDV060--- --- 12

HEATING INDOOR

25HCB3

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CAP**4823A** 1.01 0.99 58HDV080--- --- 20

CNPV*4821A** 1.02 1.02 58HDV060--- --- 12

CSPH*4212A** 1.02 1.03 58HDV060--- --- 12

CSPH*4812A** 1.02 1.02 58HDV060--- --- 12

CNPV*4221A** 1.01 1.03 58HDV080--- --- 20

CNPV*4324A** 1.02 0.97 58HDV080--- --- 20

CNPH*4221A** 1.02 1.05 58HDV080 --- --- 20

CNPH*4321A** 1.02 0.97 58HDV080 --- --- 20

CNPV*4821A** 1.02 0.99 58HDV080--- --- 20

CNPH*4821A** 1.02 0.99 58HDV080 --- --- 20

CAP**4224A** 1.00 1.02 58HDV100--- --- 20

CNPV*4824A** 1.02 0.99 58HDV080--- --- 20

CAP**4824A** 0.98 0.95 58HDV100--- --- 20

CSPH*4212A** 1.02 1.00 58HDV080--- --- 20

CSPH*4812A** 1.02 0.99 58HDV080--- --- 20

CNPV*4324A** 1.02 0.97 58HDV100--- --- 20

CNPV*4324A** 1.02 0.97 58HDV100--- --- 20

CNPH*4221A** 1.01 1.04 58HDV100 --- --- 20

CNPH*4321A** 1.02 0.98 58HDV100 --- --- 20

CNPV*4824A** 1.01 0.99 58HDV100--- --- 20

CNPH*4821A** 1.02 1.00 58HDV100 --- --- 20

CAP**4817A** 0.98 0.95 58ME(B,C)060--- 12

CNPV*4824A** 1.02 1.00 58HDV100--- --- 20

CSPH*4212A** 1.02 1.01 58HDV100--- --- 20

CSPH*4812A** 1.02 1.00 58HDV100--- --- 20

CNPV*4217A** 1.02 1.04 58ME(B,C)060--- 12

CSPH*4212A** 1.02 1.01 58ME(B,C)060--- 12

CNPH*4221A** 1.01 1.03 58ME(B,C)060--- 12

CNPH*4321A** 1.02 0.98 58ME(B,C)060--- 12

CSPH*4812A** 1.02 1.00 58ME(B,C)060--- 12

CNPH*4821A** 1.02 1.00 58ME(B,C)060--- 12

CNPV*4217A** 1.01 1.02 58ME(B,C)080--- 12

CSPH*4212A** 1.02 1.01 58ME(B,C)080--- 12

CNPH*4221A** 1.01 1.03 58ME(B,C)080--- 12

CNPH*4321A** 1.02 0.98 58ME(B,C)080--- 12

CSPH*4812A** 1.02 1.00 58ME(B,C)080--- 12

CNPH*4821A** 1.02 1.00 58ME(B,C)080--- 12

CNPH*4221A** 1.00 1.03 58ME(B,C)080--- 16

CNPH*4321A** 1.02 0.98 58ME(B,C)080--- 16

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB342A30 Outdoor Section With FY4ANF042 Indoor Section

MODEL

HEATING INDOOR

CAP**4221A** 1.01 1.05 58CV(A,X)090--- 16

CAP**4817A** 0.96 0.94 58CV(A,X)090--- 16

CSPH*4212A** 1.01 1.02 58CV(A,X)070 ---12

CSPH*4812A** 1.00 1.00 58CV(A,X)070 ---12

CNPV*4217A** 1.01 1.03 58CV(A,X)090 ---16

CNPH*4221A** 1.00 1.02 58CV(A,X)090--- 16

CNPH*4321A** 1.01 0.97 58CV(A,X)090--- 16

CNPH*4821A** 1.00 0.99 58CV(A,X)090--- 16

CAP**4221A** 1.00 1.03 58CV(A,X)110--- 20

CNPV*4221A** 1.01 1.03 58CV(A,X)090 ---16

CAP**4821A** 1.00 0.98 58CV(A,X)110--- 20

CSPH*4212A** 1.00 1.00 58CV(A,X)090 ---16

CSPH*4812A** 1.00 0.98 58CV(A,X)090 ---16

CNPV*4221A** 1.00 1.01 58CV(A,X)110 ---20

CNPH*4221A** 1.00 1.01 58CV(A,X)110--- 20

CNPH*4321A** 1.01 0.97 58CV(A,X)110--- 20

CNPH*4821A** 1.00 0.99 58CV(A,X)110--- 20

CAP**4224A** 1.00 1.02 58CV(A,X)135--- 22

CNPV*4821A** 1.00 0.99 58CV(A,X)110 ---20

CAP**4824A** 1.00 0.98 58CV(A,X)135--- 22

CSPH*4212A** 1.00 0.99 58CV(A,X)110 ---20

CSPH*4812A** 1.00 0.98 58CV(A,X)110 ---20

CNPV*4324A** 1.01 0.96 58CV(A,X)135 ---22

CNPH*4221A** 1.00 1.01 58CV(A,X)135--- 22

CNPH*4321A** 1.01 0.96 58CV(A,X)135--- 22

CNPH*4821A** 1.00 0.98 58CV(A,X)135--- 22

CAP**4224A** 1.00 1.02 58CV(A,X)155--- 22

CNPV*4824A** 1.00 0.98 58CV(A,X)135 ---22

CAP**4824A** 1.00 0.98 58CV(A,X)155--- 22

CSPH*4212A** 1.00 0.99 58CV(A,X)135 ---22

CSPH*4812A** 1.00 0.97 58CV(A,X)135 ---22

CNPV*4324A** 1.01 0.96 58CV(A,X)155 ---22

CNPH*4221A** 1.00 1.01 58CV(A,X)155--- 22

CNPV*4824A** 1.00 0.98 58CV(A,X)155 ---22

CNPH*4321A** 1.01 0.96 58CV(A,X)155--- 22

CNPH*4821A** 1.00 0.98 58CV(A,X)155--- 22

CNPV*4217A** 1.02 1.06 58HDV060--- --- 12

CSPH*4212A** 1.00 0.99 58CV(A,X)155 ---22

CSPH*4812A** 1.00 0.98 58CV(A,X)155 ---22

CNPH*4821A** 1.02 1.02 58HDV060 --- --- 12

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

CFM

1225 17.53 16.13 2.72 21.61 19.86 2.83 26.00 23.71 2.95 30.74 27.30 3.08 36.21 32.95 3.26 42.09 42.09 3.43 47.60 47.60 3.60 53.07 53.07 3.79

1400 17.88 16.45 2.75 21.99 20.20 2.85 26.39 24.06 2.96 31.20 27.71 3.08 36.75 33.44 3.25 42.44 42.44 3.38 47.57 47.57 3.53 52.73 52.73 3.69

1575 18.21 16.75 2.80 22.32 20.51 2.89 26.75 24.39 2.99 31.61 28.08 3.10 37.22 33.87 3.25 42.50 42.50 3.36 47.37 47.37 3.49 52.15 52.15 3.63

1225 17.06 15.69 2.84 21.17 19.45 2.96 25.58 23.32 3.09 30.29 26.90 3.23 35.68 32.47 3.42 41.58 41.58 3.60 47.11 47.11 3.77 52.62 52.62 3.98

1400 17.40 16.01 2.88 21.52 19.78 2.99 25.97 23.68 3.10 30.69 27.26 3.23 36.21 32.96 3.40 42.00 42.00 3.55 47.24 47.24 3.70 52.50 52.50 3.87

1575 17.74 16.32 2.92 21.88 20.11 3.02 26.32 24.00 3.12 31.11 27.63 3.24 36.68 33.38 3.40 42.19 42.19 3.52 47.15 47.15 3.66 52.04 52.04 3.81

1225 16.54 15.21 2.96 20.69 19.02 3.09 25.13 22.91 3.23 29.85 26.51 3.39 35.03 31.88 3.57 41.04 41.04 3.78 46.60 46.60 3.95 52.13 52.13 4.17

1400 16.89 15.54 3.00 21.08 19.37 3.12 25.53 23.28 3.24 30.29 26.90 3.38 35.58 32.38 3.55 41.57 41.57 3.72 46.84 46.84 3.88 52.10 52.10 4.06

1575 17.21 15.83 3.05 21.41 19.67 3.16 25.90 23.62 3.27 30.67 27.24 3.40 36.15 32.90 3.56 41.81 41.81 3.69 46.84 46.84 3.84 51.83 51.83 3.99

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

65

70

°F (°C)

(18.3)

75

(21.1)

(23.9)

CAPACITY POWER FURNACE MODEL

MODEL

HEATING INDOOR

FY4ANF042 1.02 1.05

FY4ANF048 1.00 1.01

FY5BNF042 1.02 1.02

FY5BNF048 1.00 0.97

FE4ANB006 0.96 0.92

FB4CNF042 1.00 0.99

FB4CNF042 1.02 1.01

FB4CNF048 1.00 0.98

*FY5BNF042 1.00 1.00

FB4CNF048 1.02 1.00

FE4AN(B,F)003 1.00 1.03

FE4AN(B,F)005 0.99 0.95

FV4BNB006 0.96 0.92

FV4BN(B,F)003 1.00 1.03

FV4BN(B,F)005 0.99 0.95

FX4CN(B,F)042 1.02 1.00

FX4CN(B,F)048 0.98 0.93

FX4DN(B,F)043 1.02 1.00

FX4DN(B,F)049 1.00 0.95

FY5BNF048 1.01 1.00

CAP**4221A** 1.04 1.07

CAP**4224A** 1.04 1.07

CAP**4817A** 0.98 0.97

CAP**4821A** 1.02 1.02

CAP**4823A** 1.02 1.02

CAP**4824A** 1.02 1.02

CNPF*4818A** 1.02 1.04

CNPV*4217A** 1.02 1.04

CNPV*4221A** 1.04 1.07

CNPV*4324A** 1.02 0.99

CNPV*4821A** 1.02 1.02

CNPV*4824A** 1.02 1.02

CSPH*4212A** 1.04 1.03

CNPH*4221A** 1.04 1.07

CNPH*4321A** 1.02 0.99

CNPH*4821A** 1.02 1.02

CSPH*4812A** 1.00 0.98

CNPH*4221A** 1.01 1.05 58CV(A,X)070--- 12

CNPH*4321A** 1.02 1.00 58CV(A,X)070--- 12

CNPH*4821A** 1.00 1.01 58CV(A,X)070--- 12

52

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

MODEL

CNPV*4324A** 1.01 0.95 58PH*135--- 20

CNPH*4221A** 1.00 1.03 58PH*135 ---20

CNPH*4321A** 1.01 0.96 58PH*135 ---20

CNPH*4821A** 1.01 0.99 58PH*135 ---20

CAP**4221A** 1.00 1.03 58VLR120---20

CNPV*4824A** 1.01 0.99 58PH*135--- 20

CAP**4821A** 1.01 1.00 58VLR120---20

CNPV*4221A** 1.00 1.03 58VLR120--- 20

CSPH*4212A** 1.01 1.00 58PH*135--- 20

CSPH*4812A** 1.01 0.99 58PH*135--- 20

CNPV*4321A** 1.01 0.97 58VLR120--- 20

CNPH*4221A** 1.00 1.03 58VLR120 ---20

CNPH*4821A** 1.01 1.01 58VLR120 ---20

CAP**4221A** 1.00 1.04 58VMR120--- 20

CNPV*4821A** 1.01 1.01 58VLR120--- 20

CAP**4821A** 1.01 1.01 58VMR120--- 20

CNPV*4221A** 1.00 1.04 58VMR120--- 20

CSPH*4212A** 1.01 1.01 58VLR120--- 20

CSPH*4812A** 1.01 1.00 58VLR120--- 20

CNPV*4321A** 1.01 0.98 58VMR120--- 20

CNPH*4221A** 1.00 1.04 58VMR120 ---20

CNPH*4821A** 1.01 1.01 58VMR120 ---20

CAP**4221A** 1.01 1.05 OVLAAB048112

CNPV*4821A** 1.01 1.01 58VMR120--- 20

CAP**4821A** 1.02 1.02 OVLAAB048112

CSPH*4212A** 1.01 1.02 58VMR120--- 20

CSPH*4812A** 1.01 1.01 58VMR120--- 20

CNPH*4221A** 1.02 1.06 OVLAAB048112

CNPH*4321A** 1.02 0.99 OVLAAB048112

CNPV*4221A** 1.02 1.06 OVLAAB048112

CNPH*4821A** 1.02 1.01 OVLAAB048112

CNPV*4821A** 1.02 1.01 OVLAAB048112

CSPH*4212A** 1.02 1.02 OVLAAB048112

CSPH*4812A** 1.02 1.01 OVLAAB048112

CNPH*4221A** 1.02 1.02 OVLAAB060154

CNPH*4321A** 1.02 0.96 OVLAAB060154

CSPH*4212A** 1.02 0.98 OVLAAB060154

CNPH*4821A** 1.02 0.98 OVLAAB060154

CAP**4817A** 1.01 1.01 OVMAAB042112

CSPH*4812A** 1.02 0.97 OVLAAB060154

CNPH*4221A** 1.01 1.05 OVMAAB042112

CNPH*4321A** 1.02 1.00 OVMAAB042112

CNPV*4217A** 1.01 1.04 OVMAAB042112

CNPH*4821A** 1.01 1.01 OVMAAB042112

CSPH*4212A** 1.02 1.03 OVMAAB042112

CSPH*4812A** 1.02 1.02 OVMAAB042112

Seenoteonpg.56

25HCB3

CAPACITY POWER FURNACE MODEL

25HCB342A30 Outdoor Section With FY4ANF042 Indoor Section

HEATING INDOOR

MODEL

CNPV*4221A** 1.00 1.03 58MV(B,C)080--- 20

CNPH*4221A** 1.00 1.03 58MV(B,C)080--- 20

CNPH*4321A** 1.02 0.99 58MV(B,C)080--- 20

CNPH*4821A** 1.00 1.01 58MV(B,C)080--- 20

CAP**4221A** 1.00 1.03 58MV(B,C)100--- 20

CNPV*4821A** 1.00 1.01 58MV(B,C)080--- 20

CAP**4821A** 1.00 0.99 58MV(B,C)100--- 20

CSPH*4212A** 1.01 1.02 58MV(B,C)080--- 20

CSPH*4812A** 1.00 0.99 58MV(B,C)080--- 20

CNPV*4221A** 1.00 1.02 58MV(B,C)100--- 20

CNPH*4221A** 1.00 1.02 58MV(B,C)100--- 20

CNPH*4321A** 1.01 0.99 58MV(B,C)100--- 20

CNPH*4821A** 1.00 0.99 58MV(B,C)100--- 20

CAP**4224A** 1.00 1.03 58MV(B,C)120--- 20

CNPV*4821A** 1.00 0.99 58MV(B,C)100--- 20

CAP**4824A** 1.00 0.99 58MV(B,C)120--- 20

CSPH*4212A** 1.00 1.00 58MV(B,C)100--- 20

CSPH*4812A** 1.00 0.99 58MV(B,C)100--- 20

CNPV*4324A** 1.01 0.97 58MV(B,C)120--- 20

CNPV*4824A** 1.00 1.00 58MV(B,C)120--- 20

CNPH*4221A** 1.00 1.02 58MV(B,C)120--- 20

CNPH*4321A** 1.01 0.97 58MV(B,C)120--- 20

CSPH*4212A** 1.00 1.01 58MV(B,C)120--- 20

CNPH*4821A** 1.00 1.00 58MV(B,C)120--- 20

CAP**4817A** 0.98 0.98 58PH*070 ---16

CNPV*4324A** 1.01 0.99 58MVB040--- 14

CSPH*4812A** 1.00 0.99 58MV(B,C)120--- 20

CNPH*4321A** 1.01 0.99 58MVB040 ---14

CNPH*4221A** 1.02 1.07 58PH*070 ---16

CNPH*4321A** 1.01 0.99 58PH*070 ---16

CNPH*4821A** 1.02 1.02 58PH*070 ---16

CAP**4221A** 1.00 1.02 58PH*090 ---16

CNPV*4217A** 1.02 1.06 58PH*070--- 16

CAP**4821A** 0.98 0.95 58PH*090 ---16

CSPH*4212A** 1.02 1.03 58PH*070--- 16

CSPH*4812A** 1.02 1.02 58PH*070--- 16

CNPV*4221A** 0.98 1.00 58PH*090--- 16

CNPH*4221A** 1.00 1.03 58PH*090 ---16

CNPH*4321A** 1.01 0.96 58PH*090 ---16

CNPH*4821A** 1.01 0.99 58PH*090 ---16

CAP**4221A** 1.00 1.02 58PH*110 ---20

CNPV*4821A** 1.01 0.99 58PH*090--- 16

CAP**4821A** 0.98 0.95 58PH*110 ---20

CSPH*4212A** 1.01 1.00 58PH*090--- 16

CSPH*4812A** 1.01 0.99 58PH*090--- 16

CNPV*4221A** 1.00 1.02 58PH*110--- 20

CNPH*4221A** 1.00 1.02 58PH*110 ---20

CNPH*4321A** 1.01 0.96 58PH*110 ---20

CNPH*4821A** 1.01 0.99 58PH*110 ---20

CAP**4224A** 1.00 1.02 58PH*135 ---20

CNPV*4821A** 1.01 0.99 58PH*110--- 20

CAP**4824A** 0.98 0.95 58PH*135 ---20

CSPH*4212A** 1.01 1.00 58PH*110--- 20

CSPH*4812A** 1.01 0.99 58PH*110--- 20

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

MODEL

CNPH*4821A** 1.01 1.00 58ME(B,C)080--- 16

CAP**4221A** 1.00 1.01 58ME(B,C)100--- 20

CNPV*4217A** 1.01 1.03 58ME(B,C)080--- 16

CAP**4821A** 0.98 0.94 58ME(B,C)100--- 20

CSPH*4212A** 1.01 1.01 58ME(B,C)080--- 16

CSPH*4812A** 1.01 0.99 58ME(B,C)080--- 16

CNPV*4221A** 1.00 1.02 58ME(B,C)100--- 20

CNPV*4821A** 1.01 0.99 58ME(B,C)100--- 20

CNPH*4221A** 1.00 1.02 58ME(B,C)100--- 20

CNPH*4321A** 1.01 0.95 58ME(B,C)100--- 20

CSPH*4212A** 1.01 0.99 58ME(B,C)100--- 20

CNPH*4821A** 1.01 0.99 58ME(B,C)100--- 20

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**4224A** 1.00 1.00 58ME(B,C)120--- 20

CAP**4824A** 0.98 0.94 58ME(B,C)120--- 20

CSPH*4812A** 1.01 0.98 58ME(B,C)100--- 20

CNPV*4324A** 1.01 0.94 58ME(B,C)120--- 20

CNPH*4221A** 1.00 1.02 58ME(B,C)120--- 20

CNPH*4321A** 1.01 0.95 58ME(B,C)120--- 20

CNPH*4821A** 1.01 0.97 58ME(B,C)120--- 20

CAP**4817A** 0.98 0.95 58MEB040 ---12

CNPV*4824A** 1.01 0.97 58ME(B,C)120--- 20

CSPH*4212A** 1.01 0.99 58ME(B,C)120--- 20

CSPH*4812A** 1.01 0.97 58ME(B,C)120--- 20

CNPH*4221A** 1.01 1.03 58MEB040 ---12

CNPH*4321A** 1.02 0.97 58MEB040 ---12

CNPH*4821A** 1.02 1.00 58MEB040 ---12

CAP**4224A** 1.00 1.05 58MV(B,C)040--- 14

CNPV*4217A** 1.01 1.02 58MEB040---12

CAP**4824A** 1.00 1.01 58MV(B,C)040--- 14

CSPH*4212A** 1.02 1.00 58MEB040--- 12

CSPH*4812A** 1.02 0.99 58MEB040--- 12

CNPH*4221A** 1.00 1.03 58MV(B,C)040--- 14

CNPH*4821A** 1.01 1.02 58MV(B,C)040--- 14

CAP**4817A** 0.96 0.95 58MV(B,C)060--- 14

CNPV*4824A** 1.00 1.01 58MV(B,C)040--- 14

CSPH*4212A** 1.01 1.03 58MV(B,C)040--- 14

CSPH*4812A** 1.01 1.02 58MV(B,C)040--- 14

CNPH*4221A** 1.00 1.03 58MV(B,C)060--- 14

CNPH*4321A** 1.02 0.98 58MV(B,C)060--- 14

CNPH*4821A** 1.01 1.02 58MV(B,C)060--- 14

CAP**4221A** 1.01 1.06 58MV(B,C)080--- 14

CNPV*4217A** 1.01 1.02 58MV(B,C)060--- 14

CAP**4821A** 1.01 1.02 58MV(B,C)080--- 14

CSPH*4212A** 1.01 1.02 58MV(B,C)060--- 14

CSPH*4812A** 1.00 0.99 58MV(B,C)060--- 14

CNPV*4221A** 1.00 1.04 58MV(B,C)080--- 14

CNPH*4221A** 1.00 1.04 58MV(B,C)080--- 14

CNPH*4321A** 1.02 1.00 58MV(B,C)080--- 14

CNPH*4821A** 1.01 1.03 58MV(B,C)080--- 14

CAP**4221A** 1.01 1.05 58MV(B,C)080--- 20

CNPV*4821A** 1.01 1.03 58MV(B,C)080--- 14

CAP**4821A** 1.00 0.99 58MV(B,C)080--- 20

CSPH*4212A** 1.01 1.03 58MV(B,C)080--- 14

CSPH*4812A** 1.01 1.02 58MV(B,C)080--- 14

53

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

CAP**4817A** 0.99 1.00 58ME(B,C)080--- 16

CNPV*6124A** 0.96 0.94 58HDV100--- --- 20

CSPH*4812A** 0.99 1.00 58HDV100--- --- 20

CSPH*6012A** 0.99 0.97 58HDV100--- --- 20

HEATING INDOOR

25HCB3

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CNPH*4821A** 0.99 1.01 58ME(B,C)080--- 16

CAP**4821A** 0.99 0.99 58ME(B,C)100--- 20

CNPH*6024A** 0.99 0.99 58ME(B,C)080--- 16

CNPH*4821A** 0.99 1.00 58ME(B,C)100--- 20

CNPH*6024A** 0.99 0.97 58ME(B,C)100--- 20

CAP**6021A** 0.96 0.95 58ME(B,C)100--- 20

CSPH*4812A** 0.99 1.00 58ME(B,C)080--- 16

CSPH*6012A** 0.99 0.98 58ME(B,C)080--- 16

CAP**4824A** 0.99 0.98 58ME(B,C)120--- 20

CNPV*4821A** 0.99 1.00 58ME(B,C)100--- 20

CAP**6024A** 0.97 0.96 58ME(B,C)120--- 20

CSPH*4812A** 0.99 0.99 58ME(B,C)100--- 20

CSPH*6012A** 0.99 0.96 58ME(B,C)100--- 20

CNPV*4824A** 0.99 0.99 58ME(B,C)120--- 20

CNPH*4821A** 0.99 0.99 58ME(B,C)120--- 20

CNPH*6024A** 0.99 0.97 58ME(B,C)120--- 20

CAP**4821A** 1.00 1.03 58MV(B,C)080--- 20

CNPV*6024A** 0.99 0.97 58ME(B,C)120--- 20

CAP**6021A** 0.97 0.98 58MV(B,C)080--- 20

CSPH*4812A** 0.99 0.98 58ME(B,C)120--- 20

CSPH*6012A** 0.99 0.96 58ME(B,C)120--- 20

CNPH*4821A** 1.00 1.04 58MV(B,C)080--- 20

CNPH*6024A** 0.97 0.98 58MV(B,C)080--- 20

CAP**4821A** 0.99 1.01 58MV(B,C)100--- 20

CNPV*4821A** 1.00 1.04 58MV(B,C)080--- 20

CAP**6021A** 0.97 0.98 58MV(B,C)100--- 20

CSPH*4812A** 1.00 1.02 58MV(B,C)080--- 20

CSPH*6012A** 0.97 0.97 58MV(B,C)080--- 20

CNPH*4821A** 0.99 1.02 58MV(B,C)100--- 20

CNPH*6024A** 0.97 0.97 58MV(B,C)100--- 20

CAP**4824A** 0.99 1.01 58MV(B,C)120--- 20

CNPV*4821A** 0.99 1.02 58MV(B,C)100--- 20

CAP**6024A** 0.97 0.98 58MV(B,C)120--- 20

CSPH*4812A** 0.99 1.01 58MV(B,C)100--- 20

CSPH*6012A** 0.97 0.96 58MV(B,C)100--- 20

CNPH*4821A** 0.99 1.03 58MV(B,C)120--- 20

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB348A30 Outdoor Section With FY4ANF048 Indoor Section

MODEL

HEATING INDOOR

CAP**4824A** 0.99 1.00 58CV(A,X)135--- 22

CNPV*4821A** 0.99 1.02 58CV(A,X)110 ---20

CNPH*4821A** 0.99 1.02 58CV(A,X)110--- 20

CNPH*6024A** 0.97 0.97 58CV(A,X)110--- 20

CAP**6024A** 0.97 0.97 58CV(A,X)135--- 22

CSPH*4812A** 0.99 1.00 58CV(A,X)110 ---20

CSPH*6012A** 0.96 0.95 58CV(A,X)110 ---20

CNPV*4824A** 0.99 1.01 58CV(A,X)135 ---22

CNPH*4821A** 0.99 1.01 58CV(A,X)135--- 22

CNPH*6024A** 0.97 0.96 58CV(A,X)135--- 22

CAP**4824A** 0.99 0.99 58CV(A,X)155--- 22

CNPV*6024A** 0.97 0.96 58CV(A,X)135 ---22

CAP**6024A** 0.96 0.95 58CV(A,X)155--- 22

CSPH*4812A** 0.99 1.00 58CV(A,X)135 ---22

CSPH*6012A** 0.96 0.94 58CV(A,X)135 ---22

CNPV*4824A** 0.99 1.00 58CV(A,X)155 ---22

CNPH*4821A** 0.99 1.00 58CV(A,X)155--- 22

CNPH*6024A** 0.96 0.94 58CV(A,X)155--- 22

CAP**4823A** 0.99 1.00 58HDV080--- --- 20

CNPV*6024A** 0.96 0.94 58CV(A,X)155 ---22

CAP**6025A** 0.98 0.98 58HDV080--- --- 20

CNPV*4821A** 0.98 0.99 58HDV080--- --- 20

CNPV*4824A** 0.98 0.99 58HDV080--- --- 20

CSPH*4812A** 0.99 0.98 58CV(A,X)155 ---22

CSPH*6012A** 0.96 0.93 58CV(A,X)155 ---22

CNPH*4821A** 0.99 1.00 58HDV080 --- --- 20

CNPV*6024A** 0.97 0.97 58HDV080--- --- 20

CNPH*6024A** 0.99 0.99 58HDV080 --- --- 20

CAP**4824A** 0.99 1.00 58HDV100--- --- 20

CAP**6024A** 0.99 1.00 58HDV100--- --- 20

CNPV*6124A** 0.96 0.94 58HDV080--- --- 20

CSPH*4812A** 0.99 0.99 58HDV080--- --- 20

CAP**6025A** 0.99 1.00 58HDV100--- --- 20

CNPV*4824A** 0.98 1.00 58HDV100--- --- 20

CNPV*4824A** 0.99 1.01 58HDV100--- --- 20

CNPV*6024A** 0.97 0.97 58HDV100--- --- 20

CSPH*6012A** 0.99 0.97 58HDV080--- --- 20

CNPH*4821A** 0.99 1.01 58HDV100 --- --- 20

CNPH*6024A** 0.99 0.99 58HDV100 --- --- 20

CNPV*6024A** 0.99 0.99 58HDV100--- --- 20

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

CFM

1400 21.02 19.34 3.15 25.66 23.58 3.27 30.63 27.92 3.39 36.31 32.25 3.55 42.60 38.76 3.70 48.84 48.84 3.87 54.32 54.32 4.05 56.50 56.50 4.10

1600 21.41 19.70 3.20 26.07 23.95 3.30 31.08 28.34 3.41 36.82 32.70 3.55 43.01 39.14 3.68 48.80 48.80 3.84 51.13 51.13 3.89 52.63 52.63 3.91

1800 21.77 20.03 3.25 26.44 24.30 3.35 31.50 28.72 3.45 37.27 33.10 3.58 43.11 39.23 3.69 47.24 47.24 3.79 48.26 48.26 3.80 49.37 49.37 3.81

1400 20.52 18.88 3.29 25.21 23.16 3.42 30.19 27.53 3.55 35.74 31.74 3.71 41.99 38.21 3.90 48.41 48.41 4.06 54.98 54.98 4.29 57.35 57.35 4.34

1600 20.92 19.24 3.33 25.62 23.55 3.45 30.62 27.92 3.57 36.31 32.25 3.72 42.58 38.75 3.85 48.50 48.50 4.02 52.26 52.26 4.12 53.93 53.93 4.15

1800 21.28 19.58 3.39 26.01 23.90 3.49 31.03 28.29 3.60 36.75 32.64 3.74 42.83 38.98 3.86 48.16 48.16 4.01 49.40 49.40 4.02 50.74 50.74 4.04

1400 19.98 18.39 3.42 24.76 22.75 3.57 29.75 27.12 3.72 35.19 31.25 3.88 41.42 37.69 4.08 48.00 48.00 4.26 54.51 54.51 4.49 58.18 58.18 4.60

1600 20.37 18.74 3.47 25.14 23.10 3.60 30.19 27.53 3.73 35.69 31.70 3.88 42.01 38.22 4.04 48.14 48.14 4.21 53.06 53.06 4.36 54.85 54.85 4.40

1800 20.76 19.10 3.53 25.53 23.46 3.64 30.60 27.90 3.77 36.15 32.11 3.90 42.46 38.64 4.04 48.15 48.15 4.20 50.73 50.73 4.26 52.17 52.17 4.28

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

65

70

°F (°C)

(18.3)

75

(21.1)

(23.9)

CAPACITY POWER FURNACE MODEL

MODEL

HEATING INDOOR

FY4ANF048 1.00 1.03

FE4ANB006 0.95 0.91

FB4CNF048 0.99 1.01

FB4CNF048 1.00 1.03

FB4CNF060 0.99 0.97

*FY5BNF048 1.00 1.00

FB4CNF060 1.00 0.99

FV4BNB006 0.95 0.91

FE4AN(B,F)005 0.98 0.97

FV4BN(B,F)005 0.98 0.97

FX4CN(B,F)048 0.98 0.96

FX4CN(B,F)060 0.91 0.88

FX4DN(B,F)049 0.99 0.96

FX4DN(B,F)061 0.91 0.88

FY5BNF048 0.99 0.98

FY4ANB060 0.93 0.95

FY5BNB060 0.96 0.99

CAP**4817A** 0.99 1.01

CAP**4821A** 1.01 1.02

CAP**4823A** 1.01 1.02

CAP**4824A** 1.01 1.02

CAP**6021A** 0.92 0.94

CAP**6024A** 0.93 0.95

CAP**6025A** 0.93 0.95

CNPF*4818A** 1.00 1.06

CNPV*4821A** 1.01 1.02

CNPV*4824A** 1.01 1.02

CNPH*4821A** 1.01 1.02

CNPH*6024A** 0.93 0.94

CAP**4817A** 0.98 0.99 58CV(A,X)090--- 16

CNPV*6024A** 0.93 0.94

CSPH*4812A** 1.01 1.00

CSPH*6012A** 0.93 0.92

CNPH*4821A** 0.99 1.02 58CV(A,X)090--- 16

CNPH*6024A** 0.97 0.97 58CV(A,X)090--- 16

CAP**4821A** 0.99 1.01 58CV(A,X)110--- 20

CNPV*4821A** 0.99 1.02 58CV(A,X)090 ---16

CAP**6021A** 0.96 0.96 58CV(A,X)110--- 20

CSPH*4812A** 0.99 1.01 58CV(A,X)090 ---16

CSPH*6012A** 0.97 0.96 58CV(A,X)090 ---16

54

25HCB3

25HCB348A30 Outdoor Section With FY4ANF048 Indoor Section

CAPACITY POWER FURNACE MODEL

HEATING INDOOR

MODEL

CNPV*4824A** 0.99 1.03 58MV(B,C)120--- 20

CNPH*6024A** 0.97 0.98 58MV(B,C)120--- 20

CAP**4821A** 0.99 1.00 58PH*090 ---16

CNPV*6024A** 0.97 0.98 58MV(B,C)120--- 20

CAP**6021A** 0.96 0.95 58PH*090 ---16

CSPH*4812A** 0.99 1.01 58MV(B,C)120--- 20

CSPH*6012A** 0.97 0.96 58MV(B,C)120--- 20

CNPH*4821A** 0.99 1.01 58PH*090 ---16

CNPH*6024A** 0.99 0.98 58PH*090 ---16

CAP**4821A** 0.99 1.00 58PH*110 ---20

CNPV*4821A** 0.99 1.01 58PH*090--- 16

CSPH*4812A** 0.99 1.00 58PH*090--- 16

CSPH*6012A** 0.99 0.97 58PH*090--- 16

HEAT PUMP HEATING PERFORMANCE CONTINUED

CAP**6021A** 0.97 0.96 58PH*110 ---20

CNPH*4821A** 0.99 1.00 58PH*110 ---20

CNPH*6024A** 0.99 0.97 58PH*110 ---20

CAP**4824A** 0.99 1.00 58PH*135 ---20

CNPV*4821A** 0.99 1.00 58PH*110--- 20

CAP**6024A** 0.97 0.97 58PH*135 ---20

CSPH*4812A** 0.99 1.00 58PH*110--- 20

CSPH*6012A** 0.99 0.96 58PH*110--- 20

CNPV*4824A** 0.99 1.00 58PH*135--- 20

CNPH*4821A** 0.99 1.00 58PH*135 ---20

CNPH*6024A** 0.99 0.98 58PH*135 ---20

CAP**4821A** 0.99 1.01 58VLR120---20

CNPV*6024A** 0.99 0.98 58PH*135--- 20

CAP**6021A** 0.99 1.00 58VLR120---20

CSPH*4812A** 0.99 1.00 58PH*135--- 20

CSPH*6012A** 0.99 0.97 58PH*135--- 20

CNPH*4821A** 0.99 1.02 58VLR120 ---20

CNPH*6024A** 0.99 0.99 58VLR120 ---20

CNPH*6124A** 0.98 0.97 58VLR120 ---20

CAP**4821A** 0.99 1.01 58VMR120--- 20

CNPV*4821A** 0.99 1.02 58VLR120--- 20

CAP**6021A** 0.99 1.00 58VMR120--- 20

CSPH*4812A** 0.99 1.00 58VLR120--- 20

CSPH*6012A** 0.99 0.98 58VLR120--- 20

CNPH*4821A** 0.99 1.02 58VMR120 ---20

CNPH*6024A** 0.99 1.00 58VMR120 ---20

CNPH*6124A** 0.98 0.98 58VMR120 ---20

CAP**4821A** 0.97 1.00 OVLAAB048112

CNPV*4821A** 0.99 1.02 58VMR120--- 20

CAP**6021A** 0.96 0.99 OVLAAB048112

CSPH*4812A** 0.99 1.01 58VMR120--- 20

CSPH*6012A** 0.99 0.98 58VMR120--- 20

CNPH*4821A** 0.98 1.01 OVLAAB048112

CNPH*6024A** 0.98 1.00 OVLAAB048112

CNPV*4821A** 0.98 1.01 OVLAAB048112

CSPH*4812A** 0.98 1.00 OVLAAB048112

CSPH*6012A** 0.97 0.97 OVLAAB048112

CNPH*4821A** 0.98 0.97 OVLAAB060154

CSPH*4812A** 0.98 0.96 OVLAAB060154

CNPH*6024A** 0.97 0.96 OVLAAB060154

CSPH*6012A** 0.96 0.93 OVLAAB060154

Seenoteonpg.56

55

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

MODEL

CAPACITY POWER FURNACE MODEL

CAP**6024A** 0.97 0.98 58ME(B,C)120--- 20

CNPV*6024A** 0.97 0.98 58ME(B,C)120--- 20

CNPV*6124A** 0.98 0.96 58ME(B,C)120--- 20

CNPH*6024A** 0.97 0.98 58ME(B,C)120--- 20

HEATING INDOOR

25HCB3

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

CSPH*6012A** 0.97 0.97 58ME(B,C)120--- 20

CNPH*6124A** 0.10 0.10 58ME(B,C)120--- 20

CNPH*6124A** 0.99 1.02 58MV(B,C)080--- 20

CAP**6021A** 0.97 0.99 58PH*090 ---16

CNPV*6124A** 0.98 0.99 58MV(B,C)120--- 20

CNPH*6124A** 0.98 1.01 58MV(B,C)100--- 20

CNPH*6124A** 0.98 0.99 58MV(B,C)120--- 20

CAP**6021A** 0.98 0.99 58PH*110 ---20

CSPH*6012A** 0.97 0.98 58PH*090--- 16

CNPH*6024A** 0.97 1.00 58PH*090 ---16

CAP**6024A** 0.97 0.99 58PH*135 ---20

CNPV*6024A** 0.97 0.99 58PH*135--- 20

CSPH*6012A** 0.97 0.97 58PH*110--- 20

CNPH*6024A** 0.97 0.98 58PH*110 ---20

CNPH*6124A** 0.98 0.97 58PH*110 ---20

CNPV*6124A** 0.98 0.97 58PH*135--- 20

CSPH*6012A** 0.97 0.97 58PH*135--- 20

CNPH*6024A** 0.97 0.99 58PH*135 ---20

CNPH*6124A** 0.98 0.98 58PH*135 ---20

CSPH*6012A** 0.97 0.97 58VLR120--- 20

CNPH*6024A** 0.97 0.99 58VLR120 ---20

CAPACITY POWER FURNACE MODEL

OUTDOOR COIL ENTERING AIR TEMPERATURES ° F (° C)

Capacity MBtuh

Sys.

KW†

Tot a l

25HCB360A30 Outdoor Section With FY4ANF060 Indoor Section

HEATING INDOOR

MODEL

CAP**6024A** 0.96 0.96 58CV(A,X)155--- 22

CNPV*6024A** 0.95 0.96 58CV(A,X)155 ---22

CNPV*6124A** 0.98 0.95 58CV(A,X)155 ---22

CNPH*6024A** 0.95 0.96 58CV(A,X)155--- 22

CSPH*6012A** 0.96 0.95 58CV(A,X)155 ---22

CNPH*6124A** 0.98 0.96 58CV(A,X)155--- 22

CNPH*6024A** 0.99 1.03 58HDV080 --- --- 20

CNPH*6124A** 1.00 1.01 58HDV080 --- --- 20

CAP**6025A** 0.98 1.01 58HDV100--- --- 20

CNPV*6024A** 0.98 1.00 58HDV080--- --- 20

CNPV*6124A** 1.00 1.00 58HDV080--- --- 20

CSPH*6012A** 0.98 0.99 58HDV080--- --- 20

CNPV*6024A** 0.98 1.01 58HDV100--- --- 20

CNPV*6024A** 0.98 1.00 58HDV100--- --- 20

CNPV*6124A** 0.98 0.98 58HDV100--- --- 20

CNPV*6124A** 0.99 0.99 58HDV100--- --- 20

CNPH*6024A** 0.98 1.01 58HDV100 --- --- 20

CNPH*6124A** 0.99 1.00 58HDV100 --- --- 20

CSPH*6012A** 0.98 0.99 58HDV100--- --- 20

CAP**6021A** 0.97 0.99 58ME(B,C)100--- 20

CSPH*6012A** 0.98 1.01 58ME(B,C)080--- 16

CNPH*6024A** 0.97 1.01 58ME(B,C)080--- 16

CNPH*6124A** 0.98 1.00 58ME(B,C)080--- 16

CSPH*6012A** 0.97 0.98 58ME(B,C)100--- 20

CNPH*6024A** 0.97 0.99 58ME(B,C)100--- 20

CNPH*6124A** 0.97 0.97 58ME(B,C)100--- 20

Capacity MBtuh

Sys.

KW†

Tot a l

Capacity MBtuh

Sys.

KW†

Tot a l

--- 3 ( --- 1 9 .4 ) 7 ( ---13.9) 17 ( ---8.3) 27 ( ---2.8) 37 (2. 8) 47 ( 8.3) 57 (13. 9) 67 (19. 4)

Tot a l Integ* To ta l Integ* To ta l Integ* Tot al Integ* Tot al Integ* To ta l Integ* To ta l In teg* Tot al Integ*

Capacity MBtuh

CFM

1750 25.07 23.07 3.86 30.90 28.40 4.00 37.17 33.89 4.16 43.81 38.91 4.34 51.11 46.51 4.54 59.85 59.85 4.79 68.95 68.95 5.02 78.00 78.00 5.31

2000 25.62 23.57 3.93 31.49 28.94 4.06 37.79 34.45 4.20 44.47 39.50 4.36 51.96 47.28 4.54 60.88 60.88 4.74 69.47 69.47 4.95 78.33 78.33 5.20

2250 26.13 24.04 4.01 32.03 29.44 4.13 38.34 34.96 4.26 45.07 40.03 4.40 52.72 47.97 4.57 61.49 61.49 4.73 69.75 69.75 4.92 77.76 77.76 5.13

1750 24.34 22.40 4.03 30.22 27.77 4.19 36.54 33.32 4.36 43.21 38.37 4.55 50.41 45.87 4.76 58.98 58.98 5.03 68.13 68.13 5.26 77.06 77.06 5.56

2000 24.89 22.90 4.10 30.80 28.30 4.24 37.17 33.89 4.40 43.87 38.96 4.57 51.17 46.57 4.75 60.00 60.00 4.97 68.71 68.71 5.18 77.50 77.50 5.44

2250 25.40 23.37 4.18 31.34 28.80 4.31 37.72 34.39 4.45 44.46 39.49 4.60 51.85 47.19 4.77 60.72 60.72 4.95 69.06 69.06 5.15 77.77 77.77 5.39

1750 23.57 21.68 4.21 29.50 27.11 4.38 35.86 32.70 4.57 42.56 37.80 4.77 49.72 45.25 4.99 57.81 57.81 5.26 67.28 67.28 5.51 76.15 76.15 5.82

2000 24.12 22.19 4.29 30.09 27.65 4.44 36.50 33.28 4.60 43.24 38.40 4.78 50.48 45.93 4.98 58.94 58.94 5.21 67.93 67.93 5.43 76.69 76.69 5.70

2250 24.63 22.66 4.37 30.63 28.15 4.51 37.07 33.80 4.66 43.83 38.93 4.82 51.15 46.54 5.00 59.80 59.80 5.19 68.35 68.35 5.40 76.95 76.95 5.64

INDOOR AIR

HEAT PUMP HEATING PERFORMANCE CONTINUED

EDB

65

70

75

(18.3)

°F (°C)

(21.1)

HEATING INDOOR

(23.9)

CAPACITY POWER FURNACE MODEL

MODEL

FE4ANB006 0.98 0.95

FV4BNB006 0.98 0.95

FB4CNF060 0.95 0.97

FB4CNF060 0.98 1.00

*FY5BNB060 1.00 1.00

FY4ANB060 1.00 1.00

CAP**6021A** 0.97 0.99

CAP**6024A** 0.98 0.97

FX4CN(B,F)060 0.98 0.95

FX4DN(B,F)061 0.99 0.94

CAP**6025A** 0.98 0.97

CNPH*6024A** 0.98 0.98

CNPH*6124A** 0.98 0.98

CAP**6021A** 0.94 0.96 58CV(A,X)110--- 20

CNPV*6024A** 0.98 0.98

CNPV*6124A** 1.00 0.97

CSPH*6012A** 0.98 0.97

CAP**6024A** 0.96 0.97 58CV(A,X)135--- 22

CNPV*6024A** 0.95 0.97 58CV(A,X)135 ---22

CSPH*6012A** 0.96 0.97 58CV(A,X)110 ---20

CNPH*6024A** 0.96 0.99 58CV(A,X)110--- 20

CNPH*6124A** 0.98 0.99 58CV(A,X)110--- 20

CNPV*6124A** 0.98 0.96 58CV(A,X)135 ---22

CNPH*6024A** 0.95 0.97 58CV(A,X)135--- 22

CSPH*6012A** 0.96 0.96 58CV(A,X)135 ---22

CNPH*6124A** 0.98 0.97 58CV(A,X)135--- 22

NOTE: When the required data falls between the published data, interpolation may be performed. Extrapolation is not an acceptable practice.

* The Btuh heating capacity values shown are net integrated values from which the defrost effect has been subtracted. The Btuh heating from supplement heaters should be added to those values to obtain total system capacity.

{ The kW values include the compressor, outdoor fan motor, and indoor blower motor. The kW from supplement heaters should be added to these values to obtain total system kilowatts.

EDB —EnteringDryBulb

56

GUIDE SPECIFICATIONS
GENERAL

AIR--COOLED, SPLIT--SYSTEM HEAT PUMP

25HCB3

1--1/2 TO 5 NOMINAL TONS

System Description

Outdoor--mounted, air--cooled, split--system heat pump unit
suitable for ground or rooftop installation. Unit consists of a
hermetic compressor, an air--cooled coil, propeller--type
condenser fan, and a control box. Unit will discharge supply air
upward as shown on contract drawings. Unit will be used in a
refrigeration circuit to match up to a packaged fan coil or coil
unit.

Quality Assurance

— Unit will be rated in accordance with the latest edition

of AHRI Standard 240.

— Unit will be certified for capacity and efficiency, and

listed in the latest AHRI directory.

— Unit construction will comply with latest edition of

ANSI/ ASHRAE and with NEC.

— Unit will be constructed in accordance with UL

standards and will carry the UL label of approval. Unit
will have C--UL approval.

— Unit cabinet will be capable of withstanding Federal

Test Method Standard No. 141 (Method 6061) 500--hr
salt spray test.

— Air--cooled condenser coils are pressure tested and the

outdoor unit is leak tested.

— Unit constructed in ISO9001 approved facility.

Delivery, Storage, and Handling

— Unit will be shipped as single package only and is

stored and handled per unit manufacturer’s
recommendations.

Warranty (for inclusion by specifying engineer)

— U.S. and Canada only.

PRODUCTS

Equipment

— Factory assembled, single piece, air--cooled heat pump

unit. Contained within the unit enclosure is all factory
wiring, piping, controls, compressor, refrigerant charge
Puronr (R--410A), and special features required prior
to field start--up.

Unit Cabinet

— Unit cabinet will be constructed of galvanized steel,

bonderized, and coated with a powder coat paint.

Fans

— Condenser fan will be direct--drive propeller type,

discharging air upward.

— Condenser fan motors will be totally enclosed, 1--phase

type with class B insulation and permanently lubricated

bearings.
— Shafts will be corrosion resistant.
— Fan blades will be statically and dynamically balanced.
— Condenser fan openings will be equipped with steel

wire safety guards.

Compressor

— Compressor will be hermetically sealed.
— Compressor will be mounted on rubber vibration

isolators.

Condenser Coil

— Condenser coil will be air cooled.
— Coil will be constructed of aluminum fins mechanically

bonded to copper tubes which are then cleaned,

dehydrated, and sealed.

Refrigeration Components

— Refrigeration circuit components will include

liquid--line shutoff valve with sweat connections,

vapor--line shutoff valve with sweat connections,

system charge of Puronr (R--410A) refrigerant, POE

compressor oil, accumulator, and reversing valve.

Operating Characteristics

— The capacity of the unit will meet or exceed _____

Btuh at a suction temperature of _____ _F/_C. The

power consumption at full load will not exceed _____

kW.
— Combination of the unit and the evaporator or fan coil

unit will have a total net cooling capacity of _____

Btuh or greater at conditions of _____ CFM entering

air temperature at the evaporator at _____ _F wet bulb

and _____ _F/_C dry bulb, and air entering the unit at

_____ _F/_C.
— The system will have a SEER of _____ Btuh/watt or

greater at DOE conditions.

Electrical Requirements

— Nominal unit electrical characteristics will be _____ v,

single phase, 60 hz. The unit will be capable of

satisfactory operation within voltage limits of _____ v

to _____ v.
— Nominal unit electrical characteristics will be _____ v,

three phase, 60 hz. The unit will be capable of

satisfactory operation within voltage limits of _____ v

to _____ v.
— Unit electrical power will be single point connection.
— Control circuit will be 24v.

Special Features

— Refer to section of this literature identifying accessories

and descriptions for specific features and available

enhancements.

25HCB3

57

25HCB3

Copyright 2010 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incur r ing obligations.

Printed i n U.S.A. Edition Date: 10/10

58

Catalog No. 25HCB3---4PD

Replaces: 25HCB3 --- 3PD
