Page 1
20030361 Pit StoP AdAPter Unit
Montage- und Betriebsanleitung
Assembly and instructions
Instructions de montage et d’utilisation
Instrucciones de uso y montaje
Instruções de montagem e modo de utilização
Istruzioni per il montaggio e l’uso
Montage- en gebruiksaanwijzing
Monterings- och bruksanvisning
Asennus- ja käyttöohjeet
Montajse- og bruksanvisning
Ősszeszerelési és használati útmutató
Instrukcja obsługi i montażu
Návod na montáž a pre prevádzkuo
Návod na montáž a pro provoz
Ръководство за монтаж и експлоатация
Mоνтάζ και Оδηγία χρήσης
Instrucţiuni de montaj şi de utilizare
Monterings- og driftsvejledning
安装和使用说明
取扱説明書取扱説明書の内容は予
조립과 작동 방법
Montaj ve işletme kılavuzu
Инструкция по монтажу и эксплуатации
Page 2

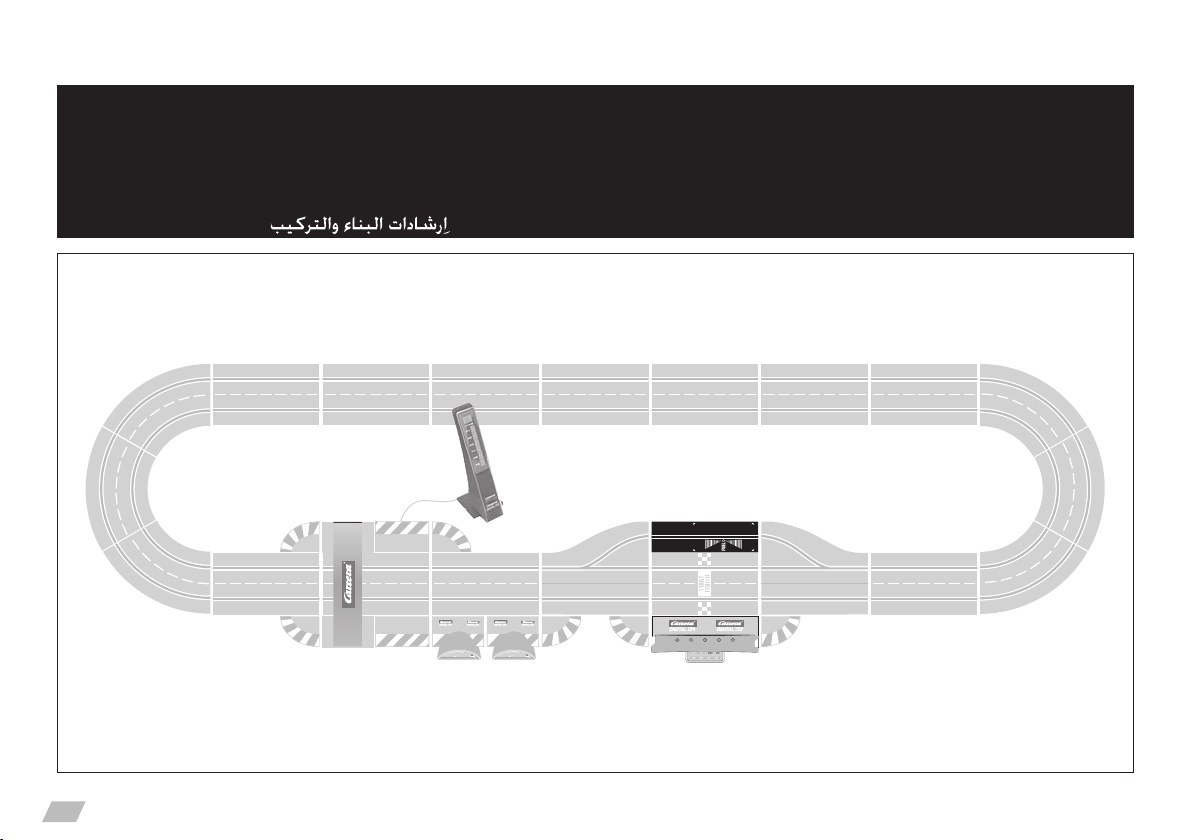

Aufbauvorschlag · Assembly proposal · Suggestion de montage · Propuesta de montaje
Sugestão de montagem · Suggerimento per il montaggio · Opbouwvoorstel · Monteringsförslag
Kokoamisehdotus · Oppbygningsforslag · Felépítési javaslat · Propozycja montażu
Návrh postavenia · Návrh na uspořádání · Предложение за монтаж · Πρόταση σύνδεσης
Propunere de asamblare · Opbygningsforslag · 建造指南 · 組立方法 · 조립방법
· Kurma önerisi · Предложение по монтажу
2
Page 3

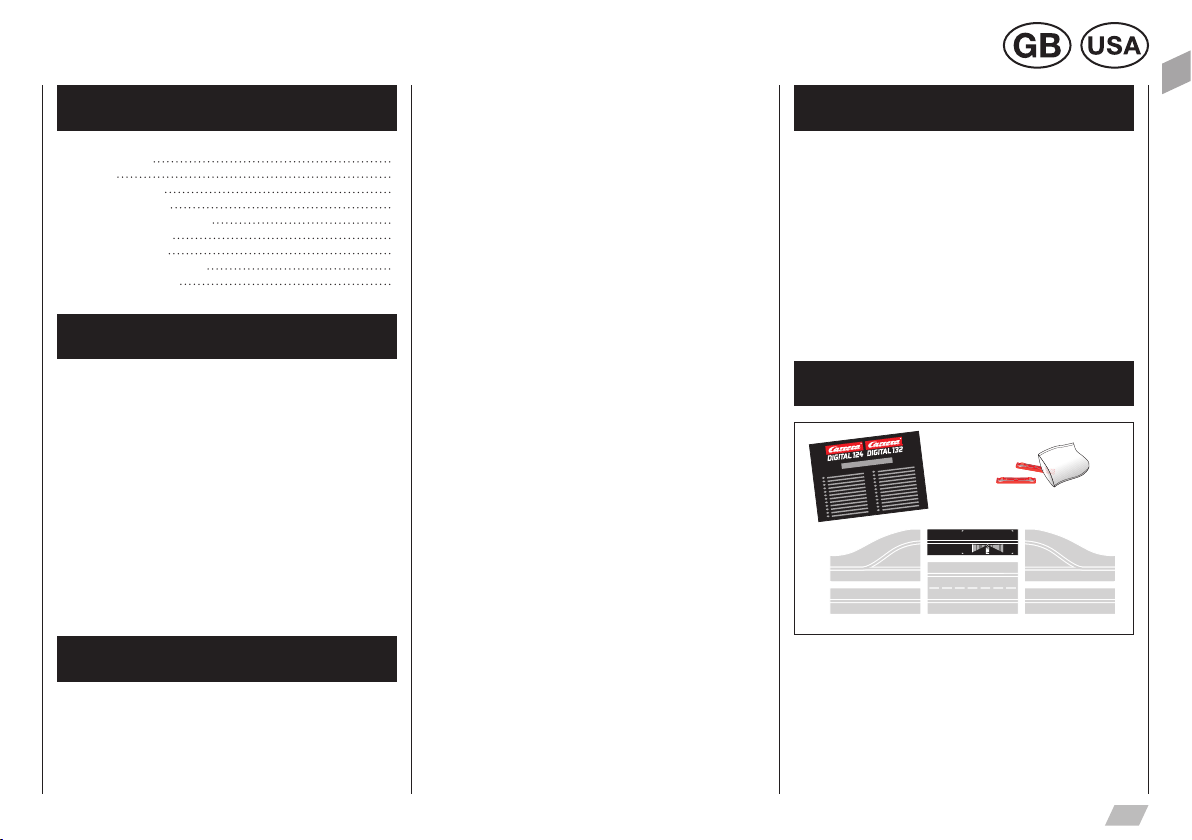

InhaltsverzeichnisTable of contents
Safety instructions 7
Description 7
Contents of package 7
Assembly instructions 8
Pit Lane for Pace Car function 8
Maintenance and care 8
Important information 8
Troubleshooting / Driving tips 9
Technical specifications 9
Welcome
Welcome to the Team Carrera!
The operating instructions contain important information regarding
assembly and operation of your Carrera DIGITAL 124/132 Pit Stop
Adapter Unit. Please read them carefully and keep them in a safe
place afterwards.
If you have any queries, please do not hesitate to contact our distributor or visit our website: carrera-toys.com
Please check the contents for completeness and possible transport
damage. The packaging contains important information and should
also be retained.
We hope you will derive a lot of pleasure from your new
Carrera DIGITAL 124/132 Pit Stop Adapter Unit.
Safety instructions
• WARNING! Not suitable for children under 36 months. Danger of
suffocation due to small parts which may be swallowed.
Warning: Risk of pinching caused by function.
• WARNING!
This toy contains magnets or magnetic components. Magnets attracting each other or a metallic object inside the human body may
cause serious or fatal injuries. Seek medical attention immediately if
magnets are swallowed or inhaled.
• The transformer is not a toy! Do not short-circuit the transformer’s
connections! Note to parents: Regularly inspect the transformer for
damage to the cable, plug or housing! Only operate the toy with recommended transformers! The transformer may no longer be used
if it is damaged! Only operate the racetrack with a transformer! If
play is interrupted for longer periods, it is recommended to separate
the transformer from the power supply. Do not open transformer or
speed controller housings!
Important note to parents:
Transformers and power supply units are not suitable to be used as
toys. The use of such products needs to be constantly supervised
by the parents.
• Regularly check the track and cars for damage to cables, plugs
and housings! Replace defective parts.
• The car racetrack is not suitable for outdoor operation or operation
in wet locations! Keep away from liquids.
• Do not place any metal parts onto the track to avoid short-circuits.
Do not place the track in the immediate vicinity of delicate objects,
as these could be damaged by cars hurled from the track.
• Disconnect the plug before cleaning or servicing the racetrack!
Only use a damp cloth for cleaning, no solvents or chemicals. When
it is not in use, store the track in a dry and dust-protected location,
preferably in the original cardboard box.
• Do not operate race track at face- or eye-level – risk of injury due
to cars being catapulted off the track.
Note:
The vehicle may only be operated again in a completely assembled
condition. Assembly may only be carried out by an adult.
Description
In the Pit Lane, the cars´ refuelling as well as the lap counting are
carried out. Lap counting in the Pit Lane can be deactivated. Displaying of the tank fuel capacity is only possible in combination with
the Driver Display 20030353. To upgrade an existing Pit Stop Lane
20030346 the Pit Stop Adapter Unit 20030361 is required.
For further information on settings and fuelling function please
refer to the manual of the Control Unit (20030352).
The full range of its functions is only guaranteed when used
in combination with the Control Unit (20030352). For precise
information on its operation please refer to the Control Unit´s
manual (20030352).
Contents of package
1x
2x
1x
1 Pit Stop Adapter Unit
2 Track section bolts
Instructions
7
Page 4

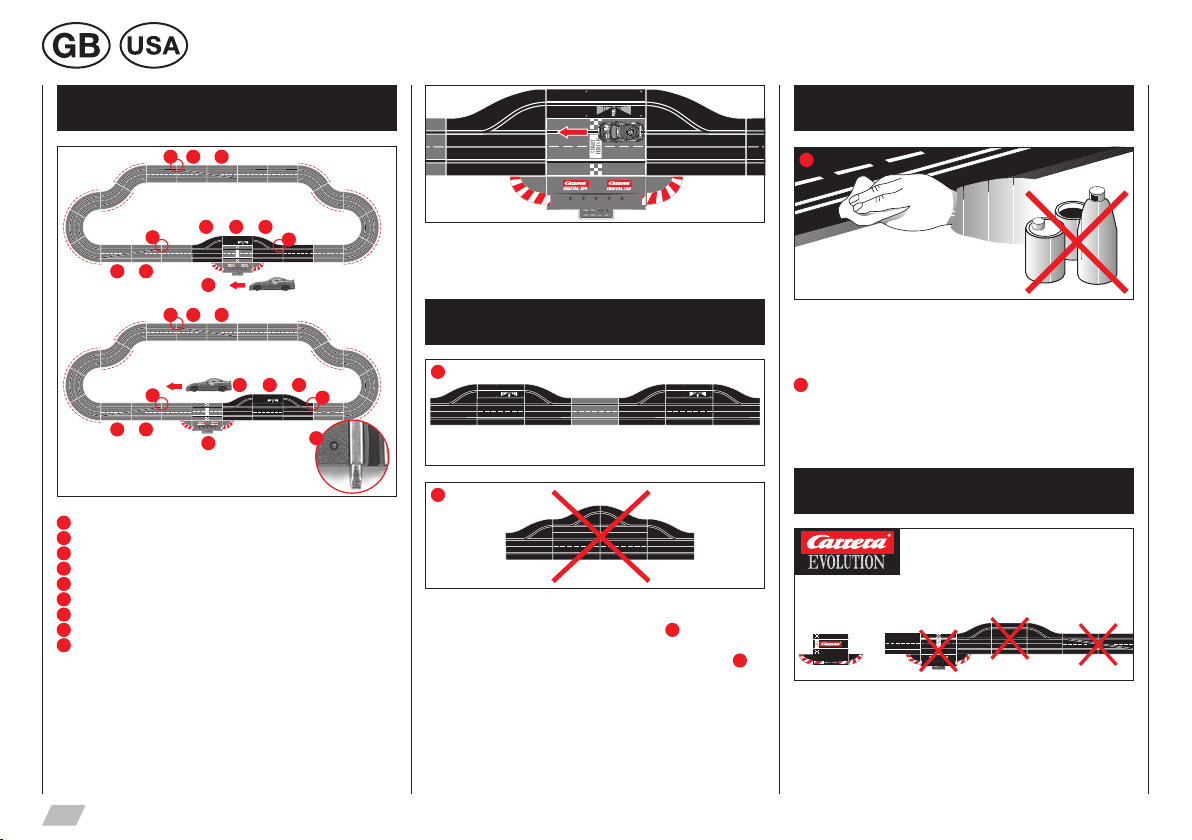

Assembly instructions
Maintenance and care
9 4 5
20030356 + 20030147
9
2
3
9 4 5
678
9
1
20030356 + 20030147
9
2
3
1
Connecting track + Black Box
2
Lane change section left input
3
Lane change section left output
4
Lane change section right input
5
Lane change section right output
6
Pit Stop Lane entry switch
7
Pit Stop Adapter Unit
8
Pit Stop Lane exit switch
9
Infrared sensor:
The infrared sensor MUST be located on the switch
that functions as the entry rail (dark diode).
1
678
9
9
The letterig “FUEL” on the Pit Stop Adapter Unit must be readable
in driving direction.
Pit Lane for Pace Car function
1
2
In order to be able to use the Pace Car- and Pit Stop function at the
same time, two Pit Lanes are required (see fig.
It is not possible to extend the Pit Lane in the Pit Lane (see fig. 2 ) as
the second Pit Lane switch cannot be triggered!
A standard straight should always be positioned between the entryand exit switch.
1
).
1
To ensure a proper operation of the motor-racing circuit, all racetrack components should be regularly cleaned. Pull the plug prior
to cleaning.
1
Racetrack: Keep the track surface and track slots clean with a
dry cloth. Do not use any solvents or chemicals for cleaning. When
it is not in use, store the racetrack in a clean and dust-protected
location, preferably in the original cardboard box.
Important information
EVOLUTION
Carrera DIGITAL 124/132
8
Page 5

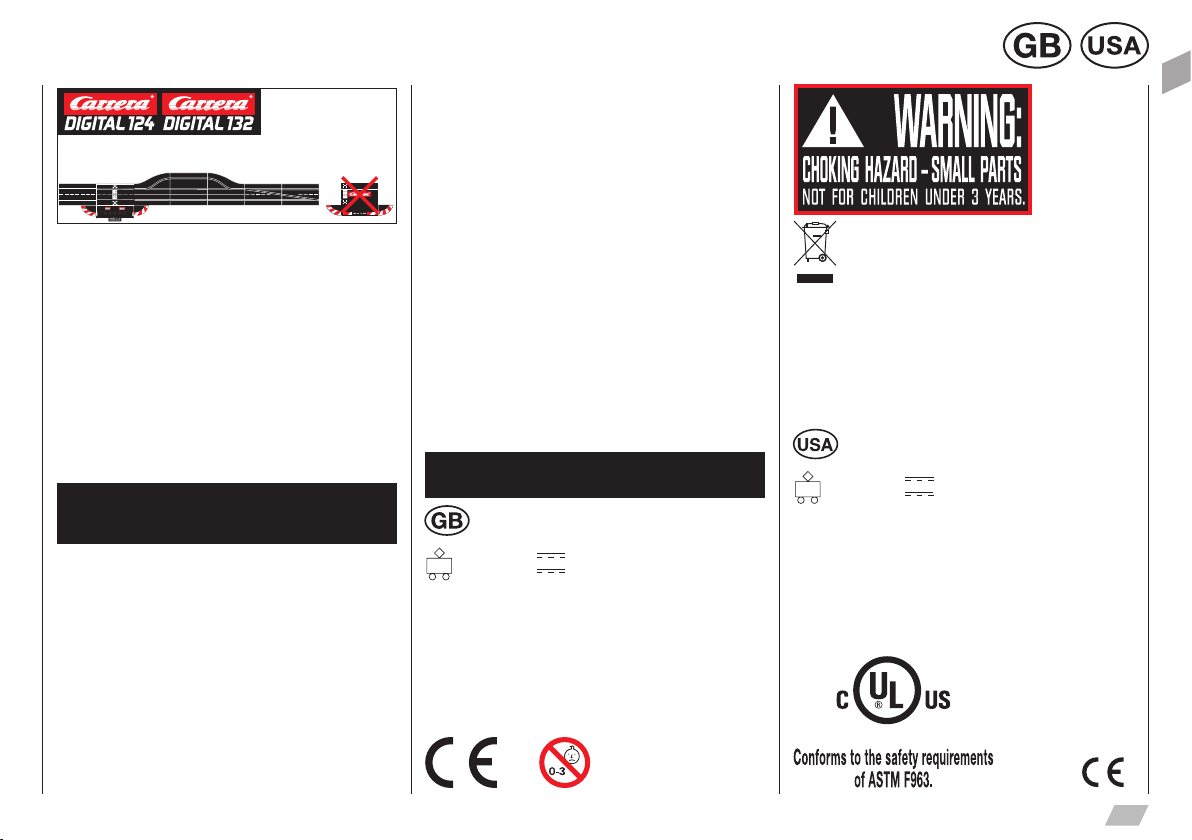

Carrera DIGITAL 124/132
Please note that Evolution (analog system) and Carrera
DIGITAL 124/132 (digital system) involve two separate and completely independent systems. We hereby expressly indicate that
both systems must be kept separate when setting up the track, i.e.
no connecting rail from Evolution may be used together
necting rail and Black Box of the Carrera DIGITAL 124/132,
one of the two connecting rails (Evolution connecting rail or Carrera
DIGITAL 124/132 connecting rail and Black Box) is attached to the
current supply. Furthermore, no other Carrera DIGITAL 124/132
components (switches, electronic lap counter, pit stop) may be built
into an Evolution course, i.e. via analog operation.
Non-compliance with the above information may result in damage or
destruction of the respective Carrera DIGITAL 124/132 components.
In this case no warranty may be claimed.
EVOLUTION
with the con-
even if only
Troubleshooting
Driving tips
Troubleshooting:
In case of any malfunctions, please check the following:
• Has the connection to the power supply been established correctly?
• Have transformer and speed controllers been connected correctly?
• Are the track connections faultless?
• Are the racetrack and track slots clean and free of any foreign
objects?
• Are the sliding contacts in order and do they make contact with
the track slot?
• Are the cars correctly coded to the according speed controller?
• The track‘s current feed will be switched off automatically for 5
seconds, if there is an electrical short circuit: This will be notified by
audible and visual signals.
•
Are the cars placed on the track in running direction? In case of non-
functioning push the running direction switch which is on the car´s bottom.
Note:
During operation small car parts as spoilers or mirrors may get off or
brake due to being original detailed parts of the car model. To avoid
this it is possible to remove them before operation.
Driving technique:
•
You can drive fast along the straight track but you should brake before
the curve and then accelerate again when coming out of the curve.
• Do not fasten or block the vehicles when the motor is running:
overheating or damage to the motor could result otherwise. Note:
When using track systems which are not manufactured by Carrera
the existing guide keel has to be replaced by the special guide keel
(#20085309). While using the Carrera crossing (#20020587) or high
banked curve 1/30° (#20020574) slight driving noise might occur
which is due to the full-scale genuineness and does not affect flawless operation.
All Carrera spare parts are available in the webshop:
carrera-toys.com
Delivery exclusively to Germany, Austria, Netherlands, Belgium and
Luxembourg.
Technical specifications
Output voltage: Toy transformer
18 V
14,8 V 51,8 VA (Carrera DIGITAL 132)
Electricity modes:
1.) Operating mode = cars are operated via speed controllers
2.) Idle mode = speed controllers not activated, no game
3.) Stand-by mode = after approx. 20 minutes idle mode the
connecting section switches to stand-by mode. LED flashes at
long intervals. CURRENT CONSUMPTION < 1 watt / 1w
To reactivate the controller, switch it off for 2 or 3 seconds, then
switch it on again.The racetrack is then once again in standby mode.
4.) Off-state = power supply unit disconnected from mains supply
54 VA (Carrera DIGITAL 124)
This device is marked by “selective sort throught” symbol related to
sort through domestic, electric and electronic, waste. This means
the product must be treated by a specialized “sorting/collecting” system in accordance with European directive 2012/19/CE, to reduce
the impact upon environment. For more precise information, please
contact your local administration. Electronical product which are
not going through special collecting, are potentially dangerous for
environment and human health, because of dangerous substance.
Output voltage: Toy transformer
18 V
14,8 V 51,8 VA (Carrera DIGITAL 132)
Electricity modes:
1.) Operating mode = cars are operated via speed controllers
2.) Idle mode = speed controllers not activated, no game
3.) Stand-by mode = after approx. 20 minutes idle mode the
connecting section switches to stand-by mode. LED flashes at
long intervals. CURRENT CONSUMPTION < 1 watt / 1w
To reactivate the controller, switch it off for 2 or 3 seconds, then
switch it on again.The racetrack is then once again in standby mode.
4.) Off-state = power supply unit disconnected from mains supply
54 VA (Carrera DIGITAL 124)
9
Page 6
Stadlbauer Marketing + Vertrieb GmbH · Rennbahn Allee 1 · 5412 Puch / Salzburg · Austria
carrera-toys.com
7.80.12.22.00 · 02/2 016
