CARR 223412 Vehicle Mount Bracket - Rain Gutter Kit User Manual

LOW

and M

-

PROFILE LIGHT

BARS

DELUXE

LIGH

T BARS

220

542

2200

52

22

3412

220

542

2200

52

22004

2

/220062

Using diagrams provided place the stainless steel raingutter brackets underneath topside of door jam

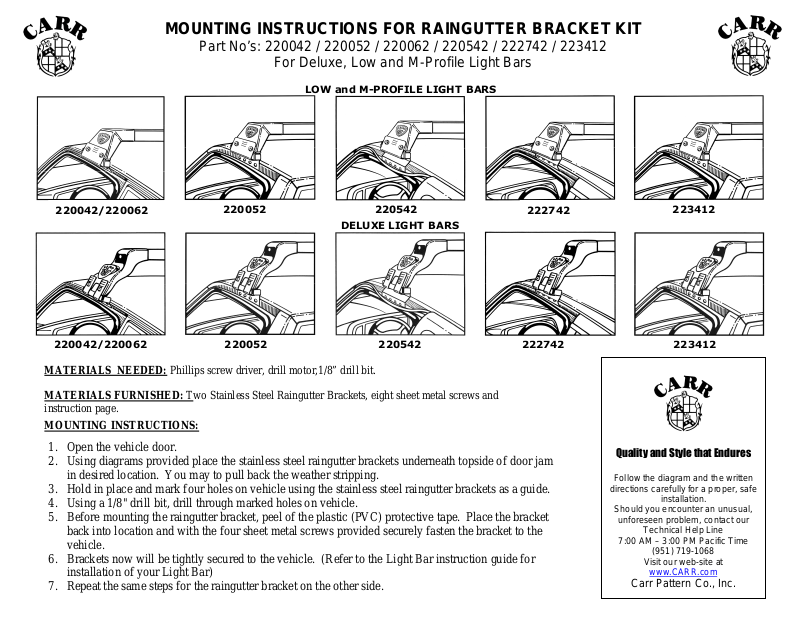

MOUNTING INSTRUCTIONS FOR RAINGUTTER BRACKET KIT

For Deluxe

,

Low

and M

-

Profile Light Bars

MATERIALS NEEDED:

22004

2

/220062

2227

4

2

Part No’s: 220042 / 220052 / 220062 / 220542 / 222742 / 223412

MATERIALS FURNISHED: Two Stainless Steel Raingutter Brackets, eight sheet metal screws and
instruction page.

Phillips screw driver, drill motor,1/8” drill bit.

222742

223412

MOUNTING INSTRUCTIONS:

1. Open the vehicle door.

2.

in desired location. You may to pull back the weather stripping.

3. Hold in place and mark four holes on vehicle using the stainless steel raingutter brackets as a guide.

4. Using a 1/8" drill bit, drill through marked holes on vehicle.

5. Before mounting the raingutter bracket, peel of the plastic (PVC) protective tape. Place the bracket

back into location and with the four sheet metal screws provided securely fasten the bracket to the
vehicle.

6. Brackets now will be tightly secured to the vehicle. (Refer to the Light Bar instruction guide for

installation of your Light Bar)

7. Repeat the same steps for the raingutter bracket on the other side.

Quality and Style that Endures

Follow the diagram and the written

directions carefully for a proper, safe

installation.

Should you encounter an unusual,

unforeseen problem, contact our

Technical Help Line

7:00 AM – 3:00 PM Pacific Time

[phone]

Visit our web-site at

www.CARR.com

Carr Pattern Co., Inc.
