CARR 172004 Tool Box Step User Manual

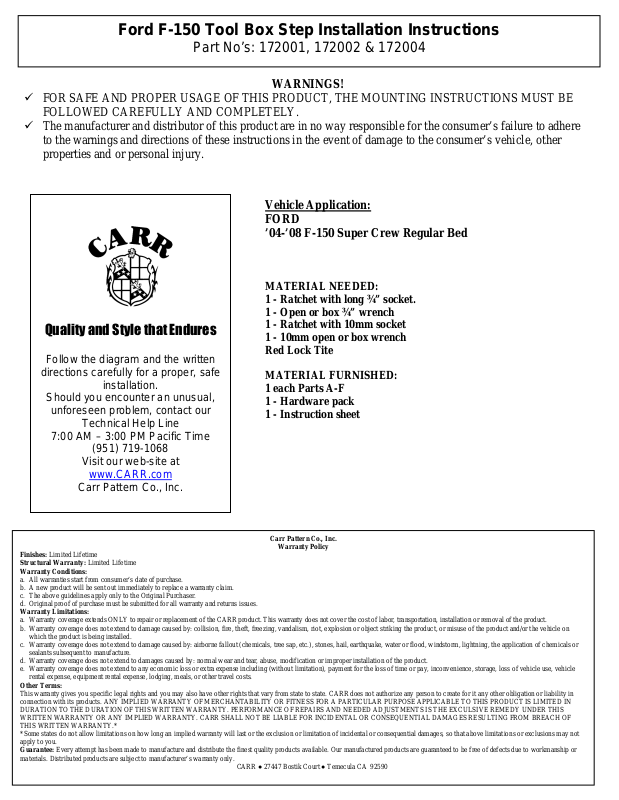

Ford F-150 Tool Box Step Installation Instructions

Part No’s: 172001, 172002 & 172004

WARNINGS!

 FOR SAFE AND PROPER USAGE OF THIS PRODUCT, THE MOUNTING INSTRUCTIONS MUST BE

FOLLOWED CAREFULLY AND COMPLETELY.

 The manufacturer and distributor of this product are in no way responsible for the consumer’s failure to adhere

to the warnings and directions of these instructions in the event of damage to the consumer’s vehicle, other
properties and or personal injury.

Quality and Style that Endures

Follow the diagram and the written

directions carefully for a proper, safe

installation.

Should you encounter an unusual,

unforeseen problem, contact our

Technical Help Line

7:00 AM – 3:00 PM Pacific Time

[phone]

Visit our web-site at

www.CARR.com

Carr Pattern Co., Inc.

Vehicle Application:
FORD
’04-’08 F-150 Super Crew Regular Bed

MATERIAL NEEDED:
1 - Ratchet with long ¾” socket.
1 - Open or box ¾” wrench
1 - Ratchet with 10mm socket
1 - 10mm open or box wrench
Red Lock Tite

MATERIAL FURNISHED:
1 each Parts A-F
1 - Hardware pack
1 - Instruction sheet

Carr Pattern Co., Inc.

Finishes: Limited Lifetime
Structural Warranty: Limited Lifetime
Warranty Conditions:

a. All warranties start from consumer’s date of purchase.
b. A new product will be sent out immediately to replace a warranty claim.
c. The above guidelines apply only to the Original Purchaser.
d. Original proof of purchase must be submitted for all warranty and returns issues.

Warranty Limitations:

a. Warranty coverage extends ONLY to repair or replacement of the CARR product. This warranty does not cover the cost of labor, transportation, installation or removal of the product.
b. Warranty coverage does not extend to damage caused by: collision, fire, theft, freezing, vandalism, riot, explosion or object striking the product, or misuse of the product and/or the vehicle on

which the product is being installed.

c. Warranty coverage does not extend to damage caused by: airborne fallout (chemicals, tree sap, etc.), stones, hail, earthquake, water or flood, windstorm, lightning, the application of chemicals or

sealants subsequent to manufacture.

d. Warranty coverage does not extend to damages caused by: normal wear and tear, abuse, modification or improper installation of the product.
e. Warranty coverage does not extend to any economic loss or extra expense including (without limitation), payment for the loss of time or pay, inconvenience, storage, loss of vehicle use, vehicle

rental expense, equipment rental expense, lodging, meals, or other travel costs.

Other Terms:

This warranty gives you specific legal rights and you may also have other rights that vary from state to state. CARR does not authorize any person to create for it any other obligation or liability in
connection with its products. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WRITTEN WARRANTY. PERFORMANCE OF REPAIRS AND NEEDED ADJUSTMENTS IS THE EXCULSIVE REMEDY UNDER THIS
WRITTEN WARRANTY OR ANY IMPLIED WARRANTY. CARR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF
THIS WRITTEN WARRANTY.*
*Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages, so that above limitations or exclusions may not
apply to you.
Guarantee: Every attempt has been made to manufacture and distribute the finest quality products available. Our manufactured products are guaranteed to be free of defects due to workmanship or
materials. Distributed products are subject to manufacturer’s warranty only.

CARR ● 27447 Bostik Court ● Temecula CA 92590

Warranty Policy

Part No’s:

1720

01, 172002 & 172004

IMPORTANT NOTE:

Ford F-150 Tool Box Step Installation Instructions

1. Take Parts A-F and assemble them together as shown on Diagram A with the straight pin installed.
critical safety component. Notice the tabs on the part. Which ever side you are placing the Tool Box Step on your vehicle, the tabs on
Part D must be facing down and towards the rear wheel when it is in the straight position. Diagram A exploded assembly shows Part
D in the passenger side position. Diagram B shows Part D in the driver’s side position. Diagram C shows Part D in the passenger side
position. Part D keeps your step from swiveling back into the rear wheel.

2. Do not install the final 12mm hex nut and ½” x 1 ½” bolt assembly. Do not tighten the bolts all the way; leave the assembly loose to
make it easier to attach to your vehicle.

3. Take the entire assembly and position it up against the body metal underneath as shown in Diagrams B & C. IMPORTANT: Make
sure you get the Driver and Passenger assembly on the correct side. The back hole in Part A fits over a 12mm treaded bolt. The front
hole in Part A lines up with a hole in the body metal where you will take the ½” x 1 ½” bolt assembly and fasten it to the vehicle.

4. While holding the entire assembly in position, take the 12mm hex nut (this is not a nylon lock nut) (we do recommend putting a small
amount of red Lock Tite on the bolt before placing the 12mm hex nut on) and hand tighten the back of Part A to the extended 12mm
bolt and take the ½” x 1 ½” assembly and hand tighten the front of Part A to your vehicle.

5. Take Part F and install it as shown in Diagrams B & C with the 6mm bolt, washer and nut provided.

6. With all the mounting hardware loose, line up the entire step assembly so that the step is level and straight in relationship to your
truck’s body metal.

7. Tighten all mounting hardware while keeping step level.

8. Go ahead and tighten all other hardware. NOTE: We recommend when tightening the ½” x 3” swivel bolt assembly, do not over
tighten it so that you can swivel the step out of the way when not in use. It should not move easily. There should be some drag when
you move the parts.

9. You can swivel the step out of the way by pulling the straight pin.

10. When you do swivel the step out of the way, be sure to install the straight pin in the back hole of Part C & D assembly.

11. Repeat the above instructions for the other side.

12. Your Tool Box Step is ready for use.

Part D is a
