CARR 171004 Tool Box Step User Manual

Tool Box Step Installation Instructions

Part No’s: 171001, 171002 & 171004

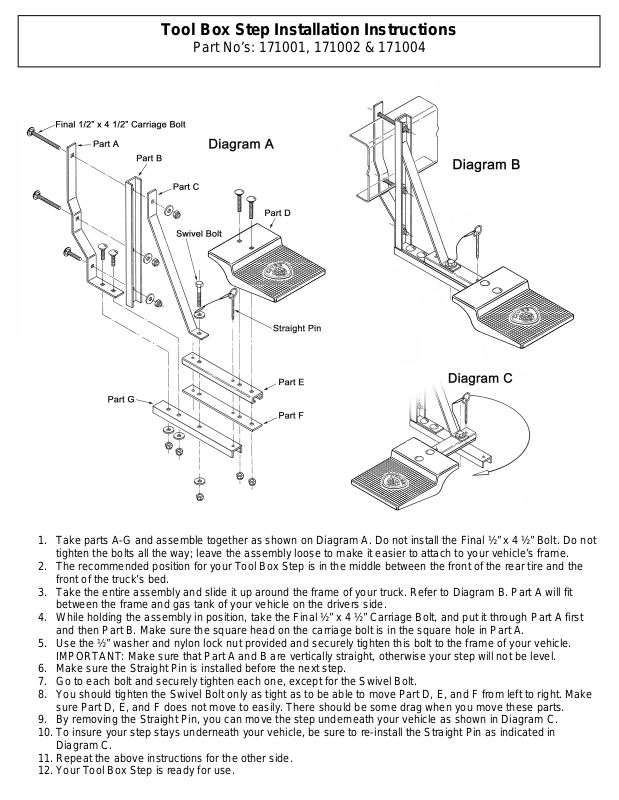

1. Take parts A-G and assemble together as shown on Diagram A. Do not install the Final ½” x 4 ½” Bolt. Do not
tighten the bolts all the way; leave the assembly loose to make it easier to attach to your vehicle’s frame.

2. The recommended position for your Tool Box Step is in the middle between the front of the rear tire and the
front of the truck’s bed.

3. Take the entire assembly and slide it up around the frame of your truck. Refer to Diagram B. Part A will fit
between the frame and gas tank of your vehicle on the drivers side.

4. While holding the assembly in position, take the Final ½” x 4 ½” Carriage Bolt, and put it through Part A first
and then Part B. Make sure the square head on the carriage bolt is in the square hole in Part A.

5. Use the ½” washer and nylon lock nut provided and securely tighten this bolt to the frame of your vehicle.
IMPORTANT: Make sure that Part A and B are vertically straight, otherwise your step will not be level.

6. Make sure the Straight Pin is installed before the next step.

7. Go to each bolt and securely tighten each one, except for the Swivel Bolt.

8. You should tighten the Swivel Bolt only as tight as to be able to move Part D, E, and F from left to right. Make
sure Part D, E, and F does not move to easily. There should be some drag when you move these parts.

9. By removing the Straight Pin, you can move the step underneath your vehicle as shown in Diagram C.

10. To insure your step stays underneath your vehicle, be sure to re-install the Straight Pin as indicated in
Diagram C.

11. Repeat the above instructions for the other side.

12. Your Tool Box Step is ready for use.

Tool Box Step Installation Instructions

Part No’s: 171001, 171002 & 171004

WARNINGS!

 FOR SAFE AND PROPER USAGE OF THIS PRODUCT, THE MOUNTING INSTRUCTIONS MUST BE

FOLLOWED CAREFULLY AND COMPLETELY.

 The manufacturer and distributor of this product are in no way responsible for the consumer’s failure to adhere

to the warnings and directions of these instructions in the event of damage to the consumer’s vehicle, other
properties and or personal injury.

Vehicle Application:
FORD
’99 - ’12 Super Duty Long Bed All Cabs

’05 - ’07 Super Duty Short Bed All Cabs

Quality and Style that Endures

Follow the diagram and the

written directions carefully for a

proper, safe installation.

Should you encounter an

unusual, unforeseen problem,

contact our Technical Help Line

7:00 AM – 3:00 PM Pacific

Time

[phone]

Visit our web-site at

www.CARR.com

Carr Pattern Co., Inc.

’12 Super Duty Long Bed All Cabs (Diesel)
Gas Tank Shield Modification

MATERIAL NEEDED:
1 - Ratchet with ¾” socket.
1 - Open or box ¾” wrench

MATERIAL FURNISHED:
1 each Parts A-G.
1 - Hardware pack
1 - Instruction sheet

Carr Pattern Co., Inc.

Finishes: Limited Lifetime
Structural Warranty: Limited Lifetime
Warranty Conditions:

a. All warranties start from consumer’s date of purchase.
b. A new product will be sent out immediately to replace a warranty claim.
c. The above guidelines apply only to the Original Purchaser.
d. Original proof of purchase must be submitted for all warranty and returns issues.

Warranty Limitations:

a. Warranty coverage extends ONLY to repair or replacement of the CARR product. This warranty does not cover the cost of labor, transportation, installation or removal of the product.
b. Warranty coverage does not extend to damage caused by: collision, fire, theft, freezing, vandalism, riot, explosion or object striking the product, or misuse of the product and/or the vehicle on

which the product is being installed.

c. Warranty coverage does not extend to damage caused by: airborne fallout (chemicals, tree sap, etc.), stones, hail, earthquake, water or flood, windstorm, lightning, the application of chemicals or

sealants subsequent to manufacture.

d. Warranty coverage does not extend to damages caused by: normal wear and tear, abuse, modification or improper installation of the product.
e. Warranty coverage does not extend to any economic loss or extra expense including (without limitation), payment for the loss of time or pay, inconvenience, storage, loss of vehicle use, vehicle

rental expense, equipment rental expense, lodging, meals, or other travel costs.

Other Terms:

This warranty gives you specific legal rights and you may also have other rights that vary from state to state. CARR does not authorize any person to create for it any other obligation or liability in
connection with its products. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WRITTEN WARRANTY. PERFORMANCE OF REPAIRS AND NEEDED ADJUSTMENTS IS THE EXCULSIVE REMEDY UNDER THIS
WRITTEN WARRANTY OR ANY IMPLIED WARRANTY. CARR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF
THIS WRITTEN WARRANTY.*
*Some states do not allow limitations on how long an implied warranty will last or the exclusion or limitation of incidental or consequential damages, so that above limitations or exclusions may not
apply to you.
Guarantee: Every attempt has been made to manufacture and distribute the finest quality products available. Our manufactured products are guaranteed to be free of defects due to workmanship or
materials. Distributed products are subject to manufacturer’s warranty only.

CARR ● 27447 Bostik Court ● Temecula CA 92590
