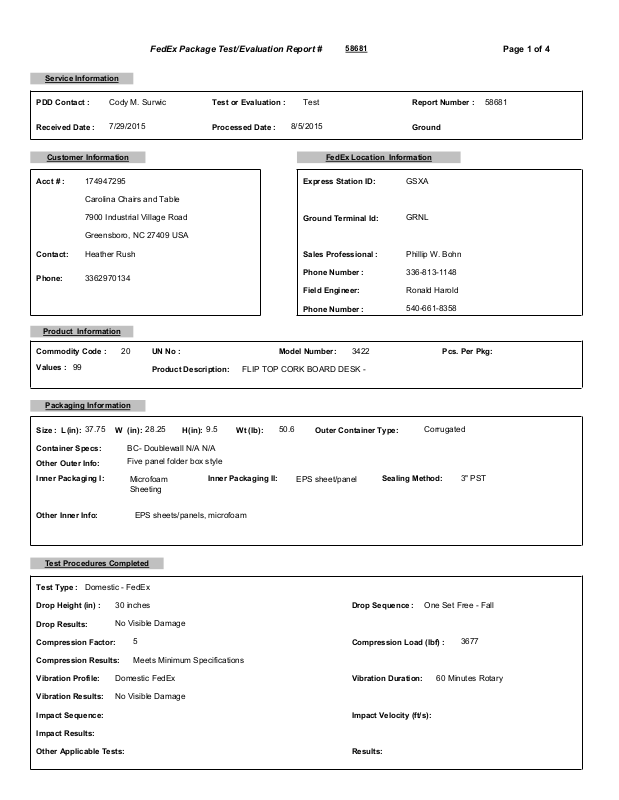

Page 1
Service Information
PDD Contact :
Cody M. Surwic
Received Date :
7/29/2015
Test or Evaluation :
Test
Processed Date :
8/5/2015
Report Number :
58681
FedEx Package Test/Evaluation Report #
Page 1 of 4
Customer Information
Acct # :
174947295
Carolina Chairs and Table
Contact:
Heather Rush
Phone:
3362970134
FedEx Location Information
Express Station ID:
GSXA
Sales Professional :
Phillip W. Bohn
Phone Number :
336-813-1148
Field Engineer:
Ronald Harold
Phone Number :
540-661-8358
Product Information
Commodity Code :
20
UN No : Model Number:
3422
Pcs. Per Pkg:
Values :
99
Product Description:
FLIP TOP CORK BOARD DESK -
Packaging Information
Size : (in):
37.75
W
28.25
H
9.5
Wt
50.6
Outer Container Type:
Corrugated
Container Specs:
BC- Doublewall N/A N/A
Other Outer Info:
Five panel folder box style
Inner Packaging II:
EPS sheet/panel
Other Inner Info:
EPS sheets/panels, microfoam
Inner Packaging I:
Microfoam
Sheeting
Sealing Method:
3" PST
Test Procedures Completed
Test Type :
Domestic - FedEx
Drop Sequence :
One Set Free - Fall
Drop Height (in) :
30 inches
Drop Results:
No Visible Damage
Compression Factor:
5
Compression Load (lbf) :
3677
Compression Results:
Meets Minimum Specifications
Vibration Profile:
Domestic FedEx
Vibration Results:
No Visible Damage
Vibration Duration:
60 Minutes Rotary
Impact Sequence:
Impact Results:
Impact Velocity (ft/s):
Other Applicable Tests: Results:
58681
L (in): (in): (lb):
7900 Industrial Village Road
Ground Terminal Id:
GRNL
Ground
Greensboro, NC 27409 USA
Page 2
FedEx Package Test/Evaluation Report #
Page 2 of 4
58681
Test Results
Passed
Result:
8/5/2015
Definitions of Results
Passed:
A package, with article, that has passed all the Fedex Standard Testing Procedures. For commodities restricted
under Liabilities Not Assumed in the Fedex Service Guide, Service Guide Terms and Conditions will take precedence.
Failed:
A package, with article, that has failed all FedEx Standard Testing Procedures.
Pending:
A package, with article, that has been tested to all FedEx Standard Test Procedures. Confirmation of results is
subject to customer inspection.
Comments and Packaging Recommendations*
Production Packaging, FedEx Package Testing Procedures for shipment under 150 lbs., or ISTA 6-FedEx-A, were followed for this
test.
No visible damage after testing.
Peak compression force was 3693 lbs. with a deflection @ peak of 0.27", thereby meeting 100% of the target (3676 lbs.).
Page 3
FedEx Package Test/Evaluation Report #
58681
Page 3 of 4

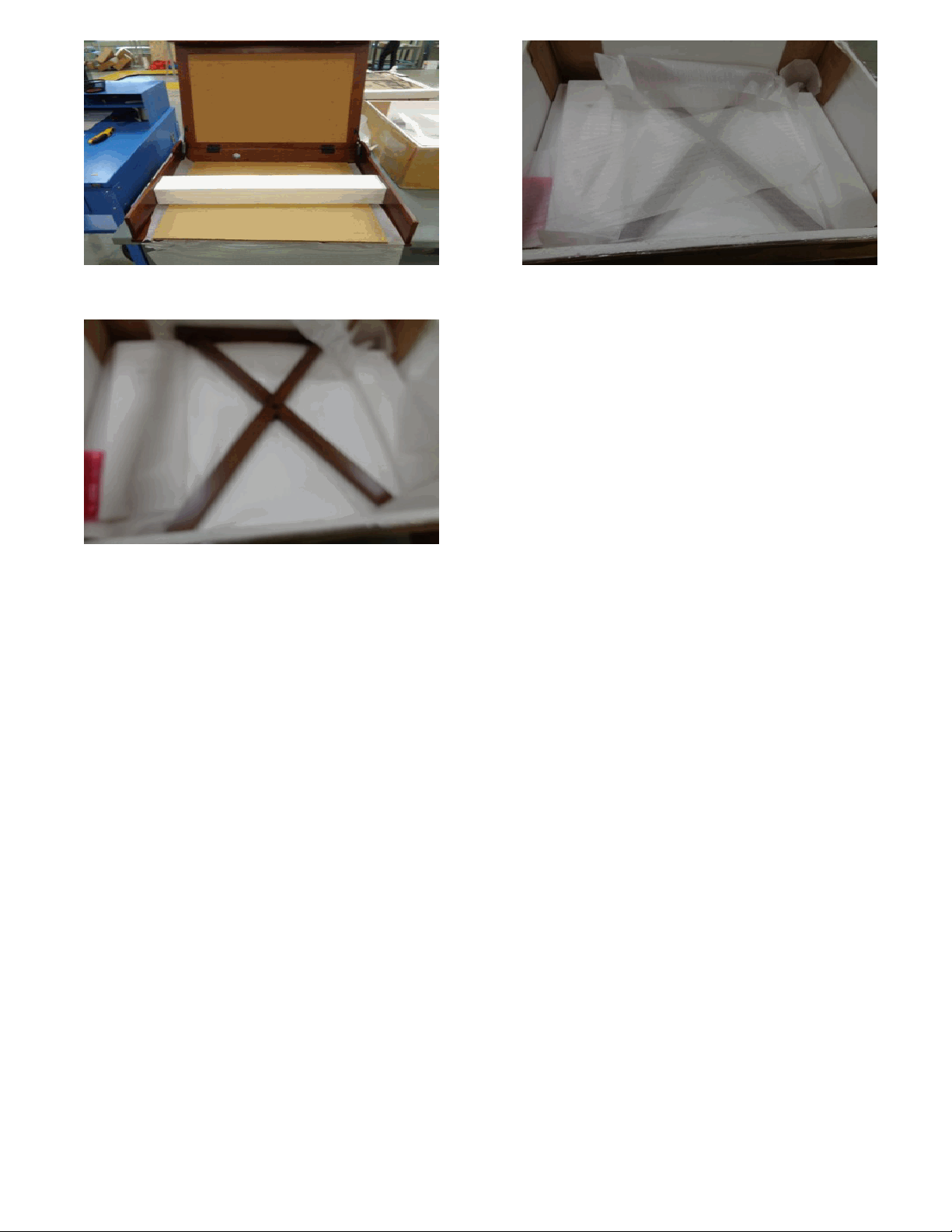

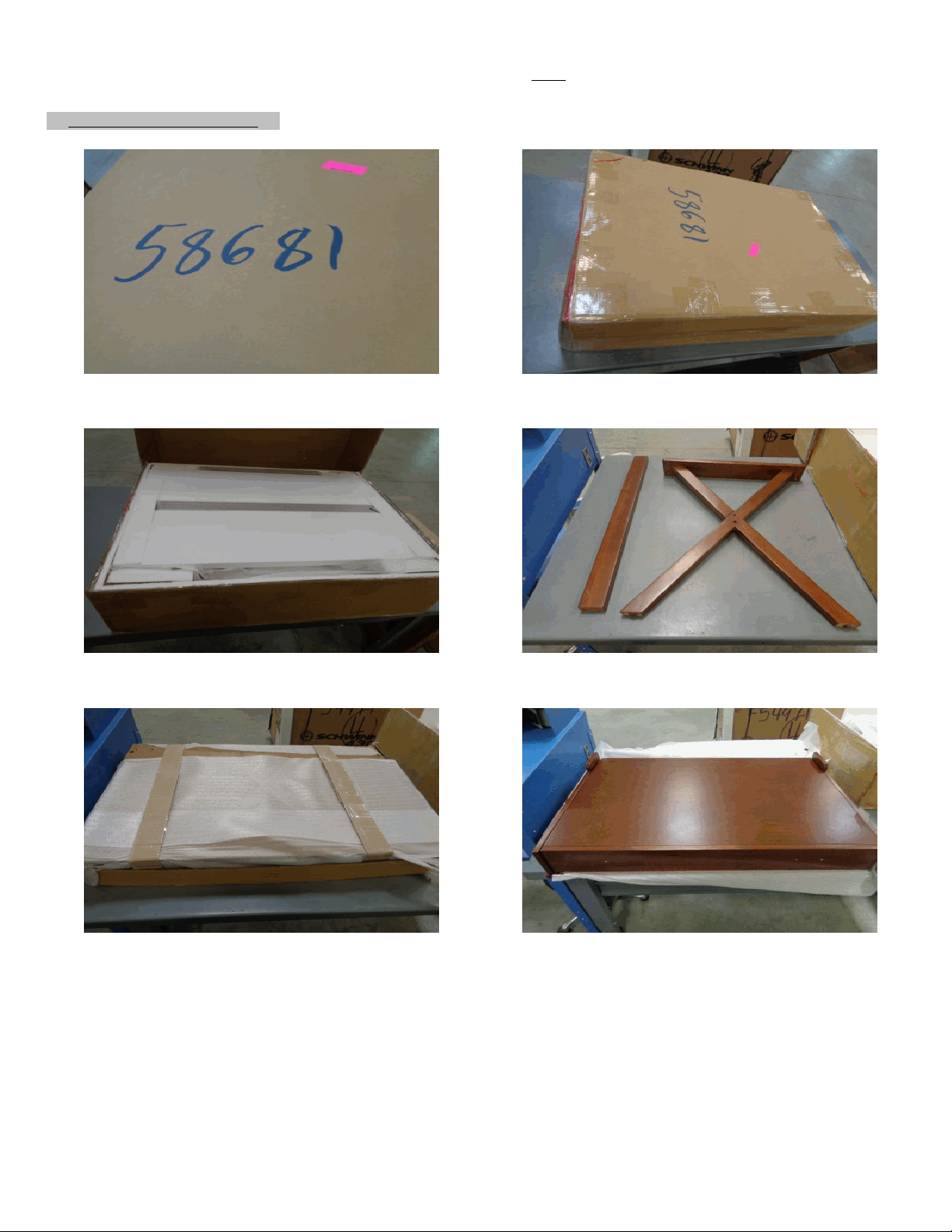

Photos / Drawings (if Applicable)
Page 4
* Our provision of advice, assistance or guidance on the appropriate packaging of shipment does not constitute acceptance of liability,
unless such advice, assistance or guidance is in writing from the FedEx Packaging Design and Development
department and expressly accepts liability in the event of a damaged shipment.
FedEx Packaging Design and Development 789 Progress Rd, Collierville, TN 38017
Toll Free 800.633.7019 option 5 Fax : 901.492.7278
