Carnes SKEJ User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com

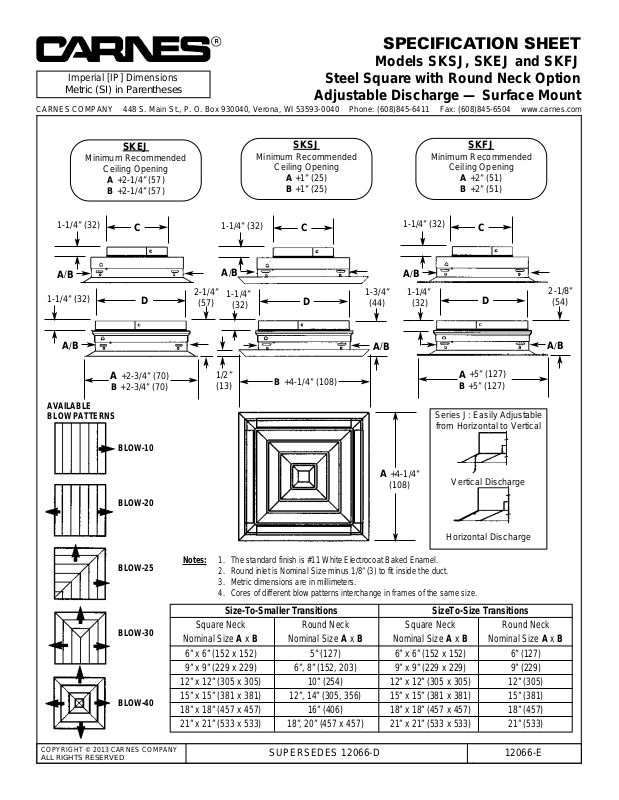

SPECIFICATION SHEET
Models SKSJ, SKEJ and SKFJ
Steel Square with Round Neck Option
Adjustable Discharge — Surface Mount
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12066-D 12066-E
SKEJ
Minimum Recommended
Ceiling Opening
A +2-1/4” (57)
B +2-1/4” (57)
SKSJ
Minimum Recommended
Ceiling Opening
A +1” (25)
B +1” (25)
SKFJ
Minimum Recommended
Ceiling Opening
A +2” (51)
B +2” (51)
C
C
C
D
D
D
1-1/4” (32)
1-1/4” (32)
1-1/4” (32)
1-1/4”
(32)
1-1/4”
(32)
1-1/4” (32)
A/B
A/B
A/B
A/B
A/B
A/B
2-1/4”
(57)
1-3/4”
(44)
2-1/8”
(54)
1/2”
(13)
A
+2-3/4” (70)
B +2-3/4” (70)
A
+5” (127)
B +5” (127)
B +4-1/4” (108)
Series J: Easily Adjustable
from Horizontal to Vertical
Vertical Discharge
Horizontal Discharge
A
+4-1/4”
(108)
AVAILABLE
BLOW PATTERNS
BLOW-10
BLOW-20
BLOW-25
BLOW-30
BLOW-40
Notes:
1. The standard finish is #11 White Electrocoat Baked Enamel.
2. Round inlet is Nominal Size minus 1/8” (3) to fit inside the duct.
3. Metric dimensions are in millimeters.
4. Cores of different blow patterns interchange in frames of the same size.
Size-To-Smaller Transitions SizeTo-Size Transitions
Square Neck Round Neck Square Neck Round Neck
Nominal Size A x B Nominal Size A x B Nominal Size A x B Nominal Size A x B
6” x 6” (152 x 152) 5” (127) 6” x 6” (152 x 152) 6” (127)
9” x 9” (229 x 229) 6”, 8” (152, 203) 9” x 9” (229 x 229) 9” (229)
12” x 12” (305 x 305) 10” (254) 12” x 12” (305 x 305) 12” (305)
15” x 15” (381 x 381) 12”, 14” (305, 356) 15” x 15” (381 x 381) 15” (381)
18” x 18” (457 x 457) 16” (406) 18” x 18” (457 x 457) 18” (457)
21” x 21” (533 x 533) 18”, 20” (457 x 457) 21” x 21” (533 x 533) 21” (533)
