Imperial [IP] Dimensions

Metric (SI) in Parentheses

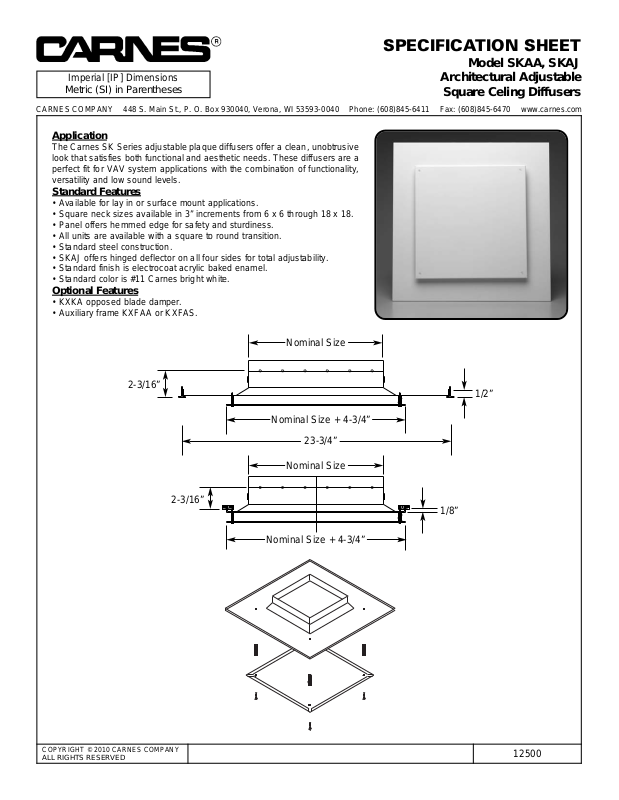

SPECIFICATION SHEET

Model SKAA, SKAJ

Architectural Adjustable

Square Celing Diffusers

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2010 CARNES COMPANY

ALL RIGHTS RESERVED

12500

Application

The Carnes SK Series adjustable plaque diffusers offer a clean, unobtrusive
look that satisfies both functional and aesthetic needs. These diffusers are a
perfect fit for VAV system applications with the combination of functionality,
versatility and low sound levels.

Standard Features

• Available for lay in or surface mount applications.

• Square neck sizes available in 3” increments from 6 x 6 through 18 x 18.

• Panel offers hemmed edge for safety and sturdiness.

• All units are available with a square to round transition.

• Standard steel construction.

• SKAJ offers hinged deflector on all four sides for total adjustability.

• Standard finish is electrocoat acrylic baked enamel.

• Standard color is #11 Carnes bright white.

Optional Features

• KXKA opposed blade damper.

• Auxiliary frame KXFAA or KXFAS.

Nominal Size

1/2”

2-3/16”

Nominal Size + 4-3/4”

23-3/4”

Nominal Size

Nominal Size + 4-3/4”

2-3/16”

1/8”
