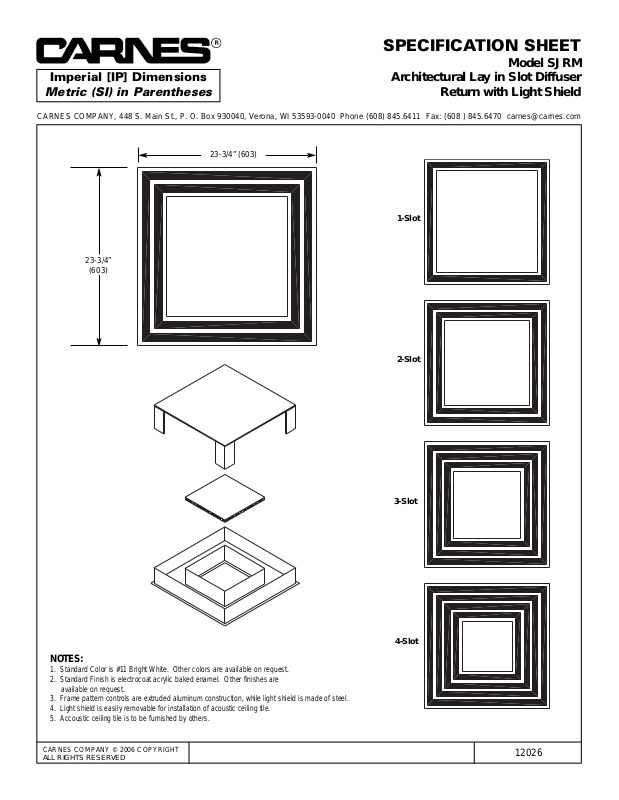

SPECIFICATION SHEET

Model SJRM

Architectural Lay in Slot Diffuser

Return with Light Shield

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2006 COPYRIGHT

ALL RIGHTS RESERVED

12026

23-3/4”

(603)

23-3/4” (603)

1-Slot

2-Slot

3-Slot

4-Slot

NOTES:

1. Standard Color is #11 Bright White. Other colors are available on request.

2. Standard Finish is electrocoat acrylic baked enamel. Other finishes are
available on request.

3. Frame pattern controls are extruded aluminum construction, while light shield is made of steel.

4. Light shield is easily removable for installation of acoustic ceiling tile.

5. Accoustic ceiling tile is to be furnished by others.
