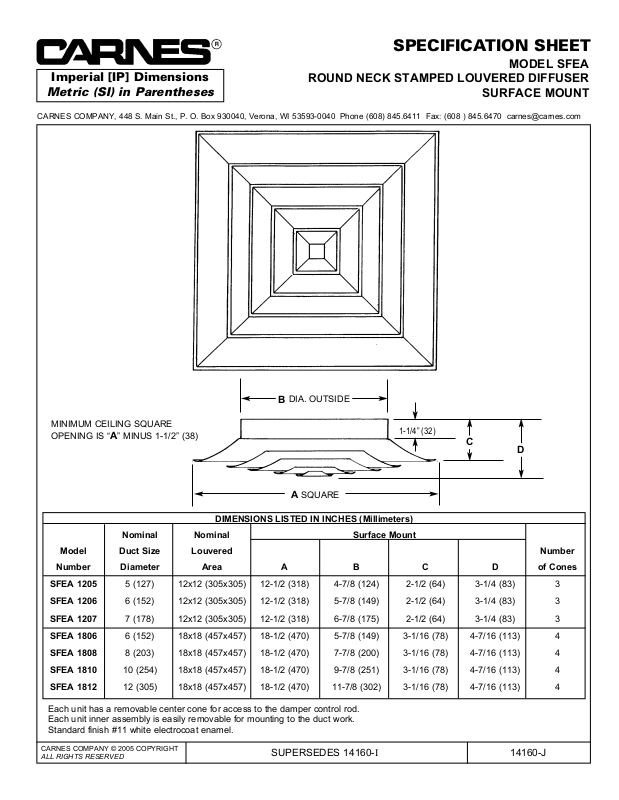

SPECIFICATION SHEET

MODEL SFEA

ROUND NECK STAMPED LOUVERED DIFFUSER

SURFACE MOUNT

CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone [phone] Fax: (608 ) 845.6470 [e-mail]

CARNES COMPANY © 2005 COPYRIGHT

ALL RIGHTS RESERVED

SUPERSEDES 14160-I 14160-J

DIMENSIONS LISTED IN INCHES (Millimeters)

Nominal Nominal Surface Mount

Model Duct Size Louvered Number

Number Diameter Area A B C D of Cones

SFEA 1205 5 (127) 12x12 (305x305) 12-1/2 (318) 4-7/8 (124) 2-1/2 (64) 3-1/4 (83) 3

SFEA 1206 6 (152) 12x12 (305x305) 12-1/2 (318) 5-7/8 (149) 2-1/2 (64) 3-1/4 (83) 3

SFEA 1207 7 (178) 12x12 (305x305) 12-1/2 (318) 6-7/8 (175) 2-1/2 (64) 3-1/4 (83) 3

SFEA 1806 6 (152) 18x18 (457x457) 18-1/2 (470) 5-7/8 (149) 3-1/16 (78) 4-7/16 (113) 4

SFEA 1808 8 (203) 18x18 (457x457) 18-1/2 (470) 7-7/8 (200) 3-1/16 (78) 4-7/16 (113) 4

SFEA 1810 10 (254) 18x18 (457x457) 18-1/2 (470) 9-7/8 (251) 3-1/16 (78) 4-7/16 (113) 4

SFEA 1812 12 (305) 18x18 (457x457) 18-1/2 (470) 11-7/8 (302) 3-1/16 (78) 4-7/16 (113) 4

Each unit has a removable center cone for access to the damper control rod.
Each unit inner assembly is easily removable for mounting to the duct work.
Standard finish #11 white electrocoat enamel.

B

DIA. OUTSIDE

1-1/4” (32)

C

D

A

SQUARE

MINIMUM CEILING SQUARE
OPENING IS “

A

” MINUS 1-1/2” (38)
