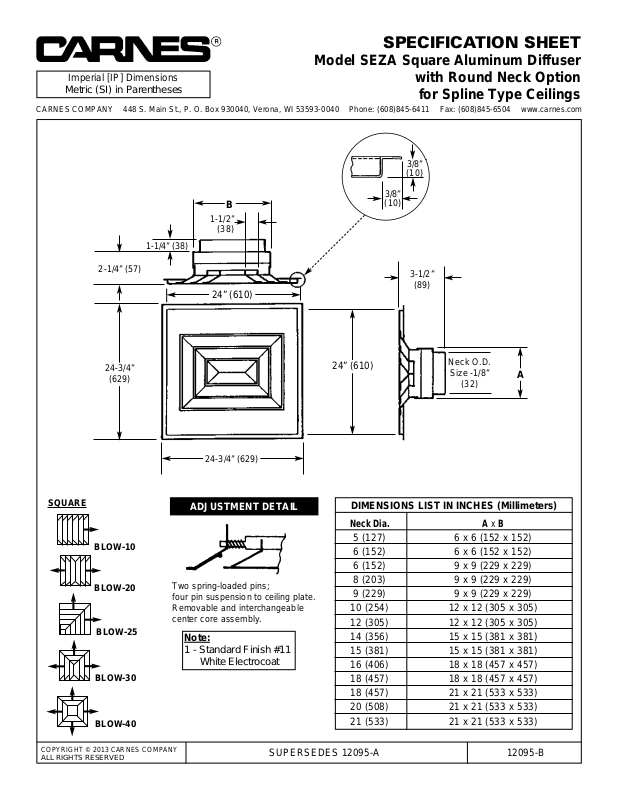

SPECIFICATION SHEET

Model SEZA Square Aluminum Diffuser

with Round Neck Option

for Spline Type Ceilings

COPYRIGHT © 2013 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 12095-A 12095-B

SQUARE

BLOW-10

BLOW-20

BLOW-25

BLOW-30

BLOW-40

DIMENSIONS LIST IN INCHES (Millimeters)

Neck Dia. A x B

5 (127) 6 x 6 (152 x 152)
6 (152) 6 x 6 (152 x 152)
6 (152) 9 x 9 (229 x 229)
8 (203) 9 x 9 (229 x 229)

9 (229) 9 x 9 (229 x 229)
10 (254) 12 x 12 (305 x 305)
12 (305) 12 x 12 (305 x 305)
14 (356) 15 x 15 (381 x 381)
15 (381) 15 x 15 (381 x 381)
16 (406) 18 x 18 (457 x 457)
18 (457) 18 x 18 (457 x 457)
18 (457) 21 x 21 (533 x 533)
20 (508) 21 x 21 (533 x 533)
21 (533) 21 x 21 (533 x 533)

ADJUSTMENT DETAIL

Two spring-loaded pins;
four pin suspension to ceiling plate.
Removable and interchangeable
center core assembly.

Note:

1 - Standard Finish #11

White Electrocoat

3/8”
(10)

3/8”
(10)

B

1-1/2”

(38)

2-1/4” (57)

24-3/4”

(629)

24-3/4” (629)

24” (610)

24” (610)

3-1/2”

(89)

A

Neck O.D.

Size -1/8”

(32)

1-1/4” (38)

Imperial [IP] Dimensions

Metric (SI) in Parentheses
