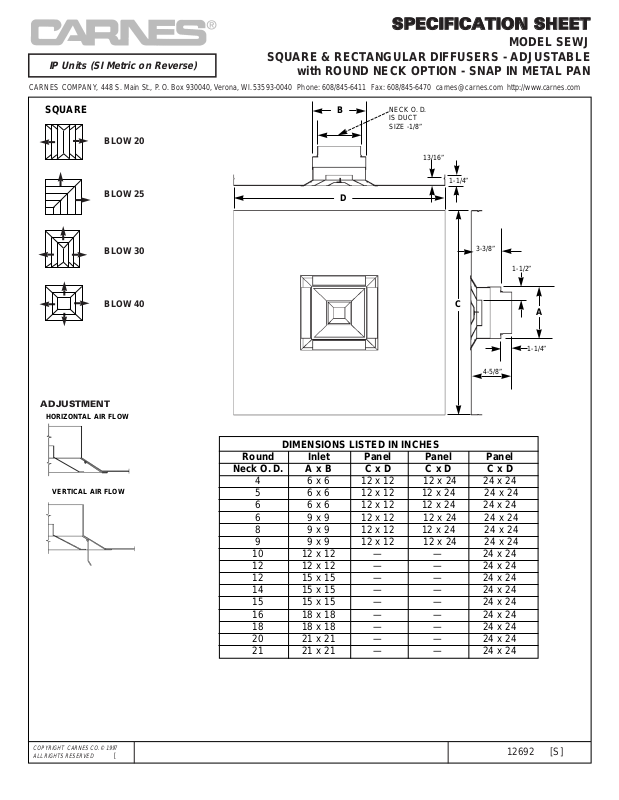

Carnes SEWJ User Manual
COPYRIGHT CARNES CO.© 1997
ALL RIGHTS RESERVED
[
12692 [S]
CARNES COMPANY, 448 S.Main St., P. O. Box 930040, Verona, WI.53593-0040 Phone: 608/845-6411 Fax:608/845-6470 carnes@carnes.com http://www.carnes.com
MODEL SEWJ
SQUARE & RECTANGULAR DIFFUSERS - ADJUSTABLE
with ROUND NECK OPTION - SNAP IN METAL PAN
IP Units (SI Metric on Reverse)
SSPPEECCIIFFIICCAATTIIOONN SSHHEEEETT
SQUARE
ADJUSTMENT
BLOW 20
BLOW 25
BLOW 30
BLOW 40
NECK O.D.
IS DUCT
SIZE -1/8”
1-1/4”
1-1/4”
4-5/8”
1-1/2”
3-3/8”
13/16”
D
B
C
A
HORIZONTAL AIR FLOW
VERTICAL AIR FLOW
DIMENSIONS LISTED IN INCHES
Round Inlet Panel Panel Panel
Neck O. D. A x B C x D C x D C x D
4 6 x 6 12 x 12 12 x 24 24 x 24
5 6 x 6 12 x 12 12 x 24 24 x 24
6 6 x 6 12 x 12 12 x 24 24 x 24
6 9 x 9 12 x 12 12 x 24 24 x 24
8 9 x 9 12 x 12 12 x 24 24 x 24
9 9 x 9 12 x 12 12 x 24 24 x 24
10 12 x 12 — — 24 x 24
12 12 x 12 — — 24 x 24
12 15 x 15 — — 24 x 24
14 15 x 15 — — 24 x 24
15 15 x 15 — — 24 x 24
16 18 x 18 — — 24 x 24
18 18 x 18 — — 24 x 24
20 21 x 21 — — 24 x 24
21 21 x 21 — — 24 x 24
COPYRIGHT CARNES CO.© 1997
ALL RIGHTS RESERVED
12692 [M]
CARNES COMPANY, 448 S.Main St., P. O. Box 930040, Verona, WI.53593-0040 Phone: 608/845-6411 Fax:608/845-6470 carnes@carnes.com http://www.carnes.com
MODEL SEWJ
SQUARE & RECTANGULAR DIFFUSERS - ADJUSTABLE
with ROUND NECK OPTION - SNAP IN METAL PAN
SI Metric Units (IP on Reverse)
SSPPEECCIIFFIICCAATTIIOONN SSHHEEEETT
SQUARE
ADJUSTMENT
BLOW 20
BLOW 25
BLOW 30
BLOW 40
NECK O.D.
IS DUCT
SIZE -3.2
31.8
31.8
117.5
38.1
85.7
20.6
D
B
A
HORIZONTAL AIR FLOW
VERTICAL AIR FLOW
DIMENSIONS LISTED IN MILLIMETERS
Round Inlet Panel Panel Panel
Neck O. D. A x B C x D C x D C x D
102 152 x 152 305 x 305 305 x 610 610 x 610
127 152 x 152 305 x 305 305 x 610 610 x 610
152 152 x 152 305 x 305 305 x 610 610 x 610
152 229 x 229 305 x 305 305 x 610 610 x 610
203 229 x 229 305 x 305 305 x 610 610 x 610
229 229 x 229 305 x 305 305 x 610 610 x 610
254 305 x 305 — — 610 x 610
305 305 x 305 — — 610 x 610
305 381 x 381 — — 610 x 610
356 381 x 381 — — 610 x 610
381 381 x 381 — — 610 x 610
406 457 x 457 — — 610 x 610
457 457 x 457 — — 610 x 610
508 533 x 533 — — 610 x 610
533 533 x 533 — — 610 x 610
