Carnes SEWA User Manual

SUPERSEDES 12696

12696-A [S]

IP Units (SI Metric on Reverse)

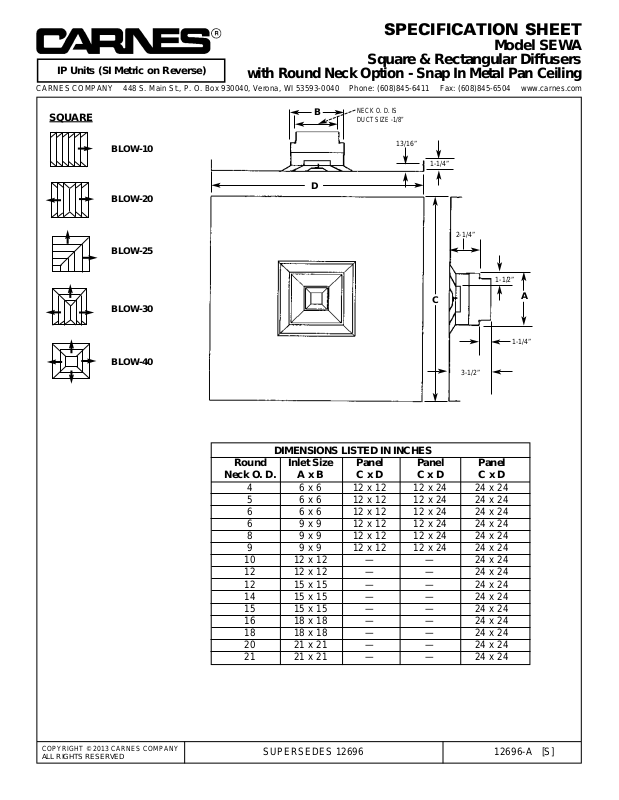

SPECIFICATION SHEET

Model SEWA

Square & Rectangular Diffusers

with Round Neck Option - Snap In Metal Pan Ceiling

NECK O. D. IS DUCT SIZE -1/8”

1-1/2”

2-1/4”

13/16”

1-1/4”

3-1/2”

DIMENSIONS LISTED IN INCHES

Round Inlet Size Panel Panel Panel

Neck O. D. A x B C x D C x D C x D

4 6 x 6 12 x 12 12 x 24 24 x 24 5 6 x 6 12 x 12 12 x 24 24 x 24 6 6 x 6 12 x 12 12 x 24 24 x 24 6 9 x 9 12 x 12 12 x 24 24 x 24 8 9 x 9 12 x 12 12 x 24 24 x 24

9 9 x 9 12 x 12 12 x 24 24 x 24 10 12 x 12 — — 24 x 24 12 12 x 12 — — 24 x 24 12 15 x 15 — — 24 x 24 14 15 x 15 — — 24 x 24 15 15 x 15 — — 24 x 24 16 18 x 18 — — 24 x 24 18 18 x 18 — — 24 x 24 20 21 x 21 — — 24 x 24 21 21 x 21 — — 24 x 24

SQUARE

BLOW-10

BLOW-25

BLOW-30

BLOW-40

BLOW-20

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com

SUPERSEDES 12696

12696-A [M]

SI Metric Units (IP on Reverse)

NECK O. D. IS DUCT SIZE -3.2

DIMENSIONS LISTED IN MILLIMETERS

Round Inlet Size Panel Panel Panel

Neck O. D. A x B C x D C x D C x D

102 152 x 152 305 x 305 305 x 610 610 x 610 127 152 x 152 305 x 305 305 x 610 610 x 610 152 152 x 152 305 x 305 305 x 610 610 x 610 152 229 x 229 305 x 305 305 x 610 610 x 610 203 229 x 229 305 x 305 305 x 610 610 x 610 229 229 x 229 305 x 305 305 x 610 610 x 610 254 305 x 305 — — 610 x 610 305 305 x 305 — — 610 x 610 305 381 x 381 — — 610 x 610 356 381 x 381 — — 610 x 610 381 381 x 381 — — 610 x 610 406 457 x 457 — — 610 x 610 457 457 x 457 — — 610 x 610 508 533 x 533 — — 610 x 610 533 533 x 533 — — 610 x 610

SQUARE

BLOW-10

BLOW-25

BLOW-30

BLOW-40

BLOW-20

SPECIFICATION SHEET

Model SEWA

Square & Rectangular Diffusers

with Round Neck Option - Snap In Metal Pan Ceiling

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
