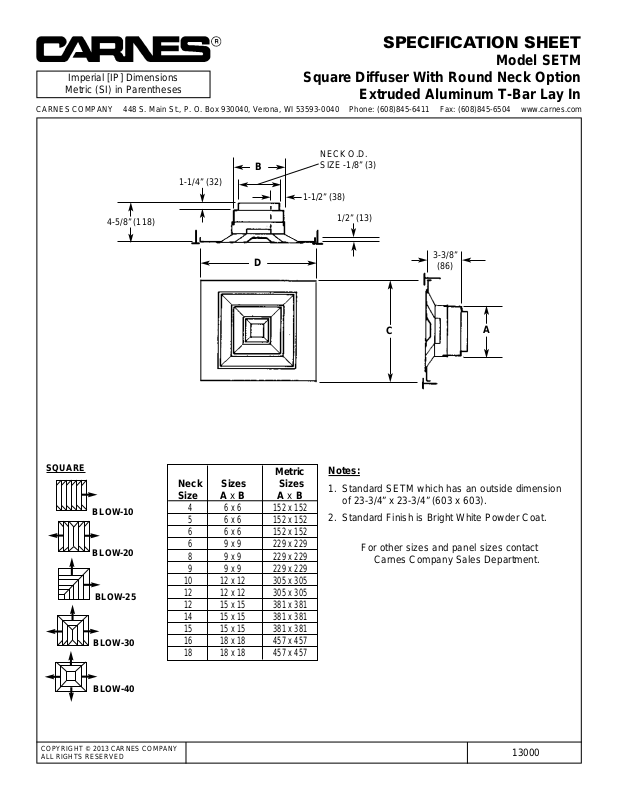

SPECIFICATION SHEET

Model SETM

Square Diffuser With Round Neck Option

Extruded Aluminum T-Bar Lay In

COPYRIGHT © 2013 CARNES COMPANY

ALL RIGHTS RESERVED

13000

Metric

Neck Sizes Sizes
Size A x BAx B

4 6 x 6 152 x 152
5 6 x 6 152 x 152
6 6 x 6 152 x 152
6 9 x 9 229 x 229
8 9 x 9 229 x 229

9 9 x 9 229 x 229
10 12 x 12 305 x 305
12 12 x 12 305 x 305
12 15 x 15 381 x 381
14 15 x 15 381 x 381
15 15 x 15 381 x 381
16 18 x 18 457 x 457
18 18 x 18 457 x 457

SQUARE

BLOW-10

BLOW-20

BLOW-25

BLOW-30

BLOW-40

B

D

NECK O.D.
SIZE -1/8” (3)

4-5/8” (118)

1-1/4” (32)

1-1/2” (38)

3-3/8”

(86)

1/2” (13)

C

A

Notes:

1. Standard SETM which has an outside dimension
of 23-3/4” x 23-3/4” (603 x 603).

2. Standard Finish is Bright White Powder Coat.

For other sizes and panel sizes contact

Carnes Company Sales Department.

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com
