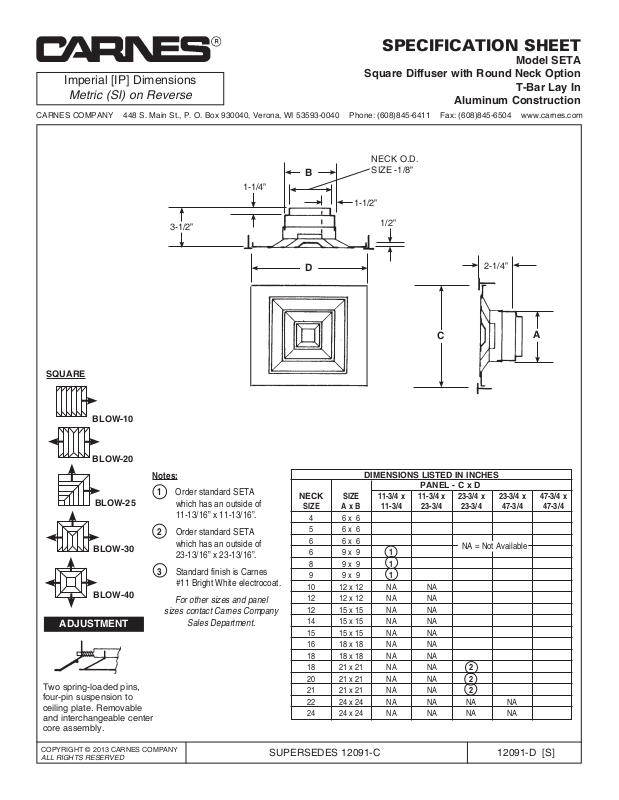

SPECIFICATION SHEET
Model SETA
Imperial [IP] Dimensions
Metric (SI) on Reverse
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
B
1-1/4”
Square Diffuser with Round Neck Option
T-Bar Lay In
Aluminum Construction
NECK O.D.
SIZE -1/8”
1-1/2”
SQUARE
BLOW-10
BLOW-20
BLOW-25
BLOW-30
BLOW-40
ADJUSTMENT
Two spring-loaded pins,
four-pin suspension to
ceiling plate. Removable
and interchangeable center
core assembly.
3-1/2”
Notes:
1 Order standard SETA
which has an outside of
11-13/16” x 11-13/16”.
2 Order standard SETA
which has an outside of
23-13/16” x 23-13/16”.
3 Standard finish is Carnes
#11 Bright White electrocoat.
For other sizes and panel
sizes contact Carnes Company
Sales Department.
1/2”
D
C
DIMENSIONS LISTED IN INCHES
PANEL - C x D
NECK
SIZE A x B 11-3/4 23-3/4 23-3/4 47-3/4 47-3/4
4 6 x 6
5 6 x 6
6 6 x 6
6 9 x 9 1
8 9 x 9 1
9 9 x 9 1
10 12 x 12 NA NA
12 12 x 12 NA NA
12 15 x 15 NA NA
14 15 x 15 NA NA
15 15 x 15 NA NA
16 18 x 18 NA NA
18 18 x 18 NA NA
18 21 x 21 NA NA 2
20 21 x 21 NA NA 2
21 21 x 21 NA NA 2
22 24 x 24 NA NA NA NA
24 24 x 24 NA NA NA NA
SIZE 11-3/4 x 11-3/4 x 23-3/4 x 23-3/4 x 47-3/4 x
2-1/4”
A
NA = Not Available
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12091-C 12091-D [S]
SPECIFICATION SHEET
Model SETA
Imperial [IP] Dimensions
Metric (SI) on Reverse
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
Square Diffuser with Round Neck Option
T-Bar Lay In
Aluminum Construction
SQUARE
BLOW-10
89
32
B
D
NECK O.D.
SIZE -1/8”
38
13
57
C
A
BLOW-20
Notes:
BLOW-25
1 Order standard SETA
which has an outside of
299mm x 299mm.
BLOW-30
2 Order standard SETA
which has an outside of
299mm x 603mm.
3 Standard finish is Carnes
BLOW-40
ADJUSTMENT
Two spring-loaded pins,
four-pin suspension to
ceiling plate. Removable
and interchangeable center
core assembly.
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
# 11 Bright White electrocoat.
sizes contact Carnes Company
For other sizes and panel
Sales Department.
SUPERSEDES 12091-C 12091-D [M]
DIMENSIONS LISTED IN MILLIMETERS
PANEL - C x D
NECK
SIZE A x B 299 603 603 1213 1213
102 152 x 152
127 152 x 152
152 152 x 152
152 229 x 229 1
203 229 x 229 1
229 229 x 229 1
254 305 x 305 NA NA
305 305 x 305 NA NA
305 381 x 381 NA NA
356 381 x 381 NA NA
381 381 x 381 NA NA
406 457 x 457 NA NA
457 457 x 457 NA NA
457 533 x 533 NA NA 2
508 533 x 533 NA NA 2
533 533 x 533 NA NA 2
559 610 x 610 NA NA NA NA
610 610 x 610 NA NA NA NA
SIZE 299 x 299 x 603 x 603 x 1213 x
NA = Not Available
