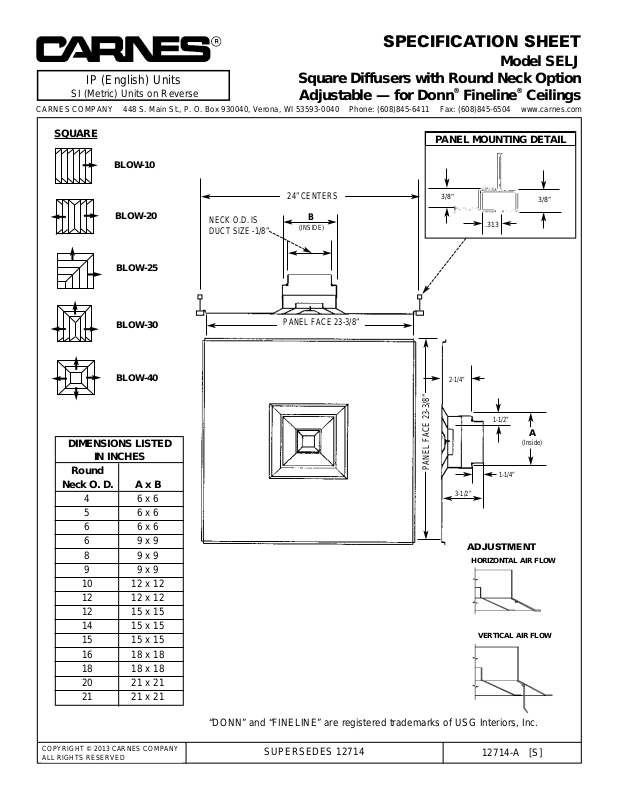

SPECIFICATION SHEET
Model SELJ
Square Diffusers with Round Neck Option
Adjustable — for Donn
®
Fineline®Ceilings
2-1/4”
1-1/2”
1-1/4”
3-1/2”
PANEL FACE 23-3/8”
PANEL FACE 23-3/8”
24” CENTERS
A
(Inside)
SQUARE
BLOW-10
BLOW-25
BLOW-30
BLOW-40
BLOW-20
B
(INSIDE)
3/8”
3/8”
.313
PANEL MOUNTING DETAIL
DIMENSIONS LISTED
IN INCHES
Round
Neck O. D. A x B
4 6 x 6
5 6 x 6
6 6 x 6
6 9 x 9
8 9 x 9
9 9 x 9
10 12 x 12
12 12 x 12
12 15 x 15
14 15 x 15
15 15 x 15
16 18 x 18
18 18 x 18
20 21 x 21
21 21 x 21
NECK O.D. IS
DUCT SIZE -1/8”
ADJUSTMENT
HORIZONTAL AIR FLOW
VERTICAL AIR FLOW
IP (English) Units
SI (Metric) Units on Reverse
