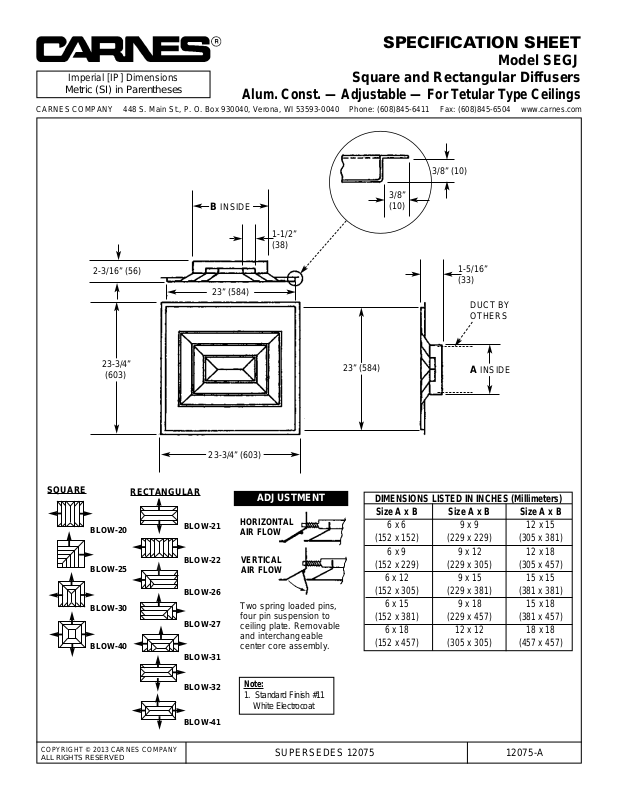

SPECIFICATION SHEET
Model SEGJ
Square and Rectangular Diffusers
Alum. Const. — Adjustable — For Tetular Type Ceilings
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12075 12075-A
ADJUSTMENT
HORIZONTAL
AIR FLOW
VERTICAL
AIR FLOW
Two spring loaded pins,
four pin suspension to
ceiling plate. Removable
and interchangeable
center core assembly.
DIMENSIONS LISTED IN INCHES (Millimeters)
Size A x B Size A x B Size A x B
6 x 6 9 x 9 12 x 15
(152 x 152) (229 x 229) (305 x 381)
6 x 9 9 x 12 12 x 18
(152 x 229) (229 x 305) (305 x 457)
6 x 12 9 x 15 15 x 15
(152 x 305) (229 x 381) (381 x 381)
6 x 15 9 x 18 15 x 18
(152 x 381) (229 x 457) (381 x 457)
6 x 18 12 x 12 18 x 18
(152 x 457) (305 x 305) (457 x 457)
Note:
1. Standard Finish #11
White Electrocoat
SQUARE
RECTANGULAR
BLOW-20
BLOW-25
BLOW-30
BLOW-40
BLOW-21
BLOW-22
BLOW-26
BLOW-27
BLOW-31
BLOW-32
BLOW-41
3/8” (10)
3/8”
(10)
B
INSIDE
23” (584)
2-3/16” (56)
23-3/4”
(603)
1-1/2”
(38)
23” (584)
1-5/16”
(33)
A
INSIDE
DUCT BY
OTHERS
23-3/4” (603)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
