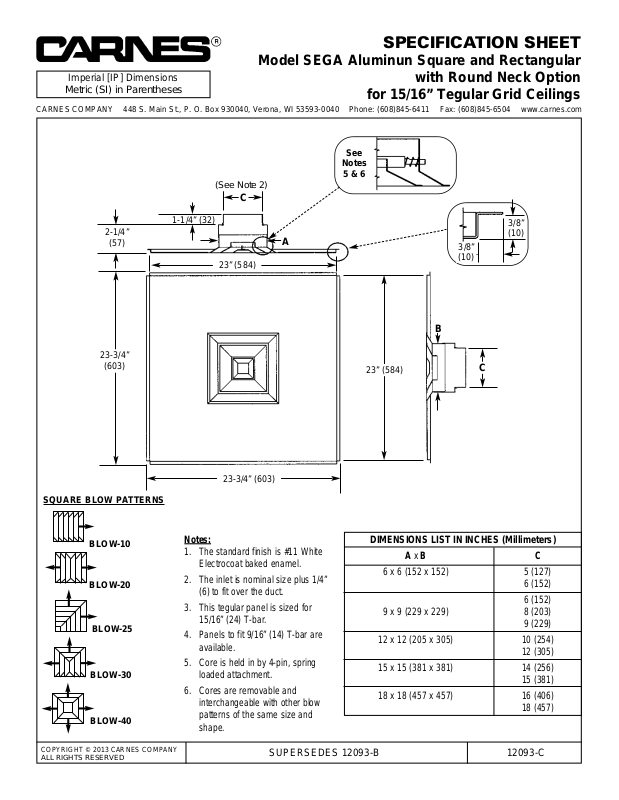

SPECIFICATION SHEET

Model SEGA Aluminun Square and Rectangular

with Round Neck Option

for 15/16” Tegular Grid Ceilings

SUPERSEDES 12093-B 12093-C

SQUARE BLOW PATTERNS

BLOW-10

BLOW-20

BLOW-25

BLOW-30

BLOW-40

Notes:

1. The standard finish is #11 White Electrocoat baked enamel.

2. The inlet is nominal size plus 1/4” (6) to fit over the duct.

3. This tegular panel is sized for 15/16” (24) T-bar.

4. Panels to fit 9/16” (14) T-bar are available.

5. Core is held in by 4-pin, spring loaded attachment.

6. Cores are removable and interchangeable with other blow patterns of the same size and shape.

DIMENSIONS LIST IN INCHES (Millimeters)

A x BC

6 x 6 (152 x 152) 5 (127)

6 (152) 6 (152)

9 x 9 (229 x 229) 8 (203)

9 (229)

12 x 12 (205 x 305) 10 (254)

12 (305)

15 x 15 (381 x 381) 14 (256)

15 (381)

18 x 18 (457 x 457) 16 (406)

18 (457)

(See Note 2)

1-1/4” (32)

2-1/4”

(57)

See

Notes

5 & 6

23” (584)

23-3/4”

(603)

23-3/4” (603)

3/8” (10)

Imperial [IP] Dimensions

Metric (SI) in Parentheses
