SUPERSEDES 12089-C

12089-D

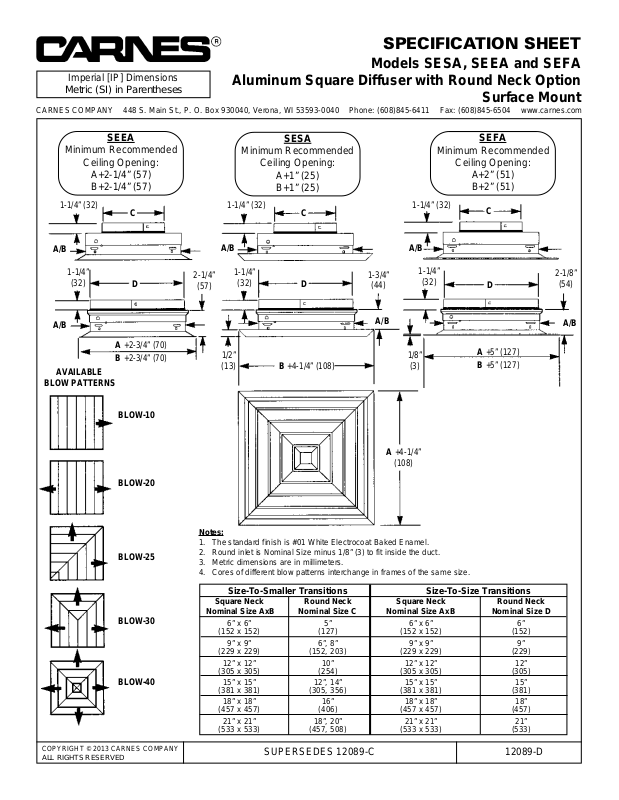

SPECIFICATION SHEET

Models SESA, SEEA and SEFA

Aluminum Square Diffuser with Round Neck Option

Surface Mount

Notes:

1. The standard finish is #01 White Electrocoat Baked Enamel.

2. Round inlet is Nominal Size minus 1/8” (3) to fit inside the duct.

3. Metric dimensions are in millimeters.

4. Cores of different blow patterns interchange in frames of the same size.

Size-To-Smaller Transitions Size-To-Size Transitions

Square Neck Round Neck Square Neck Round Neck

Nominal Size AxB Nominal Size C Nominal Size AxB Nominal Size D

6” x 6” 5” 6” x 6” 6”

(152 x 152) (127) (152 x 152) (152)

9” x 9” 6”, 8” 9” x 9” 9”

(229 x 229) (152, 203) (229 x 229) (229)

12” x 12” 10” 12” x 12” 12”

(305 x 305) (254) (305 x 305) (305)

15” x 15” 12”, 14” 15” x 15” 15”

(381 x 381) (305, 356) (381 x 381) (381)

18” x 18” 16” 18” x 18” 18”

(457 x 457) (406) (457 x 457) (457)

21” x 21” 18”, 20” 21” x 21” 21”

(533 x 533) (457, 508) (533 x 533) (533)

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com

SEEA

Minimum Recommended

Ceiling Opening:

A+2-1/4” (57) B+2-1/4” (57)

SESA

Minimum Recommended

Ceiling Opening:

A+1” (25) B+1” (25)

SEFA

Minimum Recommended

Ceiling Opening:

A+2” (51) B+2” (51)

AVAILABLE

BLOW PATTERNS

BLOW-10

BLOW-20

BLOW-25

BLOW-30

BLOW-40

A +4-1/4”

(108)

A +5” (127) B +5” (127)

A +2-3/4” (70) B +2-3/4” (70)

B +4-1/4” (108)

1/2” (13)

1/8”

(3)

2-1/8”

(54)

A/B

1-1/4”

(32)

1-3/4”

(44)

2-1/4”

(57)

1-1/4”

(32)

1-1/4”

(32)

1-1/4” (32)

1-1/4” (32) 1-1/4” (32)
