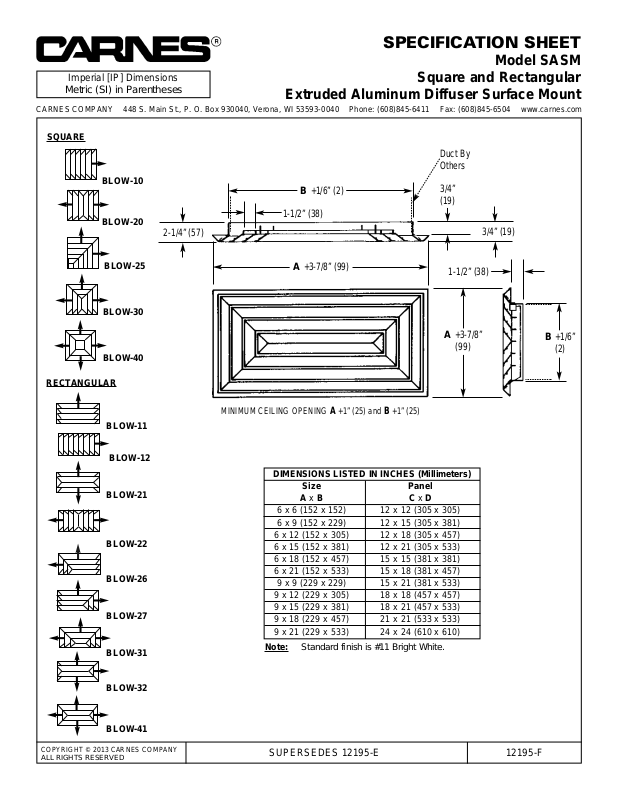

SPECIFICATION SHEET
Model SASM
Square and Rectangular
Extruded Aluminum Diffuser Surface Mount
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12195-E 12195-F
SQUARE
BLOW-10
BLOW-20
BLOW-25
BLOW-30
BLOW-40
RECTANGULAR
BLOW-21
BLOW-11
BLOW-22
BLOW-12
BLOW-26
BLOW-27
BLOW-31
BLOW-32
BLOW-41
DIMENSIONS LISTED IN INCHES (Millimeters)
Size Panel
A x BC x D
6 x 6 (152 x 152) 12 x 12 (305 x 305)
6 x 9 (152 x 229) 12 x 15 (305 x 381)
6 x 12 (152 x 305) 12 x 18 (305 x 457)
6 x 15 (152 x 381) 12 x 21 (305 x 533)
6 x 18 (152 x 457) 15 x 15 (381 x 381)
6 x 21 (152 x 533) 15 x 18 (381 x 457)
9 x 9 (229 x 229) 15 x 21 (381 x 533)
9 x 12 (229 x 305) 18 x 18 (457 x 457)
9 x 15 (229 x 381) 18 x 21 (457 x 533)
9 x 18 (229 x 457) 21 x 21 (533 x 533)
9 x 21 (229 x 533) 24 x 24 (610 x 610)
Note: Standard finish is #11 Bright White.
B
+1/6” (2)
A
+3-7/8” (99)
3/4”
(19)
3/4” (19)
1-1/2” (38)
2-1/4” (57)
Duct By
Others
A
+3-7/8”
(99)
1-1/2” (38)
B
+1/6”
(2)
MINIMUM CEILING OPENINGA+1” (25) and B+1” (25)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
