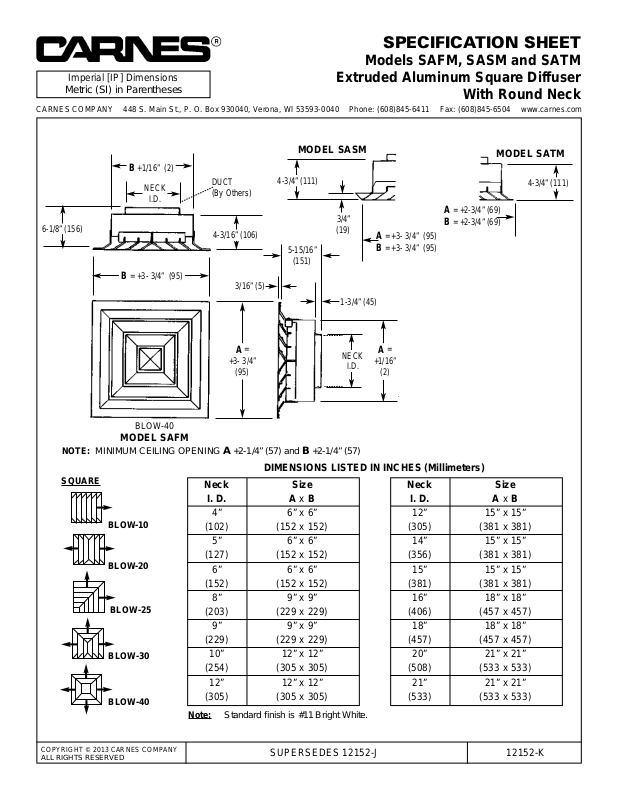

SPECIFICATION SHEET
Models SAFM, SASM and SATM
Extruded Aluminum Square Diffuser
With Round Neck
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12152-J 12152-K
SQUARE
BLOW-10
BLOW-20
BLOW-25
BLOW-30
BLOW-40
Neck Size
I. D. A x B
4” 6” x 6”
(102) (152 x 152)
5” 6” x 6”
(127) (152 x 152)
6” 6” x 6”
(152) (152 x 152)
8” 9” x 9”
(203) (229 x 229)
9” 9” x 9”
(229) (229 x 229)
10” 12” x 12”
(254) (305 x 305)
12” 12” x 12”
(305) (305 x 305)
Neck Size
I. D. A x B
12” 15” x 15”
(305) (381 x 381)
14” 15” x 15”
(356) (381 x 381)
15” 15” x 15”
(381) (381 x 381)
16” 18” x 18”
(406) (457 x 457)
18” 18” x 18”
(457) (457 x 457)
20” 21” x 21”
(508) (533 x 533)
21” 21” x 21”
(533) (533 x 533)
Note: Standard finish is #11 Bright White.
MODEL SASM
MODEL SATM
4-3/4” (111)
4-3/4” (111)
4-3/16” (106)
3/4”
(19)
A
= +3- 3/4” (95)
B
= +3- 3/4” (95)
A
= +2-3/4” (69)
B
= +2-3/4” (69)
6-1/8” (156)
B
= +3- 3/4” (95)
B
+1/16” (2)
NECK
I.D.
DUCT
(By Others)
A
=
+3- 3/4”
(95)
NECK
I.D.
A
=
+1/16”
(2)
3/16” (5)
5-15/16”
(151)
1-3/4” (45)
BLOW-40
MODEL SAFM
NOTE: MINIMUM CEILING OPENING A+2-1/4” (57) and B+2-1/4” (57)
DIMENSIONS LISTED IN INCHES (Millimeters)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
