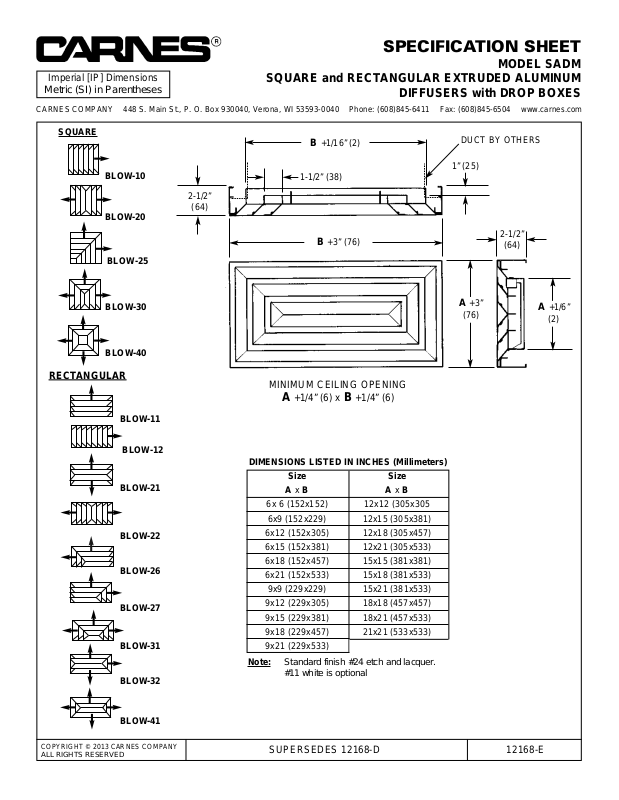

SPECIFICATION SHEET
MODEL SADM
SQUARE and RECTANGULAR EXTRUDED ALUMINUM
DIFFUSERS with DROP BOXES
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12168-D 12168-E
SQUARE
BLOW-10
BLOW-20
BLOW-25
BLOW-30
BLOW-40
RECTANGULAR
BLOW-21
BLOW-11
BLOW-22
BLOW-12
BLOW-26
BLOW-27
BLOW-31
BLOW-32
BLOW-41
Size Size
A x BAx B
6x 6 (152x152) 12x12 (305x305
6x9 (152x229) 12x15 (305x381)
6x12 (152x305) 12x18 (305x457)
6x15 (152x381) 12x21 (305x533)
6x18 (152x457) 15x15 (381x381)
6x21 (152x533) 15x18 (381x533)
9x9 (229x229) 15x21 (381x533)
9x12 (229x305) 18x18 (457x457)
9x15 (229x381) 18x21 (457x533)
9x18 (229x457) 21x21 (533x533)
9x21 (229x533)
DIMENSIONS LISTED IN INCHES (Millimeters)
Note: Standard finish #24 etch and lacquer.
#11 white is optional
B +1/16” (2)
B +3” (76)
1-1/2” (38)
2-1/2”
(64)
1” (25)
A +3”
(76)
A
+1/6”
(2)
2-1/2”
(64)
DUCT BY OTHERS
MINIMUM CEILING OPENING
A
+1/4” (6) x B+1/4” (6)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
