COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12688-A
12688-B [S]

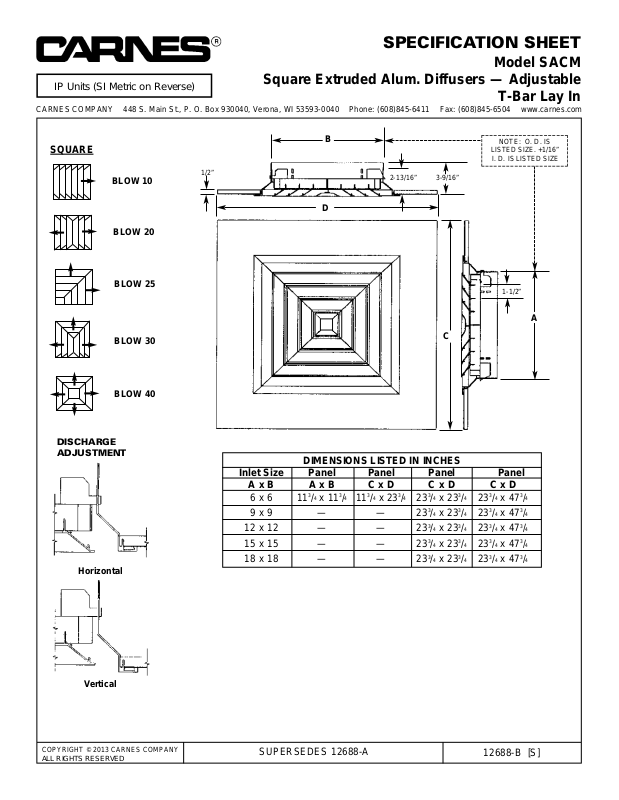

SPECIFICATION SHEET
Model SACM
Square Extruded Alum. Diffusers — Adjustable
T-Bar Lay In
DISCHARGE
ADJUSTMENT
1/2”
1-1/2”
2-13/16”
3-9/16”
D
B
C
A
DIMENSIONS LISTED IN INCHES
Inlet Size Panel Panel Panel Panel
A x B A x B C x D C x D C x D
6 x 6 11
3
/4x 113/4113/4x 233/4233/4x 233/4233/4x 473/
4
9 x 9 — — 233/4x 233/4233/4x 473/
4
12 x 12 — — 233/4x 233/4233/4x 473/
4
15 x 15 — — 233/4x 233/4233/4x 473/
4
18 x 18 — — 233/4x 233/4233/4x 473/
4
Horizontal
Vertical
SQUARE
BLOW 10
BLOW 25
BLOW 30
BLOW 40
BLOW 20
NOTE: O. D. IS
LISTED SIZE. +1/16”
I. D. IS LISTED SIZE
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
IP Units (SI Metric on Reverse)
12.7
38.1
71.4
90.5
D
B
C
A
DIMENSIONS LISTED IN MILLIMETERS
Inlet Size Panel Panel Panel Panel
A x B A x B C x D C x D C x D
152 x 152 298 x 298 298 x 603 603 x 603 603 x 1213
229 x 229 — — 603 x 603 603 x 1213
305 x 305 — — 603 x 603 603 x 1213
381 x 381 — — 603 x 603 603 x 1213
457 x 457 — — 603 x 603 603 x 1213
SQUARE
BLOW 10
BLOW 25
BLOW 30
BLOW 40
BLOW 20
NOTE: O. D. IS
LISTED SIZE. +1.6
I. D. IS LISTED SIZE
DISCHARGE
ADJUSTMENT
Horizontal
Vertical
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12688-A
12688-B [M]
SPECIFICATION SHEET
Model SACM
Square Extruded Alum. Diffusers — Adjustable
T-Bar Lay In
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
IP Units (SI Metric on Reverse)
