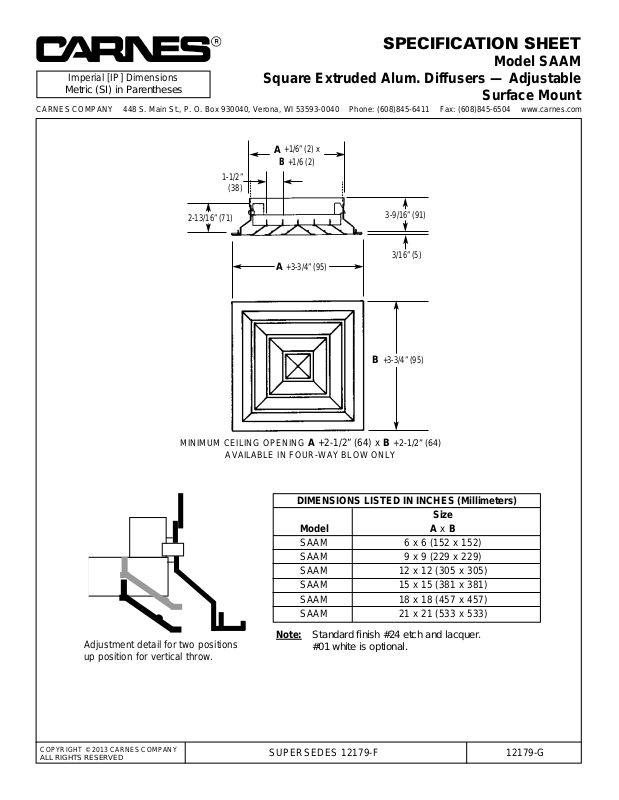

SPECIFICATION SHEET
Model SAAM
Square Extruded Alum. Diffusers — Adjustable
Surface Mount
COPYRIGHT © 2013 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 12179-F 12179-G
Adjustment detail for two positions
up position for vertical throw.
DIMENSIONS LISTED IN INCHES (Millimeters)
Size
Model A x B
SAAM 6 x 6 (152 x 152)
SAAM 9 x 9 (229 x 229)
SAAM 12 x 12 (305 x 305)
SAAM 15 x 15 (381 x 381)
SAAM 18 x 18 (457 x 457)
SAAM 21 x 21 (533 x 533)
Note: Standard finish #24 etch and lacquer.
#01 white is optional.
1-1/2”
(38)
A
+1/6” (2) x
B
+1/6 (2)
3-9/16” (91)
2-13/16” (71)
A
+3-3/4” (95)
B
+3-3/4” (95)
MINIMUM CEILING OPENING
A +2-1/2” (64) x B
+2-1/2” (64)
AVAILABLE IN FOUR-WAY BLOW ONLY
3/16” (5)
Imperial [IP] Dimensions
Metric (SI) in Parentheses
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
