Carnes RXTA User Manual

SUPERSEDES 14013-G

14013-H

CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI. 53593-0040 Phone: 608/845-6411 Fax: 608/845-6470 E-Mail: carnes@carnes.com www.carnes.com

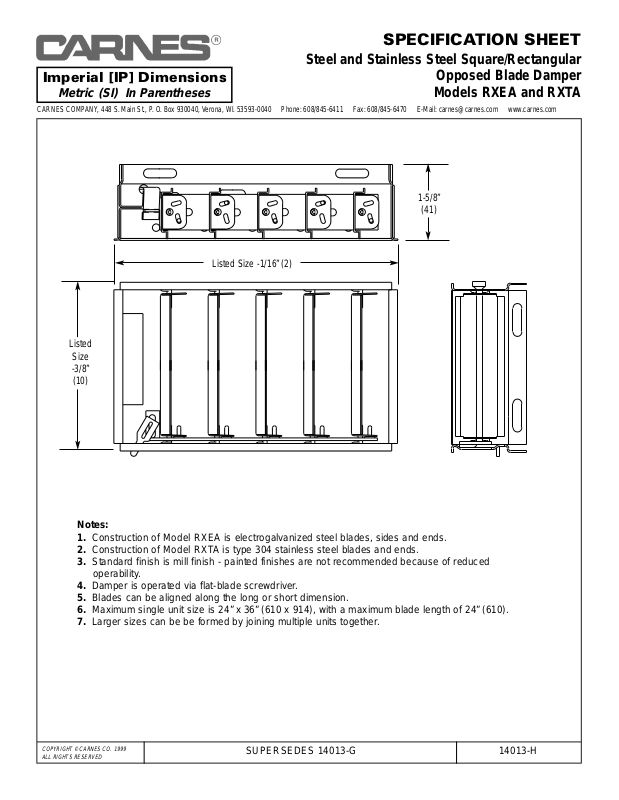

Steel and Stainless Steel Square/Rectangular

Opposed Blade Damper

Models RXEA and RXTA

SPECIFICATION SHEET

Imperial [IP] Dimensions

Metric (SI) In Parentheses

1-5/8”

(41)

Listed Size -1/16” (2)

Listed

Size

-3/8” (10)

Notes:

1. Construction of Model RXEA is electrogalvanized steel blades, sides and ends.

2. Construction of Model RXTA is type 304 stainless steel blades and ends.

3. Standard finish is mill finish - painted finishes are not recommended because of reduced

operability.

4. Damper is operated via flat-blade screwdriver.

5. Blades can be aligned along the long or short dimension.

6. Maximum single unit size is 24” x 36” (610 x 914), with a maximum blade length of 24” (610).

7. Larger sizes can be be formed by joining multiple units together.
