Carnes RXLA User Manual

COPYRIGHT © CARNES CO. 1999
ALL RIGHTS RESERVED

SUPERSEDES 14016-E

14016-F

CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI. 53593-0040 Phone: [phone] Fax: [phone] E-Mail: [e-mail] www.carnes.com

Plaster Frame

Steel (Model RXSA)

Stainless Steel (Model RXLA)

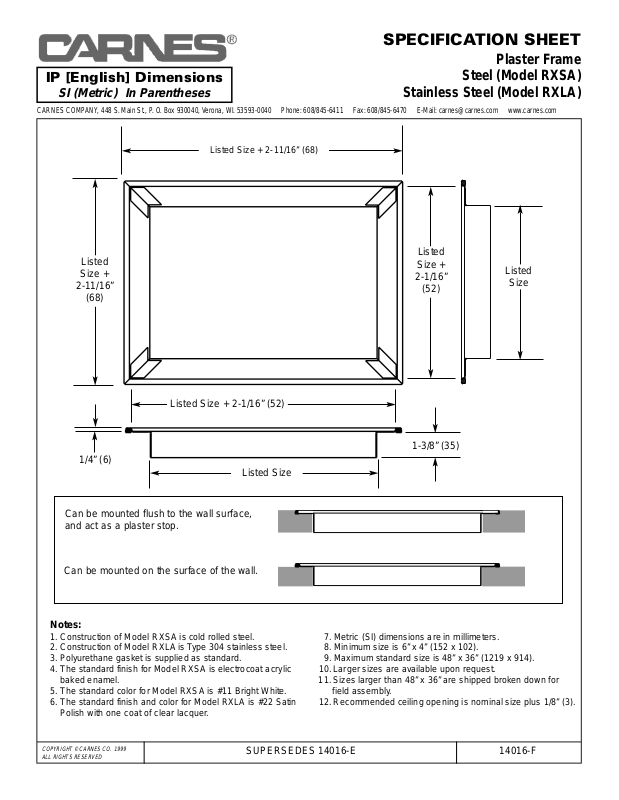

SPECIFICATION SHEET

IP [English] Dimensions

SI (Metric) In Parentheses

Listed Size + 2-11/16” (68)

Listed

Size +

2-11/16”

(68)

Listed

Size +

2-1/16”

(52)

1/4” (6)

Listed Size

Listed Size + 2-1/16” (52)

1-3/8” (35)

Listed

Size

Can be mounted flush to the wall surface,
and act as a plaster stop.

Can be mounted on the surface of the wall.

Notes:

1. Constr uction of Model RXSA is cold rolled steel. 7. Metr ic (SI) dimensions are in millimeters.

2. Constr uction of Model RXLA is Type 304 stainless steel. 8. Minimum size is 6” x 4” (152 x 102).

3. Polyurethane gasket is supplied as standard. 9. Maximum standard size is 48” x 36” (1219 x 914).

4. The standard finish for Model RXSA is electrocoat acrylic 10. Larger sizes are available upon request.
baked enamel. 11. Sizes larger than 48” x 36” are shipped broken down for

5. The standard color for Model RXSA is #11 Bright White. field assembly.

6. The standard finish and color for Model RXLA is #22 Satin 12. Recommended ceiling opening is nominal size plus 1/8” (3).

Polish with one coat of clear lacquer.
