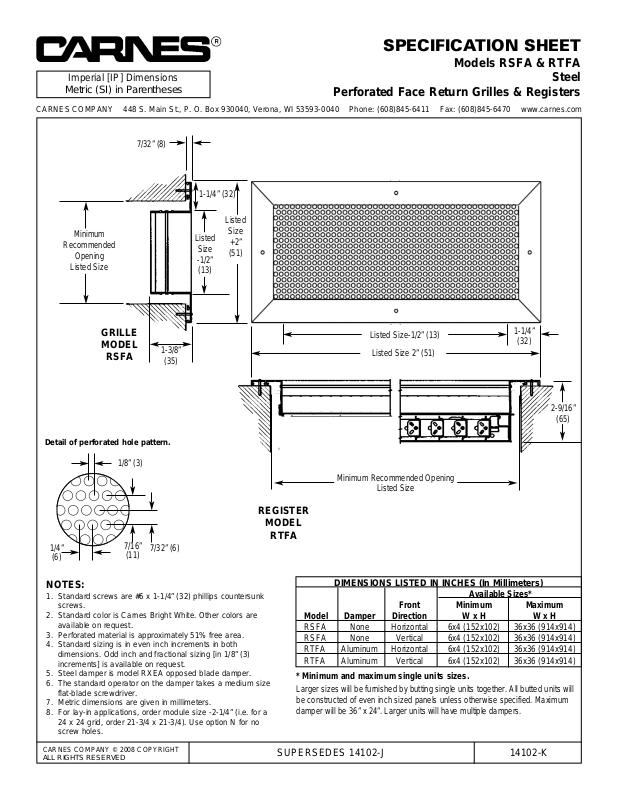

SPECIFICATION SHEET

Models RSFA & RTFA

Steel

Perforated Face Return Grilles & Registers

SUPERSEDES 14102-J 14102-K

Listed

Size

+2”

(51)

Listed

Size

-1/2” (13)

1-1/4” (32)

7/32” (8)

Minimum

Recommended

Opening

Listed Size

1-3/8”

(35)

GRILLE MODEL

RSFA

Listed Size 2” (51)

Listed Size-1/2” (13)

1-1/4”

(32)

Minimum Recommended Opening

Listed Size

2-9/16”

(65)

MODEL

RTFA

DIMENSIONS LISTED IN INCHES (In Millimeters)

Available Sizes*

Front Minimum Maximum

Model Damper Direction W x H W x H

RSFA None Horizontal 6x4 (152x102) 36x36 (914x914) RSFA None Vertical 6x4 (152x102) 36x36 (914x914) RTFA Aluminum Horizontal 6x4 (152x102) 36x36 (914x914) RTFA Aluminum Vertical 6x4 (152x102) 36x36 (914x914)

* Minimum and maximum single units sizes.

Larger sizes will be furnished by butting single units together. All butted units will be constructed of even inch sized panels unless otherwise specified. Maximum damper will be 36” x 24”. Larger units will have multiple dampers.

NOTES:

1. Standard screws are #6 x 1-1/4” (32) phillips countersunk screws.

2. Standard color is Carnes Bright White. Other colors are available on request.

3. Perforated material is approximately 51% free area.

4. Standard sizing is in even inch increments in both dimensions. Odd inch and fractional sizing [in 1/8” (3) increments] is available on request.

5. Steel damper is model RXEA opposed blade damper.

6. The standard operator on the damper takes a medium size flat-blade screwdriver.

7. Metric dimensions are given in millimeters.

8. For lay-in applications, order module size -2-1/4” (i.e. for a 24 x 24 grid, order 21-3/4 x 21-3/4). Use option N for no screw holes.

Detail of perforated hole pattern.

1/4”

(6)

1/8” (3)

7/32” (6)

7/16”

(11)

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
