Imperial [IP] Dimensions

Metric (SI) in Parentheses

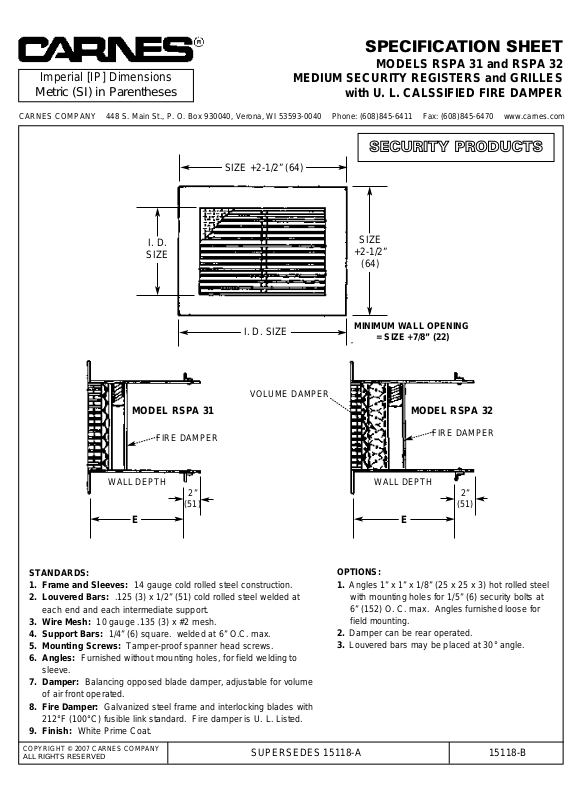

SPECIFICATION SHEET

MODELS RSPA 31 and RSPA 32

MEDIUM SECURITY REGISTERS and GRILLES

with U. L. CALSSIFIED FIRE DAMPER

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 15118-A 15118-B

SSEECCUURRIITTYY PPRROODDUUCCTTSS

SIZE +2-1/2” (64)

SIZE

+2-1/2”

(64)

I. D.

SIZE

I. D. SIZE

MINIMUM WALL OPENING

= SIZE +7/8” (22)

WALL DEPTH

2”

(51)

E

MODEL RSPA 31

WALL DEPTH

2”

(51)

E

MODEL RSPA 32

FIRE DAMPER

VOLUME DAMPER

STANDARDS:

1. Frame and Sleeves: 14 gauge cold rolled steel construction.

2. Louvered Bars: .125 (3) x 1/2” (51) cold rolled steel welded at

each end and each intermediate support.

3. Wire Mesh: 10 gauge .135 (3) x #2 mesh.

4. Support Bars: 1/4” (6) square. welded at 6” O.C. max.

5. Mounting Screws: Tamper-proof spanner head screws.

6. Angles: Furnished without mounting holes, for field welding to

sleeve.

7. Damper: Balancing opposed blade damper, adjustable for volume
of air front operated.

8. Fire Damper: Galvanized steel frame and interlocking blades with
212°F (100°C) fusible link standard. Fire damper is U. L. Listed.

9. Finish: White Prime Coat.

OPTIONS:

1. Angles 1” x 1” x 1/8” (25 x 25 x 3) hot rolled steel

with mounting holes for 1/5” (6) security bolts at
6” (152) O. C. max. Angles furnished loose for
field mounting.

2. Damper can be rear operated.

3. Louvered bars may be placed at 30° angle.

FIRE DAMPER
