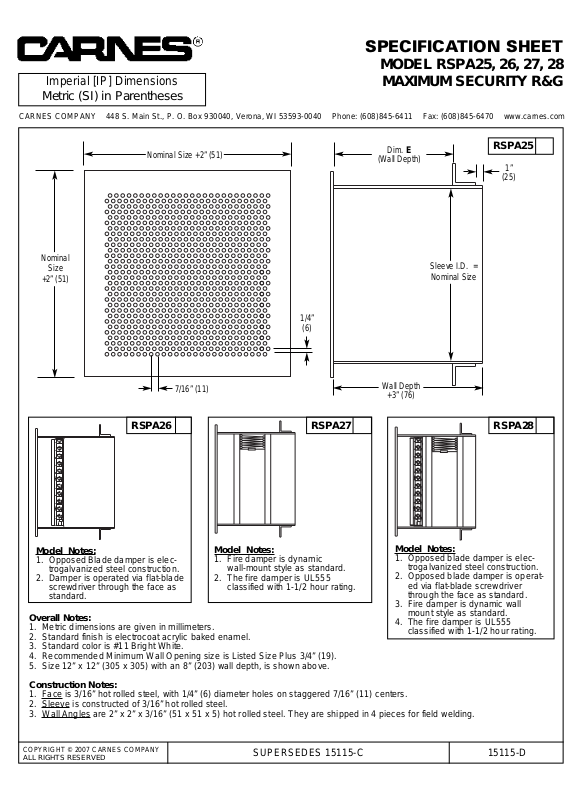

SPECIFICATION SHEET

MODEL RSPA25, 26, 27, 28

MAXIMUM SECURITY R&G

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 15115-C 15115-D

Dim. E

(Wall Depth)

Wall Depth

+3” (76)

Nominal Size +2” (51)

Nominal

Size

+2” (51)

7/16” (11)

1/4”

(6)

Sleeve I.D. =

Nominal Size

RSPA26

RSPA27 RSPA28

Model Notes:

1. Opposed Blade damper is elec­trogalvanized steel construction.

2. Damper is operated via flat-blade
screwdriver through the face as
standard.

Model Notes:

1. Fire damper is dynamic
wall-mount style as standard.

2. The fire damper is UL555
classified with 1-1/2 hour rating.

Overall Notes:

1. Metric dimensions are given in millimeters.

2. Standard finish is electrocoat acrylic baked enamel.

3. Standard color is #11 Bright White.

4. Recommended Minimum Wall Opening size is Listed Size Plus 3/4” (19).

5. Size 12” x 12” (305 x 305) with an 8” (203) wall depth, is shown above.

Construction Notes:

1. Face

is 3/16” hot rolled steel, with 1/4” (6) diameter holes on staggered 7/16” (11) centers.

2. Sleeve

is constructed of 3/16” hot rolled steel.

3. Wall Angles

are 2” x 2” x 3/16” (51 x 51 x 5) hot rolled steel. They are shipped in 4 pieces for field welding.

RSPA25

1”

(25)

Model Notes:

1. Opposed blade damper is elec­trogalvanized steel construction.

2. Opposed blade damper is operat­ed via flat-blade screwdriver
through the face as standard.

3. Fire damper is dynamic wall
mount style as standard.

4. The fire damper is UL555

classified with 1-1/2 hour rating.
