Imperial [IP] Dimensions
Metric (SI) in Parentheses

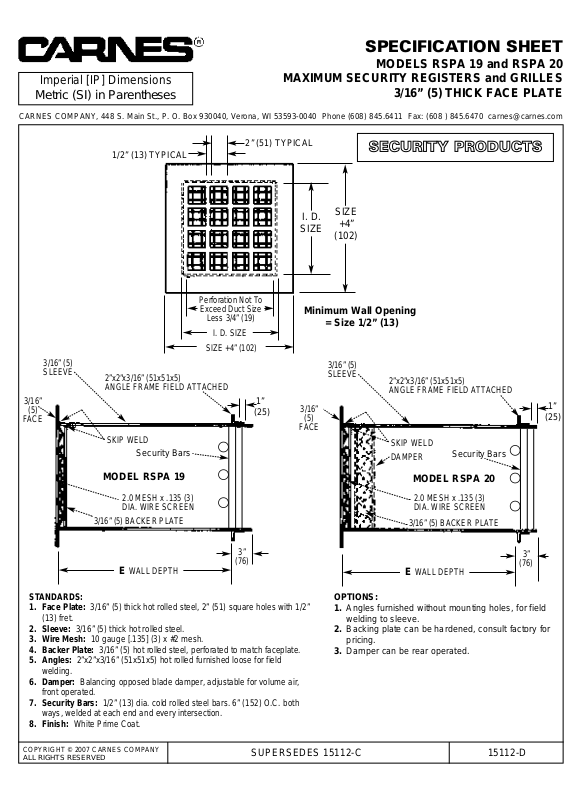

SPECIFICATION SHEET
MODELS RSPA 19 and RSPA 20
MAXIMUM SECURITY REGISTERS and GRILLES
3/16” (5) THICK FACE PLATE
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 15112-C 15112-D
SSEECCUURRIITTYY PPRROODDUUCCTTSS
1/2” (13) TYPICAL
2” (51) TYPICAL
I. D.
SIZE
SIZE
+4”
(102)
Perforation Not To
Exceed Duct Size
Less 3/4” (19)
I. D. SIZE
SIZE +4” (102)
Minimum Wall Opening
= Size 1/2” (13)
2”x2”x3/16” (51x51x5)
ANGLE FRAME FIELD ATTACHED
3/16” (5)
SLEEVE
SKIP WELD
3/16”
(5)
FACE
MODEL RSPA 19
MODEL RSPA 20
3”
(76)
2”x2”x3/16” (51x51x5)
ANGLE FRAME FIELD ATTACHED
3/16” (5)
SLEEVE
SKIP WELD
DAMPER
3/16”
(5)
FACE
3”
(76)
E
WALL DEPTH
E
WALL DEPTH
2.0 MESH x .135 (3)
DIA. WIRE SCREEN
3/16” (5) BACKER PLATE
STANDARDS:
1. Face Plate: 3/16” (5) thick hot rolled steel, 2” (51) square holes with 1/2”
(13) fret.
2. Sleeve: 3/16” (5) thick hot rolled steel.
3. Wire Mesh: 10 gauge [.135] (3) x #2 mesh.
4. Backer Plate: 3/16” (5) hot rolled steel, perforated to match faceplate.
5. Angles: 2”x2”x3/16” (51x51x5) hot rolled furnished loose for field
welding.
6. Damper: Balancing opposed blade damper, adjustable for volume air,
front operated.
7. Security Bars: 1/2” (13) dia. cold rolled steel bars. 6” (152) O.C. both
ways, welded at each end and every intersection.
8. Finish: White Prime Coat.
OPTIONS:
1. Angles furnished without mounting holes, for field
welding to sleeve.
2. Backing plate can be hardened, consult factory for
pricing.
3. Damper can be rear operated.
1”
(25)
1”
(25)
Security Bars
Security Bars
2.0 MESH x .135 (3)
DIA. WIRE SCREEN
3/16” (5) BACKER PLATE
