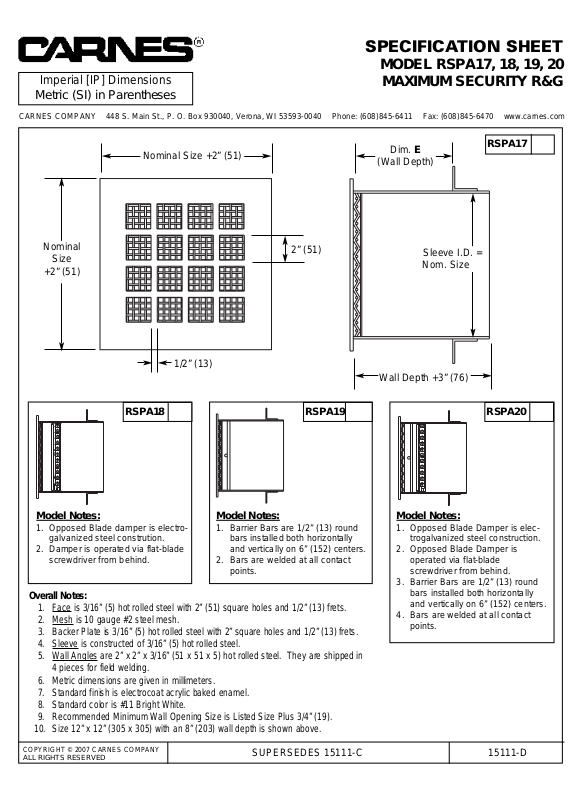

SPECIFICATION SHEET

MODEL RSPA17, 18, 19, 20

MAXIMUM SECURITY R&G

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 15111-C 15111-D

Overall Notes:

1. Face

is 3/16” (5) hot rolled steel with 2” (51) square holes and 1/2” (13) frets.

2. Mesh is 10 gauge #2 steel mesh.

3. Backer Plate is 3/16” (5) hot rolled steel with 2” square holes and 1/2” (13) frets.

4. Sleeve

is constructed of 3/16” (5) hot rolled steel.

5. Wall Angles

are 2” x 2” x 3/16” (51 x 51 x 5) hot rolled steel. They are shipped in

4 pieces for field welding.

6. Metric dimensions are given in millimeters.

7. Standard finish is electrocoat acrylic baked enamel.

8. Standard color is #11 Bright White.

9. Recommended Minimum Wall Opening Size is Listed Size Plus 3/4” (19).

10. Size 12” x 12” (305 x 305) with an 8” (203) wall depth is shown above.

RSPA18 RSPA20RSPA19

Model Notes:

1. Opposed Blade damper is electro­galvanized steel constrution.

2. Damper is operated via flat-blade
screwdriver from behind.

Model Notes:

1. Barrier Bars are 1/2” (13) round
bars installed both horizontally
and vertically on 6” (152) centers.

2. Bars are welded at all contact
points.

Model Notes:

1. Opposed Blade Damper is elec­trogalvanized steel construction.

2. Opposed Blade Damper is
operated via flat-blade
screwdriver from behind.

3. Barrier Bars are 1/2” (13) round
bars installed both horizontally
and vertically on 6” (152) centers.

4. Bars are welded at all contact
points.

Nominal

Size

+2” (51)

Nominal Size +2” (51)

2” (51)

1/2” (13)

Dim. E

(Wall Depth)

Sleeve I.D. =
Nom. Size

Wall Depth +3” (76)

RSPA17
