Carnes RSPA08 User Manual

Imperial [IP] Dimensions

Metric (SI) in Parentheses

SPECIFICATION SHEET

MODEL RSPA08

BARRIER BAR

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 15104-A 15104-B

Nominal Size

6” (152)

6”

(152)

2”
(51)

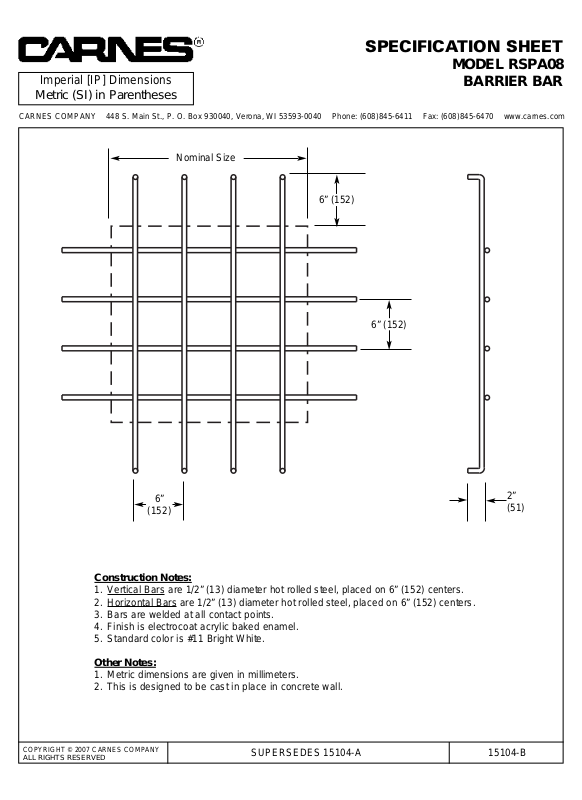

Construction Notes:

1. Vertical Bars

are 1/2” (13) diameter hot rolled steel, placed on 6” (152) centers.

2. Horizontal Bars are 1/2” (13) diameter hot rolled steel, placed on 6” (152) centers.

3. Bars are welded at all contact points.

4. Finish is electrocoat acrylic baked enamel.

5. Standard color is #11 Bright White.

Other Notes:

1. Metric dimensions are given in millimeters.

2. This is designed to be cast in place in concrete wall.

6” (152)
