Imperial [IP] Dimensions

Metric (SI) in Parentheses

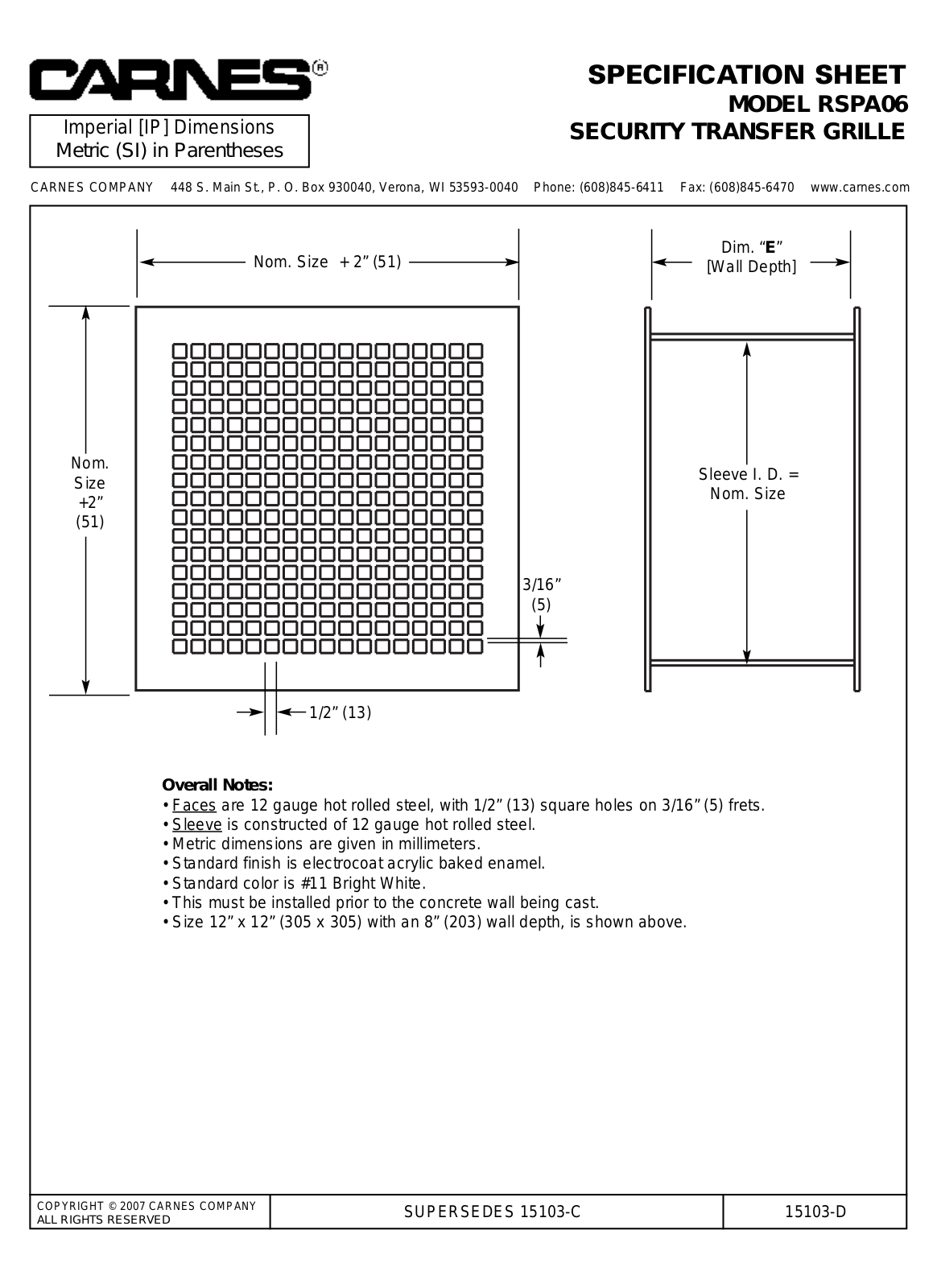

SPECIFICATION SHEET

MODEL RSPA06

SECURITY TRANSFER GRILLE

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 15103-C 15103-D

Nom. Size + 2” (51)

Nom.

Size

+2”

(51)

1/2” (13)

3/16”

(5)

Dim. “E”

[Wall Depth]

Sleeve I. D. =

Nom. Size

Overall Notes:

• Faces are 12 gauge hot rolled steel, with 1/2” (13) square holes on 3/16” (5) frets.

• Sleeve is constructed of 12 gauge hot rolled steel.

• Metric dimensions are given in millimeters.

• Standard finish is electrocoat acrylic baked enamel.

• Standard color is #11 Bright White.

• This must be installed prior to the concrete wall being cast.

• Size 12” x 12” (305 x 305) with an 8” (203) wall depth, is shown above.
