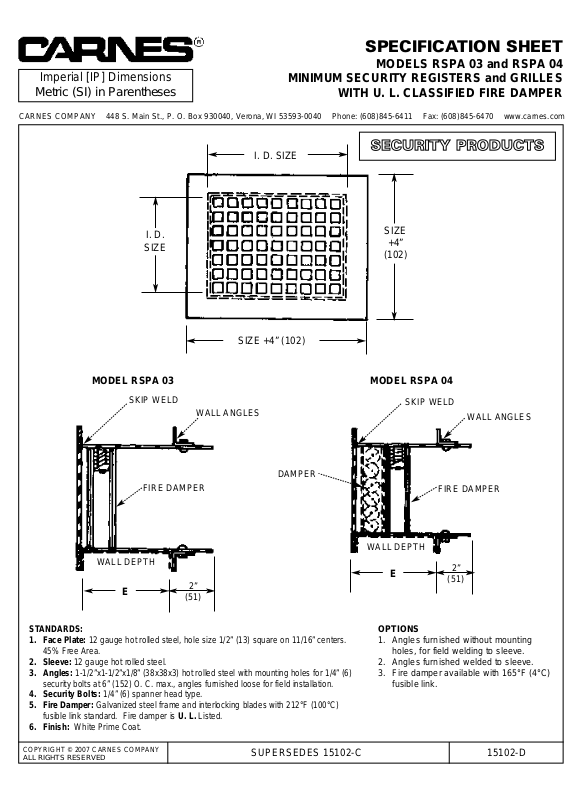

SPECIFICATION SHEET
MODELS RSPA 03 and RSPA 04
MINIMUM SECURITY REGISTERS and GRILLES
WITH U. L. CLASSIFIED FIRE DAMPER
CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6470 www.carnes.com
COPYRIGHT © 2007 CARNES COMPANY
ALL RIGHTS RESERVED
SUPERSEDES 15102-C 15102-D
I. D. SIZE
SIZE +4” (102)
I. D.
SIZE
SIZE
+4”
(102)
MODEL RSPA 03 MODEL RSPA 04
SKIP WELD
SKIP WELD
WALL ANGLES
FIRE DAMPER
WALL ANGLES
DAMPER
FIRE DAMPER
WALL DEPTH
WALL DEPTH
E
2”
(51)
E
2”
(51)
STANDARDS:
1. Face Plate: 12 gauge hot rolled steel, hole size 1/2” (13) square on 11/16” centers.
45% Free Area.
2. Sleeve: 12 gauge hot rolled steel.
3. Angles: 1-1/2”x1-1/2”x1/8” (38x38x3) hot rolled steel with mounting holes for 1/4” (6)
security bolts at 6” (152) O. C. max., angles furnished loose for field installation.
4. Security Bolts: 1/4” (6) spanner head type.
5. Fire Damper: Galvanized steel frame and interlocking blades with 212°F (100°C)
fusible link standard. Fire damper is U. L. Listed.
6. Finish: White Prime Coat.
OPTIONS
1. Angles furnished without mounting
holes, for field welding to sleeve.
2. Angles furnished welded to sleeve.
3. Fire damper available with 165°F (4°C)
fusible link.
