Imperial [IP] Dimensions

Metric (SI) in Parentheses

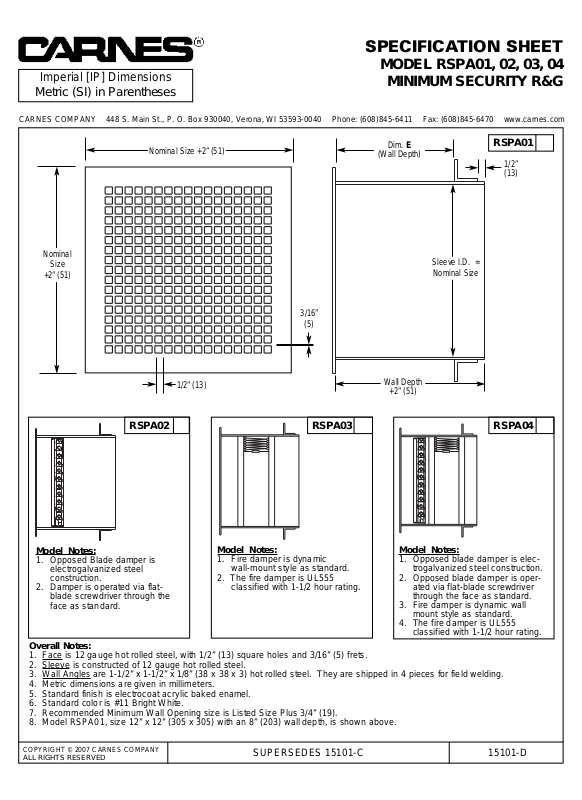

SPECIFICATION SHEET

MODEL RSPA01, 02, 03, 04

MINIMUM SECURITY R&G

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: [phone] Fax: [phone] www.carnes.com

COPYRIGHT © 2007 CARNES COMPANY

ALL RIGHTS RESERVED

SUPERSEDES 15101-C 15101-D

Dim. E

(Wall Depth)

Wall Depth

+2” (51)

Nominal Size +2” (51)

Nominal

Size

+2” (51)

1/2” (13)

3/16”

(5)

Sleeve I.D. =

Nominal Size

RSPA02

RSPA03 RSPA04

Model Notes:

1. Opposed Blade damper is
electrogalvanized steel
construction.

2. Damper is operated via flat­blade screwdriver through the
face as standard.

Model Notes:

1. Fire damper is dynamic
wall-mount style as standard.

2. The fire damper is UL555
classified with 1-1/2 hour rating.

Model Notes:

1. Opposed blade damper is elec­trogalvanized steel construction.

2. Opposed blade damper is oper­ated via flat-blade screwdriver
through the face as standard.

3. Fire damper is dynamic wall
mount style as standard.

4. The fire damper is UL555
classified with 1-1/2 hour rating.

Overall Notes:

1. Face

is 12 gauge hot rolled steel, with 1/2” (13) square holes and 3/16” (5) frets.

2. Sleeve

is constructed of 12 gauge hot rolled steel.

3. Wall Angles

are 1-1/2” x 1-1/2” x 1/8” (38 x 38 x 3) hot rolled steel. They are shipped in 4 pieces for field welding.

4. Metric dimensions are given in millimeters.

5. Standard finish is electrocoat acrylic baked enamel.

6. Standard color is #11 Bright White.

7. Recommended Minimum Wall Opening size is Listed Size Plus 3/4” (19).

8. Model RSPA01, size 12” x 12” (305 x 305) with an 8” (203) wall depth, is shown above.

1/2”
(13)

RSPA01
