Carnes RSE User Manual

COPYRIGHT © CARNES CO. 1999
ALL RIGHTS RESERVED

11633

CARNES COMPANY, 448 S.Main St., P.O.Box 930040, Verona, WI. 53593-0040 Phone: [phone] Fax: [phone] E-Mail: [e-mail] www.carnes.com

Sturdicore

TM

Heavy Duty Return R&G

Models RSH, RSE, RTH, RTE

Screw Hole Location

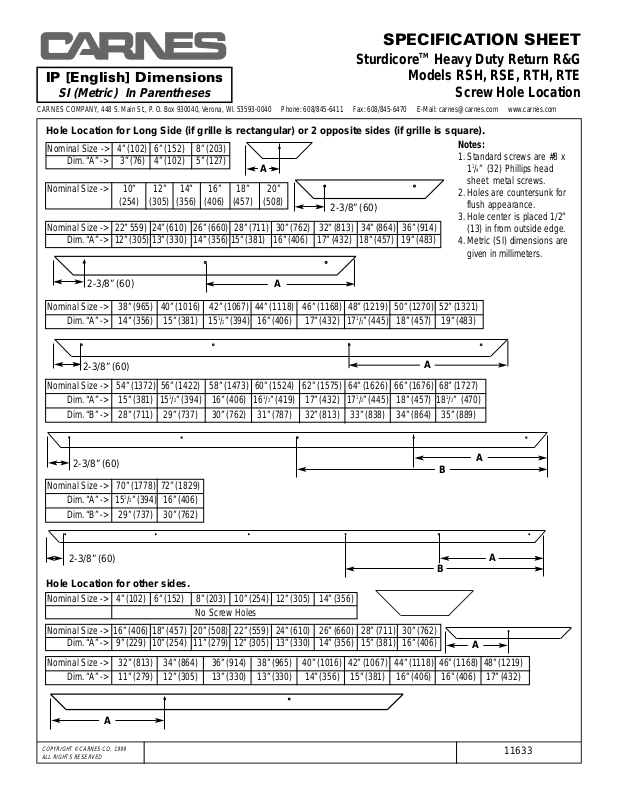

SPECIFICATION SHEET

IP [English] Dimensions

SI (Metric) In Parentheses

Hole Location for Long Side (if grille is rectangular) or 2 opposite sides (if grille is square).

Hole Location for other sides.

Nominal Size -> 4” (102) 6” (152) 8” (203)

Dim. “A” -> 3” (76) 4” (102) 5” (127)

Nominal Size -> 22” 559) 24” (610) 26” (660) 28” (711) 30” (762) 32” (813) 34” (864) 36” (914)

Dim. “A” -> 12” (305) 13” (330) 14” (356) 15” (381) 16” (406) 17” (432) 18”(457) 19” (483)

Nominal Size -> 16” (406) 18” (457) 20” (508) 22” (559) 24” (610) 26” (660) 28” (711) 30” (762)

Dim. “A” -> 9” (229) 10” (254) 11” (279) 12” (305) 13” (330) 14” (356) 15” (381) 16” (406)

Nominal Size -> 4” (102) 6” (152) 8” (203) 10” (254) 12” (305) 14” (356)

No Screw Holes

Nominal Size -> 38” (965) 40” (1016) 42” (1067) 44” (1118) 46” (1168) 48” (1219) 50” (1270) 52” (1321)

Dim. “A” -> 14” (356) 15”(381) 151/2” (394) 16” (406) 17” (432) 171/2” (445) 18” (457) 19” (483)

Nominal Size -> 32” (813) 34” (864) 36” (914) 38” (965) 40” (1016) 42” (1067) 44” (1118) 46” (1168) 48” (1219)

Dim. “A” -> 11” (279) 12”(305) 13” (330) 13” (330) 14” (356) 15” (381) 16” (406) 16” (406) 17” (432)

Nominal Size -> 54” (1372) 56” (1422) 58” (1473) 60” (1524) 62” (1575) 64” (1626) 66” (1676) 68” (1727)

Dim. “A” -> 15” (381) 151/2” (394) 16” (406) 161/2” (419) 17” (432) 171/2” (445) 18” (457) 181/2” (470)
Dim. “B” -> 28” (711) 29”(737) 30” (762) 31” (787) 32” (813) 33” (838) 34” (864) 35” (889)

Nominal Size -> 70” (1778) 72” (1829)

Dim. “A” -> 151/2” (394) 16” (406)
Dim. “B” -> 29” (737) 30”(762)

Nominal Size -> 10” 12” 14” 16” 18” 20”

(254) (305) (356) (406) (457) (508)

A

2-3/8” (60)

Notes:

1. Standard screws are #8 x
11/4” (32) Phillips head
sheet metal screws.

2. Holes are countersunk for
flush appearance.

3. Hole center is placed 1/2”
(13) in from outside edge.

4. Metr ic (SI) dimensions are
given in millimeters.

2-3/8” (60)

A

2-3/8” (60)

A

2-3/8” (60)

A

B

2-3/8” (60)

A

B

A

A
