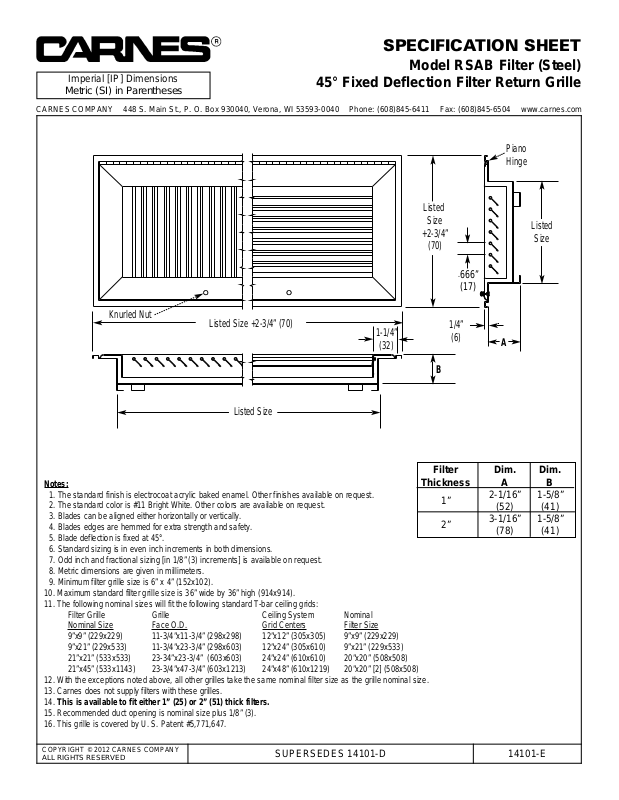

SPECIFICATION SHEET

Model RSAB Filter (Steel)

45° Fixed Deflection Filter Return Grille

Listed

Size

+2-3/4”

(70)

Listed Size +2-3/4” (70)

Listed Size

Listed

Size

1-1/4”

(32)

1/4”

(6)

666” (17)

Notes:

1. The standard finish is electrocoat acrylic baked enamel. Other finishes available on request.

2. The standard color is #11 Bright White. Other colors are available on request.

3. Blades can be aligned either horizontally or vertically.

4. Blades edges are hemmed for extra strength and safety.

5. Blade deflection is fixed at 45°.

6. Standard sizing is in even inch increments in both dimensions.

7. Odd inch and fractional sizing [in 1/8” (3) increments] is available on request.

8. Metric dimensions are given in millimeters.

9. Minimum filter grille size is 6” x 4” (152x102).

10. Maximum standard filter grille size is 36” wide by 36” high (914x914).

11. The following nominal sizes will fit the following standard T-bar ceiling grids: Filter Grille Grille Ceiling System Nominal Nominal Size

Face O.D. Grid Centers Filter Size 9”x9” (229x229) 11-3/4”x11-3/4” (298x298) 12”x12” (305x305) 9”x9” (229x229) 9”x21” (229x533) 11-3/4”x23-3/4” (298x603) 12”x24” (305x610) 9”x21” (229x533) 21”x21” (533x533) 23-34”x23-3/4” (603x603) 24”x24” (610x610) 20”x20” (508x508) 21”x45” (533x1143) 23-3/4”x47-3/4” (603x1213) 24”x48” (610x1219) 20”x20” [2] (508x508)

12. With the exceptions noted above, all other grilles take the same nominal filter size as the grille nominal size.

13. Carnes does not supply filters with these grilles.

14. This is available to fit either 1” (25) or 2” (51) thick filters.

15. Recommended duct opening is nominal size plus 1/8” (3).

16. This grille is covered by U. S. Patent #5,771,647.

Filter Dim. Dim.

Thickness A B

1”

2-1/16” 1-5/8”

(52) (41)

2”

3-1/16” 1-5/8”

(78) (41)

Piano Hinge

Knurled Nut

Imperial [IP] Dimensions

Metric (SI) in Parentheses

CARNES COMPANY 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone: (608)845-6411 Fax: (608)845-6504 www.carnes.com
