Carnes RSA41 User Manual
Imperial [IP] Dimensions
Metric (SI) in Parentheses

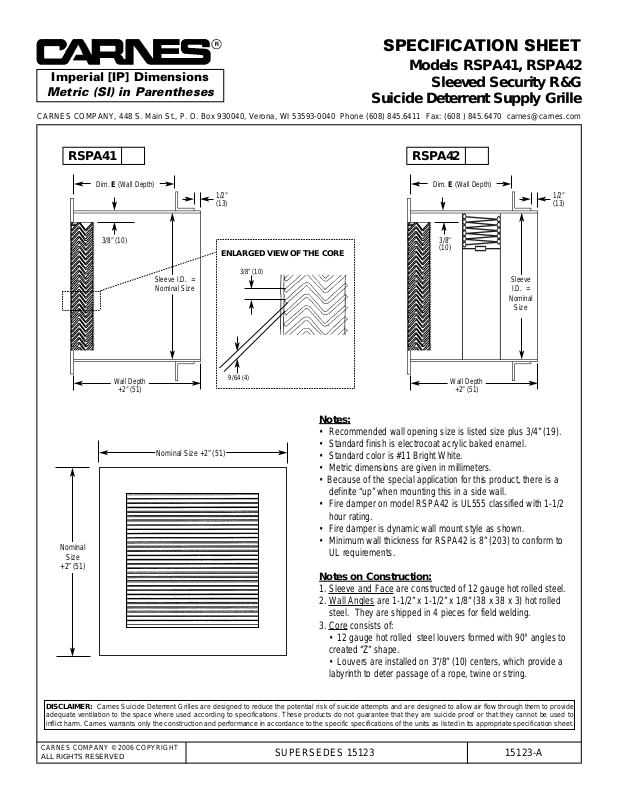

SPECIFICATION SHEET
Models RSPA41, RSPA42
Sleeved Security R&G
Suicide Deterrent Supply Grille
CARNES COMPANY, 448 S. Main St., P. O. Box 930040, Verona, WI 53593-0040 Phone (608) 845.6411 Fax: (608 ) 845.6470 carnes@carnes.com
CARNES COMPANY © 2006 COPYRIGHT
ALL RIGHTS RESERVED
SUPERSEDES 15123 15123-A
Notes:
• Recommended wall opening size is listed size plus 3/4” (19).
• Standard finish is electrocoat acrylic baked enamel.
• Standard color is #11 Bright White.
• Metric dimensions are given in millimeters.
• Because of the special application for this product, there is a
definite “up” when mounting this in a side wall.
• Fire damper on model RSPA42 is UL555 classified with 1-1/2
hour rating.
• Fire damper is dynamic wall mount style as shown.
• Minimum wall thickness for RSPA42 is 8” (203) to conform to
UL requirements.
Notes on Construction:
1. Sleeve and Face are constructed of 12 gauge hot rolled steel.
2. Wall Angles are 1-1/2” x 1-1/2” x 1/8” (38 x 38 x 3) hot rolled
steel. They are shipped in 4 pieces for field welding.
3. Core consists of:
• 12 gauge hot rolled steel louvers formed with 90° angles to
created “Z” shape.
• Louvers are installed on 3”/8” (10) centers, which provide a
labyrinth to deter passage of a rope, twine or string.
RSPA42RSPA41
DISCLAIMER: Carnes Suicide Deterrent Grilles are designed to reduce the potential risk of suicide attempts and are designed to allow air flow through them to provide
adequate ventilation to the space where used according to specifications. These products do not guarantee that they are suicide proof or that they cannot be used to
inflict harm. Carnes warrants only the construction and performance in accordance to the specific specifications of the units as listed in its appropriate specification sheet.
Dim. E (Wall Depth)
Wall Depth
+2” (51)
Nominal Size +2” (51)
Nominal
Size
+2” (51)
Sleeve I.D. =
Nominal Size
1/2”
(13)
3/8” (10)
9/64 (4)
ENLARGED VIEW OF THE CORE
3/8” (10)
Dim. E (Wall Depth)
Wall Depth
+2” (51)
Sleeve
I.D. =
Nominal
Size
1/2”
(13)
3/8”
(10)
