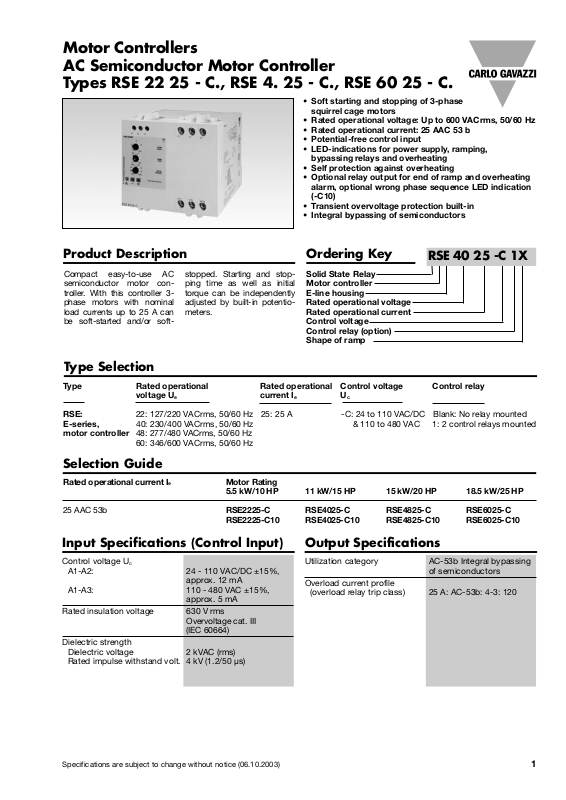

Carlo Gavazzi RSE 22 25 - C., RSE 4. 25 - C., RSE 60 25 - C Data sheet

Specifications are subject to change without notice (06.10.2003) 1

Type Rated operational Rated operational Control voltage Control relay

voltage U

e

current I

e

U

c

RSE: 22: 127/220 VACrms, 50/60 Hz 25: 25 A -C: 24 to 110 VAC/DC Blank: No relay mounted
E-series, 40: 230/400 VACrms, 50/60 Hz & 110 to 480 VAC 1: 2 control relays mounted
motor controller 48: 277/480 VACrms, 50/60 Hz

60: 346/600 VACrms, 50/60 Hz

Solid State Relay
Motor controller
E-line housing
Rated operational voltage
Rated operational current
Control voltage
Control relay (option)
Shape of ramp

Ordering Key

Motor Controllers
AC Semiconductor Motor Controller
Types RSE 22 25 - C., RSE 4. 25 - C., RSE 60 25 - C.

• Soft starting and stopping of 3-phase
squirrel cage motors

• Rated operational voltage: Up to 600 VACrms, 50/60 Hz

• Rated operational current: 25 AAC 53 b

• Potential-free control input

• LED-indications for power supply, ramping,
bypassing relays and overheating

• Self protection against overheating

• Optional relay output for end of ramp and overheating
alarm, optional wrong phase sequence LED indication
(-C10)

• Transient overvoltage protection built-in

• Integral bypassing of semiconductors

Product Description

Compact easy-to-use AC
semiconductor motor con­troller. With this controller 3­phase motors with nominal
load currents up to 25 A can
be soft-started and/or soft-

Type Selection

stopped. Starting and stop­ping time as well as initial
torque can be independently
adjusted by built-in potentio­meters.

Input Specifications (Control Input)

Control voltage U

c

A1-A2: 24 - 110 VAC/DC ±15%,

approx. 12 mA

A1-A3: 110 - 480 VAC ±15%,

approx. 5 mA

Rated insulation voltage 630 V rms

Overvoltage cat. III
(IEC 60664)

Dielectric strength

Dielectric voltage 2 kVAC (rms)
Rated impulse withstand volt. 4 kV (1.2/50 µs)

Output Specifications

Utilization category AC-53b Integral bypassing

of semiconductors

Overload current profile

(overload relay trip class) 25 A: AC-53b: 4-3: 120

RSE 40 25 -C 1X

Rated operational current I

e

Motor Rating

5.5 kW/10 HP 11 kW/15 HP 15 kW/20 HP 18.5 kW/25 HP

25 AAC 53b RSE2225-C RSE4025-C RSE4825-C RSE6025-C

RSE2225-C10 RSE4025-C10 RSE4825-C10 RSE6025-C10

Selection Guide

2 Specifications are subject to change without notice (06.10.2003)

Dimensions

RSE 22 25 - C., RSE 4. 25 - C., RSE 60 25 - C .

Power supply

Overvoltage cat. III (IEC 60664)
Rated operational volt. (Ue)
through terminals L1-L2-L3 (IEC 60038)

22 127/220 VAC rms ±15%

50/60 Hz -5/+5 Hz

40 230/400 VAC rms ±15%

50/60 Hz -5/+5 Hz

48 277/480 VAC rms ±15%

50/60 Hz -5/+5 Hz

60 346/600 VAC rms ±15%

50/60 Hz -5/+5 Hz
Voltage interruption ≤ 40 ms
Dielectric voltage 2 kV (rms)
Rated impulse withstand volt. 4 kV (1.2/50 µs)

Rated operational power 5 VA

supplied from L1-L2

Accuracy

Ramp up 10 ±10% on max.

≤ 0.5 s on min.

Ramp down 20 ±10% on max.

≤ 0.5 s on min.

Initial torque 50% ±5% on max.

< 5% on min.

EMC

Electromagnetic Compatibility

Immunity acc. to EN 50 082-2

Indication for

Power supply ON LED, green
Ramping LED, yellow (flashing)
Bypassing relay LED, yellow (constant ON)
Wrong phase sequence LED, red (flashing)
Overheated LED, red (constant ON)

Environment

Degree of protection IP 20
Pollution degree 3
Operating temperature -20° to +50°C (-4° to +122°F)
Storage temperature

-50° to +85°C (-58° to +185°F)

Terminals Screw with captive wire

clamp

Control terminals nominal 2.5 mm

2

, AVG 14

Min. 0.5 mm

2

, AWG 20
Mounting torque max. 0.6 Nm
Power terminals nominal 10 mm

2

, or 2 x 6 mm

2

AWG 6 or 2 x AWG 10

Min. 1 mm

2

, AWG 16

Mounting torque max. 2.0 Nm
Approval UL (listed), CSA
CE-marking Yes

Mode of Operation

This motor controller is intended
to be used to softstart/ stop 3­phase squirrel cage induction
motors and thereby reduce the
stress or wear on gear and
belt/chain drives and to give
smooth operation of machines.
Soft starting and or stopping is
achieved by controlling the
motor voltage. During running
operation the semiconductor is
bypassed by an internal electro­mechanical relay.

The initial torque can be adjust­ed from 5 to 50% of the nominal
torque.

The soft-start time can be ad­justed from 0.5 to 10 s and 0.5
to 20 s for the soft-stop respec­tively.

A green LED indicates supply.
The yellow LED is flashing dur­ing the ramping up or down.
After the ramping when the
semiconductors are bypassed
the yellow LED lights constantly.
The red LED is flashing when
the sequency is different from
L1-L2-L3 (only in -C10). If the
softstarter is overheated the red
LED is turned on constantly.

Alarm handling:

Over temperature: The RSE will
not start if the heatsink has an
internal temperature which is
exceeding approx 100°C. When
over temperature occurs while
the softstarter is not ramping (1)
or while the bypass Relays are
activated (2) the following will
happen:

1) The softstarter will not ramp
up and alarm relay is deacti­vated (contact open) - Reset
takes place when the temper­ature drops below the critical
level and only if the supply is
interrupted and reapplied.

2) The alarm relay will deactivate
(open) to indicate fault and
when the softstarter is not
ramping the softstarter will
react as described in 1).

Sequence: By wrong sequence
at connection of the power the
RSE will start normally but the
alarm relay will not activate.
(Contacts open).

Functional Diagram

UWV

A3

A2
A1

L1 L3L2

U/
T1

W/
T3

V/
T2

L1 L3L2

Uc

24-110 V

0

21 End of ramp
11 Alarm
22 C

Supply Specifications General Specifications

All dimensions in mm
