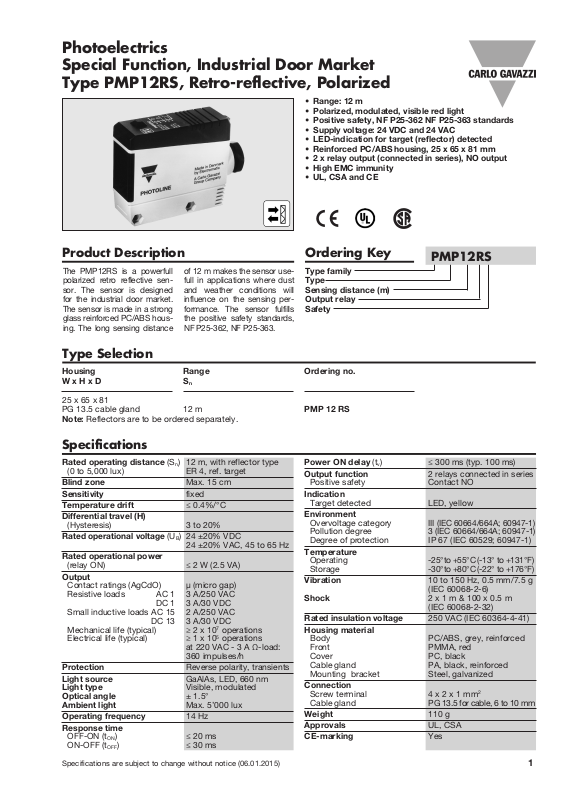

Carlo Gavazzi PMP12RS Data sheet

Photoelectrics
Special Function, Industrial Door Market
Type PMP12RS, Retro-reflective, Polarized

• Range: 12 m

• Polarized, modulated, visible red light

• Positive safety, NF P25-362 NF P25-363 standards

• Supply voltage: 24 VDC and 24 VAC

• LED-indication for target (reflector) detected

• Reinforced PC/ABS housing, 25 x 65 x 81 mm

• 2 x relay output (connected in series), NO output

• High EMC immunity

• UL, CSA and CE

Ordering KeyProduct Description

The PMP12RS is a powerfull
polarized retro reflective sen­sor. The sensor is designed
for the industrial door market.
The sensor is made in a strong
glass reinforced PC/ABS hous­ing. The long sensing distance

of 12 m makes the sensor use­full in applications where dust
and weather conditions will
influence on the sensing per­formance. The sensor fulfills
the positive safety standards,
NF P25-362, NF P25-363.

Type family
Type
Sensing distance (m)
Output relay
Safety

Type Selection

Housing Range Ordering no.
W x H x D Sn

25 x 65 x 81
PG 13.5 cable gland 12 m PMP 12 RS
Note: Reflectors are to be ordered separately.

Specifications

Rated operating distance (Sn) 12 m, with reflector type
(0 to 5,000 lux) ER 4, ref. target

Blind zone Max. 15 cm
Sensitivity fixed
Temperature drift ≤ 0.4%/°C
Differential travel (H)

(Hysteresis) 3 to 20%
Rated operational voltage (UB)

24 ±20% VAC, 45 to 65 Hz
Rated operational power

(relay ON) ≤ 2 W (2.5 VA)
Output

Contact ratings (AgCdO) µ (micro gap)
Resistive loads AC 1 3 A/250 VAC
DC 1 3 A/30 VDC
Small inductive loads AC 15 2 A/250 VAC
DC 13 3 A/30 VDC
Mechanical life (typical) ≥ 2 x 107 operations
Electrical life (typical) ≥ 1 x 105 operations
at 220 VAC - 3 A Ω-load:
360 impulses/h

Protection Reverse polarity, transients
Light source GaAlAs, LED, 660 nm

Light type Vis i ble, modulated
Optical angle ± 1.5°
Ambient light Max. 5’000 lux

Operating frequency 14 Hz
Response time

OFF-ON (tON) ≤ 20 ms
ON-OFF (t

) ≤ 30 ms

OFF

24 ±20% VDC

Power ON delay (tv) ≤ 300 ms (typ. 100 ms)
Output function

Positive safety Contact NO
Indication

Target detected LED, yellow
Environment

Overvoltage category
Pollution degree 3 (IEC 60664/664A; 60947-1)
Degree of protection IP 67 (IEC 60529; 60947-1)

Temperature
Operating -25°to +55°C (-13° to +131°F)
Storage -30°to +80°C (-22° to +176°F)

Vibration 10 to 150 Hz, 0.5 mm/7.5 g
(IEC 60068-2-6)
Shock 2 x 1 m & 100 x 0.5 m
(IEC 60068-2-32)

Rated insulation voltage 250 VAC (IEC 60364-4-41)
Housing material

Body PC/ABS, grey, reinforced
Front PMMA, red
Cover PC, black
Cable gland PA, black, reinforced
Mounting bracket Steel, galvanized

Connection
Screw terminal 4 x 2 x 1 mm

Cable gland PG 13.5 for cable, 6 to 10 mm

Weight 110 g
Approvals UL, CSA
CE-marking Yes

PMP12RS

2 relays connected in series

III (IEC 60664/664A; 60947-1)

2

Specifications are subject to change without notice (06.01.2015) 1

PMP12RS

Mode of Operation

The red light beam from the
emitter (3), is generated from
the mod u la tor (5), col li mat­ed in the lens (2) and po lar­ized in the polarizor (1). The
light beam is re turned by a
triple reflector and pass es a
sec ond polarizing filter (1) and

Block Diagram

the receiver lens (2) before
reaching the de tec tor element
(4).

The received signal is ampli­fied by the amplifier (6), and
the modulated impulses are
synchronized and detected

in the pulse detector (7). The
modulated impulses are
re cog nized in the demodula­tor (9).

The output signal from the
demodulator controls 2 re lays
(10 and 11) which are con-

nec-ted in the manner pre­scribed by the NF P25-362
standard. The centre of the
two relay contacts is avail a ble
as a check point for check ing
each con tact in di vid u al ly.

General Information about the Polarization Principle

To avoid false output sig­nals from targets with highly
re flec tive surfaces, a retro-re­flec tive photoelectric switch
can be equipped with polar­izing filters (anti-glare filters).
In this case the emitted light
first passes through a vertical

polarizing filter. The triple re­flector turns the po lar i za tion
90 degrees and reflects the
beam. The 90 degree turned
reflected light then pass­es a second polarizing filter
which enables only horizon-

tally po lar ized light to pass.
In this way, only the light
whose po lar i za tion plane has
been turned 90° by the triple
reflector will reach the re ceiv­er ele-ment. Since usual sur­faces do not depolarize the

Operation Diagram

tv = Power ON delay

Power supply

Target present

Object present

Output ON

t approx. 40 ms

light, the beam reflected by a
shiny tar get will not be rec­og nized as a reflector and the
switch ing el e ment will there­fore only change state when
receiving the re flec tor sig nal.

2 Specifications are subject to change without notice (06.01.2015)
