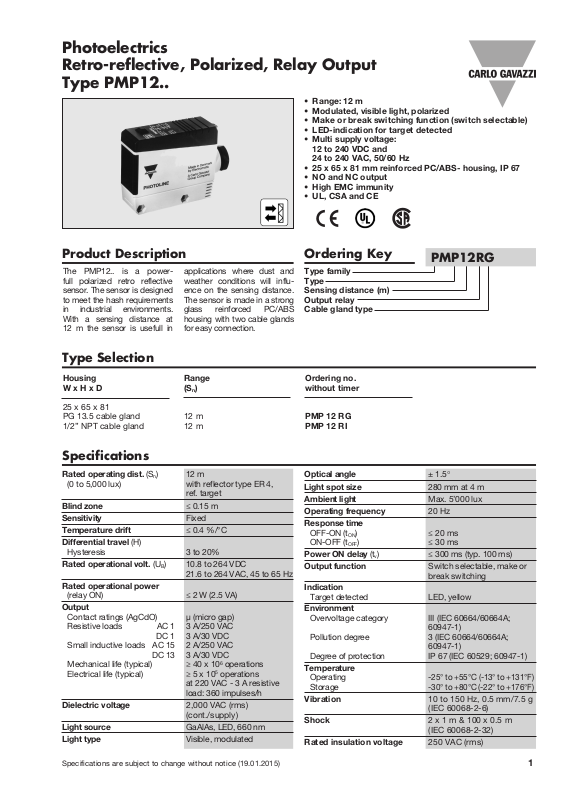

Photoelectrics
Retro-reflective, Polarized, Relay Output
Type PMP12..
• Range: 12 m
• Modulated, visible light, polarized
• Make or break switching function (switch selectable)
• LED-indication for target detected
• Multi supply voltage:
12 to 240 VDC and
24 to 240 VAC, 50/60 Hz
• 25 x 65 x 81 mm reinforced PC/ABS- housing, IP 67
• NO and NC output
• High EMC immunity
• UL, CSA and CE
Product De scrip tion
The PMP12.. is a powerfull polarized retro reflective
sensor. The sensor is designed
to meet the hash requirements
in industrial environments.
With a sensing distance at
12 m the sensor is usefull in
applications where dust and
weather conditions will influence on the sensing distance.
The sensor is made in a strong
glass reinforced PC/ABS
housing with two cable glands
for easy connection.
Ordering Key
Type family
Type
Sensing distance (m)
Output relay
Cable gland type
Type Selection
Housing Range Ordering no.
W x H x D (Sn) without timer
25 x 65 x 81
PG 13.5 cable gland 12 m PMP 12 RG
1/2” NPT cable gland 12 m PMP 12 RI
Specifications
Rated operating dist. (Sn) 12 m
(0 to 5,000 lux) with reflector type ER 4,
ref. target
Blind zone ≤ 0.15 m
Sensitivity Fixed
Temperature drift ≤ 0.4 %/°C
Differential travel (H)
Hysteresis 3 to 20%
Rated operational volt. (UB) 10.8 to 264 VDC
21.6 to 264 VAC, 45 to 65 Hz
Rated operational power
(relay ON) ≤ 2 W (2.5 VA)
Output
Contact ratings (AgCdO) µ (micro gap)
Resistive loads AC 1 3 A/250 VAC
DC 1 3 A/30 VDC
Small inductive loads AC 15 2 A/250 VAC
DC 13 3 A/30 VDC
Mechanical life (typical) ≥ 40 x 106 operations
Electrical life (typical) ≥ 5 x 105 operations
at 220 VAC - 3 A resistive
load: 360 impulses/h
Dielectric voltage 2,000 VAC (rms)
(cont./supply)
Light source GaAlAs, LED, 660 nm
Light type Visible, modulated
Optical angle ± 1.5°
Light spot size 280 mm at 4 m
Ambient light Max. 5’000 lux
Operating frequency 20 Hz
Response time
OFF-ON (tON) ≤ 20 ms
ON-OFF (t
Power ON delay (tv) ≤ 300 ms (typ. 100 ms)
Output function Switch selectable, make or
break switching
Indication
Target detected LED, yellow
Environment
Overvoltage category III (IEC 60664/60664A;
60947-1)
Pollution degree 3 (IEC 60664/60664A;
60947-1)
Degree of protection IP 67 (IEC 60529; 60947-1)
Temperature
Operating Stor age
Vibration 10 to 150 Hz, 0.5 mm/7.5 g
(IEC 60068-2-6)
Shock 2 x 1 m & 100 x 0.5 m
(IEC 60068-2-32)
Rated insulation voltage 250 VAC (rms)
OFF
PMP12RG
) ≤ 30 ms
25° to +55°C (-13° to +131°F)
-30° to +80°C (-22° to +176°F)
Specifications are subject to change without notice (19.01.2015) 1
Page 2
25
81
PMP12
ON
Specifications (cont.)
Housing material
Body PC/ABS, grey
Front PMMA, red
Cover PC, black
Cable gland PA, black, reinforced
Mounting bracket Steel, galvanized
Connection
Screw terminal 5 x 2 x 1 mm
Cable gland PG 13.5 or 1/2” NPT
2
for cable 6 to 10 mm
Weight 110 g
Approvals UL, CSA
CE-marking Yes
Operation Diagram
t = Time delay
tv = Power ON delay
Power supply
Target present
Object present
Connection Diagram
LED
DIP switches
12 - 240 VDC
24 - 240 VAC
50/60 Hz
30 VDC
250 VAC
Max. 3 A
Upper position ON (mode 1)
*
Lower position OFF (mode 0)
Break *
Make
Dimensions
PMP PMP with angle bracket
2.5
67.5
29.5
36
17.5
14.5
35.5Pg 13.5
or ½” NPT
61.5
Ø4.3
5
40
7
2 Specifications are subject to change without notice (19.01.2015)
Page 3
PMP12

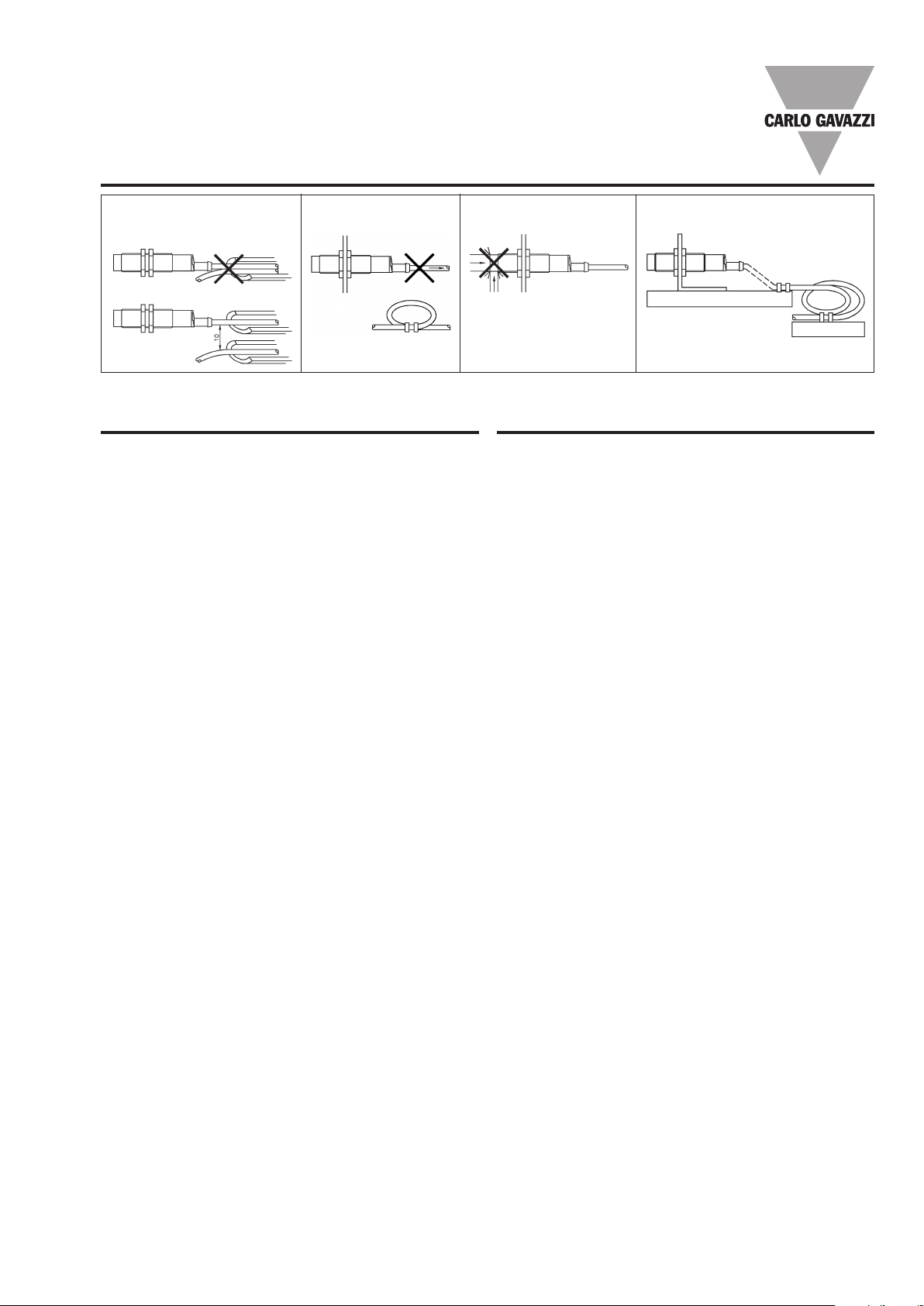

Installation Hints
current peaks, separate the prox. switch
power cables from any other power cables,
e.g. motor, contactor or solenoid cables
Delivery Contents
• Photoelectric switch: PMP12..
• Cable gland
• Installation instruction
• Mounting bracket
• Packaging: Cardboard box
Relief of cable strain
Incorrect
Correct
The cable should not be pulled
Protection of the sensing face Switch mounted on mobile carrierTo avoid interference from inductive voltage/
A proximity switch should not serve as
mechanical stop
Accessories
• Reflectors: ER series
• MB02 (longer mounting bracket)
Any repetitive flexing of the
cable should be avoided
Specifications are subject to change without notice (19.01.2015) 3
