Photoelectrics
Diffuse-reflective
Type PA18CSD0., DC, PBTP-housing
• Range: 400 mm adjustable
100, 200 or 400 mm fixed
• Modulated, infrared light
Supply voltage: 10 to 40 VDC
•
• Output: 200 mA NPN or PNP
• Make and break switching function, LED indication
• Protection: Reverse polarity, short-circuit, transients
• High immunity to ambient light
• Cable and plug versions
Product Description Ordering Key
The PA18CSD.. is a family of
inexpensive general purpose
Diffuse-reflective sensors in
industrial standard 18 mm
cylindrical PBTP housing.
They are useful for simple
applications where a basic
sensor provides adequate
sensing performance. The
sensors are simple to use
and no adjustment are necessary (except 400 mm diffuse adjustable type). The
output is a 4-wire complementary (NO and NC) output
in NPN (current sinking) or
PNP (current souring).
Type
Housing style
Housing size
Housing material
Housing length
Detection principle
Sensing distance
Output type
Output configuration
Connection type
Ajustable
PA18CSD04NAM1SA
Type Selection
Housing Rated Ordering no. Ordering no. Ordering no. Ordering no.
di am e ter operating NPN/Cable NPN/Plug PNP/Cable PNP/Plug
dist. (S
M18 100 mm fixed PA18CSD01NA PA18CSD01NAM1 PA18CSD01PA PA18CSD01PAM1
M18 200 mm fixed PA18CSD02NA PA18CSD02NAM1 PA18CSD02PA PA18CSD02PAM1
M18 400 mm fixed PA18CSD04NA PA18CSD04NAM1 PA18CSD04PA PA18CSD04PAM1
M18 400 mm adjust. PA18CSD04NASA PA18CSD04NAM1SA PA18CSD04PASA PA18CSD04PAM1SA
Note: Plugs to be ordered separately
) Make & break swit. Make & break swit. Make & break swit. Make & break swit.
n
Specifications
Rated operating dist. (Sn)
Adjustable Up to 400 mm
Fixed 100, 200 or 400 mm
Kodak test card R27, white,
90% reflectivity
Size: Sn < 400 mm 100 x 100 mm
Sn ≥ 400 mm
Sensitivity
Adjustable type only 270° turn potentiometer
Temperature drift 0.4%/K
Hysteresis (H)
(Differential travel) 3 to 20%
Rated operational volt. (UB)
Ripple (U
Output current
Continuous (I
Short-time (I) 200 mA,
max. load capacity 100 nF
Specifications are subject to change without notice (27.02.2006) 1
) Max. 10%
rpp
200 x 200 mm
) Max. 200 mA
e
Reference target:
10 to 40 VDC (ripple included)
No load supply current (IO) Max. 20 mA
Min. operational current (Im) 0.5 mA
OFF-state current (Ir) Max. 100 μA
Voltage drop (Ud) Max. 2.5 V @ 200 mA
Protection Reverse polarity, short circuit,
transients
Transient voltage Max. 1 kV/0.5 J
Light source GaAlAs LED, 880 nm
Light type Infrared,
modulated synchronized
Sensing angle ± 25° at 1/2range
Ambient light Max. 10,000 lux
Operating frequency (f) 120 Hz, light/dark ratio 1:2
Response time
OFF-ON (t
ON-OFF (t
Power ON delay (t
) ≤ 3.2 ms
ON
) ≤ 5 ms
OFF
) Typ. 100 ms
V
PA 18 CSD0
T
v
Tv
+
-
1 BN
4 BK
2 WH
3 BU
+
-
1 BN
4 BK
2 WH
3 BU

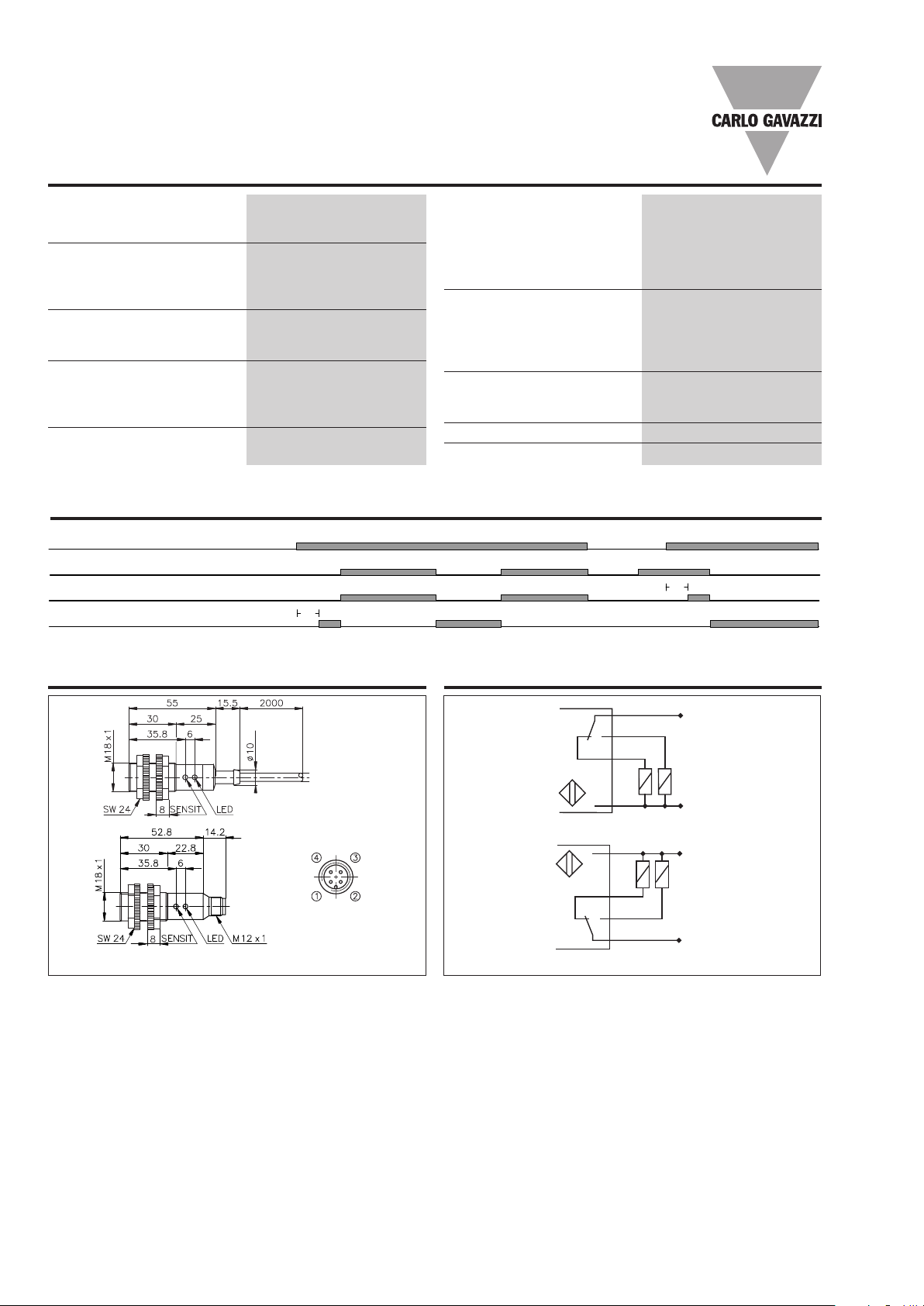

Specifications (cont.)
Indication function Dark and light
(complementary switch)
Output ON LED, yellow
Environment
Overvoltage category
Pollution degree
Degree of protection
III (IEC 60664/60664A; 60947-1)
3 (IEC 60664/60664A; 60947-1)
IP 67 (IEC 60529; 60947-1)
Temperature
Operating -20° to +60°C (-4° to 140°F)
Storage -30° to + 70°C (-22° to 158°F)
Vibration 10 to 150 Hz, 0.5 mm/7.5 g
(IEC 60068-2-6)
Shock 2 x 1 m & 100 x 0.5 m
(IEC 60068-2-32)
Dielectric voltage 600 VAC
(IEC 60365-4-41)
Operation Di a gram
Power supply
Object present, light received
Output ON: Make switch ing (NO) BK (4)
Break switching (NC) WH (2)
Housing material
Body PBTP, grey thermoplastic
polyester
Front Luran
®
, black
Cable end Polyester, black
Nuts Reinforced nylon
Connection
Cable Grey, 2 m, 4 x 0.35 mm
oilproof PVC
2
Plug M12 x 1
Cables for plug (M1) CON.1-.... series
Weight
Cable version 100 g
Plug version 17 g
Approvals UL, CSA
CE-marking Yes
Dimensions
Note: Sensitivity only 400 mm adjustable
Wiring Diagrams
PNP
NPN
2 Specifications are subject to change without notice (27.02.2006)
