Page 1
Housing Rated Ordering no. Ordering no. Ordering no. Ordering no.
dimensions operating dist. NPN/cable NPN/plug PNP/cable PNP/plug
W x H x D (S
n
)
1)
Make & break swit. Make & break swit. Make & break swit. Make & break swit.
Flush/non-flush
35 x 55 x 15 16/25 mm EC 5525 NPAP EC 5525 NPAP-1 EC 5525 PPAP EC 5525 PPAP-1
1)
Object: Grounded steel plate
Specifications are subject to change without notice (09.01.03) 1
Type Selection
Ordering KeyProduct Description

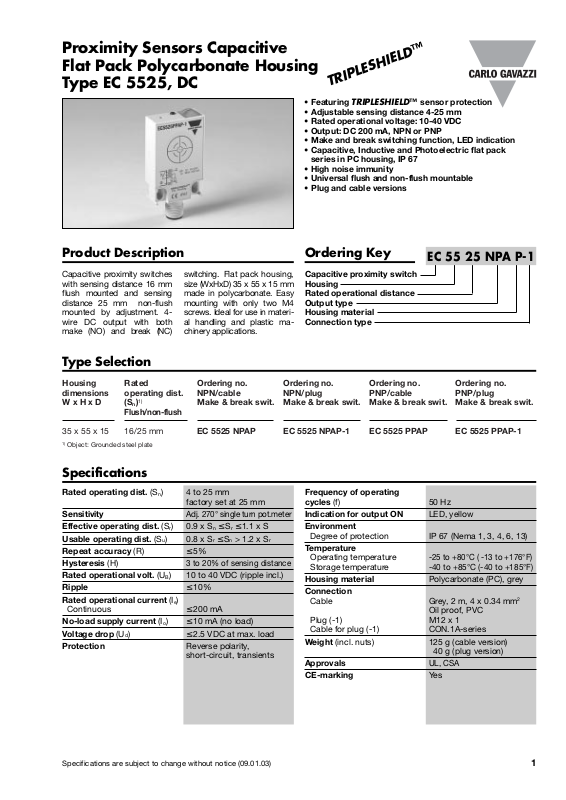

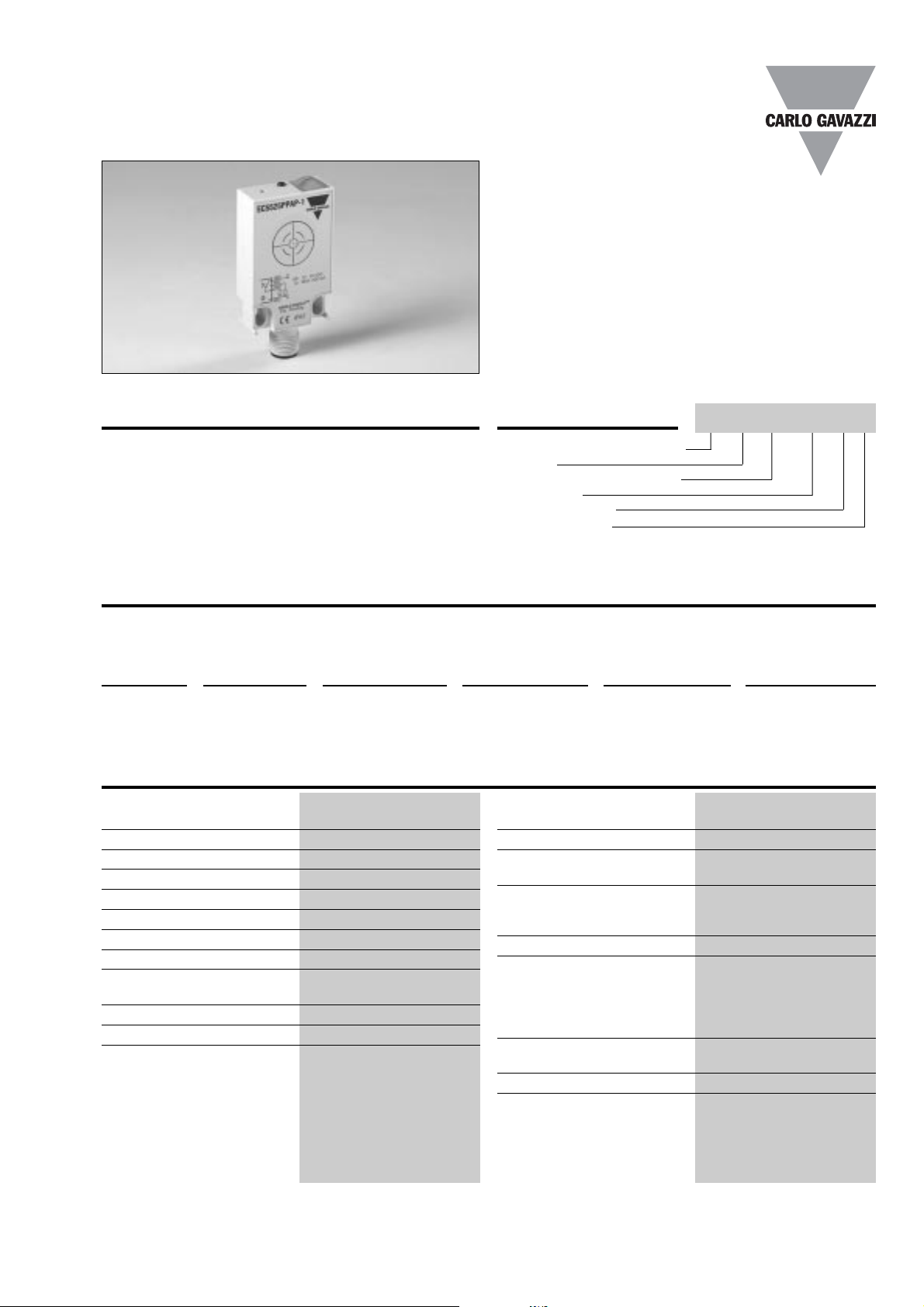

Proximity Sensors Capacitive
Flat Pack Polycarbonate Housing
Type EC 5525, DC
Capacitive proximity switches
with sensing distance 16 mm
flush mounted and sensing
distance 25 mm non-flush
mounted by adjustment. 4wire DC output with both
make (NO) and break (NC)
switching. Flat pack housing,
size (WxHxD) 35 x 55 x 15 mm
made in polycarbonate. Easy
mounting with only two M4
screws. Ideal for use in material handling and plastic machinery applications.
Capacitive proximity switch
Housing
Rated operational distance
Output type
Housing material
Connection type
EC 55 25 NPA P-1
TRIPLESHIELD™
• Featuring TRIPLESHIELD™ sensor protection
• Adjustable sensing distance 4-25 mm
• Rated operational voltage: 10-40 VDC
• Output: DC 200 mA, NPN or PNP
• Make and break switching function, LED indication
• Capacitive, Inductive and Photoelectric flat pack
series in PC housing, IP 67
•High noise immunity
• Universal flush and non-flush mountable
• Plug and cable versions
Frequency of operating
cycles (f) 50 Hz
Indication for output ON LED, yellow
Environment
Degree of protection IP 67 (Nema 1, 3, 4, 6, 13)
Temperature
Operating temperature
-25 to +80°C ( -13 to +176°F)
Storage temperature
-40 to +85°C (-40 to +185°F)
Housing material Polycarbonate (PC), grey
Connection
Cable Grey, 2 m, 4 x 0.34 mm
2
Oil proof, PVC
Plug (-1) M12 x 1
Cable for plug (-1) CON.1A-series
Weight (incl. nuts) 125 g (cable version)
40 g (plug version)
Approvals
UL, CSA
CE-marking Ye s
Specifications
Rated operating dist. (Sn)4 to 25 mm
factory set at 25 mm
Sensitivity
Adj. 270° single turn pot.meter
Effective operating dist. (Sr)0.9 x S
n
≤ Sr≤ 1.1 x S
Usable operating dist. (Su)0.8 x S
r
≤ S
n
> 1.2 x S
r
Repeat accuracy (R) ≤ 5%
Hysteresis (H)
3 to 20% of sensing distance
Rated operational volt. (UB) 10 to 40 VDC (ripple incl.)
Ripple ≤ 10%
Rated operational current (I
e
)
Continuous ≤ 200 mA
No-load supply current (I
o
) ≤ 10 mA (no load)
Voltage drop (U
d
) ≤ 2.5 VDC at max. load
Protection Reverse polarity,
short-circuit, transients
Page 2
2 Specifications are subject to change without notice (09.01.03)
M12x1 plug
57.5
15
12
9.5
Ø3
35
55
4.5
7
4.5
3.5
24.5
LED
Potentiometer

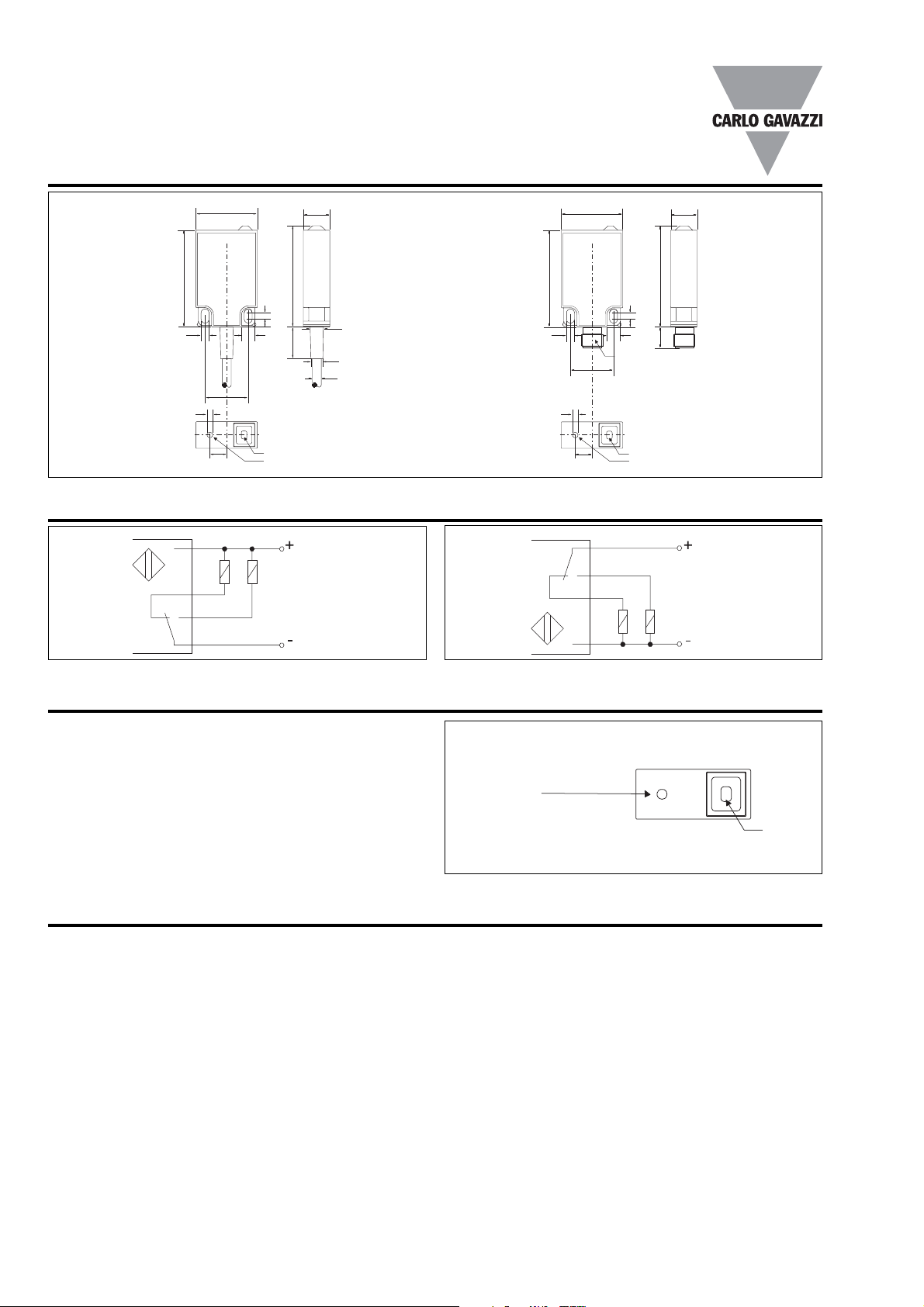

Dimensions
EC 5525, DC
EC 5525 .PAP EC 5525 .PAP-1
9.5
Ø3
35
55
4.5 7
24.5
4.5 3.5
57.5
15
Ø7.5
18
Ø6.8
Ø5.2
LED
Potentiometer
Wiring Diagrams
NPN
PNP
3 BU
2 WH
4 BK
1 BN
1 BN
2 WH
4 BK
3 BU
LED
The environments in which capacitive sensors are installed can
often be un
stable regarding tem-
perature, humidity,
object distance
and industrial (noise) interference.
Because of this, Carlo Gavazzi
offers as standard features in all
TRIPLESHIELD™ capacitive sensors a user-friendly sensitivity
adjustment instead of having a
fixed sensing range, extended
sensing range to accommodate
mechanically demanding areas,
temperature stability to ensure
minimum need for adjusting sensitivity if temperature varies and
high immunity to electromagnetic
interference (EMI).
Note:
Sensors are factory set (default)
to maximum rated sensing range.
Adjustment Guide
Installation Hints
Capacitive sensors have the
unique ability to detect almost all
materials, either in liquid or solid
form. Capacitive sensors can
detect metallic as well as nonmetallic objects, however, their
traditional use is for non-metallic
materials such as:
• Plastic Industry
Resins, regrinds or moulded
products.
• Chemical Industry
Cleansers, fertilisers, liquid
soaps, corrosives and petrochemicals.
• Wood Industry
Saw dust, paper products,
door and window
frames.
• Ceramic & Glass Industry
Raw material, clay or finished
products, bottles.
• Packaging Industry Package inspection for level or
contents, dry goods, fruits
and vegetables, dairy products.
Materials are detected due to
their dielectric constant. The bigger the size of an object, the
higher the density of material, the
better or easier it is to detect the
object. Nominal sensing distance
for a capacitive sensor is referenced to a grounded metal plate
(ST37). For additional information
regarding dielectric ratings of
materials please refer to
Technical Information.
Sensitivity
adjustment
Page 3
Specifications are subject to change without notice (09.01.03) 3
Delivery Contents
• Capacitive switch: EC55.. PAP(-1)
• Screw driver
• Packaging: Cardboard box
• Installation & Adjustment Guide
Accessories
• Plugs CON.1A.. serie
For further information refer to “Accessories”.
EC 5525, DC
Installation Hints (cont.)
Relief of cable strain
Protection of the sensing face Switch mounted on mobile carrierTo avoid interference from inductive voltage/
current peaks, separate the prox. switch power cables from any other power cables, e.g.
motor, contactor or solenoid cables
Incorrect
Correct
The cable should not be pulled
A proximity switch should not serve as
mechanical stop
Any repetitive flexing of the
cable should be avoided
