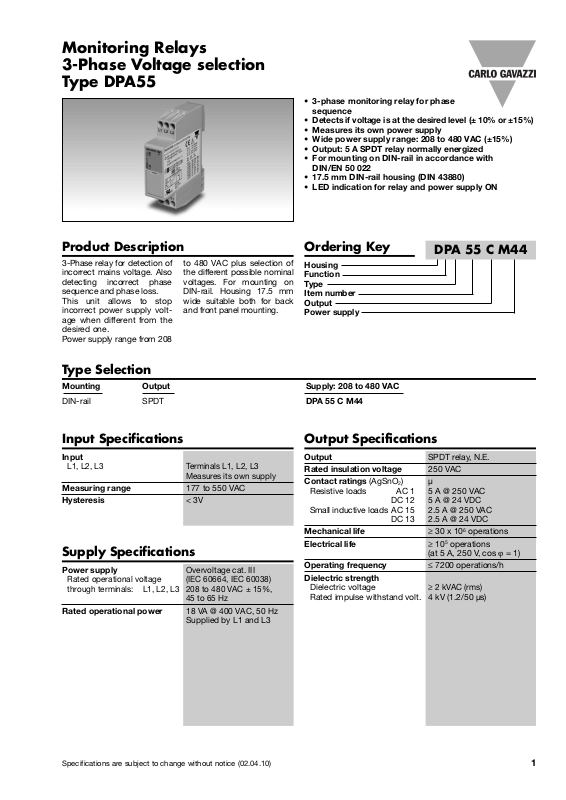

Carlo Gavazzi DPA55 Data Sheet
Monitoring Relays
3-Phase Voltage selection
Type DPA55
• 3-phase monitoring relay for phase
equence
s
• Detects if voltage is at the desired level (± 10% or ±15%)
• Measures its own power supply
• Wide power supply range: 208 to 480 VAC (±15%)
• Output: 5 A SPDT relay normally energized
• For mounting on DIN-rail in accordance with
DIN/EN 50 022
17.5 mm DIN-rail housing (DIN 43880)
•
• LED indication for relay and power supply ON
Product Description Ordering Key
3-Phase relay for detection of
incorrect mains voltage. Also
detecting incorrect phase
sequence and phase loss.
This unit allows to stop
incorrect power supply voltage when different from the
desired one.
Power supply range from 208
to 480 VAC plus selection of
the different possible nominal
voltages. For mounting on
DIN-rail. Housing 17.5 mm
wide suitable both for back
and front panel mounting.
Housing
Function
Type
Item number
Output
Power supply
Type Selection
Mounting Output Supply: 208 to 480 VAC
DIN-rail SPDT DPA 55 C M44
Input Specifications
Input
L1, L2, L3 Terminals L1, L2, L3
Measures its own supply
Measuring range 177 to 550 VAC
Hysteresis < 3V
Output Specifications
Output SPDT relay, N.E.
Rated insulation voltage 250 VAC
Contact ratings (AgSnO2)µ
Resistive loads AC 1 5 A @ 250 VAC
DC 12 5 A @ 24 VDC
Small inductive loads AC 15 2.5 A @ 250 VAC
DC 13 2.5 A @ 24 VDC
Mechanical life ≥ 30 x 106operations
Electrical life ≥ 105operations
Supply Specifications
Power supply
Rated operational voltage
ough terminals: L1, L2, L3 208 to 480 VAC ± 15%,
thr
Rated operational power
voltage cat. III
Over
(IEC 60664, IEC 60038)
45 to 65 Hz
18 VA @ 400 VAC, 50 Hz
Supplied by L1 and L3
Operating frequency ≤ 7200 operations/h
Dielectric strength
Dielectric voltage
Rated impulse withstand volt. 4 kV (1.2/50 µs)
DP
A 55 C M44
(at 5 A, 250 V, cos ϕ = 1)
≥ 2 kVAC (rms)
Specifications ar
e subject to change without notice (02.04.10)
1
DPA55
General Specifications
Reaction time
Alarm ON delay < 100 ms
Alarm OFF delay < 300 ms
ccuracy
A
Temperature drift ± 1000 ppm/°C
Repeatability ± 0.5% on full scale
ndication for
I
Power supply ON LED, green
Relay ON LED, yellow
nvironment
E
Degree of protection IP 20
Pollution degree 2
Operating temperature
@ Max. voltage, 50 Hz -20 to +60°C, R.H. < 95%
@ Max. voltage, 60 Hz -20 to +50°C, R.H. < 95%
Storage temperature -30 to +80°C, R.H. < 95%
15 min warm-up time)
(

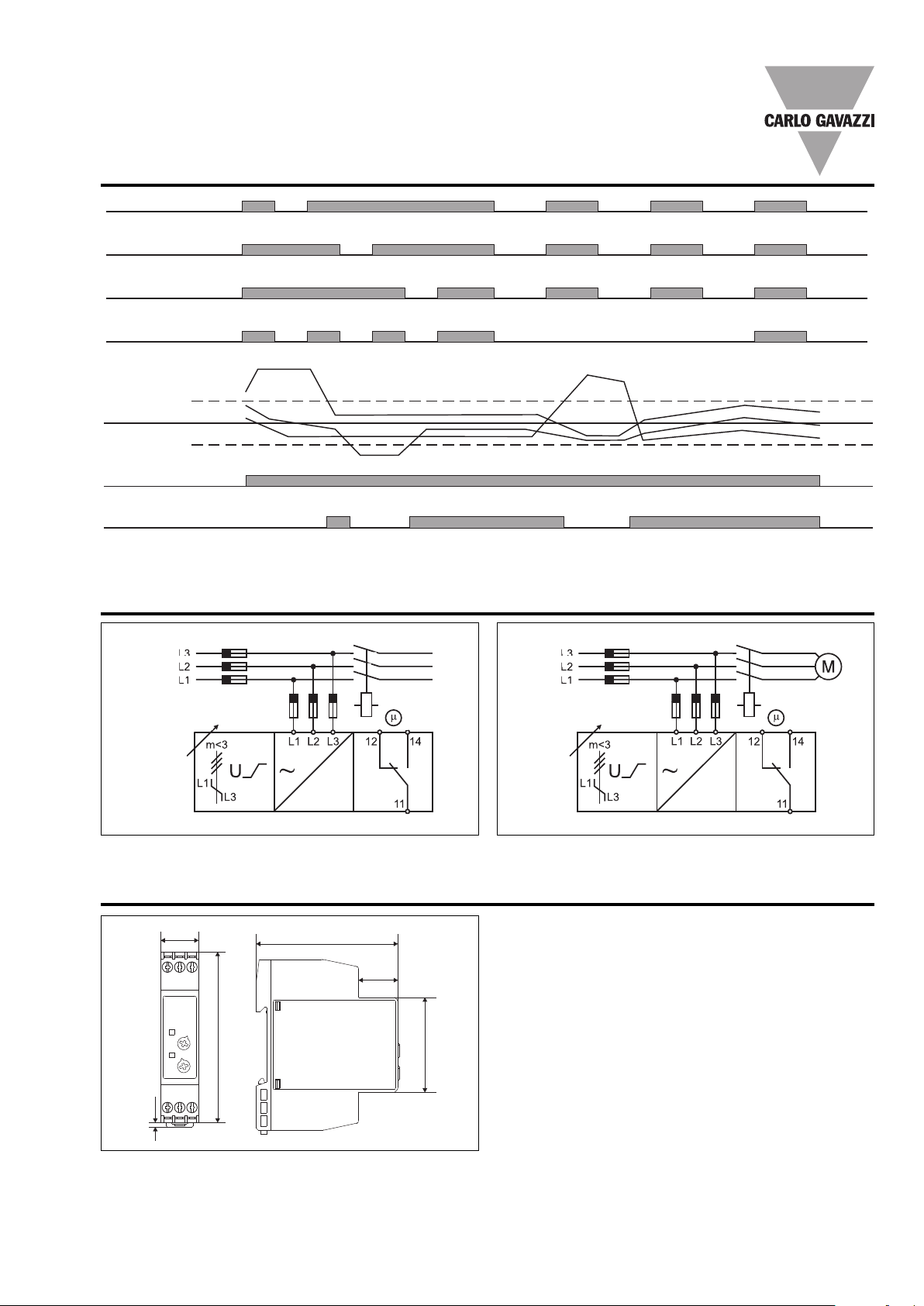

Mode of Operation
DPA55 monitors its own
3- phase power supply.
The relay operates when all
the phases are present, the
phase sequence is correct
and each phase-phase voltage is within the desired tolerance (± 10% or ± 15%).
Housing
Dimensions 17.5 x 81 x 67.2 mm
Material PA66 or Noryl
Weight Approx. 80 g
crew terminals
S
Tightening torque Max. 0.5 Nm
acc. to IEC 60947
Product standard EN 60255-6
Approvals UL, CSA
CE Marking L.V. Directive 2006/95/EC
EMC
Immunity According to EN 60255-26
Emissions According to EN 60255-26
Example 1
The relay monitors that the
power supply is the correct
one for the required equipment.
MC Directive 2004/108/EC
E
According to EN 61000-6-2
According to EN 61000-6-3
Example 2
The relay releases in case of
incorrect phase sequence or
when the voltage is outside
the set limits.
Range setting
Select the proper nominal
voltage level using DIPswitches as shown below.
Voltage window
ON: ± 15 %
OFF: ± 10 %
Measuring range
SW2 SW3 SW4
208 VAC OFF OFF OFF
220 VAC OFF OFF ON
230 VAC OFF ON OFF
240 VAC OFF ON ON
AC ON OFF OFF
380 V
400 VAC ON OFF ON
415 VAC ON ON OFF
480 VAC ON ON ON
2 Specifications ar
e subject to change without notice (02.04.10)
