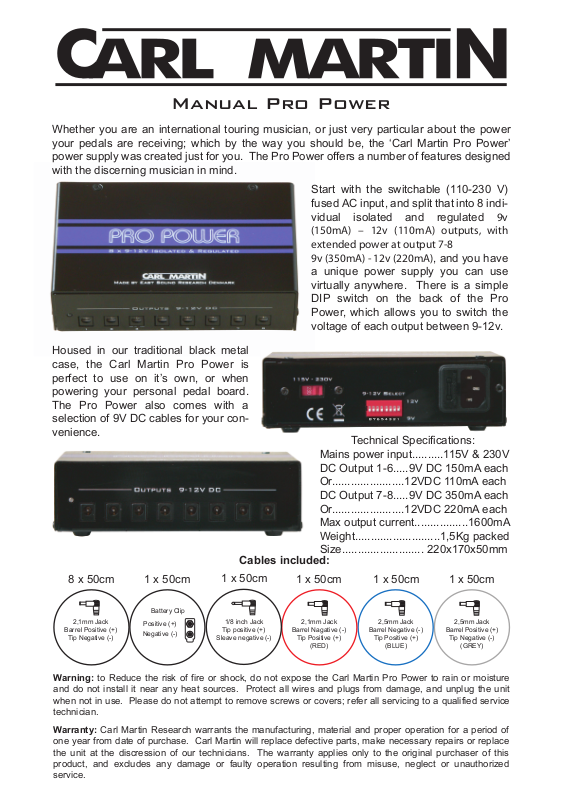

Manual Pro Power
Whether you are an international touring musician, or just very particular about the power
your pedals are receiving; which by the way you should be, the ‘Carl Martin Pro Power’
power supply was created just for you. The Pro Power offers a number of features designed
with the discerning musician in mind.
Start with the switchable (110-230 V)
fused AC input, and split that into 8 indi
vidual isolated and regulated 9v
(150mA) – 12v (110mA) outputs, with
extended power at output 7-8
9v (350mA) - 12v (220mA), and you have
a unique power supply you can use
virtually anywhere. There is a simple
DIP switch on the back of the Pro
Power, which allows you to switch the
voltage of each output between 9-12v.
Housed in our traditional black metal
case, the Carl Martin Pro Power is
perfect to use on it’s own, or when
powering your personal pedal board.
The Pro Power also comes with a
selection of 9V DC cables for your convenience.
Technical Specifications:
Mains power input..........115V & 230V
DC Output 1-6.....9V DC 150mA each
Or.......................12VDC 110mA each
DC Output 7-8.....9V DC 350mA each
Or.......................12VDC 220mA each
Max output current.................1600mA
Weight...........................1,5Kg packed
Size.......................... 220x170x50mm
Cables included:
-
8 x 50cm 1 x 50cm
Battery Clip
2,1mm Jack
Barrel Positive (+)
Tip Negative (-)
Warning: to Reduce the risk of fire or shock, do not expose the Carl Martin Pro Power to rain or moisture
and do not install it near any heat sources. Protect all wires and plugs from damage, and unplug the unit
when not in use. Please do not attempt to remove screws or covers; refer all servicing to a qualified service
technician.
Warranty: Carl Martin Research warrants the manufacturing, material and proper operation for a period of
one year from date of purchase. Carl Martin will replace defective parts, make necessary repairs or replace
the unit at the discression of our technicians. The warranty applies only to the original purchaser of this
product, and excludes any damage or faulty operation resulting from misuse, neglect or unauthorized
service.
Positive (+)
Negative (-)
1 x 50cm
1/8 inch Jack
Tip positive (+)
Sleave negative (-)
1 x 50cm 1 x 50cm 1 x 50cm
2,1mm Jack
Barrel Nagative (-)
Tip Positive (+)
(RED)
2,5mm Jack
Barrel Negative (-)
Tip Positive (+)
(BLUE)
2,5mm Jack
Barrel Positive (+)
Tip Negative (-)
(GREY)
